RF Energy Harvesting–Aided IoT Network: System Design and Prototype Implementation
Yang Wang, Hangyi Chen
TL;DR
This paper introduces an IoT network that uses radio frequency energy harvesting to power devices, combining wireless information and power transfer.
Contribution
A novel IoT network design integrating RF energy harvesting with wireless information transfer is proposed and experimentally validated.
Findings
The proposed IoT network successfully combines wireless information and power transfer.
RF energy harvesting provides a new energy supply method for IoT devices.
Experimental validation confirms the effectiveness and efficiency of the system.
Abstract

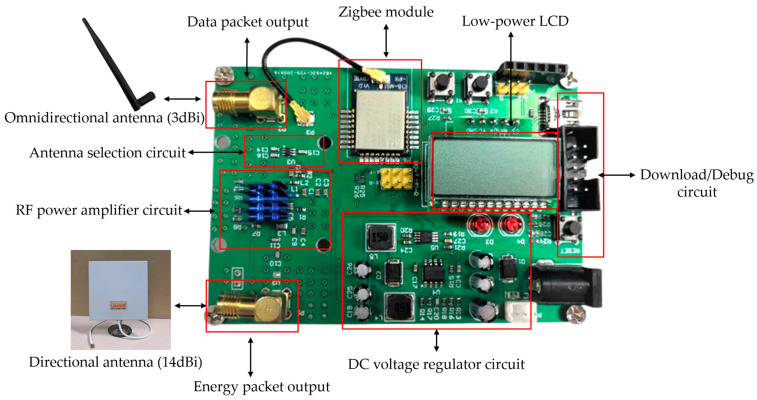

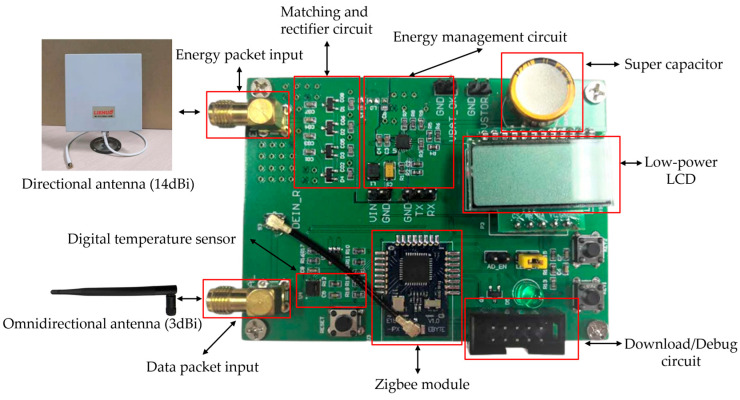

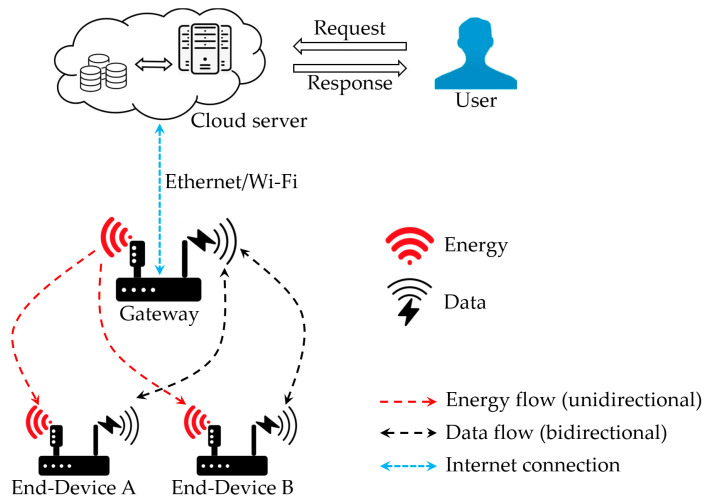

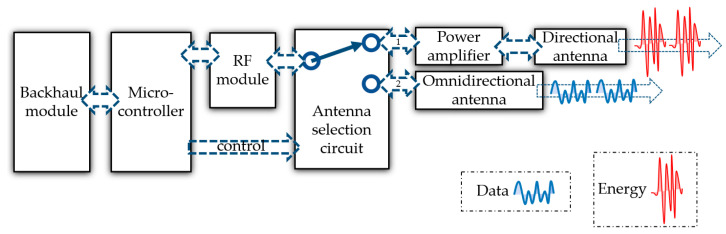

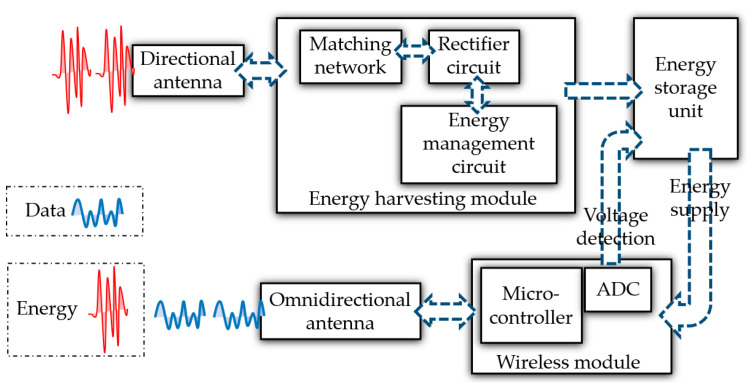

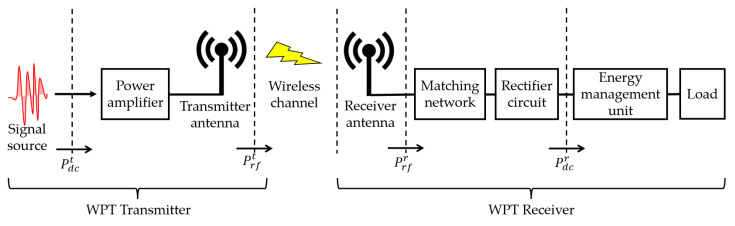

As more and more Internet of Things (IoT) devices are widely deployed, the issue of energy supply for these devices is becoming increasingly prominent. Considering not only the wireless information transfer (WIT) function of traditional IoT networks but also the characteristics of wireless power transfer (WPT), an RF energy harvesting–aided IoT network is proposed in this paper. In the new IoT network, a WPT transmitter and a WPT receiver are, respectively, introduced to the new gateway and the new end-device. A WPT transmitter is mainly composed of an antenna selection circuit, a power amplifier, and a directional antenna. A WPT receiver consists of a directional antenna, a matching network, a rectification circuit, and an energy management circuit. In order to coordinate WPT and WIT in an orderly manner and minimize WPT’s interference on WIT, a time-division scheme is adopted. The…
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17Peer Reviews
