A Multi-Beam Phased Array Receiver Front-End with High Performance Ceramic SiP
Haifu Zhang, Li-Xin Guo, Shubo Dun, Xiaoming Li, Xiaolong Xu
TL;DR
This paper introduces a compact phased array receiver using ceramic SiP technology for efficient thermal management and high-performance beam control in satellite communication.
Contribution
The novelty lies in using HTCC-based SiP technology to create a compact, high-performance multi-beam phased array with switchable polarization.
Findings
The phased array achieves stable radiation and beam consistency across 14–14.5 GHz.
The design demonstrates efficient thermal management and high polarization purity.
The array supports four independent beams with switchable circular polarization.
Abstract

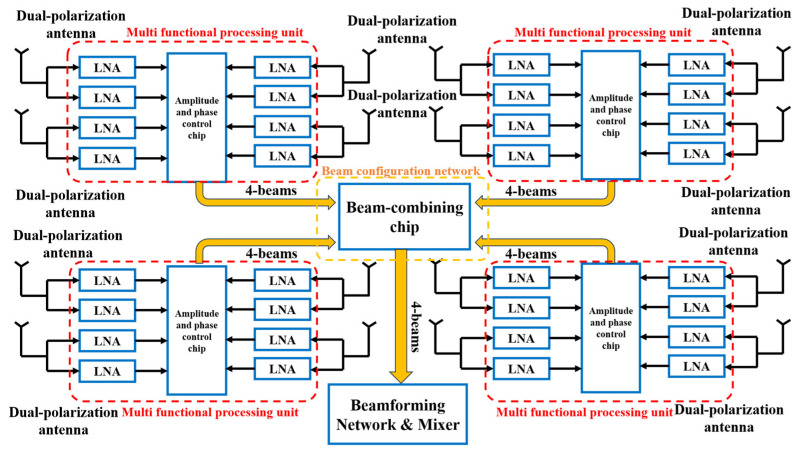

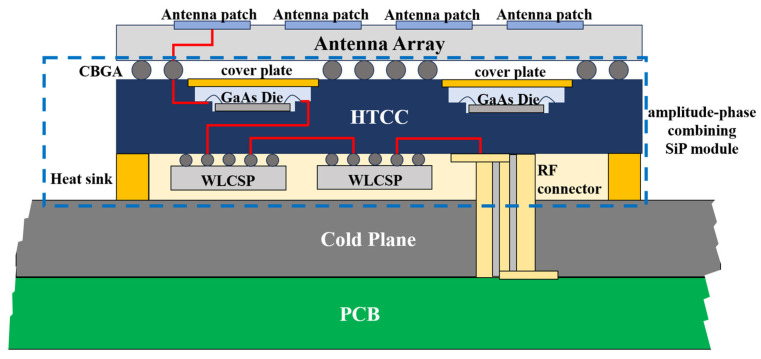

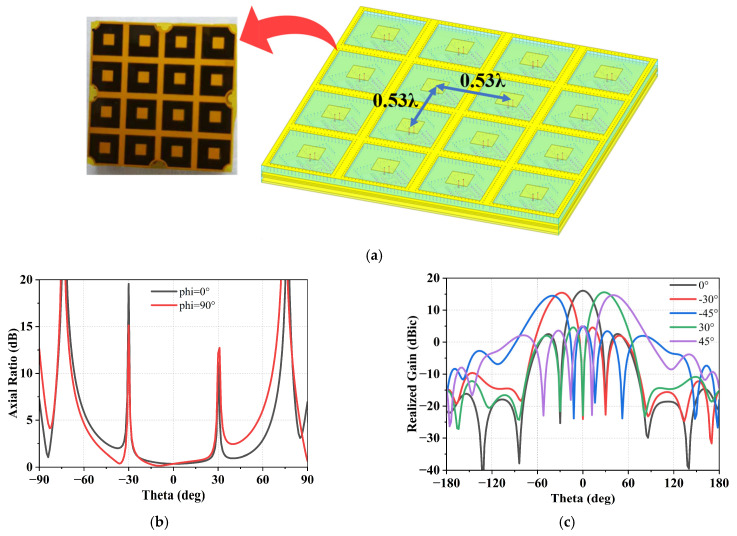

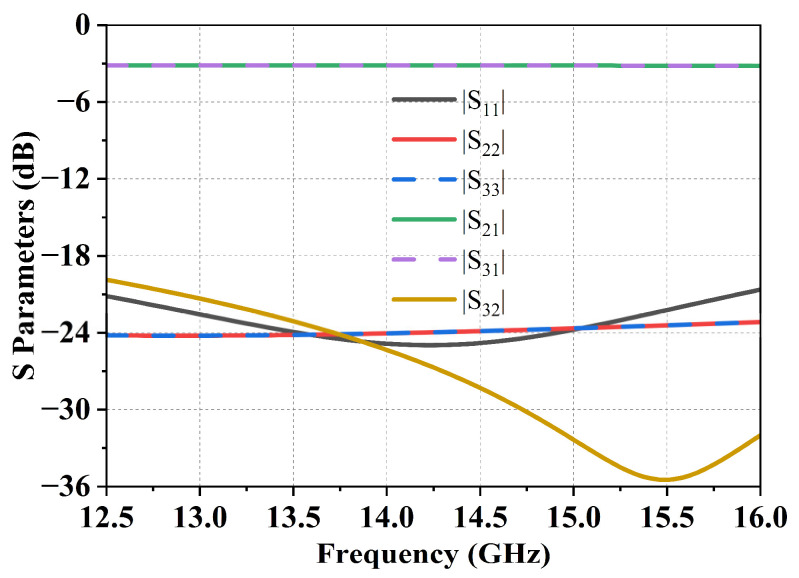

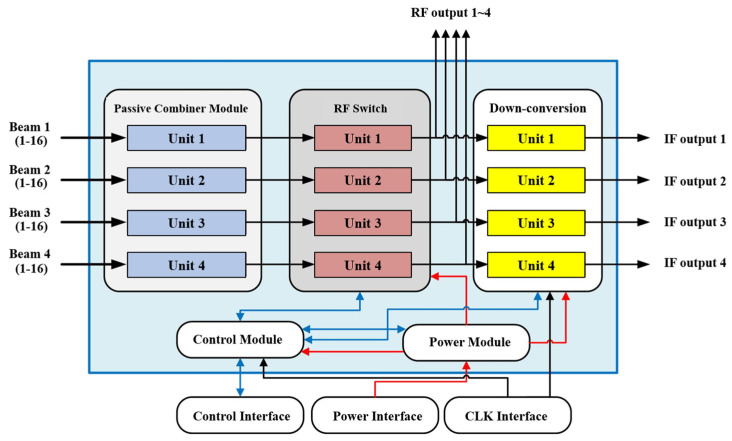

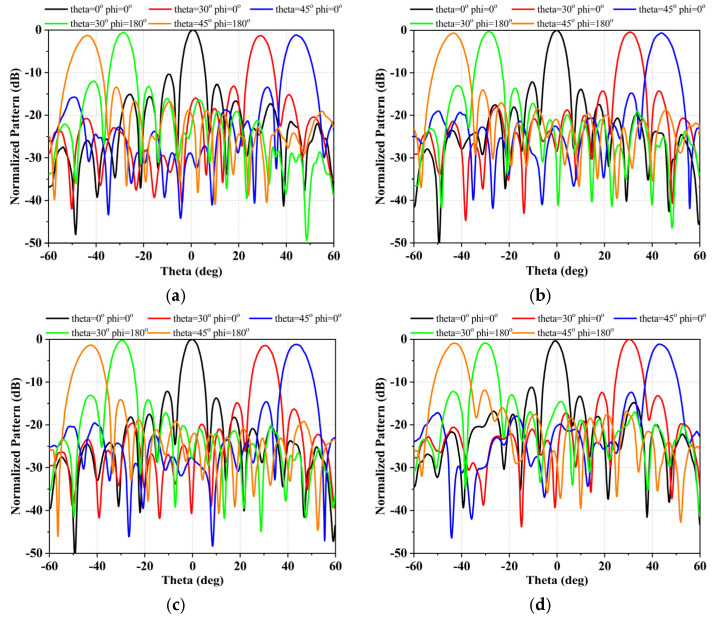

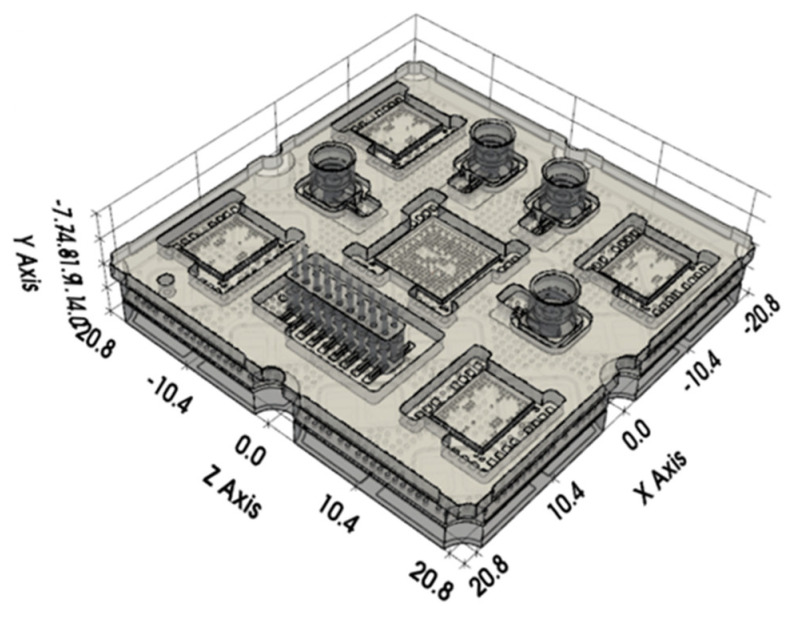

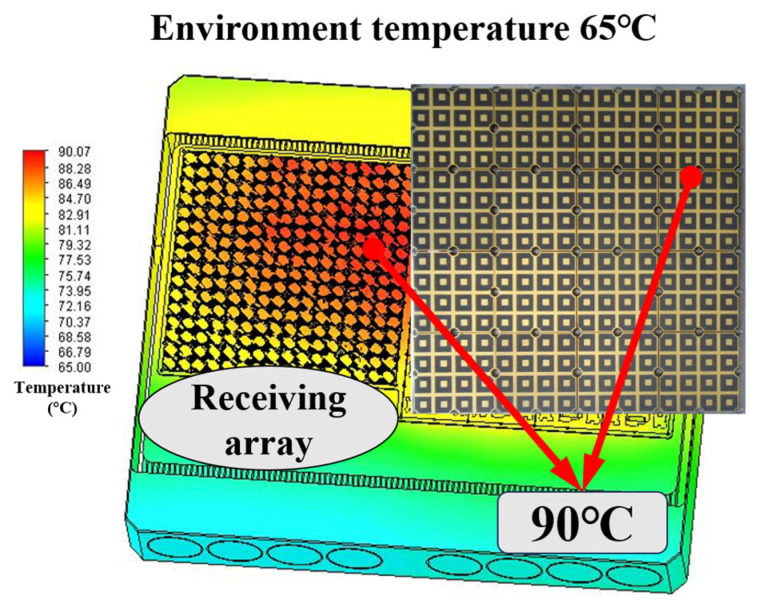

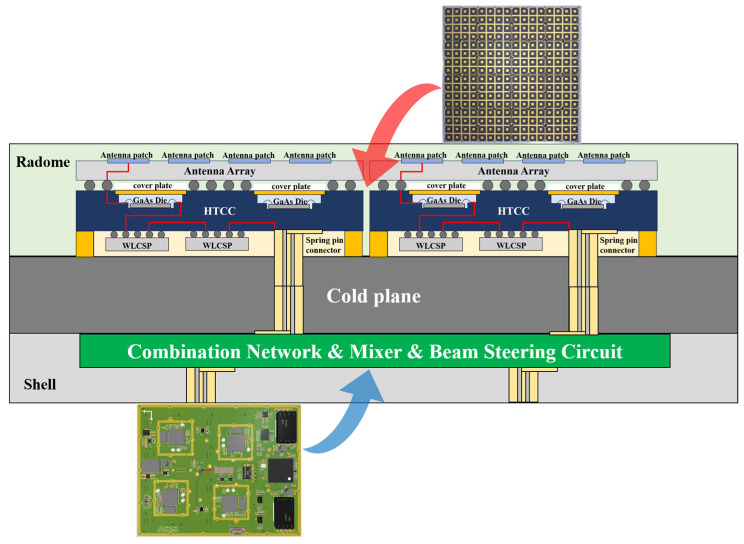

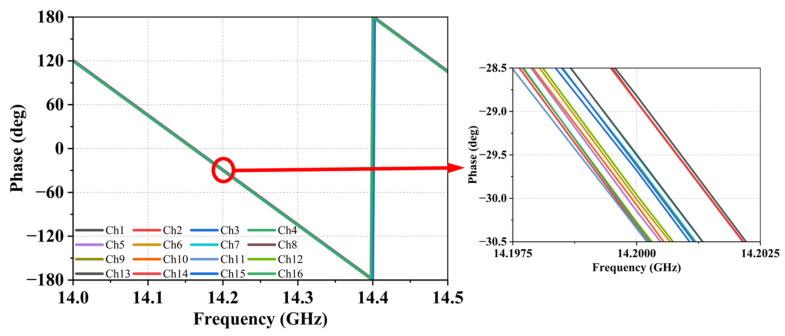

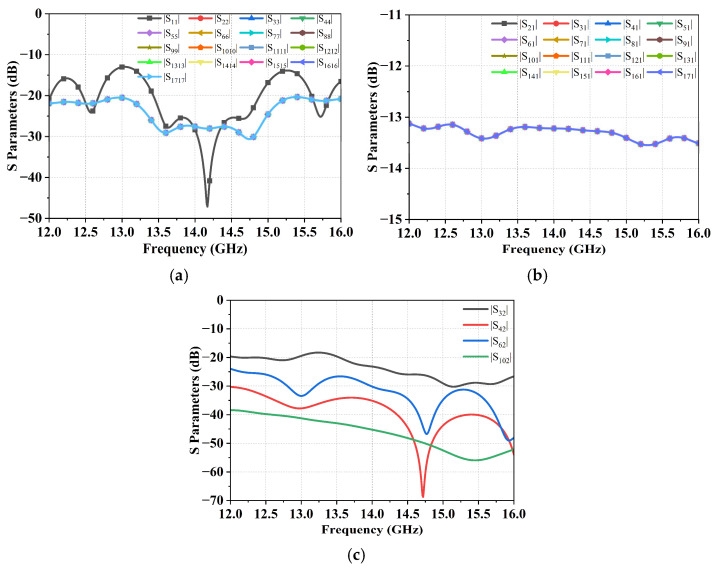

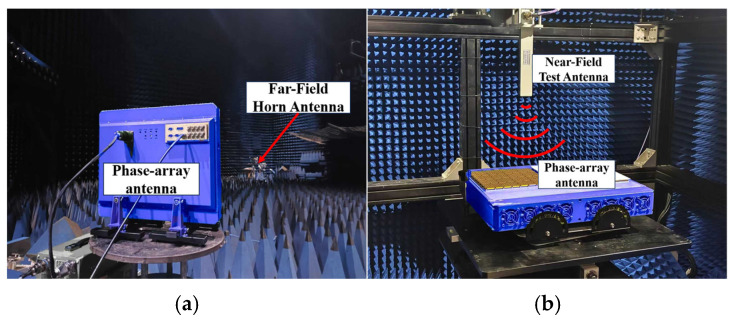

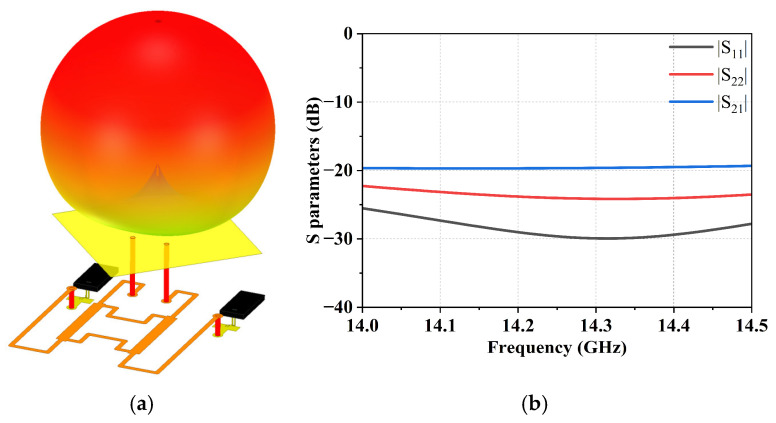

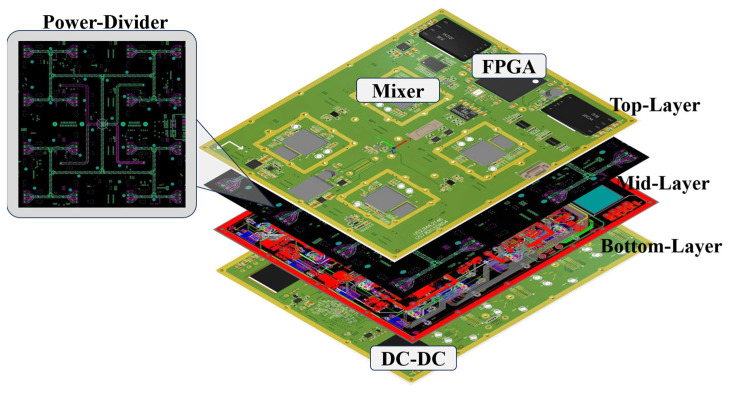

This paper presents a compact four-beam dual-polarized phased array with the high performance front-end module based on system-in-package (SiP) technology. By employing high-temperature co-fired ceramic (HTCC) substrates, the proposed design achieves efficient thermal management and high level of integration within a tile-type architecture. The front-end module based on SiP can simultaneously generate four independent beams with switchable left- and right-hand circular polarizations, providing flexible beam control. To verify the proposed method, a Ku-band 256-element phased array receiver with four beams has been designed and experimentally verified using HTCC and SiP process. Operating in 14–14.5 GHz, the proposed low-profile array demonstrates stable radiation characteristics, beam pointing accuracy and excellent beam consistency across the entire frequency range. The measurement…
