Design and Experimental Validation of a Round Inductosyn-Based Angular Measurement System
Jian Wang, Jianyuan Wang, Jinbao Chen, Chukang Zhong, Yuankui Shao
TL;DR
This paper introduces a high-precision angular measurement system using a round inductosyn, validated through experiments showing reliable and stable performance.
Contribution
A novel system combining hardware and software for error compensation in angular measurements is proposed and experimentally validated.
Findings
The system achieves residual angular error within ±3″ after compensation.
Measurement consistency is significantly improved across repeated experiments.
The system demonstrates good continuity and stability for high-precision applications.
Abstract

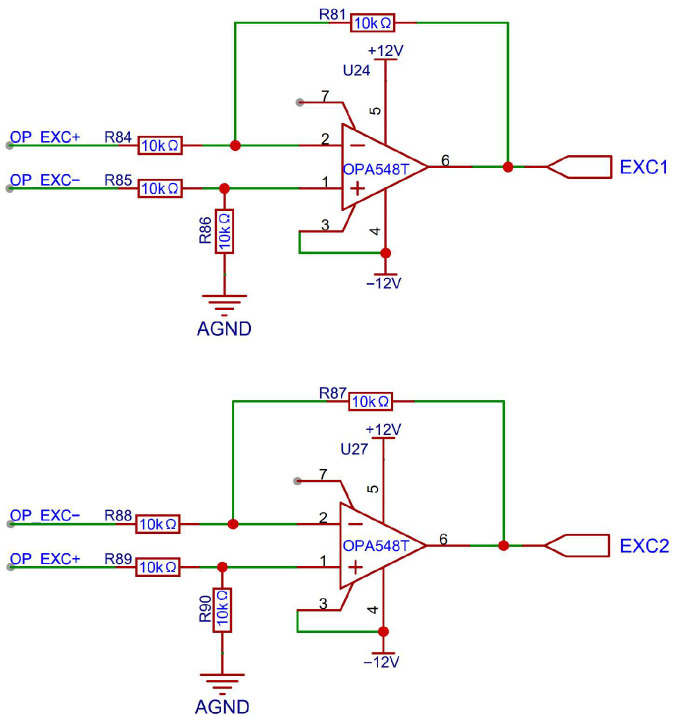

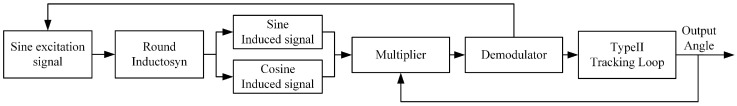

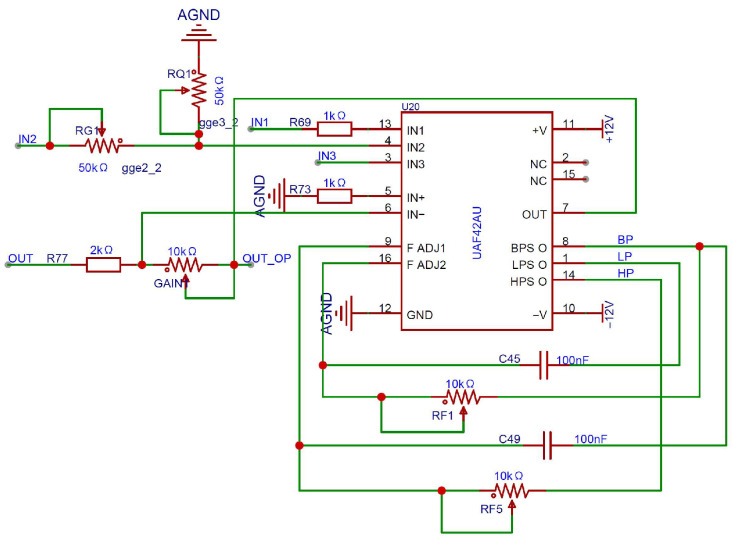

This paper presents the design, implementation, and experimental validation of a high-precision angular measurement system based on a round inductosyn. Dedicated hardware circuits, including excitation, signal conditioning, and resolver-to-digital conversion modules, together with software algorithms for coarse–fine data fusion and linear interpolation-based error compensation, are developed to achieve accurate and stable angular measurement. Experimental results obtained from repeated measurements over a full rotation demonstrate reliable system operation and effective suppression of nonlinear errors. After compensation, the residual angular error is limited to within ±3″, while measurement consistency across repeated experiments is significantly improved. The output angle exhibits good continuity and stability, confirming the feasibility and effectiveness of the proposed system for…
Click any figure to enlarge with its caption.

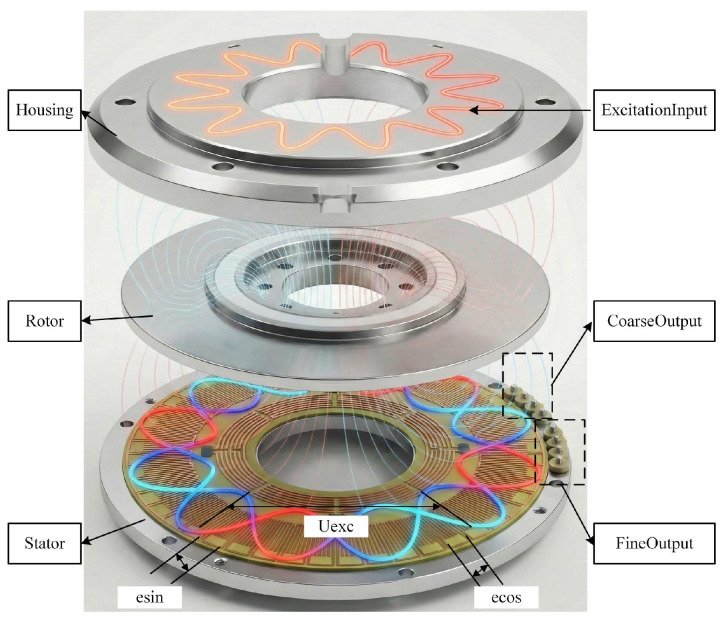

Figure 1

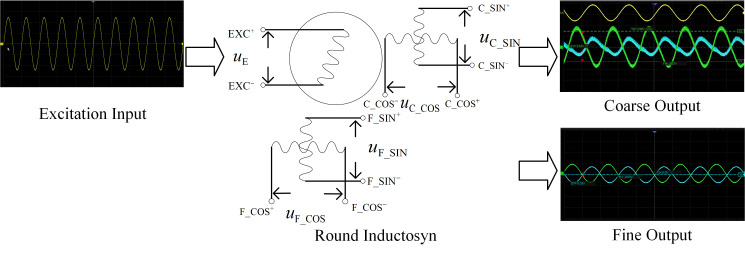

Figure 2
Figure 3
Figure 4

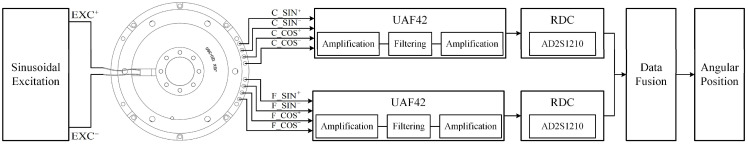

Figure 5
Figure 6
Figure 7

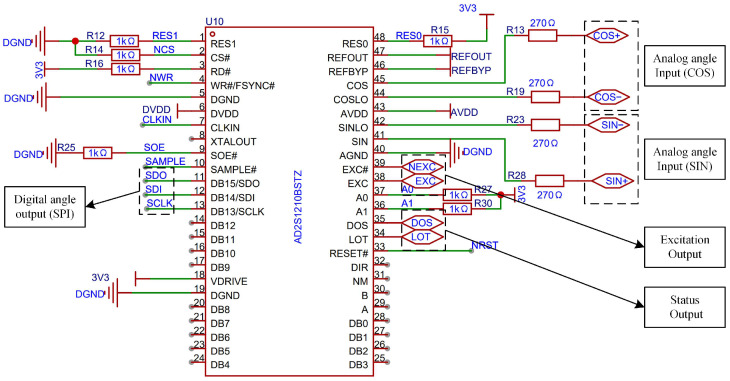

Figure 8
Figure 9
Figure 10
Figure 11

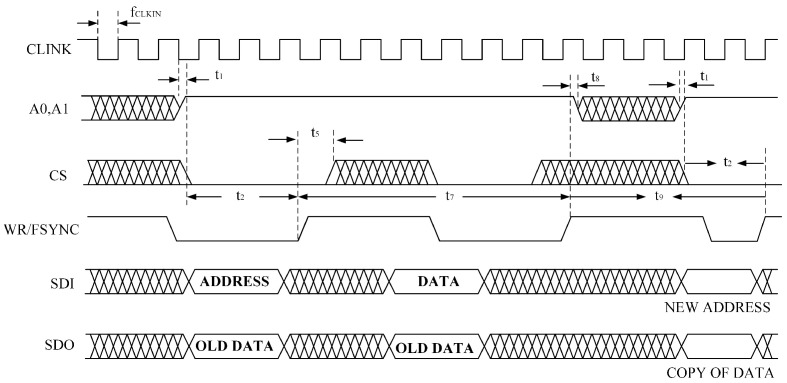

Figure 12
Figure 13

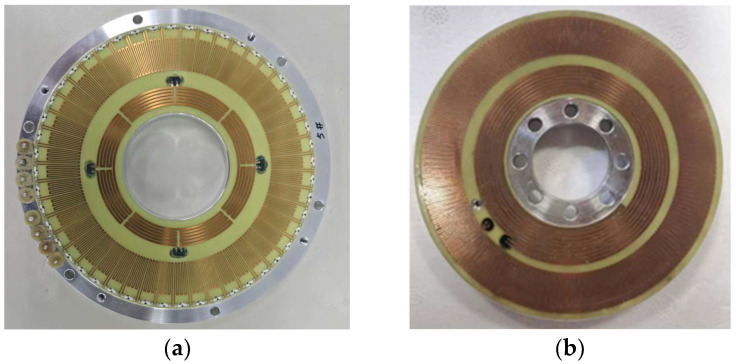

Figure 14
Figure 15

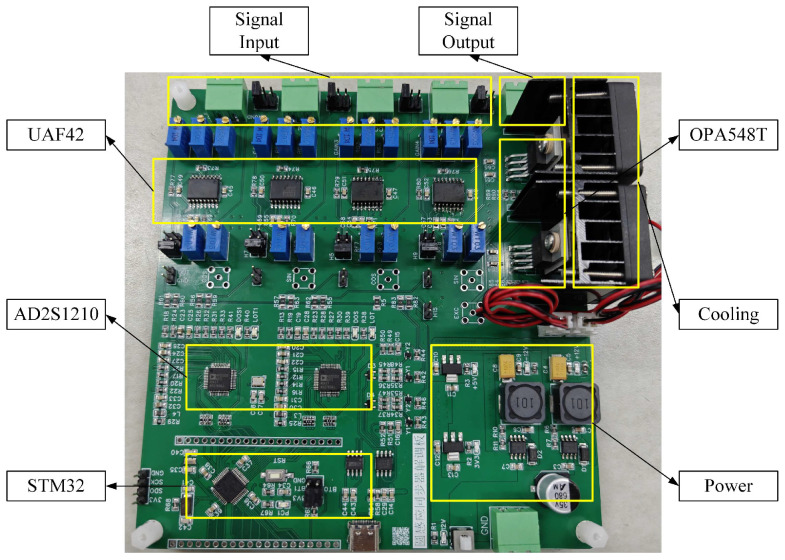

Figure 16
Figure 17

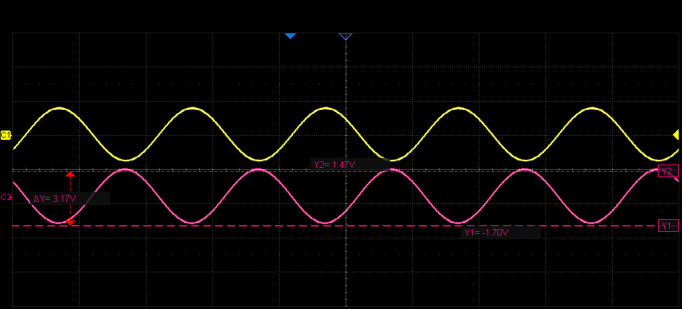

Figure 18

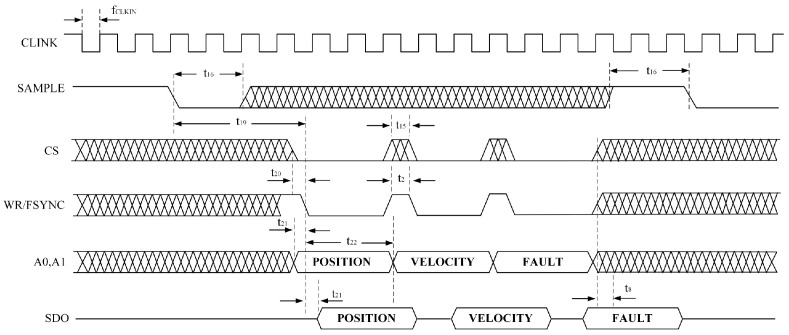

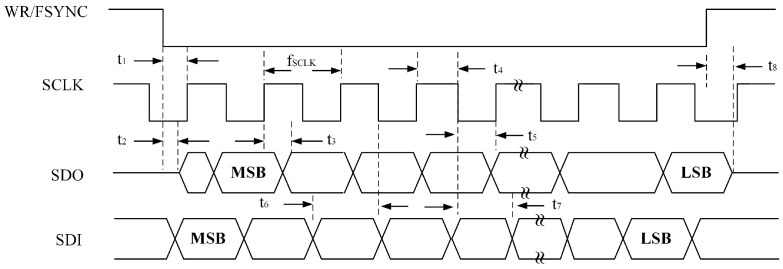

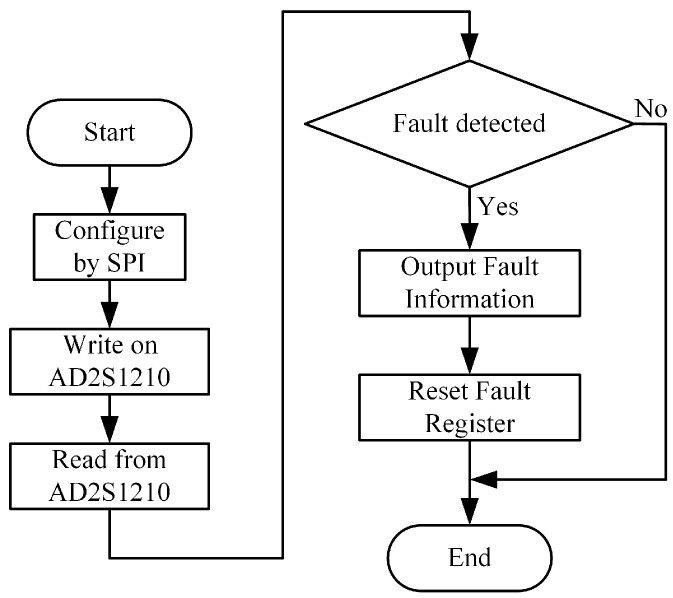

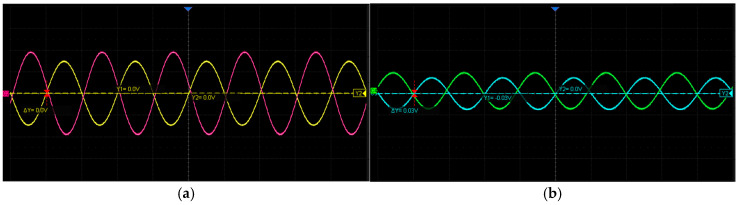

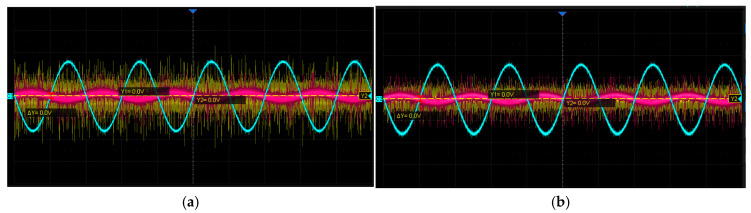

Figure 19

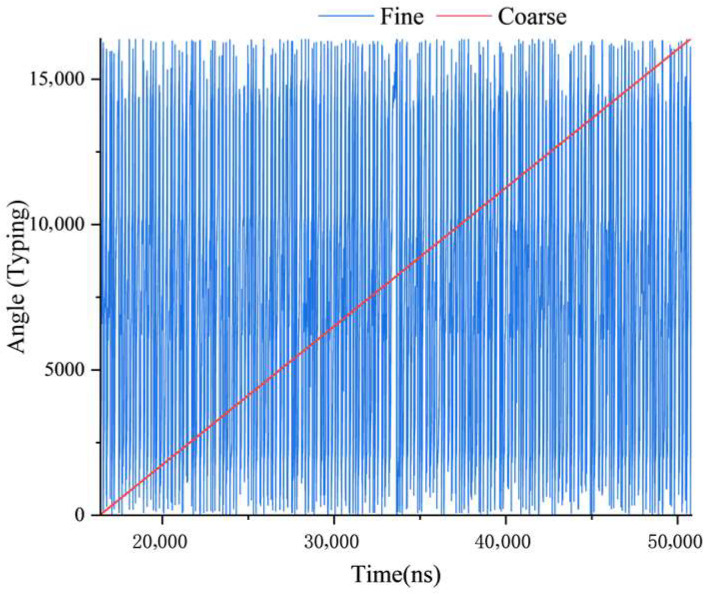

Figure 20

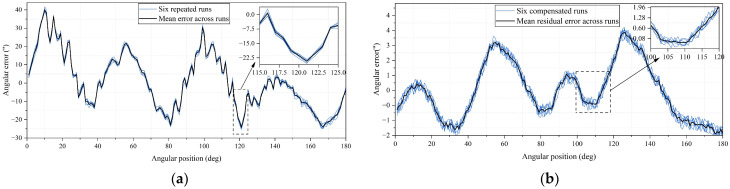

Figure 21Peer Reviews
