Computational Fluid Dynamics Analysis of a Venturi-Integrated Diffuser Design for Membrane Bioreactors

TL;DR

This paper introduces a new diffuser design for membrane bioreactors that improves filtration efficiency by evenly distributing air flow.

Contribution

The novel Venturi-integrated diffuser design increases filtration efficiency through homogeneous shear stress distribution.

Findings

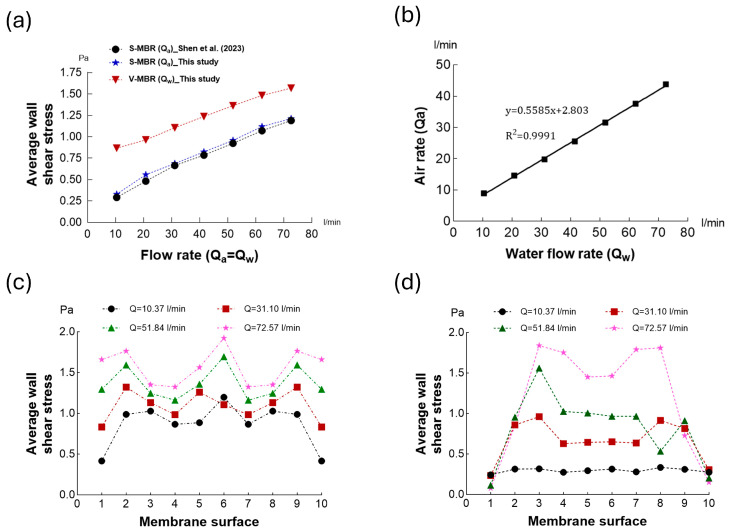

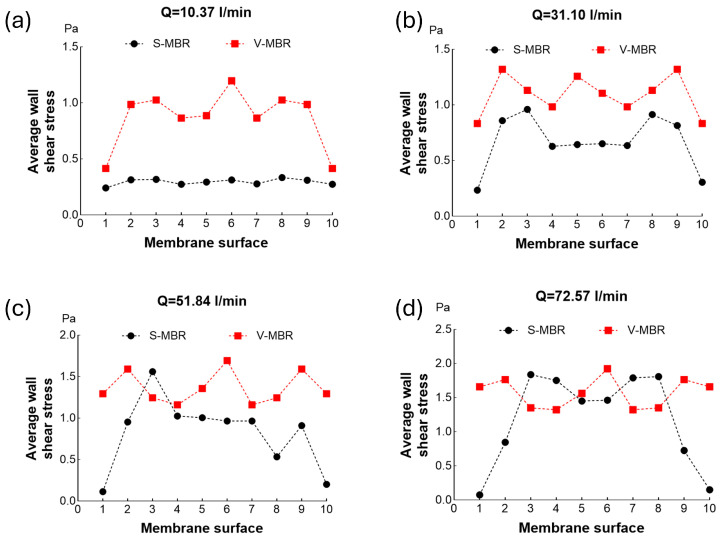

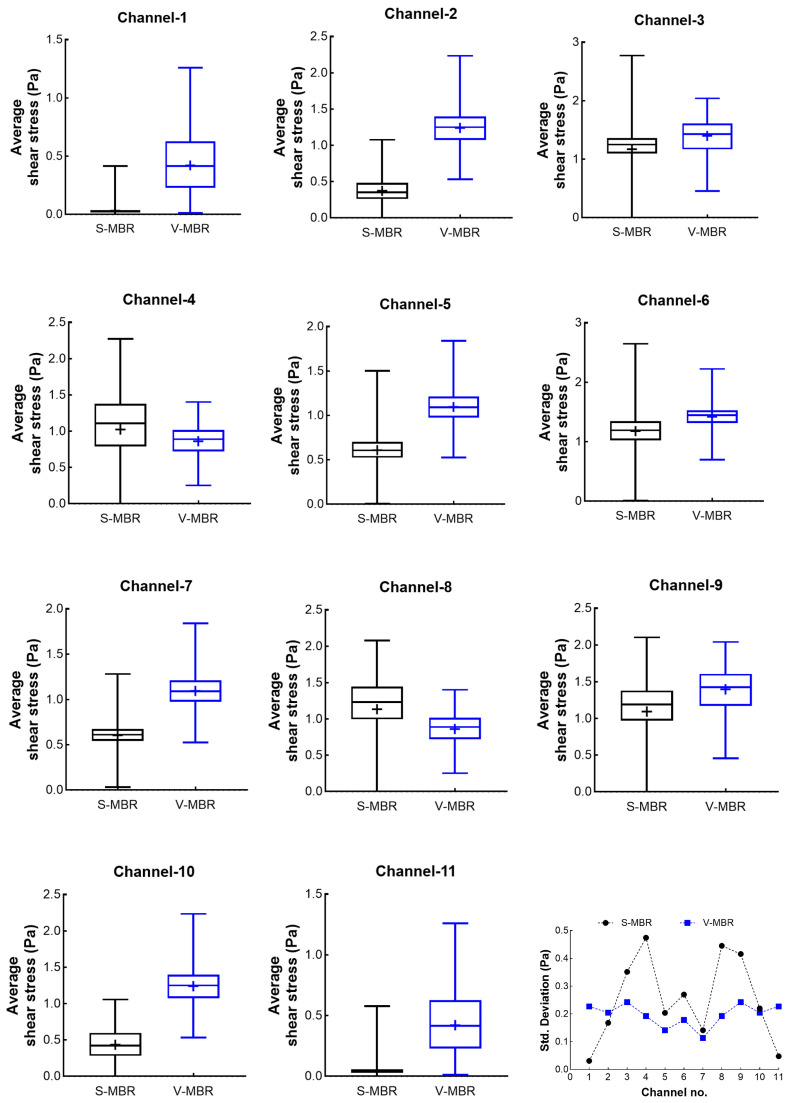

The V-MBR model produced about 50% higher average shear stress on the membrane surfaces.

The V-MBR model showed low variance and non-zero shear stress values compared to the conventional S-MBR.

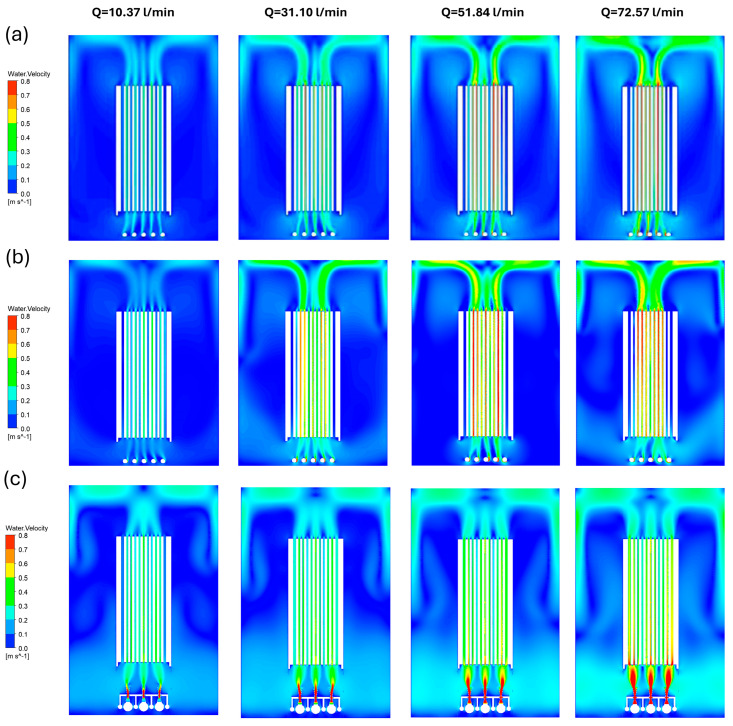

Parameters like velocity and turbulent kinetic energy supported the superior performance of the V-MBR model.

Abstract

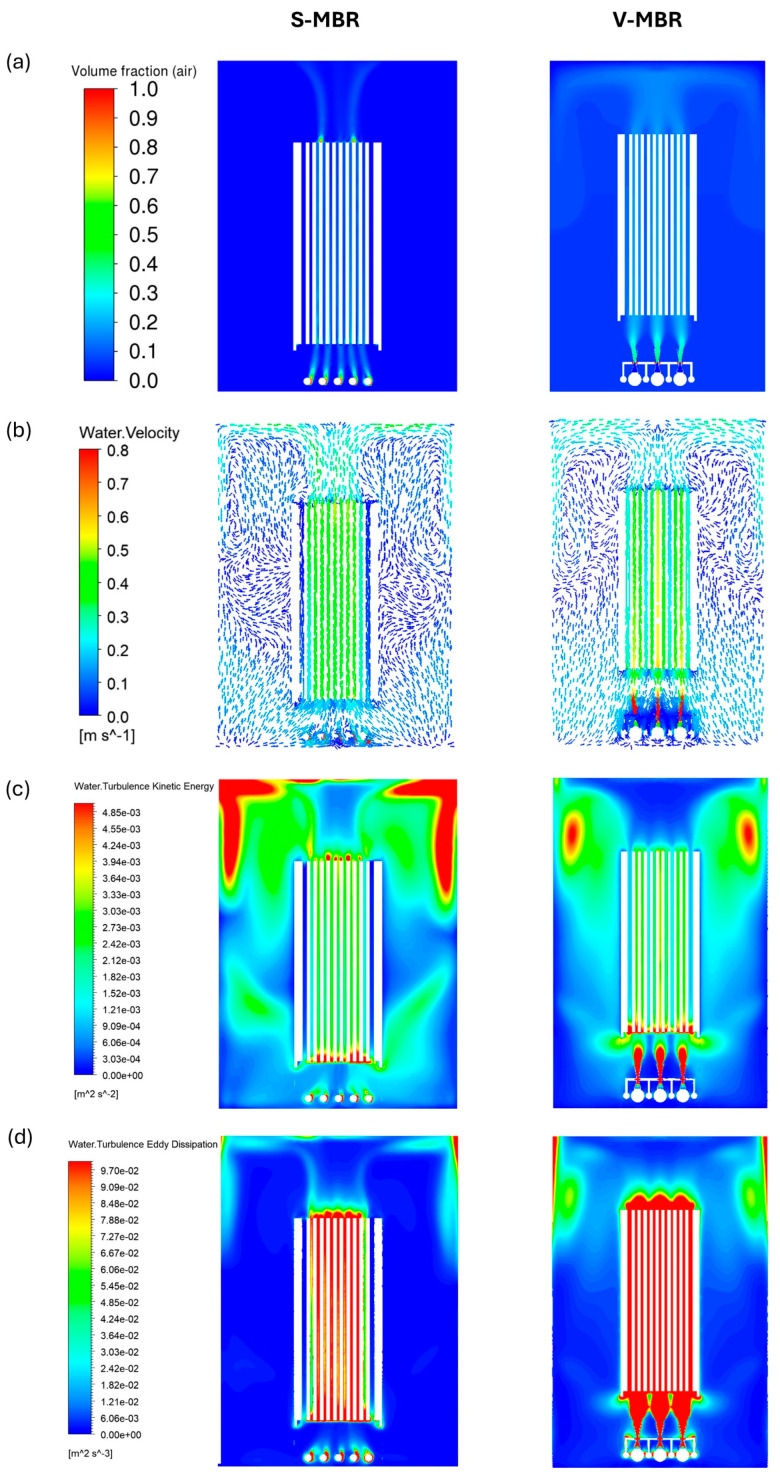

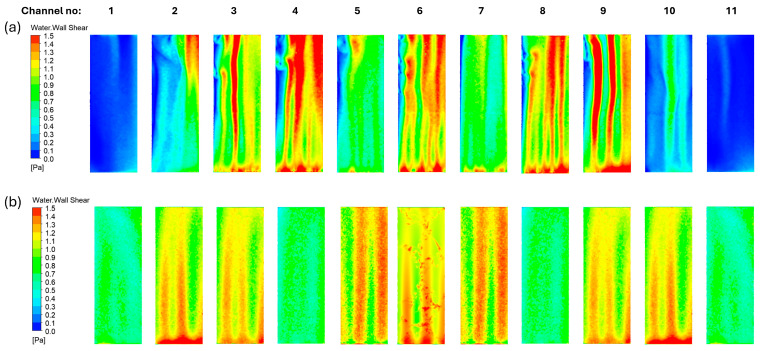

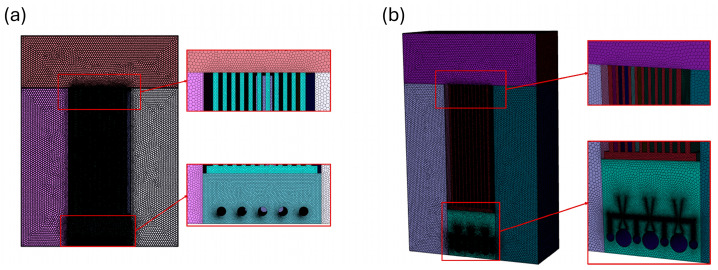

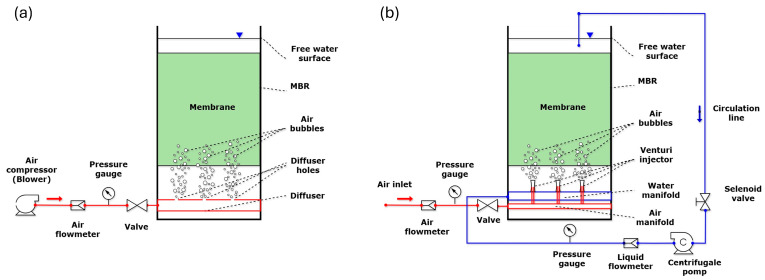

In a standard diffuser system in a membrane bioreactor (MBR), uneven air distribution scouring the membrane surface causes transmembrane pressure to reach its ultimate value earlier, which requires membrane cleaning more frequently. In this study, a Venturi-integrated innovative diffuser design is proposed to improve membrane bioreactor (MBR) technology. The proposed design aims to increase filtration efficiency by creating a homogeneous scouring effect on the membrane surface. To compare the performance of the proposed diffuser configuration (V-MBR) with that of a conventional diffuser (S-MBR), computational fluid dynamics models were established for each of the two configurations. The results showed that the V-MBR model produced about 50% higher average shear stress on the membrane surfaces. Statistical analysis also showed that the V-MBR model generally produced low variance and non-zero shear stress values. Along with shear stress distribution, other parameters such as volume fraction, velocity, turbulent kinetic energy, and turbulent eddy distribution were evaluated to compare the performance of two diffuser system configurations. These parameters also supported the superior performance of the new V-MBR model over the conventional S-MBR. It is concluded that homogeneous shear stress distribution on the membrane surface is an important parameter that increases filtration efficiency by preventing the formation of dead zones.
