Total Ionizing Dose Effect Simulation Study on 130 nm CMOS Processor
Yi Liu, Yuchen Liu, Xinfang Liao, Changqing Xu, Yangchen He, Yintang Yang
TL;DR
This study simulates the effects of radiation on a 130 nm CMOS processor to understand failure thresholds and improve radiation resistance.
Contribution

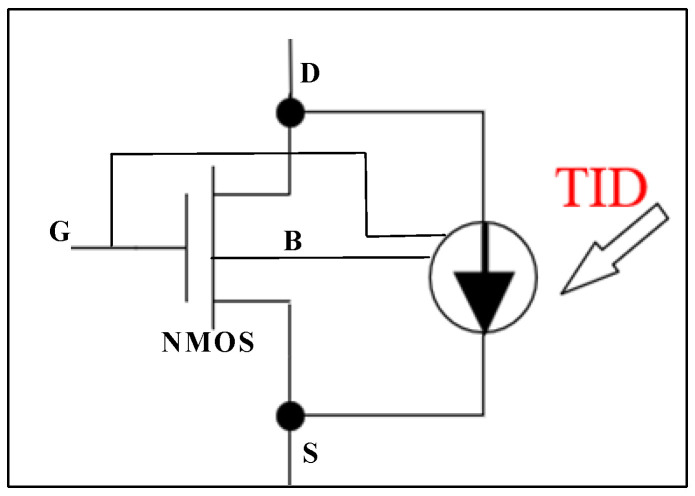

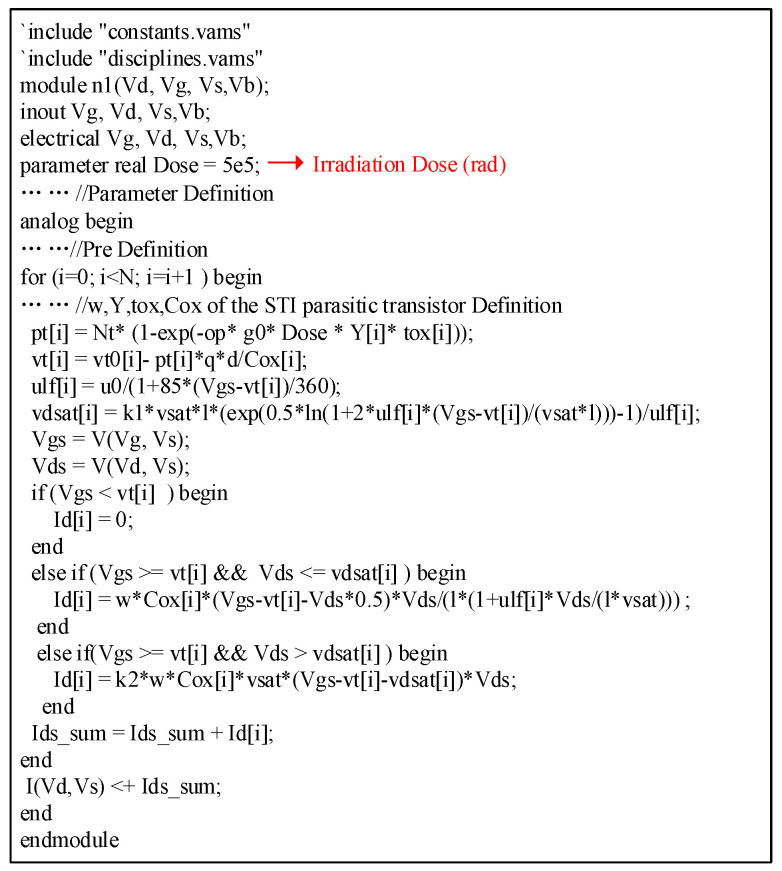

A Verilog-A compact model for TID-induced leakage current in NMOS transistors is developed and applied to system-level simulations.
Findings
The failure threshold and mechanism of the LEON2 processor under TID were identified.

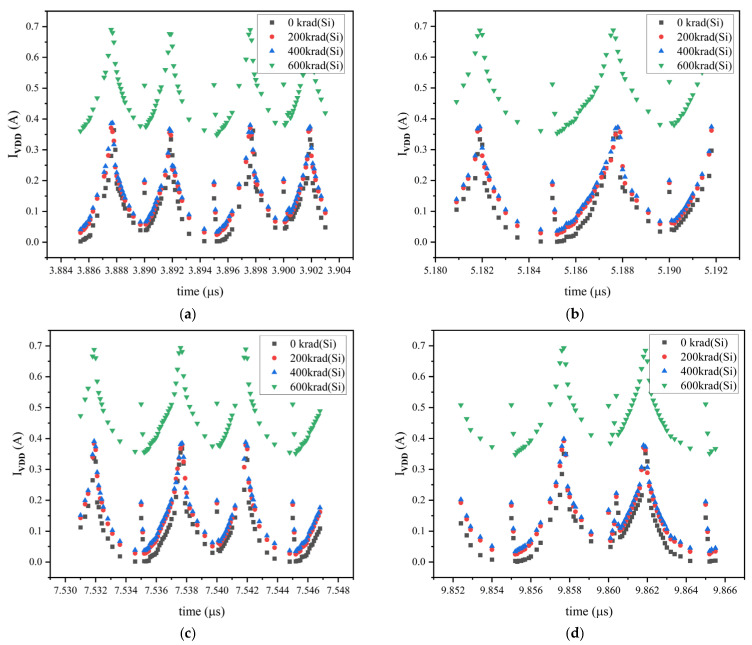

An increase in power supply current with irradiation dose was observed.
The compact model enables system-level radiation performance evaluation.
Abstract

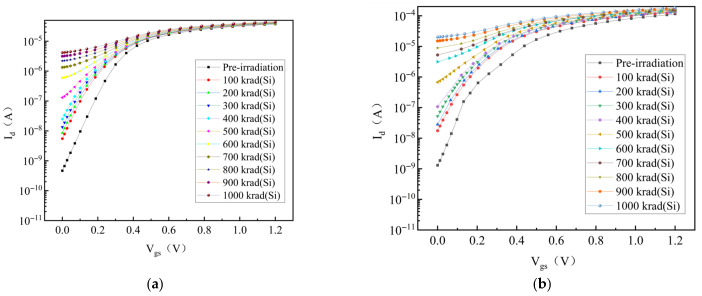

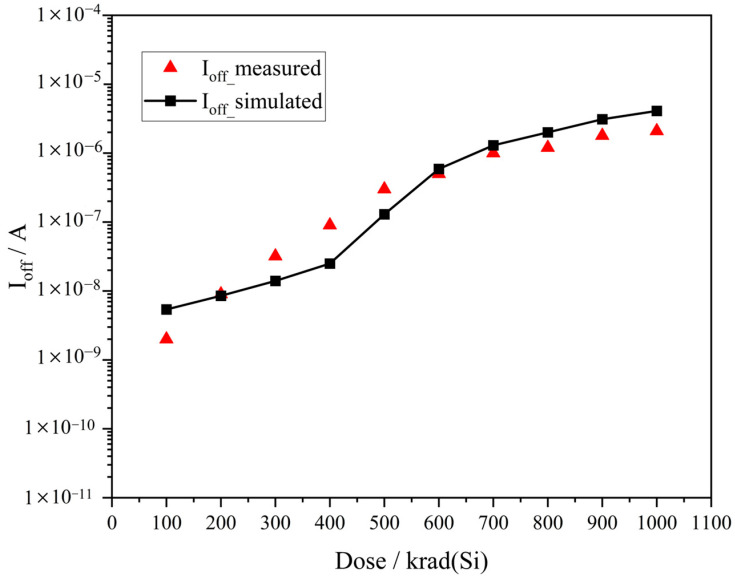

This paper reports the results of a system-level total ionizing dose (TID) effect simulation study on a SMIC 130 nm LEON2 processor. Firstly, the device-level simulations of the 130 nm NMOS transistors are performed using the Sentaurus TCAD software to analyze the effects of a bias condition, channel width, and irradiation dose on a TID-induced leakage current. Based on the TCAD simulation results, a Verilog-A-based compact model is developed for NMOS transistors to describe the TID-induced leakage current, and it is then embedded into target nodes of the SPICE netlist for the LEON2 processor, enabling system-level TID simulations. The simulation results reveal the processor’s failure threshold and corresponding failure mechanism; meanwhile, the increase in the power supply current with the irradiation dose is also observed. The research reported in this paper can provide beneficial…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

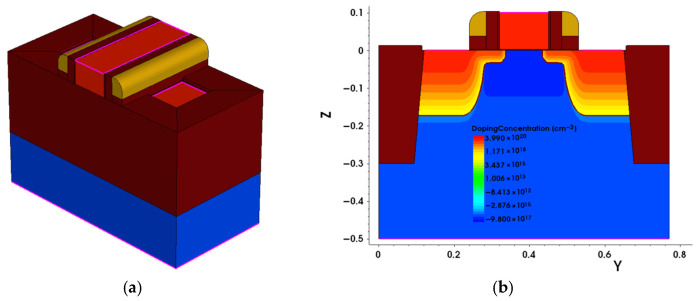

Figure 1

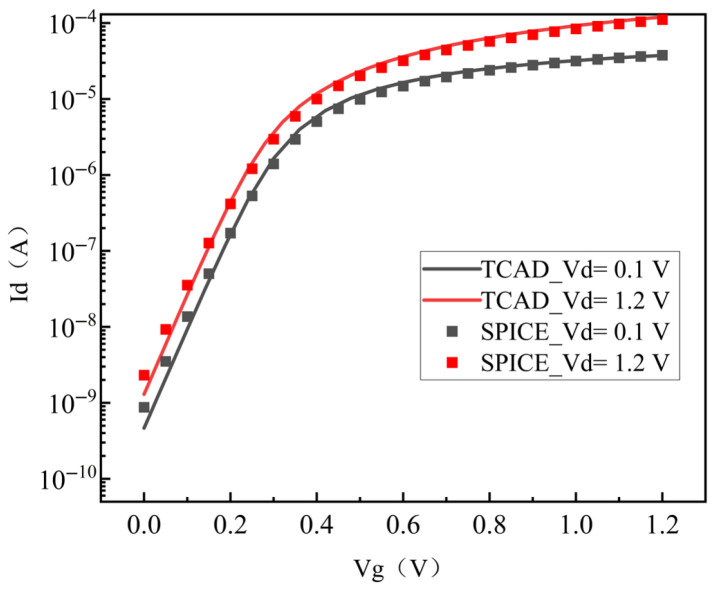

Figure 2
Figure 3
Figure 4

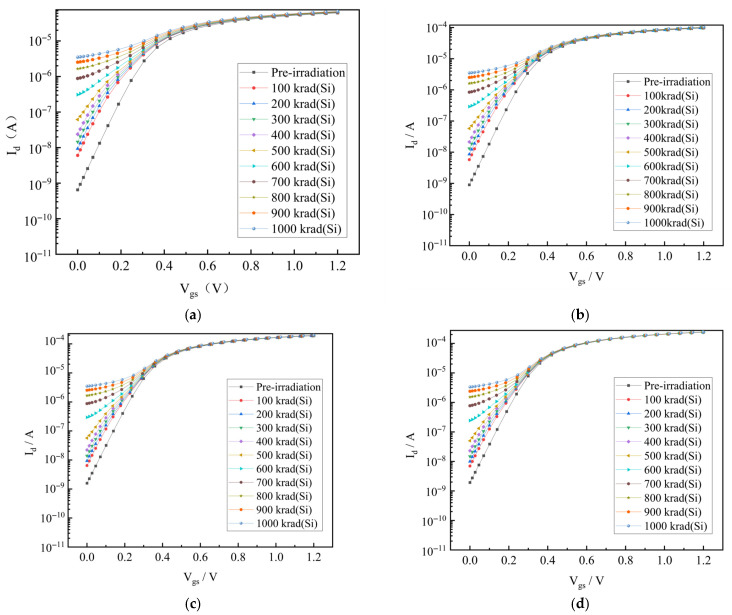

Figure 5
Figure 6
Figure 7

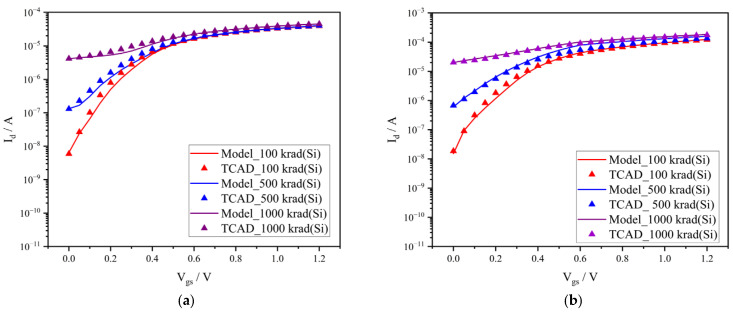

Figure 8
Figure 9
Figure 10

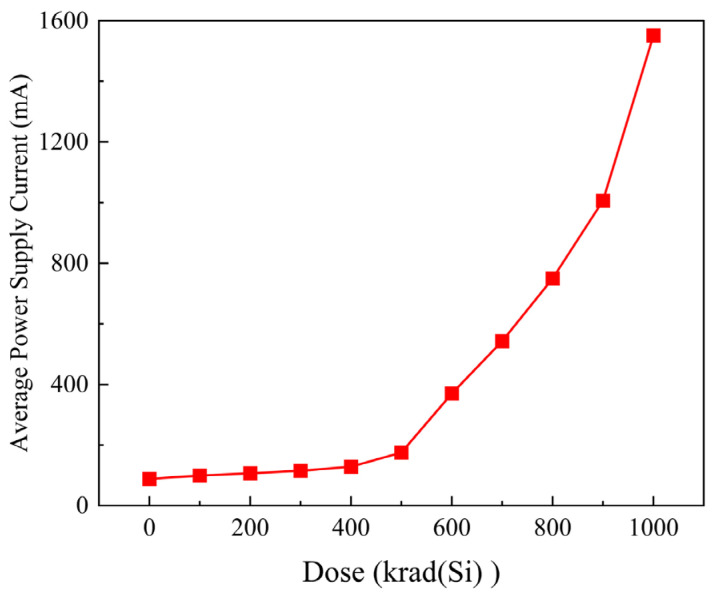

Figure 11

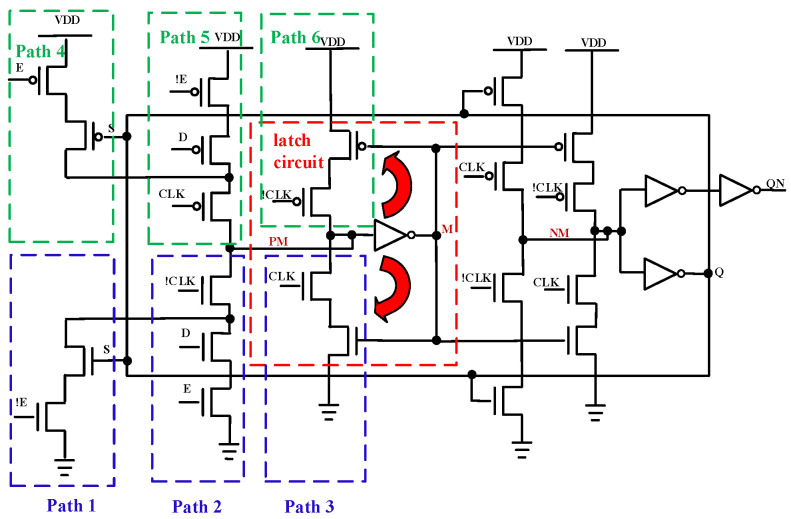

Figure 12

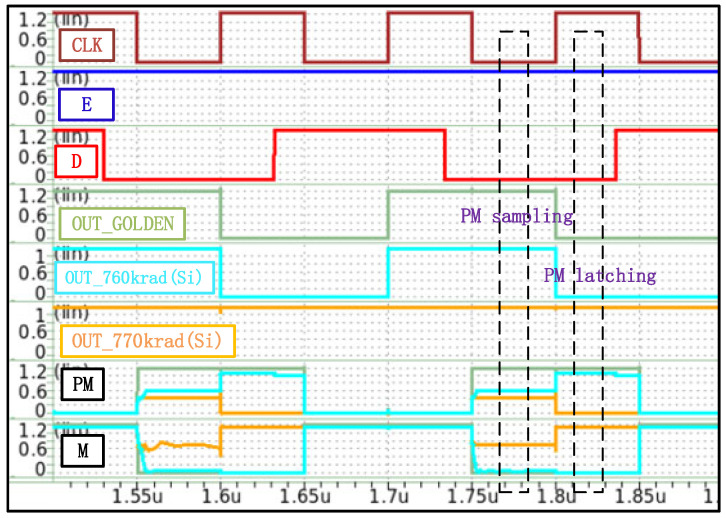

Figure 13

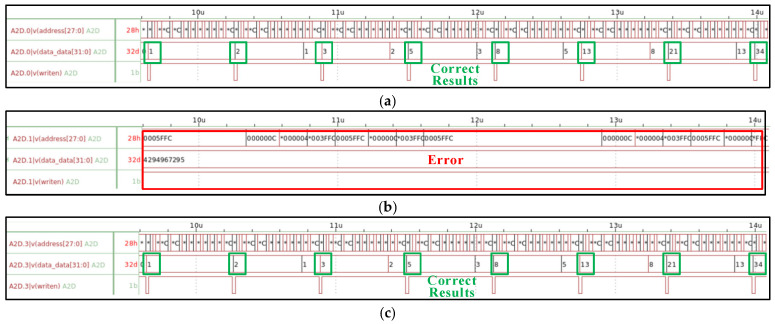

Figure 14
Figure 15
Figure 16Peer Reviews
