Highly Dispersible and Stable Carbon Nanotube Ink with Silicone Elastomer for Piezoresistive Sensing

TL;DR

A new carbon nanotube ink with silicone elastomer is developed for flexible electronics, offering stability, conductivity, and compatibility with printing techniques.

Contribution

A stable, dispersible CNT ink using silicone elastomer and IPA, with prolonged chemical stability and optimized mechanical and electrical properties.

Findings

The CNT ink maintains stability for months in a hermetic environment.

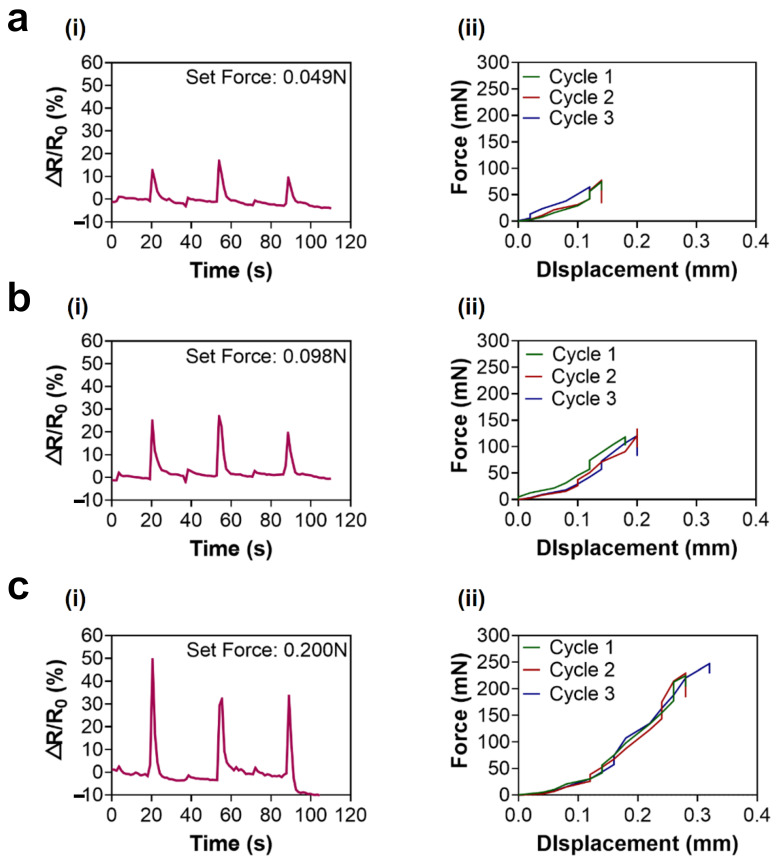

The ink exhibits high sensitivity and repeatability in piezoresistive sensing.

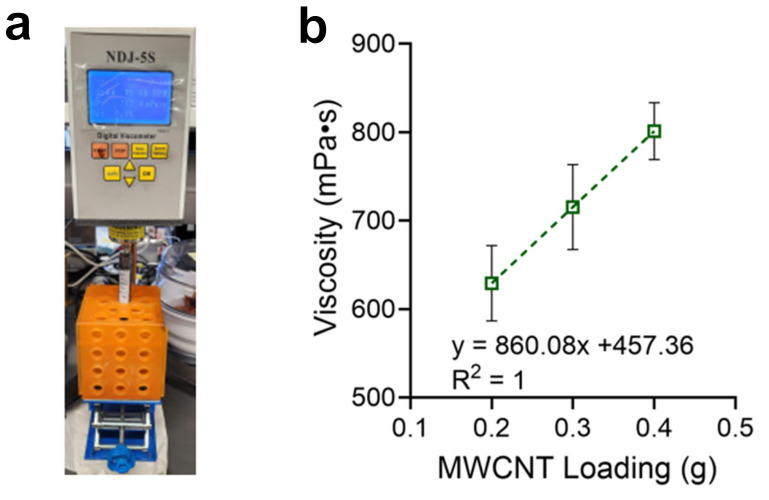

CNT concentration affects viscosity and entanglement in the elastomer.

Abstract

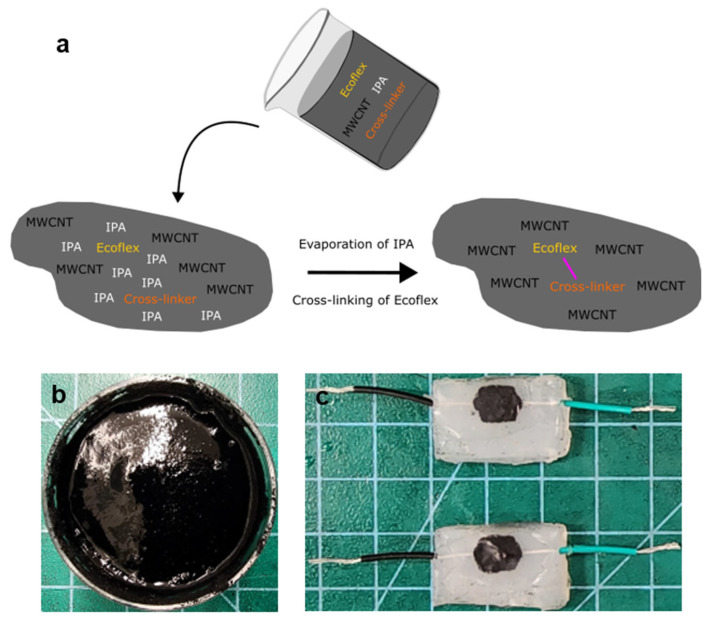

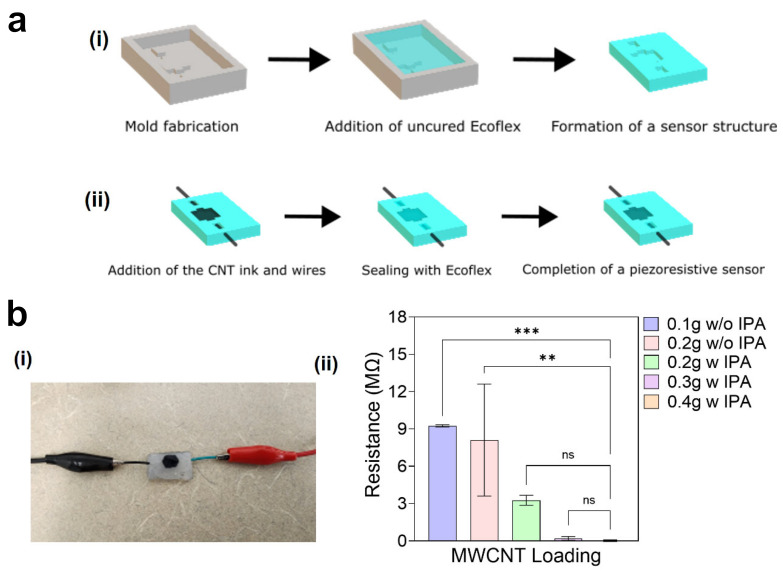

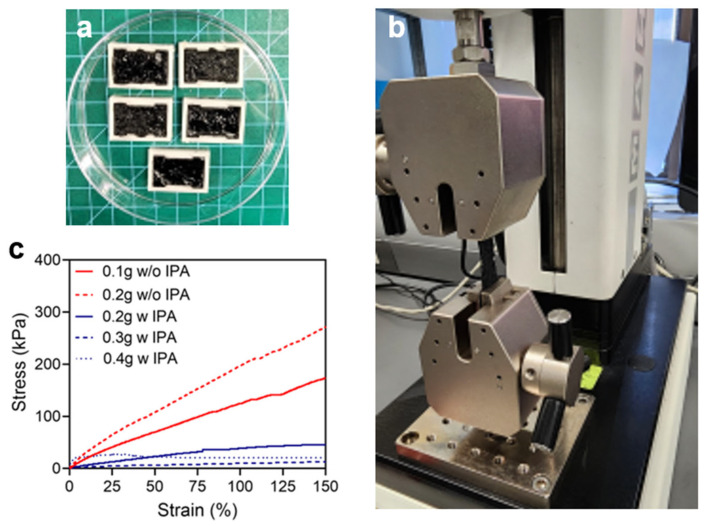

An alternative conductive ink based on carbon nanotubes (CNTs) was developed using a platinum-catalyzed silicone elastomer and isopropyl alcohol (IPA). The inclusion of IPA in the conductive CNT ink facilitated the optimization of its mechanical strength, electrical conductivity, and viscosity. Compared to conventional silicone rubber-based conductive polymers that often solidify in a few hours at room temperature or with heating, this liquid composite of CNT particles and IPA exhibited a prolonged duration of up to several months in a hermetic environment, maintaining chemical stability even with the elastomer and its curing agent. The gradual evaporation of IPA initiates a well-known cross-linking process, leading to stretchability and electrical conductivity derived from the silicone elastomer and CNT particles, respectively. The relationship between the mechanical strength and electrical conductivity of the hardened conductive CNT ink was studied, which helped determine the optimized concentration of CNT particles in the conductive CNT ink. Subsequently, a piezoresistive sensor was designed, fabricated, and evaluated. The conductive CNT ink-based piezoresistive sensor showed high sensitivity and good repeatability with respect to a wide range of external forces. The effect of the concentration of CNT particles on the viscosity of the conductive CNT ink was also investigated, providing a better understanding of the entanglement of CNT particles within the silicone elastomer. A coating test using the conductive CNT ink with a paper cutting machine demonstrated its potential for adaptation to various printing techniques, including screen printing. The proposed conductive CNT ink, characterized by a simple chemical composition, facile fabrication process, use of non-toxic elements, high electrical conductivity, and stretchability, combined with an extended duration, has the potential to be applied for multiple purposes, such as various types of flexible and wearable electronics.
