Uncovering Structure–Conductivity Relationships in Anion Exchange Membranes (AEMs) Using Interpretable Machine Learning

TL;DR

This paper uses machine learning to understand and predict the conductivity of anion exchange membranes, helping design better materials for energy technologies.

Contribution

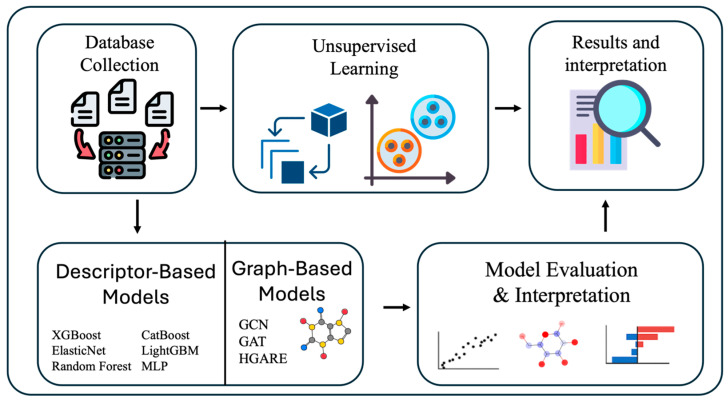

A novel machine learning framework combining graph neural networks and interpretable models to uncover structure-conductivity relationships in AEMs.

Findings

Electronic, topological, and compositional descriptors are key predictors of anion conductivity.

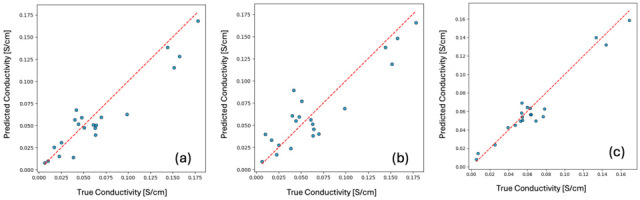

Hybrid graph-based models outperformed other methods in predicting membrane conductivity.

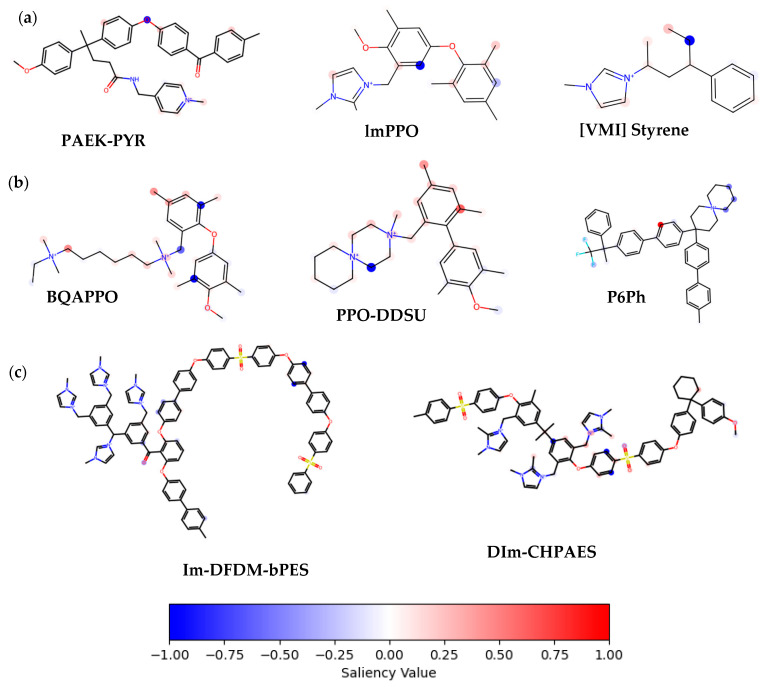

Atom-level saliency maps highlight polarizable and flexible regions as important for conductivity.

Abstract

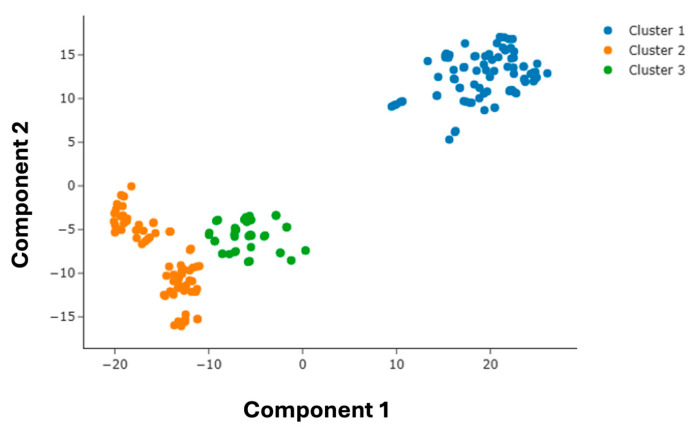

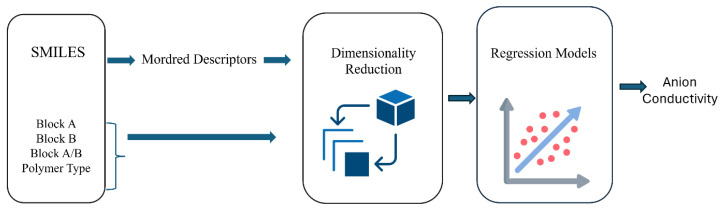

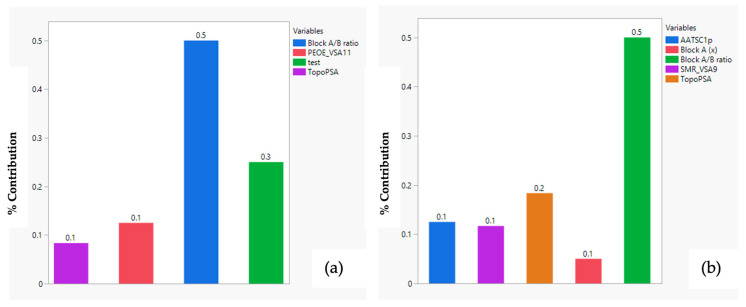

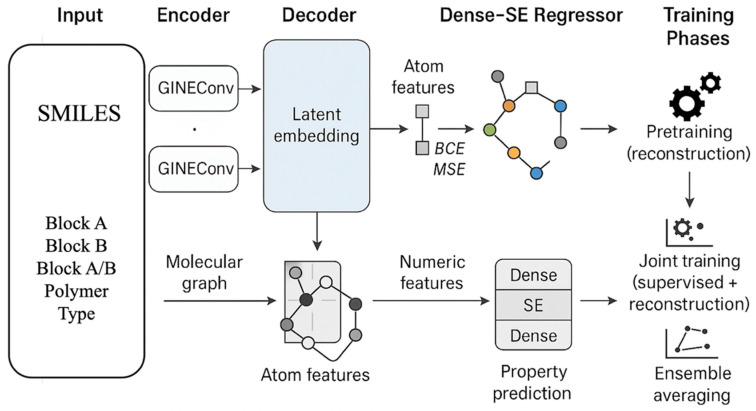

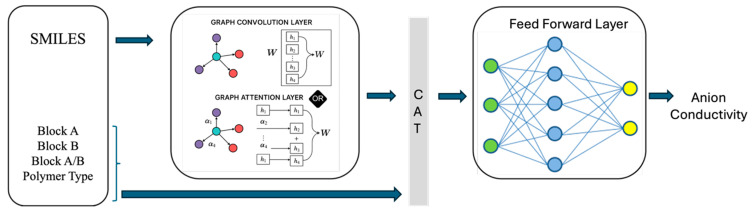

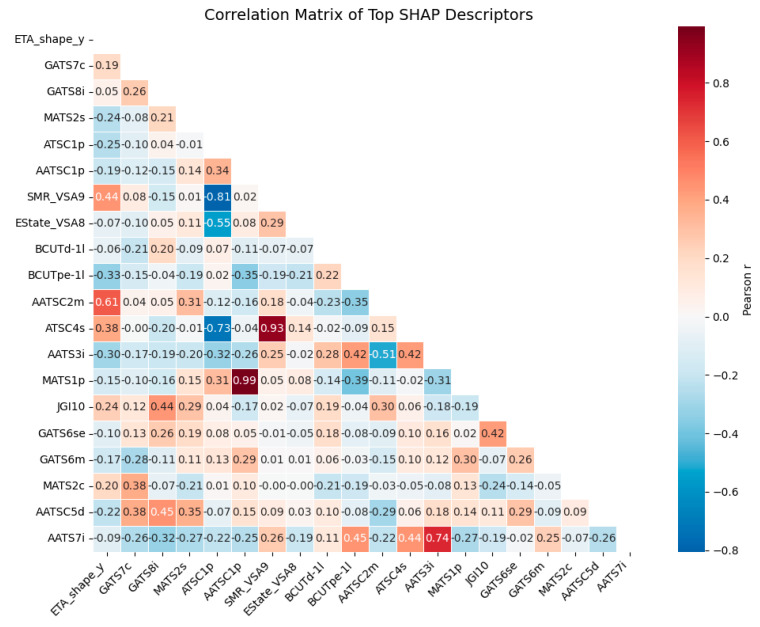

Anion exchange membranes (AEMs) play a vital role in the performance of water electrolyzers and fuel cells, yet their discovery and optimization remain challenging due to the complexity of structure–property relationships. In this study, we introduce a machine learning framework that leverages conditional graph neural networks (cGNNs) and descriptor-based models and a hybrid graph neural network (HGARE) to predict and interpret ionic conductivity. The descriptor-based pipeline employs principal component analysis (PCA), ablation, and SHAP analysis to identify factors governing anion conductivity, revealing electronic, topological, and compositional descriptors as key contributors. Beyond prediction, dimensionality reduction and clustering are performed by employing t-SNE and KMeans as well as SOM, which reveal distinct membranes clusters, some of which were enriched with high anion conductivity. Among graph-based approaches, the graph convolutional (GCN) achieved strong predictive performance, while the Hybrid Graph Autoencoder-Regressor Ensemble (HGARE) achieved the highest accuracy. Additionally, atom-level saliency maps from GCN provide spatial explanations for conductive behavior, revealing the importance of polarizable and flexible regions. This work contributes to the accelerated and data-driven design of high-performance AEMs.
