Structure-Enhanced Stress Attenuation in Magnetically Tunable Microstructures: A Numerical Study of Engineered BCT Lattices

TL;DR

This study uses computer simulations to explore how magnetic fields affect the structure and strength of microbead chains, showing that hexagonal arrangements better handle stress and could be used in impact-resistant materials.

Contribution

The novelty lies in the numerical investigation of stress attenuation in magnetically tunable BCT lattices, revealing the superior performance of hexagonal configurations.

Findings

Hexagonal BCT lattices show enhanced magnetic coupling and reduced peak stress with increased chain density.

Hexagonal structures exhibit faster stress equilibration and better lateral load distribution under vertical loading.

These lattices demonstrate superior resilience and faster stress dissipation under dynamic loads.

Abstract

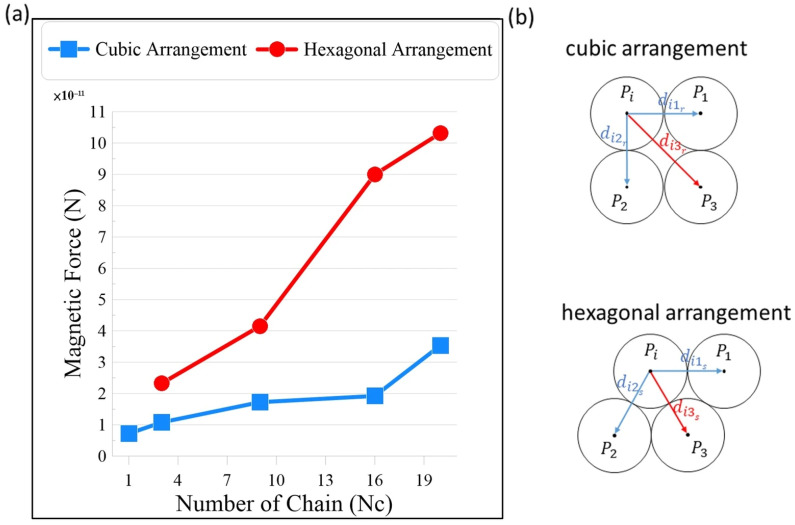

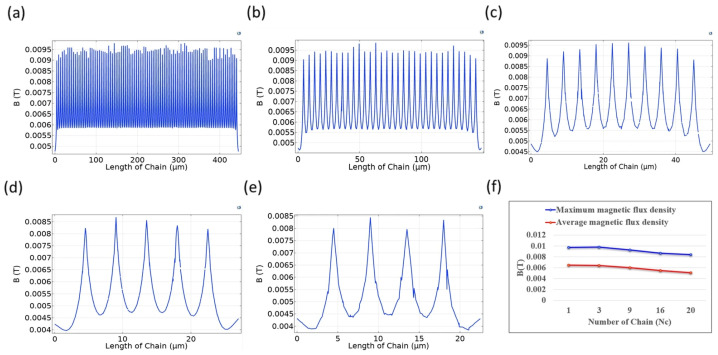

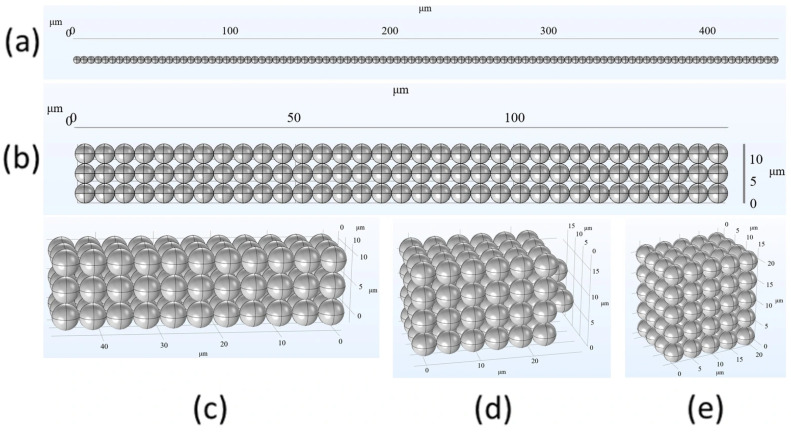

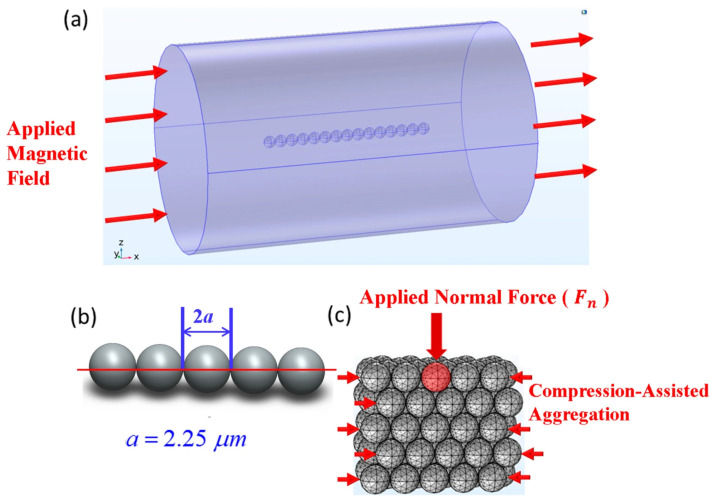

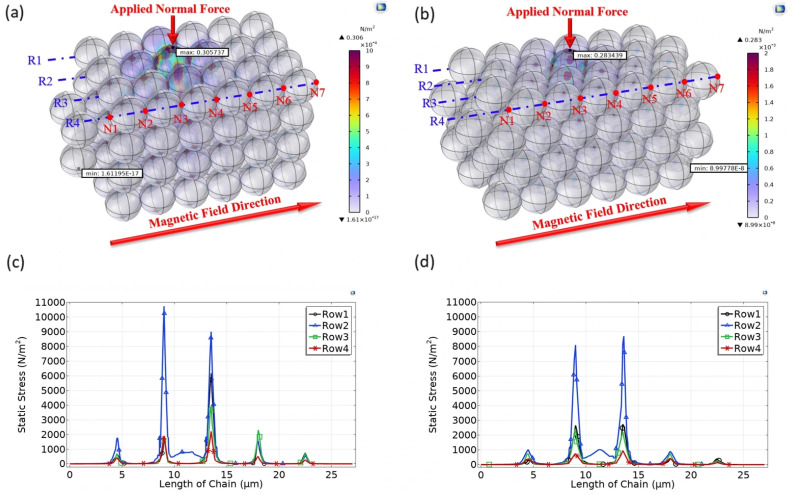

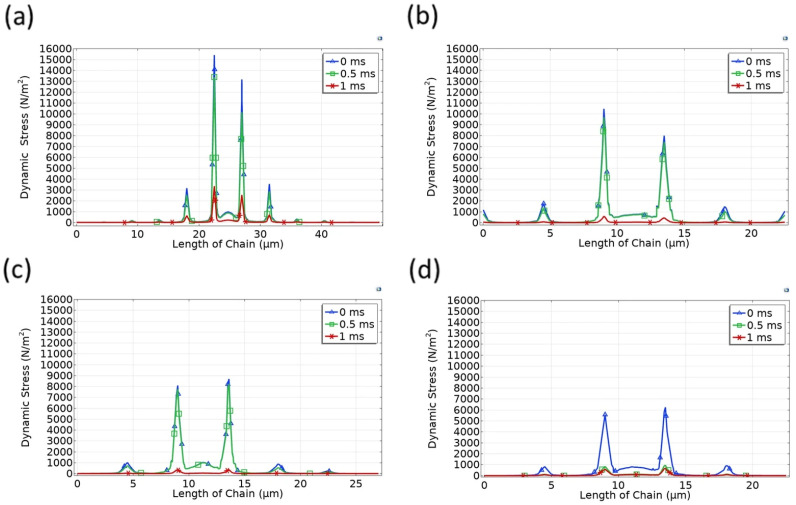

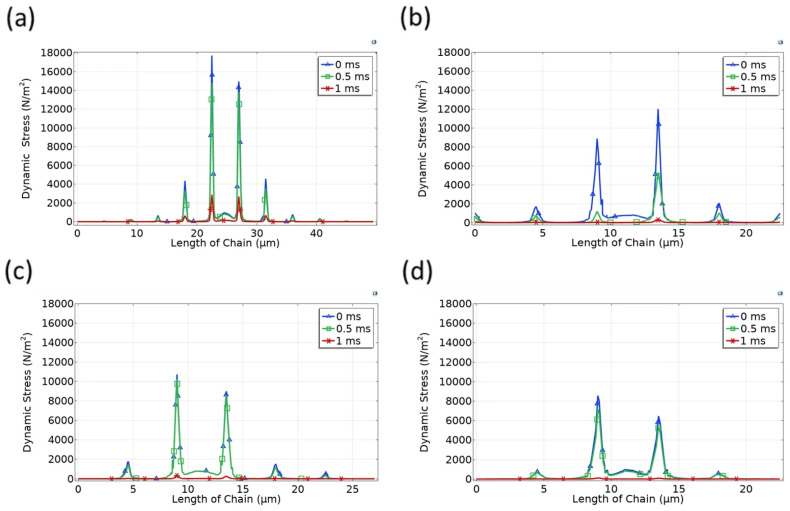

Magnetorheological fluids (MRFs) exhibit dynamic, field-responsive mechanical properties, as they form chain-like and networked microstructures under magnetic stimuli. This study numerically investigates the structural and mechanical behavior of three-dimensional (3D) microbead chain assemblies, focusing on cubic and hexagonal body-centered tetragonal (BCT) configurations formed under compressive and magnetic field-driven aggregation. A finite element-based model simulates magnetostatic and stress evolution in solidified structures composed of up to 20 particle chains. The analysis evaluates magnetic flux distribution, total magnetic force, and time-resolved stress profiles under vertical loading. Results show that increasing chain density significantly enhances magnetic coupling and reduces peak stress, especially in hexagonal lattices, where early stress equilibration and superior lateral load distribution are observed. The hexagonal BCT structure exhibits superior resilience, lower stress concentrations, and faster dissipation under dynamic loads. These findings offer insights into designing energy-absorbing MRF-based materials for impact mitigation, adaptive damping, and protective microfluidic structures.
