Development of High-Performance Catalytic Ceramic Membrane Microchannel Reactor for Carbon Dioxide Conversion to Methanol
Aubaid Ullah, Nur Awanis Hashim, Mohamad Fairus Rabuni, Mohd Usman Mohd Junaidi, Ammar Ahmed, Mustapha Grema Mohammed, Muhammed Sahal Siddique
TL;DR
A new ceramic membrane microchannel reactor converts CO2 to methanol more efficiently than traditional methods, with high conversion rates and potential for clean energy solutions.
Contribution
The first ceramic membrane microchannel reactor for CO2 conversion to methanol is developed, achieving significantly higher conversion rates.
Findings

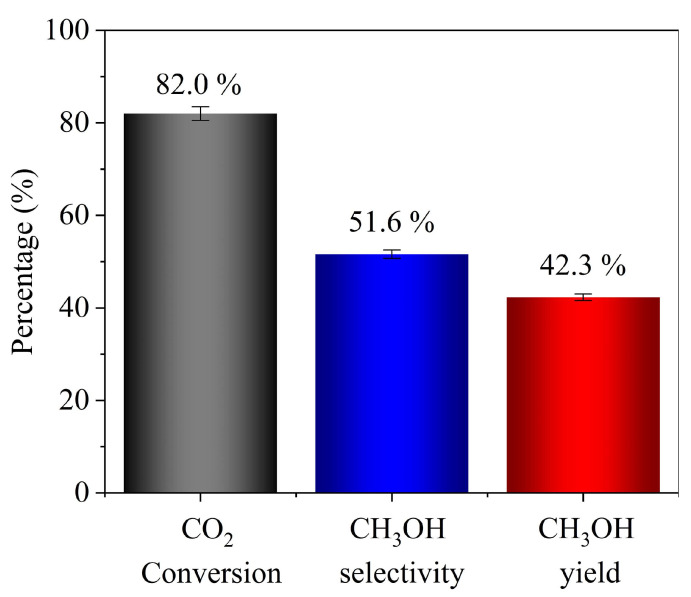

CO2 conversion reached 82%, ten times higher than traditional reactors.
Methanol selectivity and yield were 51.6% and 42.3%, respectively.
The reactor outperformed conventional tubular membrane reactors by 1.5 times in CO2 conversion.
Abstract

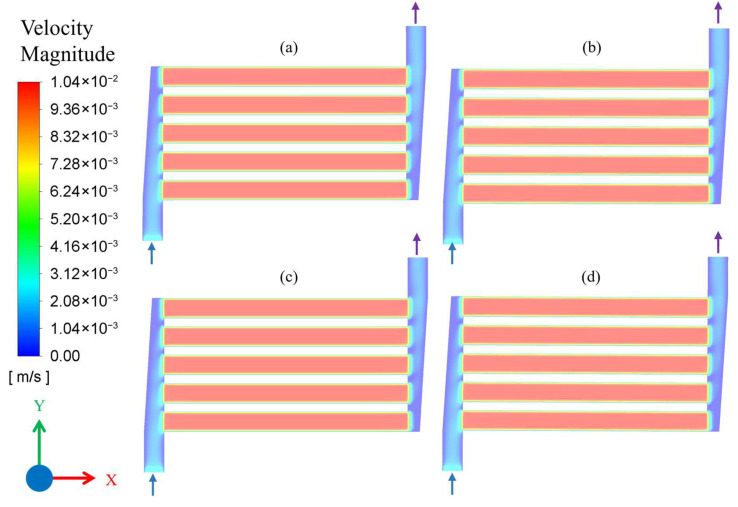

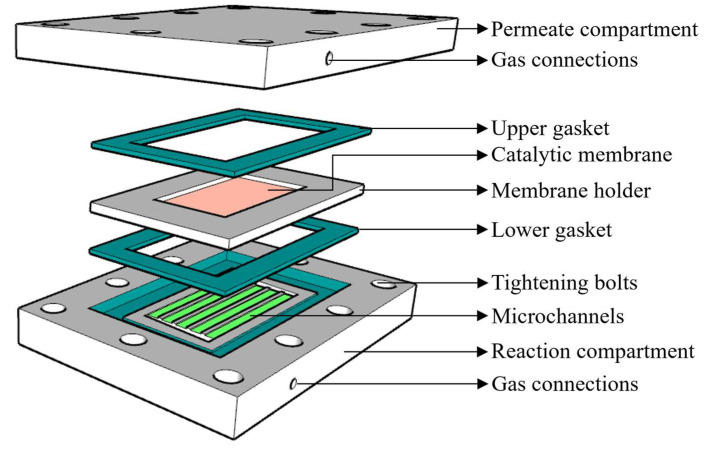

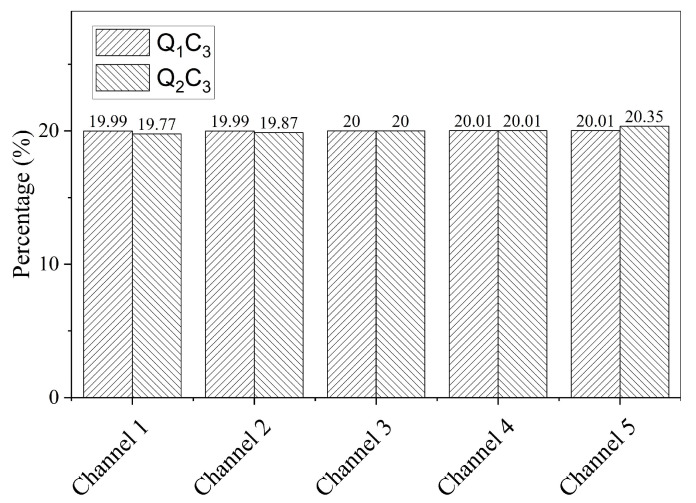

Conversion of carbon dioxide (CO2) to methanol in a traditional reactor (TR) with catalytic packed bed faces the challenge of lower reactant conversion due to thermodynamic limitations. On the contrary, membrane reactors selectively remove reaction products, enhancing the conversion, but it is still limited, and existing designs face challenges of structural integrity and scale-up complications. Therefore, for the first time, a ceramic membrane microchannel reactor (CMMR) system was developed with 500 µm deep microchannels, incorporated with catalytic membrane for CO2 conversion to methanol. Computational fluid dynamic (CFD) simulations confirmed the uniform flow distribution among the microchannels. A catalytic LTA zeolite membrane was synthesized with thin layer (~45 µm) of Cu-ZnO-Al2O3 catalyst coating and tested at a temperature of 220 °C and 3.0 MPa pressure. The results showed a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

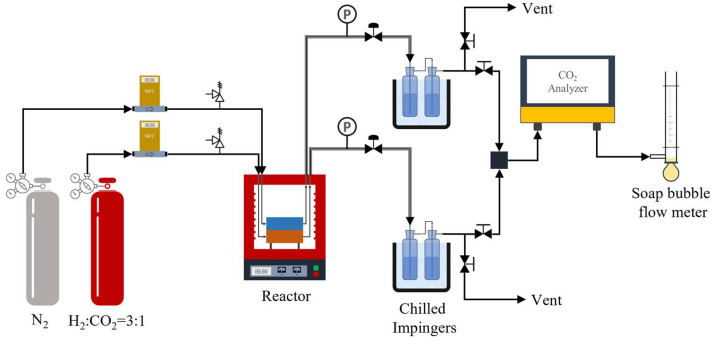

Figure 2

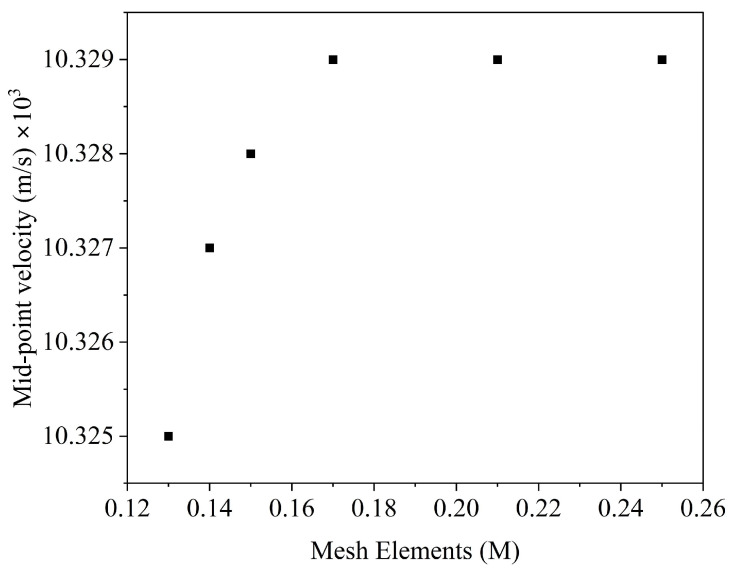

Figure 3
Figure 4

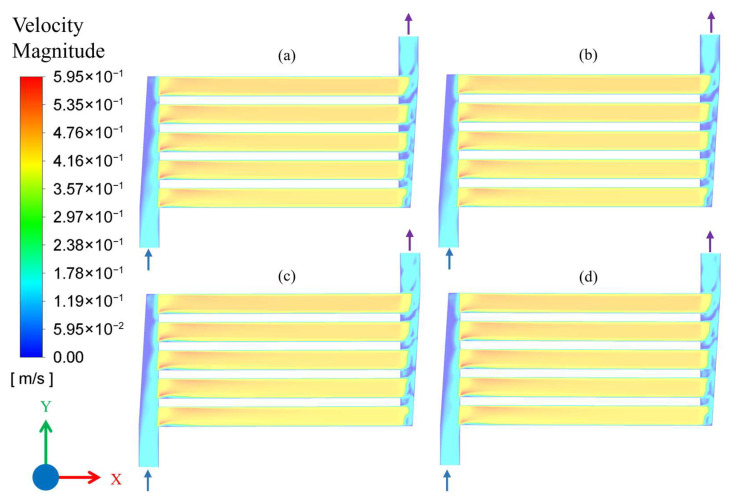

Figure 5

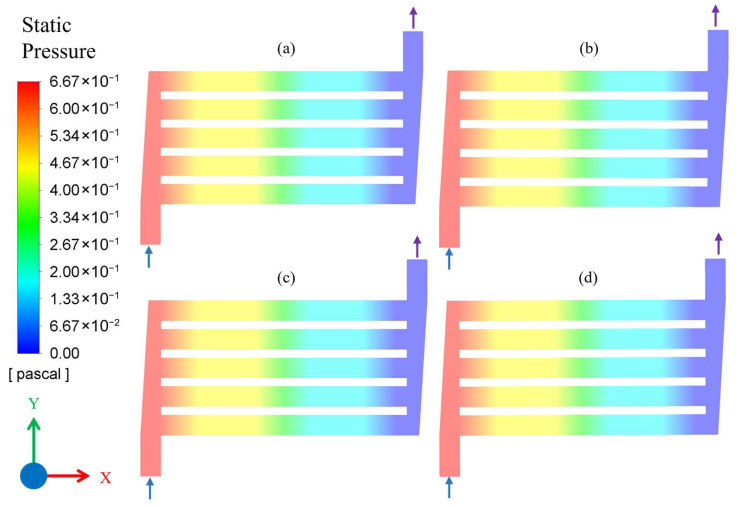

Figure 6

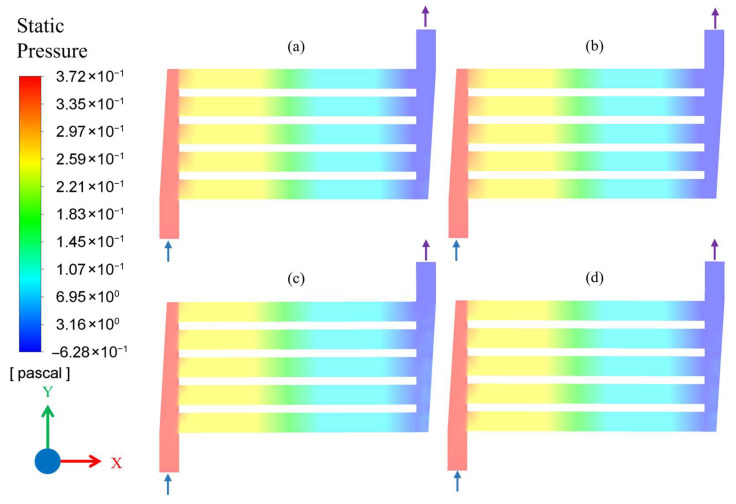

Figure 7
Figure 8

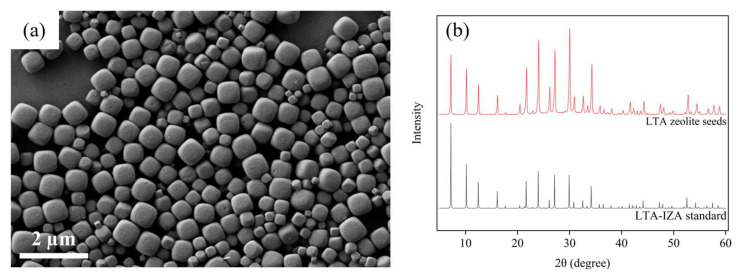

Figure 9
Figure 10

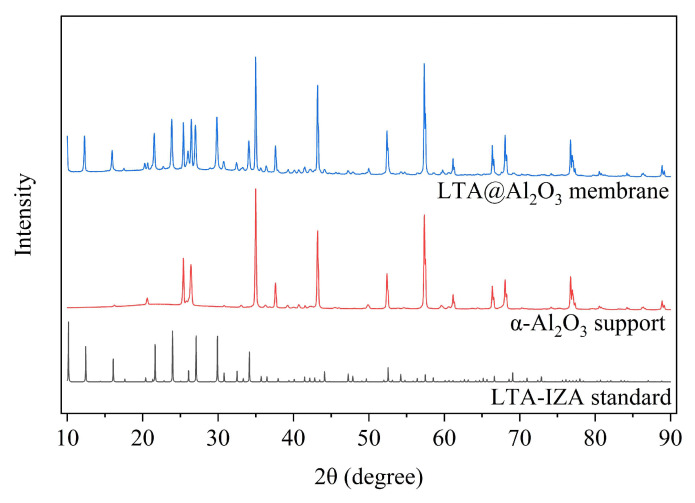

Figure 11
Figure 12
Figure 13
Figure 14Peer Reviews
