PN Tandem Solar Cells Based on Combination of Dye-Sensitized TiO2 Photoanode and Perovskite-Sensitized NiO Photocathode

TL;DR

A new tandem solar cell combining dye-sensitized TiO2 and perovskite-sensitized NiO achieves improved efficiency and voltage.

Contribution

A novel p–n tandem solar cell with a record 4.02% efficiency is developed by combining dye-sensitized TiO2 and perovskite-sensitized NiO.

Findings

The tandem solar cell achieved a record power conversion efficiency of 4.02%.

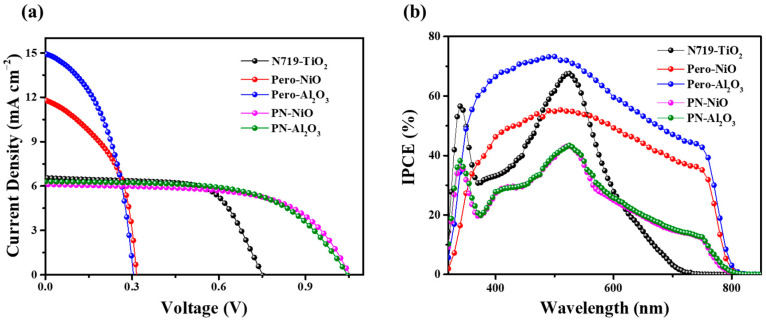

Optimizing TiO2 thickness yielded a maximum open-circuit voltage of 1060 mV and short-circuit current density of 6.11 mA cm−2.

Abstract

Dye-sensitized solar cells (DSSCs) have attracted significant attention as next-generation photovoltaic devices due to their low cost, simple fabrication process, use of earth-abundant materials, and potential for colour tunability and transparency. p–n tandem DSSCs have garnered particular interest owing to their higher open-circuit voltage compared to single-junction DSSCs. However, the performance of such tandem devices remains limited by relatively low open-circuit voltage and short-circuit current density, primarily due to the scarcity of suitable p-type sensitizers. To address this challenge, we report a novel p–n tandem solar cell integrating a dye-sensitized TiO2 photoanode with a perovskite-sensitized NiO photocathode, achieving a record power conversion efficiency of 4.02%. By optimizing the thickness of the TiO2 layer, a maximum open-circuit voltage of 1060 mV and a peak short-circuit current density of 6.11 mA cm−2 were simultaneously attained.

Figures
