Effect of thermoformed tray architecture on transfer accuracy of lingual brackets: A prospective clinical study

TL;DR

This study examines how different thermoformed tray designs affect the accuracy of placing lingual brackets in dental bonding procedures.

Contribution

The study introduces a comparison of four thermoformed tray designs to determine their impact on bracket placement accuracy in clinical settings.

Findings

All tray designs achieved clinically acceptable bracket placement accuracy with linear deviations below 0.5 mm.

SR1 provided the best buccolingual and rotational control but required longer delivery time.

BL1 offered acceptable accuracy with faster delivery, while thicker bilayer trays (BL2, BL3) did not improve precision and increased deviation in some dimensions.

Abstract

This prospective clinical study assessed whether thermoformed transfer tray architecture influences in-vivo positional fidelity of lingual brackets during indirect bonding, and whether the resulting deviations remain within clinically acceptable limits.

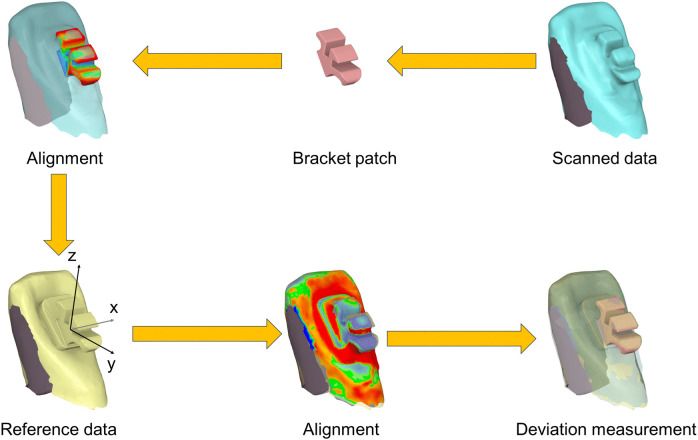

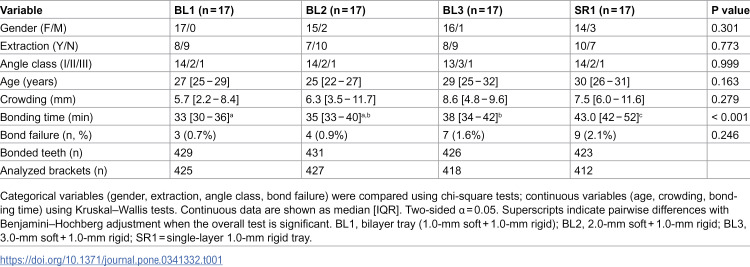

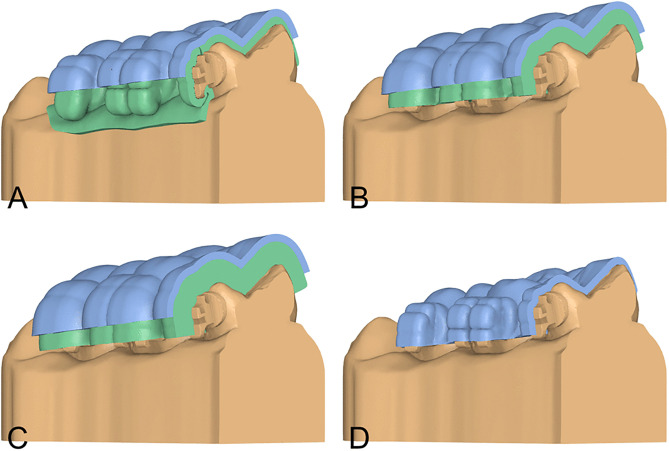

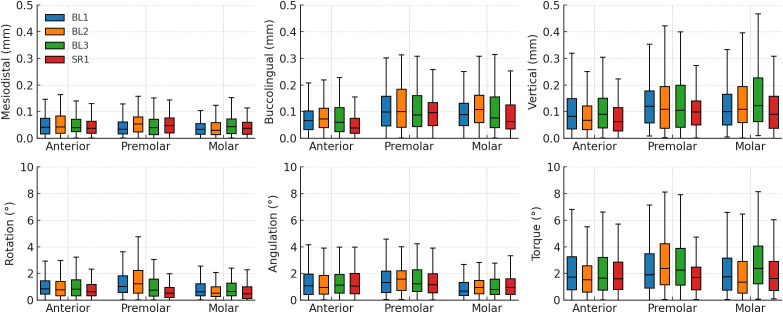

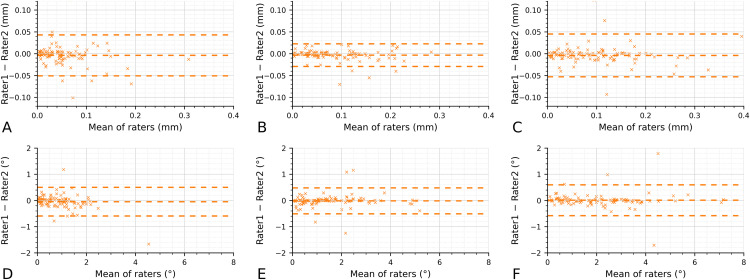

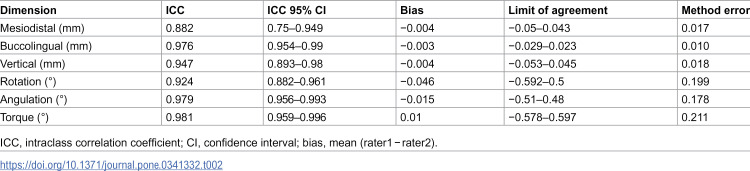

A fully digital indirect bonding workflow was used. Bracket positions were planned on a virtual setup, and transfer trays were fabricated by thermoforming on 3D-printed models. Four tray designs were tested clinically under routine full-arch lingual bonding: a single-layer rigid tray (SR1) and three bilayer trays with a flexible inner liner of increasing thickness (BL1, BL2, BL3). After bonding, each bracket was digitized and superimposed onto the planned position using a local bracket-based coordinate system. Linear (mesiodistal, buccolingual, vertical) and angular (rotation, crown angulation, torque) deviations were calculated at the tooth level and compared across tray designs.

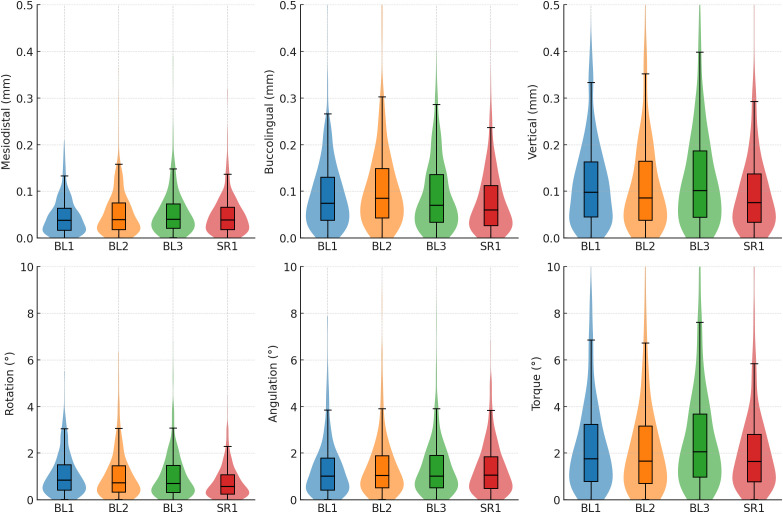

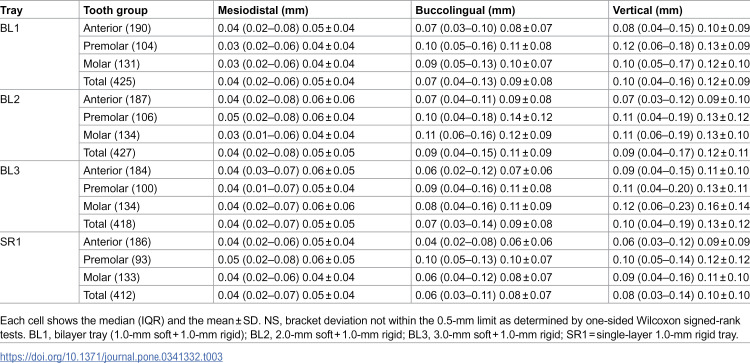

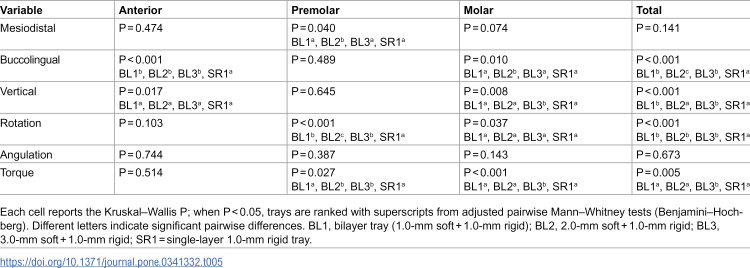

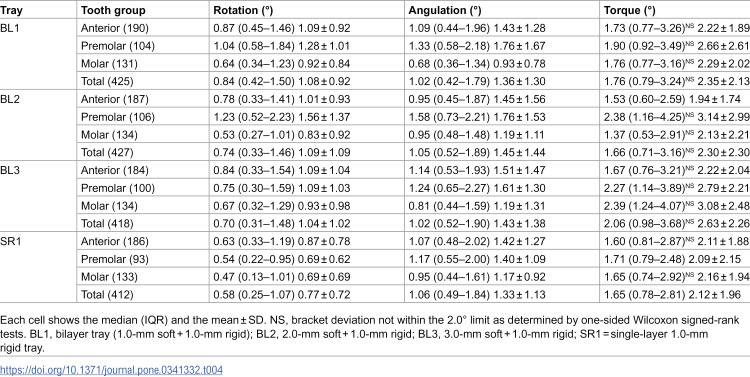

All trays achieved clinically acceptable transfer accuracy. All linear deviations remained below 0.5 mm at the group level, and rotation and angulation were generally within 2.0°. SR1 showed the most favorable buccolingual and rotational control but required the longest chairside delivery time. BL1 achieved acceptable accuracy with a shorter delivery time. Increasing liner thickness (BL2, BL3) did not improve precision and was associated with greater deviation in several dimensions.

Tray architecture affected which axes were most vulnerable to error. Torque remained the least predictable dimension across all designs. Clinically, SR1 may be preferred in cases requiring strict control of rotation and buccolingual position, whereas BL1 offers a faster alternative for straightforward alignment without routine escalation to thicker bilayer trays.
