Effect of Post-Printing Methods on the Microstructure and Mechanical Properties of Ti6Al4V Titanium Alloy Samples Fabricated Using Laser Powder Bed Fusion
Krzysztof Żaba, Stanislav Rusz, Alicja Haslik-Sopata, Łukasz Kuczek, Ilona Różycka, Maciej Balcerzak, Tomasz Trzepieciński
TL;DR
This paper studies how post-printing methods affect the microstructure and hardness of titanium alloy samples made with 3D printing.
Contribution
The study reveals how different post-printing methods and temperatures influence microhardness and microstructure in Ti6Al4V alloy samples.
Findings
Printing orientation significantly affects the effectiveness of HIP and heat treatment processes.
Annealing promotes fine α-phase precipitation in the β phase, enhancing strength.
Higher microhardness was observed in cross-sections perpendicular to the printing direction.
Abstract
Laser powder bead fusion (LPBF) allows for the fabrication of highly accurate components from metal powders, which is difficult to achieve using traditional methods. LPBF-produced components can be characterized by their porosity and unfavorable microstructure, making further processing difficult. Therefore, appropriate post-printing methods are crucial, as they reduce porosity, reduce residual stresses, and stabilize the microstructure. The aim of this paper was to determine the effect of post-printing methods on the microhardness and microstructure of Ti6Al4V titanium alloy samples fabricated using the LPBF process in different orientations. Hot isostatic pressing (HIP) at various temperatures (910 °C, 1150 °C, 1250 °C), annealing at 1020 °C, and twist channel angular pressing using a 90° channel ending with a helical exit were considered postprocessing methods for LPBF-produced…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

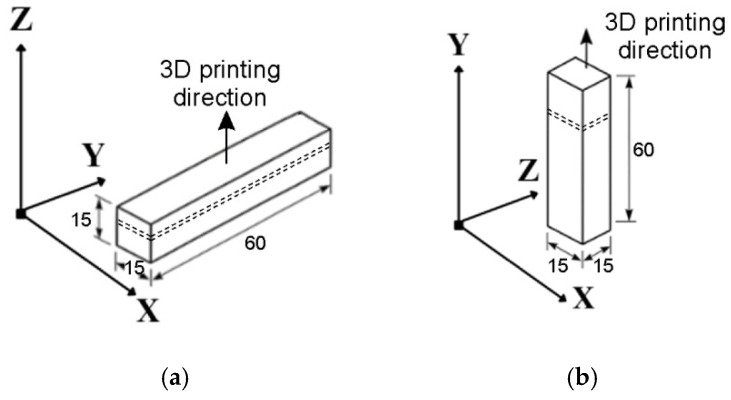

Figure 1

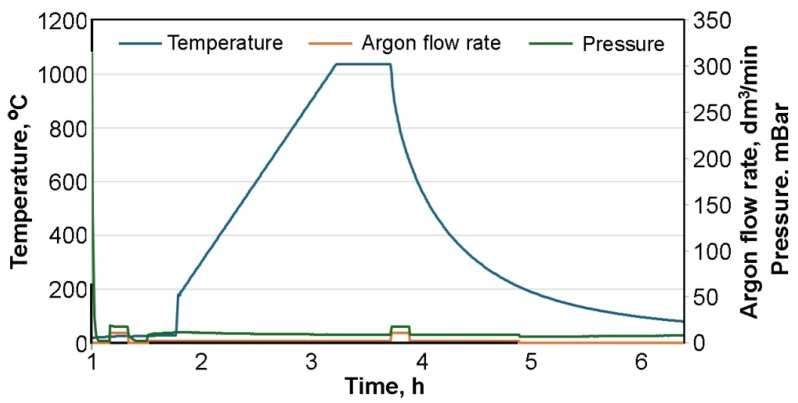

Figure 2

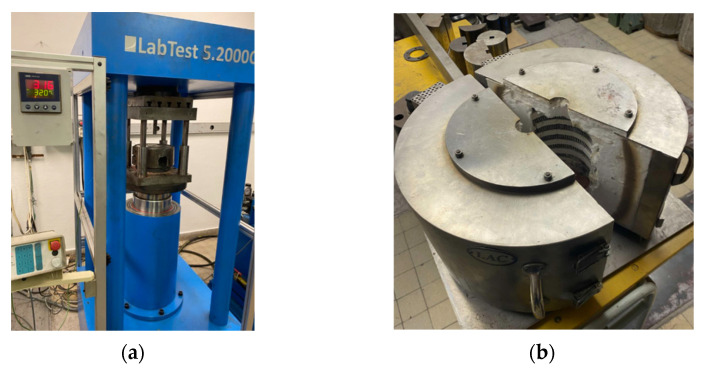

Figure 3

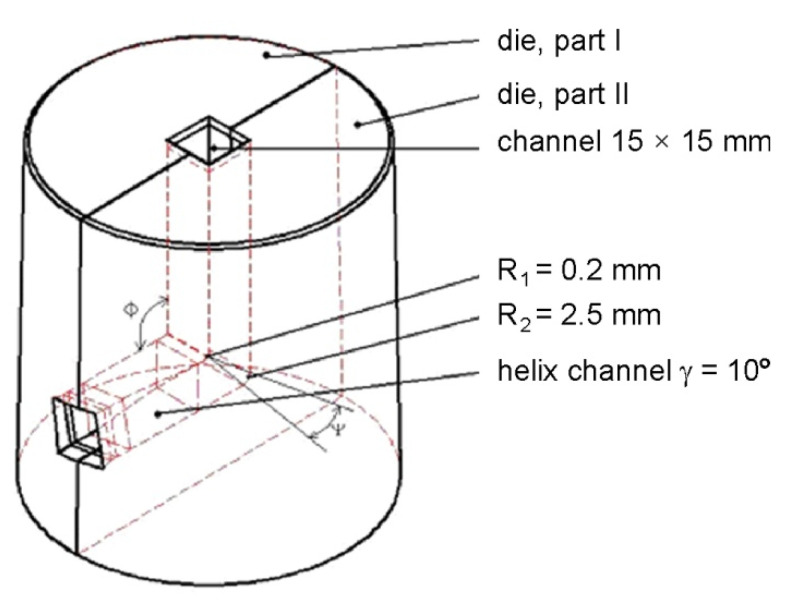

Figure 4

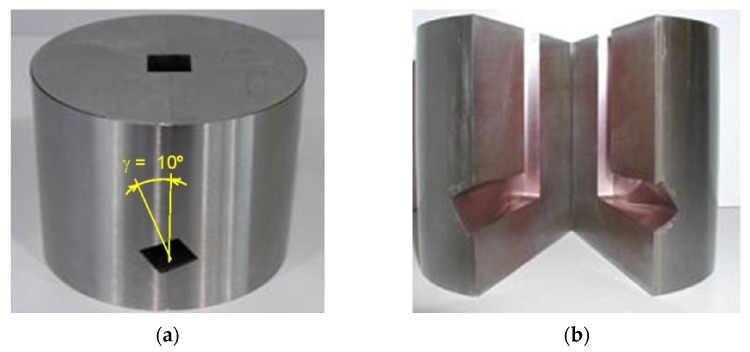

Figure 5

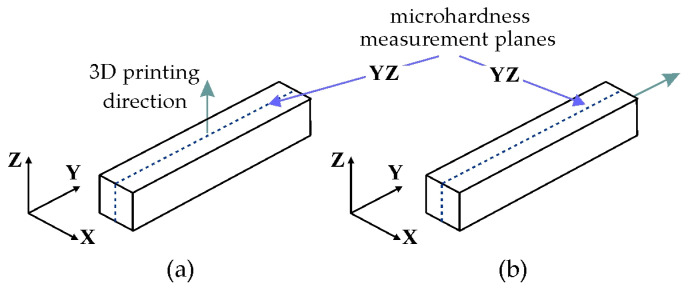

Figure 6

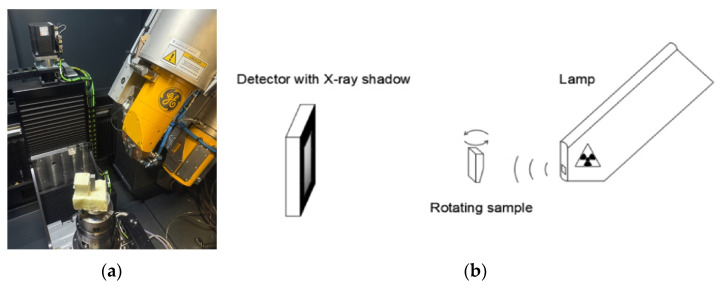

Figure 7

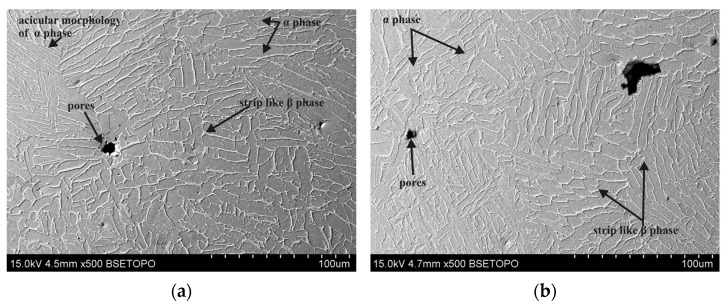

Figure 8

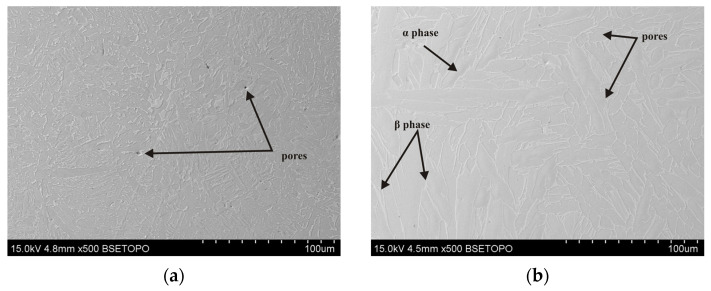

Figure 9

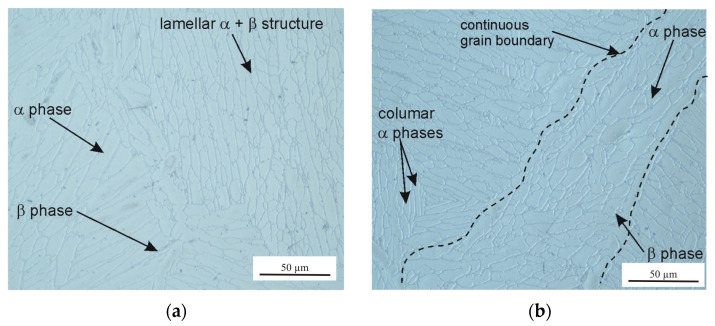

Figure 10

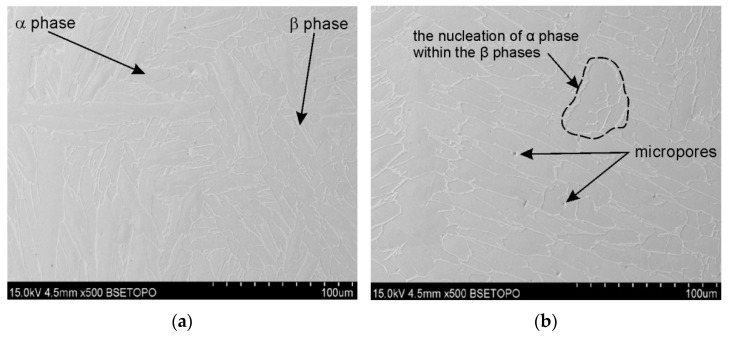

Figure 11

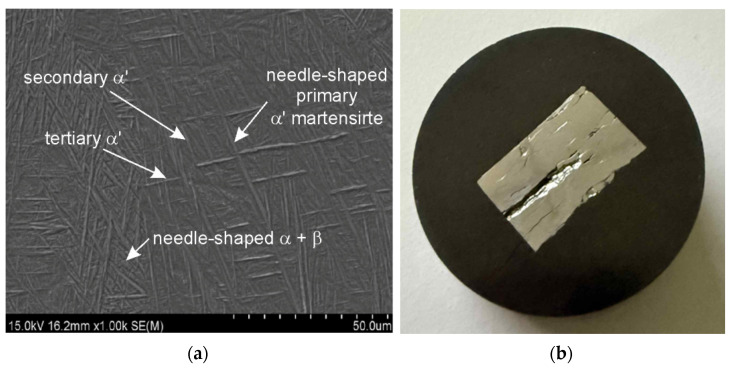

Figure 12

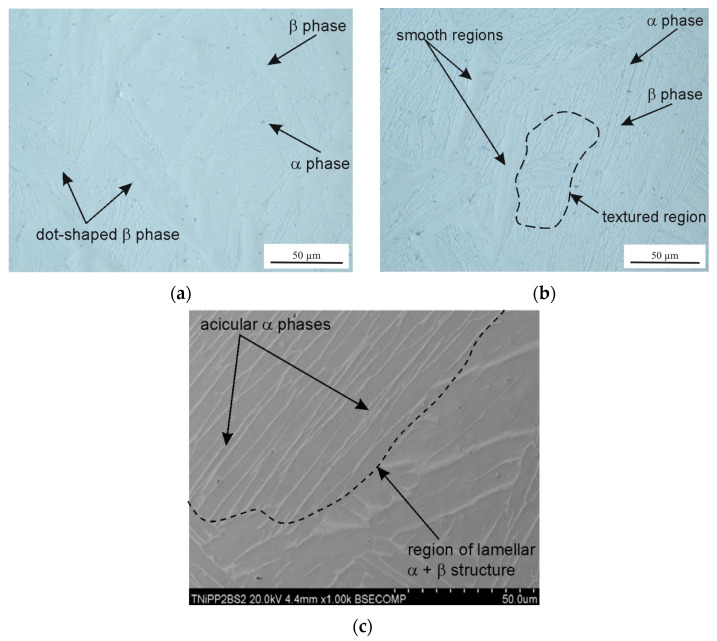

Figure 13

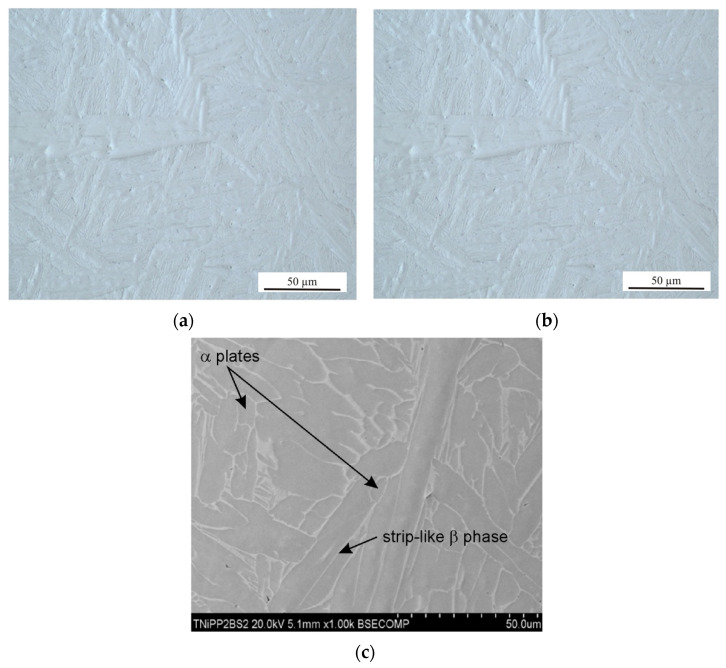

Figure 14

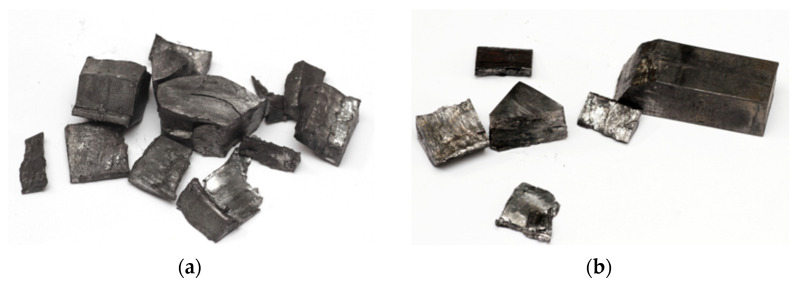

Figure 15
Figure 16

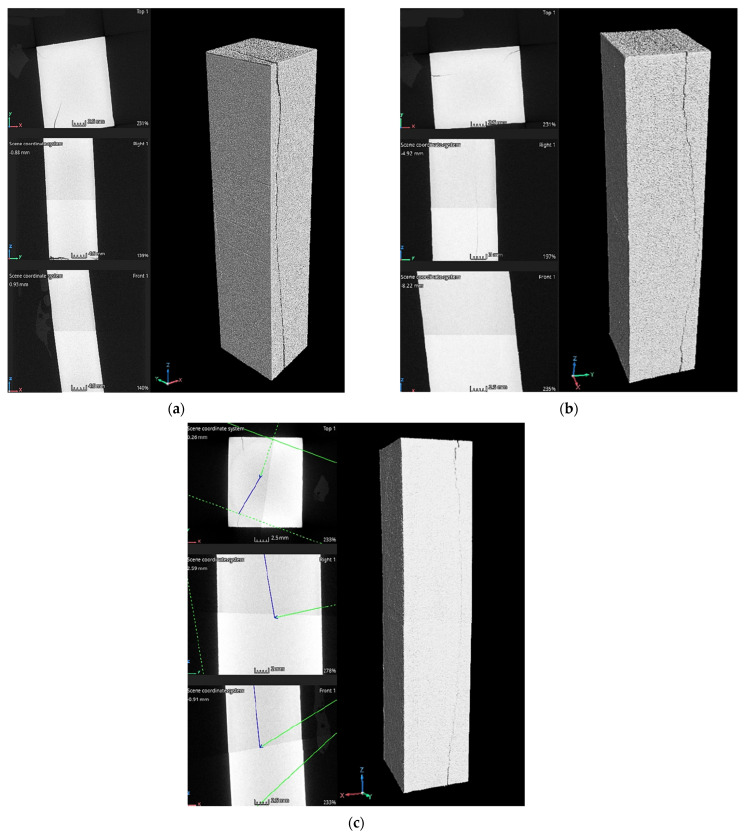

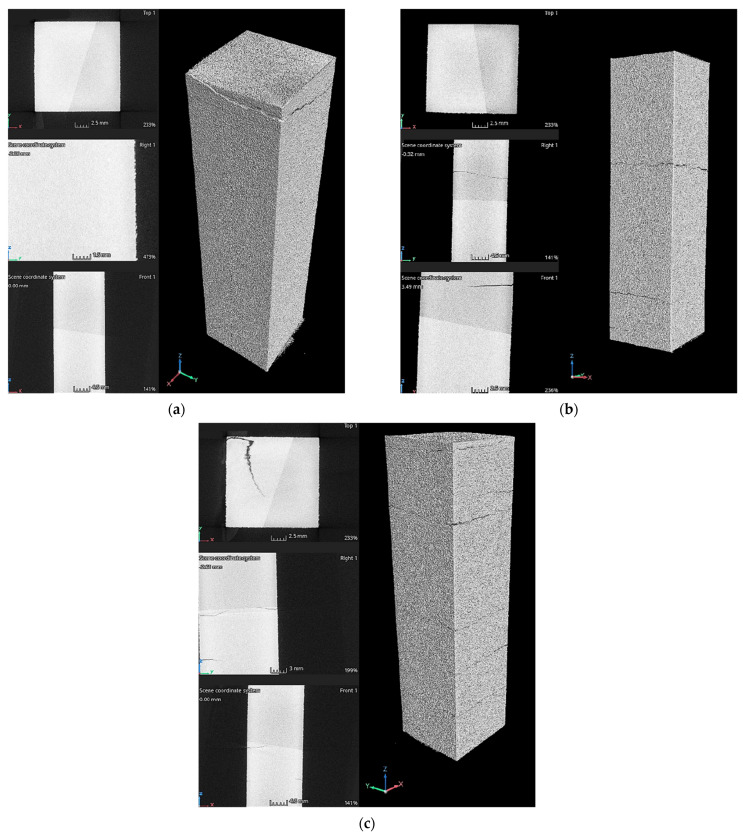

Figure 17
Figure 18

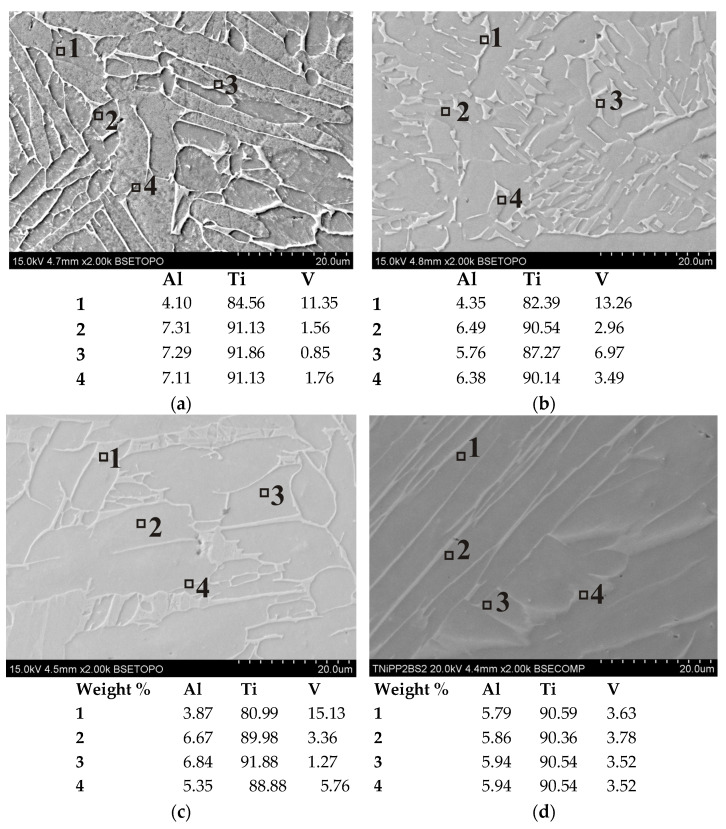

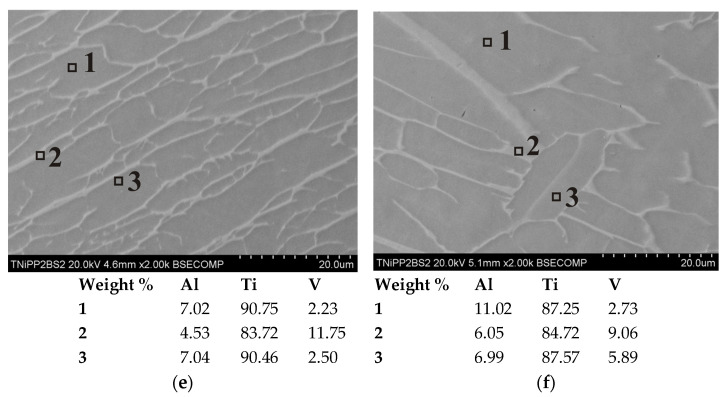

Figure 19
Figure 20

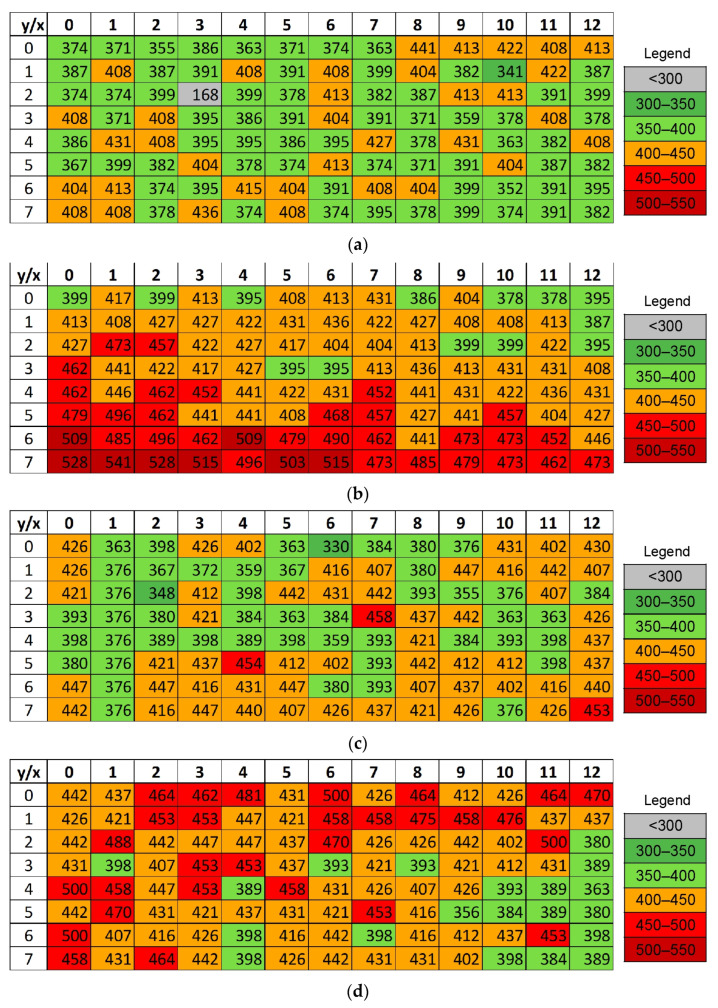

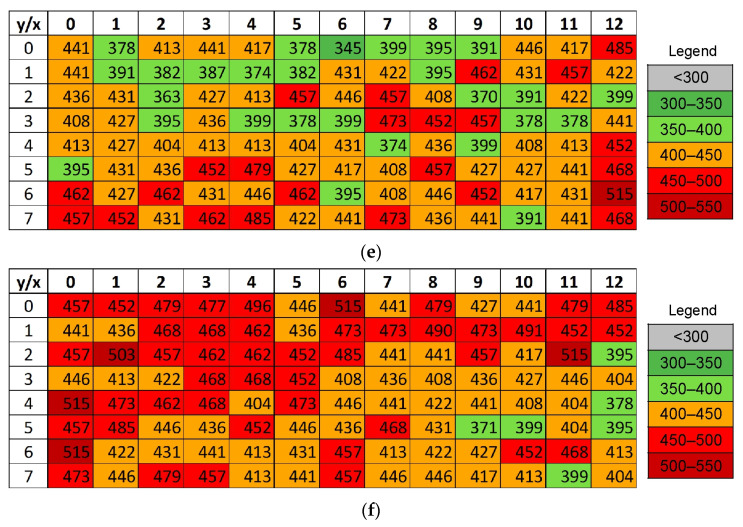

Figure 21
Figure 22

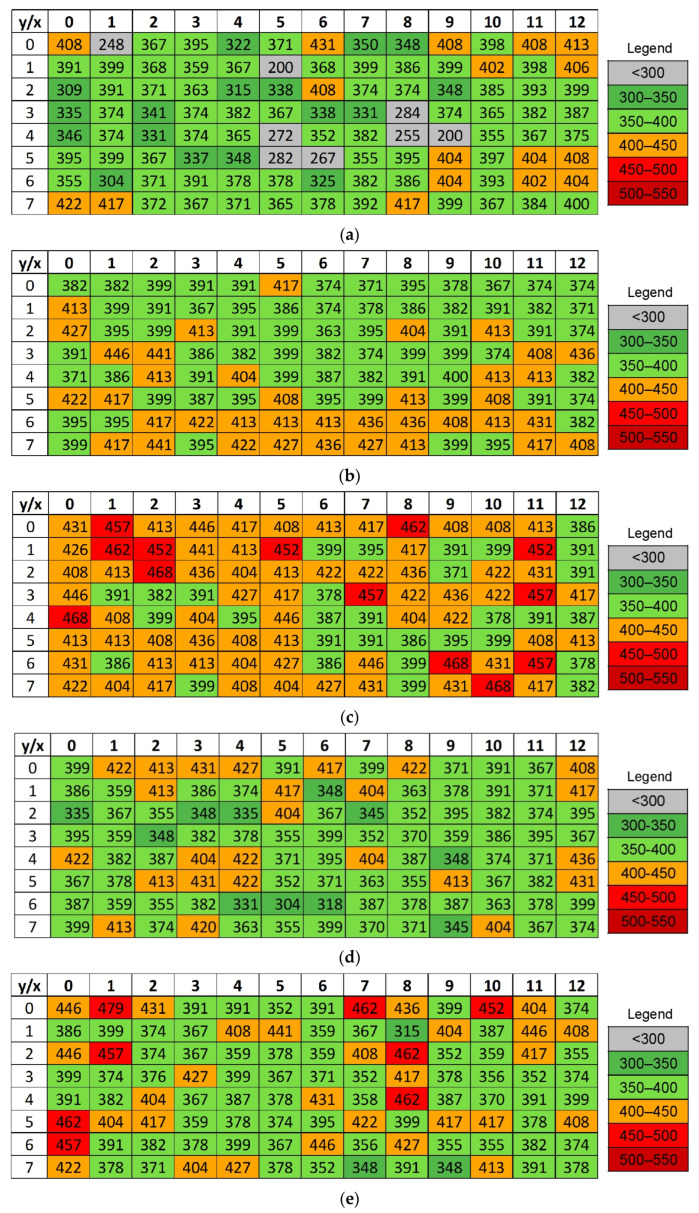

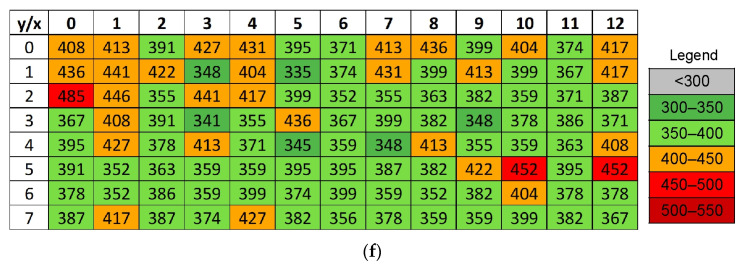

Figure 23
Figure 24

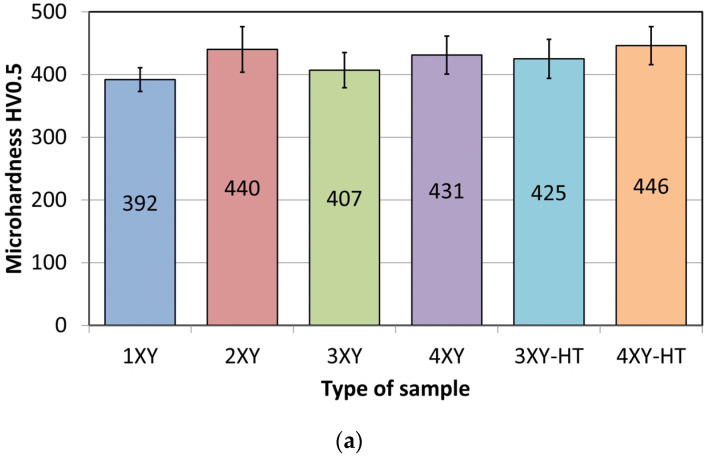

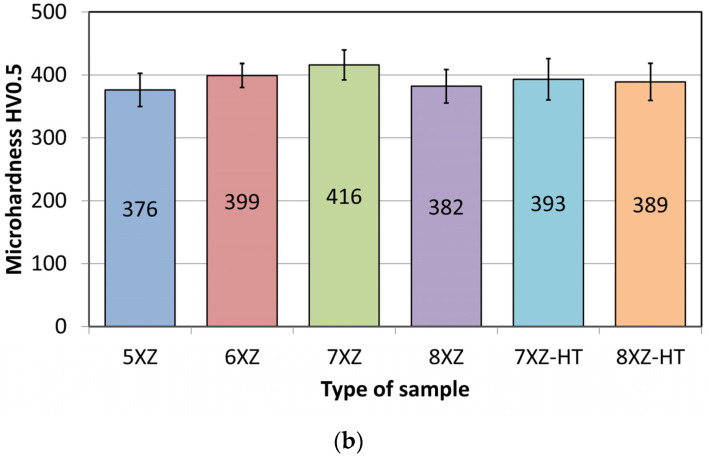

Figure 25Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdditive Manufacturing Materials and Processes · High Entropy Alloys Studies · Cellular and Composite Structures
