Distinction Between Aspergillus oryzae and Aflatoxigenic Aspergillus flavus by Rapid PCR Method Based on the Comparative Sequence Analysis of the Aflatoxin Biosynthesis Gene Cluster

TL;DR

This study develops a rapid PCR method to distinguish between Aspergillus oryzae and aflatoxin-producing Aspergillus flavus based on differences in their aflatoxin gene clusters.

Contribution

A novel PCR-based method using unique deletion patterns in the aflatoxin biosynthesis gene cluster to differentiate A. oryzae from A. flavus.

Findings

A. oryzae shows distinct deletions in the aflatoxin biosynthesis gene cluster compared to A. flavus.

Four primer sets were designed to differentiate the species with 92% accuracy using PCR amplicon size.

In silico PCR validated the method's effectiveness across 116 A. oryzae and 482 A. flavus genomes.

Abstract

Aspergillus oryzae and Aspergillus flavus are closely related species within the Aspergillus section Flavi, sharing approximately 99.5% genomic similarity. Despite this similarity, they differ markedly in their ability to produce aflatoxin, a carcinogenic mycotoxin synthesized by the aflatoxin biosynthesis gene cluster (ABGC). Species and strains included within section Flavi display diverse deletion patterns in the ABGC at the sequence level. In this study, we performed an in-depth comparative analysis of the ABGC of 30 strains belonging to section Flavi, including isolates obtained from nuruk. The analysis revealed that A. oryzae exhibits distinct large-scale or locus-specific deletions in the ABGC compared to other related species. Based on these unique deletion patterns, we designed four primer sets to distinguish A. oryzae from A. flavus by comparing the sizes of PCR amplicons. Application of these primer sets to nuruk-derived isolates enabled successful species differentiation with 92% accuracy. To further validate this method, in silico PCR analysis was conducted using publicly available genomes of A. oryzae (116) and A. flavus (482), confirming that the developed biomarkers could consistently distinguish between the two close species. The primer sets are expected to serve as a rapid, accurate, and practical method for distinguishing A. oryzae from A. flavus.

Figures

Full text

1. Introduction

Aspergillus section Flavi comprises 34 species that are morphologically and phylogenetically related and are classically divided into two groups based on their effects on food and human health [1,2,3,4]. The first group includes non-aflatoxigenic species such as Aspergillus oryzae and Aspergillus sojae, which have been domesticated and traditionally used in East Asia for the production of fermented foods and beverages [5,6,7]. In particular, A. oryzae is industrially important for its production of catalytic enzymes such as amylase and has been designated as “generally recognized as safe (GRAS)” by the U.S. Food and Drug Administration (FDA) and the World Health Organization (WHO), underscoring its broad industrial utility [8,9,10]. In contrast, the second group consists of aflatoxigenic species such as Aspergillus flavus and Aspergillus parasiticus, which produce carcinogenic aflatoxins that contaminate agricultural products and food products, posing significant public health concerns [11,12,13,14]. In addition to aflatoxin-related toxicity, A. flavus is recognized as one of the world’s most problematic fungal pathogens, causing invasive aspergillosis in humans and opportunistic infections in major economic crops both pre- and post-harvest [15,16,17].

Precise identification of Aspergillus section Flavi at the species level is critical because it includes both non-aflatoxigenic GRAS-certified species used in the food industry and aflatoxin-producing species threatening food safety [3,18,19,20,21,22]. Molecular biological analyses, including marker sequence comparison and genomic polymorphism assessments, have been used for this purpose [3,23]. However, these approaches generally distinguish between A. flavus/A. oryzae group and A. parasiticus/A. sojae group, but are still inadequate for distinguishing A. oryzae from A. flavus [24,25,26]. A. oryzae and A. flavus, two representative species of Aspergillus section Flavi with opposite impacts on the food industry, share nearly identical morphological traits and differ by only 0.5% (approximately 200 kb) of their genomic sequences [27,28,29]. Distinguishing the two species is difficult using only mycological or traditional molecular approaches, and therefore requires an integrated analysis combining morphological comparison, molecular genetic identification, phylogenetic analysis, and aflatoxin production assessment [4,30,31].

Although A. oryzae and A. flavus share a high degree of genetic similarity, their aflatoxin-producing abilities differ fundamentally. For this reason, numerous studies have been conducted to elucidate the genetic basis for these differences in toxin production through genetic analysis of the aflatoxin biosynthesis gene cluster (ABGC) [27,32,33]. The ABGC comprises 34 afl genes involved in the aflatoxin biosynthetic pathway or in adjacent sugar utilization, organized within an approximately 75 kb of DNA region at the terminus of chromosome 3 in Aspergillus section Flavi [34,35]. Comparative genomic analyses of the ABGC in A. oryzae and A. flavus have revealed strain-specific deletions at both gene and nucleotide levels across strains [25,36,37]. In particular, A. flavus exhibits deletions within the aflU (cypA)-aflF (norB) genes that are 0.8 to 1.5 kb shorter than the corresponding region in G-type aflatoxin-producing A. parasiticus [38,39,40]. Likewise, A. oryzae exhibits unidirectional large deletions with various breakpoints across strains, resulting in partial retention of aflatoxin-related genes yet loss of toxin production capacity [41,42,43]. Phylogenetic analyses of ABGC sequences further suggest that A. oryzae is phylogenetically closer to non-aflatoxigenic A. flavus than to aflatoxigenic A. flavus, implying that the most recent ancestor of A. oryzae diverged from a non-aflatoxigenic A. flavus [44,45]. Nonetheless, although these studies have attempted to distinguish between A. oryzae and A. flavus by large-scale polymerase chain reaction (PCR) and sequencing of a few selected genes, a suitable set of genes to distinguish both species has not yet been found [30,41,46]. Therefore, the development of precise markers and concise methods is essential for differentiating these closely related species for reliable industrial application of beneficial strains and food quality assurance [47,48].

In our previous studies, we have performed comparative genomic analyses of 30 representative species belonging to Aspergillus section Flavi, including A. oryzae and A. flavus strains isolated from nuruk, a traditional Korean fermentation starter [49,50,51]. Through these analyses based on the sequence level, we found the strain-specific deletion patterns within the ABGC, providing the basis for the present study. Based on the results, we aimed to design the primer sets to distinguish A. oryzae from A. flavus by utilizing the differences in specific gene sequences within the ABGC. To evaluate the diagnostic potential of these primers, we performed PCR analysis on 108 A. oryzae strains isolated from nuruk. In addition, we downloaded 116 genomes of A. oryzae and 482 genomes of A. flavus registered in GenBank and AflaPan [52] and performed in silico PCR analysis using the designed primers, and confirmed that these primers could distinguish between the two highly similar species. This study was conducted to contribute to the development of a rapid and highly accurate identification method for distinguishing between A. flavus strains that produce aflatoxins and threaten food safety from A. oryzae, which is recognized as GRAS, by utilizing the results of more sophisticated and in-depth comparative genomic analysis.

2. Materials and Methods

2.1. Comparison of ABGC Genes of 30 Strains of Aspergillus Section Flavi

The whole genome sequences of 30 strains of Aspergillus section Flavi, previously analyzed in a comparative genome study [49], were retrieved from GenBank, and in this study, a comparative analysis of the ABGC sequences was performed. The ABGC sequences of 30 strains of Aspergillus section Flavi were obtained via BLASTn (NCBI, https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 1 November 2024) [53], using the annotation information of ABGC of A. flavus NRRL3357 as a reference (GCA_014117465.1). The 35 ABGC genes analyzed in this study consist of 5 sugar utilization-related genes (aflYa to aflYe) [54,55], 29 genes associated with aflatoxin biosynthesis (aflA to aflY, aflCa, aflLa, aflMa, and aflNa) [56], and AFLA_13945 gene (EDD51179.1), a hypothetical protein-coding gene located in the 3′ end of ABGC. The ABGC sequences of all strains were multiply aligned using the DIALIGN program v2.2.2 [57], and information on frameshifts was obtained using MACSE v1 [58]. The average nucleotide identity (ANI) values among the ABGC sequences of 30 strains of Aspergillus section Flavi were calculated using OrthoANI v0.6.0 [59]. A phylogenetic tree based on ANI values was constructed using the hclust function of the R program v4.3.2.

2.2. PCR Analysis of A. oryzae and A. flavus Strains Using Newly Designed Four Sets of Primers Targeting ABGC

Four primer sets were designed to target four regions within the ABGC, namely YE1–YE2, CT1–CT2, UF1–UF2, and E1–E2. Each primer targeted corresponding positions: positions 304–621 of aflYe gene (start region), positions 70,774–72,500 of the aflC and aflT genes (CT region), positions 74,498–76,669 of the aflU and aflT genes (UF region), and positions 77,621–77,942 of the AFLA_13945 (end region), the terminal ABGC gene (Table 1). The annealing temperatures for each primer set were 64.8, 65.2, 64.9, and 64.2 °C, respectively. Each primer was designed to target conserved regions of A. oryzae and A. flavus, but with 1–4 sequence variations per species (Table S1).

One hundred seventeen strains that formed green spores were isolated from nuruk, and identified by molecular methods using internal transcribed spacer (ITS) region, and confirmed with high-performance liquid chromatography (HPLC) analysis for aflatoxin production [51,60,61]. Aflatoxin production of nuruk strains was measured by culturing them on rice medium at 25 °C for 21 days. Aflatoxin was extracted from the rice medium using an immunoaffinity column (AflaTest^®^WB; VICAM, A Waters Business, San Marcos, CA, USA). The final concentration of aflatoxin was measured by HPLC analysis using a 1200 Infinity Series (Agilent Technologies, Santa Clara, CA, USA) on a ZORBAX Eclipse Plus C_18_ column (4.6 × 150 mm, 3.5 µm). HPLC analysis through a C_18_ column was performed at a flow rate of 1.0 mL/min using an isocratic mobile phase composed of water, methanol, and acetonitrile in the ratio of 50:40:10 (v/v/v). Aflatoxins were detected using a fluorescent detector with an excitation wavelength of 360 nm and emission wavelength of 440 nm.

We performed PCR analysis using four newly designed primer sets on 108 strains of A. oryzae and 9 strains of A. flavus isolated from nuruk and 8 standard strains of Aspergillus section Flavi. PCR reactions were carried out at a final volume of 20 µl, containing 20 to 50 ng of genomic DNA of each strain and 20 pmol of each primer. The reactions were conducted under the following conditions: 94 °C for 4 min, followed by 30 cycles of 94 °C for 1 min, 65 °C for 1 min, and 72 °C for 1 min, and a final extension at 72 °C for 10 min. The amplified PCR amplicons were confirmed by electrophoresis using a 1.0% agarose gel.

2.3. Comparison of laeA Gene and Translated LaeA Sequences

Draft annotation for laeA gene was conducted on 116 genomes of A. oryzae and 257 genomes of A. flavus obtained from the NCBI GenBank database and 225 genomes of A. flavus from AflaPan [52] using the Funannotate pipeline v1.8.15 [62]. The nucleotide sequence of laeA gene and the amino acid sequence of LaeA for each strain were subjected to BLAST to detect sequence variations. The laeA gene sequences showing sequence variations were subjected to multiple alignment using MAFFT v7.407 [63,64], and the positions of sequence variations and mutation cases were examined.

2.4. In Silico PCR Analysis Using ABGC-Targeting Primer Sets

To perform in silico PCR (iPCR) analysis using four primer sets, we acquired whole genome sequences of 116 strains of A. oryzae and 257 strains of A. flavus registered in GenBank. In addition, we independently acquired the newly sequenced genome sequences of 225 strains of A. flavus from the AflaPan [52]. And then, we performed iPCR analysis using Fasta v36.3 [65] to determine the target positions and expected PCR amplicon sizes for a total of 116 genomes of A. oryzae and 482 genomes of A. flavus. To confirm the sequence variations of the ABGC-targeting primer sets, we extracted the aligned sequences from 116 genome of A. oryzae and 482 genomes of A. flavus with newly designed primer sets, and conducted multiple alignment using MAFFT v7.407 [63,64]. Finally, the alignment of the four primer sets with the genomes of A. oryzae and A. flavus was conducted using BLAST [66] to validate the expected iPCR amplicon size and sequence variations within the primer sets.

3. Results

3.1. Comparison of ABGC Among 30 Strains of Aspergillus Section Flavi

We acquired the ABGC sequences from the genomic data of 30 strains of Aspergillus section Flavi and examined the gene deletions and pseudogenization across 35 ABGC genes through additional annotation (Table S2). The number of ABGC genes varied among A. oryzae and A. flavus strains, whereas A. sojae and A. parasiticus possessed the whole set of 35 genes. Nine strains of A. oryzae possessed all 35 ABGC genes, including 6 to 11 pseudogenes. In contrast, ten A. flavus strains and two A. oryzae strains each harbored 33 to 35 ABGC genes, with the aflT, aflU, and aflF genes exhibiting diverse statuses, such as intact, deleted, or pseudogene. The remaining four strains of A. oryzae and A. flavus exhibited unidirectional large deletions starting at the 3′ end of ABGC. Specifically, A. oryzae KBP3 and BCC7052 retained 21 genes due to deletions spanning aflE to AFLA_13945, A. oryzae RIB326 retained 10 genes due to deletions from aflQ to AFLA_13945, and A. flavus 26-3 contained only 4 genes resulting from deletions extending from aflYa to AFLA_13945.

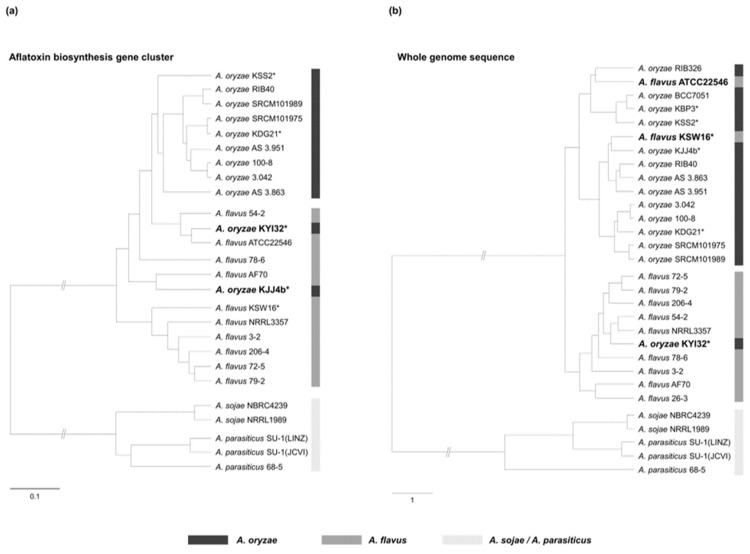

A phylogenetic analysis was conducted using the ABGC sequences of 26 strains of Aspergillus section Flavi, excluding four strains (A. oryzae KBP3, RIB326, BCC7051, and A. flavus 26-3) that had unidirectional deletions exceeding one-third of the ABGC (Figure 1a). The ABGC-based phylogenetic tree was divided into three primary clades corresponding to A. oryzae, A. flavus, and A. sojae/A. parasiticus. The A. oryzae clade contained nine A. oryzae strains, whereas the A. flavus clade comprised ten A. flavus strains and two A. oryzae strains (Figure 1a). As indicated in bold in Figure 1a, both A. oryzae KYI32 and KJJ4b, which originated from nuruk, clustered within the A. flavus clade. Interestingly, while A. oryzae KYI32 consistently belonged to the A. flavus clade in both the ABGC-based and whole-genome-based phylogenetic trees, A. oryzae KJJ4b belonged to the A. oryzae clade in whole-genome phylogeny (Figure 1b).

3.2. Five Deletion Types of the ABGC Across 30 Strains of Aspergillus Section Flavi

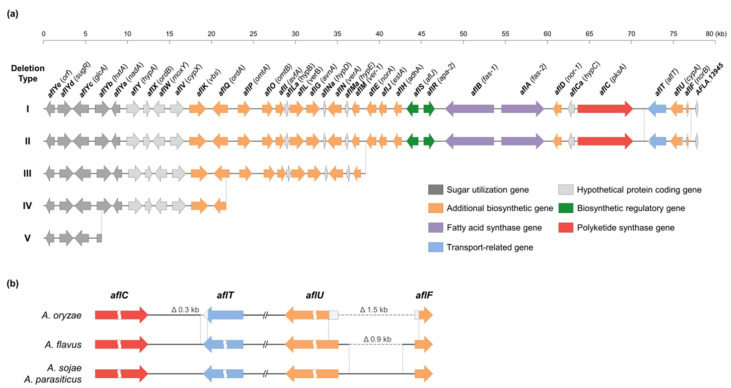

Based on the distribution of 35 ABGC genes in 30 strains of Aspergillus section Flavi (Table S2), ABGC deletion patterns were classified into five types (Figure 2a). Deletion type I contains 33 to 35 ABGC genes, and two strains of A. oryzae, 10 strains of A. flavus, 2 strains of A. sojae, and 3 strains of A. parasiticus belong to this type (Table S2). In the case of deletion type II, the aflT, aflU, and aflF genes located at the 3′ end of ABGC were pseudogenes, and 9 strains of A. oryzae belong to this type. Deletion types III, IV, and V are minor types in which more than half of the ABGC is deleted; deletion type III has 21 ABGC genes, type IV has 10 ABGC genes, and type V has 4 ABGC genes.

Aspergillus section Flavi strains classified as deletion type I and II exhibited two species-specific deletions involving three adjacent genes—aflT, aflU, and aflF—at the 3′ end of the ABGC (Figure 2b). The first species-specific deletion occurred within the aflT gene and the intergenic region between aflC (pksA) and aflT. This deletion spanned approximately 0.3 kb, encompassing about 250 bp from the 3′ end of aflT and roughly 60 bp from the aflC-aflT intergenic region, and was observed exclusively in A. oryzae. The second species-specific deletion was located in the aflU (cypA) gene, aflF (norB) gene, and their intergenic region. In A. sojae and A. parasiticus, this intergenic region measured approximately 1.4 kb, whereas A. flavus exhibited a 0.9 kb deletion, leaving only 0.5 kb. In A. oryzae, a more widespread deletion occurred, including the aflU-aflF intergenic region and the 5′ end of two genes, leading to a more significant deletion of approximately 1.5 kb compared to A. sojae and A. parasiticus and 0.6 kb relative to A. flavus (Figure 2b).

3.3. PCR-Based Differentiation of A. oryzae from A. flavus Using ABGC-Targeting Primer Set

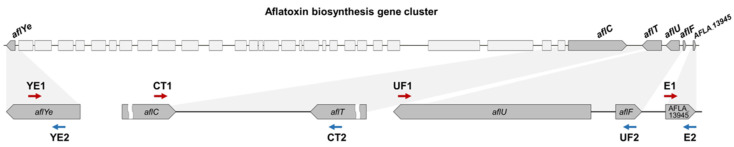

Based on the species-specific deletion types identified within ABGC of Aspergillus section Flavi, we designed four primer sets to distinguish between A. oryzae and A. flavus through a simple PCR assay comparing amplicon sizes (Table 1). The newly designed primer sets—YE1–YE2, CT1–CT2, UF1–UF2, and E1–E2—targeted four distinct regions across the ABGC (Figure 3). The YE1-YE2 set targeted the aflYe gene (start region), the first gene of ABGC, allowing detection of the presence or absence of ABGC in the strain. The CT1–CT2 set targeted the aflC and aflT genes (CT region) and was designed to detect the 0.3 kb deletion unique to A. oryzae. The UF1–UF2 set targeted the aflU and aflF genes (UF region) to identify species-specific differences in deletion size of 0.6 kb between A. oryzae and A. flavus. The E1–E2 set targeted the AFLA_13945 gene (end region), the last gene of ABGC, to determine the presence or absence of large deletions within it.

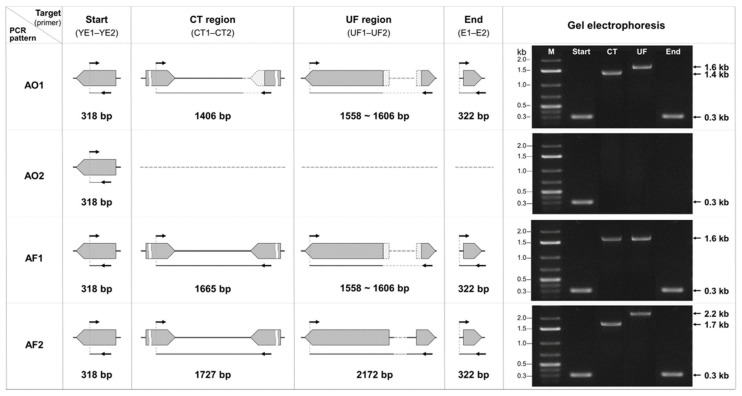

PCR assay using these four primer sets revealed two distinct amplification patterns for A. oryzae and A. flavus based on the CT and UF regions: AO1 and AO2 patterns for A. oryzae, and AF1 and AF2 patterns for A. flavus (Figure 4). Across all patterns, the amplicon sizes of the start and end regions were 318 bp and 322 bp, respectively, except for AO2, in which the end region was not amplified. In the AO1 pattern, the CT and UF regions produced amplicons of 1406 bp and ~1600 bp, respectively, corresponding to A. oryzae strains carrying a 0.3 kb deletion in CT region and a 0.6 kb deletion in the UF region. The AO2 pattern displayed amplification only in the start region, with the other three regions unamplified, consistent with A. oryzae strains exhibiting large deletion within ABGC (deletion type III to V in Figure 2a). In the case of A. flavus, the AF1 pattern produced CT and UF amplicons of 1665 bp and ~1600 bp, respectively, reflecting a 0.6 kb deletion in the UF region similar to that observed in A. oryzae. The AF2 pattern, on the other hand, generated CT and UF amplicons of 1727 bp and 2172 bp, respectively, corresponding to A. flavus strains classified as deletion type I in Figure 2a. PCR analysis using the four primer sets on representative strains—A. oryzae KSS2, KBP3, A. flavus KSW16, and ATCC22546—confirmed that these strains exhibited the AO1, AO2, AF1, and AF2 patterns, respectively (Figure 4).

3.4. PCR Analysis Using Four Newly Designed Primer Sets to Distinguish A. oryzae from A. flavus

We performed PCR analysis using the four primer sets on 125 strains, comprising 8 reference strains of Aspergillus section Flavi, 108 A. oryzae strains, and 9 A. flavus strains isolated from nuruk, alongside HPLC analysis to evaluate aflatoxin production for each strain (Table 2 and Table S3). PCR and HPLC analyses of the 8 reference strains revealed that A. oryzae RIB40 and RIB128, both non-aflatoxin-producers, exhibited the AO1 pattern, whereas A. flavus ATCC22546 and A. flavus NRRL3357, which produced about 300 ppb of aflatoxin, showed the AF2 pattern (Table S3 and Figure S1). Among the reference strains, PCR results of the two non-aflatoxin-producing A. sojae strains and the two aflatoxin-producing A. parasiticus strains both produced amplicons of the same size, 1.7 kb and 3.1 kb, in the CT and UF regions, respectively.

PCR analysis of 108 nuruk isolates of A. oryzae revealed 35 strains (32%) as AO1, 64 strains (59%) as AO2, 8 strains (7%) as AF1, and one strain (1%) as AF2 (Table 2). Eight strains isolated from nuruk (CN4-3, JJ4-7, JJ4-10, JJ4R-B, KJJ4b, SW1-8, SW1-11Y, and YI2-1) produced amplicons of approximately 1.7 kb and 1.6 kb in the CT and UF region, respectively, showing the AF1 pattern. A. oryzae KYI32 made amplicons of about 1.7 kb and 2.1 kb in the CT and UF regions, respectively, showing an AF2 pattern. All A. flavus strains isolated from nuruk were aflatoxigenic, ranging from 22.8 to 279.7 ppb, and all showed the AF2 pattern, except for A. flavus KSW16 (AF1 pattern) (Table S3).

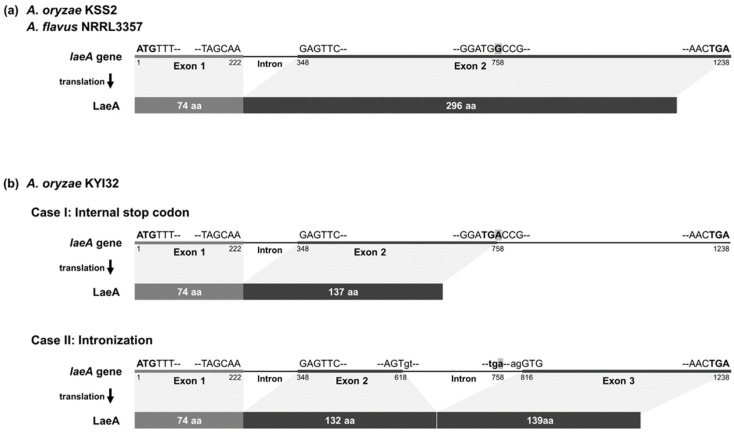

To further investigate atypical A. oryzae strains showing AF patterns, we compared the laeA gene sequences, a global regulator of secondary metabolism of Aspergillus spp. [68], in A. oryzae KJJ4b (AF1 pattern) and KYI32 (AF2 pattern) (Table 2). Compared with A. oryzae KSS2 and A. flavus NRRL3357, which possesses an intact laeA gene of 1238 bp, A. oryzae KYI32 has a single-nucleotide transition mutation at the 758th nucleotide position, where guanine (G) was substituted with adenine (A) (Figure 5). Based on laeA gene sequences of A. oryzae KSS2 and A. flavus NRRL3357, the predicted amino acid sequence of LaeA comprised 370 aa with no mutations (Figure 5a). In contrast, A. oryzae KYI32 exhibited two atypical translation cases of LaeA due to a G to A substitution (Figure 5b). Case I is a predicted truncated LaeA (210 aa) resulting from a premature stop codon at the 758th nucleotide, while case II is a predicted shortened LaeA (345 aa) caused by intronization between the 618th and 816th nucleotides of the laeA gene. However, the laeA gene of A. oryzae KJJ4b did not have any sequence mutations.

3.5. iPCR Analysis Using Four Newly Designed Primer Sets to Distinguish A. oryzae from A. flavus

To verify that the two species can be distinguished based on PCR, we performed iPCR analysis using 116 genomes of A. oryzae and 482 genomes of A. flavus available from GenBank and AflaPan [52] (Table 3, Tables S4 and S5). Most of the 116 A. oryzae genomes showed either the AO1 (43 strains, 37%) or the AO2 patterns (71 strains, 61%). The only exceptions were A. oryzae KJJ4b (AF1) and A. oryzae KYI32 (AF2) (Table 3). Subsequent iPCR analysis of 482 A. flavus genomes, including 257 from GenBank and 225 from AflaPan, revealed that 170 genomes (35%) showed the AF1 pattern and 146 genomes (30%) did the AF2 pattern. However, 24 genomes (5%) exhibited the AO1 pattern, and 121 genomes (25%) did the AO2 pattern.

All 225 genomes of A. flavus in AflaPan were tested for aflatoxin production status, but only 98 of the 257 genomes in GenBank were confirmed (Table S5). Consequently, we compared the iPCR results of 323 genomes (161 aflatoxigenic strains and 162 non-aflatoxigenic strains) with known aflatoxin production status (Table 3). The majority of aflatoxigenic A. flavus (95%) exhibited the AF1 or AF2 pattern, with only seven outliers. In the case of non-aflatoxigenic A. flavus, 76 genomes (47%) and 57 (35%) showed the AO2 and AF1 pattern, respectively.

4. Discussion

Aspergillus section Flavi includes both useful species, which are used in the food industry owing to their high enzyme productivity and fermentation efficiency, and harmful species, which synthesize carcinogenic mycotoxins that contaminate food products and pose serious health risks [70,71]. Owing to their industrial importance, species-level molecular identification within Aspergillus section Flavi remains one of the most extensively studied topics in fungal taxonomy [13,48,72,73]. However, A. oryzae and A. flavus, two closely related but functionally distinct species, are difficult to accurately distinguish based on morphology or common molecular markers such as ITS and β-tubulin sequences [4,27]. Since aflatoxin production represents the primary distinguishing trait between these two species, identification often relies on a comprehensive evaluation that incorporates aflatoxin production with morphological and molecular biological analyses [18,36,40]. However, such comprehensive analyses are time-consuming and complicated by the existence of non-aflatoxigenic A. flavus strains [30,48,74]. Therefore, a rapid and accurate molecular method is essential for detecting A. flavus, which continues to threaten global food safety and human health.

In our previous study [49], we found that Aspergillus section Flavi strains isolated from nuruk, a traditional Korean fermentation starter, possessed diverse ABGC deletion types, including truncated clusters, pseudogenes, and strain-specific deletions of ABGC genes. The genes involved in aflatoxin biosynthesis, which is the most prominent distinction between A. oryzae and A. flavus, are located as a cluster in the sub-telomeric region of chromosome 3, a region known for high frequencies of genetic recombination and structural rearrangements [38,75]. Several studies have reported that Aspergillus section Flavi, particularly A. oryzae and A. flavus, harbor species-specific structural variations in the ABGC, including large-scale gene deletions and small sequence-level deletions [33,43,72,76]. In this study, we analyzed ABGC deletion patterns at the sequence level in A. oryzae and related species within Aspergillus section Flavi, including nuruk-derived strains, to develop a reliable differentiation method to differentiate A. oryzae from A. flavus. Of the 14 A. oryzae strains analyzed, three exhibited unidirectional deletions starting from the 3′ end of the ABGC (Figure 2a and Table S2), consistent with the previously reported Group II deletion in A. oryzae [45,77]. A. oryzae KBP3 is a deletion type III, with the ABGC deleted up to the aflM gene, rendering it non-aflatoxigenic, similar to A. oryzae BCC7051 [45]. Most A. oryzae strains (9 out of 14) were deletion type II, characterized by a 0.3 kb deletion at the 3′ end of the aflT gene and a 1.5 kb deletion in the intergenic region encompassing the 5′ ends of the aflU and aflF genes (Figure 2b). These sequence-level deletions in the aflT, aflU, and aflF genes were confirmed as species-specific deletions of A. oryzae compared to the other three species, A. flavus, A. sojae, and A. parasiticus (Figure 1a) [38,41]. Unlike typical A. oryzae strains, A. oryzae KYI32 was phylogenetically grouped with A. flavus based on both ABGC sequences and the whole genome (Figure 1 and Table S2) [78,79]. Although A. oryzae KYI32 does not produce aflatoxins, as confirmed by HPLC analysis, its ABGC organization closely resembles that of aflatoxigenic A. flavus. Genome analysis further revealed a nonsense mutation in the laeA gene of A. oryzae KYI32, a key global regulatory gene of secondary metabolisms in Aspergillus [80,81], which is predicted to disrupt normal laeA gene expression (Figure 5). Taken together, these findings suggest that the absence of aflatoxin production in A. oryzae KYI32, despite its intact ABGC and phylogenetic proximity to A. flavus, is likely attributable to regulatory dysfunction rather than structural ABGC gene loss.

Based on the identified different deletions in the aflT, aflU, and aflT genes across species, we designed four primer sets targeting these species-specific variations to distinguish A. oryzae from A. flavus through differences in PCR amplicon sizes (Table 1 and Figure 3). Previous studies have proposed various PCR-based strategies to distinguish between A. oryzae and A. flavus, including sequence-level comparison of new genetic markers such as the cyp51A gene [48] and real-time detection of expression level of aflatoxin-related genes (aflS and aflR genes) [82,83]. Alternatively, multiplex PCR assays incorporating four to six primer sets have been employed to discriminate A. flavus from other genera or Aspergillus sections [84,85,86]. However, these approaches often only discriminate at the genus or section level or require time-consuming procedures such as sequencing or gene expression analysis. To further compare the marker-based discrimination, we additionally evaluated the species-level discrimination of the cyp51A gene-targeting primers through in silico primer-genome alignment using the deposited genomes of A. oryzae and A. flavus [48]. This analysis, however, is predicted to yield limited discriminatory accuracy—approximately 82% for A. flavus but only 34% for A. oryzae—indicating particularly poor accuracy for A. oryzae (Tables S4 and S5). In contrast, the ABGC-targeting primer sets designed in this study enable rapid and reliable species-level identification of A. oryzae from A. flavus, as well as the strains’ ABGC structure, through a simple PCR amplicon size comparison (Figure 4). PCR assay using ABGC-targeting primer sets for nuruk-derived strains confirmed that A. oryzae and A. flavus could be differentiated with 92% and 100% accuracy, respectively (Table 2 and Table S3). Among the A. oryzae strains, 59% showed the AO2 pattern, indicating truncated ABGC, and 32% the AO1 pattern, indicating relatively intact ABGC with species-specific small deletions in the aflT, aflU, and aflF genes. Eight A. flavus strains, excluding A. flavus KSW16 (AF2 pattern), showed the AF1 pattern characterized by small deletions in the aflU and aflF genes like A. oryzae. This approach enables simultaneous species-level discrimination of A. oryzae and A. flavus and verification of ABGC structure solely through PCR amplicon size profiling. Importantly, our method bypasses additional sequencing- or expression-based steps and therefore provides a rapid and cost-efficient approach for routine identification.

iPCR analysis enables evaluation of primer performance across expanded genomic datasets by simulating amplification outcomes [87,88]. Although iPCR outputs occasionally differ from experimental PCR due to genome assembly quality or in vivo amplification dynamics, this computational approach provides an efficient strategy for assessing primer specificity and predicting amplification [69,89]. Consistent concordance between large-scale iPCR prediction and experimental PCR results indicates that the designed primer sets exhibit high accuracy and strong applicability for discriminating A. oryzae from A. flavus (Table 3). Across A. oryzae genomes, the predominance of AO-type patterns reflects conserved truncated ABGC structure and species-specific deletions in aflT and aflU-aflF genes. Notably, two A. oryzae genomes derived from nuruk (KJJ4b and KYI32) showed AF-type patterns, underscoring the evolutionary proximity between A. oryzae and A. flavus. And this may imply the rare but biologically meaningful presence of regulatory alterations that decouple ABGC integrity from aflatoxin biosynthesis. Furthermore, we compared the iPCR patterns of A. flavus genomes with known aflatoxin production status and found that non-aflatoxigenic A. flavus may exhibit either AO2 or AF1 patterns (Table 3 and Table S5). This heterogeneity is biologically plausible, as loss of aflatoxin production in A. flavus can arise from truncation of the ABGC or from an intact ABGC coupled with defects in regulatory mechanisms, as found in KYI32 [90,91]. Thus, non-aflatoxigenic A. flavus may have A. oryzae-like or intermediate ABGC profiles, indicating diverse evolutionary pathways leading to aflatoxin non-production. Although this represents a limitation in distinguishing A. oryzae from non-aflatoxigenic A. flavus, the ABGC-targeted primer sets reliably differentiate A. oryzae from aflatoxigenic A. flavus, enabling rapid strain verification.

Through sequence-level comparison of the ABGC among Aspergillus section Flavi, we developed four primer sets targeting species-specific deletions that enable rapid and accurate differentiation between A. oryzae and A. flavus based on PCR amplicon size. The high accuracy and high concordance between the experimental PCR and iPCR results support the robustness of the primer design and indicate that structural variations in ABGC provide reliable molecular features for species differentiation. Collectively, this ABGC-targeting PCR approach provides an efficient and practical molecular method for distinguishing between two species that share roughly 99.5% genomic similarity but differ critically in food safety relevance.

5. Patents

Due to the novelty and applicability of the finding, one patent describing the PCR-based species differentiation of A. oryzae and A. flavus using four primer sets newly designed in this study is currently filed with the Korean Intellectual Property Office under Application No. 10-2099051 (filed on 2 April 2020) (Title: Composition for detection of strain producing aflatoxin and detection method using the same).
