Poly(N-vinyl formaldehyde)—Laponite XLG Nanocomposite Hydrogels: Synthesis and Characterization

TL;DR

This paper describes the creation of a new type of stretchable and compressible hydrogel using a clay-based crosslinker, which shows improved mechanical properties and potential applications in water purification and biomedicine.

Contribution

The novel use of Laponite XLG as a crosslinker in PNVF hydrogels to achieve superior mechanical properties and swelling behavior.

Findings

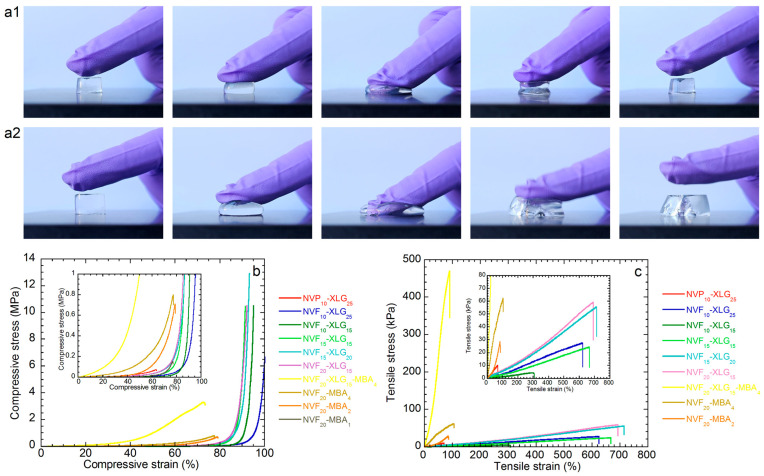

PNVF NC hydrogels showed higher compressibility (>90%) and stretchability (≈840%) compared to PNVP and MBA-crosslinked PNVF hydrogels.

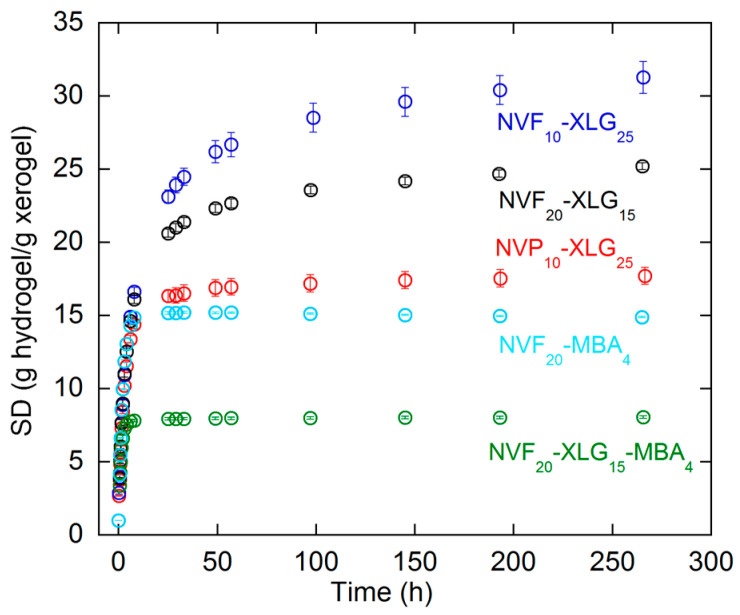

The PNVF NC hydrogels exhibited a slow and steady swelling behavior, unlike the rapid swelling of MBA-crosslinked and PNVP hydrogels.

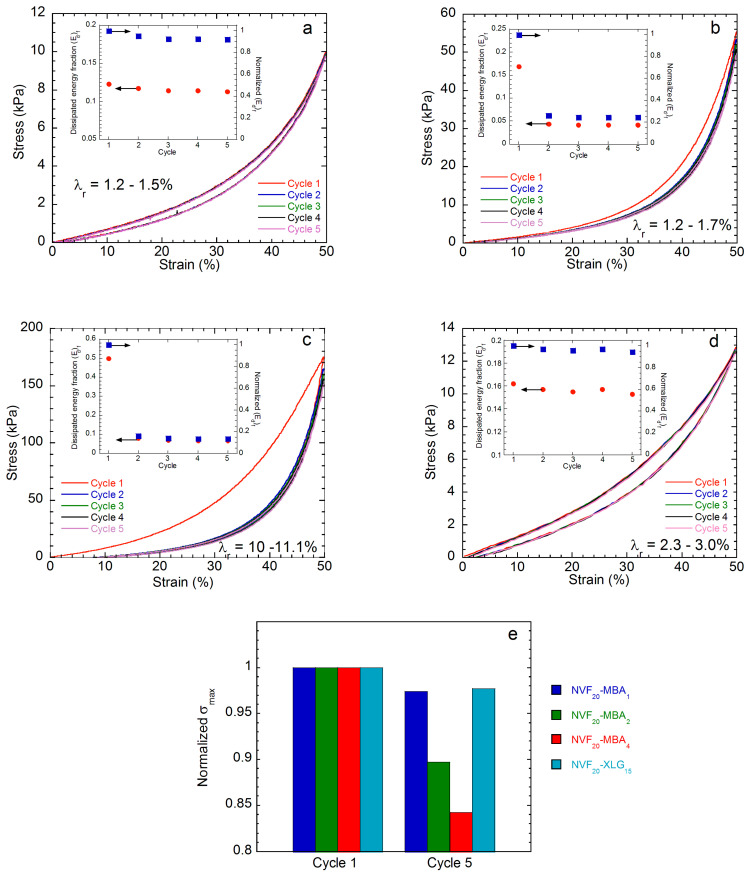

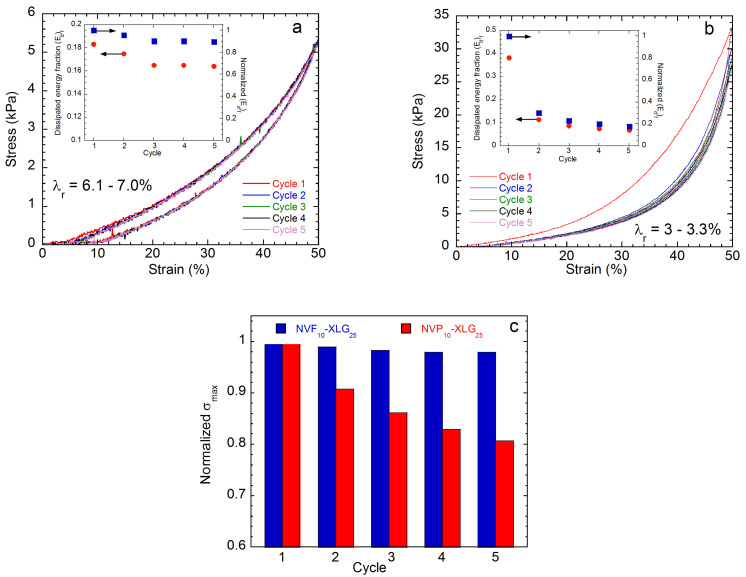

The hydrogels demonstrated better elastic character and mechanical stability in cyclic compression tests.

Abstract

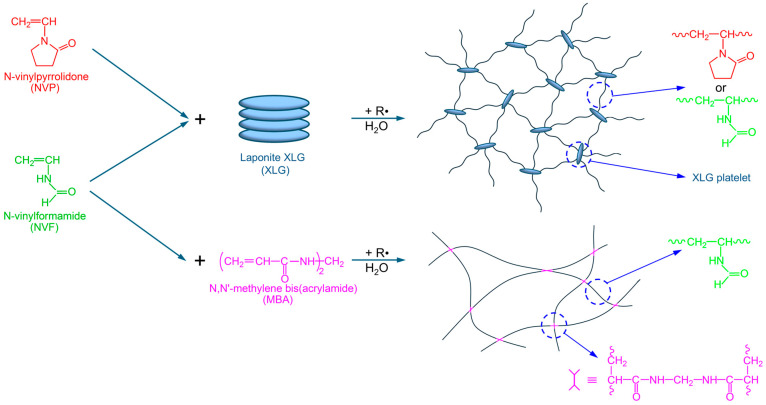

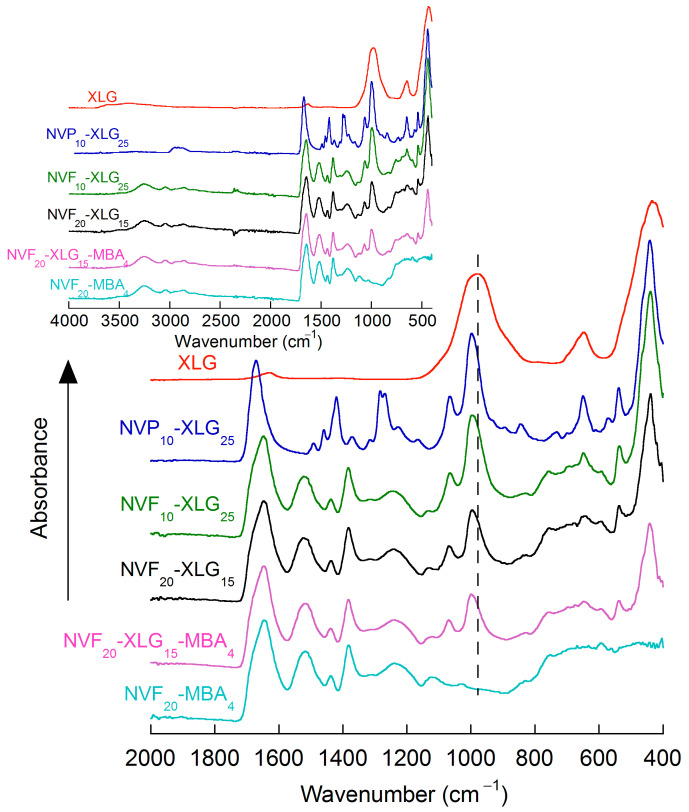

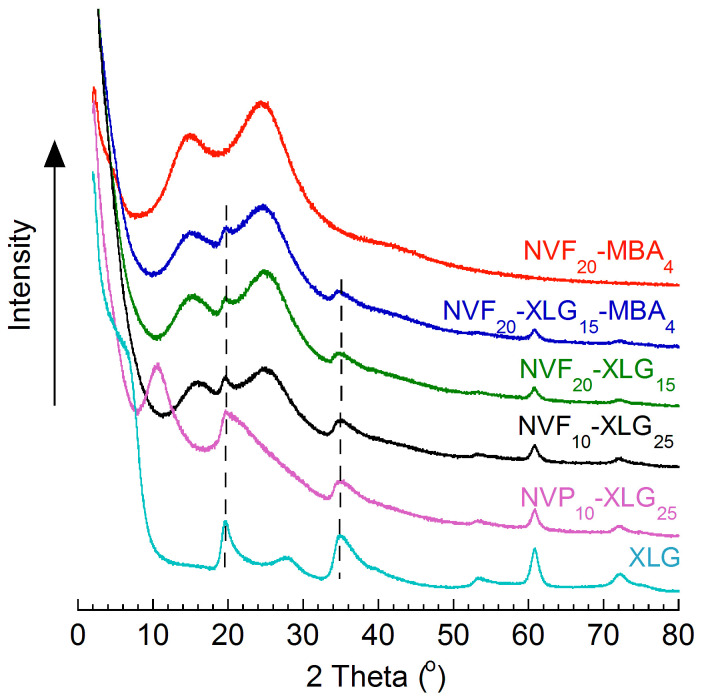

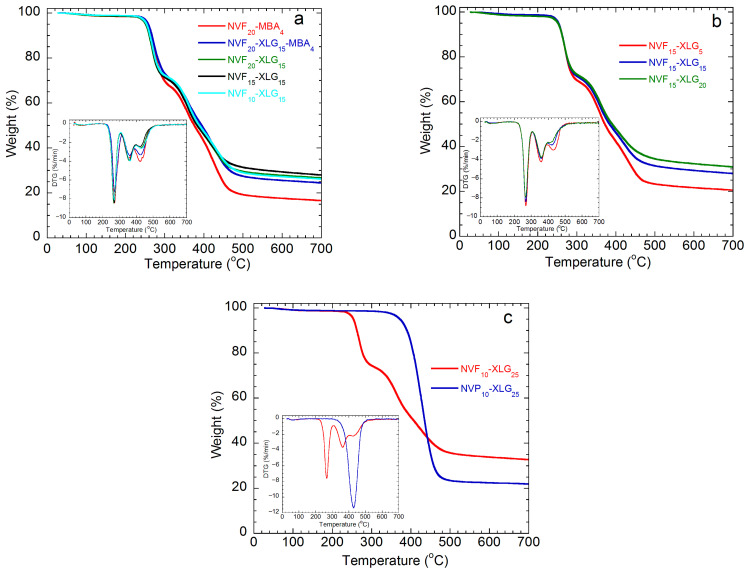

Novel highly compressible and stretchable nanocomposite (NC) hydrogels were obtained by the free radical polymerization of N-vinylformamide (NVF) in aqueous solution in the presence of Laponite XLG (XLG) as the crosslinker and 2,2′-azobis(2-methylpropionitrile) as the initiator. The expected composition of the NC hydrogels was proved by FTIR, TEM, XRD, and TGA analyses. Swelling degree (SD) and mechanical measurements showed that the properties of the PNVF NC hydrogels were largely different from those of both PNVF hydrogels covalently crosslinked by N,N’-methylenebisacrylamide (MBA) and equivalent poly(N-vinyl-2-pyrrolidone) (PNVP) NC hydrogels. After an initial fast swelling stage, the PNVF NC hydrogels displayed a slow, but steady, SD increase with time, unlike the MBA-crosslinked and NVP hydrogels, which exhibited a much smaller SD change during their second swelling stage. The mechanical testing of the synthesized hydrogels by uniaxial compressive and tensile measurements showed much higher compressibility (>90%) and stretchability (up to ≈840%) in the PNVF NC hydrogels than both PNVP and MBA-crosslinked PNVF hydrogels (compressibility < 80%; stretchability up to ≈114%). Cyclic compression tests revealed higher values for both elastic character and mechanical stability in the PNVF NC hydrogels in comparison to the MBA-crosslinked and PNVP ones. These different mechanical properties were explained by the PNVF NC gels possessing a network made of homogeneously distributed crosslinking sites and flexible polymer chains, thus avoiding extensive chain breakage up to larger stress values. The PNVF NC hydrogels described here may find applications for water purification, due to their high clay content, as well as in the biomedical field based on the biocompatibility of both the polymer and crosslinking agent.
