UCST-Activated Network Reinforcement in Hybrid Microgels for Smart Plugging
Mingliang Du, Huifeng He, Qingchen Wang, Keming Sheng, Guancheng Jiang, Yinbo He
TL;DR
A smart microgel material was developed that strengthens under high temperatures, improving sealing in deep-well drilling.
Contribution
A novel UCST-responsive hybrid microgel (SUPA) was synthesized for adaptive plugging in deep-well environments.
Findings
SUPA microgels showed a 7.5-fold increase in storage modulus (G′) upon thermal activation.
The material exhibited a 4.4-fold increase in low-shear viscosity and rapid thixotropic recovery.
Lost circulation tests confirmed efficient sealing at 150 °C and 5 MPa in fractured models.
Abstract
Conventional polymer-based plugging materials often fail in deep-well environments due to passive thermal softening and network relaxation, which significantly compromise mechanical integrity and interfacial retention. To address this challenge, a novel smart Upper Critical Solution Temperature (UCST)-responsive hybrid microgel (SUPA) was synthesized for adaptive plugging in complex formations. The distinctive UCST responsiveness was conferred by incorporating N-(2-amino-2-oxoethyl)acrylamide (NAGA) and N-(2-hydroxypropyl) methacrylamide (HPMA) functional units into a robust dual-crosslinked network. Particle size analysis and oscillatory rheology in saline solution revealed the thermal activation mechanism: surpassing the critical temperature triggers the dissociation of intramolecular hydrogen bonds, driving polymer chain extension and volumetric expansion. This conformational…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

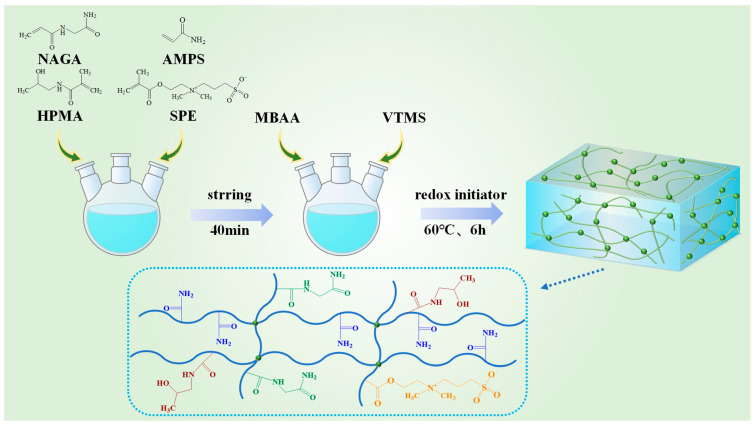

Figure 1

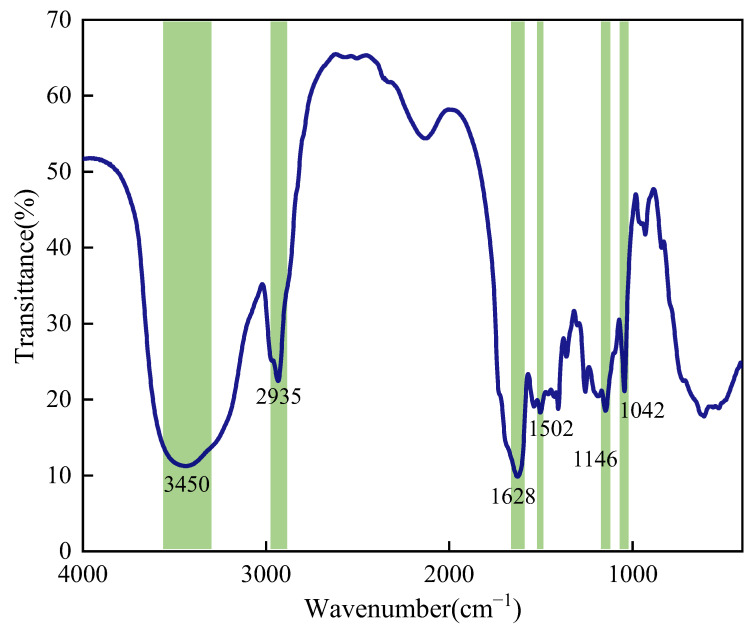

Figure 2

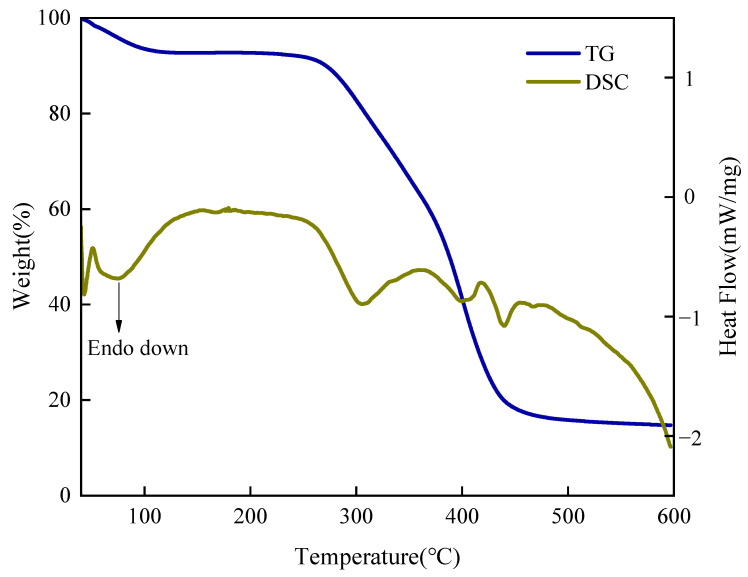

Figure 3
Figure 4

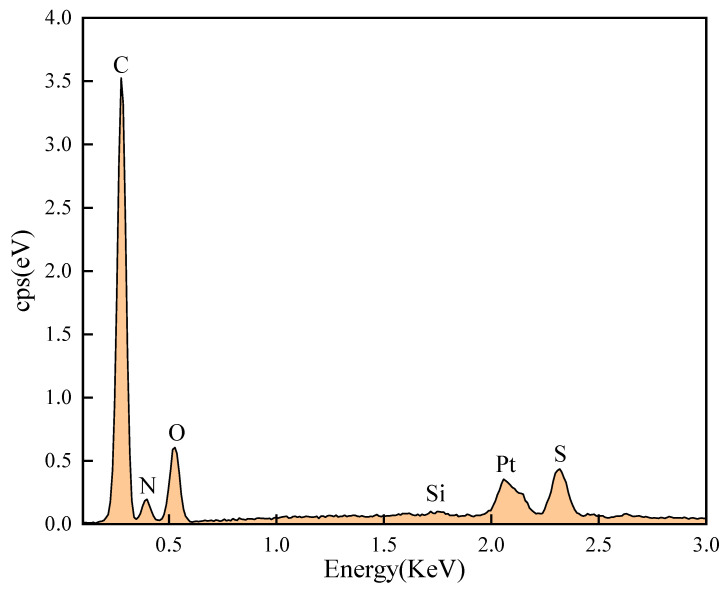

Figure 5

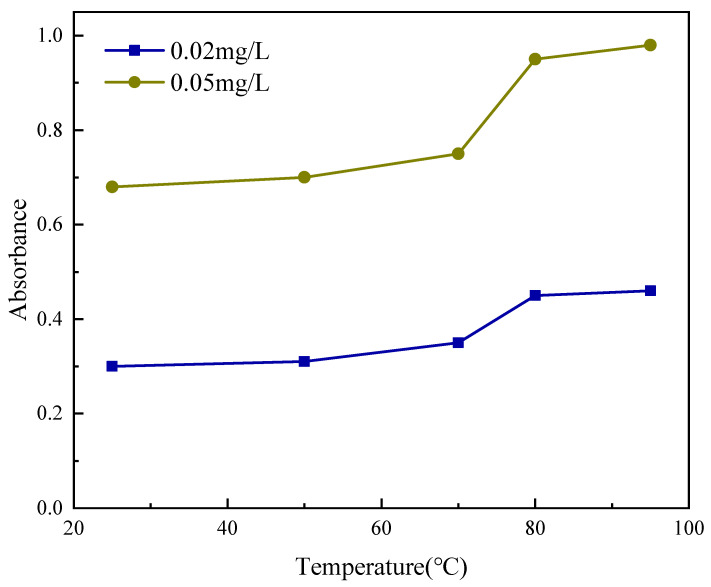

Figure 6

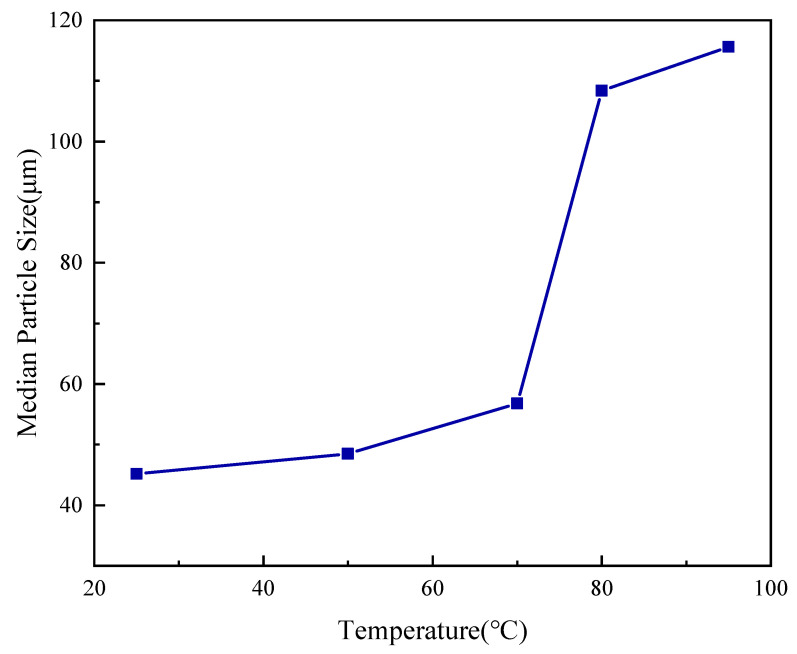

Figure 7

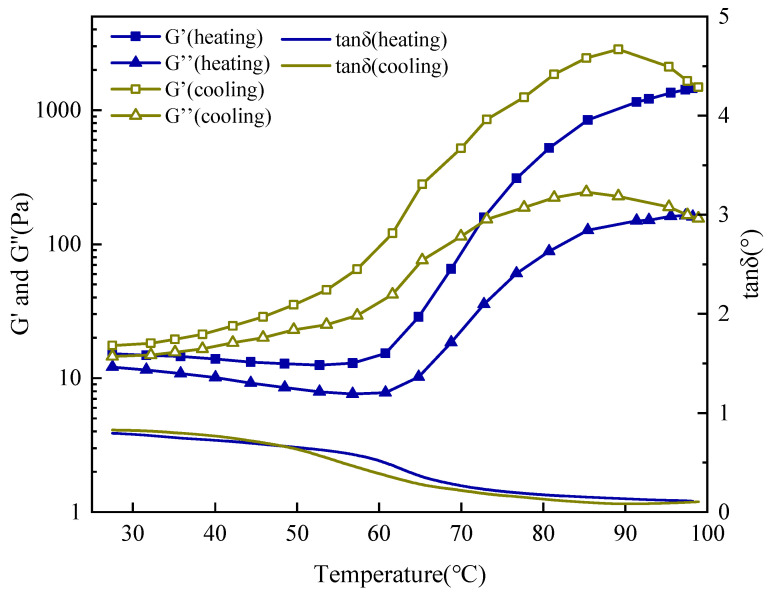

Figure 8

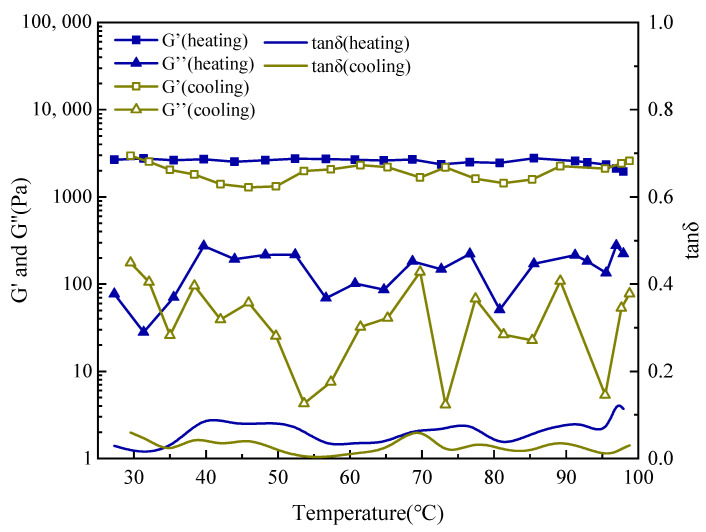

Figure 9

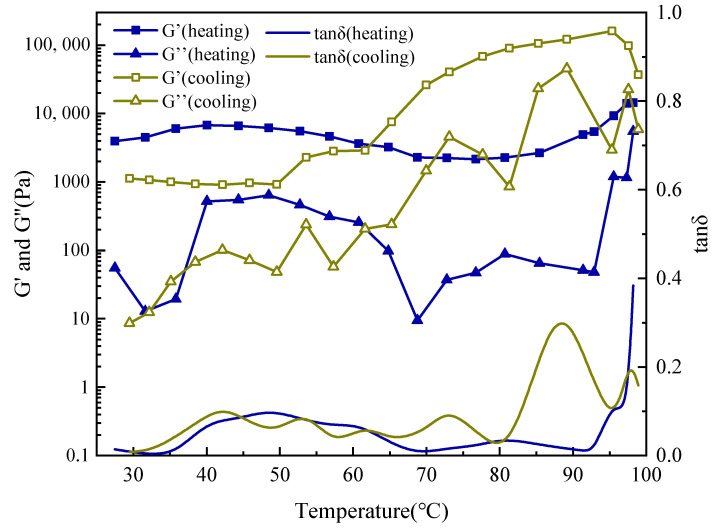

Figure 10

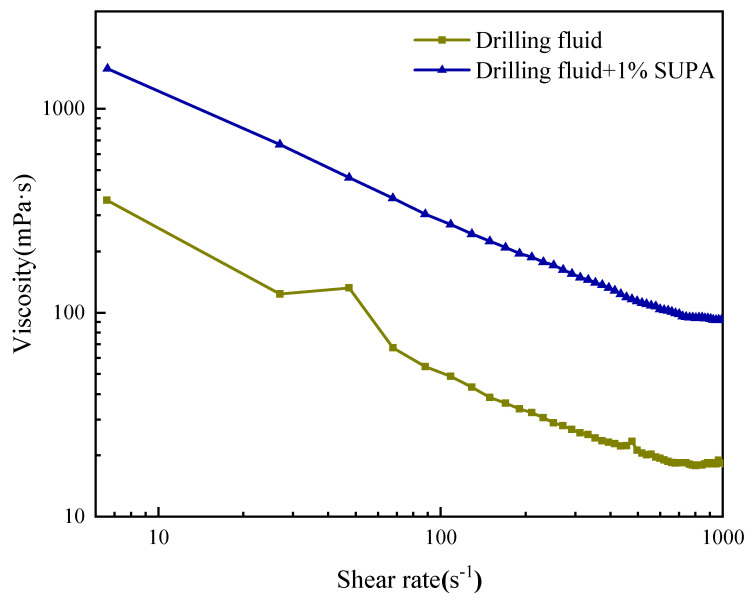

Figure 11

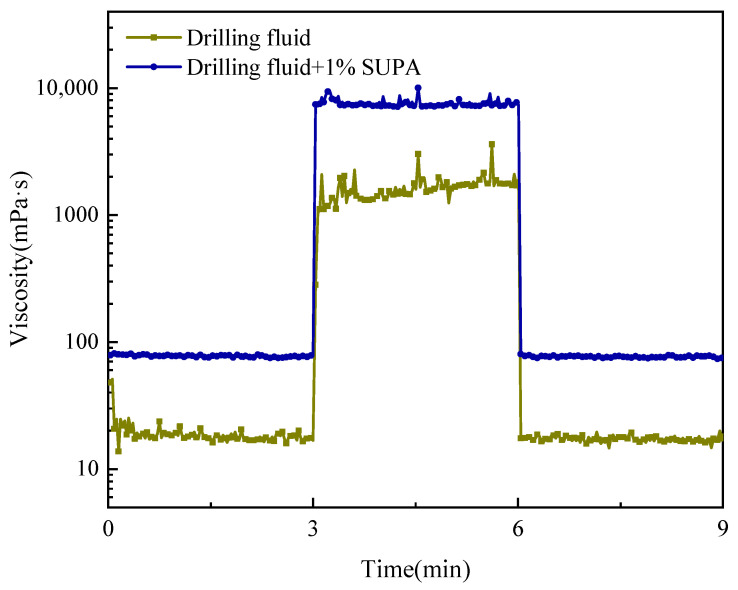

Figure 12

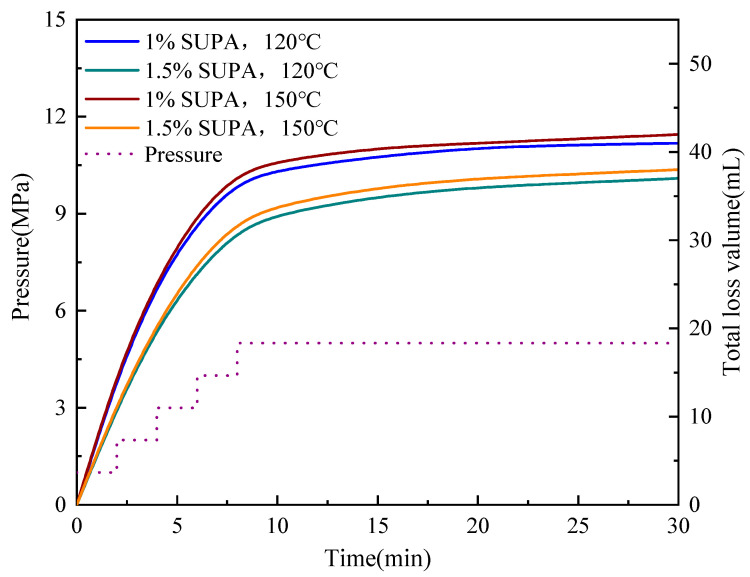

Figure 13

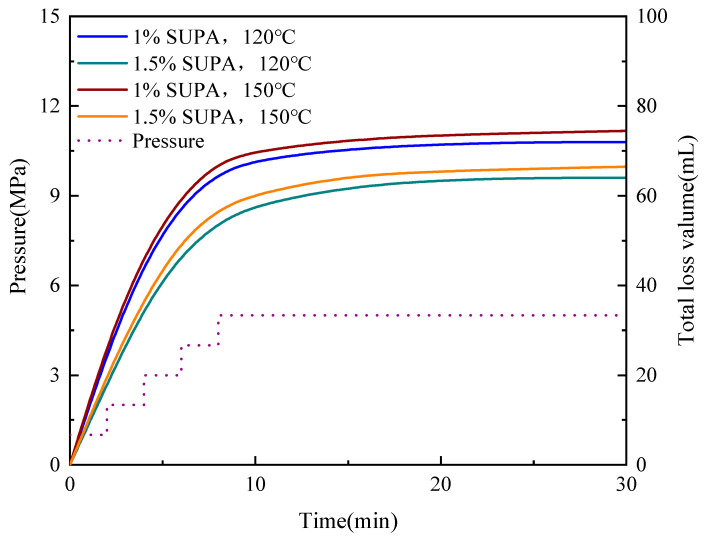

Figure 14

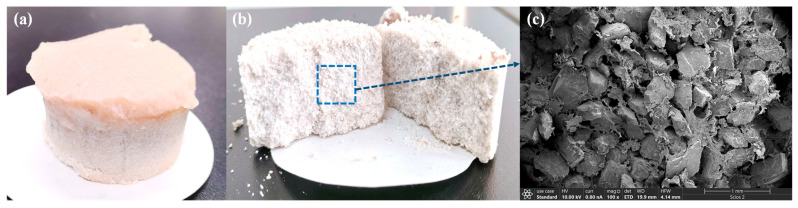

Figure 15

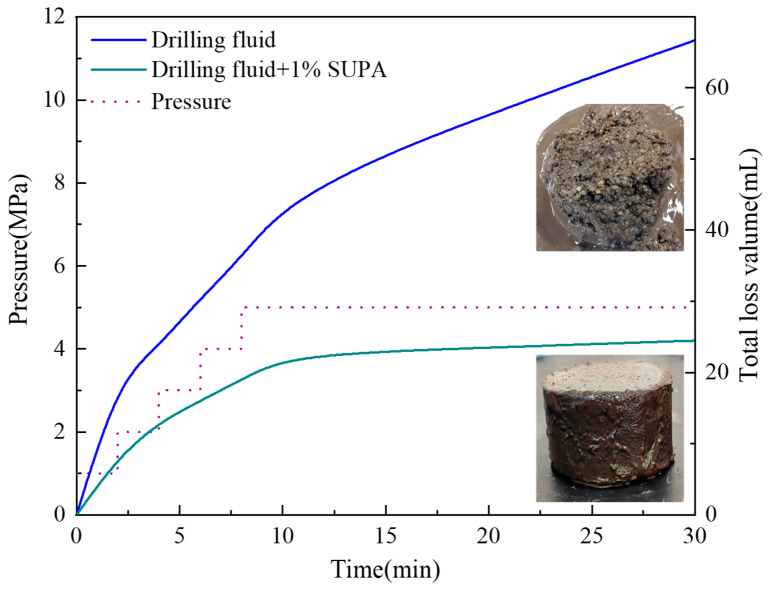

Figure 16

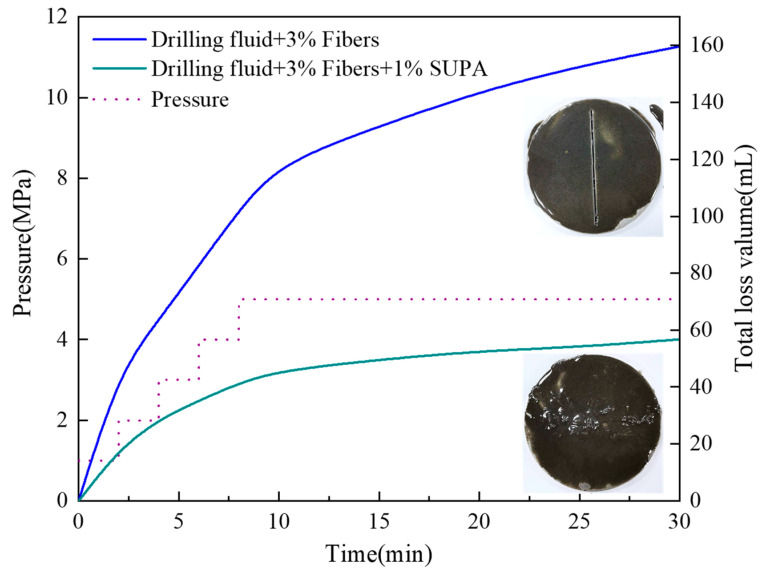

Figure 17

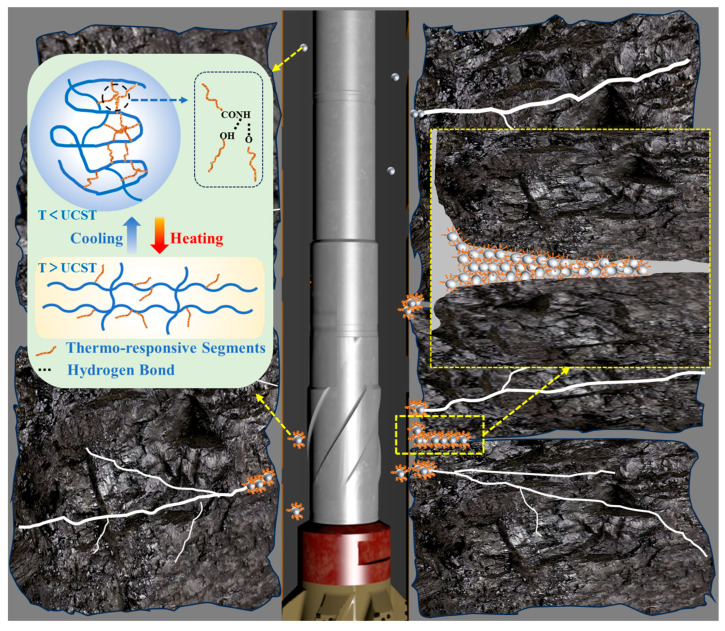

Figure 18Peer Reviews
