Oil-Water Biphasic Metal-Organic Supramolecular Gel for Lost Circulation Control: Formulation Optimization, Gelation Mechanism, and Plugging Performance
Qingwang Li, Songlei Li, Ye Zhang, Chaogang Chen, Xiaochuan Wu, Menglai Li, Shubiao Pan, Junfei Peng
TL;DR
A new oil-water gel system is developed to control lost circulation in oil drilling by forming a strong, heat-resistant seal.
Contribution
A dual-precursor oil–water biphasic metal–organic supramolecular gel is optimized for in situ sealing in oil-based drilling fluids.
Findings

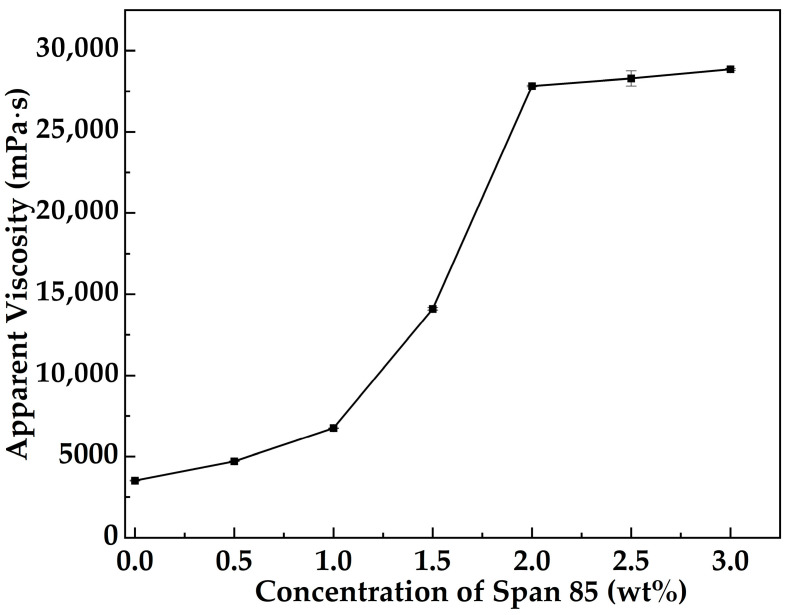

Optimized formulation includes a 10:3 oil-to-aqueous ratio with specific additives for effective gelation.

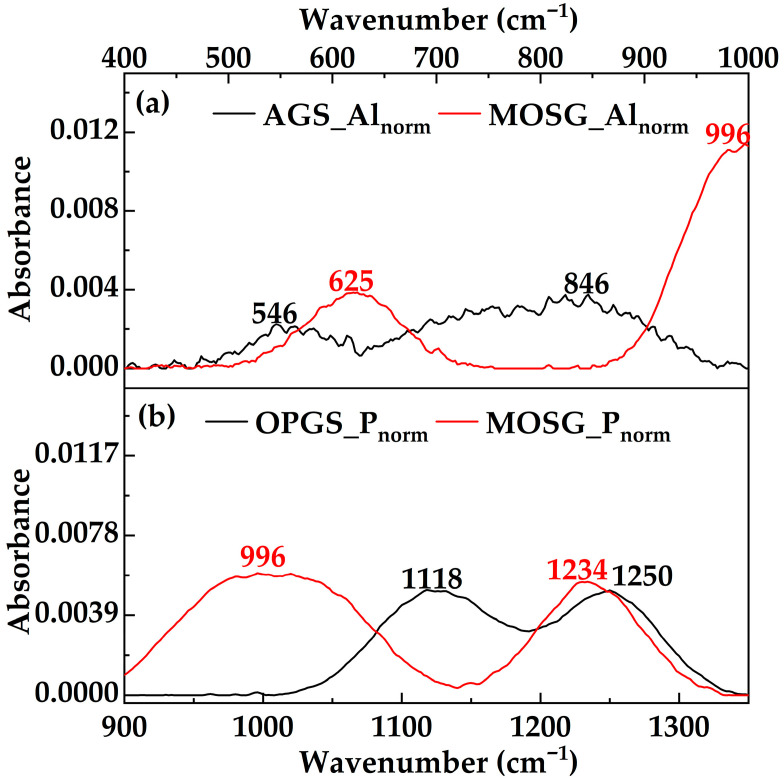

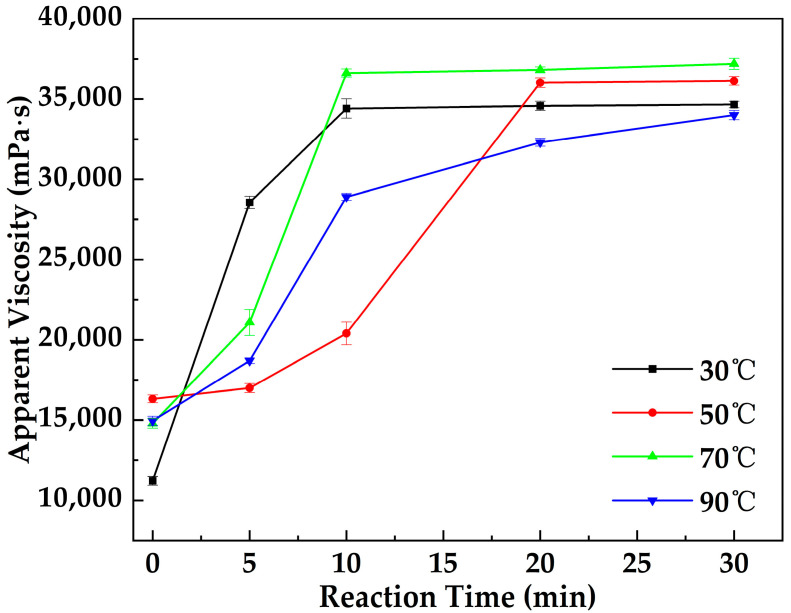

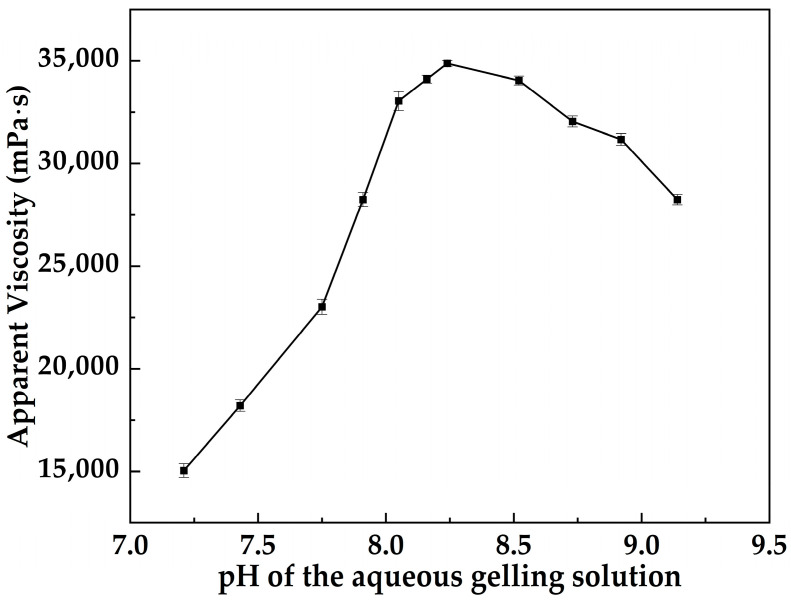

MOSG gelation is enhanced by elevated temperatures and mildly alkaline conditions promoting P–O–Al coordination.

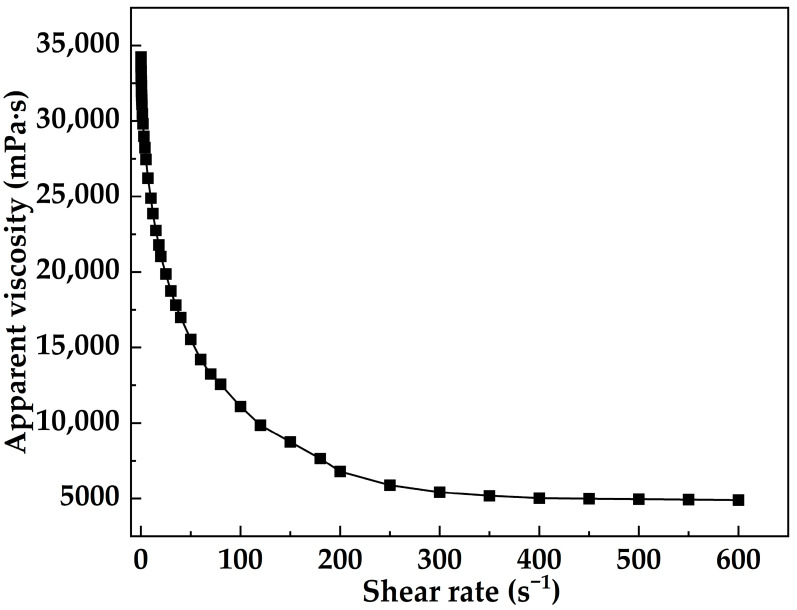

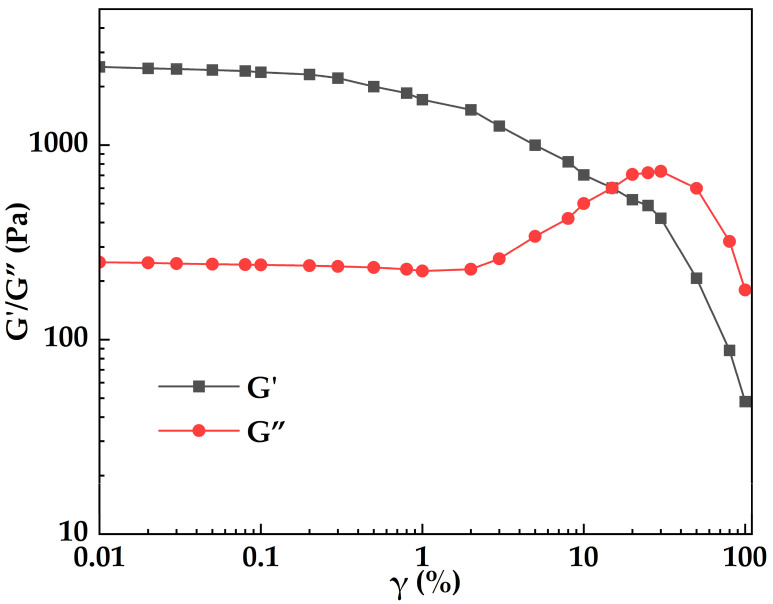

The gel shows high viscoelasticity, thermal resistance up to ~193 °C, and effective sealing in simulated fractures.
Abstract

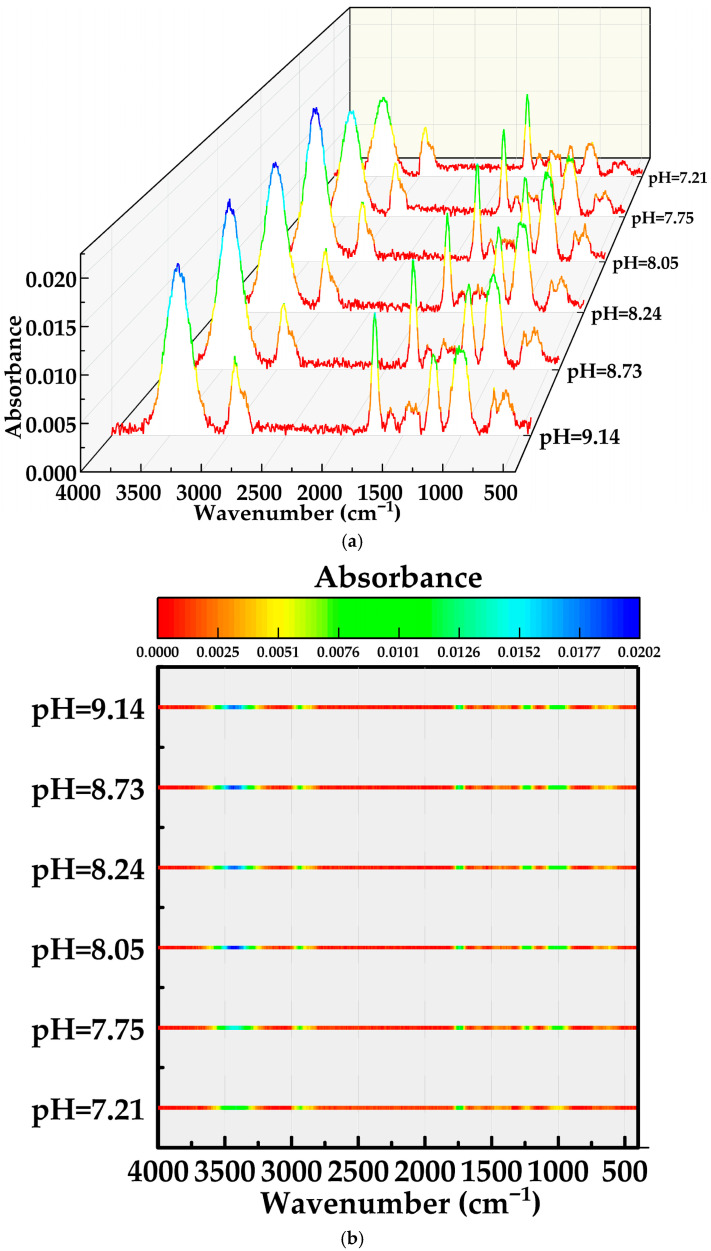

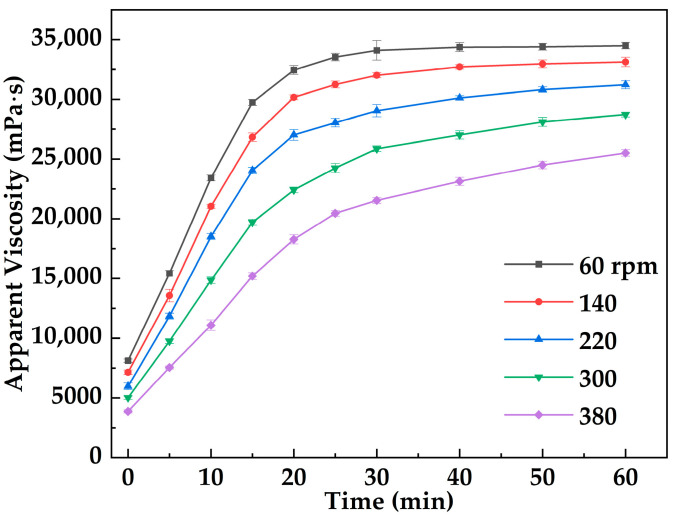

Lost circulation in oil-based drilling fluids (OBDFs) remains difficult to mitigate because particulate lost circulation materials depend on bridging/packing and gel systems for aqueous media often lack OBDF compatibility and controllable in situ sealing. A dual-precursor oil–water biphasic metal–organic supramolecular gel enables rapid in situ sealing in OBDF loss zones. The optimized formulation uses an oil-phase to aqueous gelling-solution volume ratio of 10:3, with 2.0 wt% Span 85, 12.5 wt% TXP-4, and 5.0 wt% NaAlO2. Apparent-viscosity measurements and ATR–FTIR analysis were used to evaluate the effects of temperature, time, pH, and shear on MOSG gelation. Furthermore, the structural characteristics and performances of MOSGs were systematically investigated by combining microstructural characterization, thermogravimetric analysis, rheological tests, simulated fracture-plugging…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

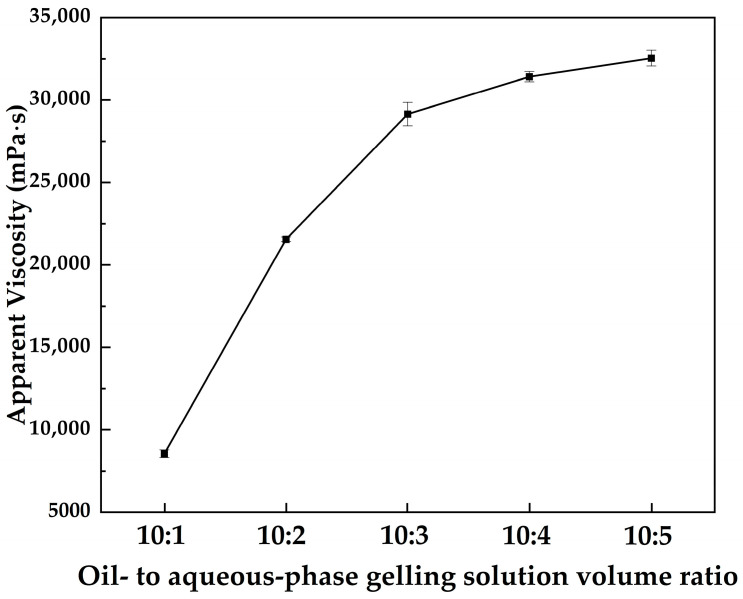

Figure 2

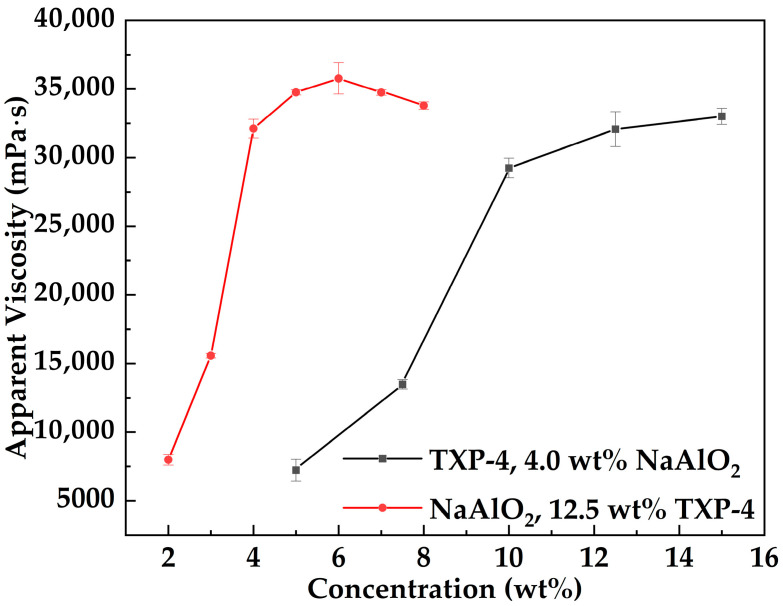

Figure 3
Figure 4
Figure 5
Figure 6
Figure 7

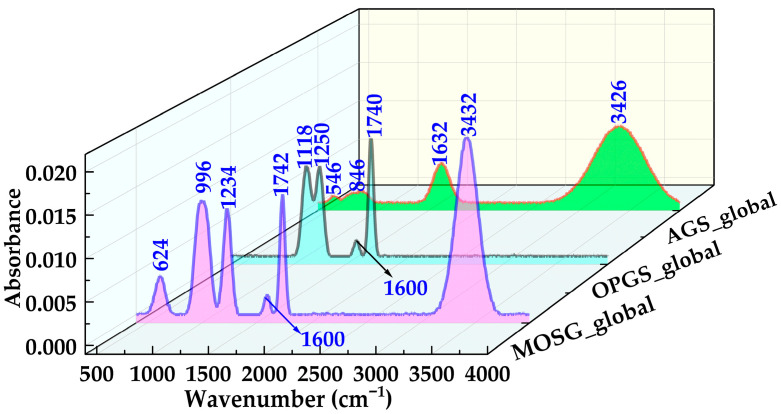

Figure 8
Figure 9

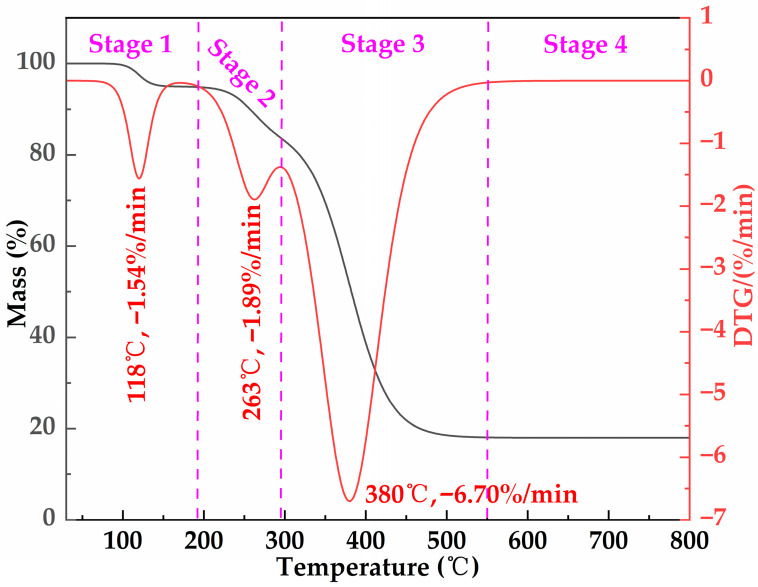

Figure 10
Figure 11
Figure 12
Figure 13

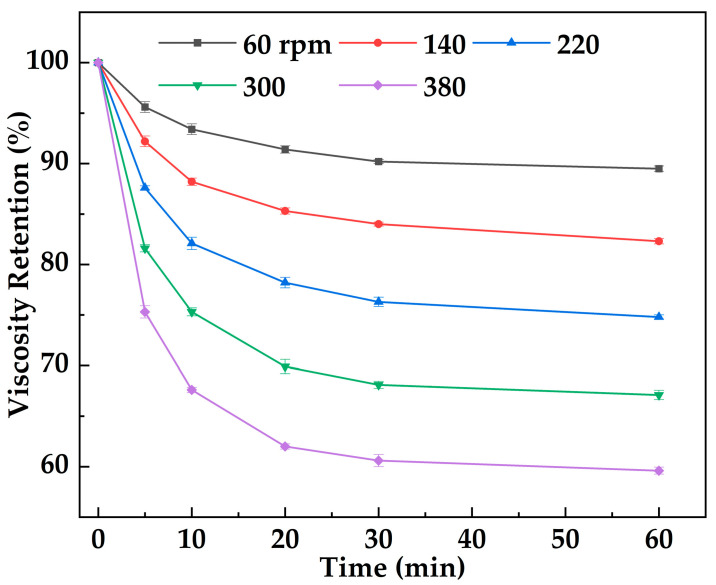

Figure 14

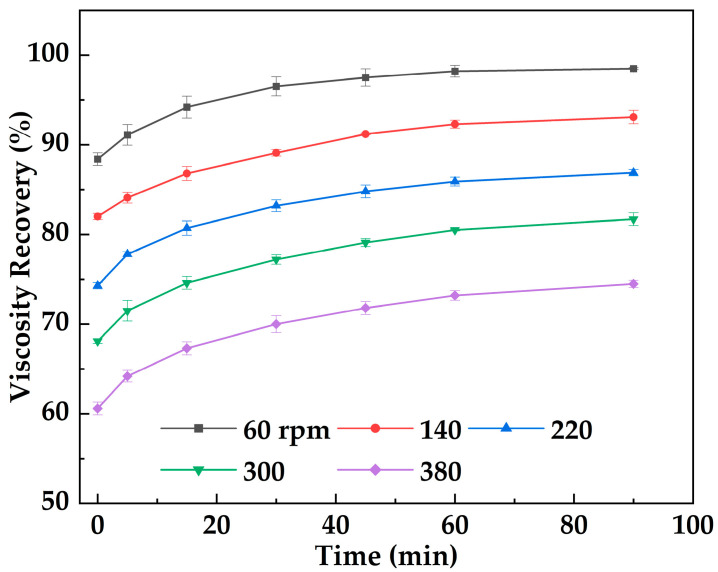

Figure 15

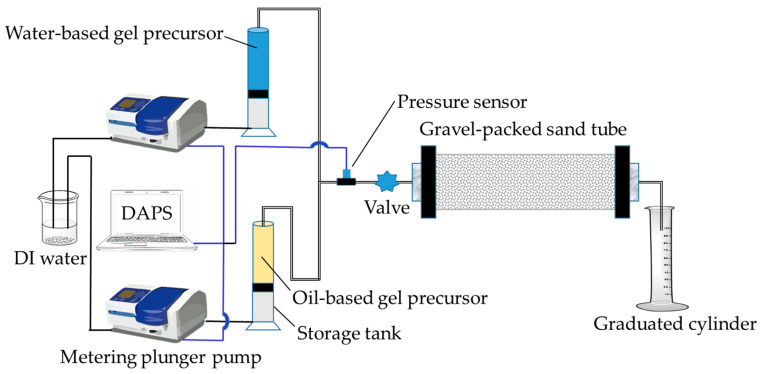

Figure 16

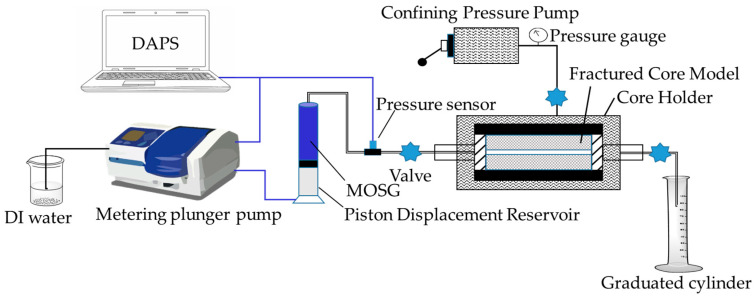

Figure 17Peer Reviews
