Influence of Aza-Substitution on Molecular Structure, Spectral and Electronic Properties of t-Butylphenyl Substituted Vanadyl Complexes

TL;DR

This paper reports the synthesis and analysis of new vanadyl complexes with t-butylphenyl groups, revealing structural and electronic properties influenced by aza-substitution.

Contribution

The first synthesis of two novel vanadyl complexes and their detailed structural and electronic property analysis using experimental and computational methods.

Findings

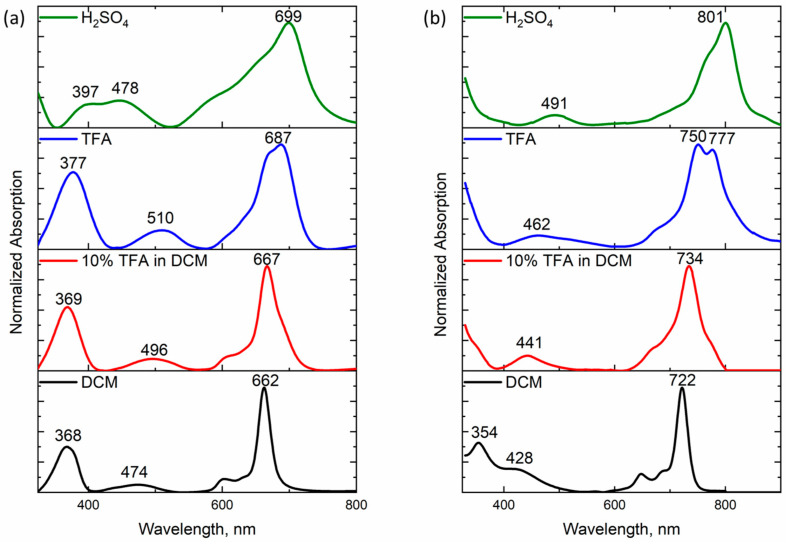

The red shift in the Q band during the first protonation step is twice as large as in previously known complexes.

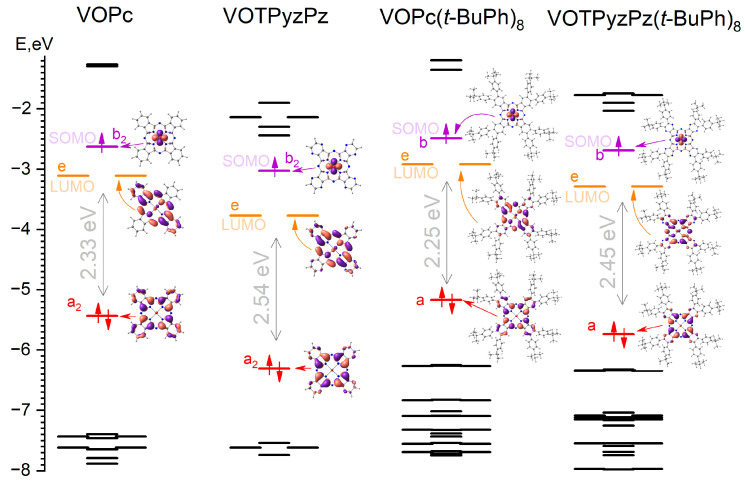

Aza-substitution significantly affects redox properties and frontier orbital energies.

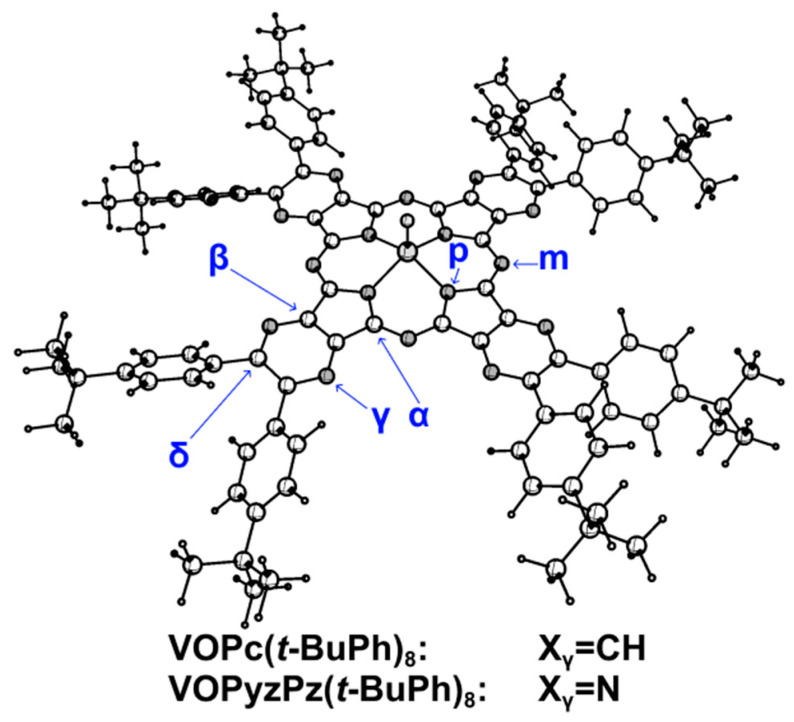

DFT calculations show dome-shaped distorted structures for the vanadyl macrocyclic complexes.

Abstract

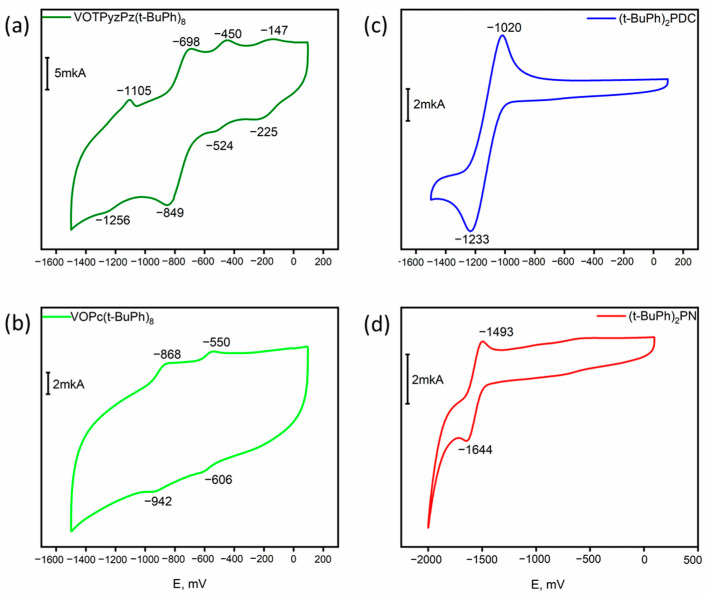

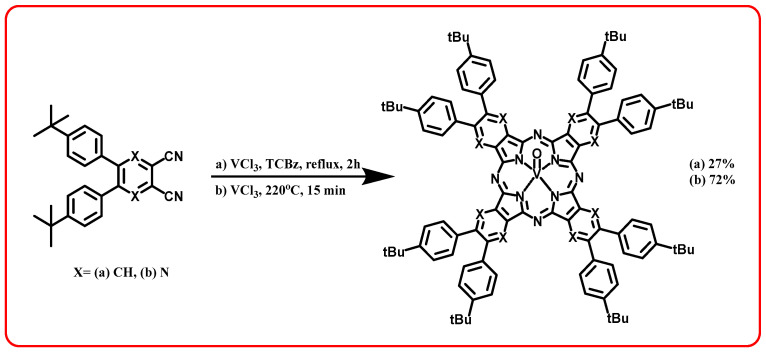

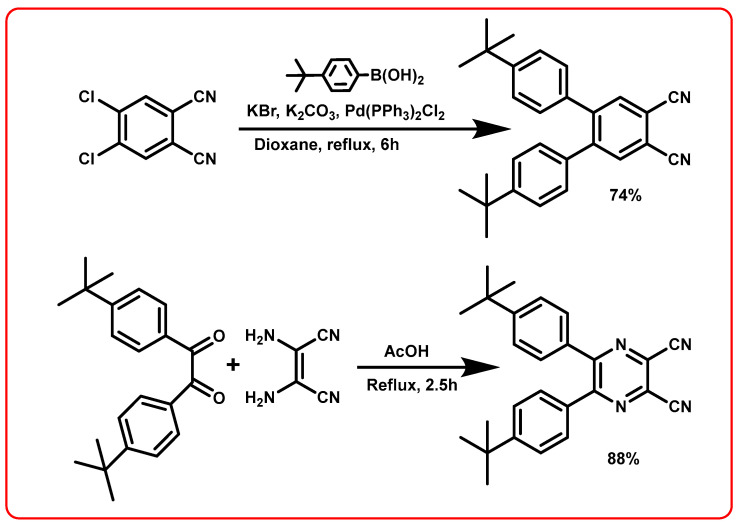

Vanadyl octa-(4-tert-butylphenyl)phthalocyanine (VOPc(t-BuPh)8) and vanadyl octa-(4-tert-butylphenyl)tetrapyrazinoporphyrazine (VOTPyzPz(t-BuPh)8) complexes were synthesized for the first time and confirmed by IR and UV-Vis spectroscopy and MALDI-TOF spectrometry. The method of synthesis of their precursors, 4,5-bis(4-tert-butylphenyl)phthalonitrile ((t-BuPh)2PN) and 5,6-bis(4-tert-butylphenyl)pyrazine-2,3-dicarbonitrile ((t-BuPh)2PDC), was modified, resulting in higher yields. For the vanadyl complexes, the basic properties were studied, and it was found that the red shift in the Q band in the first protonation step is approximately two times greater than that of previously known complexes. An electrochemical study showed the influence of aza-substitution on the redox properties and on the energies of the frontier orbitals of all the compounds presented. For all four considered compounds, quantum chemical calculations of the molecular structure, IR spectra, and electronic absorption spectra were carried out using density functional theory (DFT) and time-dependent density functional theory (TDDFT and simplified sTDDFT) approaches. According to the DFT calculations, vanadyl macrocyclic complexes have dome-shaped distorted structures. Experimental and theoretical IR and electronic absorption spectra were compared and interpreted.
