Loss-of-Function Mutations in the Penicillin-Binding Protein PonA1 Confer Agar-Dependent Resistance to Durlobactam in Mycobacterium abscessus

TL;DR

The study finds that mutations in a specific protein (PonA1) in Mycobacterium abscessus lead to resistance against the drug durlobactam, but only on solid agar, not in liquid tests.

Contribution

The study identifies a novel resistance mechanism in Mycobacterium abscessus involving PonA1 inactivation that is agar-dependent.

Findings

Loss-of-function mutations in ponA1 confer resistance to durlobactam on agar but not in broth.

CRISPRi-mediated knockdown of ponA1 mimics the resistance phenotype seen in durlobactam-resistant mutants.

Standard broth-based susceptibility testing may miss resistance mechanisms like PonA1 inactivation.

Abstract

Background: Infections caused by the multidrug-resistant pathogen Mycobacterium abscessus (Mab) are notoriously difficult to treat. The novel β-lactamase inhibitor durlobactam, in combination with β-lactams, shows potent bactericidal activity against Mab, but the potential for acquired resistance remains a clinical concern. Objectives: To identify and characterize mechanisms of acquired resistance to durlobactam in Mab. Methods: In vitro single-step resistance selection was performed by plating wild-type Mab ATCC 19977 and by transcriptional silencing using a CRISPR interference (CRISPRi) system. Minimum inhibitory concentrations (MICs) were determined by both an agar-based method and broth microdilution. Results: Whole-genome sequencing of durlobactam-resistant mutants identified loss-of-function mutations in ponA1, a gene encoding a class A penicillin-binding protein involved in cell wall synthesis. Targeted deletion of ponA1 (ΔponA1) and CRISPRi-mediated knockdown of ponA1 expression both recapitulated the resistance phenotype, resulting in a significant increase in the durlobactam MIC on solid agar media. Strikingly, broth microdilution MICs remained largely unaffected. Conclusions: Inactivation of the peptidoglycan synthase PonA1 is a novel mechanism of resistance to durlobactam in Mab that is phenotypically expressed only during growth on solid surfaces. This finding identifies a specific genetic pathway for resistance and highlights that standard broth-based susceptibility testing could miss clinically relevant resistance mechanisms.

Figures

Full text

1. Introduction

Mycobacterium abscessus (Mab) is an emerging opportunistic pathogen responsible for chronic and debilitating pulmonary infections, particularly in individuals with underlying lung conditions [1,2]. Treatment of Mab is exceptionally challenging due to its extensive intrinsic and acquired resistance to most available antibiotics [3], leading to poor clinical outcomes and cure rates often below 50% [4]. This clinical reality underscores the urgent need for novel treatment strategies.

The revitalization of β-lactam antibiotics through combination with potent β-lactamase inhibitors (BLIs) represents a promising therapeutic avenue. Durlobactam (DUR), a next-generation diazabicyclooctane (DBO) inhibitor [5,6], has demonstrated remarkable potency against Mab. Its efficacy against mycobacteria stems from a dual mechanism of action: it potently inactivates the major β-lactamase, BlaC or Bla_Mab_, while also exhibiting intrinsic antibacterial activity through the direct inhibition of cell wall synthesis enzymes, including penicillin-binding proteins (PBPs) and L,D-transpeptidases [7,8]. Against Mab, this multi-target engagement results in profound synergy with partner β-lactams like imipenem and ceftriaxone, achieving potent bactericidal activity at clinically relevant concentrations [9,10,11,12].

The long-term clinical success of any new antimicrobial agent is contingent upon understanding and anticipating the pathogen’s evolutionary pathways to resistance. While several mechanisms that compromise β-lactam-based therapies in Mab have been described—including upregulation of Bla_Mab_, reduced cell wall permeability via porin loss, and induction of drug tolerance through mutations in the stress-response regulator RshA [11,13,14]—mechanisms conferring direct resistance to advanced DBO inhibitors like DUR are not well understood. Since target-based mutations are considered uncommon for β-lactams in Mab due to the functional redundancy of peptidoglycan synthesis enzymes, it is critical to prospectively identify the most likely pathways to resistance.

In this study, we sought to identify and validate novel mechanisms of acquired resistance to DUR in Mab. Through in vitro single-step selection experiments, we discovered that high level resistance consistently arises through mutations in ponA1, encoding a class A PBP that performs both transglycosylase and D,D-transpeptidase activities. We confirmed this unexpected finding by demonstrating that both targeted deletion and CRISPRi-mediated knockdown of ponA1 are sufficient to confer DUR resistance.

2. Results

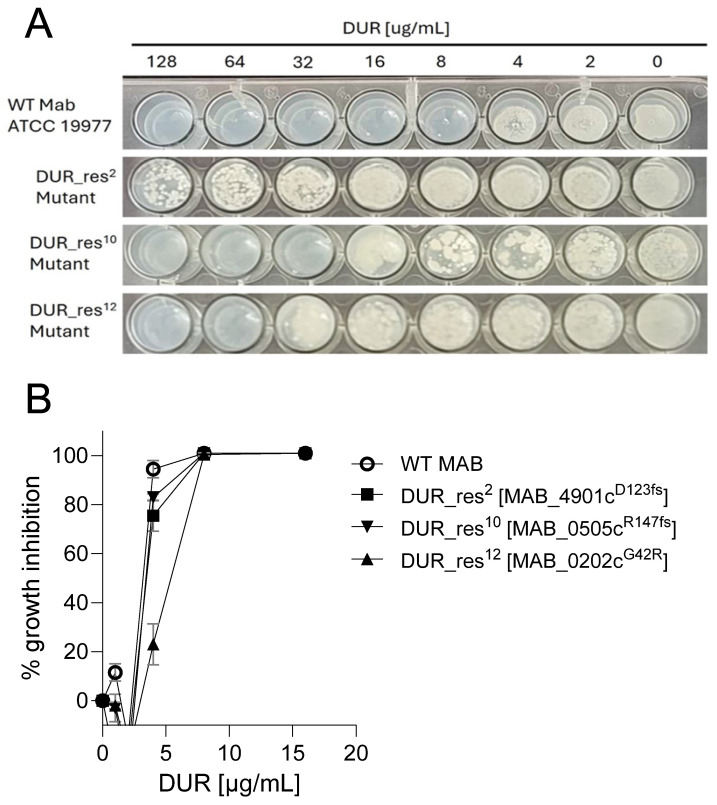

To identify genes involved in acquired DUR resistance, we selected spontaneous resistant mutants on 7H10 agar containing 4× the agar MIC of 8 mg/L. We isolated fourteen mutants in two independent rounds of selection, seven of which showed high level resistance, with an agar MIC > 128 mg/L. The remainder displayed moderate resistance with agar MICs ranging from 32 to 64 mg/L (Table 1, Figure 1A). The frequency of resistance was ~10^−7^/CFU. Interestingly, all fourteen mutants showed a weak (twofold) increase in broth MIC compared to the wild-type strain (Figure 1B).

Whole-genome sequencing revealed that high-level resistant mutants all carried mutations in MAB_4901c encoding the bifunctional transglycosylase/transpeptidase PonA1 involved in peptidoglycan synthesis [15]: two frameshift, three nonsense, one in-frame deletion and one missense mutation (Table 1). The nature of the mutations in ponA1 suggested that loss-of-function causes the resistance phenotype. To confirm this hypothesis, we generated a complete deletion of MAB_4901c via allelic exchange, verified by whole genome sequencing (Figure S1). The MIC pattern of the ponA1 knockout strain was identical to the original spontaneous frameshift mutant strain Mab DUR_res^2^ with high-level (>128 mg/L) resistance on solid medium (Table 2).

Mutations conferring moderate-level resistance were found in either MAB_0505c or MAB_0205c, whose functions are currently unknown (Table 1). From there on, we focused on characterizing the PonA1-mediated mechanism of high-level resistance to DUR.

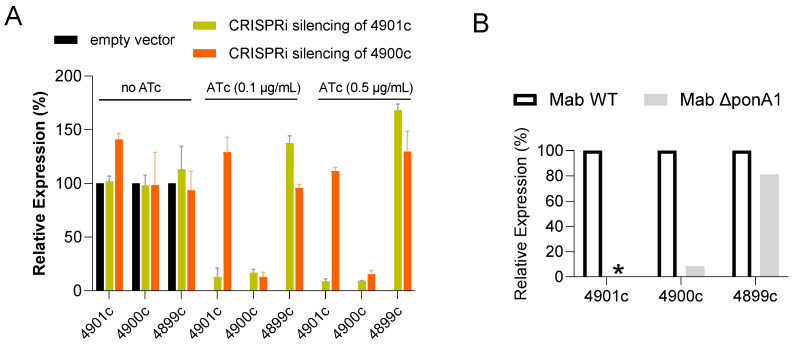

Since genomic analysis suggests that ponA1 (MAB_4901c) and the downstream gene MAB_4900c, encoding a hypothetical protein, form a putative operon, we hypothesized that the mutations in ponA1 might exert a polar effect on the expression of MAB_4900c. Using the CRISPRi system for gene expression knockdown, we silenced either ponA1 or MAB_4900c in two separate engineered strains (Figure S2) and quantified their respective mRNA levels by qRT-PCR. As expected, induction of ponA1 silencing with 0.5 mg/L anhydro-tetracycline led to >85% reduction in both ponA1 and MAB_4900c mRNA, while targeting MAB_4900c only suppressed the expression of MAB_4900c, confirming the operon structure (Figure 2A). The polar effect of ponA1 on the transcription of MAB_4900c was recapitulated in the ∆ponA1 knockout strain (Figure 2B). Next, we evaluated the effect of targeted gene silencing on DUR resistance. Silencing of ponA1 resulted in a 4-fold increase in DUR agar MIC, phenocopying the resistance observed in the spontaneous mutants and the ∆ponA1 deletion strain. However, specific silencing of MAB_4900c alone had no effect on DUR susceptibility, indicating that loss of ponA1 function is the primary driver of resistance. The broth MICs of both knockdown strains remained unchanged.

3. Discussion

In this study, we identify a novel mechanism of acquired resistance to DUR in Mab. Through single-step in vitro selection, we consistently isolated mutants with alterations in ponA1, encoding the class A PBP PonA1 [16]. This finding is notable because resistance to β-lactam-based therapies in Mab has predominantly been associated with mechanisms that protect the β-lactam or induce a general state of drug tolerance [13,14]. In M. tuberculosis, biochemical studies showed that PonA1 is one of the targets of DUR [8]. Thus, inactivation of PonA1 represents a direct, target-based resistance mechanism, a pathway previously thought to be uncommon for β-lactams in this pathogen and in mycobacteria in general due to the redundancy of β-lactam targets [17,18].

The observation that inactivating a drug’s target confers resistance is counterintuitive. Here, this could be explained by DUR’s multi-target mechanism of action and redundancy in peptidoglycan synthesis. It is plausible that while DUR inhibits several PBPs and L,D-transpeptidases, binding to PonA1 is a primary driver of its antimicrobial activity by creating lethal imbalances in peptidoglycan synthesis. A complete removal of this key target via a loss-of-function would allow Mab to overcome the lethal effect of corruption of cell wall synthesis. The viability of ponA1 loss-of-function mutants strongly suggests that other PBPs can compensate for its loss. This functional redundancy is a known feature of the mycobacterial cell wall synthesis machinery [18]. Under the selective pressure of DUR, Mab can sacrifice the PonA1-mediated pathway—most vulnerable to the drug—and rely on alternative, less-susceptible pathways for survival.

This mechanism mirrors findings in M. tuberculosis, where deletion of the homologous PBP PonA2 confers resistance to cephalosporins [19]. M. tuberculosis evades the specific lethality induced by b-lactam inhibition of PonA2 by sacrificing PonA2 and relying on redundant transpeptidation pathways, specifically those mediated by L,D-transpeptidases [19].

A striking and critical feature of this resistance mechanism in Mab is its dependence on culture conditions. While ponA1 mutants exhibit a pronounced increase in MIC on agar, they appeared almost fully susceptible when tested by standard broth microdilution. This disconnect between agar- and broth-based susceptibility suggests that the resistance phenotype is linked to a physiological state specific to surface-based growth. Two non-mutually exclusive hypotheses could explain this phenomenon. First, the loss of PonA1 may alter cell wall architecture and colony properties in a way that limits drug diffusion through the nascent “biofilm” on a solid agar surface [20], a barrier that would not exist in planktonic cells in a well-mixed broth. Second, growth on a solid surface may induce a specific metabolic or stress state in which the loss of PonA1 is less detrimental, or in which compensatory pathways are activated, allowing the resistance phenotype to manifest.

These findings have potential clinical implications. Standard antimicrobial susceptibility testing is typically performed using broth-based methods [21]. Our results demonstrate that such methods would fail to detect this resistance mechanism, potentially leading to the misclassification of a resistant isolate as susceptible and subsequent therapeutic failure. The possible clinical relevance of this agar-dependent resistance is underscored by the fact that mycobacterial growth in the lungs often occurs in biofilm-like aggregates or microcolonies [22], a state that is more closely modeled by growth on a solid surface than in liquid culture [23].

4. Materials and Methods

Mab subsp. abscessus ATCC 19977 was used as the wild-type strain in all experiments. Spontaneous resistant mutants were selected by plating approximately 10^9^ colony-forming units (CFU) of wild-type ATCC 19977 onto 7H10 solid medium containing 4× the agar minimum inhibitory concentration (MIC) of DUR (Cat# HY-117974, MedChemExpress LLC, Monmouth Junction, NJ, USA). Plates were incubated at 37 °C for 5 days. Resistant colonies were re-streaked on selective plates to confirm the resistance phenotype. Two independent selections were performed to ensure the reproducibility of the results. Broth and agar minimum inhibitory concentrations (MICs) were determined as previously described [24].

To knockout MAB_4901c, an allelic exchange substrate (AES) was employed as described in Figure S1. The AES contained a 500 bp region upstream of ponA1 (USH, upstream homology region) and a region 500 bp downstream of ponA1 (DSH, downstream homology region), flanking a cassette comprised of an apramycin resistance gene (Apra R), and an mScarlet reporter gene under control of the PLeft* promoter to enable selection and identification of recombinants [25,26]. The synthesized AES was PCR amplified using primers 5′-CGGACCGCCGGTGTGCCGTCGTACTG-3′ and 5′-CTGGTTAGCGTGCGATTGCAGAGAC-3′, electroporated into Mab ATCC 19977 and plated on 7H10 agar containing 50 mg/L apramycin. After 7 days of incubation at 37 °C, colonies were screened visually for red color (mScarlet expression). MAB_4901c knockout was confirmed by whole-genome sequencing.

A CRISPR interference (CRISPRi)-dCas9 system provided on the pLJR962 plasmid [27] was utilized to knock down gene expression, as previously described [28]. Single-guide RNAs (sgRNAs) targeting the N-terminal coding region of each gene were designed based on predicted strength using the sgRNA Design Tool version 2.0 (https://pebble.rockefeller.edu/tools/sgrna-design (accessed on 28 January 2025). The sgRNA target sequences and protospacer adjacent motif (PAM) sequences are provided in Figure S2. Complementary oligos for each sgRNA were synthesized by Azenta Life Sciences, South Plainfield, NJ, USA. To construct the sgRNA expression plasmids, the recipient vector pLJR962 was digested with BsmBI (Thermo Fisher Scientific, Waltham, MA, USA, Cat. No. ER0451). The complementary top and bottom oligos for each target were annealed in a thermocycler by incubating at 95 °C for 2 min, followed by a gradual ramp-down to 25 °C at a rate of −0.1 °C per second. The resulting annealed duplexes were ligated into the BsmBI-digested pLJR962 vector using T4 DNA Ligase overnight at 16 °C. Correct insertion of the sgRNA cassette was verified by Sanger sequencing. Gene expression knockdown was induced on solid and in liquid medium with anhydrotetracycline (ATc) as described [28].

For total RNA extraction, frozen pellets flash-frozen in 1 mL of TRIzol Reagent (Ambion, Austin, TX, USA) in 2 mL Lysing Matrix B tubes (MP Biomedicals, Irvine, CA, USA), were thawed and subjected to bead beating twice for 30 s at maximum speed using a Fisherbrand Bead Mill 24 Homogenizer. RNA was purified using the RNeasy Mini kit (Qiagen, Venlo, The Netherlands) with on-column DNase I treatment (Qiagen). First-strand cDNA synthesis was performed using random hexamers and SuperScript IV Reverse Transcriptase (Invitrogen, Carlsbad, CA, USA). Following qRT-PCR using primers listed in Table S1, gene expression levels were normalized to the housekeeping gene sigA (Mab_3009), and relative expression differences were calculated using the 2−ΔΔCt method [29].

5. Conclusions

Our study demonstrates that Mab can develop resistance to DUR through loss-of-function mutations in ponA1, suggesting resistance driven by the evasion of a drug-induced toxic gain of function, rather than simple target inhibition. We propose that DUR binding to PonA1 does not merely silence the enzyme but actively corrupts cell wall synthesis. By eliminating the target protein PonA1, Mab removes the substrate for this lethal malfunctioning, allowing survival via redundant transpeptidation pathways. Crucially, this resistance phenotype is agar-dependent, manifesting mainly during growth on solid media. This discrepancy likely reflects the distinct metabolic or structural constraints of biofilm-like growth on agar, which may buffer the physiological cost of PonA1 loss or enhance the efficacy of alternative synthesis pathways compared to planktonic conditions. The identification of this ‘evasion by deletion’ strategy highlights the complex interplay between drug lethality, target essentiality, and growth phase in mycobacteria, underscoring the potential for standard broth-based susceptibility testing to miss clinically relevant resistance mechanisms.
