Structural, Magnetic, and Electron Spin Resonance Properties of Nickel Nanoferrites Synthesized by High‐Energy Ball Milling
Sanele Dlamini, Sizwe Masuku, Mohd Sajid Ali, Hamad A. Al‐Lohedan, Gulam Rabbani, Lebogang Kotsedi, Teboho Mokoena, Tebogo Mahule, Teboho Mokhena, Mohd. Hashim, Justice Msomi, Amos Nhlapo
TL;DR
This paper studies how high-energy ball milling affects the structure and magnetic properties of nickel nanoferrites, which could be useful in biomedical applications.
Contribution
The study demonstrates that high-energy ball milling improves crystallinity and magnetic properties of NiFe2O4 nanoparticles for biomedical use.
Findings
X-ray diffraction showed transformation to a single-phase cubic spinel NiFe2O4 structure with milling time.
Milling time increased g-values and improved soft ferromagnetic behavior, suitable for high-frequency devices.
ESR results indicated reduced resonance fields and decreased spin-spin relaxation time with longer milling.
Abstract
Nanocrystalline NiFe2O4 was synthesized using high‐energy ball milling. The effect of milling time on structural and magnetic properties was investigated. X‐ray diffraction results revealed a progressive transformation from mixed NiO–Fe2O3 precursor phases to a single‐phase cubic spinel NiFe2O4 structure with crystallite sizes ranging from 33.64 to 41.17 nm. The scanning electron microscopy showed small grains attaching to big grains for 1 h milled sample. The big grains disappear with increasing milling time. Homogeneous nanoparticles, spherically shaped and agglomerated nanoparticles, were observed for samples that were milled for 5, 10, and 15 h. Energy‐dispersive X‐ray spectroscopy confirmed the presence of all expected elements. The nature of M – H loops for all the samples shows soft ferromagnetic behavior. The Electron spin resonace (ESR) results revealed the reduction of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

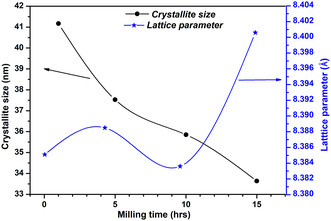

Figure 1

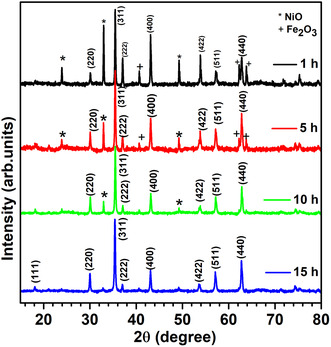

Figure 2

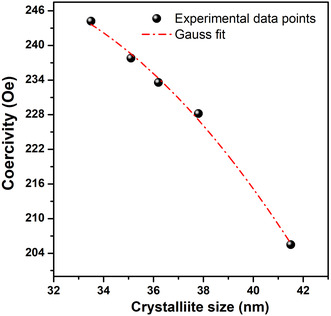

Figure 3

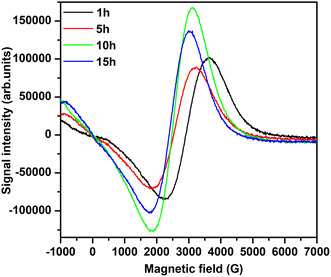

Figure 4

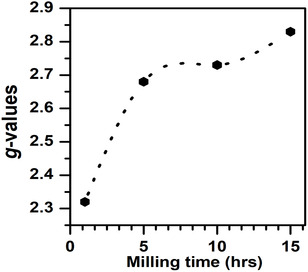

Figure 5

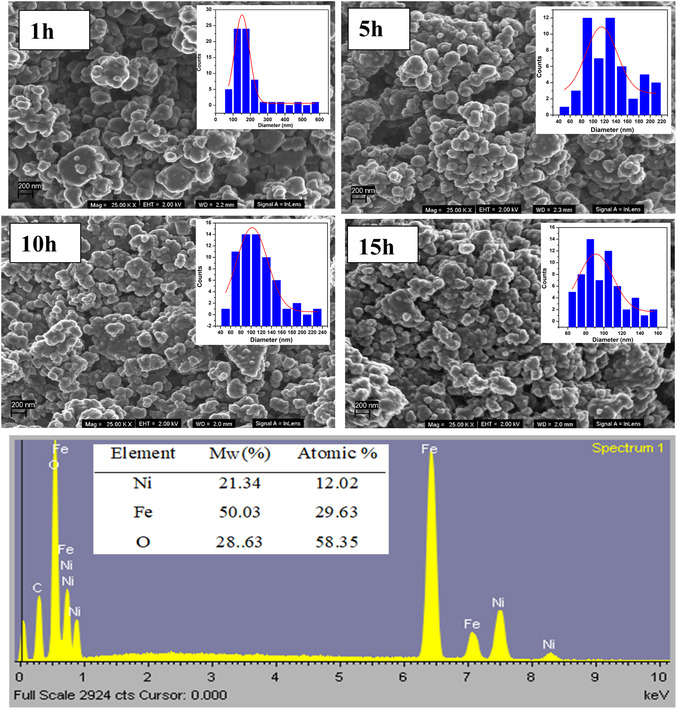

Figure 6

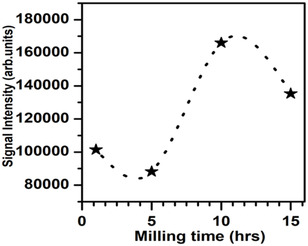

Figure 7

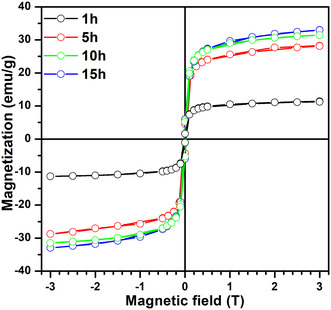

Figure 8

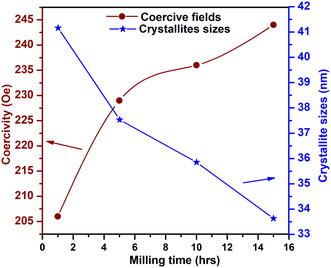

Figure 9

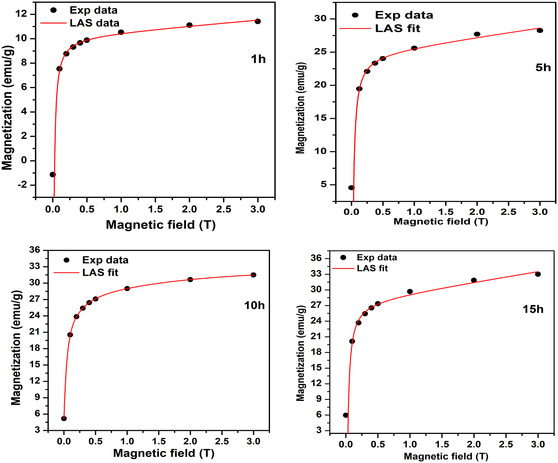

Figure 10
Figure 11

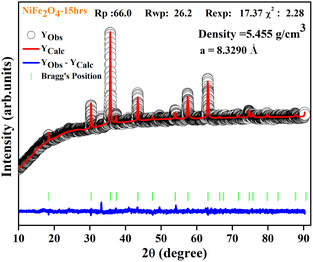

Figure 12Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMagnetic Properties and Synthesis of Ferrites · Electromagnetic wave absorption materials · Metallic Glasses and Amorphous Alloys
