Fluid flow behaviour in vesicular basalt samples from the Skoll High, Vøring Margin

TL;DR

This study examines how fluids flow through basalt samples from the Skoll High, finding that swelling clays and low permeability may hinder carbon sequestration potential.

Contribution

The study provides new empirical data on fluid flow in altered basalts under subsurface conditions, relevant for carbon sequestration.

Findings

Brine permeability is four orders of magnitude lower than gas permeability in the tested basalts.

Swelling clays significantly reduce fluid accessibility in the pore space of altered basalts.

Low matrix permeability and clay prevalence may limit injectivity into basaltic lava flows.

Abstract

This study presents the fluid flow testing results of 32 lava flow samples recovered from IODP Sites U1571/U1572 (145–315 mbsf) on the Skoll High, Vøring Margin. Few past studies have investigated the mid-Norwegian margin’s basalt reservoir and flow properties. Even fewer implement subsurface-like conditions to explore in-situ fluid flow and the possible response to changing pore fluids during injection. These aspects are critical for large-scale carbon sequestration. In this study, hydraulic properties including porosity and permeability were measured at ambient conditions for all samples along with multi-stress, multi-fluid core flooding experiments on a representative sample enclosed in an X-ray µCT scanner. Petrographic observations reveal varying degrees of alteration with secondary clays, including smectite, commonly lining pores and vesicles. He-porosities (4.2–45.6%) fall mostly below the theoretical percolation threshold of ~ 30% for randomly distributed spherical pores. Klinkenberg-corrected nitrogen-gas permeability (0.0038–361.9 mD) shows weak correlation to porosity and no apparent depth dependence. Further, brine permeability is four orders of magnitude lower than gas permeability, with no notable flow reduction during injection of CO2. Rather than being stress-dependent, we argue that brine-induced swelling significantly reduced the accessibility of microstructural elements to fluids. The findings urge caution when using literature-reported, ambient gas measurements for basalts with similar levels of alteration as they may not accurately reflect in-situ fluid flow properties. Low matrix permeability of the moderately to highly altered vesicular basalts and prevalence of swelling clays may, without major contributions from fractures, limit the injectivity potential into the basaltic lava flows on the Skoll High, Vøring Margin.

Core flooding experiments indicate brine permeabilities roughly 4 orders of magnitude lower than to nitrogen gas.Fines and clay interactions narrow microstructural elements and render the pore space inaccessible to fluids.
Low matrix permeability and prevalence of swelling clays limits injection potential in the tested basalts.

Core flooding experiments indicate brine permeabilities roughly 4 orders of magnitude lower than to nitrogen gas.

Fines and clay interactions narrow microstructural elements and render the pore space inaccessible to fluids.

Low matrix permeability and prevalence of swelling clays limits injection potential in the tested basalts.

Figures

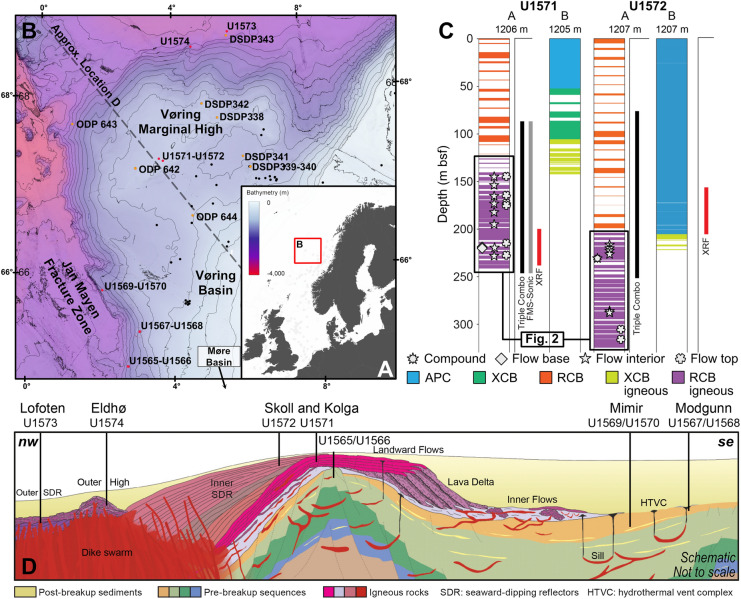

The location of the mid-Norwegian Continental Margin and area of interest explored during IODP Expedition 396 and previous activities. A Location of the Vøring Margin and Basin within the continental margin and offshore area marked by the red bounding box shown in B. B Bathymetric map and regional drilling activity. IODP sites are shown in red, while past scientific drilling activity (DSDP, ODP) and commercial boreholes are marked in orange and black, respectively. C Recovery, borehole method, downhole measurements, and sample type, and sampling depths for Sites U1571 and U1572. D) Schematic c

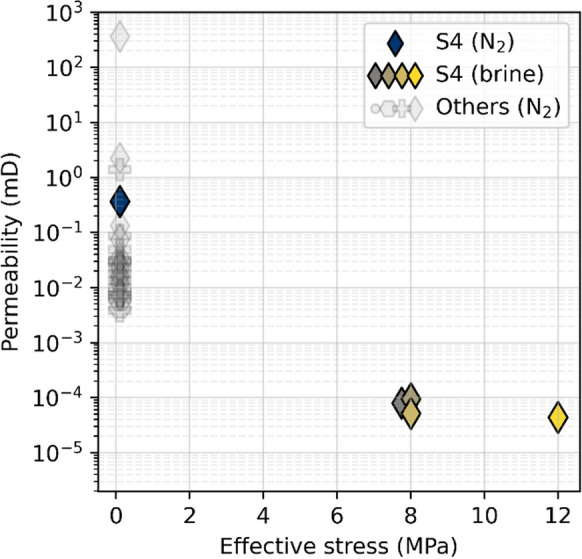

Permeability data for tested Skoll High basalt lava flow sample versus effective stress for each of the samples, including the four brine permeability measurements for sample S4 (each shaded differently)

The location of the mid-Norwegian Continental Margin and area of interest explored during IODP Expedition 396 and previous activities. A Location of the Vøring Margin and Basin within the continental margin and offshore area marked by the red bounding box shown in B. B Bathymetric map and regional drilling activity. IODP sites are shown in red, while past scientific drilling activity (DSDP, ODP) and commercial boreholes are marked in orange and black, respectively. C Recovery, borehole method, downhole measurements, and sample type, and sampling depths for Sites U1571 and U1572. D) Schematic c

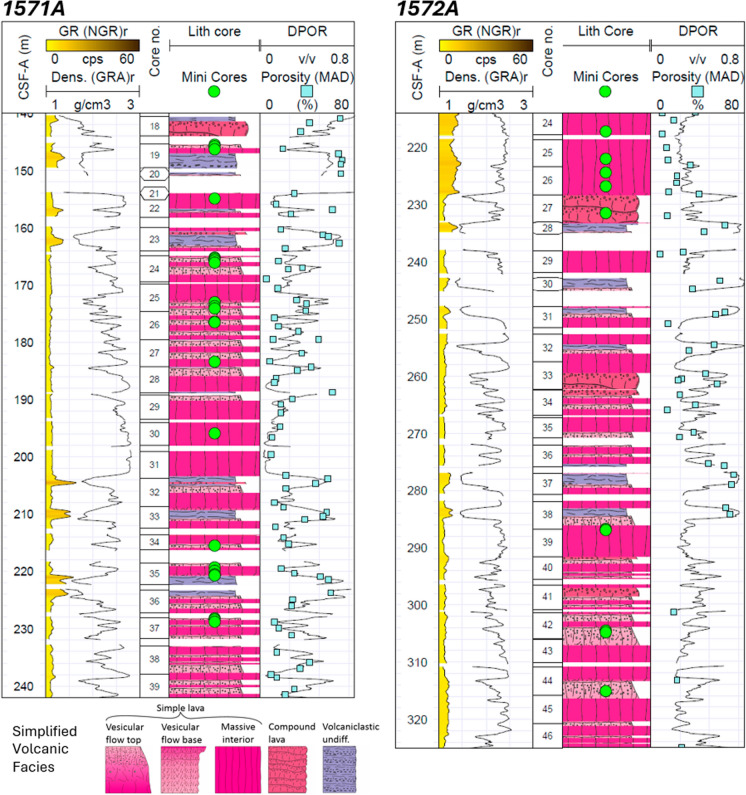

Lithostratigraphy and facies description of the U1571A and U1572A boreholes. Minicored interval depths are highlighted

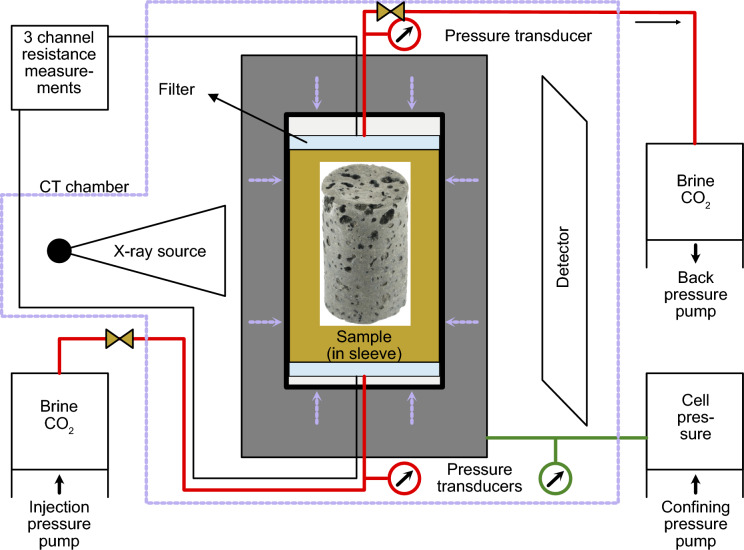

Schematic drawing of the set-up used during the X-ray µCT-integrated, multi-fluid flow experiments on sample S4

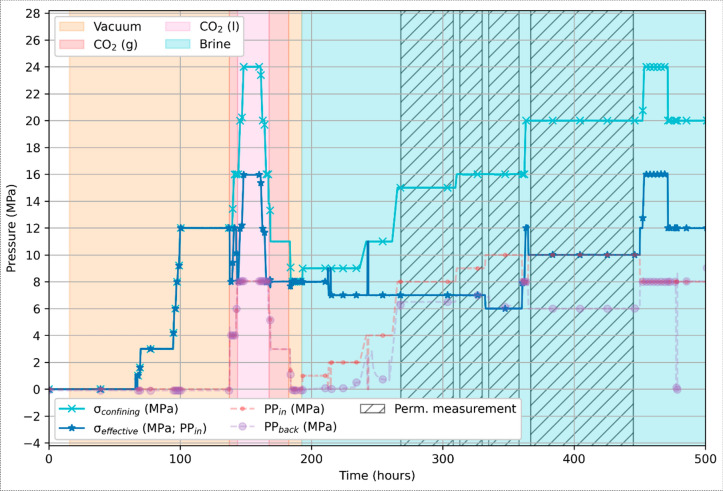

Overview of the pressure conditions for the vacuum (dry conditions), gaseous (g) and liquid (l) CO_2_, and brine phases of the fluid flow experiment on sample S4. PP in and back correspond to the injection and back pressure, respectively. The effective stress is calculated using the injection pressure (PP_in_). The hatched areas indicate the periods during which permeability to brine was measured

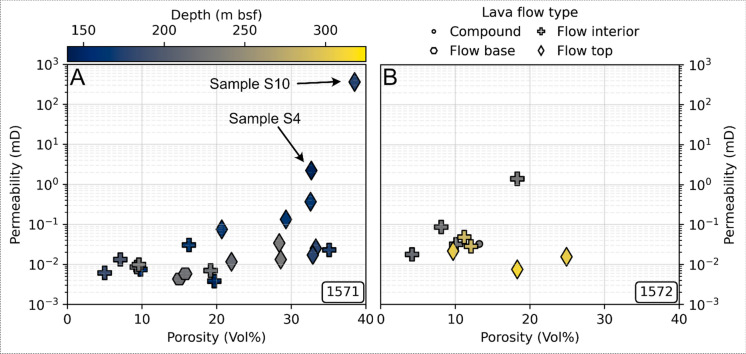

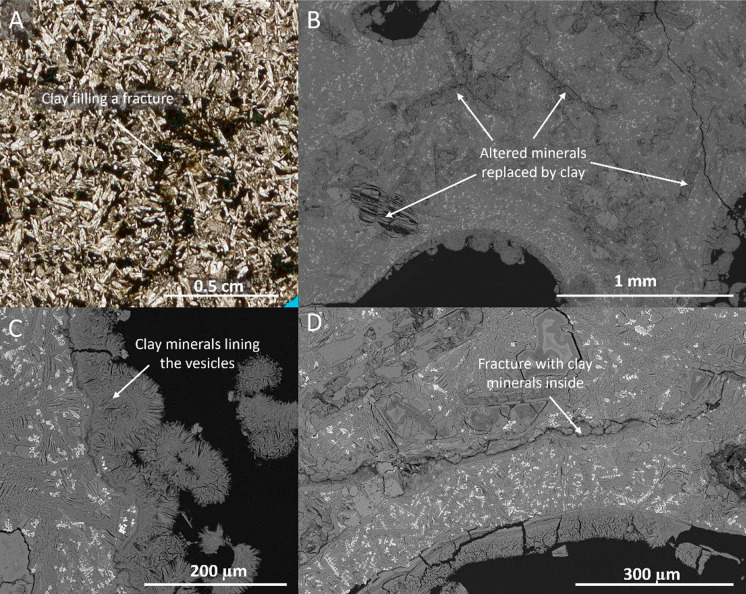

Measured fluid flow parameters for the 32 tested samples, plotted as permeability versus porosity for A Site U1571 and B Site U1572 samples. Shading indicates sampling depth; marker shape indicates lava flow typeFig. 6Microscope images indicating the presence of small-aperture features and their clay lining in samples S4 and S9. A Microscope image of clay filled fracture in sample S9 from borehole U1572. B Backscatter (BSE) image of sample S4 showing the alteration of minerals in the rock matrix. C Close-up of the clay minerals lining the vesicles in sample S4. D BSE image of small fracture in

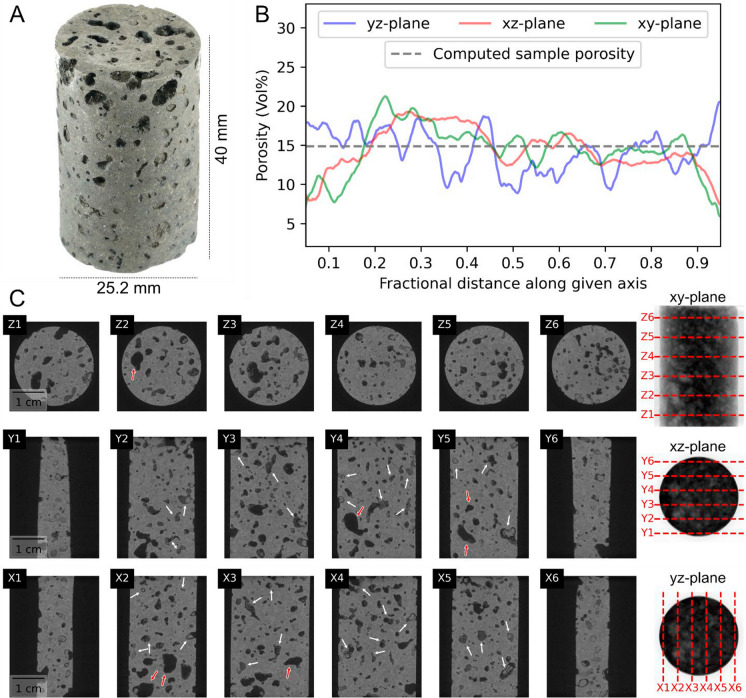

Physical properties of core plug S4. A Close-up photograph of sample S4. B Calculated 2D porosity as a function of the fractional distance along a given plane, as well as computed porosity for the whole volume (3D). C X-ray µCT imaging analysis and interval cross-section slices of core plug S4. White arrows highlight some of the clay-filled vesicles, identified as gray-scale infill of varying intensity, while red arrows indicate examples with only partial infill and/or surface lining

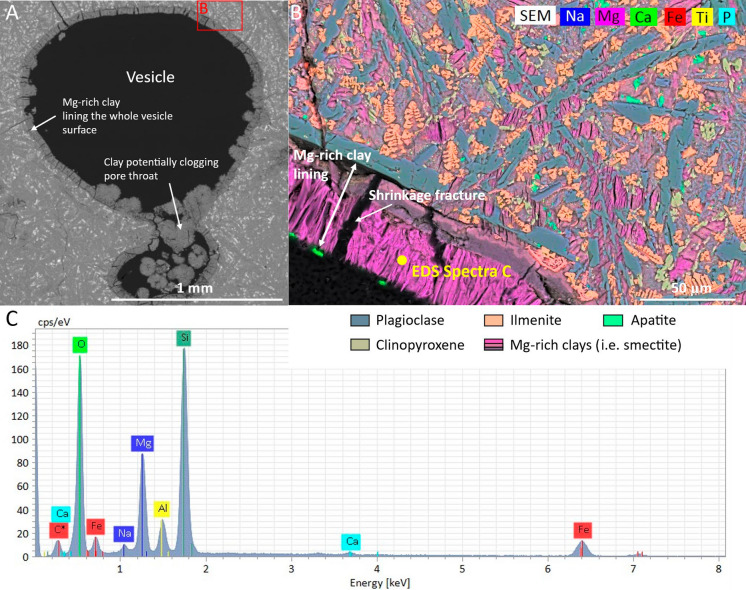

Pore-lining clay and elemental compositions in sample S4. A Backscatter (BSE) image of vesicle lined with clay minerals. The clay is potentially clogging the pore throat between the two pores. B Elemental map of marked area from image A showing the different minerals present in the sample, including Mg-rich clays (i.e., smectite), plagioclase, CPX-diopside, ilmenite, apatite, and Ca-carbonates. C EDS spectra of Mg-rich clay mineral lining the pore in image B

Physical properties of core plug S4. A Close-up photograph of sample S4. B Calculated 2D porosity as a function of the fractional distance along a given plane, as well as computed porosity for the whole volume (3D). C X-ray µCT imaging analysis and interval cross-section slices of core plug S4. White arrows highlight some of the clay-filled vesicles, identified as gray-scale infill of varying intensity, while red arrows indicate examples with only partial infill and/or surface lining

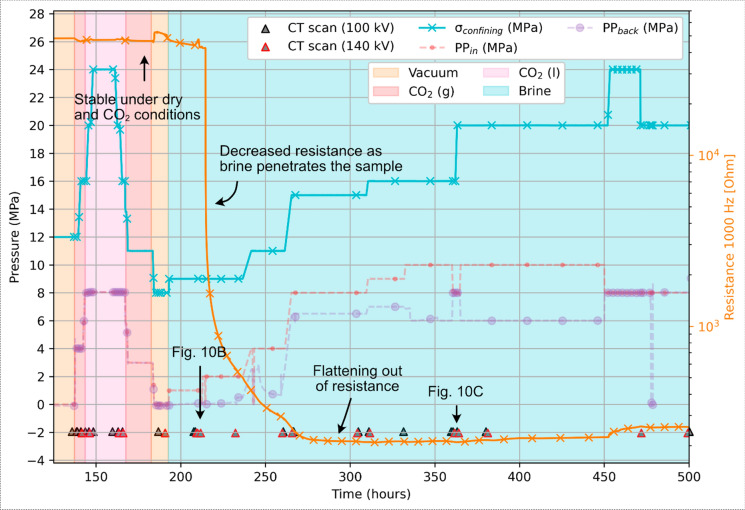

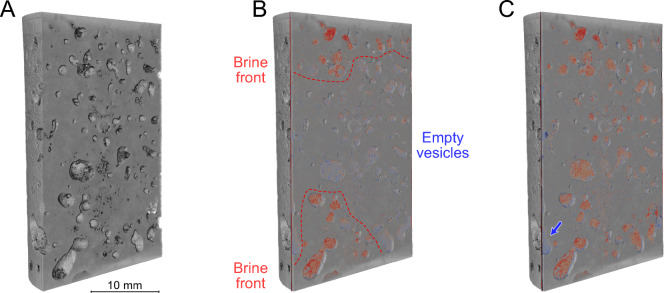

Resistance measurements and X-ray µCT scanning intervals during flooding with gaseous (g) and liquid (l) CO_2_ and brine. Confining, injection (PP_in_), and back (PP_back_) pressures are indicated as a reference. Acquisition times for the differential X-ray µCT scans shown in Fig. [10](#Fig10) are indicatedFig. 10Differential X-ray µCT images of sample S4 A prior to, B during, and C after the brine saturation stage. The brine front on either end of the core plug is indicated by a red dashed line in (B), with red infill indicating an increase in measured density versus the vacuum reference (A).
