A wavelet-based approach generates quantitative, scale-free and hierarchical descriptions of 3D genome structures and new biological insights
Ryan Pellow, Josep M. Comeron
TL;DR
This paper introduces WaveTAD, a new method to analyze 3D genome structures, offering more accurate and detailed insights into how DNA is organized in the nucleus.
Contribution
WaveTAD provides a resolution-free, probabilistic, and hierarchical approach to infer 3D genome structures with increased accuracy and sensitivity.
Findings
WaveTAD reveals the widespread presence of embryonic 3D organization before zygotic genome activation.
The method shows how multiple CTCF units affect the stability of loops and TADs.
WaveTAD identifies associations between gene expression and TAD structures in conditions like COVID-19 and sex-specific transcription in Drosophila.
Abstract
Eukaryotic genomes are organized within nuclei in three-dimensional space, forming structures such as loops, topologically associating domains (TADs), and chromosome territories. This 3D architecture impacts gene regulation and development, stress responses, and disease. However, current methods to infer these 3D structures from genomic data have multiple drawbacks, including varying outcomes depending on the resolution of the analysis and sequencing depth, qualitative outputs that limit statistical comparisons, and insufficient insight into structure frequency within samples. These challenges hinder rigorous comparisons of 3D properties across genomes, conditions, or species. To overcome these issues, we developed WaveTAD, a wavelet transform-based method that provides a resolution-free, probabilistic, and hierarchical description of 3D organization. WaveTAD generates TAD strengths,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
Fig 10
Fig 11- —http://dx.doi.org/10.13039/100000001National Science Foundation
- —http://dx.doi.org/10.13039/100000049National Institute on Aging
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGenomics and Chromatin Dynamics · Fractal and DNA sequence analysis · Bioinformatics and Genomic Networks
Introduction
The primary linear structure of genetic information within nuclei undergoes a highly specific and programmed multi-level hierarchical organization in three-dimensional (3D) space. These 3D genomic structures, including loops, topologically associating domains (TADs) and territories, facilitate interactions between distant sequences, such as enhancers and promoters, which are vital for orchestrating transcriptional programs in a developmental and tissue-specific manner [1,2]. They also position specific genomic sections in differentially accessible nuclei compartments. Alterations in these tissue-specific 3D structures have been linked to developmental abnormalities, diseases, and cancer [3–8]. However, not all gene expression control is dependent on TAD and loop formation, as some genes show robust expression independent of TAD perturbations [9,10].
Developments in genomic methods, including several forms of high-throughput chromatin conformation capture (Hi-C) [11] and more recently single-cell Hi-C methods [12], allow generating high-resolution DNA sequence data that identify contacts between distant genomic regions. These contacts form matrices (contact matrices), which can be used to infer proximity in 3D space and predict structures such as DNA loops and TADs [13]. Both loops and TADs are units of high-contact density areas within these contact matrices, with TADs showing higher frequency of internal interacting areas relative to loops [14]. However, the raw information used for contact maps is considerably sparse and noisy due to the limited number of informative reads per kilobase (kb) and the presence of random contacts. In the last decade, many computational and mathematical tools have been developed to infer loops and TADs based on contact matrices [15–18]. All these tools integrate contact data at a given genomic scale or resolution that is decided a priori, often determined by the size of the genome and number of informative reads. Although high-resolution Hi-C studies do exist [19,20], most studies based on human or mouse bulk Hi-C use a 50kb resolution, analyzing all the reads that connect sites within a specific 50kb genomic region with any other 50kb region across the genome. Studies in species with smaller genomes, such as Drosophila, tend to use finer resolutions (e.g., 10–25kb) due to the ease of obtaining higher numbers of informative reads per genomic unit. The collapse of data when using broad resolutions limits the precise identification of contact locations and overlooks weaker secondary contacts within a region, while studies at finer scales generate noisier signals. These limitations are drastically intensified in single-cell studies, often requiring resolutions at or above 500kb [21,22]. Notably, all current methods to infer 3D structures based on contact matrices predict different sets of loops and TADs (number, size and locations) depending on the resolution used in the analyses, restricting biological insights from comparisons between studies and/or species. Another limitation of 3D algorithms is the difficulty in providing quantitative descriptions, further limiting accurate comparisons between structures across genomes or samples.
To address the drawbacks of current methodological approaches to infer the 3D genome organization, we developed a method and a corresponding bioinformatics pipeline to analyze contact frequencies using wavelet-transforms (WT). Proposed in the early 1900s, the popularity of WT began to take hold in the 1980s in physics and geology as a means of signal and, later, image processing [23–26]. When applied to genomic studies, WT can be used to study how any type of signal changes along chromosomes by decomposing it into a set of scaling and wavelet functions [27–29]. These functions provide local information for both location and scale (size of the genomic region) without the need to specify the scale of interest a priori, making them scale or resolution-free. Specifically, WT produces detail coefficients that represent the change in signal intensity between neighboring locations at a given scale while removing the noise and signal identified at smaller scales without loss of information. This makes it useful for extracting multi-scale signals from noisy or sparse data [23,30–33] and, for most genomic studies, WT would identify signals starting from the smallest possible scale—a single nucleotide. Importantly, detail coefficients are normally distributed, allowing for the assignment of independent probabilities for each denoised scale-by-location datapoint [23] and the quantitative comparison between signals regardless of scale.
While WT has been used in genomic applications in the past, mostly with the objective of denoising data before downstream analysis [34,35], we propose that WT is an ideal and statistically rigorous framework to analyze contact frequencies across genomes and infer multilevel structures including, but not limited to, loops, TADs, subTADs, and corner-dot TADs. Here, we describe the new method and the accompanying software package (WaveTAD) to analyze Hi-C contact data at the nucleotide level in a probabilistic, resolution-free, and hierarchical manner. We also apply WaveTAD to multiple datasets, both bulk and single-cell Hi-C, to demonstrate its benefits providing new biological insights.
Results
Overview of WaveTAD
WaveTAD leverages the statistical and multiscale capabilities of WT to decompose the sparse and noisy Hi-C data to extract valuable information regarding the state of the 3D nuclear architecture (Fig 1; see Methods for details). Unlike traditional TAD callers that analyze binned contact matrices at specific broad resolutions, WaveTAD probes the raw and underlying coverage signal of valid Hi-C contacts (paired-end sequencing reads uniquely mapping to two distal areas in the reference genome) (Fig 1A). Based on the orientation of the mapped reads, they are split into 5’ and 3’ groups indicating contacts downstream and upstream, respectively (Fig 1B), and genome-wide nucleotide coverage is calculated independently for the 5’ and 3’ groups (Fig 1C). These 5’ and 3’ read depth coverages are used as signal along chromosomes for WT to identify genomic locations displaying sharp increases in distal contacts that represent potential left and right TAD and loop boundaries. True boundaries are then determined by calculating detail coefficients and corresponding probability values across scales after adjusting for multiple comparisons (Lpn and Rpn for 5’ and 3’ groups, respectively; Fig 1D). To identify TADs and loops, left-side and right-side TAD boundaries are paired to create all possible TADs/loops, with a probability (PAIRpn; Fig 1E) equal to the product of Lpn and Rpn. These candidate TADs/loops are then filtered based on the presence of long-distance interactions at the predicted TAD apex or loop anchor locations (depicted by the green circles). This is investigated by probing enrichment of contacts relative to a background surrounding the predicted apex/anchor region and by assigning an associated probability to that enrichment (ANCpn; Fig 1F). Finally, the product of the probabilities of the left TAD boundary (Lpn), right TAD boundary (Rpn), and TAD apex or loop anchor (ANCpn) are calculated and denote the strength (TADpn; Fig 1G), as a measure of frequency or stability, of the called TADs/loops.

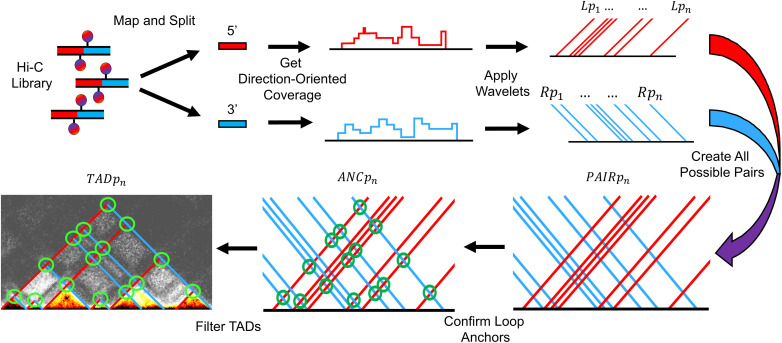

Overview of WaveTAD method.
To highlight the WaveTAD program with a specific case where changes in TAD/loop structures are predicted, we applied it to a pair of Micro-C datasets consisting of a control sample and a sample containing a genetically perturbed tethering element required for a promoter-enhancer interaction [36] (Fig 2A). In brief, WaveTAD analyzed the pair-read coverage signal of the samples (Fig 2B) to produce detail coefficients across many scales (Fig 2C). Locations with significantly elevated detail coefficients (Fig 2D) represent areas displaying an enrichment in long-range contacts, a hallmark of TAD and loop boundaries. All possible 5’ - 3’ pairwise contacts (potential TAD/loops) are then generated and the presence of long-distance interactions at their predicted TAD apex/loop anchor locations is investigated with a “donut” algorithm (see Methods for details) that assigns an associated probability (Fig 2E). Given that wavelet transforms analyze the signal across many scales, leakage across scales when analyzing broad boundaries can generate multiple hits in close proximity to one another. To resolve this issue, WaveTAD applies a diamond area algorithm (see Methods for details) relative to the size of the identified TAD (Fig 2F).

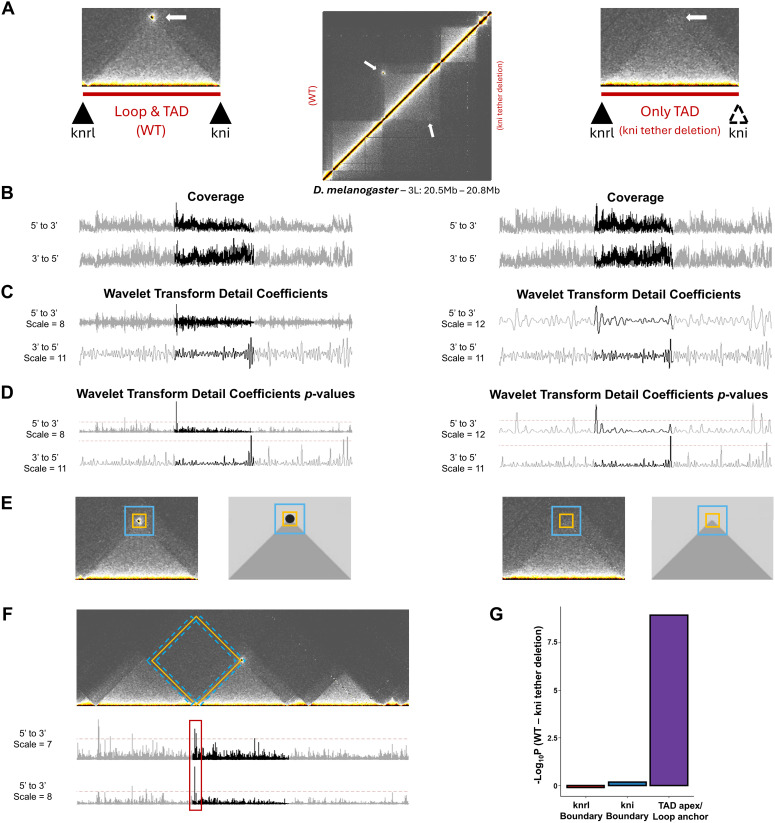

Walkthrough of an application of WaveTAD.(A) Contact matrices (1kb resolution) highlighting the loss of the loop structure when the kni tethering element is perturbed from Levo et al. [36] (B) Underlying coverage signal of the Hi-C matrix for the 5’ (top) and 3’ (bottom) contacts for the wildtype (left) and mutant (right) samples. (C) Detail coefficients (shown at two specified scales) generated from the application of wavelet-transforms to the coverage signal. (D) p-values corresponding to the generated detail coefficients. (E) Representative diagram of the “donut” algorithm used to identify both loops and TAD apexes. (F) Schematic of the diamond area algorithm overlayed over the control knrl-kni contact matrix. The diamond area algorithm is used to reconcile scenarios when WaveTAD calls the same TAD boundary at multiple scales with locations slightly moved (red box). (G) Boxplot comparing the change in boundary and loop p-values (see methods) between the wildtype and perturbed samples. See Methods for details.
After the TADs/loops are finally called, we can then compare the TAD boundary and TAD apex/loop anchor strengths between the two samples to gain biological insight. Levo et al. [36] performed a targeted replacement of the tethering element of the knirps (kni) gene that depletes the contacts between kni and its paralogue knirps-related (knrl). In agreement, our analysis shows reduced apex/anchor strength in mutant compared to wildtype samples, confirming reduced interaction frequency between tethering elements while maintaining internal TAD interactions (Fig 2G). Overall, this example demonstrates how the WaveTAD program translates sparse and noisy Hi-C data into discrete TAD/loop, boundary and apex/anchor calls with corresponding strengths that can then be directly compared within a rigorous statistical framework. In a genome-wide context, TAD calls can be compared between samples by using the Jaccard Index (JI) or overlap coefficient. These metrics gauge the similarity between two sample sets and are the current standard in the field for measuring the concordance of TAD calls between samples [15–18].
WaveTAD identifies TADs independent of resolution, handles sparse matrices, and provides robust and reproducible TAD calling
To exemplify the importance of a resolution-free TAD caller, fly [37], mouse [38] and human [39] datasets were analyzed by multiple methods at different resolutions (S1**-S3 Fig). These methods included the non-hierarchical TAD callers HiCExplorer, HiCseq, Insulation Score, IC-Finder, TopDom, and the hierarchical TAD callers 3DNetMod, Armatus, OnTAD, SpectralTAD, and SuperTAD (see Methods for details). We first quantified the dependence on resolution by determining the number and size of called TADs (Fig 3** and S4 Fig). In all datasets, analyses at different resolutions drastically change the detected TADs. Finer resolutions systematically bias towards identifying more and smaller TADs, while broader resolutions reveal fewer, larger TADs. This dependency on resolution is substantial, with the number of TADs and their median size shifting more than an order of magnitude between fine and broad resolutions. On the other hand, WaveTAD calls TADs with a wider range of sizes compared to the other methods, as expected based on the identification of hierarchical 3D structures and its intrinsic resolution-free nature. Moreover, WaveTAD calls equivalent TAD sizes for the three species analyzed. Insulation Score calls a consistent number of TADs regardless of resolution although it calls significantly fewer TADs and with a much narrower range of sizes than WaveTAD. Because resolution in TAD studies is often different for different species and can be also influenced by the number of contact reads in a given experiment, resolution-dependent analyses of TADs could generate inappropriate information about biologically relevant properties (such as differences in average TAD size when comparing species) whereas WaveTAD allows for more direct and objective comparisons.

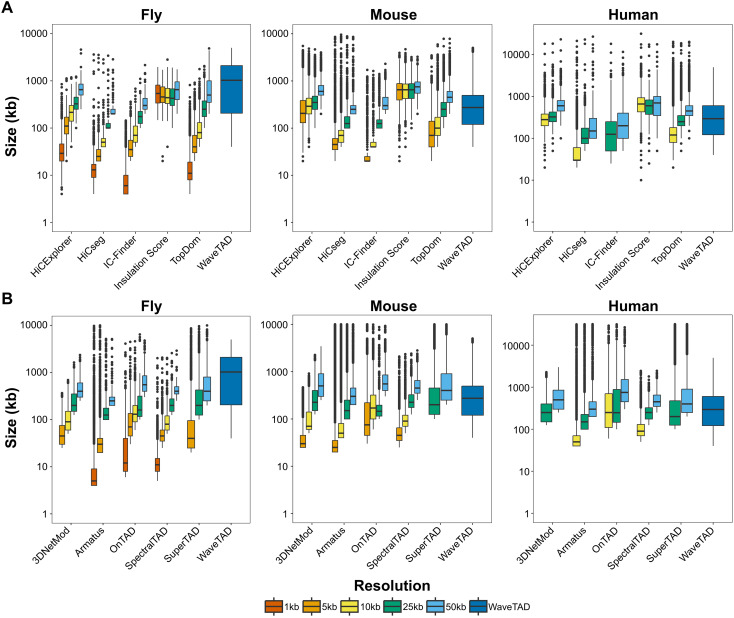

Comparison of TAD calls between methods.Box plots of TAD sizes called by each tool using different resolutions of contact matrices for the different species: fly (1kb, 5kb, 10kb, 25kb, 50kb), mouse (5kb, 10kb, 25kb, 50kb), and humans (10kb, 25kb, 50kb). Note that WaveTAD is resolution-free. (A) and (B) for non-hierarchical and hierarchical TAD callers, respectively.
To explore WaveTAD’s ability to handle sparse data (low number of contact reads per Mb) better than previous methods, we downsampled the fly, mouse, and human datasets and compared the boundaries according to the methodology of benchmarking studies [15,18,40]. For these analyses of sensitivity and accuracy, we analyzed the boundaries called by each tool relative to those identified when using the highest read depth sample for each dataset as reference. Both the Jaccard Index (JI) (Fig 4) and the overlap coefficient (S5 Fig) show WaveTAD as the method least influenced by reduced read depths when compared to all other methods in the three species.

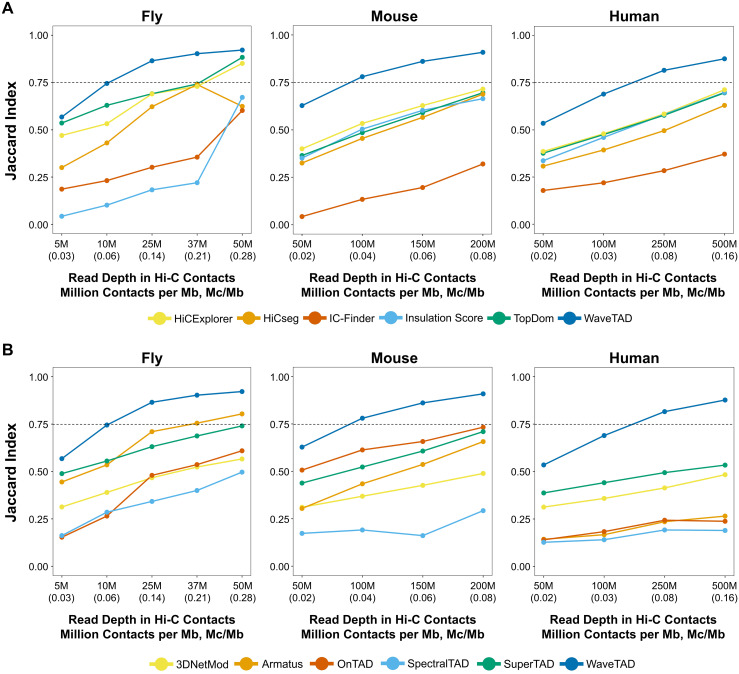

Comparison of TAD calls between methods.Concordance of TAD boundaries using the Jaccard Index across read depths (number of million mapped Hi-C contacts per megabase (Mc/Mb) in parentheses). The Jaccard Index was estimated relative to the highest contact read depth for each species: 75M (0.35 Mc/Mb) for flies, 250M (0.10 Mc/Mb) for mouse, and 1B (0.31 Mc/Mb) for human. A resolution of 10kb for fly and 25kb for mouse and human was used. (A) and (B) for non-hierarchical and hierarchical TAD callers, respectively.
True positive rates (TPR) and false discovery rates (FDR) were also determined for each tool by comparing the downsampled reads to the highest read depth sample (S6 Fig). All tools show a reduction in TPR when read depth is reduced, but WaveTAD is the only tool to maintain a high TPR (highest amongst all methods for a given read depth). Importantly, WaveTAD shows high TPR while maintaining a low FDR for each read depth analyzed and across species. Analyses of fly genomes would achieve a TPR above 0.85 and FDR below 0.02 with ~25M contacts (~0.10M contacts per Mb). Analyses of mouse and human genomes would achieve TPR above 0.85 and FDR < 0.05 with ~200M (~0.08 contacts/Mb), and TRP above 0.85 and FDR < 0.06 with ~500M (~0.16 contacts/Mb), respectively. The contact matrices generated for different read depths and the corresponding TADs called by different methods were also plotted as heat maps to allow for visualization (S7**-**S9 Fig).
To study the consistency of TAD-calling by the different tools, we analyzed multiple biological and technical replicates from fly datasets (S1 Table) [37] (see Methods for details). The concordance (JI) of boundaries called between biological replicates when using WaveTAD was 0.883 whereas it ranged between 0.105 (Insulation Score) and 0.576 (TopDom) for the other methods (Fig 5).

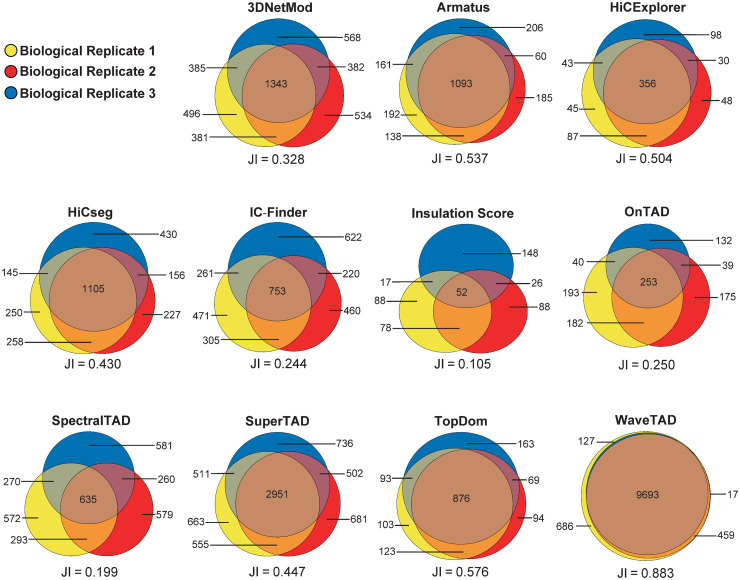

Concordance of TADs called by various tools between biological replicates in Drosophila melanogaster.Venn diagram depicting the number of TADs and number of overlapping TADs called between biological replicates. For each tool the Jaccard Index for all replicates is located below the Venn diagram. Data from Hug et al. staged embryos 3-4 hours post fertilization, biological replicates 1-3, (yellow, red, and blue, respectively) [37].
Similarly, WaveTAD also had the greatest concordance among all tools to infer TADs between technical replicates (0.825), with SpectralTAD and TopDom generating JI ranging between 0.141 and 0.630, respectively (S10 Fig). WaveTAD also shows a high degree of consistency when calling TAD strengths from biological and technical replicates. When broken up into 25 quantiles, TAD strengths between replicates show a mean Spearman’s ρ of 0.980 and 0.972, for biological and technical replicates, respectively (see S11**-**S12 Fig for results from 10, 25, 50 and 100 quantiles).
TAD strengths generated by WaveTAD capture TAD frequency in heterogeneous samples
To evaluate the biological relevance of the TAD strengths produced by WaveTAD when analyzing bulk Hi-C data, we compared the frequency of a TAD being called in single-nucleus Hi-C (snHi-C) with TAD strengths generated from bulk analysis from the same genomes. We used snHi-C from mouse embryonic stem cells (mESCs) (S1 Table) [41,42] and selected the top 500 single-nucleus samples in terms of read depth coverage. These snHi-C analyses allowed estimating the frequency a given TAD is called when these 500 samples are analyzed individually. We then generated an in silico bulk (‘merged snHi-C’) sample consisting of the first one million reads from each of the top 500 single-nucleus samples (500 million total). We also analyzed a more traditional bulk Hi-C sample from the same mESCs line [42]. TAD strengths from the merged snHi-C and bulk Hi-C datasets were then broken up into multiple quantiles (10, 25, 50 and 100) and compared to the frequency of the TADs called in the snHi-C dataset (S13A Fig). A Spearman's rank order correlation analysis shows very high association between the frequency of TADs from the snHi-C dataset and the strength of the TAD generated by WaveTAD in bulk analyses (either merged snHi-C or bulk Hi-C datasets) (e.g., Spearman’s ρ = 0.968 and 0.945, respectively, when using 25 quantiles). Significant correlations are also observed when restricting the analysis to different TAD size groups (S13B Fig). These results indicate that differences in TAD strength provide information about the variable frequency of these TADs within samples with potentially heterogeneous genomes, thus allowing better inferences about TAD properties and dynamics with bulk Hi-C approaches.
WaveTAD identifies TADs and boundary changes in heterogeneous samples
To expand on WaveTAD’s sensitivity in calling TADs present only in a fraction of genomes, we analyzed mixed Hi-C data from two samples containing different TAD calls. We used two Drosophila melanogaster cell lines (S2 and KC167) (S1 Table) [43,44], and a sample was created to mimic a heterogeneous population of cells by mixing Hi-C contacts from the two cell lines, with either 1:0, 3:1, 1:1, 1:3, or 0:1 ratio of S2 to KC167 reads while maintaining the same total number of usable Hi-C contacts (75M). Fig 6 shows the analysis of two nearby TADs called in the S2 cell line but not in the KC167 line. Both TADs are identified even when S2 Hi-C reads represent only 25% of the whole sample, with the strength of the TAD call increasing (more statistically significant) with the fraction of genomes containing the TAD (Fig 6B). This property remains genome-wide when applied to all S2-specific TADs, with the median strength of these TAD calls increasing as the proportion of the TAD-containing Hi-C reads increases (Fig 6C).

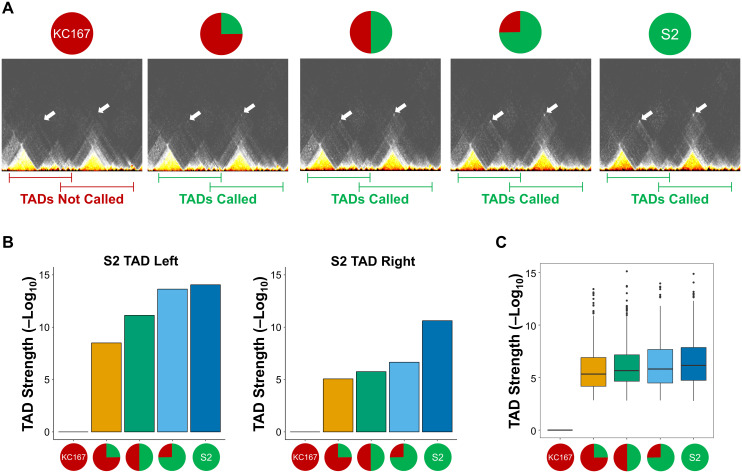

WaveTAD identifies TADs and boundary changes in heterogeneous samples.(A) Contact matrices (10kb resolution) containing Hi-C contacts mixed between two Drosophila melanogaster cell lines. Shown is a region (3R:22,000,000-23,400,000) with two TADs (white arrows) unique to the S2 cell line (S2 TAD Left and S2 TAD Right). The pie chart above each contact matrix shows the ratio of reads used to build the matrix (1:0, 3:1, 1:1, 1:3, or 0:1 ratio of KC167 to S2, respectively). Below, lines indicate whether WaveTAD called the pair of TADs (green) or not (red). (B) Bar plots showing the TAD strength (-Log10(p)) of each of the two TADs highlighted in (A), across the mixed Hi-C contact samples. (C) Genome wide analysis of all TADs unique to the S2 cell line. Bar plot shows median TAD strengths (-Log10(p)) for the S2-unique TADs given the ratio of Hi-C contacts in the mixed samples (pie charts on the x-axis). For all analyses, contact matrices contained a total of 75 million Hi-C contacts.
We also assessed the ability of the different methods to identify boundaries in heterozygous samples as a function of read depth and resolution in larger genomes. Specifically, we analyzed pluripotent human stem cells (hPSCs) containing a de novo human endogenous retrovirus subfamily H (HERV-H) insertion that creates a new TAD boundary [45] (S1 Table). WaveTAD called the newly generated boundary in heterozygous conditions for read depths ranging from 0.1M Hi-C contacts per Mb (6M contact reads) to 0.016M Hi-C contacts per Mb (1M contact reads) (S14 Fig). None of the other methods were consistent in identifying the heterozygous TAD. 3DNetMod, Armatus, HiCExplorer, IC-Finder, SpectralTAD, SuperTAD, and TopDom identified the boundary for some resolutions but not for others. At the lowest read depth, only 3DNetMod, Armatus, SpectralTAD, SuperTAD, and TopDom correctly detected the boundary (and only at specific resolutions), while IC-Finder and SuperTAD called false positives at some resolutions. Insulation Score, HiCseg, and OnTAD did not call the new boundary at any resolution or read depth analyzed.
Large TADs called by WaveTAD match high-resolution imaging
To provide further support to the biological relevance of TADs called by WaveTAD and other TAD callers, we compared predicted TAD boundaries with fluorescence in situ hybridization (FISH)-identified long-range contacts obtained with high-resolution imaging of individual human diploid fibroblast IMR90 cells (S1 Table) [46]. Using bulk Hi-C data from the same study, we analyzed all TADs predicted to be 500kb or longer. Three of the TAD callers identified over 80% of the FISH-identified contacts, with WaveTAD (90.1%) showing the highest percentage, followed by HiCExplorer (83.5%), and Insulation Score (82.4%) (both at 50kb resolution) (Fig 7A). At 25kb resolution, the ability of the resolution-dependent tools to call the large TADs greatly deteriorated except for Insulation Score.

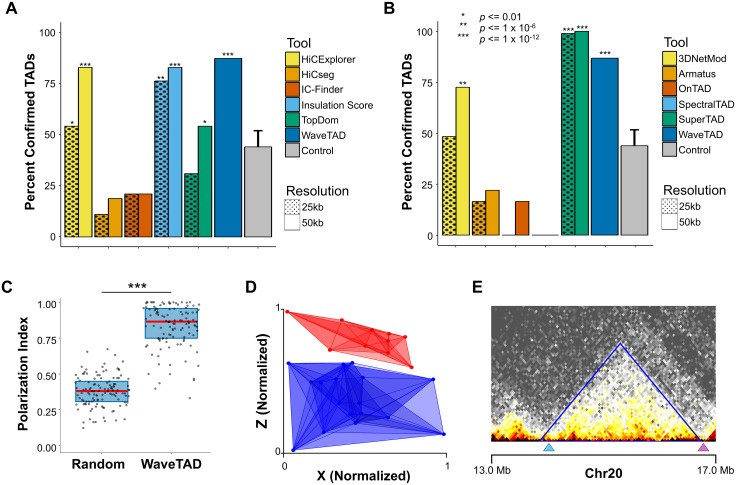

Compartment sized TADs called by WaveTAD match high-resolution imaging.(A,B) Percent of FISH-confirmed TADs called by different tools at 25kb and 50kb resolutions (WaveTAD is independent of resolution) (see Methods for details). (C) Polarization index based on the compartments confirmed by WaveTAD and a randomized control (Wilcoxon Paired Test). Analysis for chromosome 20 from FISH performed on 120 individual cells, where the red line represents the median and the blue boxes represent the 1st and 3rd quartiles. (D) Spatial map of the convex hulls for compartment-A (red) and compartment-B TADs (blue). Each TAD position (point) represents the centroid of the 120 individual cells. The spatial map was orientated by rotating the vector connecting the centroid of the convex hulls (A and B compartments) so that it was aligned to the y-axis. (E) An example of FISH-validated long-range contacts (blue and purple triangles) presented alongside the corresponding WaveTAD-identified TAD (blue line).
Because the genome can be divided into two compartments (A and B) that are associated with open and closed chromatin, with interactions largely constrained within the same compartment, we analyzed whether the large TADs called by WaveTAD showed separation in 3D space based on FISH data [46]. We quantified the polarization index (PI) for TADs to assess overlap (or lack thereof) in 3D space, with PI expected to be 1 when compartments are completely separated in space in a polarized fashion. Large TADs called by WaveTAD are clearly divided into two different partitions, as expected if they define compartments A and B, with a median PI value of 0.865 markedly greater than the randomized control (median value of 0.381) (Fig 7C) that can be visually represented by building a spatial position map based on centroid positions for each of these TADs (Fig 7D).
A majority of higher-order chromatin structures appear before zygotic genome activation (ZGA) in both fly and mouse
According to current views in the field, high-order chromatin structures are greatly weakened after fertilization with chromatin in a relaxed state, whereas the majority of the multi-scale 3D chromatin organization emerges alongside with zygote genome activation (ZGA) in early metazoan embryos ([37,47,48]; reviewed in [49–51]). This concept also aligns well with the key role of 3D genomic structures on gene regulation. To investigate whether TADs are indeed uncommon before ZGA or, conversely, previously missed due to weak signals that could represent transient contacts, we studied the early emergence of 3D nuclear hierarchy during fly and mouse development with published Hi-C datasets (S1 Table) [37,47]. The genome of the rapidly dividing embryos of D. melanogaster is assumed to be initially unstructured, with a prominent surge in TAD signal occurring during zygotic genome activation (ZGA), which occurs at nuclear cycle (nc) 14 [37]. Similarly, the presence of TADs becomes substantial at the 2-cell stage in mice [47–49].

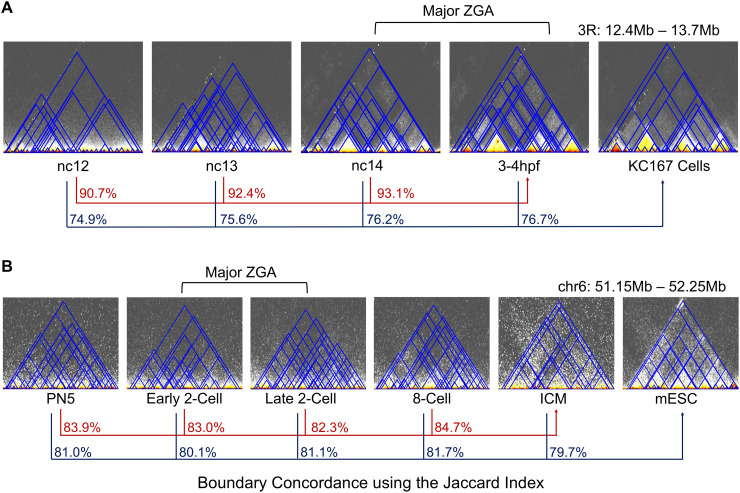

Analysis of the fly datasets using WaveTAD (Fig 8A) showed that the great majority of TAD boundaries present after ZGA are also identifiable before ZGA (at nc12), with a boundary concordance (JI) of 90.7%. We further compared early- and mid-stage embryo TADs to KC167 cells, a widely used and well-characterized cell line established from 6-12h embryos with a hemocyte-like mRNA expression pattern [52]. We observed that pre- and post-ZGA samples show similar boundary concordance (JI: 74.9 - 76.7%) when compared to KC167 cells. Similarly, in mice (Fig 8B) we observed very high concordance between boundaries called by WaveTAD at the pronuclear stage 3 (22 hours) before ZGA and inner cell masses (ICM) from blastocysts (92–94 hours) after ZGA, with a JI of 0.837. Embryonic mouse samples before and after ZGA show an equivalent high degree of TAD concordance when compared to established mouse embryonic stem cells (mESCs) (JI: 79.7 - 81.7%).
A majority of higher-order chromatin structures appear before zygotic genome activation (ZGA) in both fly and mouse.(A) Contact matrices (10kb resolution) of Drosophila melanogaster (chr3R:12,400,000-13,600,000) over four developmental timepoints (nc12, nc13, nc14, and 3-4 hours post fertilization, hpf) and the KC167 cell line are overlayed with TADs called by WaveTAD. The red lines and corresponding percentages (in red) show the genome wide concordance of TAD boundaries for each timepoint (nc12, nc13 and nc14) relative to the 3-4 hpf timepoint using the Jaccard Index. The dark blue lines and corresponding percentages show the genome wide concordance of TAD boundaries using the Jaccard Index for each timepoint (nc12, nc13, nc14, and 3-4 hpf, respectively) relative to the KC167 cell line. Note that zygotic genome activation occurs at nc14. (B) Contact matrices (10kb resolution) of Mus musculus (chr6:51,000,000-53,000,000) over five developmental timepoints (PN5, early 2-cell, late 2-cell, 8-cell, and ICM) and the mESC cell line are overlayed with TADs called by WaveTAD. The red lines and corresponding percentages show the genome wide concordance of TAD boundaries using the Jaccard Index for each timepoint (PN5, early 2-cell, late 2-cell, and 8-cell, respectively) relative to the ICM timepoint. The dark blue lines and corresponding percentages show the concordance of TAD boundaries using the Jaccard Index for each timepoint (PN5, early 2-cell, late 2-cell, 8-cell, and ICM, respectively) relative to the mESC cell line. Note that zygotic genome activation in mouse occurs at the 2-cell stage.
Our analyses using WaveTAD identifies pre-ZGA 3D structures that were previously overlooked likely due to widespread weaker signals, a scenario compatible with pre-ZGA contacts being highly transitory, producing a population of embryonic 3D genomes with TADs at low frequency. To seek support for this possibility and given WaveTAD’s property of generating TAD strengths that capture differences in frequency in heterogeneous populations, we compared the TAD strengths associated with TADs before and after ZGA. In both mouse and fly, TAD strengths increase from before to after ZGA (Mann–Whitney U test p < 2.2x10^-16^ in both fly and mouse). Thus, while WaveTAD suggests that most potential 3D genomic structures predate ZGA and are conserved throughout development in both flies and mice, it also identifies pre-ZGA structures as weaker—likely less stable—than those post-ZGA, supporting temporally dynamic pre-ZGA TADs. Recent super-resolution live-cell imaging inferring the existence of very transient structures in mouse embryonic stem cells would support this possibility [53].
CTCF sites and TAD stability
CTCF is widely regarded as the predominant architectural protein in humans, being responsible for constraining cohesin-mediated loop extrusion via convergently oriented binding sites [54–65]. The 4D Nucleome (4DN) project [66], for instance, assesses the quality of TAD calls based on the overlap with CTCF sites [67–69] and reproducible results across different protocols and sequencing depths. The 4DN project, however, uses Insulation Score to call TADs. Given the difference in sensitivity, specificity, and reproducibility between WaveTAD and Insulation Score shown above, we re-analyzed multiple 4DN datasets of the human embryonic stem cell line H1 (H1-hESC), including standard Hi-C [70], 4DN Tier1 Hi-C [39], and 4DN Tier1 Micro-C [39], where 4DN Tier1 denotes samples with the highest sequencing depth and Micro-C identifies the highest 3D resolution protocol. Out of the reported 69,108 CTCF sites in the ENCODE CHIP dataset (see Methods for details), a much larger fraction overlaps with TAD boundaries called by WaveTAD than by Insulation Score, an enrichment that remains significant (Z-score) after considering the higher number of boundaries called by WaveTAD (S15 Fig; see Methods for details). These results support the notion that WaveTAD is more sensitive and accurate than Insulation Score at identifying 3D structures.
Taking advantage of the quantitative information provided by WaveTAD, we then studied the impact of number and orientation of CTCF sites on TAD structures (Fig 9). For this analysis, we used a collection of 61,079 CTCF sites whose orientations were previously annotated (see Methods for details) [54,56]. As expected, TADs with one or more CTCF sites in at least one of the boundaries show increased TAD strengths than TADs without CTCF sites (p = 1.06 x 10^-15^), indicating improved stability and higher frequency in the sample. For TAD boundaries with a single CTCF site on each side, there is no difference in estimated strength (p-values) for convergent, divergent or same direction CTCF sites (p > 0.25 in all 3 pairwise comparisons). TADs with complex CTCF structures at their boundaries (multiple CTCF sites on each side) produce the strongest TADs of any CTCF class. This information supports the previously reported phenomena that TADs are more frequently identified when associated with multiple architectural proteins [43,71–74], and WaveTAD provides statistical support to the increased stability of 3D structures with increased number of CTCF sites from bulk Hi-C data.

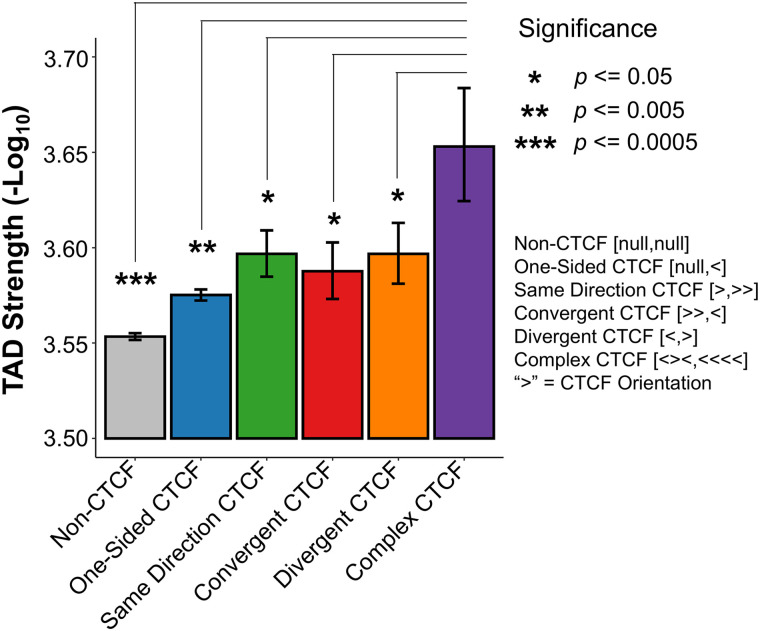

Complex CTCF sites produce more stable TADs.Bar plot showing the average TAD strength (-Log10(p)) for six classes of TAD boundaries: 1) TADs that contain no CTCF sites at either TAD boundary, 2) TADs with one boundary containing no CTCF sites and the other containing one or more CTCF sites, 3) TADs with both boundaries containing one or more CTCF sites all sharing the same orientation, 4) TADs with both boundaries containing one or more CTCF sites in a convergent orientation, 5) TADs with both boundaries containing one or more CTCF sites in a divergent orientation, and 6) TADs where each boundary contains one or more CTCF sites with at least one of the boundaries showing multiple orientations. The average TAD strengths of each class were compared to the non-CTCF class and p-values were generated by bootstrapping.
SARS-CoV-2 infection disrupts pathway-specific DNA loops
A common symptom of SARS-CoV-2 infection is anosmia, defined by the partial or complete loss of sense of smell [75–78]. Unlike other upper respiratory infections, COVID-19 mediated olfactory dysfunction does not occur via conductive interference. Instead, a recent Hi-C and RNA-seq study of olfactory epithelium of COVID-19 patients reported downregulation of olfactory receptor (OR) and OR signaling genes together with disrupted inter-chromosomal genomic contacts. The results of this study, therefore, suggest a potential disruption of the nuclear architecture in olfactory sensory neurons as the mechanism by which the virus elicits non-cell-autonomous transcriptional changes in neurons that lack entry receptors [79]. This study, however, only identified a significant reduction in long-range inter-chromosomal contacts (in trans) between clusters of olfactory receptor genes, possibly due to an elevated noise-to-signal ratio. We investigated whether WaveTAD could identify additional 3D properties using the same Hi-C and RNA-seq datasets that would provide further links with pathway-specific changes in gene expression regulation [79] (S1 Table).
Reanalysis of RNA-seq data from olfactory epithelium of COVID-19 infected patients points out the “Olfactory Transduction” (OT) pathway as the most significantly enriched pathway, with downregulation of olfactory receptor signaling genes (S16 Fig). Notably, “Apoptosis” pathway is not significantly enriched, thus ruling out cell death as a cause of differences between control and COVID-19 Hi-C samples. WaveTAD identified significant changes in intra-chromosomal structures. More specifically, this variation is driven by the weakening of chromatin TAD apex/loop anchors rather than boundaries, suggesting more labile promoter-enhancer contacts in COVID-19 patients (Fig 10A, 10B). This notion is further supported by the reduction of expression levels of OT genes located at the boundaries of TADs present in the control but disrupted in COVID-19 patients (Fig 10C). These results add an additional nuance to the proposed molecular mechanism of COVID-19-induced anosmia, with the preferential disruption of intra-chromosomal contacts associated with the regulation of OT genes.

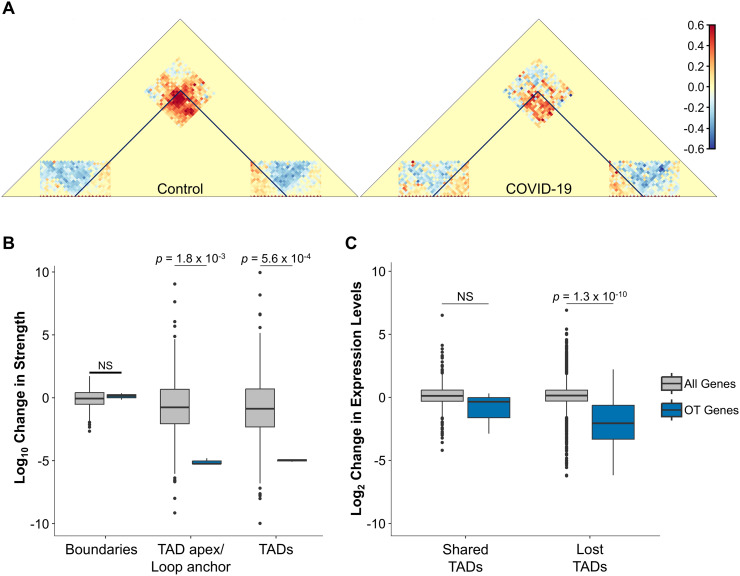

SARS-CoV-2 infection disrupts pathway-specific DNA loops.(A) Merged contact matrices of TADs containing olfactory transduction genes at one or both of their boundaries. Contact matrices of TADs were normalized to a randomized set of TADs with similar TAD size to control for the power-law decay observed in Hi-C data. Areas of greater than expected contact densities are shades of red, whereas less than expected contacts densities are shades of blue. (B) Box plot of the change (Log10) in strength of boundaries, TAD apexes/loop anchors and TADs for TADs/loops that contain at least one olfactory transduction gene (blue). As a comparison, all genome wide TADs that contain at least one gene at their boundaries are also plotted (grey). (C) Box plot of the change in gene expression levels (Log2-fold) of genes located at TAD boundaries for TADs that are either shared and lost between the control and COVID-19 samples. The box plot is further classified into shared and lost TADs that contain an olfactory transduction gene at one of their boundaries (blue) and TADs that contain any gene at one of their TAD boundaries (grey). All p-values were generated by bootstrapping.
Sex-specific genes and TAD stability in Drosophila
Sexual dimorphism can be attributed in large part to the differential expression of genes [80,81]. In Drosophila species, sex determination and sex-biased gene expression originate from genetic cascades initiated from the sex chromosomes [82–84]. We took advantage of these sex-specific transcription differences to identify associated changes in 3D architecture. To this end, we used Hi-C datasets from D. melanogaster female and male cell lines [43,44] and a list of conserved sex-specific genes across multiple Drosophila species [84]. Due to the small number of female-specific genes (see Methods), we focused on male-specific genes and potential differences in TAD properties between female and male cell lines.
Overall, there is no evidence of changes in TAD presence/absence at genomic locations with male-specific genes when comparing male and female cell lines (p > 0.5). There are, however, quantitative differences in TAD structures (Fig 11A). 3D structures with male-specific genes show significantly stronger signal at both TAD boundaries and TAD apexes/loop anchors in the male cell line relative to the female cell line, suggesting higher frequency of contacts in the male cell line relative to the female cell. Importantly, there was no statistical difference between the male and female cell lines when comparing TADs with genes known to show similar levels of gene expression in males and females (Fig 11B). Overall, this analysis suggests that the association between 3D nuclear structure and transcriptional programs in D. melanogaster is quantitative rather than qualitative, even in cases of sex-specific expression, thus explaining previous results suggesting a disconnect between TAD presence and gene expression in Drosophila [85].

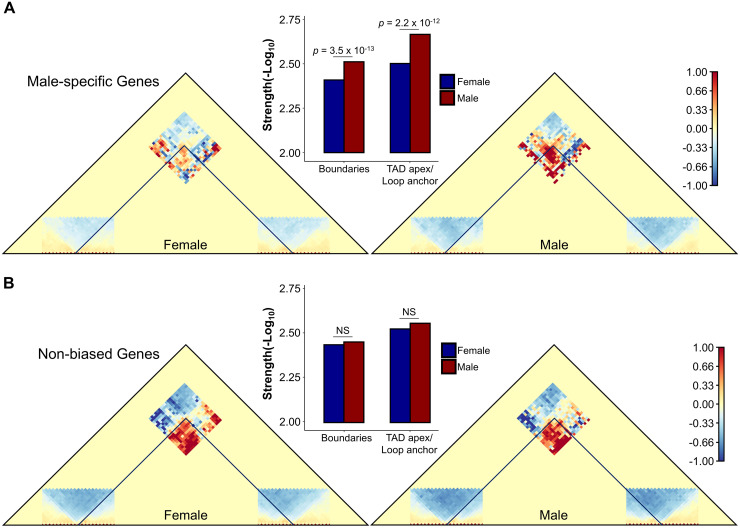

Sex-specific genes and TAD stability in Drosophila.(A) Merged contact matrices of TADs containing male-specific genes at one or both of their boundaries. Contact matrices of TADs were normalized to a randomized set of TADs with similar TAD size to control for the power-law decay observed in Hi-C data. Areas of greater than expected contact densities are shades of red, whereas less than expected contacts densities are shades of blue. Box plot between male and female contact matrices shows average TAD boundary and loop strengths (-Log10(p)) of TADs containing male-specific genes for the male and female cell lines (blue and red, respectively). (B) Merged contact matrices of TADs containing non-biased genes at one or both of their boundaries. Contact matrices were normalized and depicted as in (A). Box plot between male and female contact matrices shows the average TAD boundary and loop strengths of the TADs containing non-biased genes for the male and female cell lines (blue and red, respectively).
