Serendipity and the Slime Mold: A Visual Survey of High-Molecular-Weight Protein Assemblies Reveals the Structure of the Polyketide Synthase Pks16

TL;DR

Researchers used advanced imaging and analysis to study large protein complexes in slime mold, revealing the structure of a key fatty acid synthase.

Contribution

The study experimentally determined the structure of Pks16, the first of 40 Dictyostelium PKSs, and enabled comparative structural analysis of all 40.

Findings

Pks16 structure was solved at 3.9 Å resolution using cryo-EM.

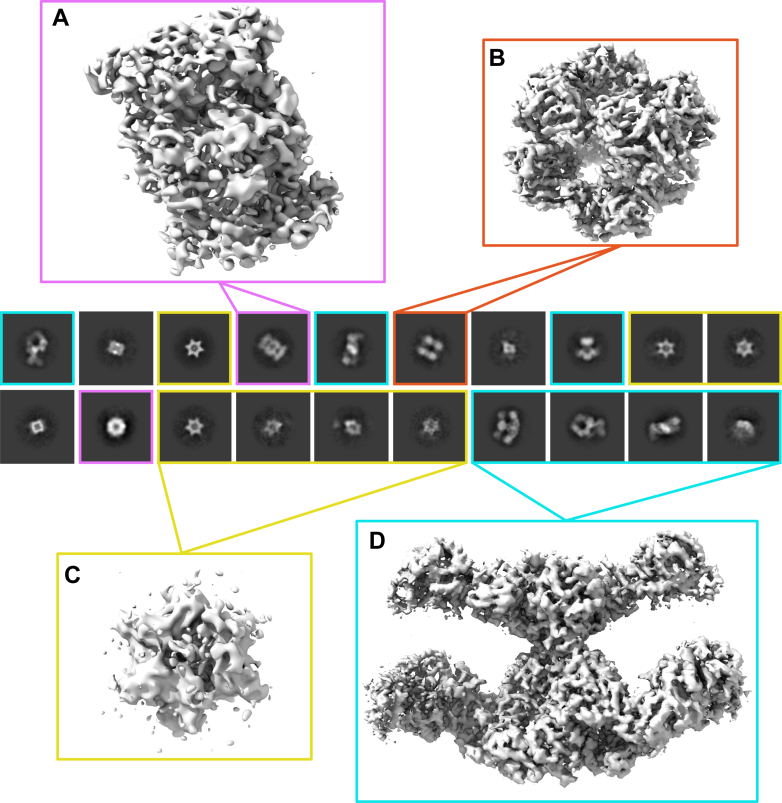

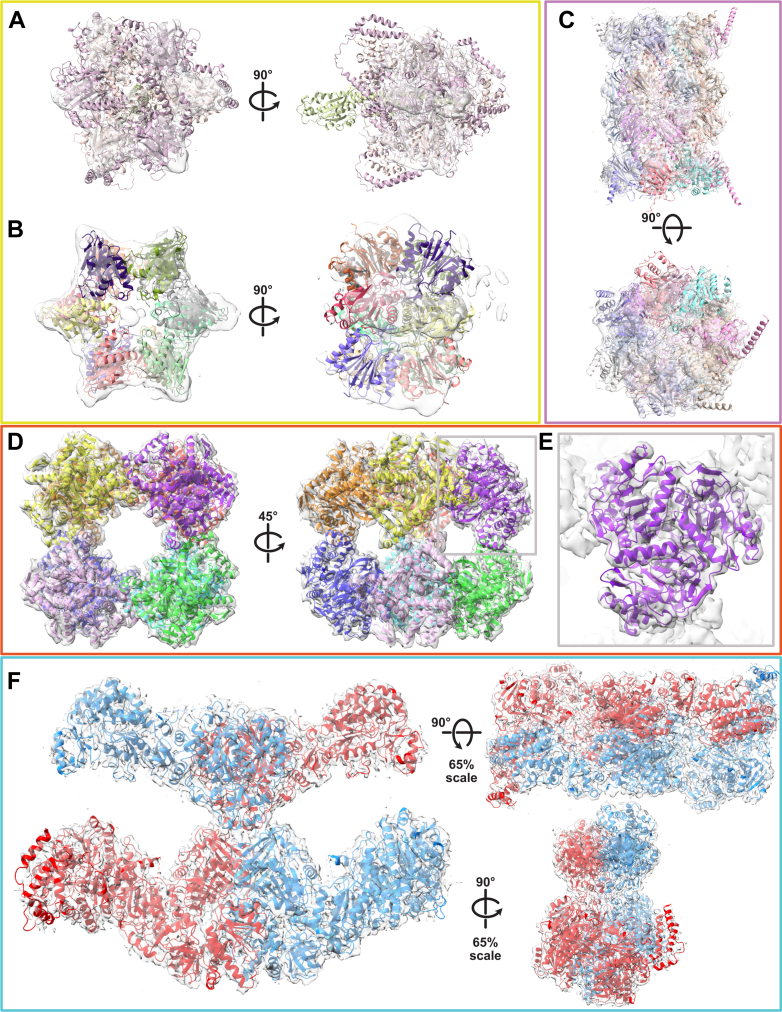

Three major protein complexes were identified: 20S proteasome, Odo2, and Pks16.

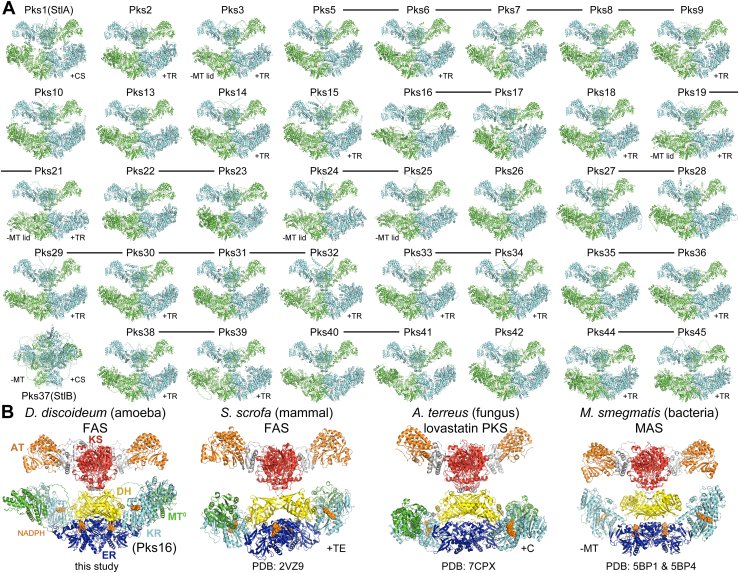

Structural models for all 40 D. discoideum PKSs were generated using AlphaFold 3.

Abstract

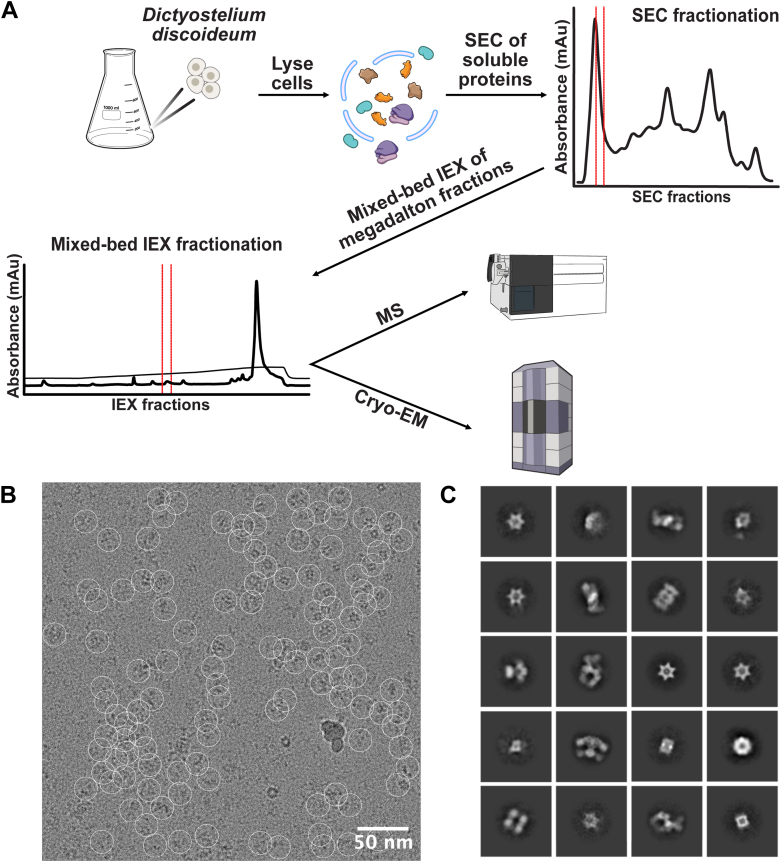

Large macromolecular assemblies are integral to most cellular processes, making their identification and structural characterization an important strategy for advancing our understanding of protein functions. In this pilot study, we investigated large multiprotein assemblies from the cytoplasm of the slime mold Dictyostelium discoideum using shotgun electron microscopy, the combined application of mass spectrometry–based proteomics and cryo-EM to heterogenous mixtures of proteins. With its similarities in cell structure and behavior to mammalian cells, D. discoideum has long served as an invaluable model organism, particularly in the study of immune cell chemotaxis, phagocytosis, bacterial infection, and other processes. We subjected D. discoideum soluble protein complexes to two-step fractionation, performing size-exclusion chromatography followed by mixed-bed ion-exchange chromatography. Isolated fractions containing a subset of high molecular weight-scale protein assemblies were subsequently analyzed using mass spectrometry to identify the proteins and cryo-EM to characterize their structures. Mass spectrometry analysis revealed 179 unique proteins in the isolated fractions, then single-particle cryo-EM analysis generated distinct 2D projections of several visually distinctive protein assemblies, from which we successfully identified and reconstructed three major protein complexes: the 20S proteasome, the dihydrolipoyllysine-residue succinyltransferase (Odo2) of the mitochondrial 2-oxoglutarate dehydrogenase complex, and polyketide synthase 16 (Pks16), thought to be the primary fatty acid synthase of D. discoideum. Based on the Pks16 structure, the first of the 40 D. discoideum PKSs to be experimentally determined, models for the full set of D. discoideum PKSs were constructed with help from AlphaFold 3. Comparative analysis enabled structural characterization of their reaction chambers. Shotgun EM thus provides a view of proteins in their native or near-native biological conformations and scaling up this approach offers an effective route to characterize new structures of multiprotein assemblies directly from complex samples.

•Surveyed native extracts of the slime mold Dictyostelium by cryo-electron microscopy.•Observed multiple high molecular weight multiprotein assemblies.•Solved experimental structure of Dictyostelium polyketide synthase (Pks16) at 3.9 Å.•Performed a comparative structural analysis of all 40 Dictyostelium PKSs.

Surveyed native extracts of the slime mold Dictyostelium by cryo-electron microscopy.

Observed multiple high molecular weight multiprotein assemblies.

Solved experimental structure of Dictyostelium polyketide synthase (Pks16) at 3.9 Å.

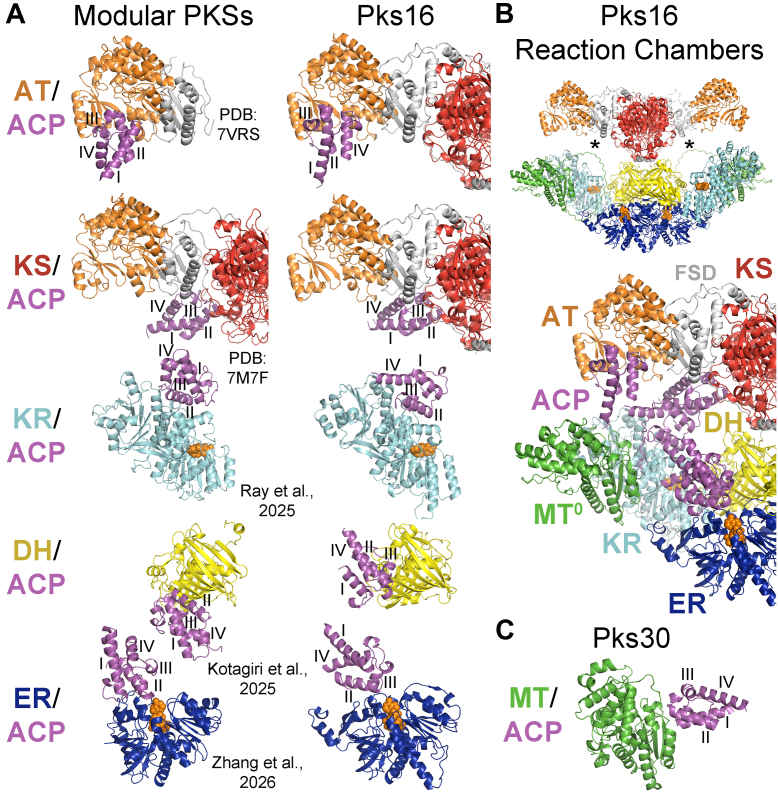

Performed a comparative structural analysis of all 40 Dictyostelium PKSs.

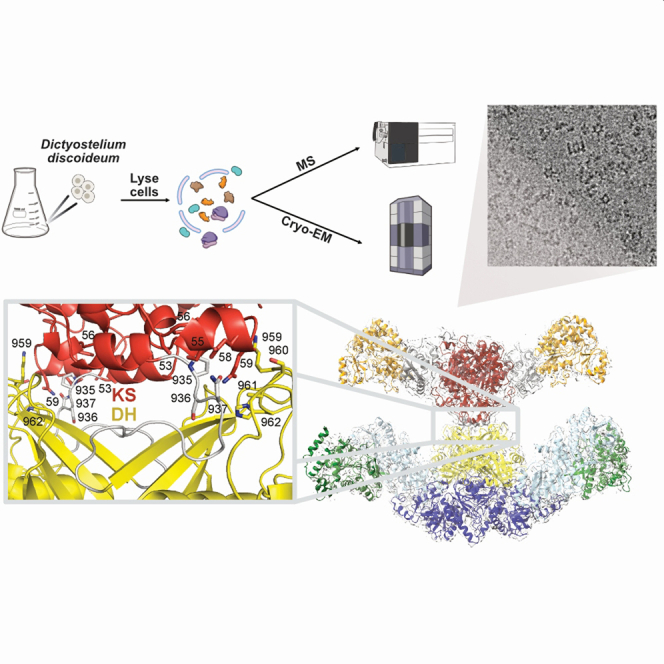

Large protein complexes drive essential cellular processes, yet many remain structurally uncharacterized. By combining native chromatography, cryo-electron microscopy, and mass spectrometry, we analyzed a sampling of endogenous high molecular weight protein assemblies from the slime mold Dictyostelium discoideum. This study uncovered multiple protein structures, including that of Pks16, its primary fatty acid synthase, enabling a comparative analysis across its full repertoire of 40 polyketide synthases.

Figures
