A Facile Platform for One‐Step Generation of Uniform Microdroplets through Dehydration‐Driven Phase Separation in Microfluidics

TL;DR

A new microfluidic method uses PDMS dehydration to create uniform droplets without complex equipment, useful for drug delivery and artificial cells.

Contribution

A one-step, flow-control-free method for generating uniform microdroplets via PDMS-driven dehydration and phase separation.

Findings

PDMS microchannels induce phase separation through dehydration, forming uniform DEX-rich droplets.

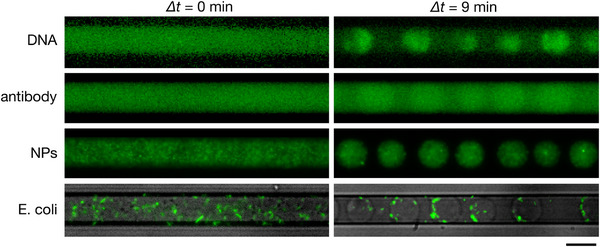

The method successfully encapsulates DNA, bacteria, antibodies, and nanoparticles.

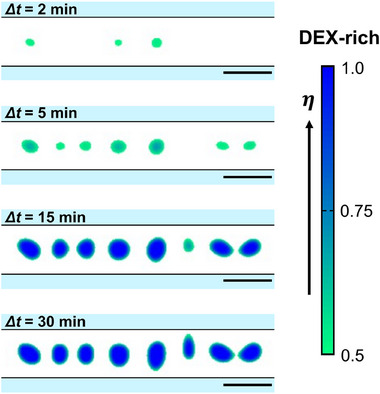

Numerical simulations using a modified Cahn–Hilliard equation replicate the observed droplet formation.

Abstract

Microdroplet generation with the desired size is essential in various fields; however, conventional methods require complex equipment and precise flow control, limiting their accessibility. To address this challenge, this research introduces a novel and straightforward method for one‐step generation of uniform, cell‐sized droplets using a simple microfluidic channel made of polydimethylsiloxane (PDMS). This approach exploits the inherent water‐absorption properties of PDMS to induce phase separation in a homogeneous aqueous two‐phase system comprising polyethylene glycol (PEG) and dextran (DEX). Injecting a homogeneous PEG/DEX mixture below the critical concentration for phase separation into the PDMS microchannel resulted in gradual dehydration, inducing microphase separation and generating linearly arranged DEX‐rich droplets within a PEG‐rich continuous phase. Time‐lapse observations revealed that this dehydration‐driven process is gradual and controlled, producing uniform droplet sizes. The key aspects of the observed phenomena are replicated through numerical simulations using a modified Cahn–Hilliard equation that accounts for the inherent water absorption characteristics of PDMS. Furthermore, the versatility of this method is demonstrated by the successful encapsulation of various materials, such as Escherichia coli, DNA, antibodies, and nanoparticles, within the droplets. This effective technique holds promise for a wide range of applications, such as drug delivery and artificial cell engineering.

This study introduces a novel droplet generation method that exploits the intrinsic water absorption of polydimethylsiloxane (PDMS) microchannels. A homogeneous polyethylene glycol/dextran mixture is gradually dehydrated, leading to phase separation and the formation of uniform DEX‐rich droplets. This process spontaneously traps DNA, bypassing complex flow control systems, and enabling biomolecular encapsulation, highlighting its potential for drug delivery and artificial cells.

Figures
