Reduced graphene oxide promoted by SnO2 for photodegradation of tetracycline in water
Asrin Bahrami, Donya Mohammadi, Faranak Akhlaghian
TL;DR
This study shows that a composite of reduced graphene oxide and SnO2 can efficiently break down tetracycline in water under visible light, with high degradation rates and potential for reuse.
Contribution
The novel contribution is the development of a SnO2/reduced graphene oxide composite that achieves rapid and efficient tetracycline degradation under visible light.
Findings
The SnO2/RGO composite achieved 92% tetracycline degradation under optimized conditions in just 10 minutes.
The composite showed good reusability, maintaining over 90% efficiency in the first cycle and remaining effective for five cycles.
The system outperformed previous methods in terms of reaction time while maintaining comparable removal efficiency.
Abstract
Reduced graphene oxide, with a high specific surface area and conductivity, also exhibits photocatalytic activity, and its photocatalytic performance improves with the addition of semiconductors. In this study, SnO2/reduced graphene oxide (RGO) composite was applied for tetracycline removal from water under visible light irradiation. The photocatalytic performance of RGO was enhanced through SnO2 deposition. RGO was synthesized using Hummer’s method and subsequently impregnated with SnCl2 solution to deposit SnO2. The effect of SnO2 loading was investigated, and the calcination temperature was set at 400 °C. FTIR, XRD, Raman spectroscopy, SEM, TEM, BET, PL, and DRS analyses characterized the SnO2/RGO photocatalyst. SEM and TEM confirmed RGO layered morphology. PL analysis revealed an electron-hole recombination peak at 394 nm. DRS results showed a reduction in the band gap of SnO2/RGO…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —https://doi.org/10.13039/501100008973University of Kurdistan
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Photocatalysis Techniques · Advanced oxidation water treatment · TiO2 Photocatalysis and Solar Cells
Introduction
Access to clean and safe water is essential for public health and sustainable development. Rapid industrialization and population growth have introduced numerous synthetic compounds into the environment, many of which enter aquatic systems through wastewater discharge. Major contributors to water contamination include agricultural activities and industrial sectors such as oil and petrochemical, pharmaceutical, pulp and paper, and food processing industries^1–4^.
The global consumption of antibiotics has risen markedly due to their essential role in preventing and treating microbial infections. Because these compounds are poorly absorbed in humans and animals, a substantial portion is excreted and released into the environment, where they persist in aquatic systems and disrupt ecological balance. Tetracycline (TC), one of the most commonly used broad-spectrum antibiotics in both human and veterinary medicine, interferes with photosynthesis in aquatic plants and bioaccumulates in aquatic organisms, facilitating its transfer through the food chain. Even at low concentrations, TC in water can promote the development of antibiotic-resistant bacteria. In humans, TC exposure has been linked to gastrointestinal disturbances, reduced appetite, nausea, vomiting, diarrhea, tooth discoloration in children, and adverse effects on fetal bone development^4–9^.
Conventional methods for tetracycline removal from wastewater include precipitation, activated sludge, adsorption, biological treatment, membrane filtration, and advanced oxidation processes (AOPs) such as Fenton, photocatalysis, ozonation, and UV/H_2_O_2_^10,11^. Although membrane filtration can achieve complete removal, it is costly and susceptible to membrane fouling (Table 1). Adsorption methods suffer from adsorbent saturation and the need for regeneration. Biological treatment is often slow and less reliable (Table 1)^10–18^.
Table 1. Tetracycline removal methods: advantages and disadvantages^10–18^.TC wastewater removal methodAdvantagesDisadvantagesPrecipitation and Activated SludgeAlready available infrastructure and low additional costLow efficiency, Transfer to land, Promotes antibiotic gene spreadingAdsorptionHigh efficiency, Simple, Easy to scale up, non-toxic by-productsAdsorbent saturation and regeneration, Competitive adsorption of other materials, High cost of advanced adsorbentsAdvanced Oxidation ProcessesDegrade TC into smaller molecules or mineralize completely, suitable for low concentration, Fast removalHigh energy demand, Chemical costs, Possible formation of toxic by-products, Required controlled pH and operating conditionsMembrane filtrationHigh removal efficiency, Suitable for a large spectrum of pollutants,Expensive capital and operating costs, Membrane fouling, Treatment of the produced concentrated brineBiologicalEco-friendly and sustainable, Degradation not separation, Low energy demandSlow and inconsistent, Possible of incomplete degradation, Risk of maintaining or spreading resistance genes
Photocatalysis, a widely studied AOP, involves irradiating a photocatalyst with light to transfer electrons from the valence band to the conduction band, generating e^−^/h^+^ pairs. When the absorbed photon energy exceeds the semiconductor band gap, these charge carriers are produced; however, rapid e^−^/h^+^ recombination dissipates energy as heat, limiting the degradation efficiency. Effective photocatalysis requires separation of e^−^/h^+^ pairs, enabling their interaction with water and dissolved oxygen to form reactive species (e.g., ·OH, O_2_^−^·, HOO·), which degrade pharmaceutical pollutants^19–21^.
Numerous studies have demonstrated high-efficiency photocatalytic degradation of tetracycline in aqueous media. Table 2 summarizes some of these findings^14,15,22–30^.
Table 2. Reviews of works for the photocatalytic removal of tetracycline.No.ReferencesYearPhotocatalyst1Yaun et al.^22^2021Phosphated-TiO_2_2Sharma et al.^23^2022Cu_2_O coupled with TiO_2_ nanotubes3Oluwole and Olatunji^24^20223 wt% SnO_2_/g-C_3_N_4_4Ghosh et al.^25^2023RGO-CdTe5Gogoi and Chowdhury^26^2023ZnTiO_3_6Samy et al.^27^2023Olitorius derived biochar/Bi_12_O_17_Cl_2_7Liu et al.^14^2024TiO_2_/p-biochar8Rabeie and Mahmoodi^28^2025COF/ZIF(ZnFe)/CoFe_2_O_4_9Chen et al.^29^2025Gd_2_O_3_/Bi_2_W_x_Mo_1 − x_O_6_10Brik et al.^30^2025SiNW/CeO_2_/NiO11Mandanipour et al.^15^2025MIL-53(Fe)-(COOH)@Fe₂O₃
Graphene, discovered in 2004, has attracted considerable attention due to its exceptional mechanical, electrical, thermal, and optical properties, along with its two-dimensional structure composed of sp^2^ hybridized carbon atoms. Each carbon atom forms three sigma bonds in a single atom-thick honeycomb lattice. Graphene’s common synthesis methods include chemical vapor deposition, mechanical exfoliation, liquid phase exfoliation, and pyrolysis^31–35^. In the Hummer’s method, a type of liquid phase exfoliation, graphite oxide is first exfoliated into graphene oxide, which is subsequently reduced to graphene^36^. With its high surface area and low band gap, graphene facilitates charge transfer and visible light absorption, suppresses e^−^/h^+^ recombination, and enhances photocatalytic performance^31–35^. The photocatalytic activity of graphene is also enhanced by coupling it with semiconductor materials, which facilitate charge separation through a photosensitization mechanism^37^. Tin (IV) oxide (SnO_2_), a semiconductor with a band gap of 3.6 eV, has been widely studied for photocatalytic applications^38^. Several previous studies incorporated graphene onto a semiconductor structure, such as SnO_2,_ to degrade organic contaminants^39,40^. In contrast, the present study investigates the deposition of SnO_2_ on reduced graphene oxide (RGO) support for the photocatalytic removal of tetracycline from water. Deposition of SnO_2_ markedly enhanced the photocatalytic activity of RGO, leading to improved tetracycline efficiency. The SnO_2_/RGO composite was characterized using FTIR, SEM, XRD, TEM, BET, PL, and DRS techniques. Its removal efficiency was evaluated under various operating conditions to identify the optimum parameters for maximum tetracycline removal.
Materials and methods
Materials
TC was obtained from Sigma-Aldrich. Graphite powder, nitric acid (HNO_3_), potassium permanganate (KMnO_4_), sulfuric acid (H_2_SO_4_), ascorbic acid (C_6_H_8_O_6_), hydrogen peroxide (H_2_O_2_), ethanol (C_2_H_5_OH), hydrochloric acid (HCl), ammonia solution (NH_4_OH), and tin (II) chloride (SnCl_2_) were purchased from Merck and used.
SnO2/RGO photocatalyst synthesis
RGO synthesis
RGO was synthesized by Hummer’s method. Graphite powder (1 g) was added to a mixture of 18 mL HNO_3_ and 46 mL H_2_SO_4_, and the solution was stirred in an ice bath for 45 min. KMnO_4_ (5 g) was gradually added while keeping the temperature below 20 °C, followed by stirring for 90 min. The reaction continued at 35 °C for 15 min. Subsequently, 100 mL of deionized water was added, the temperature was increased to 98 °C, and stirring was continued for 15 min. After 1 h, the suspension turned dark brown. Then, 120 mL of deionized water and 15 mL of H_2_O_2_ (30 wt%) were added simultaneously, forming a yellow dispersion. The resulting precipitate was centrifuged and washed with 100 mL of dilute HCl (1:100 v/v) to remove residual metal ions, followed by rinsing with deionized water until the supernatant pH reached 5–6. The final product (graphene oxide, GO) was dried in an oven at 70 °C for 12 h^36^.
To obtain RGO, the dried intermediate (graphene oxide, GO) was ultrasonically dispersed in 500 mL of deionized water. Ascorbic acid (5 g) was added, and the pH was adjusted to 10 using NH_4_OH. The suspension was stirred at 95 °C for 2 h, then centrifuged to recover the precipitate. After sequential washing with deionized water to neutral pH and ethanol, the precipitate was dried at 70 °C for 12 h^36,41^.
SnO2/RGO synthesis
Tin chloride (0.05 g) was dissolved in 100 mL of deionized water, after which 0.1 g of RGO powder was added to the solution. The mixture was sonicated for 20 min, centrifuged, and the precipitate was dried at 100 °C for 12 h. The dried material was then calcinated at 400 °C for 2 h to yield the SnO_2_/RGO photocatalyst.
Characterization instrument
Fourier transform infrared spectroscopy (FTIR) was conducted using a Vector 22 spectrometer (Bruker) to identify and analyze surface functional groups. X-ray diffraction (XRD) was employed to examine the crystalline structure of the photocatalyst. Diffraction patterns were recorded over a 2θ range of 10 to 80° with a step size of 0.02°, using a Cu kα anode (λ = 0.154 nm, 40 kV, 40 mA) on an X’Pert MPD diffractometer (Philips). The structural features of the synthesized graphene were assessed using Raman spectroscopy (Unidorn). Elemental analysis was performed by inductively coupled plasma optical emission spectroscopy (ICP-OES) using a 730-ES instrument (Varian). Surface morphology was visualized using scanning electron microscopy (SEM, MIRA3, TESCAN). Transmission electron microscopy (TEM, Zeiss-EM) images were captured at an electron voltage of 100 kV. The photoluminescence (PL) spectrum was recorded using Varian spectrometer to evaluate e^−^/h^+^ recombination rates. Diffuse reflectance spectroscopy (DRS) was carried out using an AvaSpec-2048TE spectrometer (Avantes).
Photocatalyst tests
The experimental setup has been described in detail in the previous study^42^. Photocatalytic degradation tests were carried out under visible light irradiation using a 125 W LED lamp. In a typical experiment, the SnO_2_/RGO photocatalyst (4 g/L) was added to 50 mL of TC solution with an initial concentration of 5 mg/L. The suspension was stirred for 10 min, followed by centrifugation to separate the photocatalyst. The remaining TC concentration was determined using a TG 80 + spectrophotometer (PG Instruments) based on the Beer-Lambert law. The maximum absorption wavelength (λ_max_) for TC was 357 nm. The removal efficiency was calculated using Eq. (1)^42,43^:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\text{TC removal}}\left( {\%} \right)=\frac{{{{\mathrm{C}}_0} - {\mathrm{C}}}}{{{{\mathrm{C}}_0}}} \times 100$$\end{document}where C_0_ is the initial TC concentration (mg/L), and C is the concentration after photocatalytic treatment.
Experimental design
Experimental design involves systematic planning and execution of tests to evaluate the effects of multiple independent variables on a response. Once a reliable model is established, it can be used to predict responses within defined parameter ranges^44,45^. In this study, Design Expert software (version 11) was used. Response surface methodology (RSM) based on a Box-Behnken design was employed to model and optimize the TC degradation process. The independent variables included TC concentration (5–55 mg/L), photocatalyst dosage (0.2–4 g/L), and pH (2–10). Reaction time (10 min) and light intensity (125 W LED lamp) were kept constant. The response was TC removal efficiency. Table 3 summarizes the experimental conditions and corresponding responses.
Table 3. Experimental design and responses.NoInput variableTC removal (%)Photocatalyst dose (g/L)pHTC initial concentration (mg/L)ExperimentalModeling12.173070.5068.6122.173070.4068.613475565.9866.1742.173070.0068.6150.210306.716.9260.275524.6024.75747592.0092.1884103037.6837.6890.22309.639.54102.110536.2637.0011423031.8431.84122.173067.3368.61132.173067.0068.61140.27533.2731.4152.1105528.9828.24162.125558.9856.53172.175559.3462.36180.210551.921.71192.17572.0071.12202.123060.3862.79210.22510.8910.98220.27529.6831.423473081.4381.05
Results and discussions
Optimization of SnO2/RGO
During the synthesis of the photocatalyst, SnCl_2_ solutions with concentrations of 0, 0.05, 0.07, and 1 wt% were tested. As shown in Fig. 1A, the 0.05 wt% SnCl_2_ concentration resulted in the highest TC removal. Increasing the SnCl_2_ content from 0 to 0.05 wt% enhanced TC degradation, likely due to the increased number of tin active sites. However, concentrations above 0.05 wt% led to interactions between adjacent active sites, reducing TC adsorption and consequently diminishing photocatalytic efficiency.
Following the optimization of tin content, the effect of calcination temperature was evaluated at 300, 350, 400, 450, and 500 °C. As depicted in Fig. 1B, the highest TC removal was observed at 400 °C. Based on these findings, all subsequent SnO_2_/RGO syntheses were conducted using 0.05 wt% SnCl_2_ as the precursor and a calcination temperature of 400 °C.

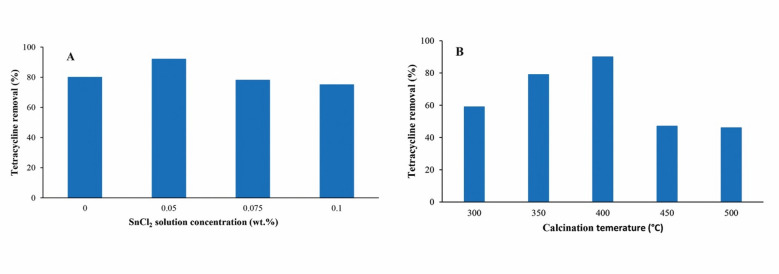

Fig. 1. Effects of (A) SnCl_2_ concentration and (B) photocatalyst calcination temperature on TC removal; Operating conditions: initial TC concentration 10 mg/L, pH 7, catalysts dosage 2.1 g/L, reaction time 10 min; in (A) calcination temperature 400 °C; (B) SnCl_2_ concentration 0.05 wt%.
Characterization of SnO2/RGO
The weight content in the composite (SnO_2_/RGO), determined by ICP-OES, and was 4.43%. FTIR, XRD, and Raman spectroscopy were done to identify the functional groups and structure of the SnO_2_/RGO. In the FTIR spectrum of RGO (Fig. 2A), characteristic absorption bands appeared at 3446 cm^−1^ (O–H stretching), 2921.16 cm^−1^ (C–H stretching), 1578.84 cm^−1^ (C = C stretching), and 1027.53 cm^−1^ (C–O stretching). In the spectrum of SnO_2_/RGO, these bands exhibited higher intensities, attributed to the presence of Sn species. The bands at 573.78, 537.17, and 474.80 cm^−1^ were assigned to Sn-O bonds^46–48^. The FTIR spectrum of SnO_2_/RGO after reaction (Fig. 2B) showed absorption bands at 3445.64 cm^−1^ (O–H stretching), 2920.96 and 2851.59 cm^−1^ (C–H stretching), 1624.48 cm^− 1^ (C=C stretching), 1024.76 cm^−1^ (C–O stretching), and 548.21, 475.10, and 415.90 cm^−1^, corresponding to Sn–O vibrations. The decreased intensities relative to the fresh sample can be related to the tetracycline adsorption.
The XRD pattern of RGO (Fig. 3A) displayed peaks at 11.85°, 25°, and 42.85°, which is consistent with the literature^46^. In the XRD pattern of fresh SnO_2_/RGO (Fig. 3B), peaks at 26.39°, 34.04°, and 51.89° corresponded to the tetragonal SnO_2_ phase (JCPDS File No. 72-1147)^49^. RGO peaks were absent, likely due to the dominance of SnO_2_ crystallinity and strong diffraction intensity. Crystallite size was calculated using the Scherrer equation: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:\mathrm{L}=\frac{\mathrm{k}{\uplambda\:}}{{\upbeta\:}\mathrm{c}\mathrm{o}\mathrm{s}\left({\uptheta\:}\right)}$$\end{document} , where λ is the X-ray wavelength (nm), β is the full width at half maximum in radians, k is the shape factor (typically 0.9), and θ is the diffraction angle^50^. The crystalline size of SnO_2_ in the fresh composite was 10.82 nm. The XRD pattern of the used SnO_2_/RGO (Fig. 3C) showed peaks at 26.29°, 33.79°, and 51.74°, indicative of tetragonal SnO_2_ (JCPDS File No. 72-1147). The intensities of these peaks remained unchanged relative to the fresh sample, confirming no Sn leaching. The crystalline size of SnO_2_ in the used photocatalyst was 12.37 nm, showing a negligible structural change of SnO_2_.

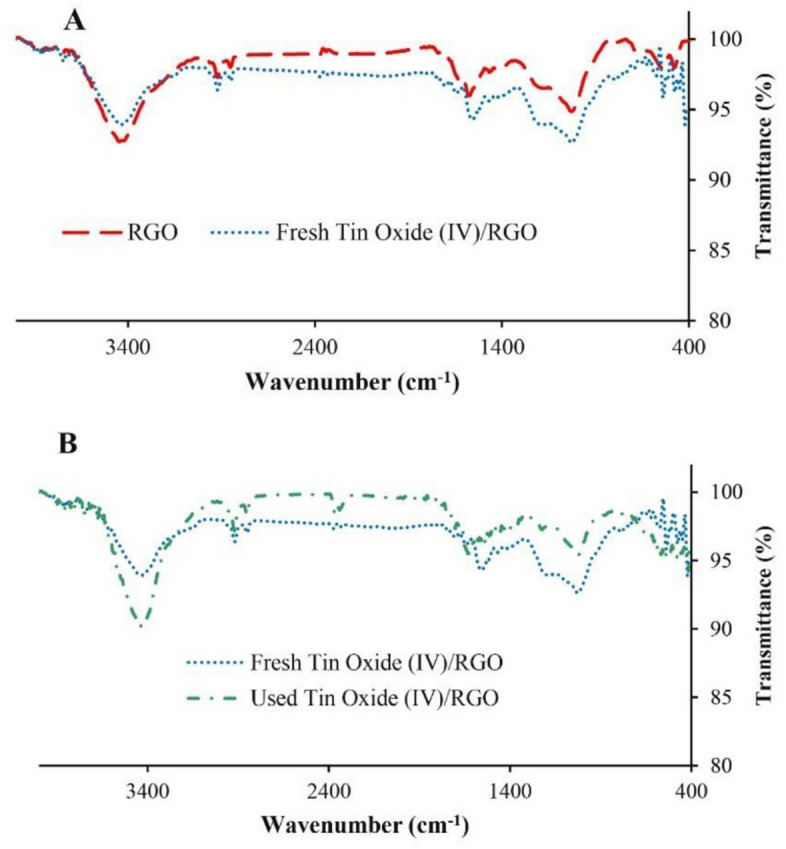

Fig. 2FTIR spectra of (A) RGO and fresh SnO_2_/RGO; (B) fresh and used SnO_2_/RGO.

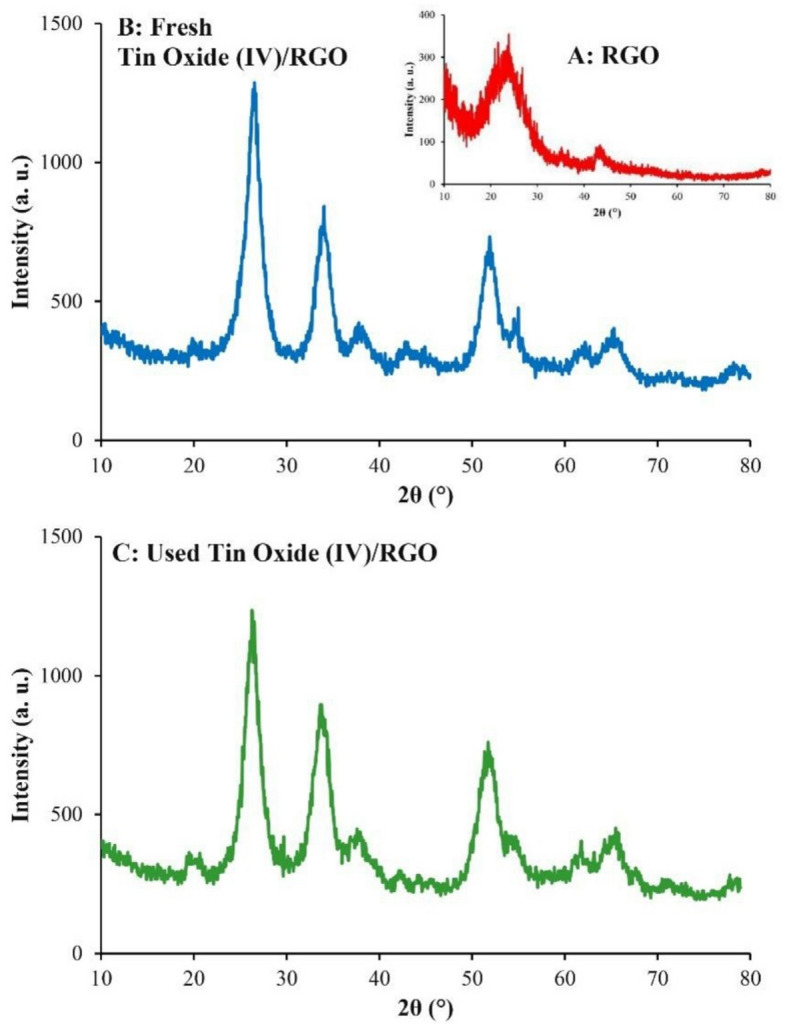

Fig. 3XRD pattern of (A) RGO; (B) fresh SnO_2_/RGO; and (C) used SnO_2_/RGO.
Raman spectra of RGO and SnO_2_/RGO are presented in Fig. 4. The spectrum of RGO (Fig. 4A) featured a D band at 1352.17 cm^−1^, associated with defects, and a G band at 1599.58 cm^−1^, attributed to in-plane vibrations of sp^2^ hybridized carbon atoms. For SnO_2_/RGO (Fig. 4B), D and G bands were observed at 1350.03 and 1529.97 cm^−1^, respectively, with decreased intensity due to SnO_2_ loading and partial reduction of the RGO structure^49^. The I_D_/I_G_ ratios were 0.988 (RGO) and 1.02 (SnO_2_/RGO), indicating increased defect density during SnO_2_ deposition and calcination.

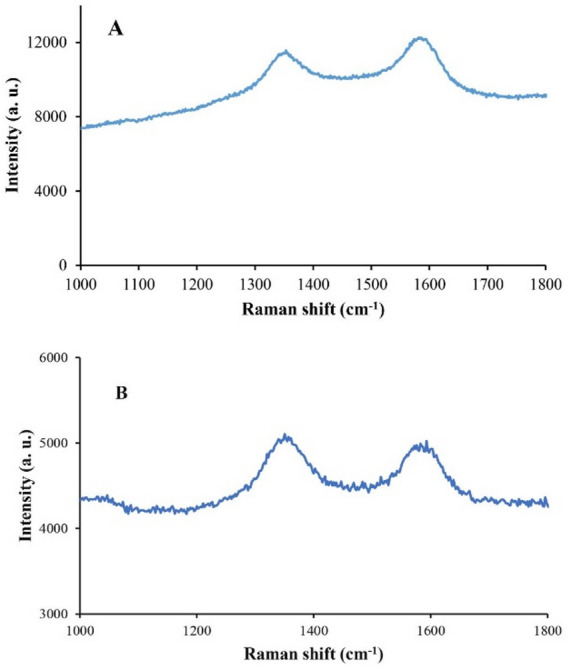

Fig. 4. Raman spectra of (A) RGO and (B) SnO_2_/RGO.
Nitrogen adsorption/desorption isotherms (Figs. 5A and B) exhibited type IV behavior with H3 hysteresis loops, indicative of slit-shaped, non-uniform pores^51^. Pore size distribution analysis (Figs. 5C and D) revealed a multimodal distribution for RGO and a unimodal distribution for SnO_2_/RGO, with the most frequent pore diameters at 1.21 nm. Specific surface area, porosity, and average pore diameter values are reported in Table 4.

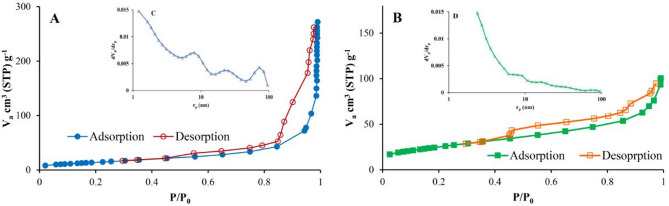

Fig. 5(A, B) N_2_ adsorption/desorption isotherm for RGO and SnO_2_/RGO; (C, D) pore size distribution.
Table 4. Specific surface area, porosity, and average pore diameter of RGO and SnO_2_/RGO.SampleSpecific surface area (m^2^/g)Pore volume (cm^3^/g)Average pore diameter (nm)RGO62.680.42031.21SnO_2_/RGO70.4930.14771.21
SEM images of RGO with magnifications of 88,500 and 259,000 (Figs. 6A and B) revealed a thin, wrinkled, layered morphology^52^. SEM images of SnO_2_/RGO with magnifications of 90,100 and 185,000 (Figs. 6C and D) displayed bright surface features corresponding to SnO_2_ nanoparticles.

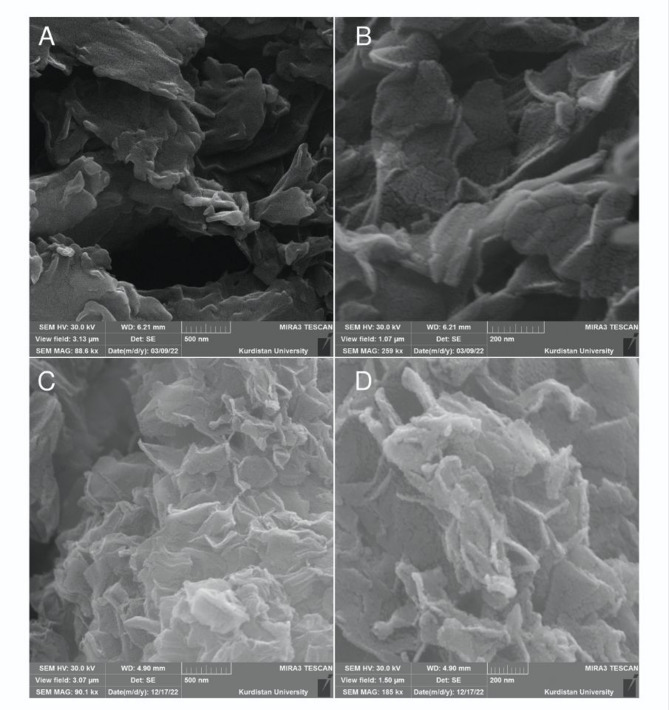

Fig. 6SEM images of (A, B) RGO and (C, D) SnO_2_/RGO.

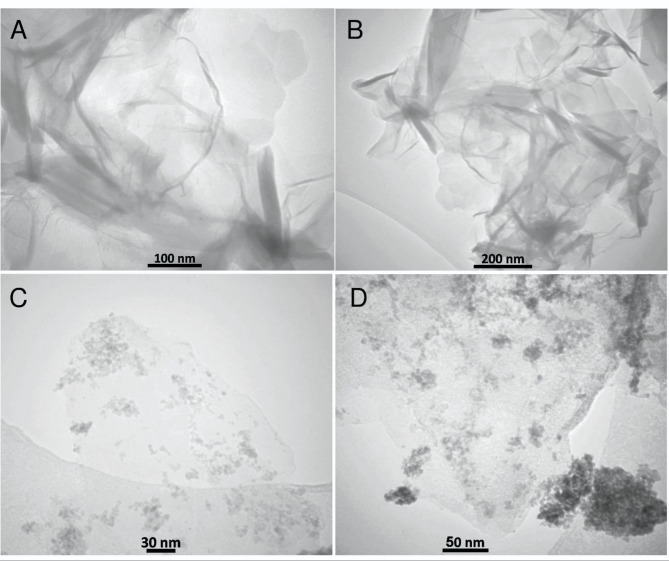

TEM images (Figs. 7A–D) confirmed the layered, transparent morphology of RGO (Fig. 7A, B) and the uniform distribution of SnO_2_ nanoparticles on the graphene surface (Figs. 7C, D) ^49, 52^.
Fig. 7TEM images of (A, B) RGO and (C, D) SnO_2_/RGO.
The high electron mobility of RGO suppresses e^−^/h^+^ recombination^53,54^. Photoluminescence spectroscopy of SnO_2_/RGO (Fig. 8), excited at 327.63 nm, exhibited an emission peak at 394 nm, indicating that recombination was maximized. Electron transfer in RGO effectively suppressed the recombination of e^−^/h^+^ and enhanced the photocatalytic activity^54–56^.

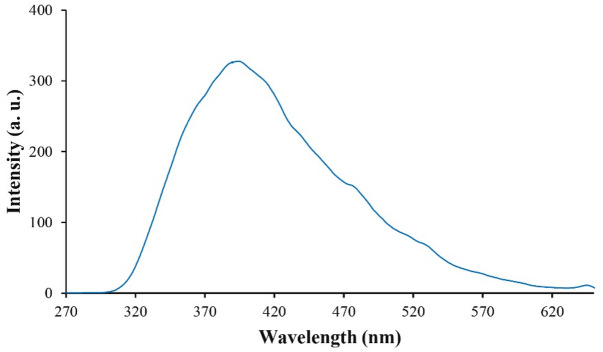

Fig. 8. Photoluminescence spectrum of SnO_2_/RGO.
UV-Vis diffuse reflectance spectra (Figs. 9A and B) confirmed light absorption across both UV and visible regions. Tauc plots (Figs. 9C and D), constructed with photon energy (hν, calculated as 1240/λ) on the x-axis and (αhν)^2^ on the y-axis^48,56–58^, and revealed band gaps of 0.615 eV for RGO and 0.24 eV for SnO_2_/RGO, indicating improved photocatalytic activity of SnO_2_/RGO due to its lower band gap.

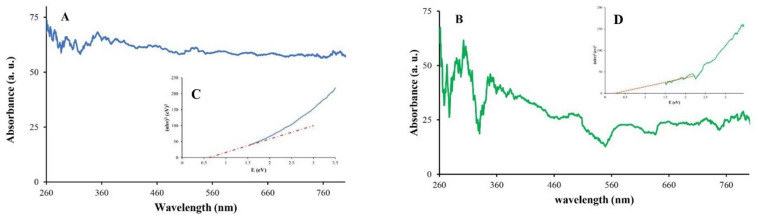

Fig. 9UV–vis DRS spectra of (A) RGO, (B) SnO_2_/RGO; Tauc plots of (C) RGO, (D)SnO_2_/RGO.
Experimental design
The independent variables in the design were photocatalyst dosage (g/L), pH, and initial TC concentration (mg/L). All experiments were conducted under a fixed irradiation time of 10 min using a 125 W LED lamp. Experimental runs were randomized, and each test was performed in triplicate with averaged values recorded. The investigated ranges were 0.2–4 g/L for catalyst dosage, 2–10 for pH, and 5–55 mg/L for TC initial concentration.
Accurate model selection is critical in experimental design analysis for ensuring predictive reliability. A fourth-order polynomial model was selected, yielding a statistically significant fit with an F-value of 349.92 and p-value < 0.0001 (Table 5)^59,60^. The derived model was Eq. (2):
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\text{TC removal }}\left( \% \right)= & - {\mathrm{3}}0.{\mathrm{97128}}\,+\,{\mathrm{68}}.{\mathrm{49}}0{\mathrm{69A}}\,+\,{\mathrm{18}}.{\mathrm{92293B}}\,+\,0.0{\mathrm{33896C}} \\ \quad & - {\mathrm{8}}.{\mathrm{7}}0{\mathrm{445AB}}\,+\,0.0{\mathrm{74187AC}} - {\mathrm{16}}.{\mathrm{27825}}{{\mathrm{A}}^{\mathrm{2}}} - {\mathrm{1}}.{\mathrm{53981}}{{\mathrm{B}}^{\mathrm{2}}} - 0.00{\mathrm{3}}00{\mathrm{1}}{{\mathrm{C}}^{\mathrm{2}}} \\ \quad & +\,{\mathrm{3}}.{\mathrm{31724}}{{\mathrm{A}}^{\mathrm{2}}}{\mathrm{B}} - 0.0{\mathrm{41937}}{{\mathrm{A}}^{\mathrm{2}}}{\mathrm{C}}\,+\,0.{\mathrm{386157A}}{{\mathrm{B}}^{\mathrm{2}}} - 0.{\mathrm{19}}0{\mathrm{15}}0{{\mathrm{A}}^{\mathrm{2}}}{{\mathrm{B}}^{\mathrm{2}}} \\ \end{aligned}$$\end{document}where A, B, and C represent photocatalyst dosage (g/L), pH, and TC initial concentration (mg/L), respectively. The coefficient of determination (R^2^) was 0.9972, and the adjusted R^2^ was 0.9939, indicating a strong agreement between experimental and predicted values. Adequate precision was 63.73, confirming model robustness. The model is valid within the investigated ranges, though extrapolation beyond these boundaries should be approached with caution. Among the studied variables, photocatalyst dosage exhibited the most significant effect on TC removal (F-values A: 692.41, A^2^: 15.20), followed by pH (F-values B: 65.64, B^2^: 267.51), while TC initial concentration showed comparatively the lowest influence (F-values C:20.12, C^2^:2.94).
Table 5. The ANOVA of the mathematical model.SourceF-Valuep-valueModel298.93< 0.0001SignificantA692.41< 0.0001B165.64< 0.0001C20.120.0012AB5.170.0463AC28.70.0003A^2^115.2< 0.0001B^2^267.51< 0.0001C^2^2.940.1169A^2^B107.83< 0.0001A^2^C8.090.0174AB^2^86.50< 0.0001A^2^B^2^22.150.0008Lacko of fit1.290.3920Not significant
Figure 10A depicts the interaction between photocatalyst dosage and pH. At constant pH values, TC removal increased with increasing catalyst dosage, reaching a maximum, after which further increases reduced removal efficiency. This trend was initially attributed to enhanced photogenerated charge carrier formation, which promoted degradation, and later to increased turbidity, which hindered light penetration and facilitated e^−^/h^+^ recombination^61^.
At fixed dosage levels, pH also influenced TC removal efficiency. TC, an amphoteric compound, has dissociation constants (pKa) at 3.2, 7.7, and 9.6. Its species distribution varies with pH: H_3_TC^+^ (cationic) below pH 3.2, H_2_TC (neutral), at 3.2 < pH < 7.7, and HTC^−^ or TC^2−^ (anionic) above pH 7.7. Under acidic conditions, photocatalyst surface protonation induces electrostatic repulsion with cationic TC, limiting adsorption. Similarly, in alkaline environments, repulsion between anionic TC species and negatively charged surfaces reduces removal. Maximum TC degradation was observed near neutral pH (Fig. 10A)^58,61,62^.
Figure 10B presents the interaction between photocatalyst dosage and initial TC concentration. Increasing TC concentration decreased removal efficiency due to reduced active site availability per molecules. In both cases (Figs. 10A and B), optima for catalyst dosages were observed^62^.

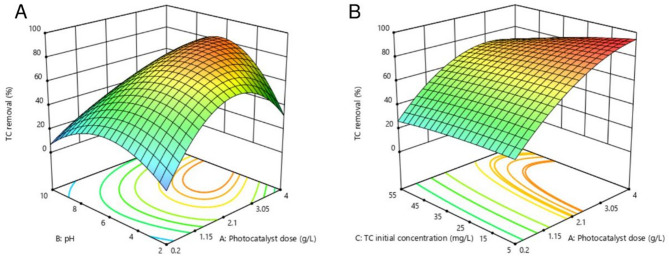

Fig. 10. Effects of operating parameters on TC removal: (A) interaction between catalyst dosage and pH; (B) interaction between catalyst dosage and TC initial concentration.
The optimum conditions, selected from the design space, were TC initial concentration 5 mg/L, pH 7, and a photocatalyst dosage of 4 g/L, with a 10 min reaction time. Under these conditions, the experimental and predicted TC removal efficiencies were 92 and 92.18%, respectively, with the model prediction within ± 5% of experimental result.
Effects of light sources
Figure 11 illustrates the effect of different light sources on TC photodegradation using the SnO_2_/RGO. Photocatalytic activity was observed under all tested irradiation conditions. Sunlight experiments were performed at 12:00 p.m. on January 20, 2022, in Sanandaj, Iran. Adsorption was the mechanism of TC removal in the dark conditions. The experimental data were fitted to zero, first, and second-order kinetic models. As summarized in Table 6, the photodegradation of TC followed a second-order kinetic model for all light sources. Among the tested light sources, the LED lamp yielded the highest rate constant, indicating superior photocatalytic performance for TC removal. The demonstrated activity of SnO_2_/RGO under artificial and natural visible light suggests promising potential for cost-effective environmental remediation applications.

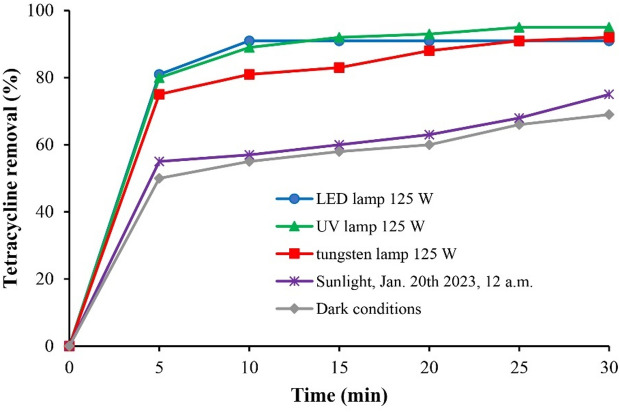

Fig. 11. Effects of different light sources on TC removal, operating conditions: TC initial concentration 10 mg/L, catalyst dosage 4 g/L, pH 7, and reaction time 10 min.
Table 6. Kinetic model fitting for various light sources^42^.Light sourceModelZero-order modelC − C_0_ = k_0_t (3)First-order modelLn(C/C_0_) = k_1_t (4)Second-order model1/C − 1/C_0_ = k_2_t (5)k_0_ (mg/L min)R^2^k_1_(min^− 1^)R^2^k_2_(L/mg min)R^2^LED lamp0.910.83130.24080.95420.10110.9919UV lamp0.890.82500.22070.93460.08091.0000Tungsten lamp0.810.80520.16610.87000.044260.9478Sunlight0.570.77630.08440.79030.01330.8081Dark conditions0.550.81760.07990.84700.012290.8811
Reuse and regeneration
Photocatalyst reusability is a critical factor for practical application. Under these conditions; TC initial concentration 10 mg/L, pH 7, catalyst dosage 4 g/L, reaction time 10 min under irradiation of LED lamp 125 W; the SnO_2_/RGO photocatalyst was recovered by centrifugation, ultrasonically washed in ethanol for 10 min, rinsed with deionized water, and dried. As shown in Fig. 12, TC removal decreased from 91% in the first cycle to 57% in the fifth, indicating partial deactivation of SnO_2_/RGO over repeated use due to TC adsorption according to FTIR results.

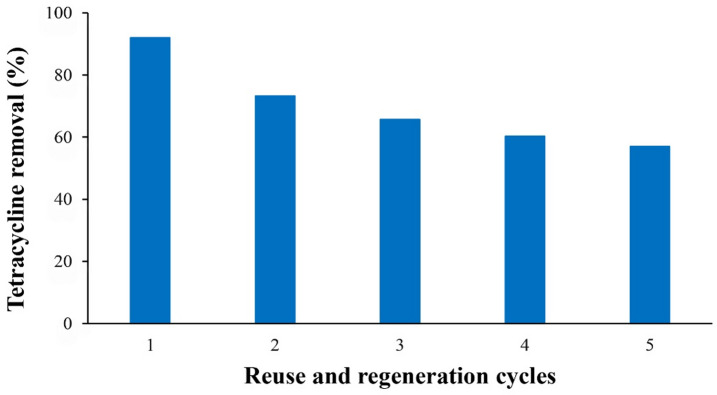

Fig. 12. Reuse and regeneration cycles, operating conditions: TC initial concentration 10 mg/L, pH 7, catalyst dosage 4 g/L, time 10 min.
Mineralization and effects of other pollutants
To ensure mineralization of TC during photodegradation reaction, COD and BOD5 analyses were conducted. The photocatalytic reaction was carried out under the following conditions: TC concentration 5 mg/L, pH 7, SnO_2_/RGO dosage 4 g/L, 10 min reaction time, and irradiation by a 125 W LED lamp. COD and BOD5 removal were calculated using Equations. (S1) and (S2) in the Supplementary Material^63,64^. BOD5 and COD removal efficiencies were 100%, and 72.5%; respectively, confirming during photodegradation 72.5% of organic materials were mineralized and converted to CO_2_ and H_2_O.
To evaluate SnO_2_/RGO performance under realistic conditions, TC photodegradation was studied in the presence of Na^+^, Cl^−^, Mg^2+^, NO_3_^−^ ions, and tap water. Figure 13 summarizes the results. For a 5 mg/L of TC solution containing 5 mg/L of Na^+^ and Cl^−^, TC removal of 90% was obtained. With 5 mg/L of Mg^2+^ and 10 mg/L of NO_3_^−^, TC removal reached 91.47%. In a mixture containing all these ions, 84.01% of TC removal resulted. When tap water was used to prepare the TC solution (5 mg/L), the removal yield was 91.09%. Tap water typically contains Na^+^, K^+^, Fe^3+^, Ca^2+^, Mg^2+^, Cl^−^, SO_4_^2−^, PO_4_^3−^, CO_3_^2−^, and trace disinfection by-products such as trihalomethanes^65,66^. The presence of these species did not significantly impact the removal efficiency, indicating the photocatalyst’s robustness under real water conditions.
Additionally, the SnO_2_/RGO photocatalyst was tested for a mixture solution containing 3 mg/L of TC, 1 mg/L of ciprofloxacin, and 1 mg/L of cefixime. The operating conditions were a catalyst dosage of 4 g/L, pH 7, reaction time 10 min, 125 W LED lamp. The removals were 97% for TC, 97.7% for ciprofloxacin, and 97.6% for cefixime.

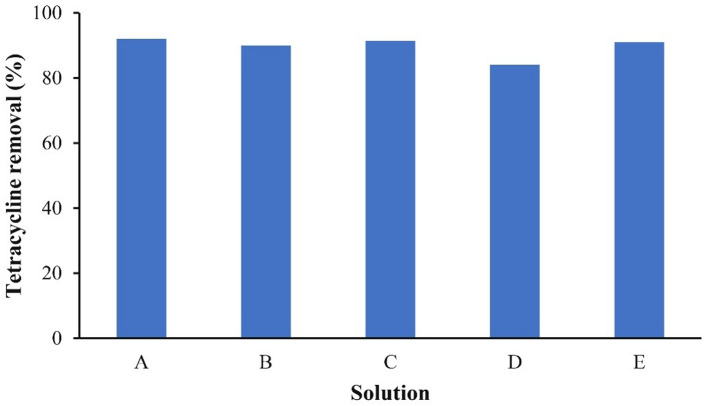

Fig. 13TC removal in the presence of various ions; operating conditions: TC initial concentration 5 mg/L, catalyst dosage 4 g/L, pH 7, time 10 min, and under irradiation of 125 W LED lamp; solutions: (A) TC, (B) TC, Na^+^, Cl^−^; (C) TC, Mg^2+^, NO_3_^−^, (D) TC, Na^+^, Cl^−^, Mg^2+^, NO_3_^−^, (E) TC, tap water.
SnO2/RGO photocatalytic mechanism
Reduced graphene oxide predominantly consists of sp^2^-hybridized carbon networks with π-π conjugation domains, structural defects, and oxygenated functional groups. Upon light irradiation, electrons in the π systems and defect states become photoexcited. These photoexcited electrons endow pristine RGO with inherent photocatalytic activity^67,34^.
Tin (IV) oxide (SnO_2_) with a wide band gap of 3.6 eV is typically active under ultraviolet irradiation^68^. In contrast, the SnO_2_/RGO exhibits photocatalytic activity under visible light as well. Upon exposure to visible light, RGO acts as an effective photosensitizer. Its photoexcited electrons migrate into the conduction band of SnO_2_, thereby generating additional electron-hole (e^−^/h^+^) pairs^69^. This photosensitization process occurs because the Fermi level of RGO is more negative than the conduction band edge of SnO_2_^70–72^, enabling the transfer of excited electrons from RGO to the SnO_2_ conduction band. Moreover, the high electrical conductivity of RGO facilitates rapid electron transport and suppresses e^−^/h^+^ recombination.
The electrons react with dissolved oxygen to generate superoxide radicals (O_2_^−^·), while the photogenerated holes oxidize water to produce hydroxyl radicals (·OH). These reactive radical species act synergistically to degrade TC molecules in water.
The reactions of O_2_^−^· and ·OH radicals with TC lead to bond cleavage, deamination, and ring-opening processes. Further oxidation ultimately results in complete mineralization of TC into carbon dioxide and water^4,23^. Figure 14 shows schematic of the SnO_2_ photocatalytic process.

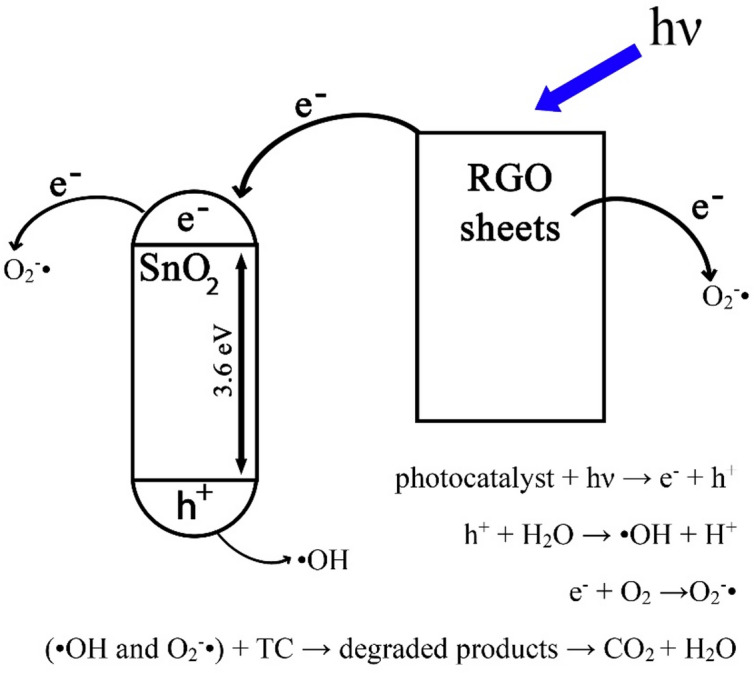

Fig. 14. Schematic of the photocatalytic mechanism of SnO_2_/RGO.
