In vitro models to mimic tumor endothelial cell-mediated immune cell reprogramming in lung adenocarcinoma
Morgane Krejbich, Emilie Navarro, Judith Fresquet, Marine Cotinat, Valentin Isen, Hortense Perdrieau, Virginie Forest, Aurélie Doméné, Tiphaine Delaunay, Hala Awada, Vincent Dochez, David Roulois, Nicolas Boisgerault, Richard Redon, Christophe Blanquart, Isabelle Corre
TL;DR
This study explores how tumor endothelial cells in lung cancer reshape the immune environment, promoting immune suppression and offering new therapeutic insights.
Contribution
The study reveals novel immunoregulatory roles of tumor endothelial cells in lung cancer using advanced in vitro models.
Findings
Tumor endothelial cells show altered gene and protein expression, especially in pro-inflammatory pathways.
TECs support CD4+ T-cell polarization into immunosuppressive subsets and promote M2-like macrophage polarization.
Single-cell RNA sequencing identified distinct TEC subpopulations and perivascular macrophages linked to immune suppression.
Abstract
Tumor endothelial cells (TECs) play a critical role in regulating immune responses within the tumor microenvironment (TME). However, the mechanisms by which TECs modulate immune cell population remain unclear, particularly in non-small cell lung cancer (NSCLC). Here, we investigated how NSCLC cells tweak normal endothelial cells (NECs) into TECs and the subsequent effects on immune regulation. NECs were cocultured with various NSCLC cell lines, using 2D and 3D coculture models to evaluate TEC-mediated effects on immune cells. We show that direct coculture led to significant transcriptomic, proteomic and kinomic alterations in TECs, especially in pro-inflammatory pathways. We identified a downregulation of the co-stimulatory molecule OX40L in TECs compared to NECs, suggesting impaired T-cell proliferation support. While TECs showed a limited effect on CD8+ T-cell activation, TECs…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

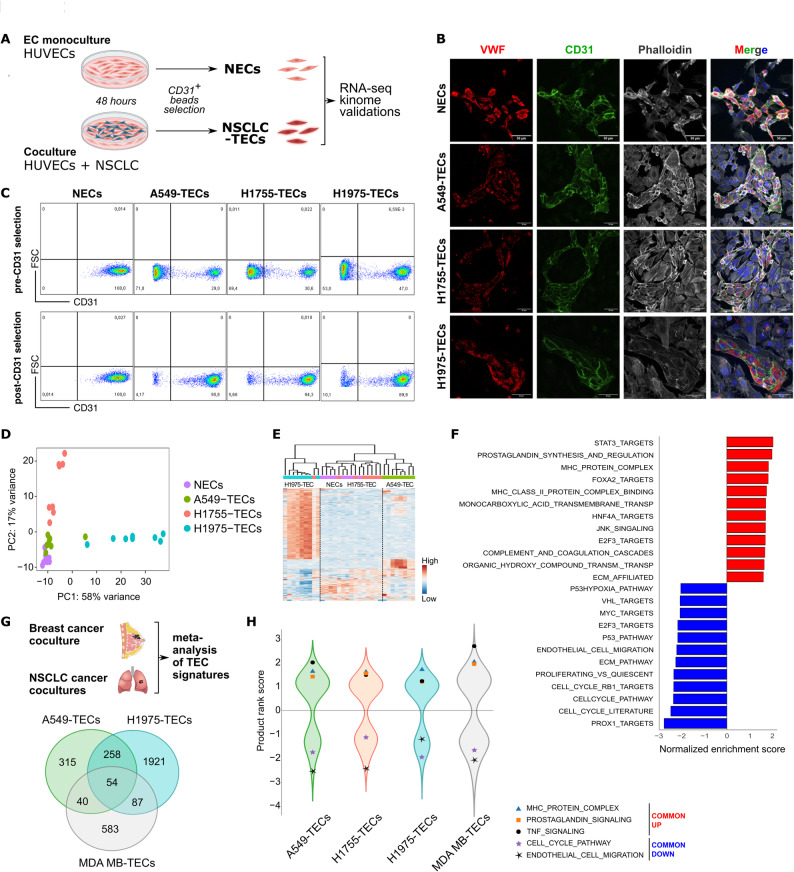

Figure 1

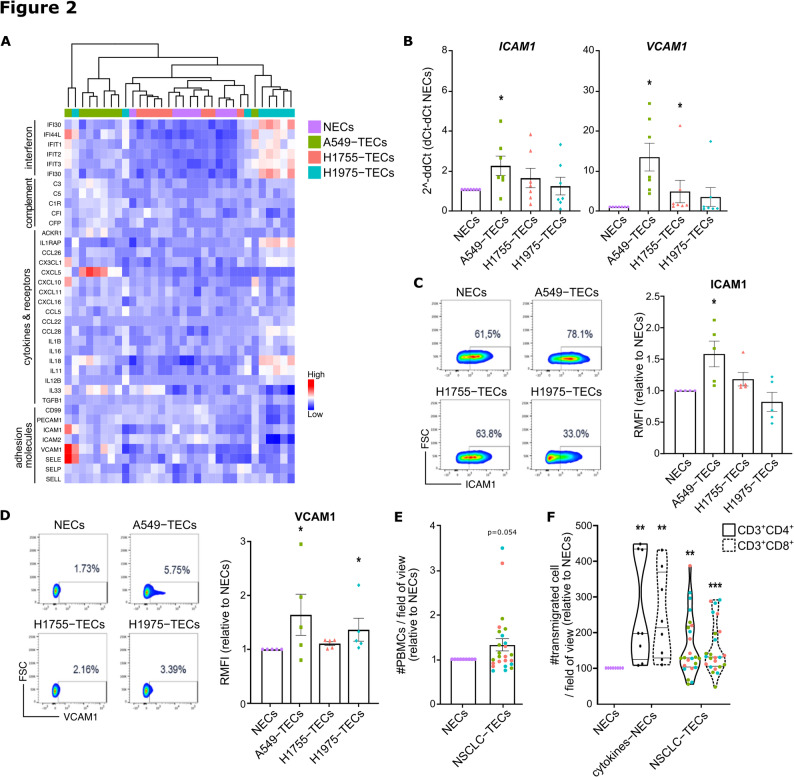

Figure 2

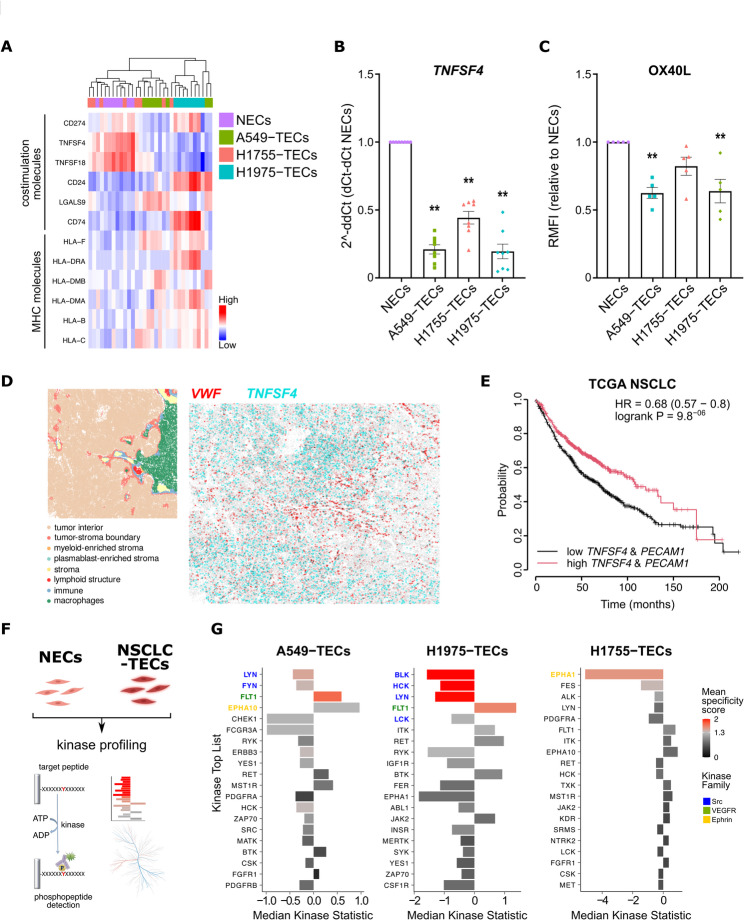

Figure 3

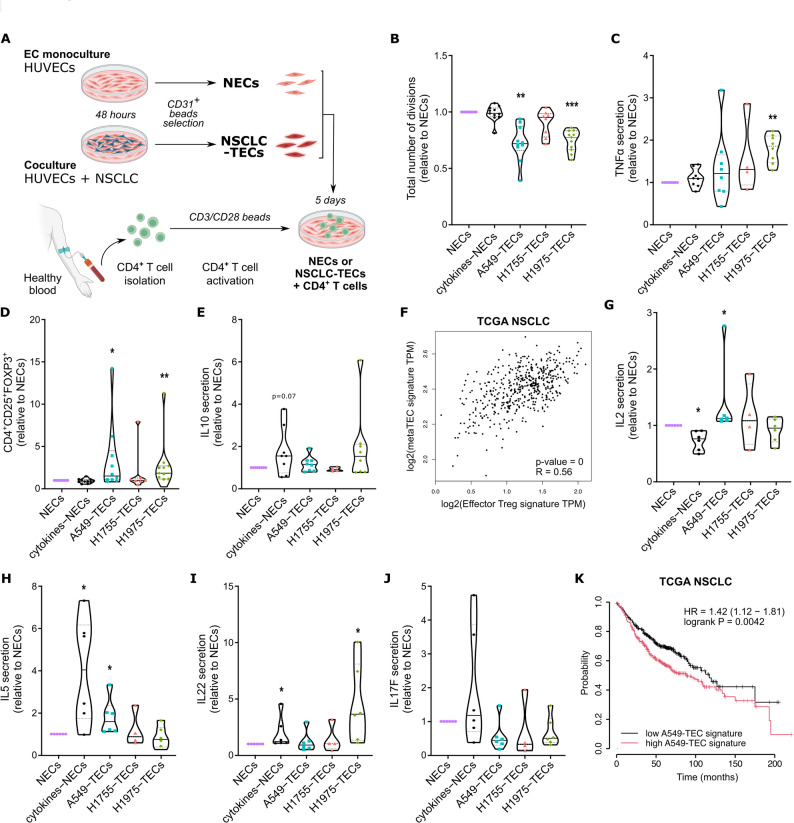

Figure 4

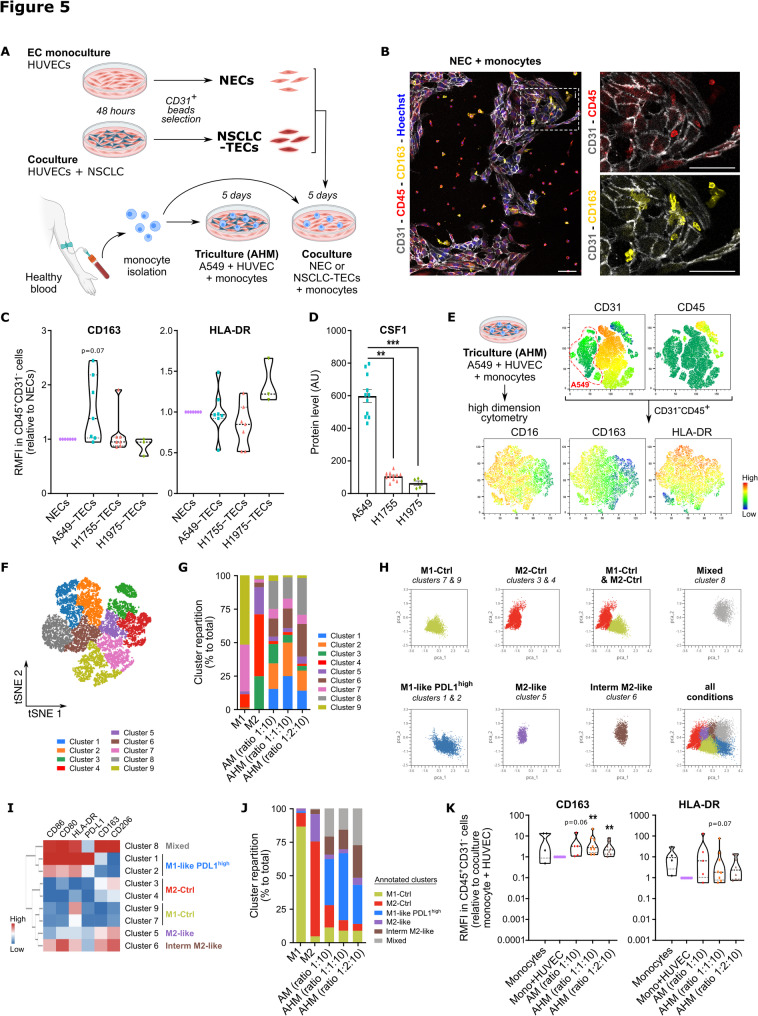

Figure 5

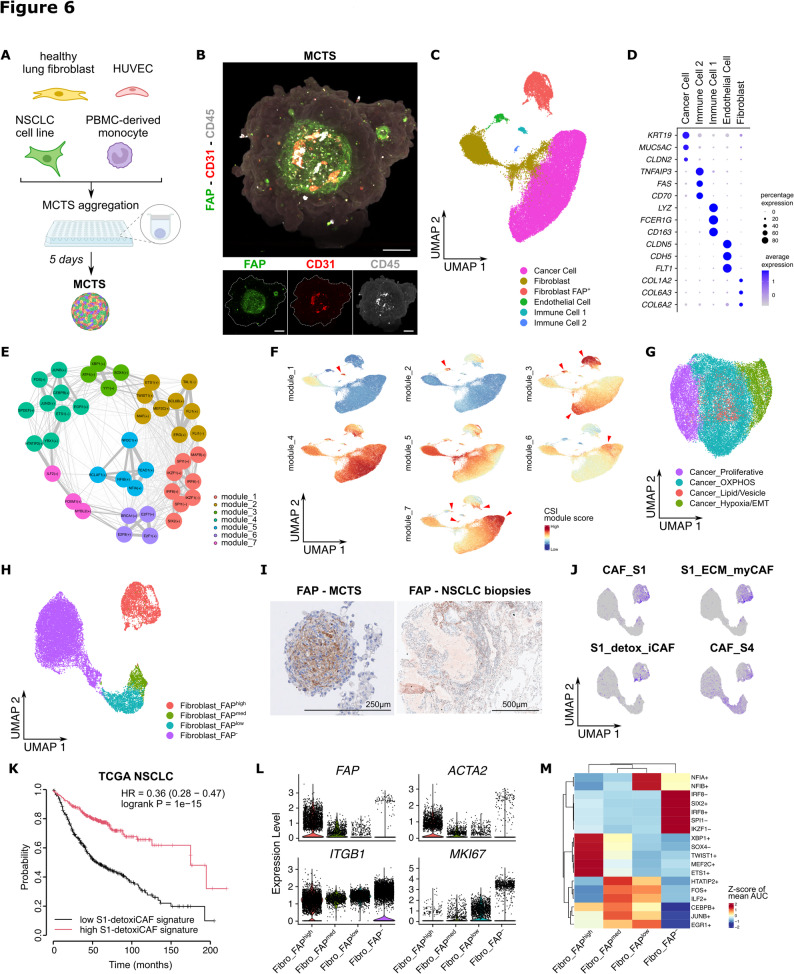

Figure 6

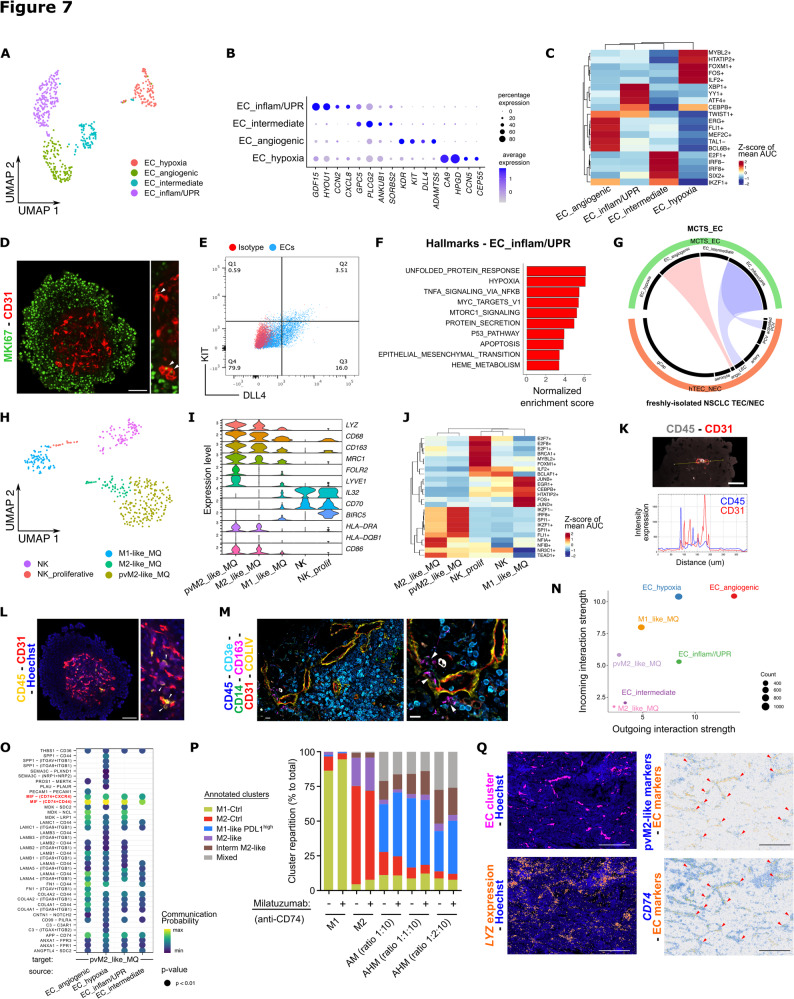

Figure 7- —CNRS PhD Joint Program
