Human in vitro neuromuscular junction model to functionally dissect the pathogenic mechanism of anti-AChR autoantibody-positive myasthenia gravis
Baehyun Shin, Monica Wang, John Yim, Elisa Kwon, Margaret H. Magdesian, Camil E. Sayegh, Jason E. Ekert, Douangsone D. Vadysirisack
TL;DR
Researchers created a human neuromuscular junction model to study how autoantibodies in myasthenia gravis damage nerve-muscle connections and how C5 inhibitors can help.
Contribution
A novel in vitro human neuromuscular junction model was developed to study complement-mediated damage in myasthenia gravis and test therapeutic interventions.
Findings
Patient sera caused increased complement activation and reduced calcium transients in the neuromuscular junction model.
Zilucoplan, a C5 inhibitor, prevented complement activation and preserved junction function.
Early treatment with complement inhibitors improved reversibility of neuromuscular transmission damage.
Abstract
Myasthenia gravis is a rare autoimmune disease mediated by autoantibodies directed against acetylcholine receptors (AChRs) at the neuromuscular junction. These autoantibodies cause dysfunction through AChR blockade, AChR degradation due to crosslinking and internalisation, and complement activation. A novel in vitro model of the human neuromuscular junction was established on a microfluidic platform to investigate the effect of anti-AChR autoantibodies on complement activation and neuromuscular transmission and the mechanism of action of complement inhibition in myasthenia gravis. The NeuroMuscleTM platform enabled the connection of human induced pluripotent stem-cell-derived motor neuron spheroids with three-dimensional cultures of skeletal muscle fibres, forming functional neuromuscular junctions. Functional connectivity was assessed by glutamate stimulation of motor neuron spheroids…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMyasthenia Gravis and Thymoma · Peripheral Neuropathies and Disorders · Adrenal Hormones and Disorders
Background
The neuromuscular junction (NMJ) is a specialised synapse that mediates the communication between motor neurons (MNs) and skeletal muscle fibres, enabling voluntary movement and muscle contraction. The development and maintenance of the NMJ depend on the coordinated interactions of multiple cellular and molecular factors, including agrin, laminin, neuregulins, acetylcholine receptors (AChRs), and muscle-specific tyrosine kinase [1]. Dysfunction or degeneration of the NMJ can lead to various neuromuscular disorders such as myasthenia gravis (MG) [2].
MG is a chronic, autoimmune neuromuscular disease characterised by varying degrees of weakness of the skeletal muscles [3, 4]. This disease is caused by a breakdown in the normal communication between nerves and muscles due to autoantibodies that target proteins essential for neuromuscular transmission [5]. One of the most targeted components is the nicotinic AChR located at the NMJ. In MG, disruption of receptor functions through mechanisms such as blocking of the acetylcholine binding site, accelerating the degradation of the receptors, modulating the expression of the receptors, and activating complement causes damage to the NMJ [6, 7]. Complement activation, in particular, plays a central role in this process, with anti-AChR antibodies triggering the classical complement cascade and leading to MAC formation at the postsynaptic membrane – this results in structural damage and impaired neuromuscular transmission, as supported by both historical and recent studies showing MAC deposition and elevated complement split products in MG patients [8–12].
Treatments for MG have evolved with the development of new targeted therapies, including those that modulate the complement system. Eculizumab, a monoclonal antibody that inhibits complement C5, was the first complement inhibitor approved for generalised MG and has demonstrated significant clinical benefit in refractory MG patients. Ravulizumab is a long-acting C5 inhibitor, with extended dosing intervals, and has shown rapid and sustained improvements in MG symptoms in clinical trials [13]. Zilucoplan, a 15-amino acid macrocyclic peptide inhibitor of human complement C5, [14, 15] is self-administered subcutaneously and has a dual mechanism of action, blocking C5 cleavage and preventing assembly and activity of the C5b6 complex, which distinguishes it from monoclonal antibodies [16]. Zilucoplan has been shown to demonstrate greater permeability than a monoclonal anti-C5 antibody in a reconstituted basement membrane model [16]. Its efficacy has been demonstrated in both a Phase 2 (NCT04115293) and a Phase 3 (RAISE, NCT04277485) clinical trial, showing significant and clinically meaningful improvements in MG symptoms. In addition to complement inhibitors, therapies targeting the neonatal fragment crystallisable receptor, such as efgartigimod and rozanolixizumab, have emerged as effective options by reducing pathogenic immunoglobulin G levels and improving neuromuscular function [17, 18]. These advances reflect a growing therapeutic landscape and underscore the need for mechanistic models to evaluate and compare these interventions.
Several in vitro NMJ models have been established using animal or human cells which could be used to investigate the effect of complement activation and inhibition on the NMJ in MG. However, most of these models are based on two-dimensional cultures that fail to recapitulate the complex three-dimensional (3D) architecture and physiology of the NMJ in vivo [19–21]. Moreover, the availability and accessibility of human primary cells, especially MNs, are limited and pose ethical challenges. However, recent advances in stem cell technology and tissue engineering have opened new avenues for generating human in vitro NMJ models. Pluripotent stem cells, such as embryonic stem cells and induced pluripotent stem cells (iPSCs), can be differentiated into various cell types of the NMJ, including MNs, skeletal muscle progenitors, and glial cells [22–24]. Furthermore, 3D culture methods, such as hydrogels, scaffolds, and microfluidics, can provide more biomimetic and physiologically relevant environments for NMJ formation and function [25–27]. A relevant NMJ model of MG should mimic the disease by reproducing the reduction of functional nicotinic AChRs at the NMJ, decreased NMJ stability, complement activation, and blocking of neuromuscular signal transmission [27–29]. Therefore, the development of an appropriate in vitro NMJ model for MG provides an opportunity to functionally dissect anti-AChR-mediated pathogenic mechanisms in MG.
In this study, we developed a novel co-culture system using human iPSC-derived MNs and skeletal muscle fibres within a microfluidic device that enables the functional assembly of a 3D NMJ. Using the model, we aimed to characterise the morphological and functional maturation of the NMJ and demonstrate its applicability for MG disease modelling. Additionally, we sought to explore how complement C5 inhibitors, such as zilucoplan, may work in vivo and provide insights into the observed therapeutic efficacy in clinical trials.
Methods
Microfluidic chambers
The microfluidic chambers’ fabrication followed a similar process to that previously reported [30]. Briefly, the masters for the microfluidic chambers were manufactured in the McGill Nanotools Microfab (McGill University, Montreal, QC, Canada), and the chambers were prepared with polydimethylsiloxane using the Sylgard 184 Silicone elastomer kit (Dow Corning, Midland, MI, USA). The polydimethylsiloxane patterns were cut to size and assembled on 35-mm glass-bottom dishes (MatTek, Ashland, MA, USA) using plasma bonding methods, according to the instructions of the plasma machine (Glow Plasma System) manufacturer (Glow Research, Tempe, AZ, USA).
Differentiation of human iPSC into motor neuron spheroids
All cell cultures were maintained at 37 °C, 5% CO_2_. Human iPSCs ASE-9211 (Applied StemCell, Inc., Milpitas, CA, USA) were cultured for 2–3 weeks on Matrigel^®^ hESC-qualified matrix (Corning) in mTeSR™ Plus medium (STEMCELL Technologies, Waterbeach, Cambridge, UK) prior to passaging for differentiation. Differentiation into MNs was achieved using an optimised 2-week protocol (Supplementary Figure 1) previously described.[31]
Briefly, iPSCs were dissociated into single cells using Gentle Cell Dissociation Solution (STEMCELL Technologies) and plated at a density of 1 × 10^6^ cells per well of an AggreWell™800 24-well plate (STEMCELL Technologies) in supplemented neurulation medium (a 1:1 mixture of Neurobasal and Advanced DMEM/F12) for 24 hours to initiate the formation of neurospheres. The cells were kept in culture for 10 days with medium exchanges three times a week using the medium formulations previously described in the literature for optimised MN differentiation [31]. On Day 11, neurospheres were filtered using a 37 µM reverse strainer and transferred to a 6-well plate with maturation medium A [a 1:1 mixture of Neurobasal (Thermo Fisher Scientific) and Advanced DMEM/F12 (Thermo Fisher Scientific) supplemented with 1% N2 (Thermo Fisher Scientific), 2% B27 (Thermo Fisher Scientific), 2 mM GlutaMAX (Thermo Fisher Scientific), 0.1 mM 2-mercaptoethanol (Sigma-Aldrich), 0.5 µM ascorbic acid (Sigma-Aldrich), and 100 µg/mL brain-derived neurotrophic factor (R&D Systems), and glial cell-derived neurotrophic factor (R&D Systems)]. On Day 14, the medium was replaced with MN maturation medium B (same as medium A supplemented with MEM nonessential amino acids [Thermo Fisher Scientific], 0.025 mM L-glutamic acid [Sigma-Aldrich]). A 75% media change was performed every other day.
Formation of 3D neuromuscular tissues in NMJ microfluidic device
A fresh vial of primary human skeletal myoblasts (Thermo Fisher Scientific) was thawed in a 37 °C water bath and transduced with lentiviral particles at a multiplicity of infection of 20 to express GCaMP6, a fluorescent calcium indicator LV-CAG-GCaMP6s (SignaGen, Frederick, MD, USA). 1.2 × 10^4^ human skeletal myoblasts were injected into the muscle compartment of the NeuroMuscle^TM^ microfluidic device (Ananda Devices Inc.) with Ham’s F12 nutrient mixture, 80% collagen cell matrix type 1-A, reconstitution buffer (Collagen Gel Culturing Kit; Wako Chemicals, Richmond, VA, USA) and 10% Matrigel^®^ growth factor reduced basement membrane matrix (Corning) via the right injection port (Fig. 1A). The device was incubated for 5 minutes at 37 °C with 5% CO_2_ to enable the polymerisation. The muscle tissue was then cultured and differentiated as previously described [25] using medium supplemented with horse serum (Thermo Fisher Scientific) and human recombinant IGF-1 (R&D Systems). A 3D skeletal muscle tissue was formed within 24 hours, with both sides of the muscle bundle attached to the pillar structures. After 2 weeks of muscle tissue incubation, fully differentiated and maturated MN spheroids were introduced into the neuronal compartment of the NeuroMuscle^TM^ device (Fig. 1B) with a mixture of Ham’s F12, 80% collagen cell matrix type 1-A and reconstitution buffer (Collagen Gel Culturing Kit; Wako Chemicals). The device was incubated for 5 minutes in the 37 °C incubator to enable the polymerisation before pouring medium into the reservoir of the neuronal compartment. To induce neurite outgrowth and NMJ formation, MN spheroids and 3D skeletal muscle tissues were co-cultured with MN maturation medium A for an additional 14 days.Fig. 13D compartmentalised design of human neuromuscular tissues on a microfluidic device. (A) The fabricated NeuroMuscle^TM^ device uses the PDMS inlet microchannel to form a single NMJ microfluidic device, each composed of a muscle compartment with muscle fibre attaching pillar structures and the MN spheroids compartment. The muscle compartment has two medium reservoirs on each side. The MN compartment has a single medium reservoir. (B) Photo of the 3D NeuroMuscle^TM^ microstructure. (C) Human iPSCs were seeded on an AggreWell™800 plate at Day 0 and MN spheroids were generated at Day 7. GCaMP6-transduced human skeletal myoblasts were injected into the muscle compartment of the NeuroMuscle^TM^ device at day 0. Spontaneous self-organisation of myoblast into muscle bundle was observed after Day 5. A MN spheroid was introduced into the neuronal compartment and embedded in collagen gel. Thin neurite outgrowth was observed at Day 15 and many thick nerve bundles reached the muscle tissue at day 18, resulting in the formation of NMJs. Scale bars, 500 µm. (D) Differentiation of MN spheroids were characterised by the immunostaining of Tuj1, HB9, SMI-32, and VGLUT1. The pattern of a sarcomere structure stained by sarcomeric α-actinin and titin. SMI-32 staining showed that neurites from the motor neuron innervated muscle cells. AChR clusters are labelled with α-bungarotoxin (BTX; monochrome) and indicated by white arrows. Scale bars, 200 µm. (E) Schematic illustration of the differentiation and co-culture of the MN spheroid and muscle cells in a NeuroMuscle^TM^ device. 3D, three-dimensional; AChR, acetylcholine receptor; BTX, α-bungarotoxin; D, day; DAPI, 4’,6-diamidino-2-phenylindole; GCaMP6, genetically encoded calcium indicator protein 6; iPSC, induced pluripotent stem cell; MN, motor neuron; NMJ, neuromuscular junction; PDMS, polydimethylsiloxane; SAA, serum amyloid a; Tuj1, class III beta-tubulin; VGLUT1, vesicular glutamate transporter 1
Calcium transient analysis
Functional connectivity was assessed with L-glutamate stimulation of MN spheroids and subsequent calcium transients in GCaMP6-transduced muscle fibres. L-glutamate (Abcam) was reconstituted to 0.5 M in 1 N NaOH and then further diluted in neurobasal media without phenol red to 50 µM working concentration. Culture media was removed from the NMJ microfluidic device prior to glutamate injection. 3D skeletal muscle tissues expressing GCaMP6 were imaged using a Cytation 5 cell imaging multimode reader (BioTek, Santa Clara, CA, USA) equipped with reagent injector modules to collect real-time calcium influx after glutamate stimulation. Time-lapse videos were recorded for 20 seconds before stimulation (resting) and an additional 120 seconds after stimulation (induced) under physiological conditions using Gen5 software. Change in fluorescence intensity relative to the resting fluorescence intensity was used to measure the level of neuromuscular transmission (ΔF/F).
To assess the effect of nicotinic AChR antagonist treatment on neuromuscular transmission, NMJ tissues were incubated with 1 µM α-bungarotoxin (BTX) (Thermo Fisher Scientific) and 25 µM d-tubocurarine (DTC) (Sigma-Aldrich, Burlington, MA, USA) for 10 minutes before calcium transient analysis.
To evaluate the impact of MG patient sera on neuromuscular transmission, GCaMP6 fluorescent intensity was recorded prior to serum incubation as a baseline and then captured again after 24 hours of patient serum incubation. GCaMP6 fluorescent intensities from different imaging timepoints were normalised by corresponding baseline intensities.
MG patient sera and zilucoplan treatment
Sera from five patients diagnosed with MG and confirmed positive for anti-AChR antibodies (Table 1) were added to the NMJ tissue culture media at 35% final concentration, and 5% normal human serum (Complement Technology, Tyler, TX, USA) was supplemented. All MG patient sera were obtained from commercial biorepositories (Discovery Life Sciences and BIOIVT), which confirmed that samples were collected and stored under conditions suitable for complement analysis, in alignment with best practices such as those outlined by Mohebnasab et al [32]. Pooled sera from healthy volunteers (Complement Technology) were used as a control.Table 1. Demographic details of the five MG patientsPatient NumberGenderAge (years)RaceEthnicityDate of Symptom OnsetDate of DiagnosisDate of CollectionMethod of DiagnosisAChR Antibody Concentration (nmol/L)Surgical HistoryPrevious TreatmentsMG-1Female85WhiteNon-Hispanic/LatinoUnknownUnknown1 Oct 2019Blood test9.1N/AN/AMG-2Female70UnknownUnknownUnknownUnknown1 Dec 2018Blood test56.9N/AN/AMG-3Female29CaucasianHispanic1 Aug 201411 Dec 20196 Nov 2020EMG, blood test10.4CholecystectomyPyridostigmine 60 mgMG-4Female59CaucasianEuropeanUnknown10 Jul 201816 Jun 2021Blood test0.15Tonsillectomy, tubal ligation, Bartholin’s cyst removalPyridostigmine 60 mg, Synthroid^®^ 112 mcgMG-5Male70White or CaucasianNon-Hispanic/Latino1 Jun 20081 Jun 201519 Oct 2021Blood test0.7N/AAzathioprine 50 mg, pyridostigmine 60 mgAChR, acetylcholine receptor; EMG, electromyography; MG, myasthenia gravis; N/A, not applicable
Zilucoplan (provided by UCB, Brussels, Belgium) was dissolved in dimethyl sulfoxide (DMSO) to prepare a 10 mM stock solution and diluted in culture medium to a final concentration of 1 µM. The final DMSO concentration did not exceed 0.1% (v/v) in any condition. DMSO was used as a vehicle control in all experiments involving zilucoplan.
To ensure objectivity and data integrity, all experiments involving MG and healthy control sera including calcium transient analysis, immunocytochemical staining for MAC deposition, and biochemical quantification of complement split products were conducted in a blinded manner. Sample identities were masked during data acquisition and analysis.
Immunocytochemical staining
Engineered human skeletal muscle tissues from the NMJ chips were fixed in 4% paraformaldehyde for 30 minutes at room temperature (RT), followed by permeabilisation with 1% (v/v) Triton X-100/dH2O for 20 minutes at RT. The samples were then rinsed twice with phosphate-buffered saline (PBS) and blocked with a blocking buffer (2% [v/v] normal donkey serum and 1% bovine serum albumin in 0.01% [w/v] Triton X-100/PBS) at RT for 1 hour. Subsequently, the samples were incubated overnight with primary antibodies against class III beta-tubulin (1:200; Abcam, Cambridge, UK), HB9 (1:50; Santa Cruz, Dallas, TX, USA), SMI-32 (1:100; BioLegend, San Diego, CA, USA), vesicular glutamate transporter 1 (VGLUT1) (1:100; Abcam), sarcomeric α-actinin (1:100; Abcam), titin (1:200; Developmental Studies Hybridoma Bank, Iowa City, IA, USA), and C5b9 (1:500; BD Biosciences, Franklin Lakes, NJ, USA) in the blocking buffer. The samples were then stained with secondary antibodies conjugated to Alexa Fluor 647 or 488 (donkey anti-mouse or donkey anti-rabbit, 1:200; Thermo Fisher Scientific) in the blocking buffer for 1 hour. Mounting media containing 4′,6-diamidino-2-phenylindole was used to label nuclei. Images were acquired using a Cytation 5 (Agilent, Waldbronn, Germany) equipped with a digital camera. Image quantification of MAC deposition was performed by capturing deposition in five different images.
Biochemical analysis of complement split products
The concentrations of C5a and sC5b9 (soluble MAC) in the supernatants from NMJ tissues incubated with MG patient sera were measured using the MicroVue™ Complement Multiplex Array (Quidel Corporation, San Diego, CA, USA). The supernatants were diluted with specimen diluent to reach a final serum concentration of 0.1%, ensuring that measurements fell between the lower limit of quantitation and the upper limit of quantitation of each assay. To maintain objectivity and data integrity, the experiment was conducted as a blinded study.
Statistical analysis
All statistical analyses were performed using GraphPad Prism, Version 9.0 (GraphPad Software, San Diego, CA, USA). Data are presented as mean ± standard error of the mean unless otherwise stated. Comparisons between multiple groups were made using ordinary one-way analysis of variance (ANOVA) for a single variable or two-way ANOVA for the interaction between two independent variables, followed by Tukey’s post hoc test. For comparisons involving only two groups, an unpaired Student’s t-test was used. A p-value of less than 0.05 was considered statistically significant. The lack of a significance symbol indicates that there were no significant differences.
Results
Fabrication of a 3D neuromuscular model in microfluidic devices

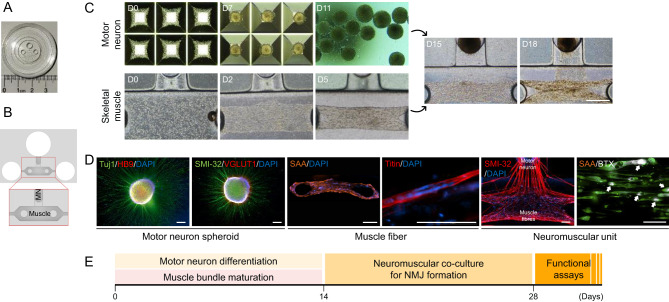

A microfluidic platform (NeuroMuscle^TM^, Fig. 1A and B) was employed to connect 3D cultures of human primary skeletal muscle fibres and MN spheroids derived from human iPSCs to form functional NMJs. Primary human skeletal myoblasts were injected into the muscle compartment of NeuroMuscle^TM^ with a mixture of collagen and Matrigel^®^. The cells spontaneously formed 3D skeletal muscle fibres around the two post structures (Fig. 1C). After 14 days, the skeletal muscle exhibited regular well-patterned sarcomeric structures along with mature myotube differentiation (Fig. 1D). Immunostaining of sarcomeric α-actinin and titin indicated the maturation of the elongated MNs and mature 3D muscle fibres in the co-culture condition.
A protocol previously described in the literature to accelerate differentiation of human iPSCs into MN [31] was adapted to accelerate MN differentiation (Fig. 1C) and formation of 3D spheroid cultures. Briefly, MN spheroids were formed using a sequential application of several growth factors as described in ‘Methods’ (Supplementary Figure 1). By Day 14, MN spheroids strongly expressed HB9, neurofilament heavy chain (SMI-32), class III beta-tubulin, microtubule-associated protein 2 and VGLUT1, which are mature MN markers (Fig. 1D and Supplementary Figure 2).
On Day 14, fully differentiated MN spheroids were injected into the neuronal compartment of the NeuroMuscle^TM^ (Fig. 1E). Motor neurite elongation in the collagen gel toward the muscle fibre bundle was observed by bright field analysis in 24 hours (Fig. 1C). After 4 days of co-culture, bright field analysis showed many neurites had reached the 3D skeletal muscle fibre (Fig. 1C). Furthermore, thick neurite bundles were observed close to the muscle tissue by 14 days in co-culture (Fig. 1D). Immunostaining of SMI-32 indicated the maturation of the elongated MNs in the co-culture condition (Fig. 1D). AChR clustering was also observed in our 3D muscle fibre reflecting structural innervation and maturation of NMJs (Fig. 1D).
3D neuromuscular tissues are functionally innervated

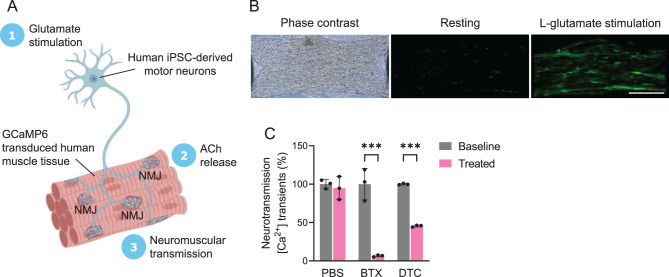

To assess the functional connectivity of MN spheroids and 3D skeletal muscle tissue, we employed L-glutamate, an excitatory neurotransmitter that selectively stimulates MN spheroids without affecting muscle tissues. Human skeletal myoblasts were transduced with the GCaMP6 to monitor the subsequent calcium transients in muscle tissues (Fig. 2A). The neuromuscular transmission was observed on Day 14 of co-culture (Fig. 2B), signifying the formation of functional connectivity between MN endplates and skeletal muscle tissues. To further confirm that the presynaptic activation of MN spheroids induced the observed changes in muscle fibre calcium transients, we investigated the effects of postsynaptic blockers, BTX and DTC in the NMJ system. The presence of BTX and DTC, both nicotinic AChR antagonists, significantly inhibited calcium transients (Fig. 2C). This inhibition indicated that neuromuscular transmission was triggered by MN activity rather than spontaneous muscle fibre movement.Fig. 2. Functional connectivity between motor neuron endplates and muscle fibres. (A) NMJ model illustrated with BioRender. Neuromuscular transmission was assessed with L-glutamate stimulation (50 µM) of motor neurons and subsequent calcium transients in GCaMP6-expressing skeletal muscle tissues. (B) Phase contrast (left panel) and GCaMP6 fluorescence images of a 3D NMJ co-culture before (middle panel) and after (right panel) treatment with L-glutamate. Scale bars, 500 µm. (C) Functional connectivity of the co-cultures was confirmed with glutamate stimulation, which could be blocked by AChR antagonists such as 1 µM α-bungarotoxin (BTX) and 25 µM d-tubocurarine (DTC). Fluorescence intensity was shown as mean ± sd. n = 3. ^***^p < 0.001. Statistical significance was analysed by ANOVA (Bonferroni test) using GraphPad software. 3D, three-dimensional; ACh, acetylcholine; AChR, acetylcholine receptor; ANOVA, analysis of variance; BTX, α-bungarotoxin; DTC, d-tubocurarine; GCaMP6, genetically encoded calcium indicator protein 6; iPSC, induced pluripotent stem cell; NMJ, neuromuscular junction; PBS, phosphate-buffered saline; sd, standard deviation
Sera from MG patients induced complement activation and NMJ impairment

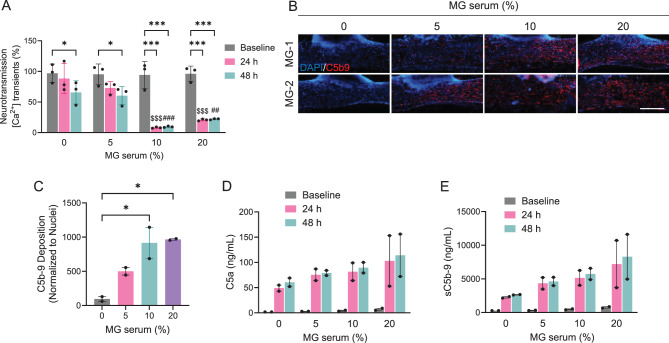

To reveal the translational utility of the NMJ system, we examined recapitulating pathological changes in NMJ function caused by anti-AChR antibodies in sera from MG patients. Fully matured in vitro NMJ tissues were incubated with patient serum (MG-2) positive for anti-AChR antibody to evaluate its impact on neuromuscular transmission and complement activity. All NMJ tissues were supplemented with 5% normal human serum as a fresh complement source. Neuromuscular transmissions were measured from the same tissue before and after exposure with patient serum. The results revealed a significant reduction in calcium transient activity of 24.38 ± 0.34% after 24 hours and 34.68 ± 0.41% after 48 hours, following incubation with 5% MG patient serum (Fig. 3A). Notably, the inhibitory effect on neuromuscular transmission was most pronounced at a 10% serum concentration and reached saturation within 24 hours (91.67 ± 0.35%) (Fig. 3A). Localised deposition of complement C5b9 was observed on the surface of 3D skeletal muscle tissue as demonstrated by immunocytochemical analysis, reflecting that complement activation was triggered by MG patient serum (Figs. 3B and C). Additionally, two soluble complement split products – C5a (Fig. 3D) and sC5b9 (Fig. 3E) – were detected in the supernatant of MG patient sera treated with NMJ tissues. Complement activities reached saturation at serum concentrations exceeding 10% after 24 hours of incubation, consistent with observed calcium transient changes. Consequently, we incubated NMJ tissues with MG patient sera for 24 hours in subsequent experiments. These findings suggest a trend toward complement-mediated neuromuscular impairment, but due to the small sample size (n = 2), no statistical inference can be made and the data should be considered descriptive.Fig. 3. Anti-AChR antibody-positive MG-serum-induced complement activation and impaired neurotransmission (A) Incubation of the NMJ model with MG-2 patient sera containing anti-AChR antibody resulted in reduced neuromuscular transmission in a concentration-dependent manner. Fluorescence intensity was shown as mean ± SEM. Three independent time points after L-glutamate stimulation were analysed. ^^p < 0.05; ^**^p < 0.001. Statistical significance was analysed by ANOVA (Tukey test) using GraphPad software. ^$$$^p < 0.001 compared with 0% MG serum at 24 hours. ^##^p < 0.01; ^###^p < 0.001 compared with 0% MG serum at 48 hours. (B) Representative images of 3D skeletal muscle tissues incubated with MG patient sera in a dose-dependent manner. The tissues were immunostained for human membrane attack complex C5b9 and DAPI. Scale bars, 500 µm. (C) Bar graph indicating the level of C5b9 deposition localised on the surface of 3D skeletal muscle fibres. Data normalised to the total nuclear counts. Values are mean ± SEM. Two separate MG patient sera were assessed. ^*^p < 0.05. Statistical significance was analysed by ANOVA (Tukey test) using GraphPad software. (D and E) Biochemical analysis showed that the levels of complement split products C5a and soluble C5b9 were increased upon incubation with MG patient sera in a dose-dependent manner. Values are mean ± sd. Two independent MG patient sera were analysed. No statistical analysis was performed due to the small sample size; results are descriptive.3D, three-dimensional; AChR, acetylcholine receptor; ANOVA, analysis of variance; C5, component 5; DAPI, 4’,6-diamidino-2-phenylindole; h, hours; MG, myasthenia gravis; NMJ, neuromuscular junction; sd, standard deviation; SEM, standard error of the mean
Zilucoplan prevented complement-induced neuromuscular damage

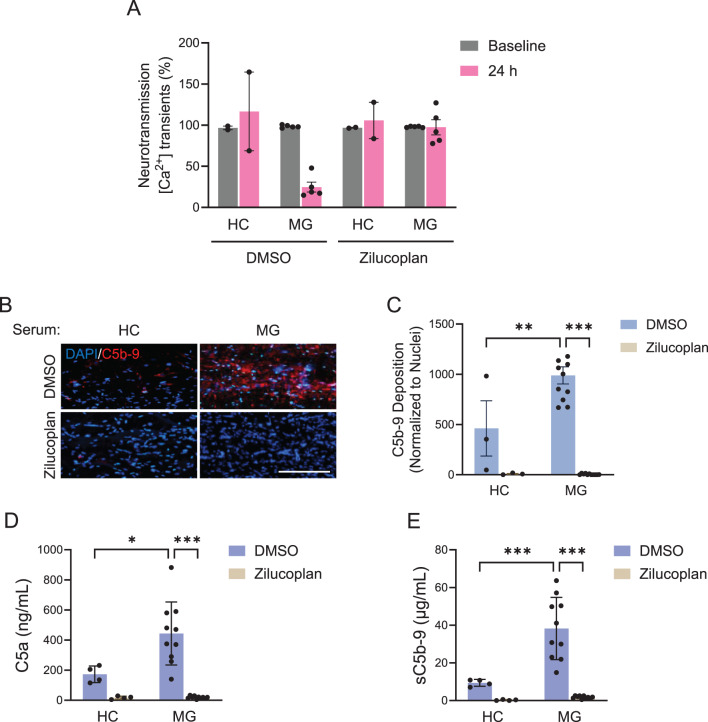

NMJ tissues were incubated in vitro with five different anti-AChR antibody-positive MG sera to assess their impact on neuromuscular transmission and the level of complement activation in the absence or presence of a complement C5 inhibitor (zilucoplan). Zilucoplan was used at a final concentration of 1 µM in all treatment conditions. Incubation of the NMJ tissues with MG patient sera for 24 hours resulted in an 81.3% ± 9.95% reduction in neuromuscular transmission, compared with sera from healthy individuals (Fig. 4A, Supplementary Video 1). However, neuromuscular transmission was completely preserved in the presence of zilucoplan (Fig. 4A, Supplementary Video 2). MAC deposition (Figs. 4B and C and Supplementary Figure 3) and soluble complement split products, C5a (Fig. 4D) and sC5b9 (Fig. 4E), were detected from the 3D skeletal muscle tissues treated with MG sera. Zilucoplan demonstrated potent inhibition of MAC deposition on the muscle tissues and significant reductions in C5a and sC5b9 production consistent with a mode of action by which zilucoplan binds C5 and blocks its cleavage. These collective results suggest that MAC-mediated damage is a major driver of NMJ functional impairment induced by the MG patient sera tested in this study.Fig. 4. Prevention of NMJ functional impairment with zilucoplan correlates with inhibition of complement C5 on muscle cells. (A) incubation of the NMJ model with MG patient sera resulted in reduced neuromuscular transmission as compared to healthy control, but zilucoplan (1 µM) prevented neurotransmission impairment by MG patient sera. DMSO was used as a vehicle control for zilucoplan. Fluorescence intensity was shown as mean ± SEM. Two individual healthy control sera and five individual MG patient sera were analysed. No statistical analysis was performed due to the limited number of samples, and further studies with larger cohorts are needed to confirm these trends. (B) Representative images of 3D skeletal muscle tissues incubated with healthy donor and MG patient sera in the presence or absence of zilucoplan (1 µM). The tissues were immunostained for human membrane attack complex C5b9 and DAPI. Scale bars, 500 µm. (C) Bar graph indicating the level of C5b9 deposition localised on the surface of 3D skeletal muscle fibres. Data normalised to the total nuclear counts. Values are mean ± SEM. Three independent NMJ tissues from healthy control sera and 11 independent NMJ tissues from MG patient sera were analysed. ^^p < 0.01; ^^p < 0.001. Statistical significance was analysed by ANOVA (Tukey test) using GraphPad software. (D and E) Biochemical analysis showed that complement split products C5a and soluble C5b9 were indeed generated upon incubation with MG patient sera as compared to the healthy control. Furthermore, zilucoplan (1 µM) prevented the generation of C5a and soluble C5b9 induced by MG patient sera. Values are mean ± sd. Four independent samples were analysed from healthy control sera and 10 independent samples were analysed from MG patient sera. ^^p < 0.05; ^***^p < 0.001. Statistical significance was analysed by ANOVA (Tukey test) using GraphPad software. 3D, three-dimensional; ANOVA, analysis of variance; C5, component 5; DAPI, 4’,6-diamidino-2-phenylindole; DMSO, dimethyl sulfoxide; h, hours; HC, healthy control; MG, myasthenia gravis; NMJ, neuromuscular junction; SD, standard deviation; SEM, standard error of the mean
Reversibility assessment of NMJ functional impairment from complement damage

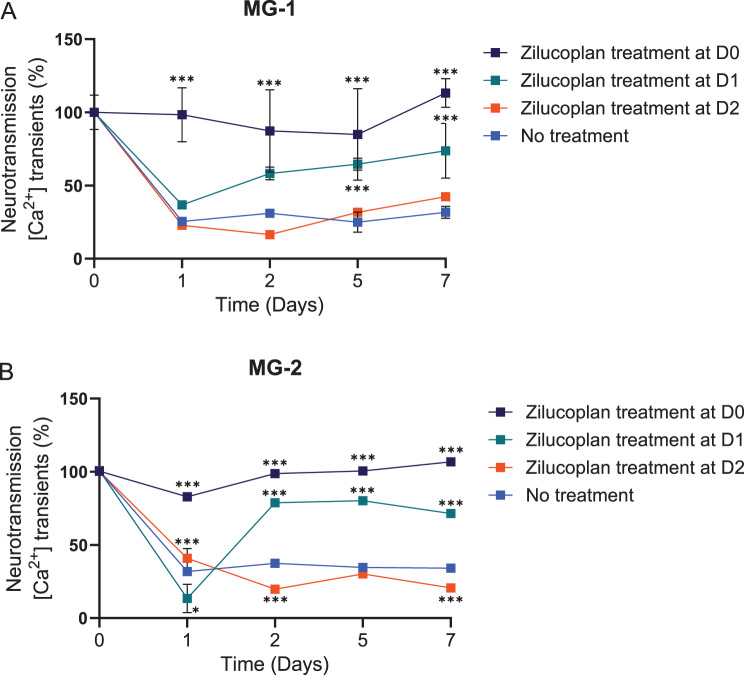

While the in vitro NMJ model appeared to be well suited to providing the value of complement inhibition in preventive treatment, we further explored the relevance of the model for studies into the reversibility of NMJ damage. The NMJ tissues functionally assembled inside the NeuroMuscle^TM^ platform enabled the performance of repeated precise measurements of neuromuscular transmission from the same tissue before exposure (Day 0) and after incubation with sera from patients with MG (Days 1, 2, 5, and 7). MG patient sera induced 70–80% of functional impairment in the NMJ neurotransmission after 24 hours, which did not recover by Day 7. However, after simultaneous treatment with zilucoplan and both MG-1 and MG-2 sera (Table 1), the stability of the NMJ was maintained for up to 7 days and neurotransmission did not decline over time (zilucoplan treatment at Day 0, Figs. 5A and B). When the MG patient serum was supplemented with zilucoplan on Day 1, NMJ function was significantly recovered by Day 7. In contrast, when zilucoplan was added after 2 days of incubation with MG patient sera, no recovery in neurotransmission was observed by Day 7. These results imply that reducing the time of delay for complement inhibitor treatment in the in vitro NMJ tissues leads to improvement of the reversibility of neuromuscular transmission.Fig. 5. Evaluating the reversibility of NMJ functional impairment caused by MG patient sera. The in vitro NMJ model was used to evaluate the impact of complement inhibition on neuromuscular transmission when exposed to MG patient sera. NMJ tissues were incubated with (A) MG-1 and (B) MG-2 sera for either 24 or 48 hours, followed by treatment with the complement inhibitor zilucoplan for up to 7 days. Measurements of neuromuscular transmission were taken at multiple time points (Days 0, 1, 2, 5, and 7). 1 µM zilucoplan was used for all treatment groups. Fluorescence intensity was shown as mean ± sd. n = 3. ^^p < 0.05; ^**^p < 0.001. Statistical significance compared with no treatment group was analysed by ANOVA (Tukey test) using GraphPad software. ANOVA, analysis of variance; D, Day; MG, myasthenia gravis; NMJ, neuromuscular junction; SD, standard deviation
