Cortical Response to Acute Implantation of the Utah Optrode Array in Macaque Cortex
Adrián Villamarin‐Ortiz, Christopher F. Reiche, Frederick Federer, Andrew M. Clark, John D. Rolston, Cristina Soto‐Sánchez, Eduardo Fernandez, Steve Blair, Alessandra Angelucci
TL;DR
This study tests a new device for delivering light deep into the brain of non-human primates, finding that smaller and smoother designs cause less tissue damage.
Contribution
The study introduces the Utah Optrode Array and identifies design features that minimize acute cortical damage in non-human primates.
Findings
Smaller shank diameter, smooth texture, and round tips cause the least tissue damage.
Higher insertion pressure leads to greater tissue compression but limited inflammation.
Optimized UOA design improves biocompatibility and long-term performance in large-brained species.
Abstract
Optogenetics has transformed neural circuit studies, but its application to large‐brained species like non‐human primates (NHPs) remains limited. A major challenge in NHP optogenetics is delivering light to large volumes of deep neural tissue with high spatiotemporal precision, without affecting superficial tissue. To overcome these limitations, we recently developed and tested in vivo in NHP cortex, the Utah Optrode Array (UOA). This is a 10 × 10 array of penetrating glass shanks, tiling a 4 × 4 mm2 area, bonded to interleaved needle‐aligned and interstitial µLED arrays, enabling independent photostimulation of deep and superficial tissue. Here, the acute biological response to UOA implantation in NHP cortex is investigated, to optimize device design for reduced insertion trauma and chronic response. To this goal, UOA shank diameter, geometry, and insertion pressure are varied, and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8| CASE # | UOA# | Shank Diameter[µm] | Shank Surface | Tip geometry | Insertion Pressure/Duration [psi/ms] | Duration of implant [hr:min] | Figures |
|---|---|---|---|---|---|---|---|
| MK394‐LH |
B2‐2 NA‐2 |
60 85 |
smooth rough |
round sharp |
20/30 10/30 |
1:00 1:45 |
|
| B1‐1 | 85 | smooth | round | 10/30 | 2:00 |
| |
| I1 | 100 | smooth | round | 15/30 | 1:20 |
| |
| MK397‐RH | 60r | 60 | rough | sharp | 18/30 | 1:30 |
|
| 60s | 60 | smooth | round | 18/30 | 1:25 |
| |
| 85r | 85 | rough | sharp | 18/30 | 1:50 |
| |
| 85s | 85 | smooth | round | 18/30 | 1:45 | ‐ | |
| 100r | 100 | rough | sharp | 18/30 | 1:40 |
| |
| 100s | 100 | smooth | round | 18/30 | 1:35 |
| |
| MK406‐RH | 2 | 60 | rough | sharp | 9/30 | 2:00 |
|
| 3 | 60 | smooth | round | 20/30 | 3:10 |
| |
| 4 | 85 | rough | sharp | 9/50 | 1:30 |
| |
| 5 | 85 | smooth | round | 9/50 | 1:50 |
| |
| 6 | 100 | rough | sharp | 9/50 | 1:17 |
| |
| 7 | 100 | smooth | round | 9/50 | 1:25 |
|
- —BRAIN Initiative grant
- —National Science Foundation10.13039/100000001
- —NIH10.13039/100000002
- —Research to Prevent Blindness Inc. (or RPV)
- —Ministerio de Ciencia, Innovación y Universidades10.13039/100014440
- —Generalitat Valenciana10.13039/501100003359
- —European Union's Horizon 2020 Research and Innovation Programme
- —Mary Boesche Endowment
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNeuroscience and Neural Engineering · Photoreceptor and optogenetics research · Advanced Memory and Neural Computing
Introduction
1
Optogenetics has transformed the study of neural circuit function,^[^ 1 ^]^ and offers great potential for clinical applications.^[^ 2 ^]^ Unlike conventional electrical microstimulation,^[^ 3 ^]^ optogenetics allows for manipulations of neural activity in a cell‐type specific manner at physiologically relevant time scales. While progress in the application of cell type‐specific optogenetics to species with large brain sizes, such as non‐human primates (NHPs), has lagged behind that in the mouse,^[^ 4 ^]^ recent advances in viral technology^[^ 5, 6, 7, 8, 9, 10 ^]^ are rapidly opening up new opportunities to study neural circuits in NHPs and even humans. Extending optogenetics to NHPs is important for understanding neural circuit function and dysfunction in human neurological and psychiatric disorders,^[^ 11, 12 ^]^ as this species is the closest to humans and provides an essential technology testbed for the development of optogenetic therapies.^[^ 13 ^–^ 16 ^]^
Despite recent advances, a primary limitation in the application of optogenetics to NHPs has been the difficulty of delivering light of sufficient irradiance to deep neural tissue across large brain volumes, to modulate relevant circuits and behavior. Photostimulation through the brain surface, a widely used light delivery approach,^[^ 17, 18, 19, 20 ^]^ limits photoactivation to a depth of <1 mm, due to light scattering and absorption within brain tissue.^[^ 21 ^]^ Moreover, this approach does not allow to restrict photostimulation to deep neural tissue without also activating superficial tissue. Penetrating probes, instead, allow for focal light delivery at depths >1 mm,^[^ 22, 23 ^]^ but current devices applicable to NHP studies are limited to a single optical fiber,^[^ 24, 25, 26 ^]^ or few (up to 4) optical fibers as in the commercially available Plexon opto‐probe,^[^ 27 ^]^ which only allow for a total activation volume of a few hundred microns in diameter.
To overcome the limitations of available devices for optogenetic stimulation in NHPs, we recently developed, and tested in vivo in NHP cortex, the Utah Optrode Array (UOA).^[^ 28, 29 ^]^ Inspired by the widely used, FDA‐approved, Utah Electrode Array (UEA) for microcurrent delivery,^[^ 30 ^]^ the UOA is capable of independently delivering light to deep and superficial brain tissue over a large volume with high spatio‐temporal precision. It consists of a 10 × 10 array of penetrating glass needle shanks, acting as light waveguides to deep tissue, tiling a 4 × 4mm^2^ area, bonded to an electrically‐addressable µLED array independently delivering light through each shank. A second 9 × 9 µLED array is interleaved with the needle‐aligned µLED array and matrix‐addressed for independent surface stimulation.^[^ 28, 31, 32 ^]^ In vivo testing in acute anesthetized NHP visual cortex demonstrated the UOA allows for spatiotemporally patterned photostimulation of deep cortical layers with sub‐millimeter resolution over a large volume, and that this selectivity can be scaled up by varying the number of simultaneously activated µLEDs and/or the light irradiance.^[^ 29 ^]^
Unfortunately, intracortical probes face significant biocompatibility challenges, as implantation of these devices disrupts the blood‐brain barrier, initiating an inflammatory response. This response often leads to the formation of a glial scar surrounding the device shanks, which can impair their long‐term functionality. Additionally, the extent of this reaction may escalate to a higher number of shanks in the tissue, further compromising the probe functionality over time.^[^ 33, 34 ^]^ While some studies have investigated flexible microelectrodes as an alternative to reduce inflammatory responses by conforming more closely to natural brain tissue movements,^[^ 35, 36, 37, 38 ^]^ these designs lack the necessary rigidity and may bend during implantation, compromising the precision of targeting the intended sites.^[^ 39 ^]^ In contrast, the UOA, with its structural robustness and established use in intracortical applications, may remain the preferred choice for targeted photostimulation, particularly in large brains.
Understanding and enhancing the biocompatibility of the UOA is essential to mitigate adverse responses and improve long‐term probe performance. Acute tissue responses are particularly valuable, as they offer early insights into initial tissue reactions upon device implantation. By minimizing insertion trauma during this phase, the risk of subsequent chronic responses may be significantly reduced.^[^ 40 ^]^
This study aimed to elucidate the acute biological response to UOA implantation in a NHP model. We systematically varied key physical and mechanical parameters of the UOA, including shank diameter, surface texture/tip geometry, and insertion pressure, to assess their effects on astrocytes, microglia, and neuronal preservation following acute implantation. Investigating how these design features influence acute responses will guide a more comprehensive optimization of intracortical device design and insertion procedures, potentially minimizing tissue damage while ensuring sustained functionality over extended periods.
Results
2
The Utah Optrode Array (UOA)
2.1
The UOA is a 10 × 10 array of penetrating glass optical needle shanks with customizable length (up to 2.5 mm) and width (60‐120 µm) on a 400 µm pitch, tiling a 4 × 4 mm^2^ area (Figure 1A,B). The penetrating shanks deliver light to deep brain tissue. In its “active” form, the device is bonded to an electrically addressable µLED array which allows for independent light delivery through each shank through the shank tip,^[^ 31, 32 ^]^ and to an interleaved 9 × 9 µLED array for surface illumination between the shanks. The UOA is based on the geometry of the UEA,^[^ 30 ^]^ but its shank width is smaller than that of the UEA at the base (150 µm), and, unlike the UEA, does not taper (to prevent light leakage), therefore at the tip it is slightly wider than the UEA. Its tip geometry can be controlled through the fabrication process, from sharp (but still wider than the UEA) to round (Figure 1C). Tip geometry affects both the light coupling efficiency and the light emission profile, with more rounded tips giving higher peak irradiance and deep illumination, and sharper tips giving less irradiance and a lateral illumination profile.^[^ 28 ^]^ However, sharper tips require less insertion force than round tips to penetrate brain tissue, with consequent reduced tissue trauma and vascular damage.^[^ 41 ^]^ To reduce the surface roughness of the shanks resulting from prior fabrication steps, the UOA must undergo a high temperature annealing/reflow step,^[^ 31, 32 ^]^ and the longer the reflow phase is performed, the smoother the shanks become. Smoother surfaces reduce light scattering in the shank. However, the annealing step also causes a rounding of the corners at the shank tip, which therefore becomes more rounded (hemispherical) in shape, the smoother the shank surface becomes. More rounded tips penetrate tissue less easily than sharper tips, presumably causing more damage. Therefore, the fabrication process needs to achieve a fine balance between minimizing surface roughness, for more efficient light coupling, and tip roundness, for easier tissue penetration. However, the fabrication process does not allow decoupling surface texture from tip geometry, i.e., it is not possible to fabricate a UOA with a perfectly smooth surface and sharp tips. Therefore, we selected the two geometries that represented the best compromise between these two parameters: the smooth/round geometry, which compromises a little on the sharpness of the tip, but has a smoother surface, and the rough/sharp geometry which compromises on surface smoothness, but has a sharper tip. The smooth round geometry devices underwent an annealing step (heating at 725 °C for 2 h), while the rough/sharp ones were diced and etched, but not annealed.

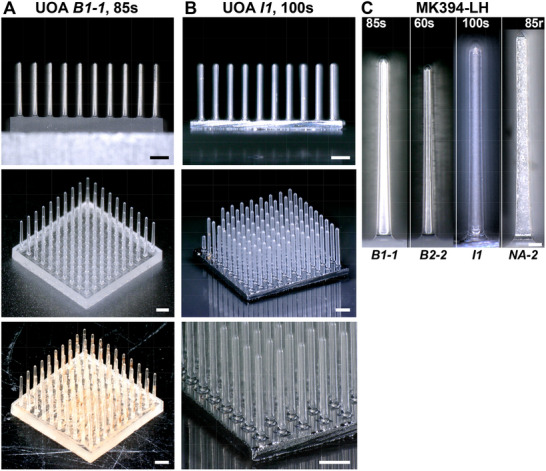

Implanted UOAs in case MK394‐LH. A) UOA B1‐1 (85 µm shank diameter, 1.44 mm shank length, smoot surface, round tip; see Table 1) before implantation viewed from the side (Top) and the top (Middle) and after explantation (Bottom). The explanted UOA retained all the shanks present prior to implantation. No shank was broken or damaged as a result of implantation. B) UOA I1 (100 µm shank diameter, 1.51 mm shank length, smooth surface, round tip, with an optical interposer; see Table 1) before implantation viewed from the side (Top) and the top (Middle) and at higher magnification (Bottom). Prior to implantation this UOA had 4 missing shanks, and a total of 96 intact shanks. Scale bars in (A‐B): 500 µm. C) Shank profile of each of the 4 UOAs implanted in case MK394‐LH. Shank diameter and surface texture for each UOA are indicated at the top of each panel and case number at the bottom (for additional parameters see Table 1). Shank length for UOAs B2‐2 and NA‐2 was 1.37 and 1.69 mm, respectively. Scale bar: 100 µm.
Recently, we developed and tested in vivo in macaque visual cortex^[^ 28, 29 ^]^ a second generation device, which incorporates an optically opaque interposer layer with circular openings (or vias) in correspondence of the shanks, so that light emitted by the µLED array only transmits through the shank tips, preventing unwanted surface illumination via the inter‐shank space and inter‐shank cross talk. An example second generation device with an interposer layer is shown in Figure 1B and in the bottom panel of Figure 2A (the 100s UOA‐I1). Here we assessed potential acute tissue damage caused by insertion of the UOA. To this goal we inserted a total of 16 “passive” UOAs (1 of which incorporated the interposer layer, I1) in one hemisphere of 3 macaque monkeys (Figure 2A). The term “passive” refers to the UOA without integrated µLED arrays as opposed to the “active” UOA.^[^ 28, 29 ^]^ The implanted UOAs differed in shank diameter (60, 85, or 100 µm), and surface texture (smooth, “s”, or rough, “r”)/tip geometry (round or sharp), as illustrated in Figure 1C. Shank length varied across UOAs between 1.3 and 1.7 mm. For insertion, each UOA was positioned over the cortex and its backplane was struck with a high‐speed pneumatic hammer specifically designed to minimize tissue damage for insertion of the Utah Electrode Array^[^ 42 ^]^ (see Experimental Methods). To minimize tissue damage from excessive pressure of the UOA backplane, we used a 1 mm spacer, in order to obtain a partial insertion of the UOAs (all of which were longer than 1 mm; Figure S1, Supporting Information). To understand how insertion pressure affects tissue damage, we varied pulse pressure (9‐20 psi), while pulse duration was relatively constant across insertions. This pressure range is within the limits of what is applicable, as using pressures <9 psi fails to insert the UOAs, while pressures >20 psi causes the UOA to slam the cortical surface, and completely abolish neural activity. The UOAs were left in place for 1–2 h (one was implanted for 3 h) before being explanted and examined. An example UOA after explantation is shown in the bottom panel of Figure 1A. The properties and insertion parameters of all implanted UOAs in each animal are reported in Table 1.

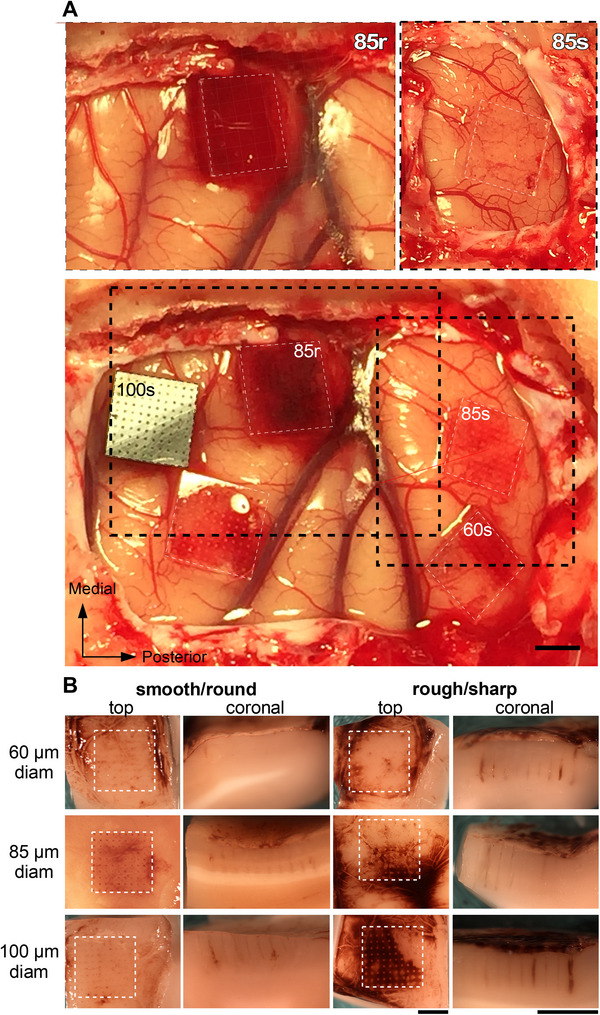

Surgical implantation of UOAs and macroscopic brain appearance after UOA explantation. A) Five UOAs inserted in one hemisphere of a macaque monkey (case MK394‐LH). Top: two UOAs of 85 µm shank diameter, one with rough surface/sharp tip (85r; Left), the other with smooth surface/round tip (85s; Right) shown immediately after insertion. The 85r UOA caused significant bleeding immediately after insertion, while no bleeding was observed immediately after insertion of the 85s UOA. Bottom: all 5 UOAs on completion of the insertion (≈2 h after insertion of the first UOA). Dashed black boxes: same regions as shown in the top panels, 2 h after insertion of the 85s UOA. The smooth/round UOAs caused less bleeding than the rough/sharp UOAs. There is more bleeding under the 85s UOA 2 h after insertion compared to immediately after insertion (Top right). The 100s UOA has an interposer layer with optical vias. Scale bar: 2 mm, valid for all panels in (A). Each UOA is outlined by a white dashed box to facilitate identification of the insertion sites. Only 4 of the 5 UOA insertion sites were included in the analysis (the unlabeled UOA was excluded due to accidental damage of the tissue during excision). B) Macroscopic examination of six example cortical implantation sites (one per UOA geometry), after UOA explantation. The left two columns show top and coronal views, respectively, of the implantation sites for the smooth/round UOAs, while the right two columns show the implantation sites for the rough/sharp UOAs. Top, Middle, and Bottom row: implantation sites of 60, 85, and 100 µm shank diameter UOAs, respectively. Scale bars: 2 mm valid for all panels in (B). All images in (B) are from case MK397‐RH, except for the middle left two panels which are from case MK394‐LH (Table 1).
Macroscopic Examination
2.2
Figure 2A shows one example case (MK394‐LH) in which 5 UOAs were inserted in the posterior half of one hemisphere in a macaque monkey. The top two panels show insertion of an 85µm‐rough/sharp UOA (left panel) and an 85µm‐smooth/round UOA (right panel) immediately after insertion, while the bottom panel shows all 5 UOAs on completion of the insertion (≈2 h later). The rough/sharp UOA and those with largest shank diameters (100 µm) typically caused more bleeding than the smooth/round and lower diameter UOAs, both immediately upon insertion and over the 2‐h period.
Figure 2B shows the surface (top view) and a coronal view (across cortical layers) of the insertion sites after the UOA were explanted, for each type of inserted UOA (see Table 1 for case numbers). Macroscopic examination of the cortical implantation site revealed that all UOAs caused minimal brain edema. In some cases, we observed interstitial microhemorrhages emanating from the tracks left by the optrode shanks that extended in one or more directions. These microhemorrhages were limited to within a few millimeters of the optrode tracks and were more evident at the sites of rough/sharp UOA insertion compared to smooth/round UOA insertion sites. This damage seemed to result from the blood vessels encountered in the path of the penetrating optrode shanks, in addition to some mechanical damage of the small capillaries.
Microscopic Examination: Glial Response and Neuronal Viability
2.3
Astrocyte Activation
2.3.1
To identify both resting and activated astrocytes, we immunostained coronal tissue sections for the glial fibrillary acidic protein (GFAP). For each implanted UOA, we selected one tissue section, specifically the one containing the largest number of tracks left by the inserted device shanks and full shank lengths. On this section, we quantified the amount of GFAP immunostaining as Integrated Density (see Experimental Methods for how this was measured), at 4 depths along each of the tracks left by the UOA shanks, specifically at 0–200 µm, 400–600 µm, 800–1000 µm and 1300–1500 µm, approximately corresponding to cortical layers 1–2, 3, 4 and 5–6, respectively. Figure 3A,B shows representative images of GFAP staining at the UOA implantation site and in control non‐implanted tissue from the same tissue section, for a smooth/round (A) and a rough/sharp (B) UOA of 60 µm shank diameter. Figure 3C,D,E,Fshow equivalent images for UOAs of 85 and 100 µm shank diameter, respectively.

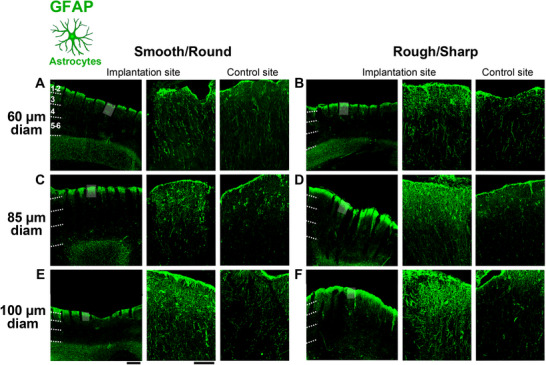

GFAP immunoreactivity in response to insertion of UOAs of different shank diameters and geometries. A) Left: low power micrograph of a coronal section immunostained for GFAP at the site of implantation of a 60µm‐shank diameter smooth/round UOA. The tracks left by the UOA shanks are visible. The area corresponding to the shaded box is shown at higher power in the middle panel. Dashed lines mark cortical layer boundaries, which are indicated. Middle: higher magnification of the region corresponding to the shaded box in the left panel. Right: higher magnification micrograph of GFAP‐IHC at a non‐implanted control site in the same section. B) Same as in (A), but for a rough/sharp UOA implantation and respective control sites. C) Same as (A), but for an 85µm‐shank diameter smooth/round UOA implantation and respective control sites. D) Same as (B), but for an 85µm‐shank diameter rough/sharp UOA implantation and respective control sites. E) Same as (A,C), but for a 100µm‐shank diameter smooth/round UOA implantation and respective control sites. Scale bars: 500 µm (left) and 100 µm (right), and valid for all equivalent panels in (A–F). F) Same as (B,D), but for a 100µm‐shank diameter rough/sharp UOA implantation and respective control sites. Case number is: MK406RH for panels A–F (Table 1).
GFAP immunoreactivity was increased, relative to control sites, near the shank tracks, primarily in the most superficial layers (L1‐2), forming a densely packed layer of astrocytes across all evaluated UOA insertions. Control sites, instead, showed a normal population of GFAP+ astrocytes. Qualitatively, GFAP immunoreactivity appeared to increase with UOA shank diameter, and for each diameter it was higher for rough/sharp versus smooth/round UOAs (Figure 3).
In Figure 4A, GFAP+ immunostaining is quantified at each cortical depth for UOAs of different diameters and geometries (smooth/round vs rough/sharp), as GFAP Integrated Density at the implantation site normalized to GFAP Integrated Density at each respective control site. Note that in the figures, for simplicity we use the layer nomenclature, but measurements were made at fixed depths across cortical areas of UOA insertions. Overall, GFAP immunoreactivity increased with increasing UOA shank diameter and roughness/sharpness of the shanks. Thus, at all cortical depths both larger diameters and rough/sharp geometries generally, although not always, elicited more significant astrocyte reactions. Figure S2 (Supporting Information) shows the results of the statistical comparisons. Specifically, in Figure S2A (Supporting Information) for each UOA shank diameter, raw GFAP Integrated Density for smooth/round and rough/sharp UOAs is compared to GFAP Integrated Density in the control, across cortical depths (Mann‐Whitney test). In all layers, most UOAs, irrespective of shank diameter and geometry, caused a significant increase in GFAP immunoreactivity compared to control, but this increase was generally greater, and more significantly so, for the rough/sharp UOA geometry. Figure S2B (Supporting Information) shows how shank diameter affects astrocyte response. In this figure, absolute GFAP Integrate Density for smooth/round UOAs and rough/sharp UOAs is compared across UOAs of different shank diameters (Kruskal‐Wallis test, with Dunn's correction for multiple comparisons). For the smooth/round UOAs, larger diameters caused significantly greater increases in GFAP immunoreactivity in the layers of UOA insertion, i.e., L1‐4, but no significant differences in GFAP immunoreactivity were observed in deeper tissue (L5‐6) across UOA of different diameters. For the rough/sharp UOAs, in all layers the 85 µm shank diameter ones caused the largest increase in GFAP immunoreactivity, while the 100 µm shank diameter UOAs caused the least increase in GFAP immunoreactivity at all depths, except in L1‐2. Figure S2C (Supporting Information) shows how UOA geometry affects astrocyte response. For each UOA shank diameter, GFAP Integrated Density is compared for smooth/round versus rough/sharp UOAs across cortical depths (Mann‐Whitney test). At the smaller diameters (60 and 85 µm), the rough/sharp UOAs generally caused greater increases in GFAP immunoreactivity compared to smooth/round UOAs. For the 100 µm diameter UOAs, either there was no difference in GFAP Integrated Density between smooth/round and rough/sharp devices or the latter showed lower GFAP Integrated Density. This suggests that the largest diameter UOAs cause significant damage whether they are smooth/round or rough/sharp, but it is possible that at this larger shank diameter, the sharper tip of the rough UOA may cause less damage, as it penetrates tissue more easily than the round tip of the smooth UOA (see Discussion).

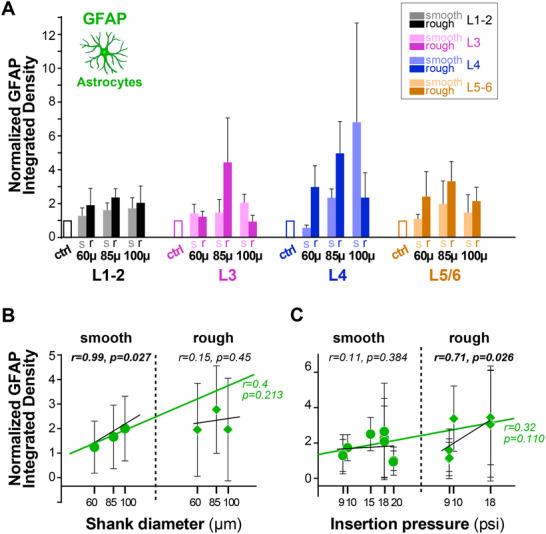

Quantification of GFAP immunoreactivity across cortical depths/layers in response to UOA insertion. A) Integrated GFAP Density (a measure of astrocyte activation, see Experimental Methods) at different cortical depths (here indicated as cortical layers) following implantation of UOAs of different diameters (60, 85, and 100 µm) and geometries (s: smooth/round; r: rough/sharp) (n = 3 60s, 2 60r, 3 85s, 3 85r, 3 100s, 2 100r. Integrated Density at the implantation site is normalized to Integrated Density at the control site (ctrl). Error bars: s.e.m. B) Normalized GFAP Integrated Density as a function of shank diameter for smooth/round (circles) and rough/sharp (diamonds) UOAs. Black lines: lines of best fit (regression) for the individual smooth and rough UOA populations. Green line: line of best fit for the two populations pooled together. r and p values are indicated. C) Normalized GFAP Integrated Density as a function of pressure applied with the pneumatic inserter to insert the UOA into the cortex. Other conventions are as in (B).
Figure 4B summarizes how GFAP immunoreactivity varies as a function of UOA shank diameter separately for smooth/round and rough/sharp UOAs, as well as jointly (smooth and rough pooled together by shank diameter). Overall, we observed a positive correlation between GFAP Integrated Density and shank diameter for both geometries, although this correlation was statistically significant only for the smooth/round geometry (r = 0.99, p = 0.0268, Pearson's correlation).
We also investigated how GFAP immunoreactivity varied as a function of the pressure applied with the pneumatic inserter during UOA insertion. We found a statistically significant positive correlation between GFAP Integrated Density and insertion pressure only for the rough/sharp geometry (r = 0.71, p = 0.0257, Pearson's correlation; Figure 4C). There were, however, various outliers in this analysis, which likely reflect the combined effect of insertion pressure and shank diameter. For example, the two outlier cases at 20 psi in the left panel of Figure 4c corresponded to the smallest shank diameter (60 µm) UOAs, which the previous analysis showed are associated with the lowest astrocytic activation. This suggests that shank diameter in these cases counteracted the effects of higher insertion pressure on astrocytic activation.
Microglial Activation
2.3.2
To identify resting and activated microglia/macrophages, we quantified immunostained tissue sections for the calcium binding adaptor molecule, Iba1, at the same 4 depths along the UOA shank tracks used for GFAP analysis. Representative images of Iba1 immunohistochemistry (IHC) at the implantation and control sites for UOAs of various diameters and geometries are shown in Figure 5. This analysis was performed on the same sections used for the analysis of GFAP immunoreactivity as these sections were double‐stained for both GFAP and Iba1 (see Figure S3, Supporting Information). For all cases, qualitative observations indicated increased Iba1 immunoreactivity compared to control sites, and this increase appeared greater at the 100µ‐diameter UOA implantation sites, particularly for the rough/sharp geometries.

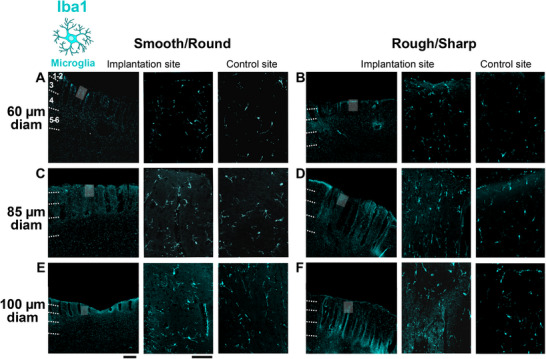

Iba1 immunoreactivity in response to insertion of UOAs of different shank diameters and geometries. A) Left: low power micrograph of a coronal section immunostained for Iba1 at the site of implantation of a 60µm‐shank diameter smooth/round UOA. Conventions are as in Figure 3A. Middle: higher magnification of the region corresponding to the shaded box in the left panel. Right: higher magnification micrograph of Iba1‐IHC at a non‐implanted control site in the same section. B) Same as in (A), but for a rough/sharp UOA implantation and respective control sites. C) Same as (A), but for an 85µm‐shank diameter smooth/round UOA implantation and respective control sites. D) Same as (B), but for an 85µm‐shank diameter rough/sharp UOA implantation and respective control sites. E) Same as (A,C), but for a 100µm‐shank diameter smooth/round UOA implantation and respective control sites. Scale bars: 500 µm (left) and 100 µm (right), and valid for all equivalent panels in (A–F). F) Same as (B,D), but for a 100µm‐shank diameter rough/sharp UOA implantation and respective control sites. Case number is: MK406RH for panels A‐F (Table 1).
In Figure 6A, Iba1+ immunostaining is quantified across cortical depths/layers for UOAs of different diameters and geometries (smooth/round vs rough/sharp), as Iba1 Integrated Density at the implantation site normalized to Iba1 Integrated Density at each respective control site, and statistical comparisons are shown in Figure S4 (Supporting Information). Iba1 immunoreactivity was increased relative to controls at all shank diameters at the most superficial depths (L1‐2), but in deeper layers only the 100µm‐diameter UOAs caused significant increases relative to controls (Figure S4A, Supporting Information). The 100 µm diameter UOAs caused a higher increase in Iba1 immunoreactivity compared to the 60 µm and often the 85 µm diameter UOAs, but in most instances there was no significant difference in Iba1 immunoreactivity at the implantation sites of the 60 and 85 µm diameter UOAs (Figure S4B, Supporting Information). Shank geometry did not seem to significantly affect Iba1 immunoreactivity, but in some layers, particularly for the smallest diameter UOAs, the smooth/round geometry caused slightly higher Iba1 immunoreactivity compared to the rough/sharp geometry. This difference was statistically significant for the 60 µm shank diameter in L1‐2 (p = 0.0267) and L4 (p = 0.0358), and for the 85 µm shank diameter in L3 (p<0.0001) and L5/6 (p<0.0144) (Figure S4C, Supporting Information). Figure 6B summarizes the overall effect of diameter on Iba1 immunoreactivity. There was a strong positive correlation between Iba1 Integrated Density and shank diameter for both smooth/round (r = 0.99; Pearson correlation) and rough/sharp (r = 0.96) geometries, as well as for both geometries pooled together (r = 0.9), but this correlation was only statistically significant for the smooth/round geometry (p = 0.0308) and the overall population pooled across geometries (p = 0.0071). Insertion pressure did not affect Iba1 immunoreactivity; there was no significant correlation between Iba1 immunoreactivity and UOA insertion pressure (Figure 6C).

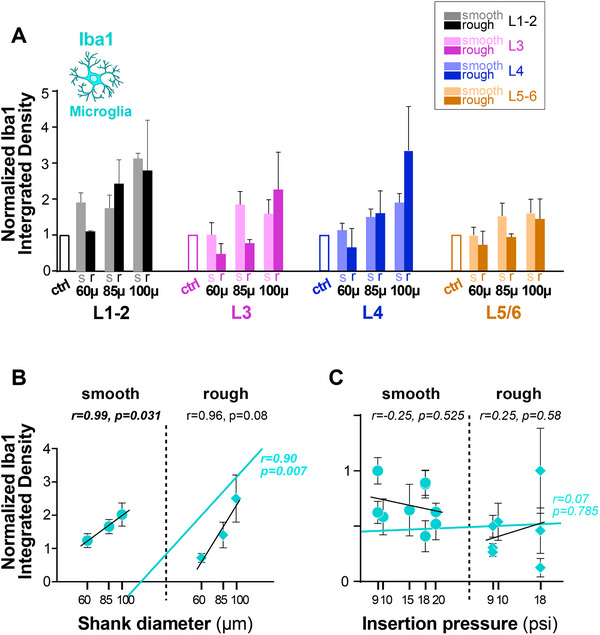

Quantification of Iba1 immunoreactivity across cortical depths/layers in response to UOA insertion. A) Integrated Iba1 Density (a measure of microglia activation) in different layers following implantation of UOAs of different diameters and geometries (s: smooth/round; r: rough/sharp; n as in figure legend 4.). Integrated Density at the implantation site is normalized to Integrated Density at the control site (ctrl). Error bars: s.e.m. B) Normalized Iba1 Integrated Density as a function of shank diameter for smooth/round (circles) and rough/sharp (diamonds) UOAs. Black lines: lines of best fit (regression) for the individual smooth and rough UOA populations. Cyan line: line of best fit for the two populations pooled together. r and p values are indicated. C) Normalized Iba1 Integrated Density as a function of pressure applied with the pneumatic inserter to insert the UOA into the cortex. Other conventions are as in (B).
Neuronal Viability
2.3.3
Survival of neurons is crucial for the success of technologies based on optogenetics. Furthermore, neuronal cell bodies must be as close as possible to the optrode shanks for optimal device function. We used IHC against the neuronal nuclear protein NeuN to identify neurons. This protein is localized in the nuclei and perinuclear cytoplasm of most types of neurons across the nervous system and is not expressed in glial cells, therefore it is a specific neuronal marker. Representative images of NeuN‐IHC at the implantation and control sites for UOAs of various diameters and geometries are shown in Figure 7. This analysis was performed on the same sections used for the analysis of GFAP immunoreactivity, which were double‐stained for both GFAP and NeuN (see Figure S5, Supporting Information). Qualitative observations indicated that for UOAs of smooth/round geometry, NeuN Integrated Density was reduced for the 85 µm and 100µm‐diameter UOAs relative to control, but not for the smallest diameter UOA. Moreover, for this geometry, NeuN Integrated Density appeared to decrease with increasing UOA diameter (Figure 7A,C,E). For the rough/sharp UOA geometry, instead, all, but the 100 µm diameter, UOAs caused a decrease in NeuN immunoreactivity relative to control. Surprisingly NeuN Integrated Density appeared higher for the 100 µm diameter rough/sharp UOA compared to both the control and implantation sites of smaller diameter UOAs (Figure 7B,D,F).

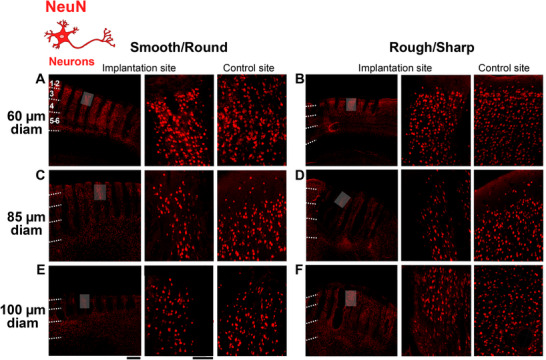

NeuN immunoreactivity in response to insertion of UOAs of different shank diameters and geometries. A) Left: low power micrograph of a coronal section immunostained for NeuN at the site of implantation of a 60µm‐shank diameter smooth/round UOA. Conventions are as in Fig. 3A. Middle: higher magnification of the region corresponding to the shaded box in the left panel. Right: higher magnification micrograph of NeuN‐IHC at a non‐implanted control site in the same section. B) Same as in (A), but for a rough/sharp UOA implantation and respective control sites. C) Same as (A), but for an 85µm‐shank diameter smooth/round UOA implantation and respective control sites. D) Same as (B), but for an 85µm‐shank diameter rough/sharp UOA implantation and respective control sites. E) Same as (A,C), but for a 100µm‐shank diameter smooth/round UOA implantation and respective control sites. Scale bars: 500 µm (left) and 100 µm (right), and valid for all equivalent panels in (A–F). F) Same as (B,D), but for a 100µm‐shank diameter rough/sharp UOA implantation and respective control sites. Case number is: MK406RH for panels A–F (Table 1).
In Figure 8A, NeuN immunostaining is quantified across cortical depths for UOAs of different diameters and geometries (smooth/round vs rough/sharp), as NeuN Integrated Density at the implantation site normalized to NeuN Integrated Density at each respective control site, and statistical comparisons are shown in Figure S6 (Supporting Information). Implantation of smooth/round UOAs of 85 and 100 µm diameters significantly decreased NeuN immunoreactivity relative to controls in most layers. The 60 µm diameter smooth/round UOAs, instead, caused no change in NeuN Integrated Density relative to controls in all layers, but L1/2 where they showed a slight increase in NeuN Integrated Density relative to the control. The rough/sharp UOAs of 60 and 85 µm diameter significantly reduced NeuN Integrated Density in most layers compared to controls. In contrast, and consistent with qualitative observations, the 100 µm diameter UOAs of rough/sharp geometry caused no significant change in NeuN Integrated Density relative to controls in all layers, except L1‐2, where NeuN Integrated Density was increased by the largest diameter rough UOAs (Figure S6A, Supporting Information). These slight increases in NeuN immunoreactivity relative to control sites are likely due to tissue compression around the optrode shanks caused by UOA insertion. The effect of diameter on NeuN immunoreactivity is shown in Figure S6B (Supporting Information). For the smooth/round geometry, NeuN Integrated Density was significantly lower for the larger diameter UOAs compared to the 60 µm diameter UOA. In contrast, for the rough/sharp geometry, NeuN Integrated Density was higher for the 100 µm diameter UOAs compared to the smaller diameter UOAs. Shank geometry had opposite effects for small versus large diameter UOAs, with rough/sharp geometries being associated with lower NeuN Integrated Density in all layers for the 60 µm diameter UOA and in L1‐2 for the 85 µm diameter UOA, but it was associated with higher NeuN Integrated Density for the 100 µm diameter UOA (Figure S6C, Supporting Information). A similar result is conveyed in Figure 8B, which shows a high negative correlation (r = 0.87) of NeuN Integrated Density with shank diameter for smooth/round UOAs, but a positive correlation (r = 0.96) for rough/sharp UOAs (albeit these correlations did not reach statistical significance). NeuN Integrated Density across the population of smooth/round and rough/sharp UOAs showed a statistically significant positive correlation (r = 0.63, p = 0.0103; Pearson correlation) with UOA insertion pressure (Figure 8C), suggesting increasing tissue compression with insertion pressure and consequent apparent increase in neuronal density. This phenomenon may be the cause for the apparent increase in NeuN Integrated Density that we observed for the largest diameter rough/sharp UOAs. It is also possible that for the largest diameter UOAs the round tip causes relatively more damage (greater neuronal death) than the sharp tip as noted for other IHC markers above. The outliers in Figure 8C likely reflect the combined effect of insertion pressure and shank diameter. For example, the outlier case at 18 psi pressure in the right panel of Figure 8C was a small diameter (60 µm) UOA, indicating that for the smaller diameter UOAs, larger insertion pressure does not cause as much tissue compression as for larger diameter UOAs.

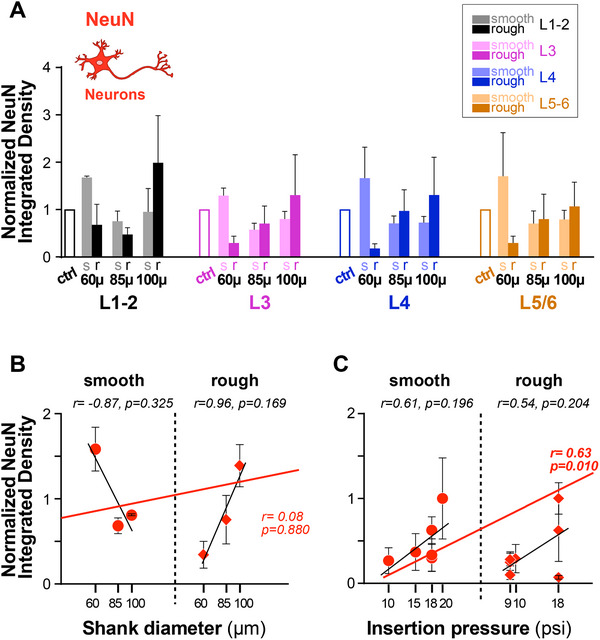

Quantification of NeuN immunoreactivity across cortical depths/layers in response to UOA insertion. A) Integrated NeuN Density (a measure of neuron density) in different layers following implantation of UOAs of different diameters and geometries (s: smooth/round; r: rough/sharp; n as in figure legend 4). Integrated Density at the implantation site is normalized to Integrated Density at the control site (ctrl). Error bars: s.e.m. B) Normalized NeuN Integrated Density as a function of shank diameter for smooth/round (circles) and rough/sharp (diamonds) UOAs. Black lines: lines of best fit (regression) for the individual smooth and rough UOA populations. Red line: line of best fit for the two populations pooled together. r and p values are indicated. C) Normalized NeuN Integrated Density as a function of pressure applied with the pneumatic inserter to insert the UOA into the cortex. Other conventions are as in (B).
