Imaging Characteristics of Primary Mucinous Cystadenocarcinoma of the Breast: A Case Report and Literature Review

TL;DR

This case report and literature review describe the imaging features of a rare breast cancer called mucinous cystadenocarcinoma to aid in its accurate diagnosis.

Contribution

The paper systematically summarizes the imaging characteristics of mucinous cystadenocarcinoma of the breast for the first time.

Findings

Mucinous cystadenocarcinoma typically shows clear borders and irregular edges on imaging.

MRI reveals non-mass-type enhancement with a rapidly rising plateau pattern in TIC.

Mammography often shows amorphous calcifications in the lesion area.

Abstract

Mucinous Cystadenocarcinoma (MCA) of the breast remains a relatively rare condition, and to date, there is no systematic summary of its imaging manifestations. Therefore, this report presents a detailed account of the diagnosis and treatment of mucinous cystadenocarcinoma in a 40-year-old woman, with a particular focus on imaging findings. Additionally, we conducted a comprehensive literature review on this disease and summarized its key imaging features. This manuscript provides valuable insights and methodologies for the accurate diagnosis of mucinous cystadenocarcinoma.

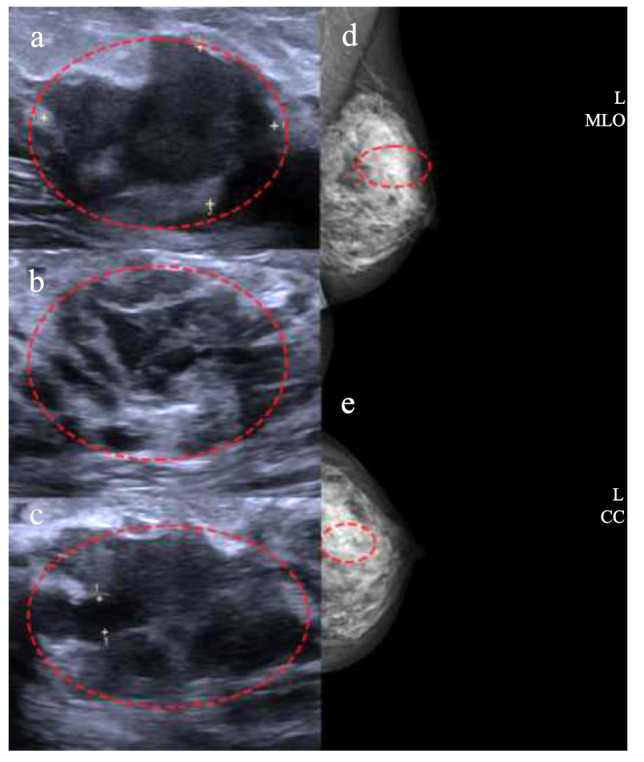

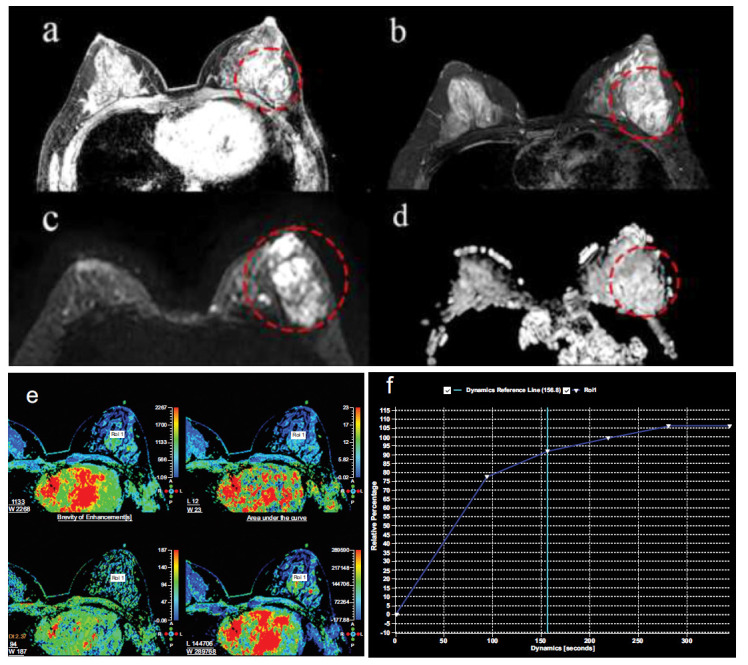

We report a 40-year-old premenopausal woman who discovered multiple cysts in her left breast five years ago. Over the past two years, the size of these tumors has increased. Ultrasound examination indicated that the cysts had grown to 27 x 17mm. Following a puncture, the cysts were confirmed to be benign and were not monitored regularly. A year later, the patient's mass in the left breast increased, and an ultrasound exam indicated a suspicious mixed echo area in the upper outer quadrant, suggestive of a malignant lesion. Mammography showed amorphous suspicious calcifications in the lesion area, distributed in segments. Contrast-enhanced magnetic resonance imaging displayed non-mass-type enhancement of the lesion, with a dynamic enhanced imaging time-signal intensity curve (TIC) showing a rapidly rising plateau pattern. Postoperative pathology confirmed invasive carcinoma of the left breast along with mucinous cystadenocarcinoma. Four months after surgery, the patient developed multiple abnormal lymph nodes in the left axilla, which were confirmed to be metastasis upon pathology examination. Following radiotherapy, the patient's condition remained stable during the follow-up period.

Most MCA lesions typically exhibit clear borders and irregular edges, with some displaying expansive growth and compression of surrounding tissues. Mammography can reveal calcified components in lesions. Ultrasound often reveals an isoechoic or hypoechoic mass with well-defined borders but irregular edges. Magnetic resonance imaging (MRI) can show clear boundaries and uneven enhancement of the lesions, and the time-intensity curve (TIC) of the mass area often shows an inflow enhancement pattern.
