Comparative transcriptomics of anthocyanin accumulation in the pericarp of pigmented purple corn
Anderson A. Holly, Paulsmeyer N. Michael, Juvik A. John
TL;DR
Researchers identified key genes involved in pigment production in purple corn, which could help develop natural food colorants.
Contribution
The study identifies Pl1, Lc1, P1, and Wrky33 as regulatory genes influencing anthocyanin accumulation in maize pericarp.
Findings
RNA-seq and WGCNA revealed Pl1, Lc1, P1, and Wrky33 as key regulators of anthocyanin content in maize pericarp.
Bulk segregant analysis identified Lc1 and Pl1 as major contributors to pericarp pigmentation in B73 Color Converted.
Enriched expression of anthocyanin transporters and Wrky33 was observed in pigmented pericarp fractions.
Abstract
RNA-seq, bulked segregant analysis, anthocyanin quantification, and WGCNA identified Pl1, Lc1, P1, and Wrky33 as important regulatory factors for enhancing anthocyanin content in maize pericarp. Anthocyanins are plant pigments that can be used as natural food colorants. We developed Midwestern, purple corn lines with enhanced anthocyanin content exclusively in the pericarp tissue layer: two lines near-isogenic to elite inbreds B73 and Mo17 (B73 Color Converted and Mo17 Color Converted, respectively) and two recombinant inbred lines (RILs) with diverse anthocyanin profiles (Amazonas and Maize Morado). In Experiment 1, a time-series, RNA-sequencing (RNA-seq) analysis of whole pericarp tissue was conducted on three pigmented genotypes (B73 Color Converted, Amazonas, and Maize Morado). Ultra-High-Pressure Liquid Chromatography (UHPLC) identified a dramatic increase in anthocyanin…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

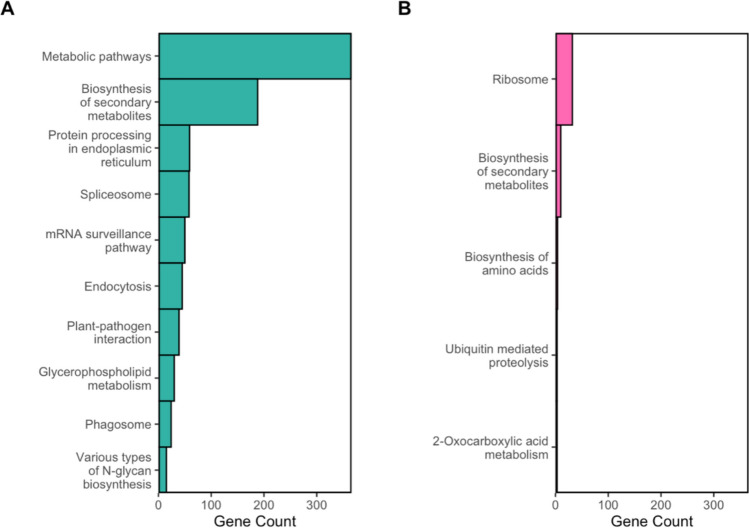

Figure 10
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsPlant Gene Expression Analysis · Horticultural and Viticultural Research · Phytochemicals and Antioxidant Activities
Introduction
Anthocyanins are pigments found throughout plant tissues. As antioxidative compounds, they function in a protective role against stressors, specifically oxidative stress induced by biotic and abiotic factors, such as pathogens and drought, respectively (Petroni et al. 2014; Dong and Lin 2021; Naing and Kim 2021). Anthocyanins are a class of flavonoids housed within the broader phenylpropanoid biosynthetic pathway. They are derived from anthocyanidins, a diverse family of compounds differentiated by the position of hydroxylation and methoxylation on their aromatic, B-ring (Valls et al. 2009; Riaz et al. 2016; Sendri and Bhandari 2024).
Maize accumulates three specific anthocyanidins: cyanidin, peonidin, and pelargonidin (Paulsmeyer et al. 2017). Once glycosylated, anthocyanidins become anthocyanins and may undergo additional modifications, including acylation, condensation with flavanols, and non-covalent copigmentation with other flavonoids, to influence hue and color stability (Asen et al. 1972; Riaz et al. 2016; Zhao et al. 2021). Anthocyanins are stored within the vacuole, and their hue, composition, and stability are largely influenced by the vacuolar pH, with visible red pigmentation present at low pHs (pH ≤ 3) where the flavylium cation prevails (Zhao et al. 2021).
With increased public demand for less processed foods, natural pigments are of interest to the food industry as an affordable and healthier alternative to synthetic food dyes. Relative to other natural pigments, anthocyanins are water soluble, facilitating simpler extractions without the use of harsh chemicals. Additionally, anthocyanin consumption is associated with health-promoting benefits such as lower risks of cardiovascular disease, cancer, obesity, and inflammation (Khoo et al. 2017). Optimization of anthocyanin production in a staple crop, such as maize, can seamlessly integrate natural colorants into a pre-existing, multi-billion-dollar supplement market (United States Department of Agriculture 2024). We initiated an anthocyanin-rich, pericarp-pigmented maize breeding program to address the need for alternative sources of natural dyes for processed foods and beverages. Efforts were focused on optimizing anthocyanin content in maize kernels as vegetables that comply with FDA requirements for “fruit or vegetable use for color” (CFR-Code of Federal Regulations Title 21). Relative to other perishable, anthocyanin-rich crops, maize was specifically selected for its unique dry-down ability, allowing for long-term storage prior to pigment extraction (Chatham et al. 2020). Anthocyanin biosynthesis has been well detailed in the maize aleurone layer, the kernel cell layer surrounding the endosperm, though the pericarp layer, the outermost layer of the kernel, reportedly accumulates higher quantities of anthocyanins that are more extractable (Sharma et al. 2011; Paulsmeyer et al. 2017; Chatham and Juvik 2021). While it is assumed that anthocyanin biosynthesis is similar between maize aleurone and pericarp tissues, each tissue has a distinct genetic origin, with the diploid pericarp derived from the maternal ovary and the triploid aleurone derived from the double fertilization of the ovule (García-Lara et al. 2019; Paulsmeyer and Juvik 2023a). Breeding efforts focused on pericarp pigmentation can produce larger quantities of anthocyanins to more efficiently meet demands for natural colorants.
Transcriptional regulation of anthocyanin biosynthesis is highly conserved among higher plants and facilitated by regulatory gene products. Activation of anthocyanin biosynthetic genes requires the assembly of the MBW (R2R3-MYB, bHLH, and WD-repeat proteins) complex. Pericarp pigmentation is assumed to be under similar regulatory mechanisms as vegetative tissues (Chatham and Juvik 2021). Based on this report, the predicted R2R3-MYB (myeloblastosis protein) of the MBW complex is Purple plant 1 (Pl1). Multiple bHLH (basic helix-loop-helix) proteins exist in maize—either the Leaf color1 (Lc1) gene within the Colored1 (R1) locus or the B1 (Booster1) gene confers pericarp pigmentation (Ludwig et al. 1989; Ludwig and Wessler 1990). The WD40 (WD-repeat) domain containing protein in pericarp is unknown. In aleurone, Pale aleurone color1 (Pac1) encodes the WD40 protein, but is not predicted to function in the pericarp MBW complex (Chatham & Juvik 2021; Selinger & Chandler 1999; Paulsmeyer and Juvik 2023b).
Although the molecular mechanisms of anthocyanin biosynthesis in maize aleurone are well characterized, few studies have conducted comprehensive transcriptome analyses of pericarp-pigmented maize tissues across development. To our knowledge, none have focused on near-isogenic or recombinant inbred anthocyanin-rich lines adapted to the Midwest. While a previous study aligned transcriptomic data from two pericarp-pigmented lines against the B73 reference genome (Li et al. 2022), we provide a more appropriate alignment using the transcriptome of a pericarp-pigmented line near-isogenic to B73. Additionally, transcriptomic analysis was conducted on a pericarp-pigmented line near-isogenic to Mo17 and two recombinant inbred lines (RILs) exhibiting high yields of diverse anthocyanins to identify novel candidate genes.
The aim of our study was to analyze developmental trends in gene expression of near-isogenic and inbred pericarp-pigmented maize lines to identify candidate genes for anthocyanin accumulation. Conservation of anthocyanin biosynthetic processes across kernel tissues of unique genetic origins (maternal and embryonic) was assessed by comparing the maize pericarp layer to the well-characterized maize aleurone layer. Here, we conducted two RNA-seq experiments: 1) using three pigmented lines compared to an unpigmented B73 control at three timepoints [10, 15, and 20 days after pollination (DAP)] and 2) using pigmented and unpigmented pericarp tissue fractions from the same kernel harvested at a timepoint of major anthocyanin accumulation in the pericarp (18 DAP). Understanding the temporal expression of anthocyanin biosynthetic genes during pericarp development is important for optimizing anthocyanin content through breeding programs for natural food colorants.
Materials and methods
Plant materials
A comprehensive survey of maize germplasm (Paulsmeyer et al. 2017) identified several donor landraces rich in anthocyanins and exhibiting pericarp pigmentation: Arequipa 35/Ames 8488 (North Central Regional Plant Introduction Station in Ames, IA, USA), “Inca Purple” (Amazonas Imports, Irwindale, CA, USA), and “Maize Morado” (Angelina’s Gourmet, Swanson, CT, USA). Elite maize inbreds with expired Plant Variety Protections (ex-PVP) and high heterotic expression were chosen to develop a breeding population (Hauck et al. 2014). Initial crosses were made in Summer 2014 between purple corn landraces and Midwestern ex-PVP inbreds: Arequipa 35 × B73, Arequipa 35 × Mo17, Inca Purple × LH123, and Maize Morado × PHG84. Near-isogenic color-converted lines were created in B73 and Mo17 backgrounds by backcrossing Arequipa 35 five times to the respective inbred, followed by at least five rounds of selfing. Kernel anthocyanin accumulation was selected for at each round of selection. The Amazonas inbred was generated from a cross (Inca Purple x LH123) then backcrossed once to LH123 followed by at least five rounds of selfing and selection for high anthocyanin accumulation in the pericarp tissue (Fig. 1). The Maize Morado inbred was generated from a cross (Maize Morado x PHG84) then backcrossed once to PHG84 followed by at least five rounds of selfing and selection for high anthocyanin accumulation in the pericarp tissue. Inbreds generated from these crosses will be referred to as B73 Color Converted, Mo17 Color Converted, Amazonas, and Maize Morado. None of the pigmented inbreds generated exhibited aleurone pigmentation (Fig. S1).Fig. 1**(A)** A simplified depiction of the anthocyanin biosynthetic pathway in maize pericarp tissue. Structural genes are denoted in red and structural gene products are denoted in blue. PAL phenylalanine ammonia lyase; C4H cinnamate-4-hydroxylase; 4CL 4-Coumarate:CoA-ligase; CHS chalcone synthase; CHI chalcone isomerase; F3H flavonone 3-hydroxylase; F3’H flavonoid 3’-hydroxylase; DFR dihydroflavonol 4-reductase; LAR leucoanthocyanidin reductase; ANS anthocyanidin synthase; UFGT UDP-glucose flavonol glycosyltransferase; GST glutathione S-transferase; AAT anthocyanin acyltransferase. (B-C) Proposed anthocyanin biosynthetic regulatory factors in maize pericarp based on reports in maize aleurone. Illustrated assembly of (B) the core MBW complex (R1, PL1, and an unidentified WD40) and RIF1 (R-interacting factor 1) at the promoter region of the early anthocyanin biosynthetic gene, A1, and assembly of (C) the core MBW complex at the promoter region of the late anthocyanin biosynthetic gene, Bz1, once dimerization with RIF1 is disrupted. The anthocyanin biosynthetic pathway consists of structural genes (biosynthetic and transport genes) and can be divided into Early Biosynthetic Genes (EBGs) and Late Biosynthetic Genes (LBGs), demarcated by the synthesis of dihydroflavonol 4-reductase (DFR) (Fig. 1A) (Chatham et al. 2019; Khusnutdinov et al. 2021). Transcription of the maize DFR, A1, at the early stage requires assembly of the core MBW complex and R-interacting factor 1 (Rif1), an EMSY-like protein involved in epigenetic, chromatin remodeling, at the A1 cis-regulatory region through Pl1 (Fig. 1B) (Hughes-Davies et al. 2003; Carey et al. 2004; Hernandez et al. 2007; Kong et al. 2012; Cappellini et al. 2021). It is predicted that homodimerization of Lc1’s ACT-like domains prevents dimerization at its bHLH site, allowing Rif1 to bind at the free bHLH domain. During LBG activation, disruption of dimerization at the ACT-like domain allows for bHLH homodimerization, reestablishing Lc1’s DNA-binding activity at the Bz1 promoter (Fig. 1C) (Kong et al. 2012). Following anthocyanin biosynthesis, transport factors and ER-derived vesicles mediate cellular trafficking and storage of anthocyanins in the central vacuole (Manzoor et al. 2023). Two transport/storage genes, Bz2 (Bronze2) and Mrpa3 (Multidrug resistance-associated protein3), encoding a glutathione S-transferase (GST) and an ATP-binding cassette (ABC) transporter, respectively, have been characterized in the vacuolar localization of anthocyanins in maize aleurone (Marrs et al. 1995; Goodman et al. 2004)
Experiment 1 sample collection
Samples for Experiment 1 were collected at the University of Illinois Vegetable Crops Research farm in Champaign, IL, USA (40°04′36.1″N 88°14′24.2″W), in Summer 2021. Individual selfed ears of B73 Color Converted, Amazonas, and Maize Morado were harvested at 10, 15, and 20 DAP for a total of three biological replicates (ears) at each timepoint (Fig. 2). Three replicates of B73 were included as a negative control at each timepoint. All pigmented lines showed pigmentation initiation at the kernel tip, consistent with the findings that anthocyanin accumulation is initiated by the movement of the male gamete through the tip of the immature kernel via the pollen tube (Chatham et al. 2019). Pigmentation was found in the maternal pedicel of all pigmented inbreds and contributed to the majority of pigmentation in whole kernels seen at 10 DAP. Because our study focused on pigmentation in the pericarp tissue layer, forceps were used to effectively separate whole pericarp tissue from at least 20 kernels of each replicate for subsequent RNA-seq analysis. Extra care was taken to ensure that only pericarp tissue was collected at each timepoint for each genotype, so the amount of pericarp tissue exceeds aleurone contamination. Pedicel tissue was removed from each kernel to ensure RNA-seq was conducted exclusively on the pericarp tissue. Harvest times were chosen because it was possible to cleanly remove pericarp from the kernel without compromising the sample with aleurone or endosperm tissue. Pericarp tissue tends to separate from aleurone and endosperm tissues as the kernel develops. Pericarp tissue and additional intact, whole kernels were flash frozen and lyophilized for downstream analyses. Mature dry ears were harvested at 60 DAP (maturity) and dried down in a heated forced air dryer (35 °C) for at least 5 days.Fig. 2. Freeze-dried kernels at 10, 15, and 20 DAP and mature dried kernels at 60 DAP, respectively. (A) B73 Color Converted. (B) Amazonas. (C) Maize Morado. (D) B73. Scale bar is set to 1 cm
Experiment 2 sample collection
Samples for Experiment 2 were grown in the same field location as Experiment 1 in the Summer of 2023. Kernels from B73 Color Converted, Mo17 Color Converted, Amazonas, and Maize Morado, were harvested at 18 DAP for a total of five biological replicates (ears). Ears were flash-frozen, and kernels were collected and excised at the boundary of pigmented and unpigmented pericarp using a razor blade (Fig. 3). Pigmented and unpigmented pericarp tissues were collected separately from at least 20 kernels of each replicate ear using forceps, following the same method used in Experiment 1. Unpigmented pericarp tissue fractions of the same kernels were harvested as a negative control. Following tissue separation, all samples were lyophilized and homogenized.Fig. 3**(A)** Freeze-dried kernels at 18 DAP; (left to right) B73 Color Converted, Mo17 Color Converted, Amazonas, and Maize Morado. Scale bar is set to 1 cm. (B) Flash-frozen kernel excised into pigmented and unpigmented fractions prior to pericarp separation from aleurone and endosperm
Anthocyanin extraction
In Experiment 1, anthocyanins were extracted from three biological replicates (ears) of whole kernel tissue samples harvested in the Summer of 2021 at 10, 15, and 20 DAP and at kernel maturity (60 DAP). Mature kernels were homogenized using a coffee grinder prior to anthocyanin extraction. Lyophilized kernels were ground using metal beads. Using established anthocyanin extraction procedures (Chatham & Juvik 2021), lyophilized kernels were extracted using 25 mg of whole kernel tissue in a threefold dilution (375 µl) of 2% (v/v) formic acid. For mature kernels, 2 g of powder was extracted in 10 mL 2% (v/v) formic acid. In Experiment 2, freeze-dried pigmented kernel pericarp tissue fractions from five biological replicates (ears) of each purple corn inbred were used for quantification of anthocyanin content at 18 DAP. Due to the smaller available tissue volume, 1 mL of 2% (v/v) formic acid was added to 25 mg of tissue from each sample for a more effective extraction and to reduce variability between samples (Paulsmeyer and Juvik 2023b). Samples were incubated for 1 h at 50 °C. Samples were centrifuged and filtered following the protocol outlined in Experiment 1. All samples were incubated for 1 h at 50 °C. Samples were centrifuged (> 7500 xg) for 10 min, and the supernatant was filtered through a 0.45-µm PTFE filter.
Ultra-high-performance liquid chromatography (UHPLC) analysis
Extracted anthocyanins were quantified on a Agilent 1290 Infinity II UHPLC (Agilent) using the settings outlined in (Paulsmeyer et al. 2022)). Samples were passed through a Poroshell 120 SB-C_18_ (3 mm × 100 mm, 1.9 μm) column (Agilent) at 50 °C. A linear dilution series of cyanidin 3-O-glucoside (C3G) standard (31.25, 62.5, 125, 250, 500, 1000 μg/ml) (MilliporeSigma) dissolved in 0.1% HCl in water was used to create a standard curve to estimate anthocyanin quantification. Major cyanidin-derived anthocyanins were defined in Paulsmeyer et al. (2017) (Fig. S2). In Experiment 1, anthocyanin contents were quantified as major anthocyanin-derived compounds per kernel (µg/dry kernel) using the average kernel weight of 10 kernels. In Experiment 2, anthocyanin contents were quantified as major anthocyanin-derived compounds per gram of dried pigmented pericarp tissue (µg/g DW).
Statistical and data analysis
Anthocyanin concentration (µg/ml) per sample was quantified by converting anthocyanin-derived compound peak areas into C3G equivalents, using C3G standards and mass-spectrometry identified compounds (Paulsmeyer et al. 2022). In Experiment 1, anthocyanin content of whole kernels (µg/kernel) was calculated using Eq. 1.
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ \begin{aligned} Anthocyanin content \left( {\mu g/\ker nel} \right) = & Anthocyanin concentration \left( {\frac{\mu g}{{ml}}} \right) \times \frac{{extraction solvent \left( {ml} \right)}}{sample weight \left( g \right)} \\ & \times \frac{{average \ker nel weight \left( {mg} \right)}}{\ker nel} \\ \end{aligned} $$\end{document}Mean separation was evaluated using a two-way ANOVA followed by the Tukey’s Honest Significant Differences (HSD) post hoc method. In Experiment 2, anthocyanin content of pigmented pericarp tissue fractions (µg/g DW) was calculated using Eq. 2.
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ {\mathrm{Total}}\;{\mathrm{anthocyanin}}\;{\mathrm{content}} = \frac{{{\mathrm{Anthocyanin}}\;{\text{concentration }}\left( {\frac{{{\mathrm{mg}}}}{{{\mathrm{ml}}}}} \right){ } \times {\text{ extraction }}\;{\text{solvent }}\left( {{\mathrm{ml}}} \right)}}{{{\text{DW }}\left( {\mathrm{g}} \right)}} $$\end{document}Mean separation across genotypes was evaluated using a one-way ANOVA, followed by the Tukey’s Honest Significant Differences (HSD) post hoc method.
RNA extraction and RNA-seq
RNA was extracted from at least 10 mg of homogenized pericarp tissue from three biological replicates of each line at each developmental timepoint. In Experiment 1, extractions were conducted on three biological replicates of each genotype at 10, 15, and 20 DAP for a total of 36 samples. In Experiment 2, extractions were conducted on three biological replicates of each genotype at 18 DAP for a total of 24 samples (12 pigmented samples and 12 unpigmented samples). Each sample underwent RNA extraction using a Quick-RNA™ MiniPrep kit (Zymo Research) following the manufacturer’s protocol with an on-column DNase I treatment step. All samples were submitted to the DNA Services laboratory of the Roy J. Carver Biotechnology Center at the University of Illinois at Urbana-Champaign for evaluation and processing. Libraries were constructed with a Kapa HyperPrep mRNA kit (Roche) and PCR-amplified with the Kapa HiFi polymerase (Roche). In Experiment 1, all 36 libraries were sequenced on an Illumina NovaSeq 6000 S4 flowcell (Illumina) using paired-end 150 bp fragments. In Experiment 2, all 24 libraries were pooled and sequencing of paired-end 150 bp fragments was conducted on an Illumina NovaSeq X Plus 10B flowcell (Illumina). FASTQ files were demultiplexed using the bcl2fastq v2.20 Conversion Software (Illumina).
RNA-seq analysis
Adaptor sequences were trimmed, and quality was assessed via FastQC by the DNA Services laboratory. Reads with an average quality score > 28 were aligned to the Zm-B73-REFERENCE-NAM-5.0 reference genome using two-pass Spliced Transcripts Alignment to a Reference (STAR) 2.7.10a alignment (Dobin and Gingeras 2015; Woodhouse et al. 2021). A summary of read counts for Experiment 1 and 2 is listed in Table S1 and S2, respectively. Reads were quantified and normalized in Transcripts Per Million (TPM) using RNA-Seq by Expectation Maximization (RSEM) (Li & Dewey 2011). Genes that did not meet the filtering threshold (TPM ≤ 0.1 in at least one sample) were considered noise and removed prior to differential gene expression (DGE) analysis with limma-trend (Law et al. 2014). Limma-trend was implemented to fit a linear model to each gene and to calculate DGE using a t test for specified contrasts. The DGE analysis compared whole pericarp tissue of each pigmented line to whole pericarp tissue of an unpigmented negative control (B73). Candidate genes were identified as having significant DGE (FDR p ≤ 0.01 and |log_2_-fold-change|≥ 1).
Determining fixed loci in the B73 color converted line using bulk segregant analysis
Variant calling was performed in BCFtools v1.2 (Bonfield et al. 2021; Danecek et al. 2021) using the multiallelic calling model (Danecek et al. 2016). All biological replicates of B73 Color Converted and B73 from each time point were bulked with their respective genotype for a combined total of 9 replicates per genotype. The genomic VCF file was passed through the “VariantsToTable” plugin in GATK to be filtered in the R package “QTLseqr” (Mansfeld and Grumet 2018). Sites with non-reference calls in B73 were removed as they may be errors in alignment. Sites were filtered to a minTotalDepth of 50 and a minSampleDepth of 10. This resulted in 32,390 high-quality SNPs. Variants were detected across the entire genome, which is most likely artifact of sequence misalignment. A sliding window of 1 Mb was applied to count the number of SNPs in a region and is reported in Figure S4. The Bayesian Bulk Segregant Analysis was performed using the method by Liu et al. 2012. Dense SNP regions were observed near known anthocyanin biosynthetic genes. On the basis of this, we assume that fixed alleles are present in these regions of the pigmented NIL compared to its recurrent parent.
Weighted gene correlation network analysis (WGCNA)
Unlike Experiment 1 where a separate negative control was harvested (B73), Experiment 2 utilized the unpigmented pericarp tissue fraction of the same kernel for DGE analysis. The same DGE threshold was set as in Experiment 1 (FDR p ≤ 0.01 and |log_2_-fold-change|≥ 1). Pericarp-pigmented fractions underwent a Weighted Gene Correlation Network Analysis (WGCNA) in R using the WGCNA package (Langfelder and Horvath 2008) to cluster expressed genes based on similar expression trends, under the assumption that similarly expressed genes may belong to related biochemical pathways. Anthocyanins were absent in unpigmented tissue samples; thus, they were excluded from WGCNA analysis. Hierarchical clustering organized DEGs into 10 gene modules based on similar gene expression patterns. Each module is characterized by a module eigengene value (MEV) representative of the general expression trend of all genes within the module. A sample’s MEV denotes its overall expression of all genes within the module. A MEV was calculated from all 10 gene modules for each sample, resulting in 120 MEVs. Pearson correlation analysis of MEVs against the anthocyanin content (µg/g DW) of each sample identified significantly correlated clusters. A subsequent Spearman correlation analysis was conducted on modules that did not meet the assumptions of normality. Gene module membership and gene trait significance, representing the strength of association between a gene and the entire module and the strength of association between a gene and anthocyanin content, respectively, were calculated according to the WGCNA software tutorials (Langfelder and Horvath 2008). Candidate genes for anthocyanin biosynthesis from significant modules were defined by a DEG in at least one genotypic comparison and high gene module membership and gene trait significance. Gene module membership and gene trait significance, representing the strength of the correlation between a gene and a module and the strength of the correlation between a gene and anthocyanin content, respectively, were calculated. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis was computed through ShinyGO v.0.80 (Ge et al. 2020; Kanehisa et al. 2023) using a hypergeometric test (FDR p ≤ 0.05) to characterize module identity.
Results
Experiment 1: Transcriptomics of whole kernel pericarp tissue across kernel development
Ultra-high-performance liquid chromatography (UHPLC) quantified differences in anthocyanin content across kernel development

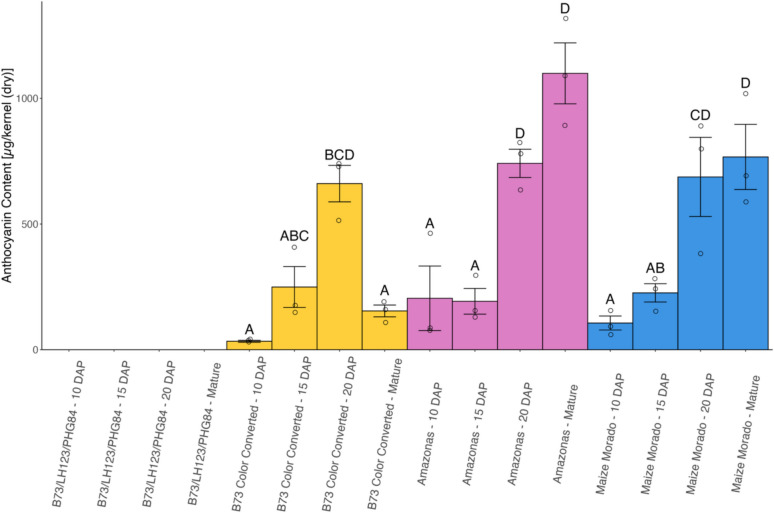

Significant differences in the concentrations of anthocyanins were seen across different genotypes and harvest dates (Fig. 4). Anthocyanin content ranges from 25 ± 3.94 µg/kernel (dry) (B73 Color Converted at 10 DAP) to 1315 ± 121 µg/ kernel (dry) (Amazonas Mature Dry). All ex-PVP inbreds (B73, LH123, and PHG84) contained no detectable anthocyanins. Amazonas and Maize Morado exhibited a significant spike in anthocyanin content at from 15 to 20 DAP, while B73 Color Converted exhibited an increase that was not statistically significant.Fig. 4. Anthocyanin content [µg total anthocyanins/kernel (dry)] of whole kernel tissue of each genotype (left to right, B73/LH123/PHG84, B73 Color Converted, Amazonas, and Maize Morado) at each timepoint (left to right, 10, 15, and 20 DAP and maturity). All elite inbreds (B73, LH123, and PHG84) are grouped together due to the absence of anthocyanin content. Three biological replicates of each genotype are displayed. Error bars indicate standard error. Different letters denote significantly different means according to Tukey’s HSD (p value ≤ 0.05)
Differential expression of structural genes across kernel development
RNA-seq analysis was conducted on whole pericarp tissue from three pericarp-pigmented genotypes: B73 Color Converted, Amazonas, and Maize Morado, at 10, 15, and 20 DAP. Across the development of all pigmented genotypes, 7,650 DEGs were identified when compared to B73 (FDR p ≤ 0.01): 324 (B73 Color Converted), 4371 (Amazonas), and 5754 (Maize Morado) (Fig. 5A). Putative anthocyanin biosynthetic genes, based on previous reports, were categorized as structural, regulatory, or transport/storage genes, and expression levels were measured (Fig. 5C) (Chatham et al. 2019; Chatham and Juvik 2021; Woodhouse et al. 2021; Paulsmeyer and Juvik 2023b). A DGE analysis was performed on all purple varieties compared to unpigmented B73 and is included in Table S3. In general, EBGs and LBGs were upregulated across all of the pigmented kernel development stages. Specifically, 4-Coumarate:CoA ligase (4CL) Zm00001eb187910, chalcone synthase (CHS) genes Colorless2 (C2) and White pollen1 (Whp1), two chalcone isomerase (CHI) genes Chalcone isomerase1 (Chi1) and Chalcone flavanone isomerase6 **(**Chi6), flavonoid 3'-hydroxylase (F3'H) gene Red aleurone1 (Pr1), DFR A1, anthocyanidin synthase (ANS) gene Anthocyaninless2 (A2), and UDP glucose: flavonoid 3-O-glucosyltransferase Bz1, were differentially expressed across all developmental timepoints for pigmented genotypes (Fig. 1A, Table S3). Anthocyanin activation occurred earlier in Amazonas and Maize Morado, with the EBGs being upregulated higher at 10 DAP relative to the remaining timepoints (Fig. 5C, Table S3). Of the known anthocyanin biosynthetic transport genes, only Bz2 was differentially expressed across the development of all pigmented genotypes. Mrpa3 was upregulated in Maize Morado and in B73 Color Converted at all harvest dates and Amazonas at 10 DAP.Fig. 5. Venn diagram of (A) total DEGs identified from each pigmented genotype compared to B73 and (B) total DEGs of all pigmented genotypes at each developmental timepoint compared to B73. Overlapping regions indicate shared DEGs. (C) Log_2_ fold-change expression of putative anthocyanin biosynthetic structural, transport, and regulatory genes. Expression was measured as the difference in gene expression [Transcripts per Million (TPM)] between whole pericarp tissue of each pigmented genotype and B73 at 10, 15, and 20 DAP. Blue indicates the level of downregulation and red indicates the level of upregulation. Gene products are listed in parentheses
Differential expression of regulatory genes across kernel development
Of the predicted anthocyanin biosynthetic regulatory genes, the MBW complex genes, Pl1 and Lc1, yielded significant DGE across the development of all pigmented genotypes. B1, another candidate bHLH functioning in the aleurone MBW complex, was not highly expressed (≤ 6.13 TPM) in any sample. Expression of Colored aleurone1 (C1), the Myb member functioning in the aleurone MBW complex, was not detected (TPM \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\le $$\end{document} 0.1) in any sample. Pac1, encoding a WD40 protein known to activate aleurone pigmentation, was not significantly differentially expressed, but was expressed in all samples (48.79–128.84 TPM) (Table S3). The gene model for P1 was not differentially expressed and had low expression (≤ 0.33 TPM). Based on the upregulation of maysin biosynthetic genes, this was unexpected. Upon further investigation, it appears there are 11 tandem duplications of P1 in the B73 genome (Goettel and Messing 2009) and eight gene models with > 99% similarity (Fig. S3). STAR aligned most P1-like transcripts to Mybr102, which is 86 kb away and 100% identical to P1. The P1 gene model appears to be annotated incorrectly as it is truncated by 469 bp in relation to Mybr102. Since the origin of the cDNA sequence cannot be determined, the summation of the eight duplicate gene models was used to represent P1. Given this, P1 was expressed 1.86- to 4.95-fold higher than B73 in every sample (Table S3). In addition to these activator genes, several repressor genes were expressed in pericarp. Mybr97 is a gene that is known to decrease anthocyanin content in vegetative tissues (Paulsmeyer and Juvik 2023b). This gene was expressed in all samples, with the most extreme expression at 10 DAP in Amazonas (Fig. 5C). Furthermore, Intensifier1 (In1), Myb8, Myb31, and Myb42 are known repressors of early biosynthetic genes (Fornalé et al. 2006). Myb8 was upregulated in Amazonas and Maize Morado, but not B73 Color Converted. The remaining repressors were not significantly differentially expressed overall but were expressed in every sample (Fig. 5C).
Differential expression of candidate anthocyanin biosynthetic genes across kernel development

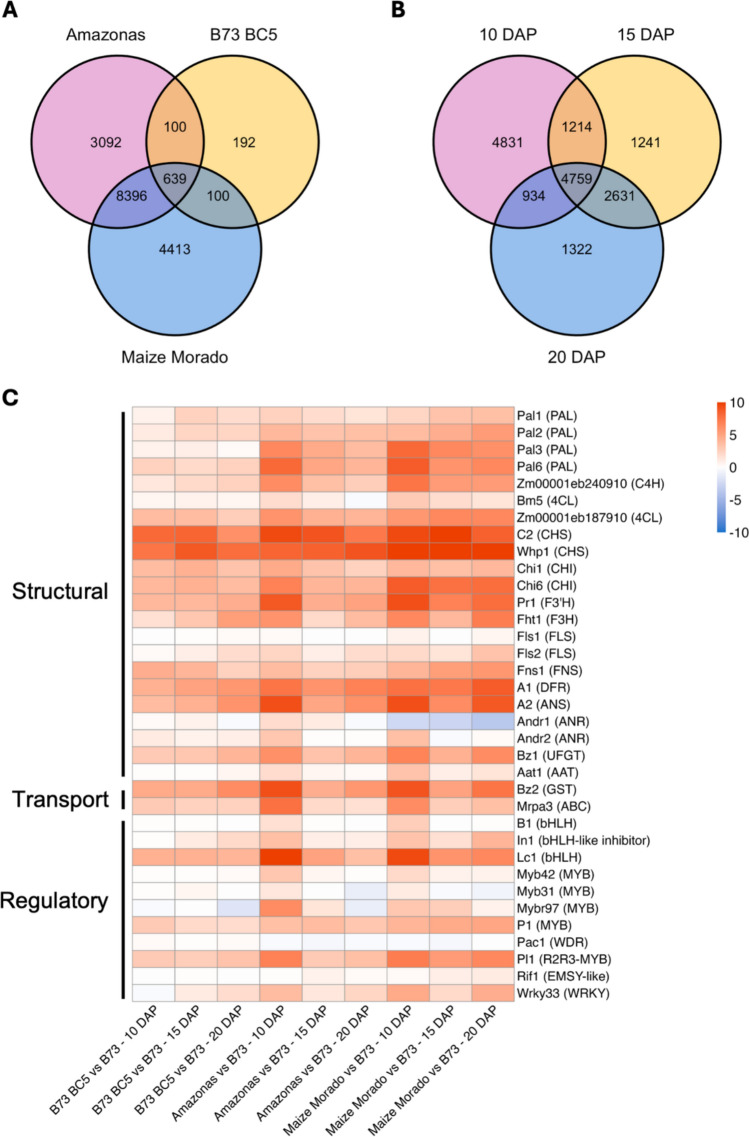

Overexpression analysis of the top 10 DEGs across the development of pigmented genotypes revealed consistent upregulation of anthocyanin biosynthetic genes, C2 and Whp1, as well as additional candidate genes, Jacalin6 (Jac6) and UDP-glucosyl transferase1 (Ugt1) (Table 1). While not previously characterized in the anthocyanin biosynthetic pathway, consistent upregulation of Jac6 and Ugt1 suggests their influence over anthocyanin production. The identification of the multidrug and toxic compound extrusion (MATE) transporter, Mate12, in B73 Color Converted suggests an alternative mechanism for anthocyanin transport. Shared overexpression of beta-glucosidase9 (glu9), a candidate anthocyanase, in B73 Color Converted and Maize Morado may act as a anthocyanin degradation factor, influencing anthocyanin accumulation (Barbagallo et al. 2007). Significant differential expression of glu9 was absent in Amazonas (Table S4).Table 1. Ten highest DEGs according to log_2_-fold change of each pigmented genotype compared to B73. Gene model corresponds to the Zm-B73-REFERENCE-NAM-5.0 reference genomeGene modelGene locus symbolProtein product associated with gene locusLog_2_-fold changeFalse discovery rateB73 Color ConvertedZm00001eb392870Jac6—jacalin6Jacalin8.124.45E − 22Zm00001eb113440Whp1—white pollen1Chalcone synthase8.068.76E − 20Zm00001eb077490Glu9—beta-glucosidase9Beta glucosidase7.826.09E − 18Zm00001eb280930Ugt1—UDP-glucosyl transferase1UDP-glucuronosyl/UDP-glucosyltransferase7.751.54E − 18Zm00001eb198030C2—colorless2Chalcone synthase7.454.95E − 20Zm00001eb197860Mads52—MADS-transcription factor 525.952.36E − 26Zm00001eb048870Mate12—multidrug and toxic compound extrusion12MATE5.761.76E − 15Zm00001eb048110Bz2—bronze2Glutathione S-transferase, BZ25.281.40E − 07Zm00001eb159020A1—anthocyaninless1NADPH dihydroflavonol reductase5.031.18E − 13Zm00001eb105580Sm2—salmon silk2Rhamnosyl transferase5.012.44E − 10AmazonasZm00001eb113440Whp1—white pollen1Chalcone synthase8.667.50E − 22Zm00001eb1494708.825.85E − 22Zm00001eb197860Mads52—MADS-transcription factor 528.091.60E − 31Zm00001eb198030C2—colorless2Chalcone synthase8.624.75E − 23Zm00001eb2765208.051.90E − 32Zm00001eb280930Ugt1—UDP-glucosyl transferase1UDP-glucuronosyl/UDP-glucosyltransferase8.449.08E − 21Zm00001eb3539709.363.99E − 23Zm00001eb392870Jac6—jacalin6Jacalin8.635.59E − 24Zm00001eb4087808.222.59E − 32Zm00001eb4214808.244.82E − 29Maize MoradoZm00001eb113440Whp1—white pollen1Chalcone synthase11.202.77E − 25Zm00001eb077490Glu9—beta-glucosidase9Beta glucosidase10.368.72E − 23Zm00001eb392870Jac6—jacalin6Jacalin10.322.21E − 26Zm00001eb280930Ugt1—UDP-glucosyl transferase1UDP-glucuronosyl/UDP-glucosyltransferase10.172.78E − 23Zm00001eb4214809.365.88E − 31Zm00001eb198030C2—colorless2Chalcone synthase9.313.63E − 24Zm00001eb105580Sm2—salmon silk2Rhamnosyl transferase8.891.56E − 18Zm00001eb376040Ufgt3—UDP-flavone-glycosyltransferase3Flavone 5-O-glucosyltransferase8.307.20E − 20Zm00001eb2765208.263.60E − 33Zm00001eb229190A2—anthocyaninless2Leucoanthocyanidin dioxygenase8.204.98E − 13
Flux through various flavonoid pathways

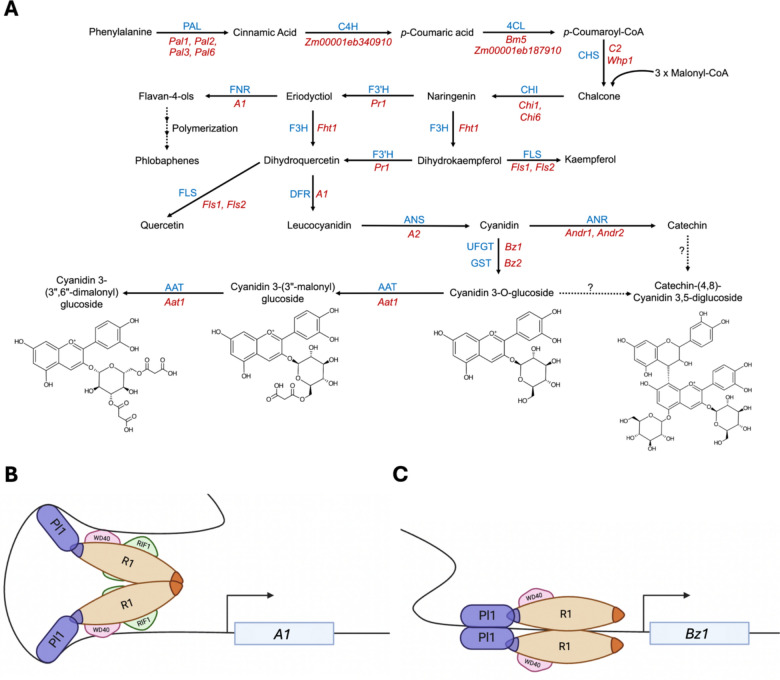

The various outputs of the flavonoid biosynthetic pathway, such as anthocyanins, phlobaphenes, flavones, and flavonols, are known to share precursors (Fig. 1A). While overexpression of anthocyanin biosynthetic genes was seen across pigmented genotypes, flux through various flavonoid biosynthetic pathways was seen simultaneously. Phlobaphenes are water-insoluble, brick red pigments that are the result of polymerized flavan-4-ols. The biosynthesis of these molecules is activated by Pericarp color1 (P1), a pericarp-specific Myb-like gene. Flavones are another off-shoot of flavan-4-ols that are activated by P1. Maysin is the most notorious C-glycosyl flavone since has long been known to confer plant resistance to certain herbivores (Casas et al. 2016). Biosynthesis of maysin is catalyzed by four enzymes: Flavanone 2-hydroxylase (Fns1), C-glucosyl transferase1 (Cgt1), Salmon silks1 (Sm1), and Sm2 (Morohashi et al. 2012). Notably, a candidate maysin-related gene was significantly overexpressed in Maize Morado, UDP-flavone-glycosyltransferase3 (Ufgt3), suggesting additional enzymes may enhance maysin biosynthesis. A functional P1 must be active in the pigmented varieties since the entire maysin pathway was upregulated in every sample. Flavonols, such as quercetin and kaempferol, form an additional off-shoot of the flavonoid biosynthetic pathway. This requires either Flavonol synthase1 (Fls1) or Flavonol synthase2 (Fls2) (Fig. 1A). Fls2 was not differentially regulated in pericarp, but Fls1 was upregulated in Maize Morado and in Amazonas at 10 and 15 DAP.
Anthocyanins are able to interact with various flavonoids, generating increased chemical diversity. A specific class of anthocyanins which are of note are the condensed forms. These are anthocyanins conjugated with flavan-3-ols and are present in all varieties chosen for Experiment 1, with Maize Morado containing the largest quantity (Fig. S2). The biosynthetic pathway of these compounds is unknown. Interestingly, all condensed forms contain 3,5-diglucoside anthocyanins, when the predominant form of anthocyanins produced is 3-glucosides (Chatham et al. 2018). Ugt1 was consistently upregulated in every purple variety and could be a gene candidate for further investigation (Table 1). Flavan-3-ols are synthesized by either the Anthocyanidin reductase1 (Andr1) or Anthocyanidin reductase2 (Andr2) enzymes. However, Andr1 was only upregulated in Amazonas 10 and 15 DAP and downregulated in Maize Morado. Andr2 was significantly upregulated in Amazonas and Maize Morado at 10 DAP.

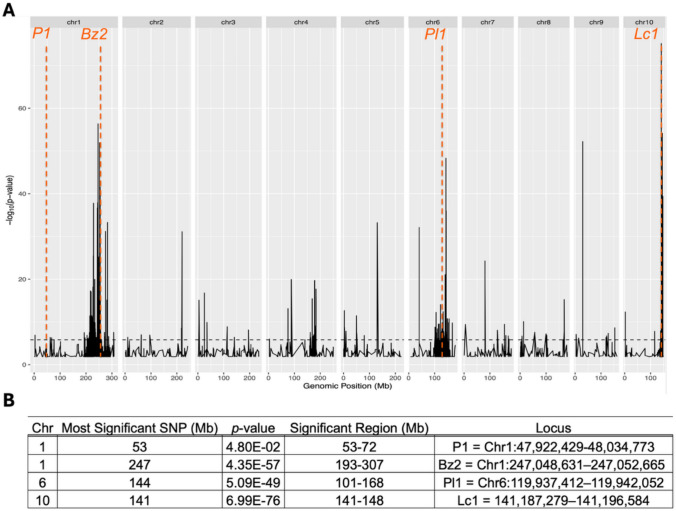

Identifying fixed loci responsible for anthocyanin accumulation in the B73 color converted line
The B73 Color Converted line underwent five rounds of backcrossing before selfing. In the absence of selection for increased anthocyanin content, theoretically, the inbred isoline is 96.875% (1 – ( ½)^5^) similar to reference inbred B73. Genetic variants were called using the aligned transcripts compared to B73. The number of SNPs in a 1 Mb window across the genome is reported in Figure S4. SNPs appear to be distributed throughout the genome, which may be an artifact of sequence misalignment. For a more rigorous analysis of SNP fixation, a Bayesian Bulk Segregant Analysis was performed on filtered variants using the method by Liu et al. 2012. The full results of the analysis are presented in Figure S4. Major transcriptional regulators Lc1 and Pl1 were significantly fixed in B73 Color Converted according to the Bayesian analysis with a Bonferroni threshold, as determined by the large density of SNPs located near these loci across all nine B73 Color Converted samples (Fig. 6). P1 did not contain any significant SNPs, but appears to be fixed based on the relatively large number of variants near the gene (Figure S4). In addition to these loci, a major section of the distal end of Chromosome 1 was significantly fixed in B73 Color Converted. Within this region is Bz2, but no other anthocyanin-related genes are differentially regulated. Many developmental and domestication genes are within the locus, which might explain why the region is fixed. These genes include Brachytic2 (Br2), Brassinosteroid-deficient dwarf1, Defective kernel35, Dwarf plant8, Empty pericarp4, Empty pericarp10, Empty pericarp18, Empty pericarp21, Knotted1, Root hair defective1, Teosinte branched1, Unbranched2 (Ub2), Vestigial glume1, Viviparous8, and Viviparous14. Br2 and Ub2 were significantly upregulated in B73 Color Converted. Many other SNPs were significant in the Bayesian analysis. Chromosome 4 contained two loci with significant SNPs spanning more than 1 Mb (Fig. 6). Many other SNPs were significant but were within relatively smaller windows (< 1 Mb). These may be fixed in B73 Color Converted, but no major anthocyanin genes were found underlying the SNPs.Fig. 6. Bulk Segregant Bayesian Analysis of B73 Color Converted compared to B73. (A) The y-axis represents the probability that SNP genomic sequences in B73 Color Converted are significantly different from B73 [ − log_10_(p value)]. The horizontal dashed line represents the Bonferroni adjusted p value. Several regions of significant SNPs in B73 Color Converted are aligned with known anthocyanin-related genes from the Zm-B73-REFERENCE-NAM-5.0 reference genome and are indicated with vertical lines. (B) Chromosomal and genomic locations of the most significantly different SNPs and their significance levels in B73 Color Converted. The size of the significant region of SNPs is determined by the Bonferroni adjusted p value threshold. Known anthocyanin-related loci that fall within these significant regions are listed
Experiment 2: transcriptomic analysis of pigmented and unpigmented pericarp kernel tissue fractions at 18 DAP
A substantial increase in anthocyanin content was observed across all genotypes between 15 and 20 DAP (Fig. 4). To identify candidate genes underlying the spike in anthocyanin content, the transcriptome of pigmented and unpigmented pericarp were harvested at 18 DAP and compared; pigmented and unpigmented pericarp fractions were harvested from the same kernels, providing a robust negative control. An additional pericarp-pigmented line, Mo17 Color Converted, was included as a second near-isogenic line sharing the same pigmented, recurrent parent (Arequipa 35) with B73 Color Converted.
UHPLC quantified anthocyanin content of pigmented pericarp tissue fractions at 18 DAP

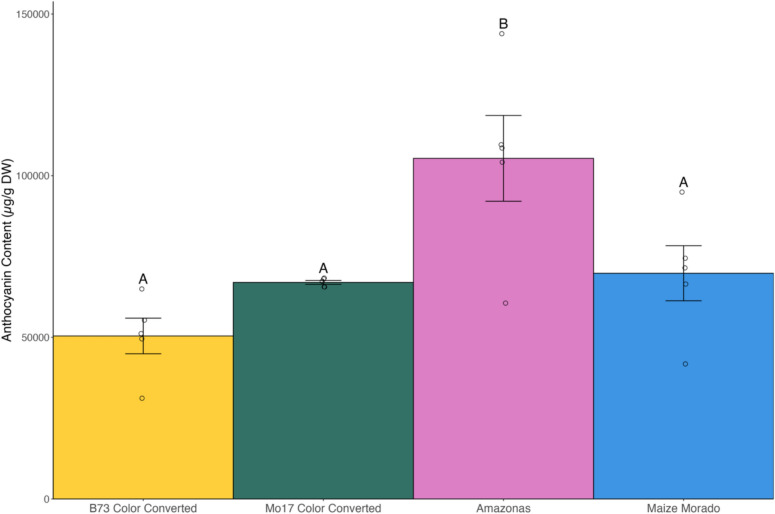

Anthocyanin content was measured from the pigmented pericarp tissue of four pericarp-pigmented inbreds: B73 Color Converted, Mo17 Color Converted, Amazonas, and Maize Morado. Average anthocyanin content of pigmented pericarp tissue fractions ranged from 50,000 ± 5500 µg/g DW (B73 Color Converted) to 110,000 ± 13,000 µg/g DW (Amazonas) (Fig. 7). Anthocyanin levels were not detected in unpigmented pericarp tissue fractions. Amazonas exhibited a higher anthocyanin content relative to the other pigmented genotypes, likely attributable to its thicker pericarp (Fig. S1). Maize Morado exhibited enrichment of condensed forms, demonstrating additional compositional diversity of these two genotypes.Fig. 7. Anthocyanin content (µg total anthocyanins/g dry weight (DW)) of pigmented pericarp tissue fractions of each genotype (left to right, B73 Color Converted, Mo17 Color Converted, Amazonas, and Maize Morado) at 18 DAP. Five biological replicates of each genotype are displayed. Error bars indicate standard error. Different letters denote significantly different means according to Tukey’s HSD (p value ≤ 0.05)
Differential expression of putative anthocyanin biosynthetic, transport, and regulatory genes in pigmented pericarp relative to unpigmented pericarp of the same kernels at 18 DAP
As expected, the core regulatory genes Lc1 and Pl1 were upregulated in all samples. P1 was expressed, but not significantly differentially expressed. A gene candidate for anthocyanin LBG activation, Wrky33, was also upregulated in every sample. Interestingly, many known repressor genes were also upregulated. In1 and Mybr97 were upregulated in every sample with expression up to 6.62-fold higher for In1 and up to 4.80-fold higher for Mybr97. Myb42 was exclusively upregulated in Amazonas and Maize Morado. The full list of upregulated genes is included in Table S5.

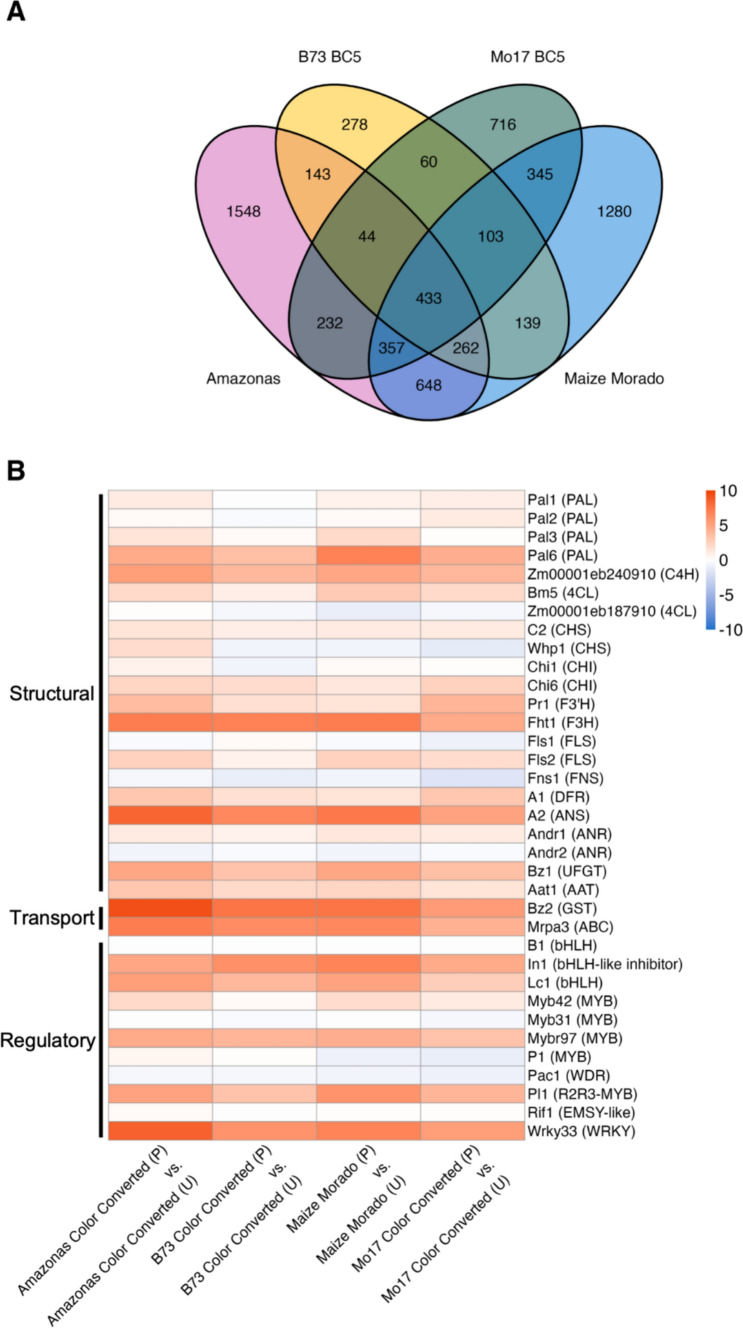

Comparisons of pigmented pericarp to unpigmented pericarp of the same inbred genotype identified DEGs (FDR p ≤ 0.01): 1462 (B73 Color Converted), 2290 (Mo17 Color Converted), 3566 (Maize Morado), and 3667 (Amazonas) (Fig. 8A). Once again, the near-isogenic lines (NILs) showed fewer unique DEGs associated with pericarp when compared to the RILs. Among these DEGs, a subset corresponded to putative anthocyanin biosynthetic genes (Fig. 8B, Table S6). Of the predicted structural genes, Pal6, C4H (Zm00001eb240910), Flavanone 3-hydroxylase1 (Fht1), Pr1, A2, Bz1, and Anthocyanin acyltransferase1 (Aat1) were significantly upregulated across all pigmented tissue fractions (Fig. 8B). The known transporters, Bz2 and Mrpa3, were also significantly upregulated in the pigmented pericarp fractions of all genotypes (Fig. 8B). Select genes displayed consistent expression in both pigmented and unpigmented tissues and were not differentially expressed. These included anthocyanin biosynthetic genes, C2, Chi1, Pal1, Pal2, and Whp1.Fig. 8**(A)** Venn diagram of total DEGs identified from each genotype at 18 DAP. DEGs were identified from their upregulation (FDR p ≤ 0.01) in pigmented pericarp relative to unpigmented pericarp. (B) Log_2_ fold-change expression of putative anthocyanin biosynthetic structural, transport, and regulatory genes. Expression was measured as the difference in gene expression [Transcripts per Million (TPM)] between pigmented (P) and unpigmented pericarp (U) of the same kernels at 18 DAP. Red depicts upregulation and blue depicts downregulation. Gene products are listed in parentheses
Top DEGs of each genotype were strongly correlated with anthocyanin content

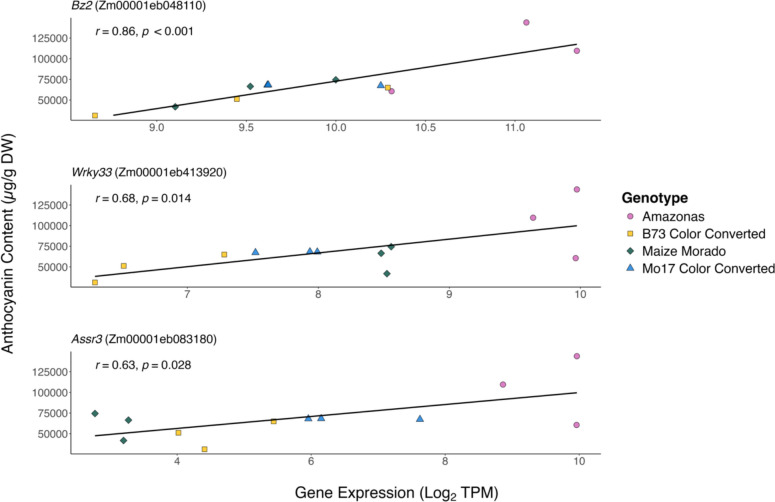

Correlational analysis of the top 10 DEGs of each genotype and anthocyanin content (µg/g DW) of pigmented pericarp tissue fractions detected highly expressed, influential candidate genes for anthocyanin production (Table 2). Bz2 appeared within the top 10 DEGs of all pigmented genotypes. Wrky33 appeared within the top 10 DEGs of B73 Color Converted, Mo17 Color Converted, and Amazonas; significant DGE of Wrky33 was observed in Maize Morado outside of its top 10 DEGs. Specifically, three genes (Bz2, Wrky33, and Aasr3) showed the most extreme expression in Amazonas, which contains the highest concentration of pericarp anthocyanins (Fig. 9). Bz2 has been implicated in anthocyanin transport/storage, supporting the role of transport/storage as a crucial mechanism for anthocyanin accumulation. Aasr3 is in involved in abscisic acid hormone signaling and is activated during stress response (Liang et al. 2019; Rai et al. 2024). In maize aleurone, abscisic acid can activate expression of C1, the Myb factor of the MBW complex (Hattori et al. 1992). C1 expression was absent from all samples suggesting abscisic acid may activate anthocyanin expression through interaction with the pericarp-specific Myb factor, Pl1. Upregulation of these 3 candidate genes is proposed to influence the higher anthocyanin content seen in Amazonas at 18 DAP (Table 2). While Mrpa3 appeared in the 10 most highly expressed DEGs of Amazonas, it showed higher expression in one replicate of B73 Color Converted and is therefore not included in Fig. 9.Table 2. The 10 highest DEGs per genotype were identified and correlated with anthocyanin content. A subset of these gene models with significant correlations to anthocyanin content are described below. Gene model corresponds to the Zm-B73-REFERENCE-NAM-5.0 reference genomeGene modelGene locus symbolCorrelation with anthocyanin content (r)P valueAppearing in the highest 10 DEGs of pigmented genotypesZm00001eb048110Bz2—Bronze20.863.52E − 04AmazonasB73 Color ConvertedMaize MoradoMo17 Color ConvertedZm00001eb413920Wrky33—WRKY-transcription factor 330.681.42E − 02AmazonasB73 Color ConvertedMo17 Color ConvertedZm00001eb376160Mrpa3—Multidrug resistance-associated protein30.594.20E − 02AmazonasB73 Color ConvertedZm00001eb083180Aasr3—Abscisic acid stress ripening30.632.78E − 02Mo17 Color ConvertedFig. 9Significant gene correlations (p value ≤ 0.05) from Table 2 with the greatest expression in Amazonas, exhibiting the highest concentration of pericarp anthocyanins. Pearson correlations between anthocyanin content of pigmented pericarp samples and log_2_ TPM gene expression are illustrated
