Super Time‐Resolved Tomography
Zhe Hu, Zisheng Yao, Kalle Josefsson, Francisco García‐Moreno, Malgorzata Makowska, Yuhe Zhang, Pablo Villanueva‐Perez
TL;DR
A new X-ray imaging method called STRT improves time resolution by 10 times while keeping image quality, enabling better study of fast 3D processes.
Contribution
STRT introduces a physics-informed deep learning algorithm for 4D X-ray imaging with enhanced temporal resolution.
Findings
STRT achieves high-fidelity 3D reconstructions from limited angular data.
STRT was validated using simulations and experiments on droplet collisions and additive manufacturing.
STRT enables the study of rapid dynamic processes previously unattainable with conventional tomoscopy.
Abstract
Understanding three Dimensional (3D) fundamental processes is crucial for academic and industrial applications. Nowadays, X‐ray time‐resolved tomography, or tomoscopy, is a leading technique for in situ and operando 4D (3D+time) characterization. Despite its ability to achieve 1000 tomograms per second at large‐scale X‐ray facilities, its applicability is limited by the centrifugal forces exerted on samples and the challenges of developing suitable environments for such high‐speed studies. Here, Super Time‐Resolved Tomography (STRT) is introduced, an approach that has the potential to enhance the temporal resolution of tomoscopy by at least an order of magnitude while preserving spatial resolution. STRT exploits a 4D Deep Learning (DL) reconstruction algorithm to produce high‐fidelity 3D reconstructions at each time point, retrieved from a significantly reduced angular range of a few…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5|
|
|
| |||||||
|---|---|---|---|---|---|---|---|---|---|
| Process | No. ts | Δθ | No. ts | Δθ | TE | FSC | PSNR | SSIM | NRMSE |
| Droplet collision | 75 | 180° | 75 | 3.0° | 60× | 4.1 ± 1.8 | 40.67 ± 2.67 | 0.977 ± 0.012 | 0.009 ± 0.002 |
| 9.0° | 20× | 3.0 ± 0.4 | 45.16 ± 2.84 | 0.990 ± 0.002 | 0.006 ± 0.002 | ||||
| 18.0° | 10× | 2.8 ± 0.3 | 49.00 ± 2.60 | 0.990 ± 0.002 | 0.004 ± 0.001 | ||||
| Additive manufacturing | 200 | 180° | 200 | 0.9° | 200× | 5.7 ± 0.8 | 14.26 ± 1.14 | 0.696 ± 0.008 | 0.195 ± 0.026 |
| 9.0° | 20× | 3.7 ± 0.6 | 22.10 ± 1.22 | 0.738 ± 0.013 | 0.079 ± 0.012 | ||||
| 18.0° | 10× | 3.2 ± 0.5 | 22.80 ± 0.80 | 0.765 ± 0.012 | 0.073 ± 0.007 | ||||
- —HORIZON EUROPE European Research Council10.13039/100019180
- —Deutsche Forschungsgemeinschaft10.13039/501100001659
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced X-ray and CT Imaging · Advanced X-ray Imaging Techniques · Radiation Shielding Materials Analysis
Introduction
1
X‐ray computed tomography (CT) is an essential tool across a plethora of fields in academia and industry for non‐destructive study of 3D structures.^[^ 1, 2, 3 ^]^ CT works by collecting a series of 2D images, or radiographs, as the sample rotates relative to the X‐ray source, covering an angular range between at least 0–180°.^[^ 4, 5 ^]^ These radiographs are then combined using computing algorithms to reconstruct a 3D volume.^[^ 6 ^]^ The high flux provided by large‐scale X‐ray facilities, like diffraction‐limited storage rings^[^ 7, 8 ^]^ and X‐ray Free‐Electron Lasers (XFELs),^[^ 9, 10 ^]^ opens the possibility to study not only matter in 3D but also to resolve their evolution in 4D (3D+time).^[^ 11, 12 ^]^ Specifically, time‐resolved X‐ray tomography, also known as tomoscopy, has revolutionized our understanding of dynamic systems through in situ, operando, and in vivo 3D characterization.^[^ 13, 14 ^]^ The demand for tomoscopy stems from the critical need for non‐destructive real‐time analysis of internal structures and processes in various disciplines, such as fractures in solids,^[^ 15, 16 ^]^ manufacture and assembly of products,^[^ 17, 18, 19, 20 ^]^ fast biological processes,^[^ 21, 22 ^]^ and product degradation in service.^[^ 23, 24 ^]^ For instance, understanding microstructural changes during manufacturing processes, such as alloy solidification, metal processing,^[^ 25 ^]^ and mechanical deformation,^[^ 26 ^]^ is critical for developing materials with enhanced properties. Traditional methods often fail to accurately capture these dynamic processes at the relevant spatiotemporal scale in a non‐destructive manner, highlighting the importance of tomoscopy as a crucial tool for studying such 3D processes.
Although tomoscopy is a well‐established 4D tool, it faces challenges in improving its temporal resolution.^[^ 27, 28 ^]^ Specifically, it is crucial when studying dynamic processes to optimize temporal resolution without significantly compromising other parameters such as spatial resolution, field of view, and the total possible acquisition period. The current approach to increase the temporal resolution in tomoscopy involves increasing the rotation speed. The fastest tomoscopy experiments use high‐speed rotation stages that enable rotations up to 500 Hz, which corresponds to one thousand tomograms per second.^[^ 13 ^]^ These acquisition speeds offer the opportunity to study processes such as alloy casting and sparkler burning.^[^ 26 ^]^ However, these high‐speed rotations induce centrifugal forces that are orders of magnitude greater than the gravitational acceleration, potentially altering the dynamics being studied. In addition, they complicate the fabrication of sample environments for in situ and operando characterization. Therefore, such fast rotations extremely limit the applicability of tomoscopy. An alternative approach for studying processes in 3D is X‐ray Multi‐Projection Imaging (XMPI), which can produce rotation‐free 3D movies^[^ 29, 30 ^]^ at framerates from kHz and beyond.^[^ 31, 32 ^]^ However, XMPI suffers from sparse angular acquisitions, which necessitate quasi‐reproducible experiments to retrieve accurate 3D movies. This hinders its applicability to complex and non‐reproducible dynamics.
Parallel to advances in 4D acquisition methods, significant improvements have been made in computational algorithms for image reconstruction. Historically, reconstruction algorithms can be categorized by the dimensionality of the solutions: from 2D slices to full 3D volumetric reconstructions, and, more recently, to dynamic 4D approaches that include the time dimension.^[^ 33, 34 ^]^ The most common reconstruction approaches for tomoscopy rely on reconstructing individual 2D slices for each time point using: i) analytical solutions such as filtered back projection,^[^ 35 ^]^ ii) iterative approaches,^[^ 36, 37, 38 ^]^ iii) compressed sensing,^[^ 39, 40, 41 ^]^ and iv) DL.^[^ 42, 43, 44 ^]^ DL approaches have significantly improved the reconstruction quality of 2D slices, offering solutions to challenges such as sparse‐view reconstruction and noise mitigation. Moreover, DL approaches have demonstrated the opportunity to provide direct 3D reconstructions for each time point, eliminating the need to stack 2D slices to retrieve the 3D volume. Examples of these approaches include Convolutional Neural Network (CNN) with regular grids or continuous function representations.^[^ 45, 46, 47 ^]^ However, CNN‐based methods can be computationally expensive, limiting the volume that can be reconstructed in 3D. More recent DL approaches based on implicit representations such as Neural Radiance Fields (NeRFs)^[^ 48, 49, 50 ^]^ have shown the ability to efficiently reconstruct large 3D volumes with X‐ray imaging. When it comes to 4D reconstruction, there is a limited selection of algorithms that can be applied to tomoscopy.
Among existing 4D reconstruction approaches, a prominent class is model‐based iterative reconstruction (MBIR) techniques,^[^ 51 ^]^ as well as their more recent extensions for dynamic imaging.^[^ 28, 52, 53, 54 ^]^ These methods typically incorporate spatial and temporal priors, often through sparsity‐promoting regularization or total variation constraints, to reconstruct time‐resolved volumes from undersampled projection data. While such methods are capable of handling sparse‐view and limited‐angle scenarios, they generally require the sample to undergo a complete 180‐degree rotation to reconstruct a single tomographic volume. This requirement fundamentally constrains the achievable temporal resolution. Moreover, these approaches often rely on voxel‐based grid representations and iterative solvers, which result in substantial computational and memory overhead. Their temporal modeling is typically discrete, either frame‐based or event‐driven, and lacks a continuous, unified representation over time. These limitations make it challenging to apply such methods to fast‐evolving or non‐reproducible dynamic processes, particularly in scenarios demanding high temporal resolution or real‐time performance. In recent years, 4D‐DL computer vision approaches have shown the possibility of capturing complex 4D scenes in a computationally efficient manner, such as K‐planes,^[^ 55 ^]^ D‐NeRF,^[^ 56 ^]^ and Hexplane.^[^ 57 ^]^ Despite their potential, only a few of these algorithms have recently been adopted by the X‐ray community, such as 4D‐ONIX,^[^ 33 ^]^ designed explicitly for XMPI. These 4D X‐ray approaches^[^ 33, 58 ^]^ offer an opportunity to solve tomoscopy directly in its intrinsic 4D space, thereby i) simplifying the reconstruction process, ii) imposing spatiotemporal consistency, and iii) offering opportunities to include 4D physical constraints. Thus, the combination of such algorithms together with state‐of‐the‐art tomoscopy acquisition systems offers an opportunity to push the spatiotemporal resolution of 4D X‐ray imaging.
In this paper, we present STRT, a novel approach that enhances the temporal resolution of tomoscopy while preserving the spatial resolution. The framework is self‐supervised and case‐specific, requiring no pre‐training, external datasets, or prior knowledge beyond the measured radiographs, which makes it broadly applicable and experimentally practical. This is achieved by reducing the angular range required to retrieve a 3D reconstruction for each temporal instance of the studied dynamics. STRT exploits a deep learning approach to produce high‐quality 4D reconstructions of dynamic objects using very few projections or radiographs within a narrower angular range than the current angular range required by tomoscopy: 0–180°. This results in a temporal resolution enhancement equal to the ratio between the angular range used by STRT and 0–180°. We demonstrate, using both simulated and experimental data, that STRT can improve the temporal resolution by at least one order of magnitude compared to conventional tomoscopic experiments, while preserving the spatial resolution. Such improvement stems from the possibility of reconstructing tomoscopic data in its intrinsic dimension (4D) and sharing features across space and time. Consequently, we envision STRT as an enabling tool that expands the possibilities of tomoscopy, not only by accessing academic and industrial processes previously inaccessible due to centrifugal forces or limited sample environments at large‐scale X‐ray facilities but also by enhancing the temporal resolution of laboratory equipment to bring tomoscopy into standard lab applications.
Super Time‐Resolved Tomography
2
State‐of‐the‐art tomoscopy provides 4D information by reconstructing each time instance independently of a dynamical process from a complete series of radiographs acquired over an angular range of 0–180°, see Figure 1a. This acquisition approach, including an incremental reconstruction method,^[^ 59 ^]^ which shifts the start of each 180° range by one projection, derives from conventional tomoscopy methods that reconstruct 2D slices and stack them into a 3D volume. In contrast, intrinsic 4D reconstruction approaches offer opportunities to increase temporal resolution by relaxing the acquisition protocols, exploiting 4D consistencies in the data, and simplifying both the reconstruction and analysis processes.

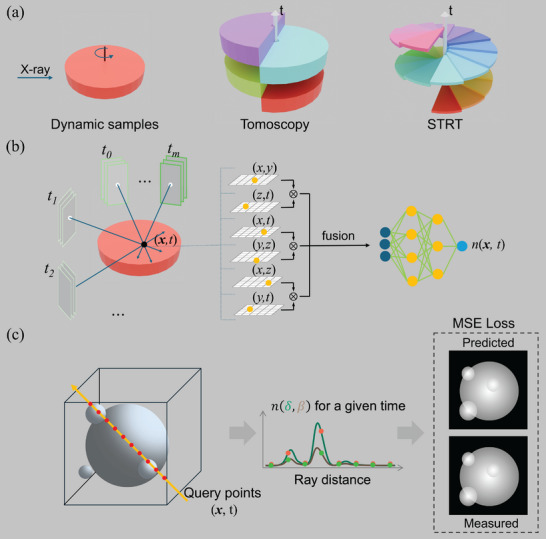

STRT concept. a) Data acquisition of STRT vs. tomoscopy. The thickness of each sector represents the time period during which the samples are assumed to be static. Tomoscopy requires a full 180‐degree scan to capture a single time point, while STRT reduces the required scan angle to much less than 180° by exploiting spatiotemporal redundancies and sharing information across space and time. b) X‐Hexplane tensorial model. X‐Hexplane contains six feature planes spanning each pair of coordinate axes (e.g., XY, ZT). Points in spacetime are projected to each plane. The features extracted from the six planes are fused and sent to a tiny Multilayer Perceptron (MLP) to get n(x, t) at a specific spatiotemporal point. c) X‐Hexplane rendering and cost function. 2D projections from a given experiment angle and time point can be rendered by integrating n(x, t) along the ray direction at that specific time point. The parameters of X‐Hexplane are updated by minimizing the Mean Squared Error (MSE) loss between the predicted results and the measured projections.
Our approach, christened STRT, enhances the temporal resolution of tomoscopy by utilizing a smaller angular range per time point compared to tomoscopy. For this angular range, the sample is assumed static, and the corresponding projections are labeled with the same timestamp for reconstruction purposes. The acquisition concept for STRT is depicted in Figure 1a. STRT uses a continuous rotation for the acquisition as done with tomoscopy, but each time point is defined over a smaller angular range, i.e., less than 180° rotation. This provides temporal enhancement that is proportional to the ratio between the angular range used in STRT and 0–180° used in tomoscopy experiments. To enhance temporal resolution while preserving spatial resolution, STRT utilizes a 4D reconstruction framework that shares information between space and time throughout acquisition, thereby alleviating the angular range requirement. In contrast, state‐of‐the‐art CT reconstruction methods provide only 2D reconstructed slices for a specific time point.
Our 4D DL reconstruction framework, X‐Hexplane, builds upon the Hexplane^[^ 57 ^]^ architecture, which utilizes a tensorial data structure to represent dynamic 4D volumes,^[^ 60 ^]^ and takes angle‐ and time‐resolved radiographs as input. Unlike Hexplane, designed for visible light, X‐Hexplane incorporates essential adaptations for X‐ray tomography and imaging, including a physics‐based forward model and the prediction of the complex index of refraction field n(x, t), rather than RGB appearance. The output of the network is physically meaningful, as it encodes both phase and absorption components, which are critical for simulating realistic X‐ray measurements. To model X‐ray projection from dynamic volumes, we extend the multiplane representation with a physics‐based forward model based on the projection approximation,^[^ 61 ^]^ which assumes that the X‐ray wavefront is only weakly perturbed as it traverses the sample (weak‐scattering approximation). This provides a physical‐forward model to generate projection images (radiographs) by integrating along rays through the predicted volume. This physical‐forward model can be extended beyond the weak‐scattering approximation by using, e.g., multi‐slice and propagation‐based methods.^[^ 61 ^]^ X‐Hexplane describes a 3D dynamic sample in terms of the index of refraction at each spatial‐temporal point n(x, t). The index of refraction quantifies the X‐ray interaction with matter and is represented as n = 1 − δ + iβ,^[^ 61 ^]^ where i) the real part δ captures the elastic interactions that result in wave phase shifts, offering high sensitivity to structural variations even in low‐Z materials via the so‐called phase contrast,^[^ 62 ^]^ and ii) the imaginary part β relates to the inelastic interactions such as X‐ray photon absorption and is related to the attenuation contrast.^[^ 1, 63 ^]^
To provide a 4D computationally efficient reconstruction, X‐Hexplane represents a dynamic process as an explicit voxel grid of features and reduces memory consumption by tensorial factorization,^[^ 57, 60 ^]^ as depicted in Figure 1b. Specifically, X‐Hexplane decomposes a 4D spacetime grid into six feature planes spanning each pair of coordinate axes, (XY, ZT), (XZ, YT), (XT, YZ). First, X‐rays are marched from each pixel of the captured images, and points are randomly sampled along the rays. Each (x, t) sampled point on the left‐hand side of Figure 1b is projected onto the six feature planes. Bilinear interpolation is applied to extract six corresponding feature vectors, which are then aggregated to form a fused feature vector. Subsequently, a lightweight MLP, a simple feedforward neural network composed of fully connected layers, is employed to regress the fused vector and predict the value of the index of refraction at any given spatiotemporal point, n(x, t). See the Experimental Section for a more detailed description of the X‐Hexplane algorithm. Once a differentiable description of the n(x, t), with two output channels representing the real (δ) and imaginary (β) parts of the index of refraction, as a function of the input projections is provided, we can generate projections along any X‐ray propagation direction and time by integrating the point values along the X‐ray propagation direction using the projection approximation. In this work, a fixed distance from the detector and a parallel beam geometry are used to compute the projections. Nonetheless, by modifying the geometric expression, cone‐beam or fan‐beam can also be implemented to account for different experimental configurations. Finally, to optimize X‐Hexplane, we minimize an MSE cost function between the predicted projections with X‐Hexplane at a given time and the corresponding measured projections at the same time point. This minimization process depicted in Figure 1c can be seen as an extension to 4D of current minimization approaches used in iterative reconstructions, such as algebraic reconstruction techniques for 2D slice reconstructions.^[^ 36 ^]^
To sum up, X‐Hexplane provides a 4D X‐ray reconstruction framework that enables STRT by i) incorporating the physics of X‐ray propagation into the model, ii) using a tensorial representation of the dynamics process to reduce memory footprint, and iii) sharing the features over space and time to solve the sparse view, limited angle problems.
STRT Performance Evaluation
2.1
To evaluate and demonstrate the potential of the proposed X‐Hexplane, we required accurate ground truth data. Therefore, we utilized simulated 4D data and standard tomoscopy experiments instead of STRT experiments. The ground truth for the former was derived from the 4D simulated data, while for the latter, it was obtained from standard tomoscopy reconstructions at each time point using TomoPy.^[^ 64 ^]^
To simulate an STRT experiment from tomoscopy data, we developed a specialized data extraction that uses different continuous angular ranges for each time point. Specifically, for each time point in STRT, we selected projections that span a fixed angular range within a 360° rotation to ensure continuous data acquisition over time. For instance, at time point t 0, projections covered an angular range from 0° to θ°, extracted from the first 360° rotation of the tomoscopy data. At time point t 1, projections covered θ° to 2θ°, extracted from the second 360° rotation of the tomoscopy data, and so on. It should be noted that we extracted each time point from a 360° rotation instead of the typical 180° rotation used in tomoscopy. This approach was chosen to avoid 4D inconsistencies that arise when combining 180° data due to the flipping requirement for two consecutive time points, which can hinder the quality of X‐Hexplane reconstructions. We emphasize that this data selection does not reflect a requirement of the STRT acquisition scheme itself but rather a constraint imposed by using tomoscopy data as a ground‐truth reference. It should be noted that an STRT experiment would use all the continuous frames acquired through a continuous rotation. Then, the reconstruction method would be applied directly to the recorded projections, without requiring any data selection or a full or half‐rotation dataset.
Table 1 reports the different angular ranges and projections data used in our validation experiments for tomoscopy and STRT, together with the temporal enhancement (TE) between STRT and tomoscopy. To assess the resolution for a given temporal enhancement, we compared the quality of the STRT reconstructions with the ground truth as a function of the angular range employing the Fourier Shell Correlation (FSC).^[^ 65 ^]^ The FSC calculates the normalized cross correlation between the reconstructions and the ground truth in frequency space over shells. Therefore, it provides a robust metric for comparing the spatial frequency content of the two results, ensuring a thorough evaluation of the neural network's performance for each time point. Here, we used FSC with the half‐bit threshold criterion to determine the achievable resolution.^[^ 65 ^]^ In addition to FSC, we also computed three widely used image quality metrics, Peak Signal‐to‐Noise Ratio (PSNR), Structural Similarity Index Measure (SSIM), and Normalized Root Mean Square Error (NRMSE), to provide a more comprehensive and quantitative evaluation of reconstruction fidelity. These complementary metrics enable cross‐validation of structural consistency and intensity accuracy across varying temporal enhancement conditions. The results for each process are summarized in Table 1.
In the following sections, we provide a detailed description of our validation results for both simulated and experimental data. The specific network and training details are provided in the Experimental Section.
Simulation Results
2.2
We first assessed the performance of STRT using 4D simulated datasets describing a coalescence process as a result of a binary droplet collision.^[^ 66, 67, 68 ^]^ This 4D process was modeled using Navier‐Stokes Cahn‐Hilliard equations.^[^ 33, 69 ^]^ To be consistent with a potential STRT experiment on such a system, we assumed that the X‐ray source was continuously rotated instead of the sample.^[^ 70, 71 ^]^ For each of the 75 simulated time points in this process, projections with 128 × 128 pixels were generated. The modeled data was used to simulate an STRT experiment. We extracted continuous subsets of projections that cover angular ranges of 3°, 9°, and 18° per time point for training, which corresponded to 60×, 20×, and 10× temporal enhancement, respectively.
Figure 2 presents the ground truth and reconstruction volumes as a function of the temporal enhancement from two orthogonal views at specific time points. A side view along the projection plane and a top view perpendicular to it were selected. The top view is particularly challenging to reconstruct, as it aligns with the rotation axis and is perpendicular to the incident X‐rays. Additionally, Video S1 (Supporting Information) provides a video that shows a comparison between ground truth and STRT reconstruction results as a function of the temporal enhancement. The quantitative reconstruction evaluation via the FSC is summarized in Table 1. As the angular sampling range increases from 3.0° to 18.0°, the FSC mean values gradually improve, indicating enhanced structural fidelity under lower temporal enhancement factors. This trend is also reflected in the complementary metrics: PSNR increases from 40.67 to 49.00 dB, SSIM improves from 0.977 to 0.990, and NRMSE decreases from 0.009 to 0.004. These results confirm that even under extreme angular undersampling conditions (e.g., 60× TE), the proposed method is able to recover the main features of the dynamic process, while progressively improving reconstruction accuracy as more angular information becomes available. The FSC as a function of time for the binary droplet collisions is shown in Figure 3a. For the reconstructions with an angular range of just 3°, i.e., a temporal enhancement factor of 60, the reconstructed 3D movie achieved an average resolution of 4.1 voxels, only two times worse than the Nyquist‐limited resolution of two voxels. In the 20× and 10× cases, the results successfully capture both shapes and dynamics across all frames, achieving an average resolution of less than three voxels almost compatible for all the time points with the Nyquist resolution.

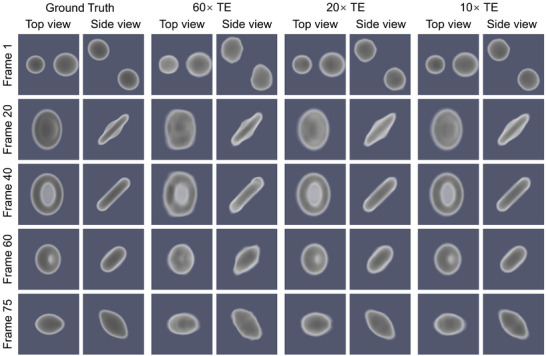

STRT reconstructions for droplet collisions compared to the ground truth. The left column depicts the 4D ground truth for different time points (frames) from two orthogonal views: one along the projection axis (side view) and one perpendicular to this plane (top view). The other columns show the corresponding STRT reconstructions for 60×, 20×, and 10× temporal enhancement (TE).

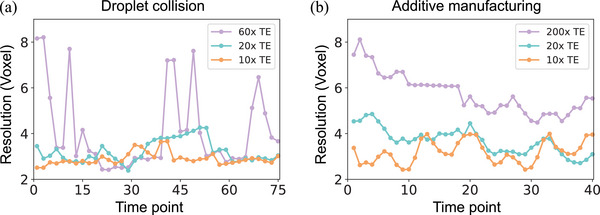

Spatial resolution determined by FSC as a function of time. a) illustrates the resolution changes during droplet collision with temporal enhancements (TE) of 60×, 20×, and 10×. b) presents the evolving revolution in additive manufacturing over time with temporal enhancements of 200×, 20×, and 10×.
Additive Manufacturing Results
2.3
X‐ray tomoscopy experiments on laser‐based powder bed fusion (LPBF) of iron oxide doped alumina were performed at the TOMCAT beamline of the Swiss Light Source. The tomoscopy presented in this work was performed while scanning the sample with a speed of 1 mms^−1^ using a green (532 nm) pulsed laser (1.5 ns pulse duration) with power set to 20 W. The observed process was remelting of the previously deposited layer, meaning that in this case, no new powder layer was deposited in the sample and the laser interacted directly with the solidified ceramics. The detailed description of the used material and the setup for the operando tomography during the LPBF process can be found in Ref. [72]. The studied LPBF process consists of two stages. The first involves a powder layer deposition. In the second stage, laser scanning a selected region of the sample induces localized melting of the powder, which is followed by the cooling down and solidification of the molten material. By adding consecutive multiple layers, a stable, 3D structure is obtained. The morphology and microstructure of LPBF‐manufactured materials are strongly linked to the dynamics of the melt pool. To track the behavior of the molten volume and the solidification processes, tomoscopy measurements with an acquisition rate of 100 tomograms per second were recorded, each with 200 projections over 180°. This high temporal resolution was achieved using the high polychromatic flux provided by the TOMCAT superbending magnet source. Due to the limited temporal (broad spectrum) and spatial (large source size) coherence of the TOMCAT source, limited phase contrast was observed in the projections. Thus, we performed phase‐retrieval using transport of intensity equations for homogeneous objects,^[^ 73 ^]^ which resulted in a single reconstructed component δ, while the β (attenuation) is not retrieved. Our X‐Hexplane architecture was, therefore, tailored for this experiment to be sensitive only to the phase‐retrieved component of the index of refraction. The projections or radiographs were acquired with the GigaFRoST camera system.^[^ 74 ^]^ The camera system provided an effective pixel size of 2.75 µm in this experiment, with radiographs measuring 160 × 1056 pixels for additive manufacturing. To enhance visualization and accelerate the reconstructions, the top part of the object was selected, and the width was scaled down, resulting in a final projection size of 70 × 528 pixels. Moreover, we selected the 200 time points where the printing process took place. Datasets were prepared with different temporal enhancements of 200×, 20×, and 10×, corresponding to angular ranges of 0.9°, 9°, and 18° per time point, respectively. The specific details of the dataset processing are discussed in the Experimental Section.
Figure 4 presents the comparison between the ground truth obtained from full 180° per time point and the corresponding STRT reconstructions. The different rows in the figure depict the sample's state at various time points. A video comparing the reconstructions and the ground truth is provided in Video S2 (Supporting Information). As it can be observed in Figure 4, STRT produces promising results even with only 1 projection per time point, effectively capturing the general shape of the sample. However, noticeable artifacts and distortions appear, particularly in finer structures in the area that is being printed (orange squares in Figure 4). The reconstruction corresponding to 20× temporal enhancement improved overall shape preservation but still struggles with accurately recovering the finer details of the printing process. With 10× temporal enhancement, both deformation stages were successfully reconstructed, indicating that an angular range of 18° per time point is sufficient to capture the dynamic process. The mean and standard deviation of the metrics evaluation are reported in Table 1. FSC values decrease from 5.7 ± 0.8 under 200× temporal enhancement to 3.2 ± 0.5 under 10× TE, indicating progressively improved structural fidelity with increasing angular coverage. This trend is corroborated by the PSNR, SSIM, and NRMSE metrics, which show substantial quality gains as the angular range increases: PSNR rises from 14.26 to 22.80 dB, SSIM improves from 0.696 to 0.765, and NRMSE drops from 0.195 to 0.073. These results demonstrate the ability of STRT to recover meaningful structure even under severe undersampling, while clearly benefiting from additional angular information. The FSC as a function in time is shown in Figure 3b. Such results confirm that the best results are achieved with 10× enhancement with a resolution of approximately three voxels compared to the ground truth.

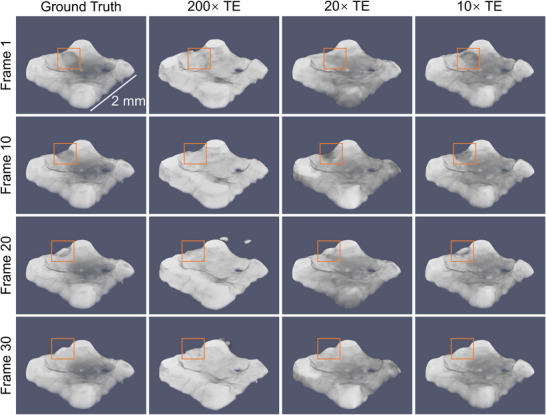

STRT reconstructions for additive manufacturing and ground truth. The ground truth and STRT results for 200×, 20×, 10× temporal enhancement (TE) are displayed in separate columns, while different rows represent distinct time frames of the printing process. The dynamics of the printing processes are marked by solid squares.
For further evaluation of the quality of the obtained reconstructions and to assess their applicability for the studies of the LPBF process, material segmentation was performed using standard tools available in the commercial software Thermo Scientific Avizo. The results are illustrated in Figure 5. Figure 5a,b shows the comparison of the reconstructed volume obtained with 10× enhancement with the ground truth by volume rendering and the obtained tomographic slices, clipping the same volumes approximately through the middle of the melt pool depth. A simple image contrast adjustment allows an obvious distinction between the solid and liquid phases, which in turn facilitates the material segmentation. The liquid surface generated based on the segmentation is displayed in Figure 5c (top view) and d) (cross‐section) and clearly shows the similar shape of the obtained melt pool in both cases. The volume of the molten phase obtained for the ground truth reconstruction was 1.4× 10^6^ µm ^3^, and for 10× temporal enhancement it was 1.6× 10^6^ µm ^3^. This difference is within the possible deviation range due to the obtained spatial resolution.

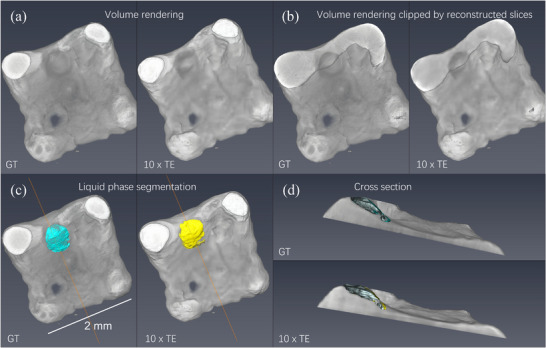

Comparison of the reconstruction performed with 10× temporal enhancement (TE) with the ground truth a) volume rendering, b) volume rendering clipped by slices reconstructed using corresponding approaches (ground truth and 10× TE), c) results of material segmentation highlighting liquid surfaces, d) cross‐sections along the orange line indicated in (c).
