Aging‐Induced Ductile‐Brittle‐Ductile Transition in High‐Entropy Alloys and its Implications
Qianning Dai, Chenzhi Xing, Bijun Xie, Ming‐Hsien Lee, Bin Xu, Shaofei Ren, Yujie Song, Chunyang Wang, Mingyue Sun, Dianzhong Li
TL;DR
Aging a high-entropy alloy causes a surprising shift from ductile to brittle and back to ductile behavior, driven by changes in chemical order and phase boundaries.
Contribution
The study reveals a novel ductile-brittle-ductile transition in high-entropy alloys caused by dynamic chemical ordering and phase boundary evolution.
Findings
Aging in the embrittlement-prone regime increases chemical ordering and jagged phase boundaries, causing a ductile-to-brittle transition.
Aging outside this regime suppresses excessive ordering and restores ductility through the formation of interphase transition zones.
The findings challenge the traditional understanding of thermal embrittlement in alloys.
Abstract
Temper embrittlement, characterized by a dramatic loss of ductility within a narrow temperature window, is ubiquitous in conventional alloys but is not reported in compositionally complex or high‐entropy alloy systems. Here, an unexpected ductile–brittle–ductile transition is discovered in a multiphase high‐entropy alloy (HEA) aged in an intermediate temperature regime. Unlike the classical thermal embrittlement driven by grain boundary effects, this transition originates from the dynamic evolution of local chemical order (LCO) and phase boundary (PB) configurations in HEAs. Aging within the embrittlement‐prone regime enhances chemical ordering, increases the density of ordered domains, and induces jagged PBs, collectively triggering plastic instability and the ductile−to−brittle transition. In contrast, aging outside this regime suppresses excessive ordering and promotes the formation…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —National Key Research and Development Program10.13039/501100012166
- —National Natural Science Foundation of China10.13039/501100001809
- —Chinese Academy of Sciences10.13039/501100002367
- —LingChuang Research Project of China National Nuclear Corporation
- —CNNC Science Fund for Talented Young Scholars
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHigh Entropy Alloys Studies · High Temperature Alloys and Creep · Additive Manufacturing Materials and Processes
Introduction
1
The classical “temper embrittlement” phenomenon^[^ 1, 2, 3, 4, 5, 6, 7 ^]^—documented for over a century in conventional steels and other alloys—occurs upon exposure to specific temperature ranges, sharply reducing toughness and endangering engineering safety in critical applications such as aerospace, shipping, and petrochemical systems.^[^ 8, 9, 10 ^]^ Temper embrittlement degradation is primarily attributed to the segregation of embrittling elements or the precipitation of brittle phases along grain boundaries (GBs), which act as stress concentrators and crack initiation sites, ultimately inducing brittle fracture under stress.^[^ 1, 2, 3, 4, 5, 7, 11, 12, 13, 14 ^]^ This well‐established mechanism highlights the central role of brittle phase precipitation and element segregation at GBs in governing embrittlement in conventional alloys.
In contrast, emerging high‐entropy alloys (HEAs),^[^ 15, 16, 17 ^]^ which consist of multiple principal elements, introduce new thermodynamic and kinetic complexities that challenge conventional thermal exposure paradigms. Their high configurational entropy and sluggish diffusion kinetics^[^ 17, 18, 19, 20, 21, 22, 23 ^]^ suppress rapid grain coarsening and the formation of deleterious intermetallic phases compared to traditional alloys,^[^ 17, 23, 24 ^]^ endowing HEAs with exceptional strength‐ductility combinations, resistance to high‐temperature softening and low‐temperature embrittlement, and excellent wear resistance, making them attractive for demanding engineering applications.^[^ 17, 25, 26, 27 ^]^ Nonetheless, even HEAs designed as single‐phase solid solutions can develop subtle local chemical orders (LCOs)^[^ 28, 29, 30 ^]^ and even partition into multiple phases as they equilibrate,^[^ 31 ^]^ which seems inevitable due to the presence of elements with varying atomic sizes, electronegativities, and thermodynamic enthalpies of mixing. Recently, these unique LCOs have been successfully tailored to improve the strength‐ductility synergy of HEAs,^[^ 32, 33, 34 ^]^ which provides a new strategy for designing high‐performance HEAs. However, the thermodynamic and kinetic behaviors of these LCOs have still not been deeply investigated, especially the evolution of these LCOs under thermal exposure, which could be complicated due to the intrinsic compositional complexity. It is unknown whether these evolved LCOs will degrade the mechanical properties of HEAs, which is crucial for the engineering application of these high‐performance HEAs strengthened by LCOs. Furthermore, it remains unresolved whether HEAs undergo the tempering‐like embrittlement, and if so, how their unique multi‐element chemistry and microstructure influence such thermal brittleness.
Here we address this open question by delving into the potential of thermal embrittlement of a typical AlCoCrFeNi_2.1_ eutectic HEA (EHEA) with face‐centered cubic (FCC) and ordered body‐centered cubic (B2) phases.^[^ 35 ^]^ Compared with conventional alloys and other HEAs (Figure S1, Supporting Information), AlCoCrFeNi_2.1_ EHEA offers a balanced combination of high strength and superior ductility with the superior castability of eutectic alloys, allowing for direct casting of complex components and reducing manufacturing costs. Moreover, this alloy also exhibits exceptional high‐temperature strength and corrosion resistance, making it a promising candidate for high‐temperature structural and marine engineering applications.^[^ 35, 36, 37, 38, 39 ^]^ A key microstructural feature contributing to these properties is the presence of local chemical/ordering fluctuations, which significantly affect the mechanical behavior by altering the local stacking fault energy and dislocation dynamics.^[^ 29, 30, 32, 34, 40, 41, 42, 43, 44 ^]^ In the FCC phase, such fluctuations often drive the formation of locally ordered L1_2_ domains.^[^ 45, 46, 47 ^]^ Conversely, within the Ni and Al‐rich B2 phase, the limited solubility of Cr gives rise to local fluctuations that result in disordered regions, often manifesting as locally Cr‐rich BCC precipitates.^[^ 48, 49 ^]^ Notably, the local chemical/structural fluctuations across both phases evolve via thermal exposure, which might influence the susceptibility of thermal stability. The other feature is the intricate phase boundaries (PBs), with their complex atomic structures and unique interfacial configurations, which also play a critical role in determining the properties of alloys.^[^ 50, 51, 52 ^]^ In conventional alloy steels, embrittling phases and elements tend to segregate at grain or phase boundaries, thereby prompting further inquiry into whether similar mechanisms might induce thermal embrittlement in HEAs.
Employing thermal aging treatments from intermediate to high temperatures, we discover an unusual ductile−brittle−ductile transition in the AlCoCrFeNi_2.1_ HEA. Our findings reveal that the embrittlement transition is driven by the thermal‐induced evolution of LCOs and PBs' configurations. While generally beneficial under certain conditions, these features may act as precursors to embrittlement if altered unfavorably during aging. Specifically, aging‐enhanced L1_2_ domains combined with jagged PBs deteriorate the alloy's ductility. Intriguingly, aging‐induced ductile transition zones along the PBs and a reduced degree of order in L1_2_ domains at non‐embrittlement temperature ranges contribute to the regain of ductility. These findings challenge established theories and offer new insights into the thermal characteristics of compositionally complex alloy systems under different aging conditions.
Results
2
Ductile−Brittle−Ductile Transition in the HEA
2.1
Figure 1A presents the tensile properties of AlCoCrFeNi_2.1_ HEA subjected to various aging treatments at different temperatures. For the as‐cast (AC) alloy or those aged at low temperatures, the ultimate tensile strength (UTS), yield strength (YS), and high fracture elongation maintain a relatively stable level, indicating ductile deformation behavior. As the aging temperature increases from ≈500 to 700 °C, fracture elongation deteriorates significantly, demonstrating a transition toward brittleness. This brittleness is accompanied by a reduction in UTS and a slight increase in YS at 700 °C. Intriguingly, at 750 °C, the UTS and YS recover to levels comparable to the AC alloy, and fracture elongation rises dramatically, thereby restoring ductility. Even after aging at an extreme temperature of 1200 °C, the UTS remains substantial at 837 MPa, and the YS holds at 355 MPa. Although fracture elongation declines at temperatures above 750 °C, the alloy aged at 1200 °C still retains a notable elongation of 9.5%. Overall, the UTS, YS, and fracture elongation exhibit high thermal stability at elevated temperatures. However, an unusual ductile−brittle−ductile transition is observed across 550 to 750 °C. Figure 1B further provides engineering tensile stress‐strain curves for the alloys of as‐cast state (AC), aged at 600 °C (600A), and aged at 750 °C (750A), demonstrating that the 750A alloy exhibits the optimal balance of ductility and strength, whereas the 600A alloy shows the poorest ductility. Moreover, this ductile−brittle−ductile transition is also confirmed by the impact toughness measurements, where the 600A alloy shows the lowest impact energy absorption (Figure S2, Supporting Information).

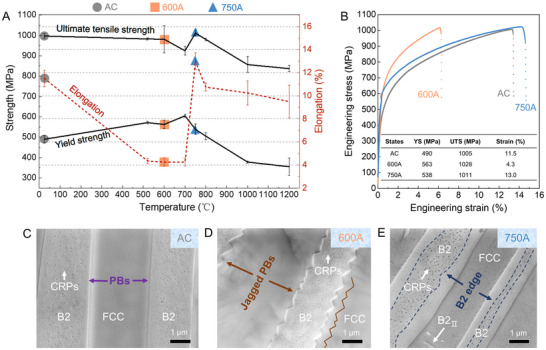

Mechanical properties and microstructures of high‐entropy alloys (HEAs) aged at different temperatures. A) Mechanical properties of the aged alloys at various aging temperatures. B) Engineering stress‐strain curves and corresponding performances of the AC, 600A, and 750A alloys. The inset table in (B) exhibits the yield strength (YS), ultimate tensile strength (UTS), and fracture strain of the AC, 600A, and 750A alloys. C−E) Morphologies of the FCC/B2 phase boundaries (PBs) in the AC, 600A, and 750A alloys, respectively. The unique jag‐shaped FCC/B2 PBs in the 600A alloy are highlighted in (D). The Cr‐rich particles (CRPs) are absent within the B2 edge region in the 750A alloy, as shown in (E).
Microstructural Evolution of the AC, 600A, and 750A Alloys
2.2
To understand the unique ductile−brittle−ductile transition at intermediate temperatures, we first characterized the microstructures and phase distribution of the AC, 600A, and 750A alloys. X‐ray diffraction (XRD) results (Figure S3A, Supporting Information) confirm that these three alloys contain only FCC and B2 phases after aging treatments. The AC alloy shows a typical duplex‐phase microstructure (Figure 1C). It consists of an FCC matrix, which is enriched in Fe, Co, and Cr elements and occupies ≈69.2% of the volume, and a dispersed B2 phase that is rich in Al and Ni (Figure S3, Supporting Information). Within the B2 phase, numerous nanometer‐sized Cr‐rich particles (CRPs) are identified, previously characterized as having a BCC structure.^[^ 53, 54 ^]^ In the AC alloy, the CRPs contain a small amount of Fe, Co, Ni, and Al elements and gradually decrease in size as they approach the PB (Figure S3J, Supporting Information).^[^ 55 ^]^ The 600A alloy retains the same duplex‐phase microstructure as the AC alloy (Figure 1D) without significant phase and grain coarsening (Figure S3, Supporting Information). Notably, most PBs in the 600A alloy display a jagged morphology with dimensions in hundreds of nanometers (Figure 1D). However, the CRPs embedded in the B2 phase of 600A alloy exhibit a higher Cr content than those in the AC alloy (Figure S4, Supporting Information). Similarly, the 750A alloy also preserves the duplex‐phase microstructure and show no obvious coarsening (Figure 1E; Figure S3, Supporting Information). The CRPs in the 750A alloy have compositional features similar to those in the AC alloy (Figure S4, Supporting Information). However, these CRPs disappear within a region adjacent to the PBs, which is about a few hundred nanometers in scale (Figure 1E). This clean area at the edge of the B2 phase is notably different from that observed in both AC and 600A alloys. Moreover, the 750A alloy contains numerous fine precipitates enriched in Al and Ni and depleted in Fe, Co, and Cr elements (Figure S3, Supporting Information). These precipitates have a B2 structure and maintain a similar Kurdjumov‐Sachs (K‐S) relationship with the FCC matrix.^[^ 53 ^]^ To distinguish these fine B2 precipitates from the primary B2 phase formed via eutectic reaction during solidification, we denote them as B2_II_ phases.
LCOs evolution in the AC, 600A, and 750A Alloys
2.3
Given that the soft FCC matrix accommodates the majority of plastic strain during deformation in dual‐phase alloy,^[^ 56 ^]^ we explored its structural and chemical features (Figure 2). Selected‐area electron diffraction (SAED) patterns of the FCC matrix display the ordered L1_2_ superlattice spots (Figure 2), indicating the existence of L1_2_ ordering within the FCC matrix. For clarity, this matrix is denoted as the FCC(L1_2_) matrix in subsequent discussions. In the AC alloy, the dark field TEM (DF‐TEM) image (Figure 2A(i)) reveals abundant nanometer‐sized spherical L1_2_‐ordered domains embedded in the FCC(L1_2_) matrix. The size distribution histogram in the lower right corner shows that these domains have an average diameter of ≈9.87 nm and constitute ≈23% of the volume. Scanning transmission electron microscopy‐energy dispersive X‐ray spectroscopy (STEM‐EDS) mapping confirms that these nanometer‐sized L1_2_ domains are enriched in Al and Ni and depleted in Fe, Co, and Cr (Figure 2A(ii)). High‐resolution high‐angle annular dark‐field (HAADF) image reveals that these regions maintain a fully coherent relationship with the FCC phase (Figure S5, Supporting Information). Further structural details of L1_2_ domains are elucidated by the inverse fast Fourier transform (IFFT) image acquired from two series of superlattice spots under [112] zone axis in the FFT pattern (Figure 2A(iii)). In the AC alloy, L1_2_ domains display imperfectly spherical shapes and interconnect through areas of weaker ordering. Notably, centers of L1_2_ domains display stronger ordering than their periphery, suggesting local fluctuations in ordering. Atomic‐scale STEM‐EDS mapping (Figure S6, Supporting Information) indicates that the Al and Ni‐enriched regions coincide with ordered areas at atomic scale, demonstrating a coupled local chemistry and L1_2_‐ordering fluctuation,^[^ 44 ^]^ which reveals that chemical variations contribute to differences in ordering. Comparison of atomic‐scale STEM‐EDS maps between nanometer‐sized ordered and disordered regions reveals that in ordered regions, Al‐Ni and Fe‐Co‐Cr groups form with significant local fluctuations (Figure 2B(i)), whereas disordered regions display a more random element distribution (Figure 2B(ii)).

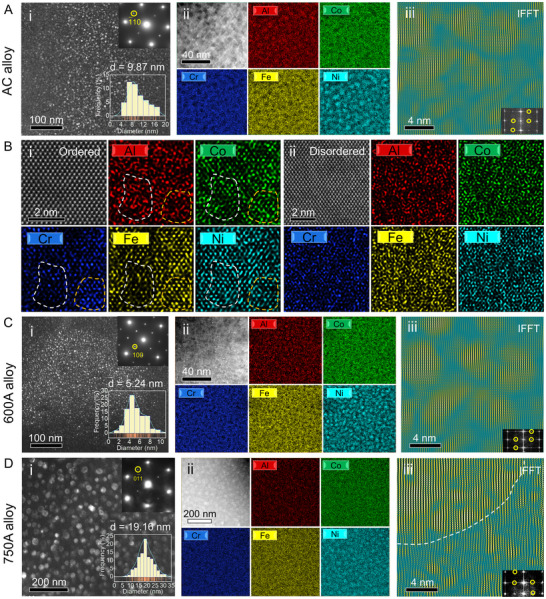

Atomic‐scale characterization of L12 domains in the AC, 600A, and 750A alloys. A(i), C(i), and D(i) DF‐TEM images of L12 domains in the AC, 600A, and 750A alloys, respectively. These images are obtained using the superlattice spots marked by the yellow circles in the SAED patterns at the top right corner. The size distribution histograms of the L12 domains are shown in the bottom right corner. A(ii), C(ii), and D(ii) STEM‐EDS mappings of L12 domains in FCC(L12) matrix in the AC, 600A, and 750A alloys, respectively. A(iii), C(iii), and D(iii) IFFT images obtained from two series of L12 superlattice spots marked by the yellow circles in the FFT pattern under the [112] zone axis. The brightness in these IFFT images represents the degree of ordering, i.e., the brighter the color, the higher the degree of ordering. The region enclosed by the white dotted line in D(iii) indicates part of a single L12 domain. B(i−ii) Atomic‐scale STEM‐EDS mappings of ordered and disordered regions, showing the local chemical fluctuations in the FCC(L12) matrix.
Aging treatments significantly impact the L1_2_ domains. DF‐TEM images of the 600A and 750A alloys (Figure 2C,D(i)) show that the L1_2_ domains maintain a spherical feature similar to that observed in the AC alloy. However, their average diameters differ, measuring ≈5.24 nm after aging at 600 °C and increasing to an average of ≈19.16 nm after aging at 750 °C. The volume fractions of the L1_2_ domains are ≈30% in the 600A alloy and 27% in the 750A alloy. STEM‐EDS mappings (Figure 2C,D(ii)) indicate that, although the compositional characteristics of the L1_2_ domains remain similar to those in the AC alloy, the 600A alloy displays a more pronounced compositional interface between the L1_2_ domain and FCC phase compared to both AC and 750A alloys. Similar to the AC alloy, the L1_2_ domains in the aged alloys maintain a coherent relationship with their surrounding FCC matrix (Figure S5, Supporting Information). IFFT images confirm that local ordering fluctuation within L1_2_ domains is retained in both 600A and 750A alloys (Figure 2C,D(iii)). Atomic strain maps of the FCC(L1_2_) matrix obtained via geometrical phase analysis (GPA)^[^ 57 ^]^ reveal distinct strain features among the three alloys, potentially influencing dislocation movement and strain hardening behavior of the alloys (Figure S7, Supporting Information).^[^ 58 ^]^
Elevated Order Degree of L12 Domains in the 600A Alloy
2.4
Atom probe tomography (APT) was employed to further elucidate the chemical characteristics of the L1_2_ domains in the AC, 600A, and 750A alloys (Figure 3). Consistent with STEM‐EDS results, all three alloys present high‐density Ni and Al‐rich domains (Figure S8, Supporting Information). The isoconcentration surface maps of the FCC(L1_2_) matrix (Figure 3A−C) reveal that the 600A alloy contains a particularly high density of L1_2_ domains with the smallest size. 1D concentration profiles (Figure 3D−F) show that, while the L1_2_ domains in both AC and 750A alloys share similar compositional characteristics, those in the 600A alloy differ markedly. Specifically, the L1_2_ domains in the 600A alloy display a significantly lower Al content, and the atomic ratio of Ni/Al is ≈3:1, which keeps the Ni/Al ratio of a perfectly L1_2_‐ordered Ni_3_Al structure (Figure 3G; Table S1, Supporting Information). In contrast, the Ni/Al ratio is ≈2:1 in the AC and 750A alloys, indicating that L1_2_ domains in these two alloys are off‐stoichiometric L1_2_ with decreased order degrees. Moreover, slightly higher amounts of Fe, Co, and Cr are observed in the L1_2_ domains in the 600A alloy compared to their counterparts in the AC and 750A alloys. Nevertheless, the total amount of these three elements is low in the L1_2_ domains in these three alloys.

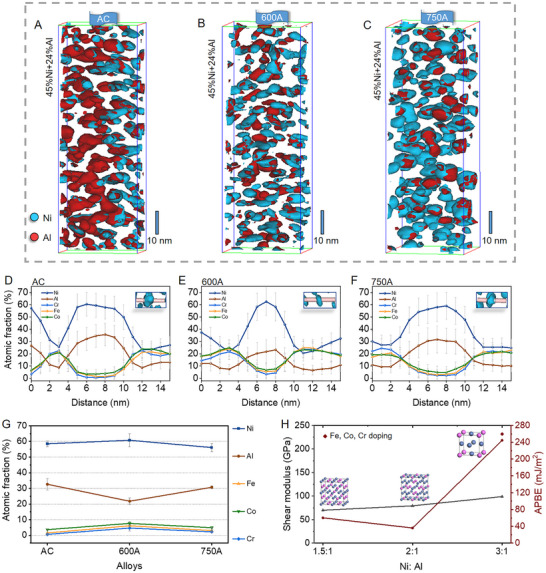

Chemical evolution of the L12 domains in three alloys characterized by APT. A−C) Isoconcentration surface maps (45% Ni+24% Al) of the AC, 600A, and 750A alloys, respectively. The Ni and Al elements are displayed using blue and red colors. D−F) 1D concentration profiles of L12 domains in the AC, 600A, and 750A alloys, respectively. The image in the upper right corner represents the measured L12 domain. (E) shows a decrease in Al content alongside increases in Ni, Fe, Co, and Cr concentrations within the L12 domains of the 600A alloy. (D) and (F) show that the L12 domains in AC and 750A alloys have similar compositions. G) Elemental variations within L12 domains across all three alloys, indicating increases in Ni, Fe, Co, and Cr levels and a decrease in Al content in the 600A alloy. These data represent the average statistical results of the chemical compositions of fifteen distinct L12 domains. H) DFT results of the influence of composition on the shear modulus and APBE of L12 domains. The inset crystalline structures are the calculated models.
Density functional theory (DFT) calculations were conducted to clarify the impact of these compositional changes on the shear modulus and antiphase boundary energy (APBE) of L1_2_ domains (Figure S9 and Table S2, Supporting Information). The DFT results in Figure 3H reveal that a reduction in Al content in the L1_2_ domains leads to a significant increase in shear modulus. More significantly, as the atomic ratio of Ni: Al changes from nearly 2:1 to 3:1, the APBE also increases substantially. Moreover, DFT calculations reveal that minor doping of Fe, Co, and Cr can slightly lead to an increase in APBE, as indicated by the red rhombus in Figure 3H. Collectively, these findings suggest that the L1_2_ domains in the 600A alloy exhibit a higher APBE and an expanded shear modulus, compared to those in the AC and 750A alloys.
Deformation and Cracking Behaviors of the AC, 600A, and 750A Alloys
2.5
To elucidate the underlying mechanisms governing the mechanical response of the alloys with distinct microstructures, we investigated their deformation and fracture features (Figure 4). In the AC alloy, the FCC(L1_2_) matrix exhibits dense slip traces aligned with various {111} slip planes (Figure 4A(i)), indicating activation of multiple slip systems. Slightly planar slip bands indicated by white arrows in Figure 4A(ii) suggest that dislocations predominantly operate through a planar slip mechanism in the FCC(L1_2_) matrix, which can be attributed to L1_2_ ordering.^[^ 59 ^]^ Within the B2 phase, numerous arrow‐shaped dislocations are observed around the CRPs (yellow arrows in Figure 4A(iii)), indicating that these CRPs impose a strong pinning force to hinder dislocation movement. The deformation features of the 600A alloy are markedly different. The FCC(L1_2_) matrix here shows more remarkable planar slip bands along only one of the {111} planes (Figure 4B(i),(ii). Regions between these planar slip bands experience minimal deformation, while dislocations densely accumulate and form significant pile‐ups at the B2/FCC(L1_2_) PBs (Figure S10A, Supporting Information). The high frequency of these single‐orientation planar slip bands makes the FCC(L1_2_) matrix more susceptible to local strain concentration. Moreover, we identified many unique long dislocation pairs characterized by leading and trailing dislocations (white arrow in Figure 4B(ii)). These pairs display a curved morphology and are conspicuously entangled and accumulated (Figure 4B(i); Figure S10B, Supporting Information). This suggests that the dislocation mobility is strongly hindered, subsequently impacting the overall ductility of the 600A alloy. The B2 phase also demonstrates a CRPs‐induced pinning effect on dislocation motion as seen in the AC alloy (yellow arrow in Figure 4B(iii)). High‐density dislocations are observed to accumulate at the jagged PBs, which indicates high stress concentration (Figure 4B(iii)). In contrast, the FCC(L1_2_) matrix in the 750A alloy exhibits complex dislocation networks (Figure 4C(i)) that suggest the activation of the majority of {111}<110> slip systems, resulting in a more uniform plastic deformation. Moreover, multiple slip traces are obstructed by B2_II_ particles within the FCC(L1_2_) matrix (Figure 4C(i)). Meanwhile, the L1_2_ domains are observed to deform via a cutting‐through mechanism^[^ 60 ^]^ (see cyan arrow in Figure 4C(ii)). Notably, we observed that dislocations glide easily across the regions lacking CRPs around the B2/FCC(L1_2_) PBs (indicated by the white arrow in Figure 4C(iii)), while these gliding dislocations become pinned and entangled upon encountering the CRPs in the B2 phase. This results in a shell‐core configuration of dislocation distribution emanating from the PBs into the B2 interior (Figure S10D, Supporting Information), effectively mitigating stress concentration at the interface. This contrasts sharply with severe dislocation pile‐ups observed around PBs within both AC and 600A alloys (Figure 4A‐C(iii)). These observations suggest that this CRPs‐free zone located at the B2 edge region may confer superior ductility by alleviating stress concentration and suppressing pre‐cracking at phase boundaries.

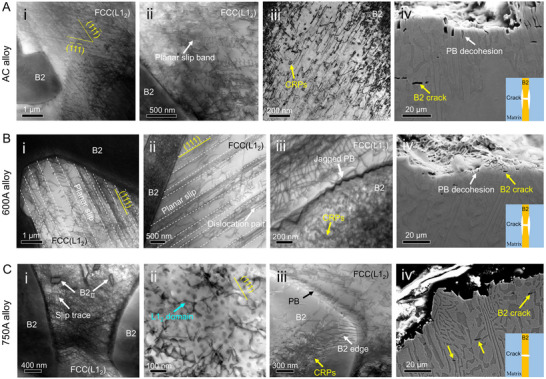

Different dislocation patterns and fracture characteristics of the deformed AC, 600A, and 750A alloys. A(i), B(i), and C(i) Bright field‐STEM (BF‐STEM) images of slip traces along the {111} slip planes in FCC(L12) matrix of the AC, 600A, and 750A alloys, respectively. A(ii) Multiple dense slip bands in the FCC(L12) matrix in the AC alloy. A(iii) Deformation microstructure of the B2 phase in the AC alloy, showing the strong pinning effect of CRPs on dislocation movement. B(ii) Heavily localized dislocation slip within the planar slip bands and long dislocation pairs in the 600A alloy. B(iii) Deformation behaviors of B2 phase and jagged PB in the 600A alloy. C(ii) Interaction of nanometer‐sized L12 domains and dislocations in the 750A alloy. C(iii) Deformation characteristics of the B2 phase and PB in the 750A alloy. A(iv), B(iv), and C(iv) Fracture cross‐section images of the AC, 600A, and 750A alloys, respectively.
Figure 4A‐C(iv) illustrate the fracture cross‐sections of the AC, 600A, and 750A alloys, respectively. In all three alloys, microcracks initiate within the B2 phase (Figure 4A‐C(iv)). Notably, the AC and 600A alloys exhibit significant tearing decohesion cracking along the PBs, as indicated by white arrows in Figure 4A(iv) and 4B(iv). In contrast, this phenomenon is absent in the 750A alloy (Figure 4C(iv)), suggesting enhanced interfacial strength and reduced stress concentration at the B2/FCC(L1_2_) PBs. Furthermore, the B2 phase across all three alloys displays a typical brittle fracture characteristic, evidenced by a river‐like fracture morphology, while the FCC(L1_2_) matrix exhibits a typical dimpled fracture morphology (Figure S11, Supporting Information). In the case of the 750A alloy, numerous small dimples are observed, which originate from the B2_II_ phases (Figure S11, Supporting Information), indicating an increased ductility in this alloy.
Discussion
3
Ductile−Brittle Transition
3.1
Our results demonstrate that aging the AlCoCrFeNi_2.1_ alloy at 600 °C induces a ductile−brittle transition, which is different from the general degradation mechanisms—such as phase transformation, grain coarsening, or GBs embrittlement—commonly observed in conventional alloys when suffering heat treatment.^[^ 61, 62, 63 ^]^ Instead, the transition originates from the coupled evolutions of LCOs and the B2/FCC(L1_2_) PBs.
In the 600A alloy, the higher‐density and smaller‐sized L1_2_ domains present perfectly ordered Ni_3_Al structure, exhibiting elevated APBE and elastic modulus (Figure 3), which raises the critical shear stress for dislocation motion.^[^ 64 ^]^ Although these ordered domains notably harden the FCC(L1_2_) matrix via both ordering and modulus strengthening (Figure S12 and Note S1, Supporting Information), they simultaneously enhance the brittleness by impeding dislocation motion and concentrating stress.^[^ 65, 66, 67 ^]^ Moreover, the ordered L1_2_ generally promotes planar dislocation slip through a “glide plane softening” effect (Figure 5C), whereby dislocations successively cut through and degrade the ordered regions, reducing the glide resistance for subsequent dislocations and leading to the aggregation of dislocations (Figure S13, Supporting Information).^[^ 68 ^]^ Aging at 600 °C induces enhanced ordering with higher APBE, which intensifies this planarity, leading to pronounced strain localization and unsustainable working hardening (Figure S14A, Supporting Information). Concurrently, the superlattice intrinsic stacking fault energy (SISFE) is greatly affected by chemical substitutions; a lower SISFE decreases the likelihood of dislocation cross‐slip.^[^ 69, 70 ^]^ As demonstrated by Kumar et al.^[^ 71 ^]^ for L1_2_‐ordered Ni_3_Al, higher Al content increases SISFE; therefore, the Ni_3_Al‐like L1_2_ domains with lower Al content in the 600A alloy contribute to restricted dislocation cross‐slip and accentuate localized slip.

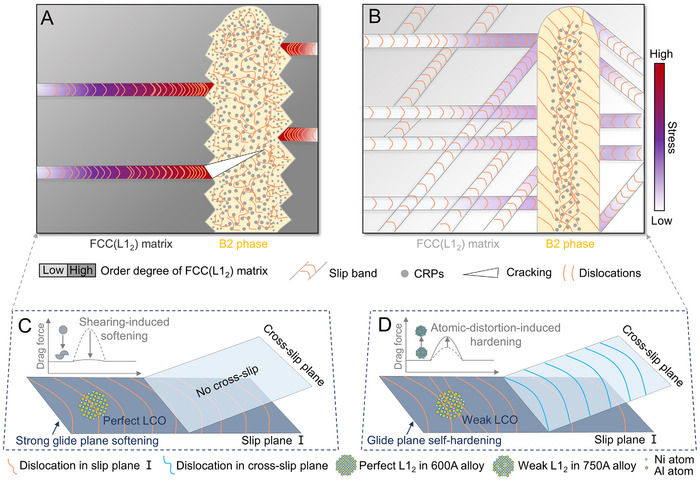

Schematic comparison of deformation mechanisms in the 600A and 750A alloys. A) Synergistic embrittlement in the 600A alloy. Strong LCO promotes planar dislocation slip and induces severe strain localization. Concurrently, jagged PBs act as sites for high‐stress concentration. B) Synergistic toughening in the 750A alloy. Moderate LCO facilitates the activation of multiple slip systems, leading to more homogeneous deformation. This effect is complemented by ductile PBs that accommodate plastic strain and mitigate local stress concentrations. C) In the 600A alloy, strong LCO causes glide‐plane softening, which confines dislocation activity to a single slip plane. The inset illustrates the drag force on a dislocation before and after it shears the ordered domains. D) In the 750A alloy, the weaker LCO lowers the barrier for dislocation cross‐slip, promoting distributed plasticity. The inset shows the corresponding drag‐force profile, indicating an increased resistance to dislocation motion.
