Micro-CT and machine learning: a high-throughput alternative to histology for follicle reserve assessment in cryopreserved ovarian tissue

TL;DR

This paper introduces a new automated method using micro-CT and machine learning to assess ovarian tissue quality, offering a faster and more accurate alternative to traditional histology.

Contribution

The study presents a high-throughput, automated method combining micro-CT and machine learning for oocyte density assessment in cryopreserved ovarian tissue.

Findings

Oocytes in pediatric samples are closer to the surface and more clustered compared to adult samples.

Simulated histology using virtual sections closely approximates micro-CT estimates of oocyte density.

Three-dimensional analysis provides insights into oocyte localization and spatial distribution.

Abstract

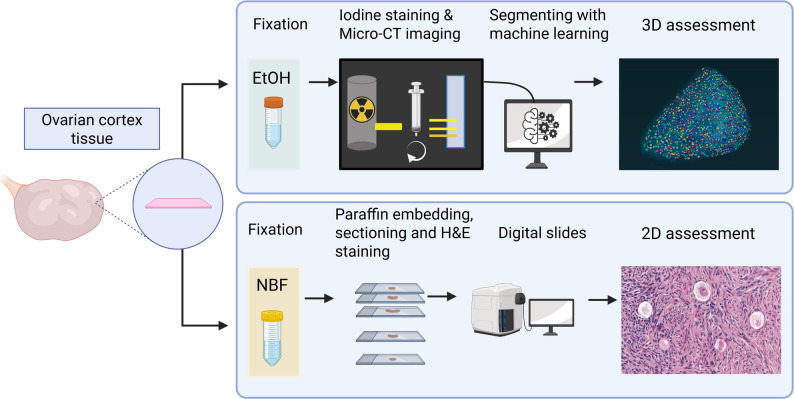

Ovarian tissue cryopreservation followed by transplantation after cancer remission is a fertility preservation strategy available for certain patient groups, such as pre-pubertal and adolescent girls, as well as adult females requiring urgent gonadotoxic therapy. Quantitative assessment of follicular density in cryopreserved cortical tissue is critical for evaluating tissue quality and estimating its reproductive potential. Conventional analysis, based on manual follicle counts in serial histological sections, is time-consuming, labor-intensive, and prone to variability from uneven follicle distribution and inconsistent tissue orientation. To address these limitations, we developed a high-throughput, automated method combining micro-CT, machine learning, and morphological analysis to quantify oocyte density and other morphological features throughout entire ovarian cortical tissue samples.

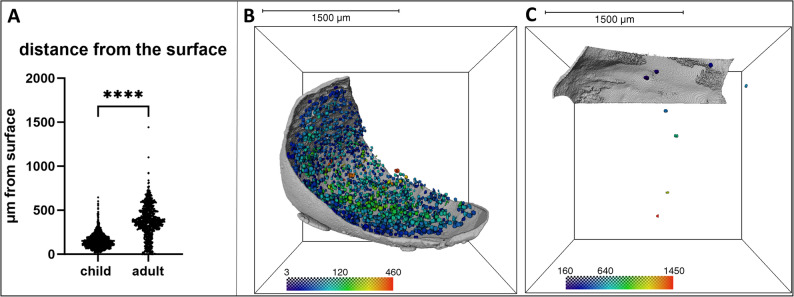

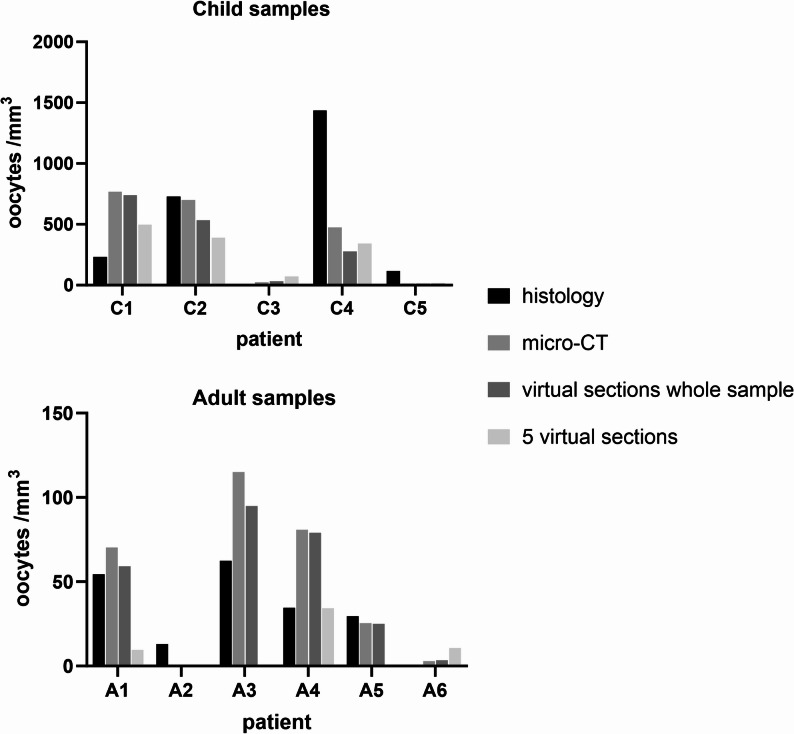

Three-dimensional segmentation analysis enabled quantification of oocyte density in the samples within the cortical region 1 mm below the surface epithelium. Oocytes in pediatric samples were located significantly closer to the surface compared to those in adult tissue, with median distances of 139.4 μm and 370.2 μm, respectively (P < 0.0001) and exhibited markedly higher local oocyte neighbor counts, with median values of 6 and 2 in pediatric and adult tissues, respectively (P < 0.0001), consistent with higher oocyte density and clustered spatial organization in younger individuals. Simulated histology using every 10th virtual sections —corresponding to 40 μm separated histology slices— closely approximated full-volume micro-CT estimates of oocyte density. Analysis based on only five virtual sections aligned with micro-CT data exclusively in pediatric samples with high oocyte density, whereas in adult samples it led to substantial inaccuracies in oocyte density estimation.

Micro-CT scanning combined with machine learning analysis represents a novel high-throughput and automated approach for estimating oocyte count in cryopreserved ovarian cortical samples. In addition, three-dimensional analysis offers valuable insights into oocyte localization and spatial distribution within the ovarian cortex, presenting a promising alternative to conventional histology for future clinical and research applications.

The online version contains supplementary material available at 10.1186/s13048-025-01897-8.

Figures
