Lack of functional STING modulates immunity but does not protect dopaminergic neurons in the alpha-synuclein pre-formed fibrils Parkinson’s disease mouse model

TL;DR

This study shows that STING affects immune responses in a Parkinson's disease mouse model but does not protect brain cells from damage caused by alpha-synuclein.

Contribution

The study reveals STING's role in modulating immune responses but not in preventing dopaminergic neuron loss in a PD model.

Findings

STING-deficient mice showed more motor changes after alpha-synuclein injection compared to wild-type mice.

STING deficiency altered microglia and immune responses but did not reduce alpha-synuclein pathology or p62 accumulation.

Nigrostriatal dopaminergic degeneration was similar in both groups after 6 months, indicating STING is not essential for neuronal loss in this model.

Abstract

Microglia response is proposed to be relevant in the neurogenerative process associated with alpha-synuclein (α-syn) pathology in Parkinson’s disease (PD). STING is a protein related to the immune sensing of DNA and autophagy, and it has been proposed to be involved in PD neurodegeneration. To investigate this, we injected 10 µg of murine pre-formed fibrils (PFFs) of α-syn (or monomeric and PBS as controls) into the striatum of wild-type (WT) and STINGgt/gt mice, which lack functional STING. We examined motor behavior and brain pathology at 1- and 6-month post-injection. STINGgt/gt mice showed more motor changes associated with PFF injection than WT mice. STINGgt/gt mice had a differential immune response to PFF with early and sustained increased microglia numbers and higher macrophagic CD68 response, but milder changes in the expression of immune-relevant markers such as TLR2, TLR4, IL1ß, and TREM2. However, the lack of STING did not induce changes in the extent of α-syn pathology nor the p62 accumulation seen in the model. Altogether, this resulted in a faster but similar degree of nigrostriatal dopaminergic degeneration after 6 months. Therefore, the data do not support a necessary role for STING in the α-syn-induced nigral neuronal loss in the PFF-PD mouse model used here. However, the results suggest a functional relevance for STING in the brain response to the excess and aggregation of amyloidogenic proteins such as α-syn that can contribute to symptomatic changes.

Figures

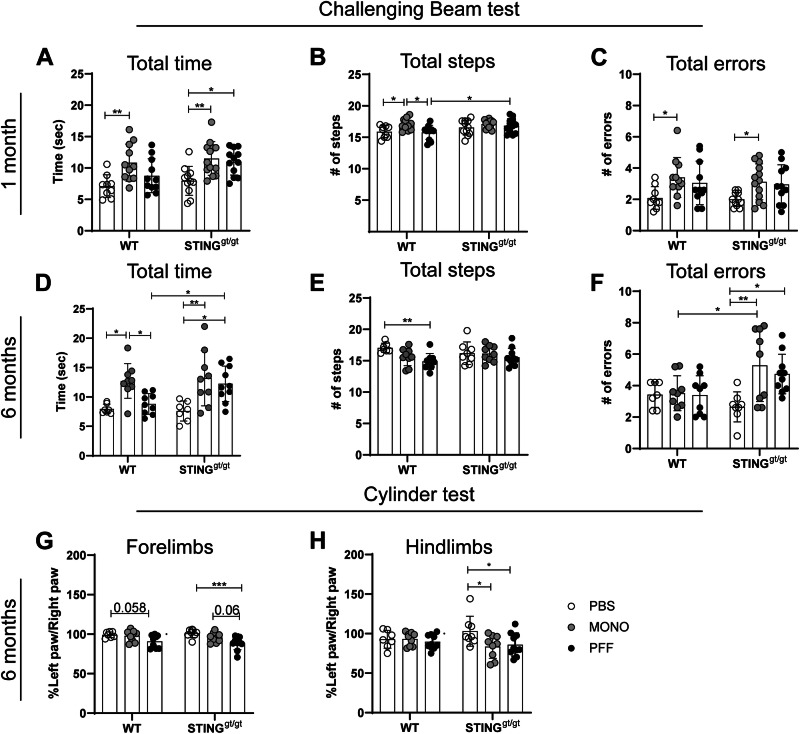

B) than their respective PBS control. Notably, MONO-STING^gt/gt^ made more errors (Fig. [1F](#Fig1)) and had more errors/step (vs. PBS) (Supplementary Fig. 1B). In contrast, PFF injections affected both genotypes differently; while PFF-WT did not significantly differ from the PBS-WT, except in fewer number of steps (Fig. [1E](#Fig1)); PFF-STING^gt/gt^ took significantly more time to transverse, had more errors and errors/step, and fewer steps/second than PBS-STING^gt/gt^ (Supplementary Fig. 1B). In fact, PFF-STING^gt/gt^ mice took longer (Fig. [1D](#Fig1)) and, as in the 1-month time point, it

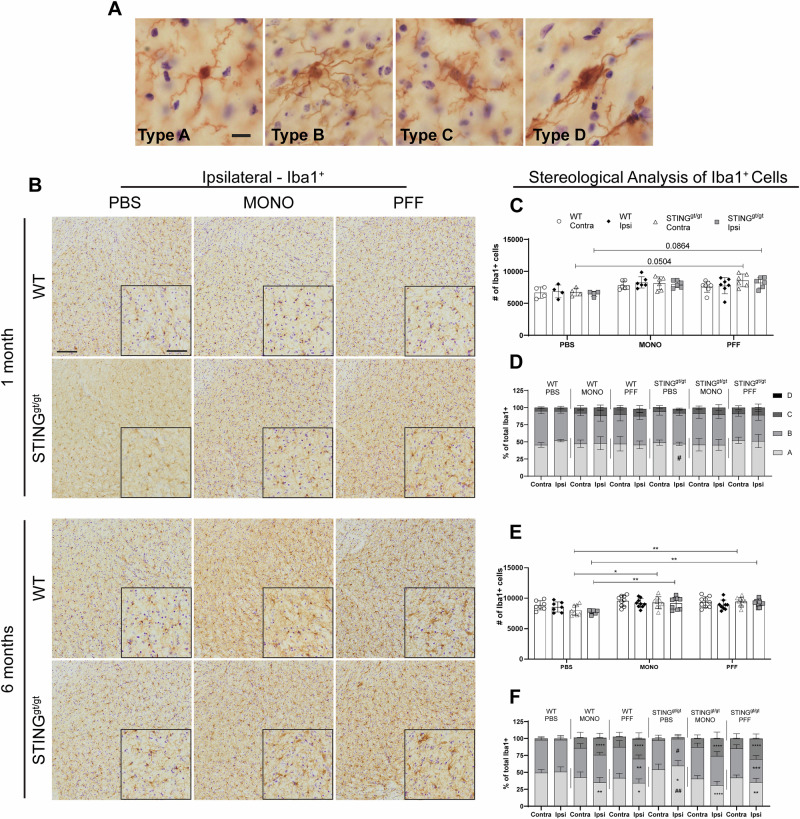

Microglia Iba1+ in the substantia nigra.A Representative photos of the four Iba1+ morphological phenotypes quantified. Scalebar = 10 µm. B Representative image of Iba1 staining in Substantia nigra (SN, both compacta and reticulata). Scalebar = 100 µm for all low-magnification images, and 50 µm for inserts. Stereological quantification of total Iba1 cells in the SN at 1 month (C) and 6 months post-injection (E). Three-way ANOVA with matched values followed by an uncorrected Fisher’s LSD with Bonferroni correction applied. Corrected values are displayed on the graphs (*<*p* = 0.05, *p* ≤ 0.01, p

B). In addition, while the ameboid Type D was never found in the PBS animals, and rarely in the α-syn injected mice at 1 month, it was more commonly seen in the α-syn mice after 6 months especially in the ipsilateral SN of PFF group irrespective of the genotype (Supplementary Fig. 3). Therefore, SN microglia, irrespective of the genotype and the α-syn solubility (MONO or PFF), responded to striatal α-syn injections by changing their profile towards a more hypertrophic and ameboid state. However, only the PFF-injected mice showed a reduction of both the surveillant type A and hyper-ramified typ

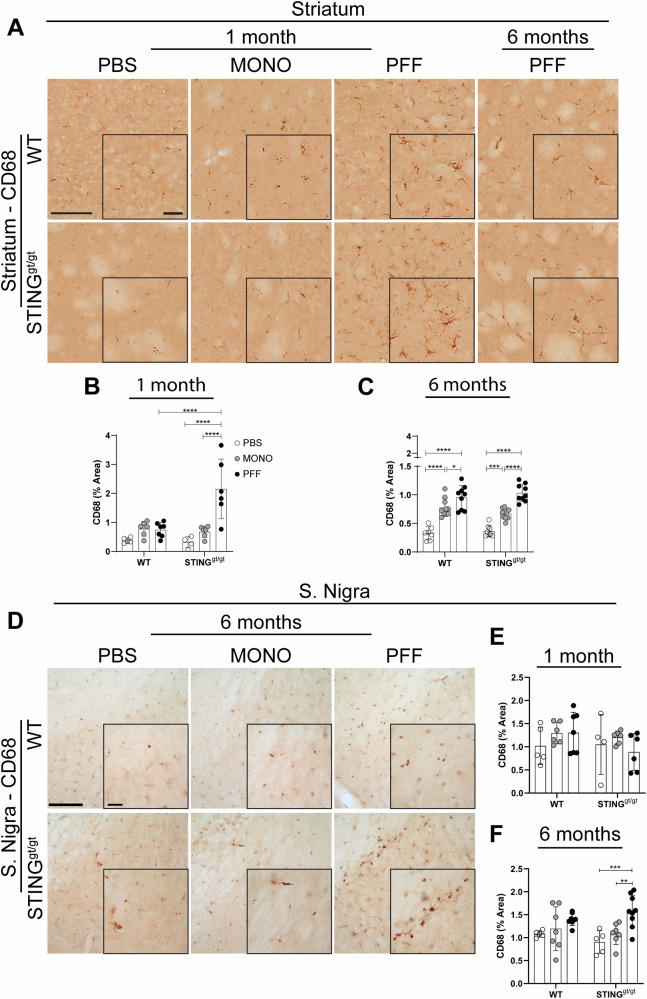

Analysis of the immune marker CD68.A Representative images of CD68 staining in the striatum at 1- and 6-months post-injection. Scalebar = 100 µm applies to all low-magnification images and 25 µm to all inserts. Percentage of area covered by positive CD68 staining in the striatum at 1-month (B) and 6-months (C) post-injection. D Representative images of CD68 staining in the substantia nigra at 6 months post-injection. Scale bars represent 100 µm for all low-magnification images and 25 µm for all inserts. Graphs show the percentage of area covered by positive staining in the substantia nigra at

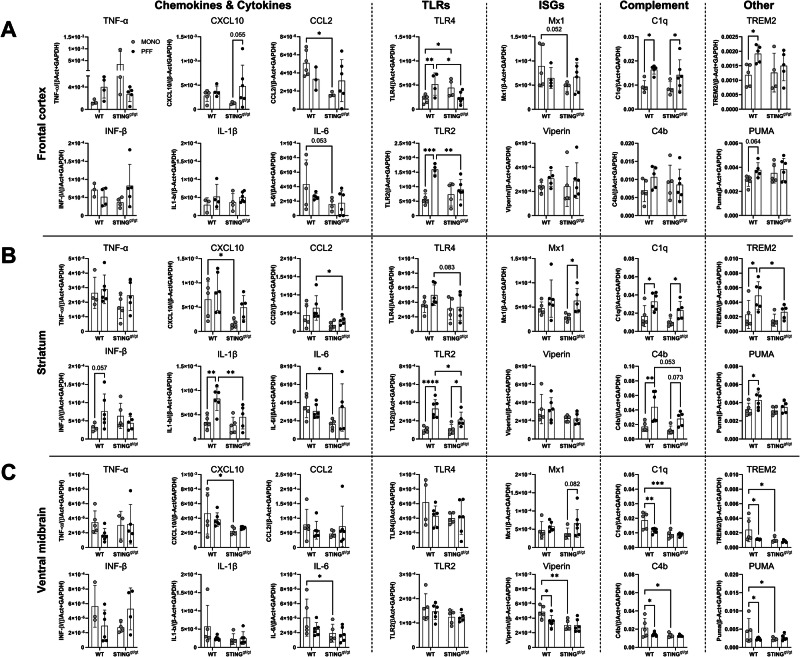

mRNA analysis at 1-month post-injection of PFF or MONO-in WT and STING^gt/gt^.A–C Results are displayed as the relative expression to the two housekeeping genes β-actin and GAPDH. For primers, see Supplementary Table 2. Two-way ANOVA followed by Sidak’s multiple comparisons. (See further stats in Supplementary Table 3). Data are average ± SD. *n* = 4–6. *<*p* = 0.05, *p* ≤ 0.01, p* ≤ 0.001, *p* ≤ 0.0001.

A–C), while in the amygdala, this was only significant in the PFF-STING^gt/gt^ but not in the PFF-WT (Fig. [6F](#Fig6)). However, no difference across genotypes was found, suggesting that the lack of STING does not significantly modify the α-syn aggregation nor its phosphorylation.Fig. 6Analysis of pathology.A Representative photos of MJF14, p62, and pSer129 staining in the amygdala and substantia nigra 6 months post-injections. Scalebar = 50 µm for all low magnification in the same area and marker, and 25 µm for all inserts. Graphs show the percentage of area covered by MJF14 staining in the

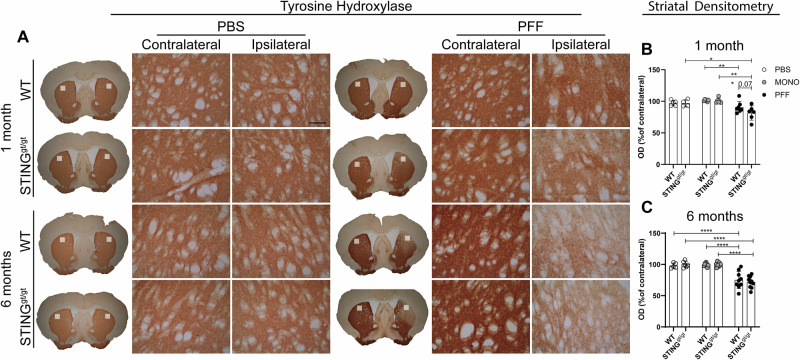

Loss of Nigro-striatal dopaminergic fibers in the striatum.A Representative image of tyrosine hydroxylase (TH) immunostaining in the striatum 1- and 6 months post-injection. Scalebar=100 µm applies to all. Densitometric analysis of TH+ in the ipsilateral striatum as a percentage of the contralateral at 1 month (B) and 6 months post-injection (C). Two-way ANOVA followed by Sidak’s multiple comparisons. Data are mean +SD. (See further stats in Supplementary Table 3). *<*p* = 0.05, *p* ≤ 0.01, p* ≤ 0.001, *p* ≤ 0.0001. SN substantia nigra.

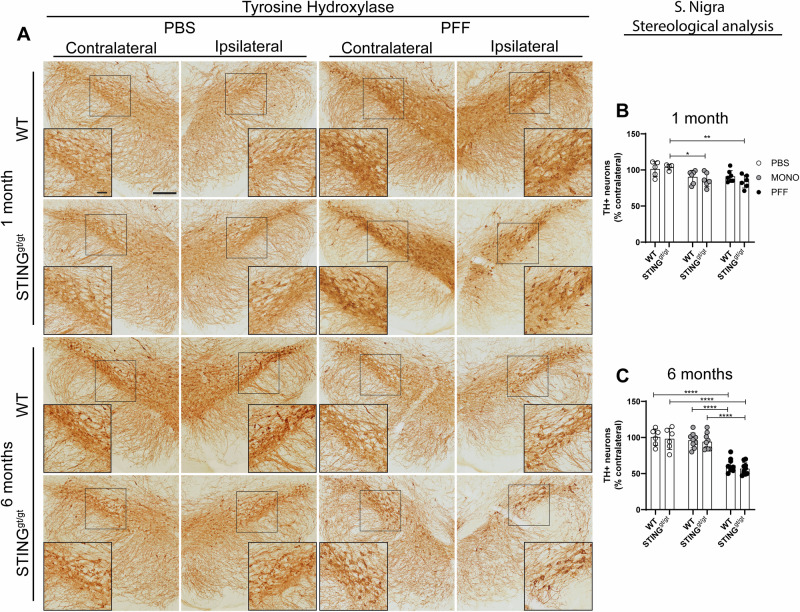

Assessment of tyrosine hydroxylase-expressing neurons in the substantia nigra.Lack of functional STING^gt/gt^ does not influence long-term degeneration of dopaminergic neurons. A Representative image of tyrosine hydroxylase (TH) immunostaining in the SN at 1- and 6 months post-injection. Scalebar = 200 µm for low-magnification images and 50 µm for inserts. Unbiased stereological quantification of the number of TH+ neurons in the ipsilateral SN as the percentage of contralateral at 1 month (*n* = 4–10) (B) and 6 months (*n* = 4–10) (C) post-injection. Two-way ANOVA followed by Sidak’s multiple

Full text

Introduction

Parkinson’s disease (PD) is a neurodegenerative disorder characterized by significant loss of dopaminergic neurons in the substantia nigra (SN) and the presence of neuronal inclusions of aggregated alpha-synuclein (α-syn), Lewy bodies, throughout the central and peripheral nervous system^1^. During PD, α-syn progressively transforms from a soluble protein to an insoluble amyloid, resulting in the characteristic pathology, which has been suggested can propagate to anatomically connected areas^2^. This spreading seems to occur through the active release of modified α-syn and subsequent uptake by neighboring cells, where α-syn acts as a template and seeds aggregation-promoting pathology^2,3^. In parallel, α-syn-induced neurodegeneration comprises an inflammatory immune response. PD patients have an ongoing immune response that parallels, or even precedes, neurodegeneration^4^. Patients exhibit elevated levels of pro-inflammatory cytokines and microgliosis related to α-syn pathology^5–8^, which is suggested to play an active role in disease progression. α-syn is proposed to be a danger-associated molecular pattern initiating inflammation and promoting neurodegeneration^4^. Aggregated α-syn can be recognized and bind to receptors on microglia, such as the toll-like receptors (TLR) 2 and TLR4^9–13^, thereby activating downstream pathways such as the NF-κB signaling and NLRP3 inflammasome assembly^9^. Thus, α-syn plays a central role in the neuronal changes in PD and in the immune response that will contribute to disease progression. In addition, microglia are efficient in clearing out the released extracellular α-syn^14^. However, the clearance efficiency depends on the microglia activation state and the α-syn solubility^14,15^. Therefore, the microglia also play a role in the α-syn spreading process.

Cyclic GMP-AMP synthase (cGAS) is a cytosolic DNA sensor that activates the innate immune system in response to double-stranded DNA in the cytoplasm, such as viral DNA^16,17^. The binding of DNA leads to the activation of Stimulator of interferon genes (STING), which induces the expression of type I interferons (IFNs) and NF-κB pathway genes, leading to antiviral responses^18–20^. The cGAS-STING pathway can also be initiated by the presence of self-DNA, such as mitochondria and genomic DNA^16^. Aggregated α-syn has been suggested to induce DNA damage, including double-strand breaks^21–23^. However, it remains unclear whether this is sufficient to activate the cGAS-STING pathway. In addition, cGAS-STING activation during viral infection has been associated with a non-canonical autophagy activation^24,25^. While changes in autophagy have been proposed to play a central role in PD^26^, α-syn pathology in models is consistently associated with the accumulation of the p62 (SQSTM1) adapter protein^27^.

In this study, we investigated the role of STING in the α-syn-induced innate response and the associated neurodegenerative process. To do so, we injected murine α-syn pre-formed fibrils (PFF) into the striatum of wild-type (WT) and STING-deficient mice (STING^gt/gt^), or non-pathological monomeric (MONO) α-syn or Phosphate-buffered saline (PBS) as controls. We examined the motor behavior, the central immune response, and the α-syn pathology at short-term (1 month) and long-term (6 months) post-injections (p.i). Our data suggest that STING contributes to the modulation of the immune response to both monomeric and fibrillar α-syn, suggesting that it is involved in the response to protein overload and α-syn aggregation. The lack of STING resulted in behavioral changes and accelerated the loss of dopaminergic axons. However, it did not lead to protection against the accumulation of pathological α-syn and neurodegeneration in the long term.

Results

Lack of functional STING leads to different behavioral deficiencies

To explore the in vivo role of STING in the immune response and neurodegenerative process induced by α-syn pathology, MONO α-syn or α-syn PFFs were injected into the striatum of either wild-type (WT) or STING^gt/gt^. As a control, PBS was injected into age-matched WT mice. To determine if the lack of STING influenced the behavioral phenotype in the PFF model, we examined the sensorimotor performance in two drug-free tests at 1- and 6-months p.i.

At 1 month p.i. in the Challenging Beam test, all MONO-injected animals (WT and STING^gt/gt^) took significantly longer to transverse the beam (Fig. 1A), made more errors (Fig. 1C), and took fewer steps/second (Supplementary Fig. 1A) than PBS-treated mice, while MONO-WT also took more steps (vs PBS-WT) (Fig. 1B). Thus, the injection of monomeric α-syn, resulting in an excess of the soluble protein, also affected motor behavior. Regarding the PFF-injected group, only STING^gt/gt^ mice showed significant changes and took a longer time (Fig. 1A) and fewer steps/second (Supplementary Fig. 1A) than PBS-STING^gt/gt^. Furthermore, PFF-STING^gt/gt^ took more steps (Fig. 1B) and fewer steps/second (Supplementary Fig. 1A) than PFF-WT, indicating a slower gait with smaller steps. Therefore, PFF injection particularly affects STING^gt/gt^ motorically at early stages.Fig. 1. Motor behavior was assessed using the challenging beam and cylinder tests.Motor coordination and performance were evaluated by the challenging beam. A**–F** Results from 1 month p.i; A Total time to transverse the beam, B number of steps, and C number of errors. Results from 6 months p.i; D Total time to transverse the beam, E number of steps, and F number of errors. The figure displays the average results of frames 2, 3, and 4. Values are mean +SD. 1 month n = 9**–13, 6 months n = 7–10. G, H To examine motor asymmetry cylinder test was evaluated 6 months post-injection, the percentage left paw use of the total right was calculated for the G forelimbs and H the hindlimbs. n = 7–**10. Two-way ANOVA followed by Sidak’s multiple comparisons. (See further stats in Supplementary Table 3). Data are mean +SD. *<p = 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001.

After 6 months p.i., some of the behavioral changes were conserved. MONO-injected mice (WT and STING^gt/gt^) still took more time to transverse the beam (Fig. 1D) and walked fewer steps/second (Supplementary Fig. 1B) than their respective PBS control. Notably, MONO-STING^gt/gt^ made more errors (Fig. 1F) and had more errors/step (vs. PBS) (Supplementary Fig. 1B). In contrast, PFF injections affected both genotypes differently; while PFF-WT did not significantly differ from the PBS-WT, except in fewer number of steps (Fig. 1E); PFF-STING^gt/gt^ took significantly more time to transverse, had more errors and errors/step, and fewer steps/second than PBS-STING^gt/gt^ (Supplementary Fig. 1B). In fact, PFF-STING^gt/gt^ mice took longer (Fig. 1D) and, as in the 1-month time point, it had fewer steps/second than the PFF-WT mice (Supplementary Fig. 1B). Equally, MONO-STING^gt/gt^ had worse motor coordination than MONO-WT, as it showed more errors (Fig. 1F) and errors/step (Supplementary Fig. 1B).

The cylinder test at 6 months p.i. showed a decrease in the activity in the PFF-WT mice, with fewer rearings and less use of the left (contralateral) forelimbs and hindlimbs (Supplementary Fig. 2A, C, D), although only a trend towards asymmetry was seen in the forelimbs (p = 0.058, vs. PBS-WT) (Fig. 1G, H). However, PFF-STING^gt/gt^ did not show differences in rearing, but showed a clear asymmetry using more touches with their right (ipsilateral) forelimbs and hindlimbs than the left (contra), which was confirmed by the lower percentage of the use of both left limbs (Fig. 1G, H and Supplementary Fig. 2A). In conclusion, PFF injections induced greater motor changes in the STING^gt/gt^, indicating that a lack of STING signaling affects the brain response to α-syn.

PFF injection leads to microgliosis and increased CD68 expression

To evaluate the microglia response, Iba1+ cells in SN were stereologically quantified, and morphological profiles were assigned in parallel as before (Fig. 2A)^28^. Four profiles were defined: type A (resting or surveilling); no visible cytoplasm, small, round, dense nucleus, and long, thin processes with little branching. Type B (hyper-ramified): visible cytoplasm, round dense nucleus, and many long-branched processes. Type C (hypertrophic); elongated and irregular cytoplasm, enlarged and less defined nucleus, shorter processes with varying thickness and less branching than type B. Type D (ameboid); big cell body merging with the processes, the nucleus fills most of the cell's body, and the processes are very short, thick, and few^29^. While type A and B are the most abundant microglia types in the brain, type C constitutes a small percentage, while type D is very rarely seen in a healthy brain.Fig. 2. Microglia Iba1+ in the substantia nigra.A Representative photos of the four Iba1+ morphological phenotypes quantified. Scalebar = 10 µm. B Representative image of Iba1 staining in Substantia nigra (SN, both compacta and reticulata). Scalebar = 100 µm for all low-magnification images, and 50 µm for inserts. Stereological quantification of total Iba1 cells in the SN at 1 month (C) and 6 months post-injection (E). Three-way ANOVA with matched values followed by an uncorrected Fisher’s LSD with Bonferroni correction applied. Corrected values are displayed on the graphs (*<p = 0.05, **p ≤ 0.01, p ≤ 0.001, p ≤ 0.0001). The distribution of the morphological profiles is displayed as the average percentage of total Iba1+ at 1 month (D) and 6 months post-injection (F). Two-way ANOVA (matched values when sides are in the same group, or not matched values same sides and treatment) followed by Sidak’s multiple comparisons. * vs. the contralateral side within the same group and subtype. # vs. to the same side and treatment across genotypes. P #/ < 0.05, ##/≤0.01, ###/ *** ≤ 0.001, ####/≤0.0001. (see further stats in Supplementary Table 3) Data are average ±SD, n = 4–10.

At 1 month p.i., no significant difference was found in the total number of Iba1+ cells in the SN between all WT groups (Fig. 2B, C). However, we observed a bilateral increasing trend in Iba1+ cell number in PFF-STING^gt/gt^ (vs. PBS-STING^gt/gt^). Morphological distribution showed a decrease in the percentage of type A surveillant microglia in the STING^gt/gt^-PBS compared to WT-PBS (Fig. 2D (p = 0.02)) with no other differences across groups (Supplementary Fig. 3A).

In contrast, at 6 months p.i., we observed a significant bilateral increase in the number of Iba1+ cells in the STING^gt/gt^ mice injected with MONO or PFF (vs. PBS, Fig. 2B, E), while no differences were seen in the WT groups. Thus, α-syn injection, irrespective of the type/solubility, induced SN bilateral microgliosis in the STING^gt/gt^ mice, but this tended to be faster in the PFF group.

Injections of α-syn led to changes in the distribution of microglia profiles in both genotypes after 6 months. The percentage of surveillant type A Iba1+ cells significantly decreased, while the percentage of hypertrophic Type C was increased in the ipsilateral SN (vs. contra) in both MONO and PFF-injected (Fig. 2F). Interestingly, only PFF-injected mice, both WT and STING^gt/gt^, showed a significant decrease in the ipsilateral percentage of hyper-ramified type B cells (vs. contra) (Fig. 2F). As in the 1-month group, PBS intra-striatal injection also affected the STING^gt/gt^ microglia profile with increased type A and a decrease of type B cells in the ipsilateral side (Fig. 2F).

Our data -when expressed in total number of cells- showed that changes in microglia profile were also occurring in the contralateral SN in all α-syn injected animals, with more Type C cells irrespective of their genotype (Supplementary Fig. 3B). In addition, while the ameboid Type D was never found in the PBS animals, and rarely in the α-syn injected mice at 1 month, it was more commonly seen in the α-syn mice after 6 months especially in the ipsilateral SN of PFF group irrespective of the genotype (Supplementary Fig. 3). Therefore, SN microglia, irrespective of the genotype and the α-syn solubility (MONO or PFF), responded to striatal α-syn injections by changing their profile towards a more hypertrophic and ameboid state. However, only the PFF-injected mice showed a reduction of both the surveillant type A and hyper-ramified type B cells. Notably, in the STING^gt/gt^ mice, this was parallel to microglia proliferation, which was faster for PFF- than MONO- injected STING^gt/gt^ mice.

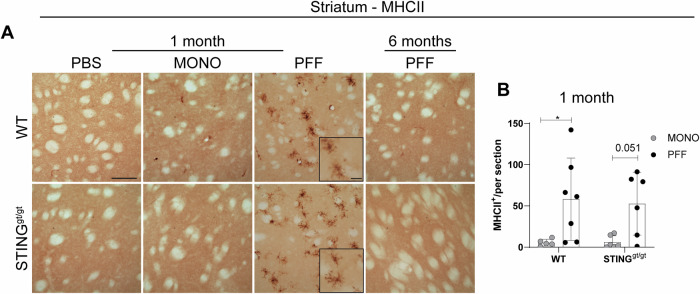

We also analyzed the expression of MHCII and CD68 in the striatum. Homeostatic microglia do not express MHCII, and only rare MHCII+ cells are found in the healthy brain, normally in perivascular macrophages. At 1 month p.i., PFF injections resulted in increased MHCII striatal expression in WT, and a similar trend was observed in STING^gt/gt^ (Fig. 3A, B). This returned to the control level in all groups after 6 months (Fig. 3A). However, we did not observe any significant MHCII expression in the SN at any of the time points (Supplementary Fig. 4).Fig. 3. Analysis of the immune marker MHCII.A Representative images of MCHII staining in the striatum at 1- and 6-months post-injection. Scalebar=100 µm, applies to all low-magnification images and 25 µm for all inserts. Graphs show B average number of ramified MHCII cells in the striatum 1-month post-injection. All analyses are performed on the ipsilateral hemisphere. Data average ±SD, n = 4–10. Two-way ANOVA followed by Sidak’s multiple comparisons. (See further stats in Supplementary Table 3). P * < 0.05, **≤0.01, ***≤0.001, ****p ≤ 0.0001.

CD68 expression, considered a marker of phagocytic activity in microglia, significantly increased at 1 month p.i. in the striatum of PFF-STING^gt/gt^ compared to MONO and PBS-STING^gt/gt^ but also to the PFF-WT (Fig. 4A, B). However, at 6 months p.i., the striatal CD68 expression was equally increased in all PFF-injected animals of both genotypes (v.s. PBS and MONO). At this point, MONO α-syn injection also increased striatal CD68 expression, although to a lower extent than PFF (vs. PBS, Fig. 4A, C). In contrast, CD68 expression in SN at 1 month did not differ across groups, but after 6 months, only PFF-STING^gt/gt^ showed significant upregulation compared to both PBS- and MONO-STING^gt/gt^ groups (Fig. 4D, E, F). Overall, the data suggest that the PFF α-syn injections resulted in an early and sustained proliferation of microglia and a stronger phagocytic microglia response in the STING^gt/gt^.Fig. 4. Analysis of the immune marker CD68.A Representative images of CD68 staining in the striatum at 1- and 6-months post-injection. Scalebar = 100 µm applies to all low-magnification images and 25 µm to all inserts. Percentage of area covered by positive CD68 staining in the striatum at 1-month (B) and 6-months (C) post-injection. D Representative images of CD68 staining in the substantia nigra at 6 months post-injection. Scale bars represent 100 µm for all low-magnification images and 25 µm for all inserts. Graphs show the percentage of area covered by positive staining in the substantia nigra at 1-month (E) and 6-months (F) post-injection. All analyses are performed on the ipsilateral hemisphere. Data average ±SD, n = 4–9. Outliers were identified using Grubb’s test with alpha = 0.05. Two-way ANOVA followed by Sidak’s multiple comparisons. P ** ≤ 0.01, ***≤0.001.

PFF treatment affects RNA expression and macrophage activation

To further characterize the early immune response in these mice, we examined the RNA expression in three different brain regions (prefrontal cortex, striatum, and ventral midbrain) at 1 month p.i. in MONO and PFF-injected mice in both genotypes. In the prefrontal cortex from PFF-WT mice (Fig. 5A), we observe a significant increase of TLR2 and 4, complement factor C1q, and TREM2, as well as a similar trend for the apoptotic-related protein p53-upregulated modulator of apoptosis (PUMA) (vs. MONO-WT). From these changes, only the elevated C1q was also seen in the PFF-STING^gt/gt^ group, which also showed unique upregulation of CXCL10 (p = 0.055) (vs. MONO-STING^gt/gt^ control). Moreover, while PFF-STING^gt/gt^ showed lower TLR4 and TLR2 expression than PFF-WT mice, MONO-STING^gt/gt^ animals showed higher TLR4, but lower CCL2, IL6 (p = 0.053), and the IFN-induced gene Mx1 (p = 0.052) than MONO-WT.

In the striatum of PFF-WT IFN-β (p = 0.056), IL1β, TLR2, C1q, C4b, TREM2, and PUMA were upregulated compared to MONO-WT (Fig. 5B). But in the PFF-STING^gt/gt^, only TLR2, C1q, and Mx1 were elevated vs. MONO-STING^gt/gt^. Moreover, PFF-STING^gt/gt^ showed significantly lower CCL2, IL1β, TLR2, and TREM2 than PFF-WT. While MONO-STING^gt/gt^ had lower CXCL10 and IL6 expression than MONO-WT.Fig. 5mRNA analysis at 1-month post-injection of PFF or MONO-in WT and STING^gt/gt^.A–C Results are displayed as the relative expression to the two housekeeping genes β-actin and GAPDH. For primers, see Supplementary Table 2. Two-way ANOVA followed by Sidak’s multiple comparisons. (See further stats in Supplementary Table 3). Data are average ± SD. n = 4–6. *<p = 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001.

Conversely to the upregulation seen in the other two regions, the ventral midbrain of PFF-WT showed downregulation of Puma, C1q, C4b, Viperin, and TREM2 that seem to be a consequence of the higher expression of these transcripts in MONO-WT mice (Fig. 5C). Furthermore, we observed no difference between the two PFF groups (STING^gt/gt^ vs. WT), but a significant decrease in expression of CXCL10, IL6, C1q, C4b, Viperin, TREM2, and Puma in MONO-STING^gt/gt^ (vs. MONO-WT).

Together, the data indicate, first, that the early immune response to PFF intra-striatal injections is unique in the different brain regions, supporting an anatomically specific immune response. Secondly, the PFF-PD model leads to an early mRNA upregulation in the striatum and prefrontal cortex of well-known microglia activation-related markers involving TLR, complement system, and pro-inflammatory cytokines. Moreover, the lack of functional STING appears to reduce the cells’ ability to mount an immune response, both to the presence of monomeric and fibrillar α-syn.

PFF injection leads to changes in autophagy and accumulation of pathological α-syn

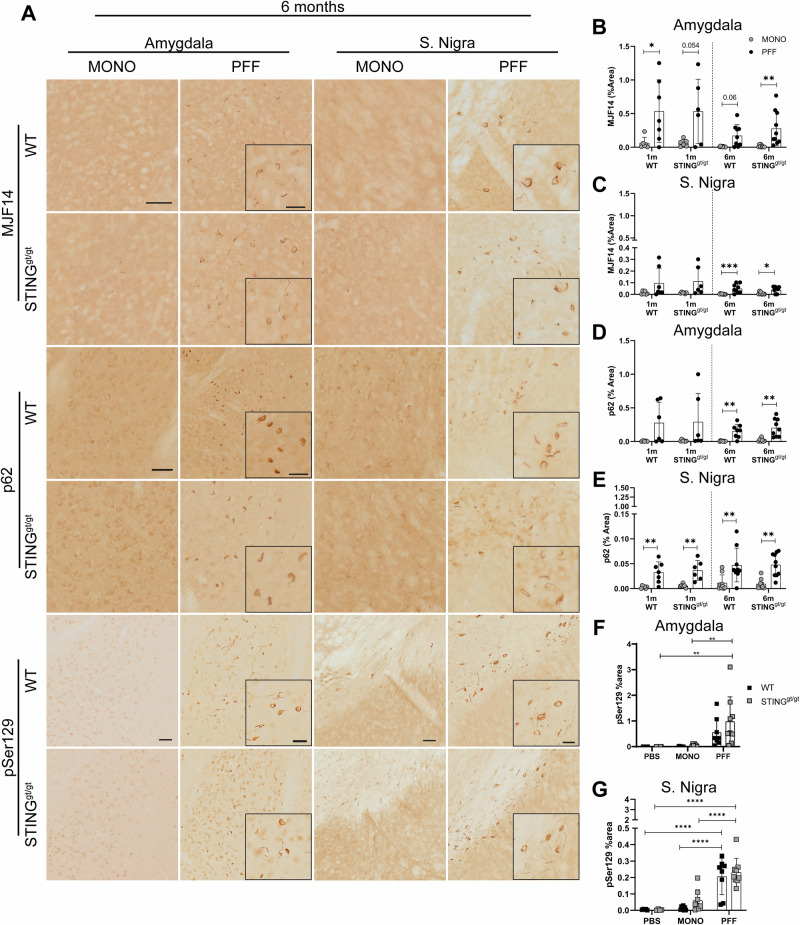

To address whether STING might influence the PFF-induced α-syn pathology, we performed immunohistochemistry for aggregated (MJF14) and phosphorylated (p)Ser129 α-syn (Fig. 6 and Supplementary Figs. 5 and 6). We observed immunostaining for both markers in regions anatomically connected to the striatum, as previously reported in the model, such as: SN, amygdala, cortex, and thalamic areas (Fig. 6 and Supplementary Figs. 5 and 6). To study time progression, we selected two areas easy to delimit anatomically and with relevance in disease, namely: SN and amygdala. After 1 month, PFF injections resulted in significant aggregation of α-syn (MJF14+ staining) in the amygdala in WT (vs. MONO, Supplementary Fig. 5 and Fig. 6B), with a similar trend in the STING^gt/gt^ (Fig. 6B). This aggregation was maintained after 6 months, when it also became significant in the SN for both genotypes (Fig. 6A–C). This was paralleled by the accumulation of phosphorylated α-syn and 6 months after PFF injections, pSer129 α-syn was significantly increased in both genotypes (vs. PBS and MONO) in the SN (Fig. 6G) frontal cortex and thalamus (Supplementary Fig. 6A–C), while in the amygdala, this was only significant in the PFF-STING^gt/gt^ but not in the PFF-WT (Fig. 6F). However, no difference across genotypes was found, suggesting that the lack of STING does not significantly modify the α-syn aggregation nor its phosphorylation.Fig. 6. Analysis of pathology.A Representative photos of MJF14, p62, and pSer129 staining in the amygdala and substantia nigra 6 months post-injections. Scalebar = 50 µm for all low magnification in the same area and marker, and 25 µm for all inserts. Graphs show the percentage of area covered by MJF14 staining in the ipsilateral side at 1 and 6 months post-injection in the amygdala (B) and SN (C). D, E Graphs show the percentage of area covered by positive p62 staining at 1-month and 6-month post-injection in the amygdala (D) and the substantia nigra (SN). Graphs show the percentage of area covered by pser129 staining in PBS, MONO, and PFF-injected animals 6 months post-injected in the amygdala (F) and SN (G). Two-way ANOVA followed by Sidak’s multiple comparisons (See further stats in Supplementary Table 3).). *<p = 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. All data are presented as mean ± SD. n = 6–10.

Since α-syn pathology has been associated with changes in autophagy, and because cGAS-STING can activate autophagy^24,25^, we measured the accumulation of the p62 adapter protein^30^. Parallel to our observations of α-syn pathology, at 1 month, we found that p62 accumulated significantly in the SN but not the amygdala of PFF-treated mice regardless of genetic background (Fig. 6A, D, E & Supplementary Fig. 5). At 6 months p.i., p62 immunostaining was significantly increased in all PFF-treated mice (vs. MONO) in both the amygdala and SN (Fig. 6D, E). In conclusion, injection of PFFs induced pathological aggregation and phosphorylation of α-syn and p62 accumulation, which was not influenced by the lack of STING.

Long-term PFF-induced nigrostriatal degeneration is similar in WT and STINGgt/gt mice

To determine the integrity of the nigrostriatal pathway, we first evaluated the striatal dopaminergic terminals by densitometry analysis of tyrosine hydroxylase (TH) immunostained striatal sections. There was no statistically significant difference in the total number of TH+ neurons between the genotypes in the PBS groups (not shown). After 1 month, PFF injections induced a significant decrease in TH+ striatal signal in WT mice (vs. MONO) and STING^gt/gt^ (vs. MONO and PBS control) with a trend toward greater decrease than the one seen in the PFF-WT (p = 0.07) (Fig. 7A, B). However, at 6 months p.i., the decrease of the TH+ striatal axonal signal was similar in the WT and STING^gt/gt^ in the PFF-injected groups, with a significant reduction compared to MONO and PBS for both genotypes (Fig. 7A, C).Fig. 7. Loss of Nigro-striatal dopaminergic fibers in the striatum.A Representative image of tyrosine hydroxylase (TH) immunostaining in the striatum 1- and 6 months post-injection. Scalebar=100 µm applies to all. Densitometric analysis of TH+ in the ipsilateral striatum as a percentage of the contralateral at 1 month (B) and 6 months post-injection (C). Two-way ANOVA followed by Sidak’s multiple comparisons. Data are mean +SD. (See further stats in Supplementary Table 3). *<p = 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. SN substantia nigra.

Stereological quantification of nigral TH+ neurons at 1 month p.i showed no significant changes in WT mice (Fig. 8A). But, at that time point, both MONO and PFF-injected STING^gt/gt^ mice had a significant ipsilateral reduction of TH+ neurons in the SN compared to PBS (Fig. 8B). However, at 6 months p.i, both WT and STING^gt/gt^ PFF-injected animals had a similar TH+ neuronal loss (38–43%), which was significant to their respective MONO and PBS- controls (Fig. 8A, C). This data suggests an earlier dopaminergic degeneration in STING^gt/gt^, but a similar degree of neuronal loss at long term, in both genotypes. It should be noted that since our analysis was based on TH expression, we cannot discard a possible downregulation of the enzyme, which constitutes a limitation of our study.Fig. 8. Assessment of tyrosine hydroxylase-expressing neurons in the substantia nigra.Lack of functional STING^gt/gt^ does not influence long-term degeneration of dopaminergic neurons**. A** Representative image of tyrosine hydroxylase (TH) immunostaining in the SN at 1- and 6 months post-injection. Scalebar = 200 µm for low-magnification images and 50 µm for inserts. Unbiased stereological quantification of the number of TH+ neurons in the ipsilateral SN as the percentage of contralateral at 1 month (n = 4–10) (B) and 6 months (n = 4–10) (C) post-injection. Two-way ANOVA followed by Sidak’s multiple comparisons (See further stats in Supplementary Table 3). Data are mean +SD. *<p = 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001. SN=Substantia nigra.

Discussion

STING is a signaling protein of the innate immune system involved in relaying signals from mislocated DNA to immunological effector functions, including inflammatory cytokine expression. STING is expressed in most cell types, including microglia in the brain^31^. The activation of STING has been linked to two different mechanisms relevant to PD neurodegeneration: mitochondrial damage with subsequent release of mitochondrial (mit)DNA and the control of autophagic function^32,33^. For this reason, it has been proposed that STING might be involved in PD neurodegeneration. To investigate this, we injected 10 µg of murine PFFs α-syn (or MONO and PBS as controls) into the striatum of WT and STING^gt/gt^ mice, which lack functional STING. We examined motor behavior and brain pathology at 1- and 6-months p.i.^34^. STING^gt/gt^ mice showed greater motor changes associated with PFF injection than WT mice, with longer time and more errors while transversing the challenging beam, and with asymmetry in the cylinder test. STING^gt/gt^ mice had a differential immune response to PFF than WT, with early and sustained increases in microglia number and more robust macrophagic CD68 response, but milder changes in the expression of immune-relevant markers such as TLR2, TLR4, IL1b, and TREM2. However, the lack of STING did not induce changes in the extent of α-syn pathology nor the p62 accumulation seen in the model. Altogether, this resulted in a faster but similar degree of dopaminergic degeneration in the nigrostriatal system after 6 months. Therefore, our data do not support a necessary role for STING in the α-syn-induced SN neuronal loss in the PFF-PD mice model used here. However, the results suggest a functional relevance for STING in the brain response to α-syn, both monomeric and fibrillar, which might result in changes in neuronal activity with meaningful phenotypic consequences in the motoric behavior.

Our data are in contrast with that previously published by Hinkle et al., who reported STING^gt/gt^ mice to be protected from the motor deficiencies, dopaminergic loss, and pathological α-syn accumulation induced by the PFF injections^35^. When comparing both studies, the same mouse strains (C57BL/6 and STING^gt/gt^) and injection side (striatum) were used, and we both injected recombinant mouse α-syn PFF, although different amounts per injection (10 µg here vs. 2.5 µg in theirs). To study progression and based on the literature, we chose 1 month to address early pathological and immune processes preceding neuronal loss, and 6 months as a time point with robust cell death and chronic neuroinflammation^36–38^. However, in Hinkel’s study, 3 and 9 months p.i. were chosen. Our results here show that intra-striatal injections of α-syn PFFs induced Ser129 phosphorylation and aggregation of α-syn in multiple brain regions connected to the injection site: SN, amygdala, frontal cortex, and thalamus, as before^34,39,40^. But this was not influenced by the lack of STING in any of the areas analyzed. However, Hinkel’s study reported a lower percentage of pSer129 α-syn containing SN neurons in PFF-STING^gt/gt^ compared to PFF-WT (at 9 months p.i. with no other area nor any pathology marker analyzed). Since the induction of autophagy is a conserved function of STING^25,41^, serving as an antiviral defense and mediating p62-dependent attenuation of cGAS-STING signaling, we analyzed p62^24^. We found that the presence of pathological α-syn was accompanied by an accumulation of p62 in the same brain regions as seen before^27^. This was not affected by the lack of functional STING, ruling out a key participation of STING-induced autophagy in the clearance of α-syn in our study. However, we observed a significant increase in CD68 expression in microglia in the striatum (1 month) and SN (6 months) of PFF-STING^gt/gt^. This might suggest a differential lysosomal activity in the absence of STING, as the glycoprotein CD68 is associated with the endosomal/lysosomal compartment^42^. Thus, STING seems to be involved in the immune response to α-syn. This might be related to the earlier loss of dopaminergic SN neurons and dopaminergic terminals in the striatum in the PFF-STING^gt/gt^ that was significant already at 1-month p.i. However, the pathological aggregation of α-syn and long-term dopaminergic degeneration were similar across genotypes. Thus, our study does not support a crucial role for STING in the sustained SN neuronal death associated with α-syn aggregation, although it suggests a putative function for STING in the immune response to PFF-driven pathology.

PD and α-syn-induced neurodegeneration have been previously associated with inflammation mediated by TLR and pro-inflammatory cytokines (IL1β and TNF). We measured RNA expression of a range of immune-related molecules in three different brain regions of PFF-bilaterally injected mice 1-month p.i., and used MONO as a control. Our data confirmed the inflammation in the WT animals, with most of the transcriptomic changes found in the striatum (injection site) but also in the prefrontal cortex, a distant anatomically related area that developed α-syn pathology. PFF-WT mice showed increased TLR2, TLR4, and IL1β, complement proteins C1q and C4b, and PUMA and TREM2, many of which have been previously related to the response of microglia during neurodegeneration and PD^43^. This was damped -although not entirely avoided- in PFF-STING^gt/gt^ mice (vs. MONO), which also showed upregulation of TLR2 and C1q. This suggests a partial role for STING in the initial response to PFF, which is confirmed by the significantly lower IL1β, TLR2, and TLR4 expression in PFF-STING^gt/gt^ when compared to PFF-WT, indicative of a less inflammatory environment. Together, the data suggest that the STING does influence the early immune response to fibrillar α-syn. However, this was not sufficient to avoid nigral TH+ neuronal loss in our model. STING-induced inflammation is classically related to the type 1 IFN signaling cascade. We did not observe robust, significant changes in the PFF-WT mice (vs. MONO) on IFN-related genes, such as Mx1 or Viperin, and IFNβ mRNA only showed a trend toward an increase in the striatum. In contrast, Hinkel et al. showed increased mRNA of STING and other IFN-related genes in the striatum 3 months p.i. (vs. PBS as control), although they did not measure IFN mRNA. We have previously reported that injections of MONO α-syn can induce an immune response without α-syn pathology or neuronal death^44^. Interestingly, we also observed differences between WT and STING^gt/gt^ in mice injected with MONO α-syn, with lower CCL2 (prefrontal cortex), CXCL10 (striatum & midbrain), IL6 (striatum & prefrontal cortex), PUMA, C1q, C4b, Viperin, and TREM2 (midbrain). Some of these proteins have been previously related to STING activation, such as Viperin, CXCL10, PUMA^45,46^, and TREM2, which we recently showed to be involved in the antiviral defense mediated by cGAS-STING in the brain^47^. Notably, it has been suggested that TREM2 expression might exert certain protection toward Alzheimer-related neurodegeneration. Thus, this downregulation might be deleterious^48^. All of this suggests a role for STING in the response to both monomeric and pathological aggregated α-syn, or potentially towards excess levels of proteins (as monomeric α-syn). This transcriptional response was parallel to a distinctive microglia profile change towards more hypertrophic subtypes in the SN, suggesting certain long-lasting immune responses in both WT and STING^gt/gt^. However, we also observed microglial proliferation in the STING^gt/gt^, already at 1 month in the PFF and after 6 months in both MONO and PFF-STING^gt/gt^ (vs. PBS) but not in the WT mice, further corroborating a differential microglial response. This, together with the increased CD68 expression in the microglia in PFF-STING^gt/gt^, suggests that the lack of STING influences the short- and long-term immune response associated with the PFF-PD model, by decreasing the expression of important pro-inflammatory proteins and by promoting early and sustained microgliosis and phagocytosis. These changes paralleled an earlier nigrostriatal degeneration but were not sufficient to modify the long-term dopaminergic SN loss.

STING hyperactivation leads to dopaminergic neuronal death, confirming that STING-related inflammatory stress is sufficient^49^. Several articles provide a link between α-syn and IFNs, and increased α-syn levels have been associated with viral infections^50–52^. α-Syn seems involved in type 1 IFN response against an RNA virus as it is increased during infection, and if α-syn were absent, the response failed^53^. Accordingly, SARS-CoV-2-induced STING activation has been associated with α-syn upregulation^54^. Thus, under certain conditions, repeated viral infection might increase the risk of developing α-syn pathology; accordingly, α-syn pathology has been seen in a rodent model of SARS-CoV-2 infection^55^. Therefore, STING activation might be sufficient, but not necessary, for PD-like neurodegeneration, which might be mediated by inflammation and α-syn aggregation. On the other hand, IFNβ receptor signaling has been related to autophagy in neurons, and its absence led to α-syn neuronal accumulation^56^, thus supporting a protective role for IFN signal. We did not see significant IFNβ changes nor differences in p62 accumulation, suggesting that this mechanism is not particularly relevant in the model used here. However, our analysis cannot discard possible changes in cellular machinery with functional consequences in neurons. Moreover, the differential immune environment in the STING^gt/gt^ will also influence neuronal activity. Indeed, it has been shown that microglia regulate neuronal activity with meaningful behavioral outcomes^57^. Furthermore, both inflammatory and anti-inflammatory cytokines can modulate neuronal excitability and behavior^58^, and chemokines can modulate synaptic plasticity and activity^59^. Accordingly, we observed more motor alterations in the PFF-STING^gt/gt^ than PFF-WT, suggesting greater affection of the basal ganglia circuitry in the mice lacking STING. Interestingly, for PFF-WT, we do not observe a worsening in the challenging beam test performance with time, despite the significant loss of dopaminergic neurons at 6 months. This further corroborates that the behavioral deficiencies in the model are not solely indicative of neuronal death, but they can be at least partially associated with microglia/immune changes that, in turn, affect neuronal activity. This was corroborated by the motor defects in MONO-mice that were slower when transversing the challenging beam. Again, MONO-STING^gt/gt^ mice were more affected than MONO-WT, which we could speculate was related to the nigral microgliosis and phagocytic activity observed in this group. In conclusion, we observed more compromised motor capacity in STING^gt/gt^ mice despite having a similar degree of α-syn pathology and dopaminergic cell loss to WT. Therefore, the lack of STING resulted in differential response to monomeric and fibrillar α-syn with early and long-term microglia changes that had phenotypical motoric consequences.

The cGAS-STING pathway is involved in the response to the presence of viral or mitochondrial DNA in the cytosol. Age-associated failure in mitophagy has been shown to induce type 1 IFN activation, cGAS-STING inflammation, and the presence of mtDNA in cytosol^60^. The relevance of mitochondrial dysfunction in PD is well accepted. However, the possible presence of DNA in the cytosol in sporadic (s)PD is not well studied. Due to their described function, Pink1 and Parkin-related PD are associated with mitochondrial damage^61^. Increased circulating cell-free mtDNA was found in the sera of biallelic and heterozygous PRKN/PINK1 PD patients who also presented increased IL6, suggesting an association with inflammation^62^. LRRK2(G2019S)-PD patients also showed elevated cell-free mtDNA in CSF vs. non-manifested carriers and sPD patients^63^. However, no increase of cell-free mtDNA was seen in sPD in both studies^62,63^. Some in vitro studies suggest that the release of mtDNA might occur in other genetic PD forms. For example, the accumulation of glucosylceramides (relevant in GBA-PD) in microglia in vitro was associated with STING activation and mtDNA in the cytosol^64^. Also, in vitro, mutated α-syn interaction with TOM40 leads to mitochondrial damage and mtDNA in the cytosol^65^. DNA damage response in neurons has been described in the AAV-human α-syn mice model and a (human) PFF-based model, which, in vitro, was associated with oxidative stress and mitochondrial dysfunction^35,66^. However, none of the studies investigated the presence of cytosolic mtDNA. Thus, despite the signs of DNA damage in cells with α-syn pathology and displaced mtDNA in genetic forms of PD, no definitive evidence of mtDNA in the cytosol has been shown so far in sPD. Even though we did not measure this, which is a limitation in our study, our data do not suggest the presence of cytosolic DNA in amounts sufficient to lead to STING-mediated inflammation that might be significant for neuronal death.

Our data contrasts with that from Hinkle et al.^35^; however, we should also note some differences in the production protocol for the recombinant mouse α-syn PFFs. Our PFFs consist of only the isolated insoluble material (pellet) post-aggregation vs. theirs, which includes both the soluble and insoluble material in their final “PFF stock”, which they state may contain 50% of non-aggregated α-syn^67^. This may result in a smaller final dose of aggregated α-syn in their preparation vs. ours. There are also a few differences in purification (SEC & IEX vs. IEX & RP-HPLC) and storing (in solution at 30 mg/mL vs. lyophilized) of the α-syn monomer used to produce the PFF, which may lead to residual impurities or oligomers that could affect batch-to-batch consistency in aggregation during PFF preparation. In addition, Hinkel et al. injected bilaterally 2.5 µg (total 5 µg), whereas we performed unilateral injections of 10 µg α-syn PFF; and they analyzed behavior and dopaminergic survival at 9 months p.i. while we did so at 1- and 6-months p.i. It is unclear the relevance of these collective differences in the model^68^.

In conclusion, our study does not support a crucial role for STING in long-term α-syn pathological aggregation and the dopaminergic neuronal death in the murine-PFF-PD mice model. However, STING seems to be involved in the microglia response to both monomeric and fibrillar α-syn. The absence of STING leads to a differential immune environment in the PFF model, with decreased expression of pro-inflammatory mediators (TLR2 and 4 and IL1ß), increased CD68-lysosomal expression, and early and long-lasting microgliosis. The differential microglia/immune status resulted in neuronal functional changes that had a relevant phenotypic/behavioral consequence, with STING^gt/gt^ mice exhibiting more motor defects. Therefore, STING seems to have a relevant function in the microglia response to the excess and aggregation of amyloidogenic proteins such as α-syn that can contribute to symptomatic changes.

Methods

Animals

Male and female wild-type (WT) C57bL/6J mice (male = 31, female = 27), C57BL/6-Tmem173<gt> “Goldenticket” (STING^gt/gt^) animals (male = 30, female = 31) were bred at Taconic. Animals were housed in a maximum of 4 per cage, with ad libitum access to water and food, and in a climate-controlled animal facility under a 12 h/12 h night/day cycle. At the time of surgery, animals were on average 2 months old and weighed 20–30 g. All animal experiments were conducted under humane conditions, following the rules set by the research ethical committee at Aarhus University, and in accordance with the guidelines established by the Danish Animal Inspectorate and Danish law.

Protein purification and aggregation of mouse α-synuclein

The α-syn mouse protein was recombinantly expressed in E. coli BL21 DE3 bacteria, using the pRK172 plasmid encoding for mouse ASYN (kind gift from Prof. Virginia Lee (University of Pennsylvania)). The bacteria were pelleted by centrifugation and resuspended in buffer (50 mM Tris, 1 mM EDTA, 0.1 mM DTE, 0.1 mM PMSF, pH 7.0). The suspension was lysed by sonication in a Branson Sonifier (15 min, 70% power, 50 ms on/off) and centrifuged at 20,000 × g for 30 min at 4 °C. The supernatant was boiled for 5 min and centrifuged at 48,000 × g for 30 min at 4 °C. Before ion exchange purification, the supernatant was dialyzed in 20 mM Tris, pH 6.5, and filtered through a 45 µm filter. Mouse α-syn was purified on POROS HQ 50 ion exchange chromatography with a continuous gradient of 0–100% 2 M NaCl in 20 mM Tris, pH 6.5. The fractions with mouse α-syn were isolated and further purified by reverse-phase chromatography (C18) to remove nucleotides and lipids bound to α-syn. This step also removes endotoxins (lipoglycans) from the sample (<0.5 EU/mg, confirmed using the Pierce^TM^ Chromogenic Endotoxin Quant Kit, ThermoScientific^TM^). The pure protein was dialyzed in 20 mM ammonium bicarbonate, lyophilized, and stored at −20 °C. To produce sterile pre-formed fibrils (PFF), mouse α-syn was solubilized in PBS (Gibco) and passed through a 100 kDa filter (Amicon Ultra) to remove unwarranted oligomer species, before sterile filtering through a 0.22 μm filter (Merck). Protein concentration adjusted to 1 mg/mL and seeded with 5% (m/m) sonicated mouse alpha-synuclein pre-formed fibrils (produced previously and used before^69^). The solution was allowed to aggregate at 37 °C, 1000 RPM for 2 days. The insoluble α-syn PFF were isolated from unbound monomeric α-syn by 15,600 × g centrifugation for 30 min at 20 °C and resuspended in fresh sterile PBS (Gibco). The protein concentration was determined by the Bicinchoninic acid (BCA) protein concentration assay (Pierce). Aliquots were frozen at −80 °C until the day of use, when PFF was sonicated for 40 min (0.5 s off/0.5 s on, 30% output power). To confirm correct sonication and fibril size, dynamic light scattering (DLS) was used (222-DPN, NanoStar). The optimal size range is between 20 and 50 nm^70^. These DLS measurements were done before and after surgery to confirm the stability of the fibrils and maintenance of the optimal size.

Animal surgery

WT, STING^gt/gt^, and cGAS-KO animals were both randomly divided into receiving either mouse monomeric α-syn, α-syn pre-formed fibrils (PFF), or Dulbecco’s Phosphate Buffered Saline (PBS) (Biowest). Mice were anesthetized with a combination of medetomidine hydrochloride (1 mg/ml), midazolam (5 mg/ml), and fentanyl (50 µg/ml) in 0.9% NaCl solution in a final dose of 10 ml/kg (0.4–0.5 ml/injection, i.p.) and placed in a stereotaxic apparatus. Intracranial injection of α-syn fibrils or monomers (2 µl of total 10 µg, diluted in PBS) or PBS (2 µL) was performed. Injections were performed with a 5 µL Hamilton syringe with a pre-made glass capillary attached. Unilateral animals were injected into the right hemisphere at the coordinates: A.P + 0.7 mm/+0.09 mm (Female/Male) and M.L −2.0 mm from Bregma, and −3.0 mm ventral from dura corresponding to the Caudate Putamen region according to the mouse atlas of Paxinos and Franklin^71^. Animals required for gene expression analysis were bilaterally injected with the same coordinates in the left hemisphere, but M.L. + 2.0 from bregma. Following the injection, animals were sutured with metal clips and subcutaneously injected with an antagonist mix: flumazenil (0,1 mg/ml), naloxone (0,4 mg/ml), and atipamezole hydrochloride (5 mg/ml) in 0.9% NaCl for wakening in a final dose of 10 ml/kg (0.4–0.5 ml/injection). The animals were injected with buprenorphine (Temgesic 0.3 mg/ml, i.p.) after surgery for pain relief.

Challenging beam test

Motor function and coordination were evaluated in the challenging beam test as previously described with small modifications^72^. The mice have to transverse an increasingly narrowing beam from the widest part (frame 1) to the narrowest part (frame 4). Each frame is 25 cm. The mice are trained for two days before testing. On test day, a grid is placed on top of the beam (leaving a 1 cm space between the grid and the beam surface). Each animal undergoes five trial runs. A video camera is used to record all trials. All handling of the animals was done by the same experimenter. The videos were analyzed by an observer blind to the identity of the animals. The time to transverse the beam, the number of steps, and errors were examined, and the average of the five trials is presented. Frame 1 was excluded from the analysis due to high variability.

Spontaneous activity in the cylinder test

The spontaneous activity levels and asymmetry of movements were measured in an adaptation of the cylinder test^72^. The animals were placed in a glass cylinder, and spontaneous activity was video recorded for a minimum of 3 min. The number of rearings (vertical activities) were simultaneously counted. In case the animals did not reach 20 rearings in 3 min, the experiment was prolonged until 20 rearings were reached, with a maximum of 7 min. Each animal underwent one test. The number of left/right forelimb and hindlimb steps and time spent grooming (seconds) were analyzed within the 3 min. While the number of rearings and time to reach 20 rearings were analyzed for the whole video (<7 min), if it exceeded 3 min. It was not considered a step when the animal place a paw back of the cylinder after rearing. All analysis was done by an observer blind to the identity of the animals.

Perfusion and post-fixation of the brain for immunohistochemistry

The animals were euthanized 1 month or 6 months after the injection of α-syn by an overdose of pentobarbital (400 mg/ml, 1:10 dilution) mixed with lidocaine. On respiratory arrest, mice were perfused with cold physiological 0.9% NaCl solution through the ascending aorta, followed by paraformaldehyde (4%, ice-cold PFA, 0.1 NaPB, pH 7.4). The brains were removed and post-fixed in PFA solution for approximately 2 h and then transferred to 25% sucrose solution (in 0.02 M NaPB). The brains were sectioned on a freezing microtome (Brock and Michelsen, Thermo Fisher Scientific) into 40-µm-thick coronal sections and separated into serial sections: a series of 6 for the striatum, and a series of 4 for the SN. Sections were stored at −20 °C in an anti-freeze solution.

Immunohistochemistry

Immunohistochemistry was performed on free-floating sections. During the staining process, sections were washed multiple times in phosphate buffer (KPBS) between each incubation period. All incubation periods contained 0.25% Triton X-100 in KPBS. Shortly, the sections are quenched for 10 min in a solution of 3% hydrogen peroxide and 10% methanol, followed by one hour of blocking with the appropriate 5% serum. The sections were then incubated overnight at room temperature with the primary antibody (and 2.5% serum) (Supplementary Table 1). The next day, sections were incubated for 2 h with the appropriate biotinylated secondary antibody in 1% serum, followed by 1-h incubation with avidin-biotin-peroxidase complex (vectorstain, ABCkit, Vector Laboratories; PK-6100) in KPBS. Development was done with 3,3-diaminobenzidine (DAB), and the reaction started with the appropriate concentration of H_2_O_2_. Afterward, sections were mounted on gelatin-coated glass slides and coverslipped. Iba-1 immunostained sections were counterstained with cresyl violet (0.5% solution) before coverslipping.

Stereological analysis

Stereological estimation of tyrosine hydroxylase-positive cells (TH^+^) in the SN was made by an observer blind to the identity of the animals. Sampling was done using the VIS software (Visiopharm A/S) and a bright-field Leica DM6000B (Prior Scientific) microscope. Between 8 and 10 sections in a series of the SN were chosen to range from around −2.7 mm and −4mm from the bregma according to the mouse brain atlas^71^. A super-image of the selected sections was taken using a 1.25× objective, and the borders of the SN were drawn in this magnification using the Region of Interest (ROI) tool. The counting frame (56.89 µm × 42.66 µm) was placed randomly at the first counting by the VIS software and then systematically moved through the whole ROI for each section. The step length was adjusted between 140 and 145 µm for the contralateral side and between 120 and 135 µm for the ipsilateral side, approximately. 100–150 TH+ cells were counted on both sides of the SN. The counting was conducted with a 40× objective. The total number of cells was calculated according to the optical fractionator formula, and a coefficient of error (CE) < 0.10 was accepted.

Stereological estimation of Iba1^+^ cells in the SN and their morphology was made by an observer blind to the identity of the animals. The sampling software and approach to defining SN were the same as described for TH stereology and included both SN compacta and reticulata. The sampling frequency was adjusted between 140 and 150 µm, so a total of approximately 250 cells were counted on each side (ipsi and contra). The counting was performed using a 40× objective. The total number of cells was calculated by the optical fractionator formula, and a coefficient of error (CE) < 0.10 was accepted.

Densitometry

The optical density of the TH^+^ fibers in the striatum was measured at 6 different levels of rostro-caudal levels according to the mouse brain atlas^71^ (+1.1; +0.74; +0.38; + 0.02; −0.34; −0.70 mm relative to bregma). The different brain sections were scanned using a densitometer (BioRad, GS-710), and the digital images were analyzed using the Fiji software using a greyscale. The optical density for each section was corrected with the nonspecific background measure from the corpus callosum. The quantification was made by an observer blind to the identity of the animals.

Microscopy analysis

For quantification of ramified MHCII^+^ cells in the striatum, three representative sections in the striatum were selected from each animal, located between +1.18 and −0.94 mm from bregma according to the mouse brain atlas^71^. The quantification was made using a Leica DMI600B microscope at 10× magnification. Due to the low expression and infiltration pattern of MHCII^+,^ a stereological counting approach was not chosen, and cells were manually quantified by an observer blind to the identity of the animals. MHCII^+^ cells at the site of injection and in the white matter were not quantified.

For quantification of MJF14 positive staining in the amygdala and SN, an upright slide Scanner Microscope (Olympus VS120) was used at a magnification of 40×. In each animal, two sections for each area were selected. Enhanced Focal Imaging (EFI) photos were taken of these areas, with a depth (z-axis) of 20 µm. The photos were analyzed with Fiji software using a protocol for unbiased quantification. First, the photos were converted to a binary 8-bit grayscale. The ROI was drawn in the photos, and a histogram was obtained to receive information about the mode of the photo. The mode was multiplied by 0.87 (87%) to obtain the optimal threshold value when quantifying MJF14 staining. This optimal threshold value will distinguish specific staining from the background. Positive staining was quantified using the “analyze particles”-tool in Fiji. A lower cut-off of 5 pixels was set to avoid quantification of small, nonspecific staining. Circularity was set to 0–1 as aggregates are not uniform in morphology or circular. The same settings were applied to all animals. The percentage of the area (%Area fraction) occupied by the positive staining was calculated.

p62 staining was quantified in the amygdala and the SN. Two sections for each area were selected, and 20× EFI photos with a depth (z-axis) of 20 µm were taken (Olympus VS120). The same procedure as described for MJF14 was applied to quantify the %Area fraction. The optimal threshold was determined to be 80% of the mode, and the low-cut-off pixel value was set to 20 pixels. Circularity was set to 0–1.

CD68 staining was quantified in striatal sections (three per animal), with images acquired at 20× magnification using EFI with a z-axis depth of 20 µm (Olympus VS120). For the SN, two to three sections per animal were analyzed, and images were acquired at 20× with a z-axis depth of 22 µm (11 layers with 2 µm spacing) using NDP software (NanoZoomer 2.0HT, Hamamatsu). Quantification of the % area fraction was performed using the same procedure described for MJF14. The optimal threshold was determined to be 80% of the mode, the low-cut-off pixel value was set to 5 pixels, and circularity was defined between 0 and 1. Values were average per section.

For pSer129+, one section with the frontal cortex and one section with the thalamus were selected, while two sections with the amygdala were selected. 20× EFI photos with a depth (z-axis) of 20 µm were taken (Olympus VS120). For the SN, two sections were selected, and 20× EDF images with a depth (z-axis) of 20 µm were obtained (AxioScan 7, Zeiss). The same procedure as described for MJF14 was applied to quantify the %Area fraction. However, due to a more pronounced background staining in some samples, the optimal threshold was determined to be 80% of the mode in sections with less background, and 70% of the mode in animals with more background. The low-cut-off pixels value was 5 pixels, and the circularity was 0–1.

Gene-panel assay (BioMark, Fluidigm)

For the gene-panel assay, tissue was homogenized with the TissueLyser System (QIAGEN) for 3 min in an appropriate volume of PBS. RNA was isolated from the frontal cortex, striatum, and ventral midbrain from n = 22 animals. Only male mice were used for the RNA analysis. (High RNA isolation Kit from Roche). Isolated RNA was dilution in elution buffer to a concentration of 12.5 ng/µl. In the following, 2 µl RNA was used from the diluted RNA. First, complementary DNA (cDNA) was produced from RNA. Samples were mixed with SuperScript III RT/Platinum Taq mix (Invitrogen, SuperScript® III platinum® one-Step qRT-PCR system) and 0.2× of all primers used in the study (Supplementary Table 2) (TaqMan gene expression assayed, Applied Biosystems). The amplification with reverse transcription (RT-PCR) was performed using the cycling protocol: RT (incubated at 50 °C for 15 min), Taq activation (95 °C for 2 min), followed by 15 cycles of amplification (95 °C for 15 s and 60 °C, at 4 min). The cDNA was diluted at least 1:10 and max 1:30 before real-time qPCR, which was performed in a 192.24 Dynamic Array Integrated Fluidic Circuits (Fluidigm) chip using the same primers as mentioned above. Technical duplicates were included for striatum samples. The following reagents were used for the qPCR reactions: TaqMan Gene expression master mix (Applied Biosystems), GE sample loading reagent (Fluidigm), and the pre-amplified cDNA. The primer mix was prepared with 2 µl of 20× TaqMan Gene expression assay (Applied Biosystems) and assay loading reagent (Fluidigm). The 192.24 Dynamic Array was primed in the IFC controller (Fluidigm) before loading. The sample mix, cDNA, and primer mix were loaded into the appropriate inlets and into the primed chip in the IFC controller. This setup allows each sample to combine with each primer in separate reactions. The plate was placed in the BioMark PCR instrument (Fluidigm), and the standard protocol was followed. Data was required using the Fluidigm Real-Time PCR analysis software (Fluidigm). Data were normalized to the average of β-Act and GAPDH using the formula 2^ct(β-actin mRNA)-Ct(target mRNA)^. Failed Ct were removed from the analysis.

Statistics

For statistical analysis of data, GraphPad Prism 8 was utilized. For data with two variables (treatment and genotype), a Two-way ANOVA was applied, followed by Sidak’s multiple comparison. For data with three variables (treatment, genotype, and brain hemisphere), a three-way ANOVA was conducted with matched values (Contralateral and ipsilateral). The three-way ANOVA was followed by an uncorrected Fisher's LSD test, and comparisons were done using Bonferroni corrections. Corrected p-values are displayed on the individual graphs. For further results regarding statistical analysis, see Supplementary data.
