Integrative spatial multi-omics reveal niche-specific inflammatory signaling and differentiation hierarchies in AML
Enes Dasdemir, Ivo Veletic, Christopher P. Ly, Andres E. Quesada, Christopher D. Pacheco, Fatima Z. Jelloul, Pamella Borges, Sreyashi Basu, Sonali Jindal, Zhiqiang Wang, Alexander Lazar, Khalida M. Wani, Dinler A. Antunes, Patrick K. Reville, Preethi H. Gunaratne
TL;DR
This study uses spatial multi-omics to map how AML cells are organized in bone marrow and extramedullary sites, revealing how inflammation and signaling influence their location and behavior.
Contribution
A novel workflow for Visium-based spatial transcriptomics in AML, revealing spatial organization and inflammatory signaling in distinct niches.
Findings
Primitive-like AML cells localize near bone, while committed-like cells reside in inflamed regions.
CXCL12-CXCR4 signaling links AML cells to inflammatory niches and activates PI3K/AKT/mTOR pathways.
Inflammation drives niche remodeling and T cell dysfunction in AML microenvironments.

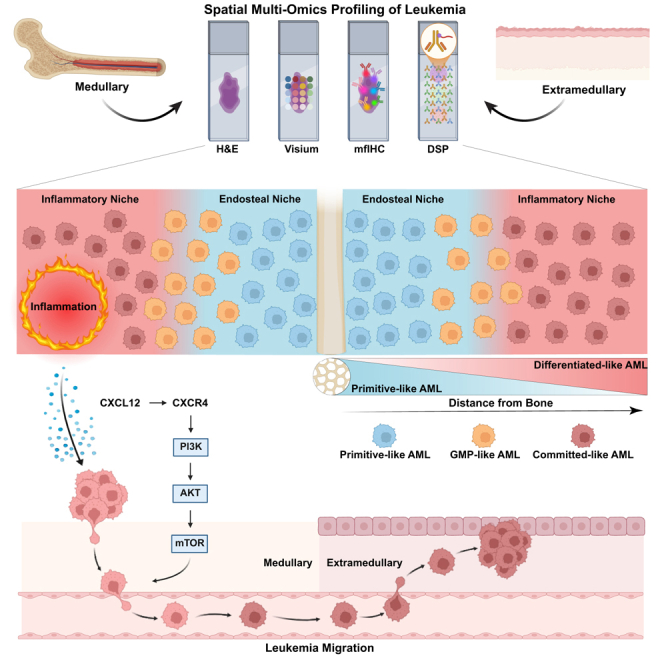

Abstract
Acute myeloid leukemia (AML) is a clonal disorder characterized by immature blasts and arrested differentiation that primarily affects the bone marrow (BM) and occasionally presents as extramedullary (EM) disease. EM manifestations highlight AML’s adaptability to distinct microenvironments, which we examined using spatial analyses of medullary and EM tissues. We describe a workflow for Visium-based spatial transcriptomics in medullary and EM AML, revealing insights into cell-cell communication and the spatial organization of AML hierarchies. In BM, monocytes and granulocyte-monocyte progenitors colocalized with leukemic populations, sharing molecular signatures with those in EM sample. CXCL12-CXCR4-mediated communication correlated with PI3K/AKT/mTOR signaling in inflammatory niches. Trans-differentiation signals concentrated in AML-infiltrated regions; committed-like AML cells resided…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSingle-cell and spatial transcriptomics · Acute Myeloid Leukemia Research · Genomics and Chromatin Dynamics
Introduction
Acute myeloid leukemia (AML) is a clonal disorder characterized by the presence of immature blasts and arrested differentiation.1 AML is primarily a bone marrow (BM) disease, but AML cells can emerge in extramedullary (EM) sites, and some patients with AML have isolated EM disease without BM involvement.2 These EM manifestations highlight a highly adaptable leukemic process, shaped by signals from the surrounding microenvironment, and this process can be revealed through spatial analyses of both medullary and EM tissues. Uncovering the spatial dynamics of AML cells is essential for identifying therapeutic targets and understanding resistance mechanisms. Spatial proteomics analysis has provided mechanistic insights into the immune evasion of AML cells and has revealed subcellular compartments in AML cells.3^,^4 However, spatial proteomics can be constrained by a predetermined, targeted approach, which limits its breadth to a fixed set of proteins, thus making it more useful for validation than for novel discovery. In contrast, spatial transcriptomics (ST), which can capture a vast array of genes without bias, facilitates the discovery of biological pathways, molecular profiles, and cellular interactions. Although, high-throughput ST is widely applied in solid cancers,5^,^6^,^7 its use in BM-based diseases remains relatively limited,8^,^9^,^10^,^11 likely because the rigorous decalcification required for the processing and sectioning of BM specimens may compromise RNA integrity, and because many researchers perceive BM diseases as “liquid” cancers that lack a defined tissue architecture.12 Leveraging ST to dissect AML can yield valuable insights into the tissue composition and cell-cell interactions within the osseous and non-osseous niches that sustain AML growth.
In the present study, we employed Visium array-based ST in paired diagnostic BM and EM samples from patients with AML and GeoMx digital spatial profiling on an AML tissue microarray to optimize spatial analysis in AML and study cell-cell interactions. By spatially deconvolving the leukemic components using reference single-cell RNA sequencing (scRNA-seq) data from BM biopsies from AML and healthy donors, we created an ST map of medullary and EM leukemia. We integrated the ST annotations with a proteomic panel of functional and phenotypic markers for orthogonal validation. Our findings captured established AML biology patterns such as the CXCL12-CXCR4 interactions, validating our approach. In addition, we found inflammatory pathways intertwined with endosteal BM niches in the maturation states of AML populations. We also mapped the spatial distribution of the AML hierarchy, providing insights into its organization within the microenvironment. Our study demonstrates the feasibility of using integrated ST and proteomic approaches to analyze the BM of patients with AML and supports the broader applicability of these methods beyond AML.
Results
Comparative multi-omics analysis of acute myeloid leukemia patients’ bone marrow and extramedullary tissues

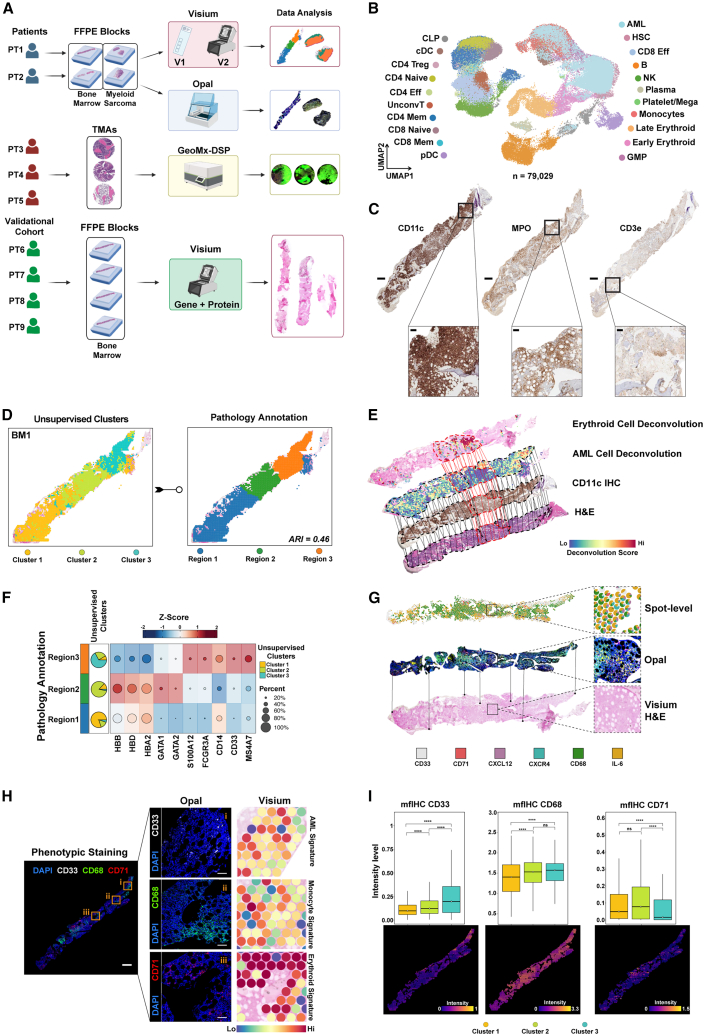

Our objective was to characterize spatial interactions in AML while addressing the challenges posed by the decalcification process and RNA quality inherent to the histopathological processing of BM samples. To establish a control, we hypothesized that pairing BM tissues with EM non-osseous AML from the same patient would serve as an optimal comparison. We identified diagnostic trephine BM and EM biopsy samples collected from 2 patients with AML to be used for Visium-based ST profiling and 4 AML patient BMs as validation cohort with the Visium gene and protein expression assay (Figure 1A). The patients’ clinical characteristics are summarized in Table S1. Briefly, one patient, and 83-year-old man, presented with a cutaneous myeloid sarcoma (sample EM1) and concurrent medullary leukemia (30% myeloblasts, sample BM1), and the other patient, a 42-year-old man had a mediastinal mass (sample EM2) without histopathologic evidence of medullary AML involvement (2% myeloblasts, sample BM2) (Figures S1A–S1C). BM1 harbored mutations in NPM1, DNMT3A, IDH1, IDH2, FLT3, SF3B1, and KRAS. The targeted mutation panel was not performed for BM2 or EM2. Both patients had diploid cytogenetics.Figure 1. Comparative spatial multi-omics analysis of acute myeloid leukemia patients’ bone marrow and extramedullary tissues(A) Schematic representation of the study workflow. Paired bone marrow (BM) samples (BM1 and BM2) and extramedullary (EM) samples (EM1, from skin; and EM2, from lymph node) from 2 newly diagnosed patients with acute myeloid leukemia (AML) (PT1 and PT2) were fixed in formalin and embedded in paraffin (FFPE) and then sectioned for use in Visium assays (v1 and v2), and Opal multiplex fluorescent immunohistochemistry (mfIHC). The Visium spatial transcriptomics (ST) results were validated using GeoMx digital spatial profiling (DSP) with tissue microarrays (TMAs) of samples from 3 newly diagnosed patients with AML (PT3, PT4, and PT5). An additional 4 AML bone marrow samples that performed the Visium gene and protein expression assay are used as a validational cohort (PT6, PT7, PT8, and PT9). Image created with BioRender (https://biorender.com).(B) Uniform manifold approximation and projection (UMAP) plot showing our reference map consisted of 79,029 cells collected from 9 healthy BM donors and 7 patients with AML with diploid cytogenetics to match the patient cytogenetic profiles, and included both newly generated scRNA data and previous works. This map consisted of 21 cell types, including T cells (CD4^+^ and CD8^+^ naive, effector, and memory T cells, T regulatory [Treg] cells, and unconventional T cells), other immune cells (Natural killer [NK] cells, B cells and plasma cells), hematopoietic progenitors (Hematopoietic stem cells [HSCs], common lymphoid progenitors [CLPs], granulocyte-monocyte progenitors [GMPs]), myeloid cells (megakaryocytes/platelets, monocytes, early and late erythroid cells, conventional and plasmacytoid dendritic cells) and leukemic (AML) cell populations.(C) Immunohistochemical staining of CD11c, MPO, and CD3e on BM1 sections that were used for histopathological annotation. The scale bar for the main tissue panels represents 1 mm. The scale bar for the zoomed-in panels, corresponding to the boxed regions, represents 100 μm.(D) Unsupervised clustering and pathology annotation for the projected spatial map of BM1, revealing 3 distinct regions with an adjusted rand index (ARI) of 0.46.(E) Spatial deconvolution of BM1 tissue, showing erythroid and AML cell populations, with CD11c immunohistochemistry (IHC) overlaid on an image of hematoxylin and eosin (H&E)-staining. The dotted red lines represent regions enriched for the erythroid cell population; dotted black lines, regions enriched for the AML cell population; and solid lines, regions that overlapped with other tissue sections.(F) Heatmap of Z score normalized canonical markers in pathology annotations, with matching unsupervised cluster distributions represented as a pie chart. HBB, HBD, HBA2, GATA1/2 are erythroid genes and S100A12, FCGR3A, CD14, MS4A7, and*, CD33* are monocyte/leukemic genes.(G) Representative overlay of Visium H&E staining with Opal mfIHC and the generated spot-level data for CD33, CD71, CXCL12, CXCR4, CD68, and IL-6. Boxes illustrate magnified regions showing concordance between transcript-level (Visium) and protein-level (Opal) signals at the spot level.(H) Phenotype staining on near-adjacent tissue sections for markers of leukemic (CD33), monocytic (CD68), and erythroid (CD71) populations. DAPI was used as a nuclear counterstain. The spatial distribution of these markers corroborates ST-based spot deconvolution. Scale bars: 1 mm (whole-slide panels) and 100 μm (selected region panels).(I) Box and spatial plots of mfIHC staining intensities for phenotypic markers across ST-defined clusters in BM1, highlighting the enrichment of leukemic and monocytic populations in cluster 3 and that of erythroid populations in cluster 2 at BM1. Scale bars: 1 mm (whole-slide panels) and 100 μm (selected region panels). ns, not significant. ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.
We tested 2 Visium-based assays: version 1 (v1), and version 2 (v2) (Methods) using all 4 patient samples (BM1, BM2, EM1, and EM2) concurrently. The pre-library RNA traces (DV_200_ values) were 39% or higher for all samples except EM2 (24%) (Figures S1D–S1F). For BM1 and BM2, the post-library DNA traces in v1 (24% and 29%) were markedly lower than those in v2 (89% and 91%, respectively) which precluded further sequencing of the v1 BM libraries, whereas for EM1 and EM2, the post-library DNA traces in v1 (87% and 83%, respectively) were similar to those in v2 (88% and 91%, respectively) (Figures S1E, S1G, and S1H). These findings suggest that Visium v2, which includes automated tissue transfer, performs more reliably than v1 with BM tissues, even those with low pre-library DV_200_ values (Methods). Also, v2 detected significantly more genes than v1 did (Figures S1I–S1M). However, spatial correlation between the Visium gene and protein expressions was weak, primarily due to low quality of the protein assay. (Figure S1N). To assess whether the structural integrity of bone regions was maintained during tissue processing, we overlaid the image of the BM section on the Visium slide with the image of the H&E-stained section. Indeed, spots in bone trabeculae areas, which usually have low cell abundance and a tendency to come off during tissue processing, were still maintained (Figure S1O). Overall, the v2 data demonstrated superior quality compared to v1, largely due to the automated tissue transfer approach, which preserved tissue integrity and thereby facilitated successful downstream analysis.
A known limitation of Visium is that multiple cells can occupy the same spot. Therefore, we utilized our in-house generated scRNA-seq BM reference data13^,^14^,^15^,^16 (Figure 1B) to deconvolve individual spots (spatial regions) using a probabilistic label transfer workflow. We next conducted shared nearest neighbor (SNN) modularity optimization-based unsupervised clustering.17 The resulting cluster labels were then compared to the tissue annotations established by 2 independent hematopathologists by overlaying the Visium slides with the H&E− and clinical IHC-stained slides (Figures 1C, 1D, S2A, and S2B). In BM1, the SNN-based clustering identified 3 distinct clusters. Regions were defined as “mixed” (Region 1), “erythroid-enriched” (Region 2), and “monocytic/leukemia-enriched” (Region 3) (Figure 1E). The results aligned with differentially expressed genes in these regions and canonical markers of erythroid cells (HBB, HBA2, GATA1, and GATA2), monocytes (S100A12, FCGR3A, CD14, and MS4A7), and myeloid cells (CD33) (Figure 1F, Table S2). To further confirm the deconvolution-based spot annotation, we performed mfIHC on near-adjacent tissue sections, enabling spatial proteomic analysis at the single-cell resolution (Figure S2D). To overcome the BM tissues’ high autofluorescence due to bone components and fixation, we applied light-based quenching18 and manually excluded these areas in downstream analyses (Figure S2E). The mfIHC data were then aligned with the corresponding Visium samples for spot level integration (Figure 1G). Using the phenotypic markers – CD68 (for monocytic populations), CD71 (erythroid cells), and CD33 (leukemic populations) – we validated our annotation approach. There was a consistent positive correlation between deconvolved cell types and protein intensities compared to single gene-protein correlations in EM (Figure S2F). The cluster-based distribution of protein expression mirrored the ST data; in BM1, cluster 3 was enriched for leukemic and monocytic populations, and cluster 2 was enriched for erythroid cells (Figures 1H and 1I). In BM1, the most abundant cell type was AML cells, followed by monocytes, whereas in BM2, late and early erythroid cells, along with GMPs, were most common (Figure S2G). Compared with BM2 (no morphologic leukemia detected), BM1 (∼30% leukemic blasts) had a slightly higher prevalence of effector and memory T cell populations but a lower abundance of erythroid-lineage populations.

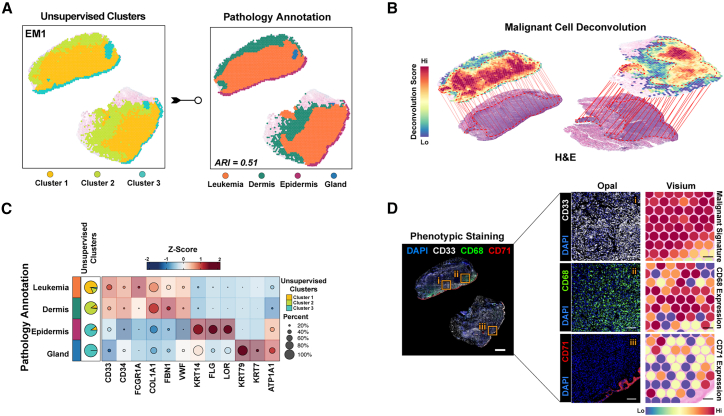

EM tissues included epidermis, dermis, germinal centers, and glands as expected due to the cutaneous nature of the EM disease. Unsupervised clustering segmented EM1 into 3 distinct clusters, which mostly overlapped with histopathological annotations, with the exception of glandular tissue glandular tissue annotations (adjusted rand index = 0.51) (Figure 2A). We then applied the spatial cellular estimator for tumors (SpaCET) algorithm,19 which is used in the spatial analysis of non-osseous solid cancer spatial analysis, to identify the leukemic regions (Figure 2B, STAR Methods). Deconvolution results were confirmed by comparing them with the histopathologic annotations on digital images of H&E staining of the same slide. Macrophages were the predominant predicted cell type in EM1, while cancer-associated fibroblasts and endothelial cells exhibited the highest abundance in EM2 (Figure S2H). Tissue-specific markers and differentially expressed genes validated the transcriptional segregation, revealing dermis infiltration by leukemic cells’ infiltration of the dermis in EM1, and confirmed the consistency of the unsupervised clusters with the pathologist-defined regions (Figures 2C and S2I; Table S3), which was also validated by mfIHC (Figure 2D). These results support the use of deconvolution for spot-level annotation, enabling further downstream analysis.Figure 2. Spatial multi-omics profiling identifies leukemic infiltration and tissue composition in extramedullary acute myeloid leukemia samples(A) Unsupervised clustering of the extramedullary sample EM1 into 3 spatial clusters (left) compared against the pathology-based annotation (right; indicating a composition of leukemia, dermis, epidermis, and gland). The adjusted rand index (ARI; 0.51) reflects moderate agreement between the clusters and pathology annotations.(B) Spatial deconvolution scores obtained using the SpaCET algorithm show EM1’s malignant cell distribution overlaid on the hematoxylin and eosin (H&E) image.(C) Heatmap of canonical marker expression in EM1 regions, validating transcriptional segregation and matching pathologist-defined regions. Markers of leukemic populations and dermis regions show shared expression profiles. Unsupervised cluster overlap is represented as pie charts, with pathology annotation.(D) Phenotypic staining (Opal multiplex immunofluorescent) on near-adjacent sections validating the spatial distribution of CD33 (malignant cells), CD68, and CD71, which is consistent with the Visium malignant signature (spot-level) and CD68 and CD71 expression patterns. Scale bars: 1 mm (whole-slide panels) and 100 μm (selected region panels).
Spatial heterogeneity of cell populations in bone marrow and extramedullary tissues in patients with acute myeloid leukemia

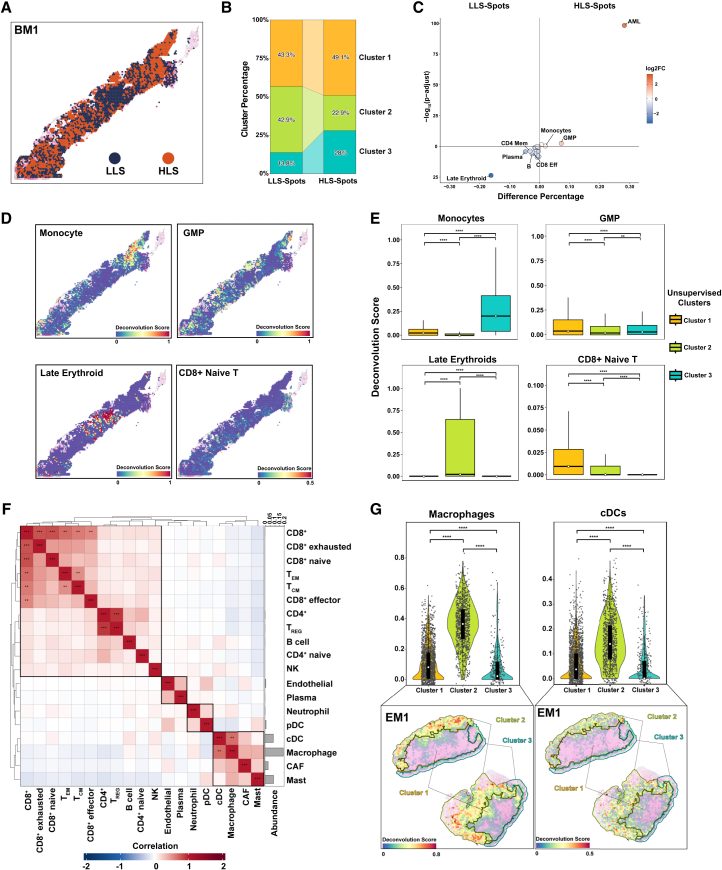

We categorized each spot as having a high leukemic score (HLS; above the median AML deconvolution score) or a low leukemic score (LLS; below the median AML deconvolution score) (Figures 3A and S3A; Table S4). In BM1, cluster-based analysis showed that HLS spots were about 14% more frequent than LLS spots in cluster 3, whereas LLS spots were 20% more frequent than HLS spots in cluster 2 (Figure 3B). Monocytes and GMPs were predominantly associated with HLS spots in the BM environment (Figures 3C, S3B, and S3C). In addition, neighborhood analysis further showed that these cell types were also enriched in the immediate surroundings of HLS spots (Figure S3D). Monocytes were primarily in cluster 3, whereas GMPs were enriched in all 3 spatial clusters. CD8^+^ naive T cells were found throughout all clusters but had a higher spatial concentration in cluster 1. In cluster 2, late erythroid cells were predominant, and this region showed the lowest proportion of HLS-spots (Figures 3D and 3E). In EM1, immune cell populations were co-localized. For instance, macrophages, which had the highest abundance in EM1, had strong co-localization with classical dendritic cells (Pearson correlation coefficient [r] = 0.67) and were associated with cancer-associated fibroblasts (r = 0.37) (Figure 3F), particularly in the tumor-infiltrated dermis region (Figure 3G).Figure 3. Spatial heterogeneity of acute myeloid leukemia populations in bone marrow and extramedullary tissues(A) Spatial map of the bone marrow sample BM1 showing spots with high leukemic scores (HLS; above the median acute myeloid leukemia [AML] deconvolution score; >0.15; orange) and low leukemic scores (LLS; below the median AML deconvolution score; ≤0.15; dark blue).(B) Stacked bar plot of the cluster-based distribution of HLS and LLS spots in BM1.(C) Volcano plot of the differential co-localization of cell populations within HLS and LLS spots of all BM samples. Deconvolution scores were compared using the Wilcoxon rank-sum test.(D) Spatial deconvolution of monocytes, and granulocyte-monocyte progenitors (GMPs) in HLS spots in BM1 (top) and spatial deconvolution of late erythroid cells and CD8^+^ naive T cells in LLS spots in BM1 (bottom).(E) Boxplots of deconvolution scores for monocytes, GMPs, late erythroid cells, and CD8^+^ naive T cells across the 3 unsupervised clusters in BM1. Median values are shown as white dots on black lines. ∗∗p < 0.01, ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.(F) Correlation heatmap of cell populations in the extramedullary sample EM1, highlighting significant co-localization between macrophages and classical dendritic cells (cDCs).T_EM_, effector memory T cells; T_CM_, central memory T cells; NK, natural killer cells; pDC, plasmacytoid dendritic cells; CAF, cancer-associated fibroblasts. ∗∗∗r > 0.7, ∗∗r > 0.5, Pearson absolute correlation.(G) Spatial mapping of macrophage and cDC spots in EM1, showing their co-localization in tumor-infiltrated dermis clusters (clusters 1 and 2). ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.
Inferred pathway analysis reveals inflammatory niches and region-specific signatures in bone marrow and extramedullary tissues from patients with acute myeloid leukemia
We next compared the regulatory programs, distinguishing HLS spots from LLS spots (Figures S3E and S3F). Several genes involved in immune regulation, inflammasome activity, and tumor progression, such as CD70, TMEM176B, TP53INP2, and TNFSF13B,20^,^21^,^22^,^23^,^24 were significantly enriched in the HLS spots in BM1, and these same genes were also highly expressed in the EM leukemic regions of the same patient (Figure S3G). Differential expression analysis between BM HLS spots and EM malignant regions revealed enrichment of erythroid-lineage differentiation genes characteristic of low-cycling progenitors (e.g., HEMGN, KLF1, and ALAS2), whereas EM spots preferentially expressed extracellular matrix and EMT-associated genes (e.g., CIDEA, PLIN5, and CLMP) (Figure S3H). Pathway profiling further demonstrated that the paired BM and EM samples from each patient shared common molecular signatures (Figure S4A). For instance, in PT1, pathways related to inflammation (e.g., IFNα, IFNγ, inflammatory response, and TGF-β pathways) and energy metabolism (e.g., oxidative phosphorylation and glycolysis pathways) were upregulated in both BM1 and EM1, whereas these were relatively downregulated in both BM2 and EM2. We also observed prominent epithelial-mesenchymal transition (EMT)-like programs linked to neoplastic migration and trans-differentiation in the EM1 and EM2. Notably, the profiles of cluster 3 of BM1, particularly those involving inflammation-related pathways, closely matched those of the leukemic cluster of EM1 (Figure S4B).

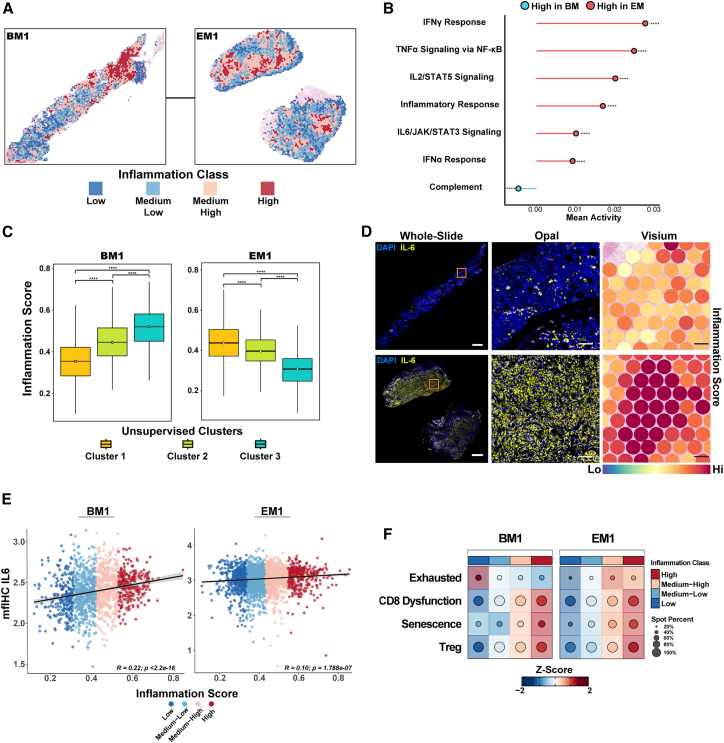

Dysregulated inflammatory pathways in the BM microenvironment contribute to leukemogenesis and leukemic blast maintenance in AML.25^,^26 We thus defined a composite inflammation score using inflammation-related hallmark pathways and then clustered the spatial data using Jenks natural breaks optimization (STAR Methods, Figures 4A and S4C). When comparing only high-inflammatory regions, the EM site revealed greater inflammation (Figure S4D). Among the pathways constituting the composite inflammation score, IFN-γ signaling was specifically elevated in EM, whereas only the complement pathway showed higher activity in BM (Figure 4B). As expected, cluster 3 in BM1 and cluster 1 in EM1 exhibited the highest inflammation scores, which is consistent with the leukemic enrichment in these clusters (Figure 4C). To further explore the spatial inflammatory pathways, we performed mfIHC for IL-6, a key inflammatory marker, and found similar spatial patterns of IL-6 expression in adjacent regions (Figure 4D). Furthermore, for both BM1 and EM1, the IL-6 staining intensities were positively correlated with the composite inflammation score (Figures 4E and S4E).Figure 4. Inflammatory microenvironment analysis reveals region-specific signatures in bone marrow and extramedullary tissues from patients with acute myeloid leukemia(A) Distribution of spatial inflammation classes in BM1 and EM1, based on composite inflammation scores from inflammation-related hallmark pathways (Inflammatory response, IL6/JAK/STAT3 signaling, TNF-α/NF-κB signaling, IFN-γ response, IFN-α response, Complement, IL2/STAT5 signaling). Classes were defined using Jenks' natural breaks optimization.(B) Mean activity comparison of individual inflammatory related pathways in spots with high-inflammatory activity revealed the highest activity of IFN-γ response in EM tissue. Complement pathway activity is higher in BM1 when compared with the EM1 inflammatory niche. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.(C) Boxplots of inflammation scores across the 3 clusters in BM1 (left) and EM1 (right). Each cluster displays significantly different levels of inflammatory activity; leukemia-enriched cluster 3 in BM1 and cluster 1 in EM1 have higher inflammation scores. ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.(D) IL-6 staining (Opal multiplex fluorescent immunohistochemistry [mfIHC]) in whole-slide images (left) of BM1 (top) and EM1 (bottom) and corresponding magnified regions (center), aligned with Visium spot-level composite inflammation score (right). Scale bars: 1 mm (whole-slide panels) and 100 μm (selected region panels).(E) Scatterplots showing the correlation of IL-6 protein staining intensity (mfIHC IL-6) with the composite inflammation score in BM1 (left) and EM1 (right). IL-6 levels are higher in high-inflammation regions in both BM1 and EM1.(F) Dot plot showing the localization of T cell subtypes (exhausted, CD8^+^ dysfunction, senescence, regulatory T cells [Treg]) based on inflammation class in BM1 and EM1.
Given the association between high inflammation and AML enrichment, we next sought to determine whether this highly inflammatory niche influences T cell states across bone marrow and extramedullary sites. Although T cells were relatively scarce in our spatial profile, deconvolution analysis revealed that T cells with exhausted phenotypes were generally enriched in high-inflammatory regions. However, in BM1 and BM6, exhausted phenotypes appeared more prominent in lower inflammatory regions. CD8^+^ dysfunction and T regulatory cell signatures were consistently associated with highly inflamed niches across all samples (Figures 4F, S4F, and S4G).14^,^16^,^27 Taken together, these observations suggest that BM and EM sites in the same patient can have similar inflammatory programs, which are associated with T cell exhaustion within highly inflammatory niches.
Spatial cell communication analysis highlights the CXCL12-CXCR4 axis in the inflammatory niche

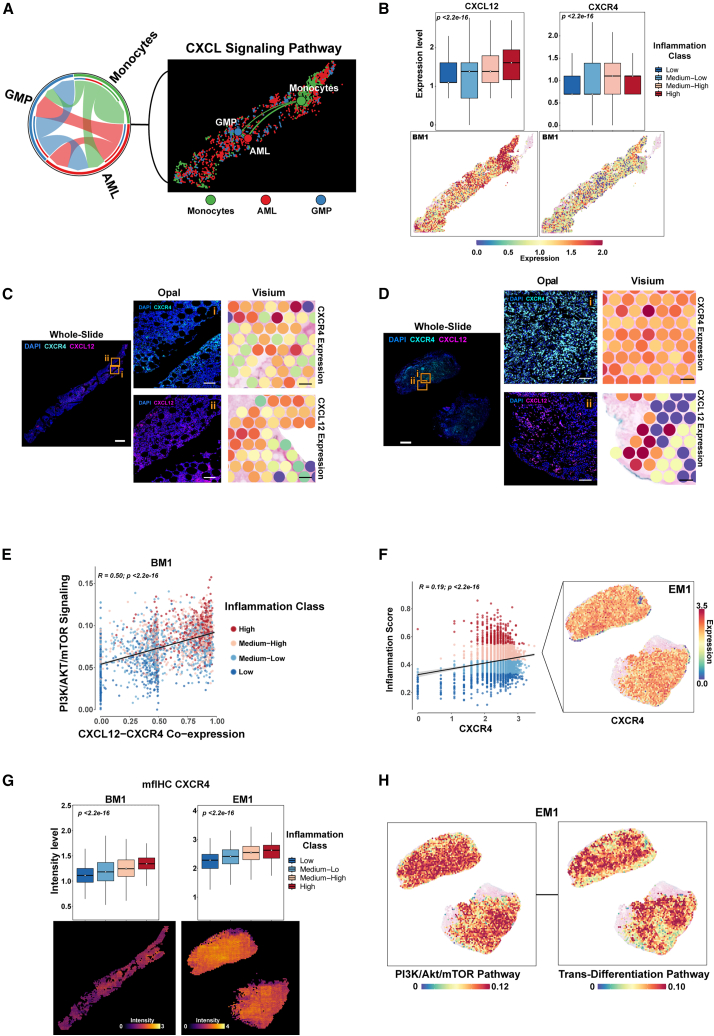

After defining each cell type based on the deconvolution score, we performed spatial cell-cell communication analysis (Figure S5A).28 Among the most prominent signaling interactions, we identified that strong CXC chemokine family (CXCL) signaling was present across all subtypes (Figure S5B). For instance, the CXCL12-CXCR4 axis emerged as a key pathway among AML cells, GMPs, and monocytes (Figures 5A, S5C, and S5D). Examining the relationship of the CXCL12-CXCR4 pair within the inflammatory niche, we found that both the CXCL12 ligand and the CXCR4 receptor showed high expression levels in spots with higher inflammation scores (Figures 5B, S6A, and S6B). To validate our ST findings, we performed mfIHC for the CXCL12-CXCR4 axis (Figures 5C, 5D, S6C, and S6D). In EM1 samples, both CXCL12 and CXCR4 demonstrated spatial concordance between gene expression and protein localization. In BM, CXCL12 showed high concordance, while CXCR4 exhibited minimal spatial overlap. In these highly inflammatory regions, the PI3K/AKT/mTOR pathway, a downstream target of the CXCL12-CXCR4 axis, was strongly correlated with the co-expression of CXCL12-CXCR4 (Figures 5E and S6E–S6H).29 This pathway’s ability to directly induce trans-differentiation aligns with our observation of elevated epithelial-mesenchymal transition (EMT) programs in these areas (Figures S6I and S6J).Figure 5. Chemokine signaling through the CXCL12-CXCR4 axis is linked to inflammatory niches and trans-differentiation in acute myeloid leukemia(A) Spatial and chord diagrams of the strength of interactions among acute myeloid leukemia (AML) cells, granulocyte-monocyte progenitors (GMP), and monocytes through the CXCL12-CXCR4 axis, as predicted by CellChat.(B) Boxplots of the expression levels of CXCL12 and CXCR4 in BM1, stratified by inflammation class (top), and corresponding spot-level expression maps (bottom) for the bone marrow sample BM1. Red spots indicate higher expression levels.(C and D) Whole-slide images of Opal multiplex fluorescent immunohistochemistry (mfIHC; left) for CXCR4 (turquoise) and CXCL12 (magenta) overlaid with DAPI (blue), alongside magnified Opal regions and Visium-based gene expression maps (right) in BM1 (C) and the extramedullary sample EM1 (D). Scale bars: 1 mm (whole-slide panels) and 100 μm (selected region panels).(E) Scatterplot shows the positive correlation of the PI3K/Akt/mTOR pathway score with the combined CXCL12-CXCR4 co-expression score (R = 0.50, p < 2.2e-16). Colors denote inflammation class.(F) Relationship between CXCR4 expression and inflammation score in EM1 (R = 0.19, p < 2.2e-16). Spatial maps show the distribution of CXCR4 expression.(G) Boxplots comparing CXCR4 protein signal intensity (mfIHC) across inflammation classes in BM1 (left) and EM1 (right). Spot-level images illustrate higher CXCR4 signal intensities in high-inflammation areas.(H) Sections 1 and 2 represent adjacent serial sections of the same EM1 biopsy embedded on a single Visium capture area. Visium ST visualization of PI3K/Akt/mTOR pathway (left) and trans-differentiation pathway (right) activity in these EM1 sections, revealing elevated pathway scores in high-inflammation and leukemic regions.
To examine whether this mechanism was linked to the EM sites, we assessed the spatial expression of CXCL12 and CXCR4 in EM1. CXCR4 was abundantly expressed throughout the tissue and positively correlated with the composite inflammation score (Figure 5F), and spatial proteomics demonstrated increased CXCR4 protein levels in the inflammatory regions of EM1 (Figure 5G). By contrast, CXCL12 levels were elevated in the inflammatory regions of BM1 but were more diffusely distributed in EM1 (Figures S6K and S6L). Notably, both PI3K/AKT/mTOR signaling and trans-differentiation programs were active in the highly inflammatory regions of EM1 (Figure 5H).
Deconvolution of leukemia-enriched spots reveals the localization of acute myeloid leukemia cells in different differentiation states within inflammatory and endosteal niches

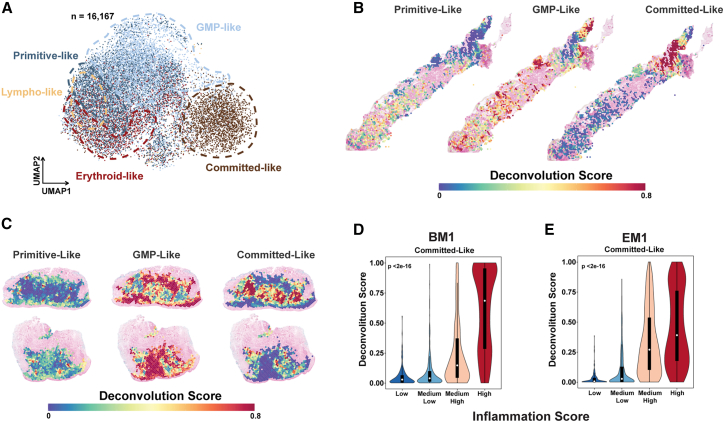

We next applied linear mixed model annotation30 to classify AML cells (n = 16,167 cells) based on their scRNA data into their differentiation states relative to the hierarchies in control BM samples from healthy donors (n = 20,778 cells).31 This classification defined AML cells as: primitive-like (a combination of HSC-like and common myeloid progenitor/lymphoid-primed multipotent progenitor-like; n = 5,039), GMP-like (n = 6,432), erythroid-like (n = 1,816), lymphoid-like (n = 55), and committed-like (a combination of monocyte-like, basophil-like, and dendritic cell-like; n = 2,825) (Figure 6A). We then applied this classification to HLS spots in BM1 (n = 1,271 spots) (Figure S7A) and leukemic region spots in EM1 (n = 1,726 spots) (Figures 6B and 6C) to obtain a spot-level spatial classification of AML hierarchies. Cluster-based analysis revealed that committed-like populations were located distally to the primitive-like populations (Figures S7B and S7C). Deconvolution scores indicated a lower abundance of primitive-like cells compared to committed-like cells in EM tissue (Figures S7D and S7E). We found that committed-like AML populations were concentrated in inflammatory niches (Figures 6D, 6E, and S7F).Figure 6. Hierarchical differentiation states of acute myeloid leukemia cells and their distribution across bone marrow and extramedullary tissues(A) Uniform manifold approximation and projection (UMAP) projection of 16,167 acute myeloid leukemia (AML) cells into different differentiation states: primitive-like, granulocyte-monocyte progenitor (GMP)-like, erythroid-like and lymphoid-like, and committed-like.(B) Spatial deconvolution maps of spots with high leukemic scores in the bone marrow sample BM1 showing primitive-like, GMP-like, and committed-like AML cells.(C) Spatial deconvolution maps of the extramedullary sample EM1 showing primitive-like, GMP-like, and committed-like AML cells.(D and E) Violin plots shows the distribution of committed-like AML cells in BM1 (D) and EM1 (E) across inflammation classes.

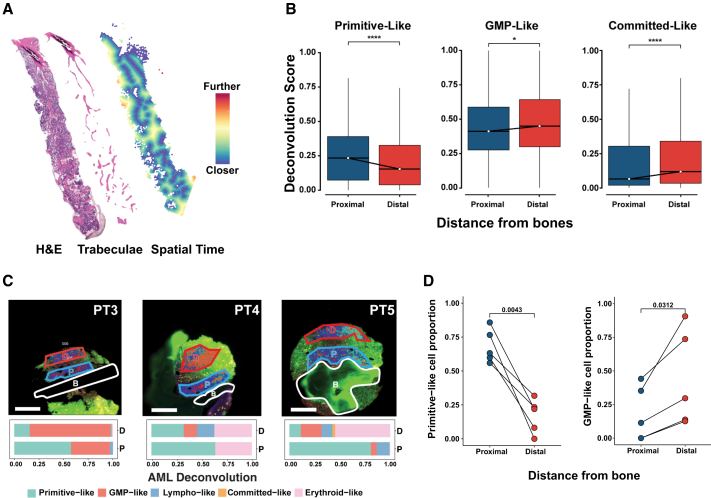

We then applied the SpatialTime pipeline32 (Methods) to measure the spatial localization of HLS spots, based on the degree of AML differentiation, relative to the trabecular bone regions (Figure 7A; Figure S7G). We found that primitive-like cell populations were localized proximally to the bone, whereas GMP- and committed-like populations were localized distally (Figure 7B). To validate these findings, we performed a GeoMx DSP whole-transcriptome microdissection-based assay on 13 BM regions from 3 additional patients with AML. (Figures S7H and S7I). CD34 and CD68 protein markers were used to define the leukemic regions covering primitive and more differentiated cells (Figures S7J and S7K). Of note, we also attempted CD3 for T cell classification, but reliable segmentation mask could not be generated. Congruent with our Visium ST analysis, phenotypically primitive-like cells were detected proximal to the bone, whereas more differentiated cells were predominantly distal from the bone (Figures 7C and 7D). Taken together, these findings suggest that AML cells in different states of differentiation localize in distinct niches within the BM.Figure 7. Bone proximity analysis reveals the spatial distribution of acute myeloid leukemia cells in different differentiation states(A) Representative spatial map of SpatialTime calculated distances from trabeculae overlaid with hematoxylin and eosin (H&E) image.(B) Boxplots show deconvolution scores of primitive-like, granulocyte-monocyte progenitor (GMP)-like, and committed-like acute myeloid leukemia (AML) cells relative to their distance from bone in Visium data. ∗p < 0.05, ∗∗∗∗p < 0.0001, Wilcoxon rank-sum test.(C) GeoMx analysis of AML deconvolution in bone marrow regions from 3 patients with AML (PT3, PT4, PT5). D, distal (dark red); P, proximal (dark blue); B, bone (white). Stacked bar plots represent cell type deconvolution within distal and proximal regions. Scale bars: 250 μm.(D) Line graphs show proportions of primitive-like and GMP-like cells relative to distance from bone.
