Optimization of Mechanical Properties of Multiphase Materials with Auxetic Phase

TL;DR

This paper explores how adding auxetic materials to composites can increase stiffness and reduce lateral strain during deformation.

Contribution

The study introduces a novel optimization approach for multiphase materials with auxetic phases to achieve enhanced mechanical properties.

Findings

Multiphase materials with auxetic phases show increased effective Young’s modulus compared to individual phases.

The auxetic phase enables near-zero lateral strain during uniaxial tension.

All optimization cases demonstrated significant reduction in effective Poisson’s ratio.

Abstract

Auxetic materials and structures exhibit negative values of Poisson’s ratio, which is the source of their unusual deformation pattern. Auxetic materials can be utilized in the development of multiphase materials with increased Young’s modulus by properly distributing the different phases in the volume of composite material and utilizing the auxetic effect. This work presents the results of an optimization of multiphase materials with an auxetic phase, with the aim of obtaining increased stiffness and near-zero lateral strain. Geometries of auxetic unit cells and conventional unit cells were subjected to optimization to obtain the desired values of effective material properties via multiscale modelling. Values of material properties of all considered phases were obtained via multiscale modelling of representative volume elements of their respective auxetic and conventional unit cells. Four types of unit cells and three types of inclusion patterns in the hybrid material sample were considered. The simulation results demonstrate that the application of an auxetic phase region in the multiphase material allows it to obtain effective Young’s modulus greater than that of component phases, as well as near-zero lateral strain during uniaxial tension of the sample. Increase of effective Young’s modulus and significant reduction of effective Poisson’s ratio of the sample were obtained in all considered optimization cases.

Figures

Full text

1. Introduction

Since 1991, materials with negative Poisson’s ratio ν have been known as auxetics. The term is derived from Greek αÙξητικo’ς (auxetikos), meaning “that which tends to increase” and was proposed by Evans [1]. Three main deformation patterns of bodies subjected to uniaxial tension can be distinguished:

• For ν > 0, the body elongates in the direction of tension and shrinks laterally. This is the most common behavior observed in conventional materials.
• For ν < 0, the body both elongates in the direction of tension and expands laterally. This counter-intuitive behavior is referred to as “auxetic”.
• For ν = 0, a special case, the body only elongates in the direction of tension and its lateral dimensions do not change. An example of natural material with near-zero Poisson’s ratio is cork [2].

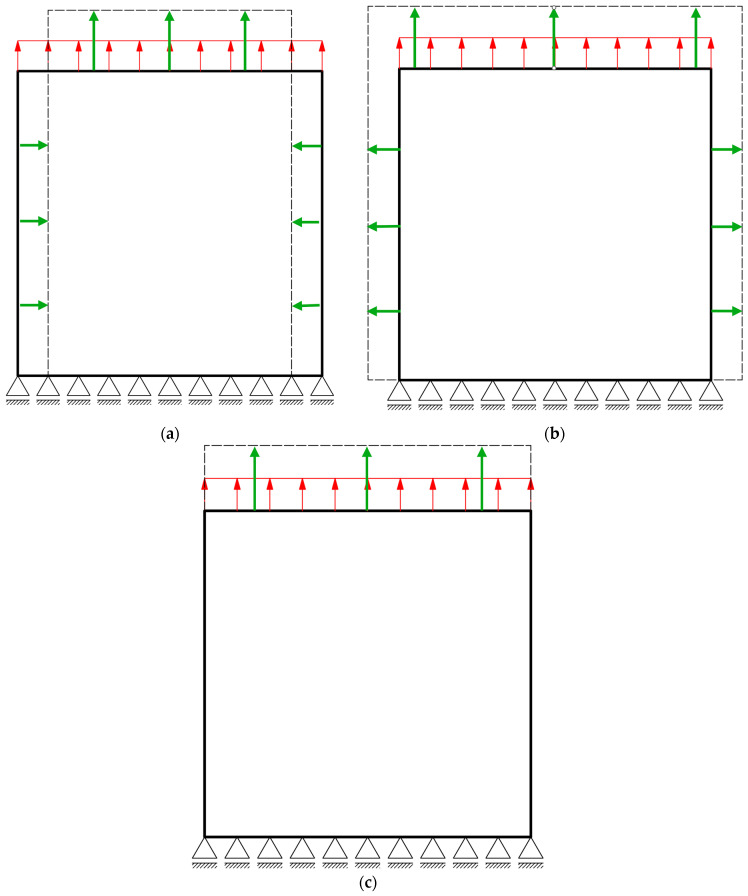

Schematic illustration of deformation patterns of different types of materials subjected to uniaxial tension is given in Figure 1.

The first reported observations of auxetic behavior come from Love in 1927 [3] and Voigt in 1928 [4], who both observed peculiar behavior of pyrite crystals during experiments. Love described an example of single crystal pyrite with negative Poisson’s ratio of −0.14. Auxetics as a research topic resurged in the 1980s, when synthetic foam with negative Poisson’s ratio was manufactured. Bhullar describes this period in his review of auxetics research [5].

Auxetic behavior is a direct effect of the internal structures’ geometry. In macroscale auxetic structures, the deformation pattern similar to an action of linkage mechanism can be directly observed. In case of auxetic materials, these deformations happen in microscale with deformation of unit cells. Conventional materials can be used to obtain auxetic structures and materials via shaping them into auxetic geometries [6,7,8]. Multiscale modeling is often utilized in order to obtain the auxetic material properties based on the geometry of a specific unit cell [9,10]. Researchers focus on singular unit cells in simulations in order to obtain auxetic materials with desired properties [11,12,13].

Unusual deformation patterns and effective material properties of auxetics can be utilized in many interesting applications. An example of composite material combining auxetic and conventional components in order to obtain effective zero-value Poisson’s ratio was proposed by Evans and Alderson for a bullet with reduced friction during movement in the barrel [7]. The numerous applications of auxetics considered in the literature include personal protection, bulletproof vests, cementitious composites, and crash boxes, among others [14,15,16,17,18,19,20,21,22].

As auxetics are rarely characterized with high stiffness in comparison to conventional materials, research often concentrates on increasing the auxetics’ stiffness [23]. Auxetic behavior can also be obtained by combining anisotropic structures which do not behave auxetically on their own [24]. Approach of combining phases with different material properties into a multimaterial or a hybrid material, is an underlying principle in development of modern composites with custom-tailored properties [25,26].

Long et al. utilized the auxetic effect in a two-phase composite material to maximize the effective Young’s modulus. In their study, they used phases with material properties of Poisson’s ratio equal to 0.4 and −0.9, while the Young’s modulus, depending on the case, was either equal to 1.0 for both cases or was greater for the auxetic phase and ranged from 3.0 to 9.0 [27]. Their previous research indicates that auxetics in most cases have significantly lower stiffness than conventional phases, especially auxetics with a strong auxetic effect [28,29]. In this study, material properties were determined based on multiscale modeling of auxetic geometries. One of the geometries was optimized to maximize the effective Young’s modulus of the unit cell.

Metamaterials with zero Poisson’s ratio, like auxetics, offer unique advantages due to their unconventional deformation pattern. They can be used in applications requiring dimensional stability. Their potential applications include vibration control, biomimic scaffolds for cartilage or ligament tissue, energy absorption systems, and morphing wings. Development of zero Poisson’s ratio metamaterials is an active research topic. For example, an isotropic zero Poisson’s ratio metamaterial based on the aperiodic monotile has been proposed [30], unique in the aspect of using a structure composed of a single type of unit cell, forming a mosaic-like pattern of continuously rotated ‘hats’. Spring- or helical-based 3D lattice metamaterials are another example [31]. A more traditional approach is to combine structures with both positive and negative Poisson’s ratios, so that the resulting metamaterial has a zero-value Poisson’s ratio. An example of such approach is the AUXHEX Kirigami-inspired cellular structure [32].

In this paper, we propose an approach to developing near-zero Poisson’s ratio metamaterials with increased stiffness, based on parametric optimization of regular-shaped inclusion regions in the multimaterial sample. While four example unit cells are considered, the same methodology can be applied to different types of unit cells. The results of optimization of multiphase materials with conventional and auxetic phases, with the goal to obtain simultaneously near-zero effective Poisson’s ratio and higher effective Young’s modulus than component phases, are presented. Multiscale modeling and FEM simulations coupled with parametric optimization have been carried out with the use of Ansys Workbench Mechanical 2024 R1 software.

2. Materials and Methods

The term “effective material properties” in the context of this paper means that we do not consider the material properties of the bulk material of the structure, but rather the effective properties of the structure itself, treating the unit cell and the sample as if they were a new, separate material with different properties than the bulk material of which they are actually composed. This approach is often used in the context of auxetic materials and auxetic structures research [6,8]. Stress, strain, and Young’s modulus are fundamental concepts in strength of materials; their respective definitions, formulas, and derivations can be found in many handbooks, e.g., in [33]. Effective Young’s modulus and effective Poisson’s ratio are determined based on the deformation of the external edges of the structure which connect it to the neighboring unit cells.

The effective strain of the sample in the considered direction can be expressed as:

$$[eqn]$$

where $[eqn]$ denotes effective strain, $[eqn]$ is the initial total length of the sample, and $[eqn]$ is the averaged increment of length, measured on the sample’s external edges.

The effective Poisson’s ratio is calculated as:

$$[eqn]$$

where $[eqn]$ denotes effective transversal strain and $[eqn]$ the effective axial strain.

The effective stress is equal to the loading force, P, divided by the sample’s cross-section area, A, as follows:

$$[eqn]$$

The effective Young’s modulus is determined based on the effective stress and effective strain in the direction of the loading force as follows:

$$[eqn]$$

2.1. Multiscale Modeling

Multiscale modeling was applied in order to obtain the material properties of the phases composed of considered unit cells. Ansys Material Designer software [34] was used in order to obtain the material properties based on representative volume elements of microscale unit cells geometries. Orthotropic anisotropy was considered and periodic boundary conditions were applied. The process was similar to that applied in a previous study, where it was described in depth [29].

Four different types of unit cells were considered; auxetic hex reentrant, rotating rectangles unit, conventional uniform honeycomb, and orthogonal grid. First, the material properties of conventional unit cells were determined. Then the auxetic unit cells were subjected to initial optimization in order to obtain comparable values of stiffness and density to the conventional unit cells. Then, the obtained materials were paired based on their effective Young’s modulus to be used as component phases. The process of parametric optimization of auxetic unit cells in order to obtain desired effective material properties by changing the geometry was described in detail in a previous study [28].

All unit cells had bulk size equal to 20 μm. A maximum mesh size of 0.2 μm was assumed. ABS polymer was selected as the bulk material; the unit cells had bulk material properties of Young’s modulus equal to 1.628 GPa and Poisson’s ratio equal to 0.4089, with density equal to 1030 kg/m^3^.

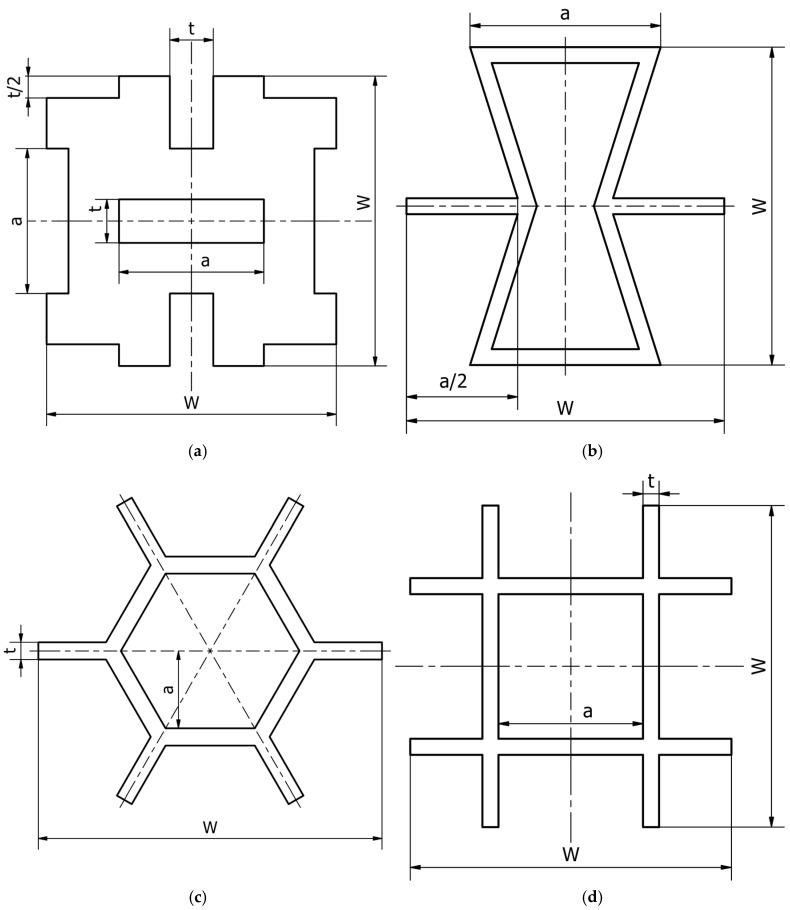

The parametrized unit cells considered in this work are shown in Figure 2. The final dimensions of the unit cells post initial optimization are given in Table 1. The effective material properties of the unit cells are given in Table 2.

2.2. Multiphase Material

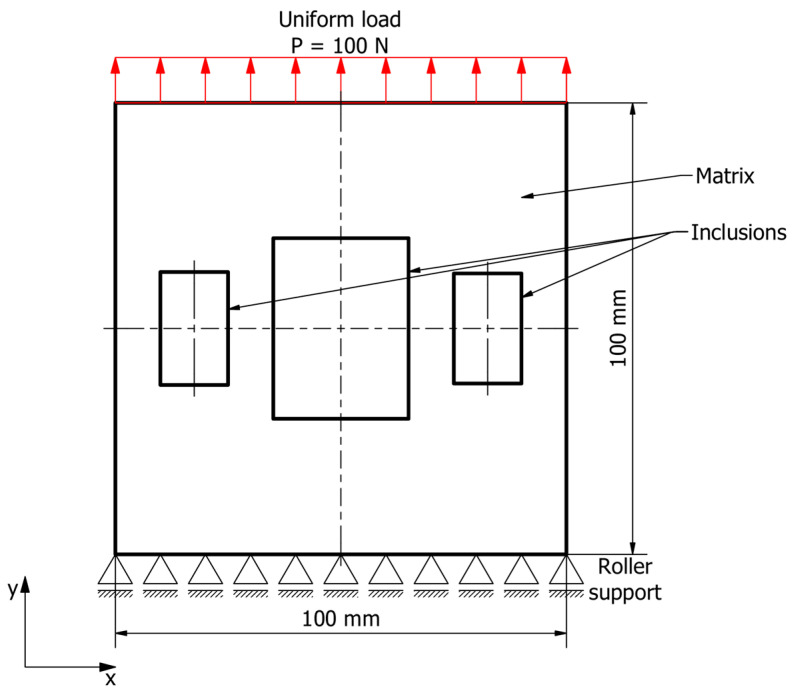

A 100 × 100 mm square sample of hybrid material with rectangular inclusion regions was considered. Two-dimensional finite element analysis with sample thickness equal to 1 mm was conducted. The bottom edge of the sample was supported by rollers and the top edge of the sample was subject to a uniform tensile load of 100 N. A 0.5 mm-sized uniform quadrilateral finite element mesh was applied. The boundary conditions and sample dimensions are given in Figure 3.

Since the bulk dimensions of the sample and the magnitude of the load were constant, the effective stress in the sample was also constant and equal to 1 MPa:

$$[eqn]$$

The inclusion regions were parametrized and distributed symmetrically. Parameter constraints were applied, so that there would always be at least 2.5 mm of the matrix material between the inclusion regions and the external edges of the sample.

Cases where the inclusions were the auxetic phase and the matrix was the conventional phase, as well as where the inclusions were conventional and matrix was auxetic, were both considered for all inclusions’ distribution patterns.

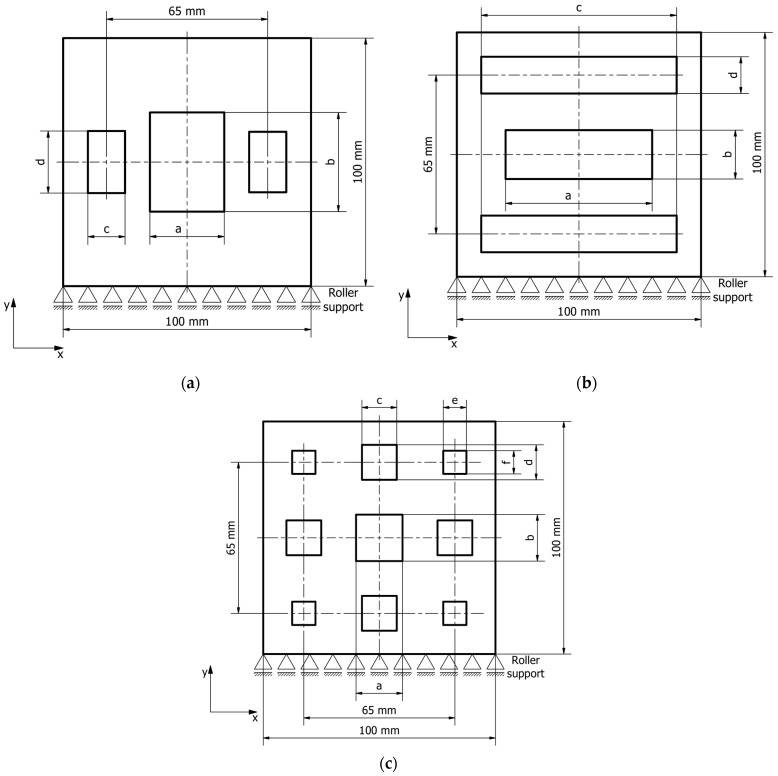

The first inclusion pattern consists of three vertical rectangles. The center rectangle is independent, while the outer rectangles are symmetrical to each other. There are four independent geometrical parameters. The second inclusion pattern is analogous to the first, but the rectangles are oriented horizontally. The third inclusion pattern is more complex, consisting of nine symmetrically distributed rectangles; the center rectangle is independent, the four rectangles in the corners are equal to each other, and the four rectangles near the sample edges’ midpoints are also equal to each other, resulting in a total of six independent parameters. The considered patterns of inclusions distribution are given in Figure 4.

A complete list of all considered cases of combinations of the inclusion patterns and inclusion and matrix materials is given in Table 3.

2.3. Optimization

Ansys Response Surface Optimization was used in the process of identifying the values and geometrical parameters of the inclusion regions which would allow us to obtain the desired increase in stiffness and near-zero Poisson’s ratio. A Multi Objective Genetic Algorithm was applied in the optimization. The optimization function had two simultaneous objectives: first, to maximize the effective Young’s modulus in the axial load direction, and second, to bring the value of effective Poisson’s ratio to zero:

$$[eqn]$$ $$[eqn]$$

The optimization range of geometric parameters for considered inclusion distribution patterns is given in Table 4.

The optimization settings parameters were as follows:

• Number of initial samples—6000
• Number of samples per iteration—1200
• Maximum allowable Pareto percentage—70
• Convergence stability percentage—2
• Maximum number of iterations—20
• Maximum number of candidates—20

In all considered cases, all of the generated candidates were verified via additional numerical analysis to confirm the results.

3. Results

3.1. 3 Vertical Rectangles

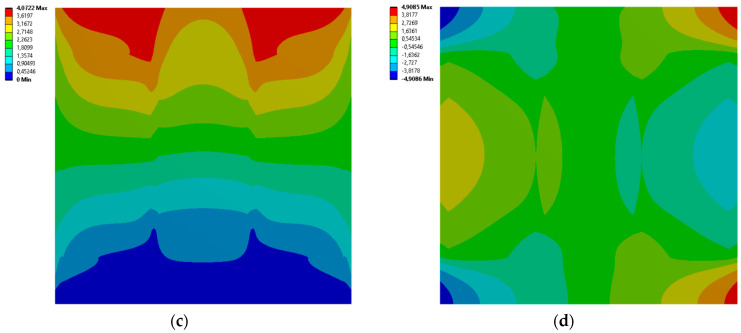

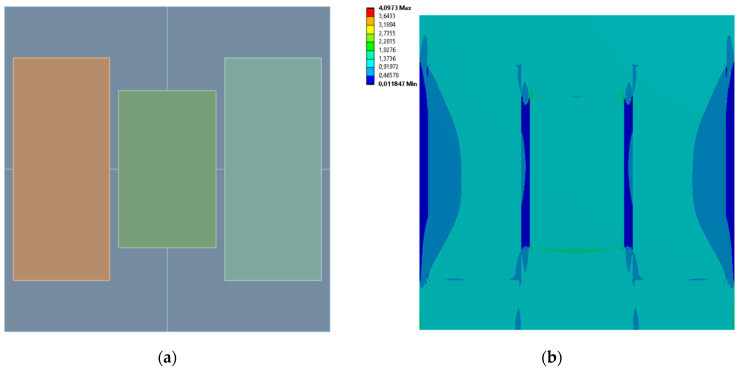

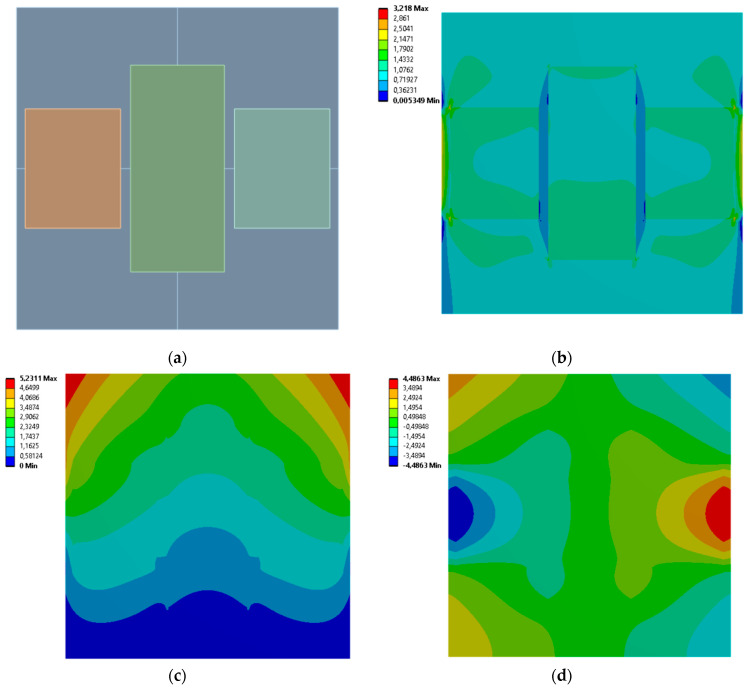

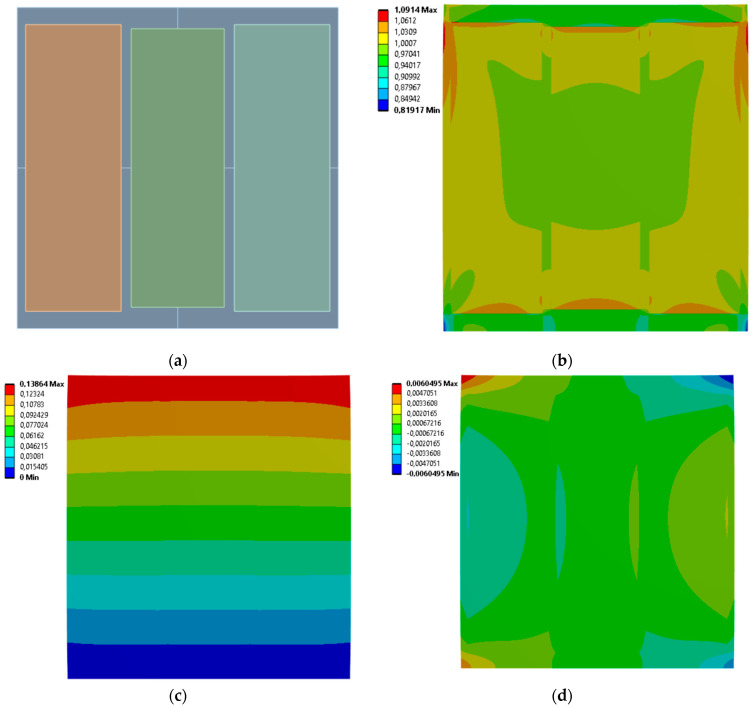

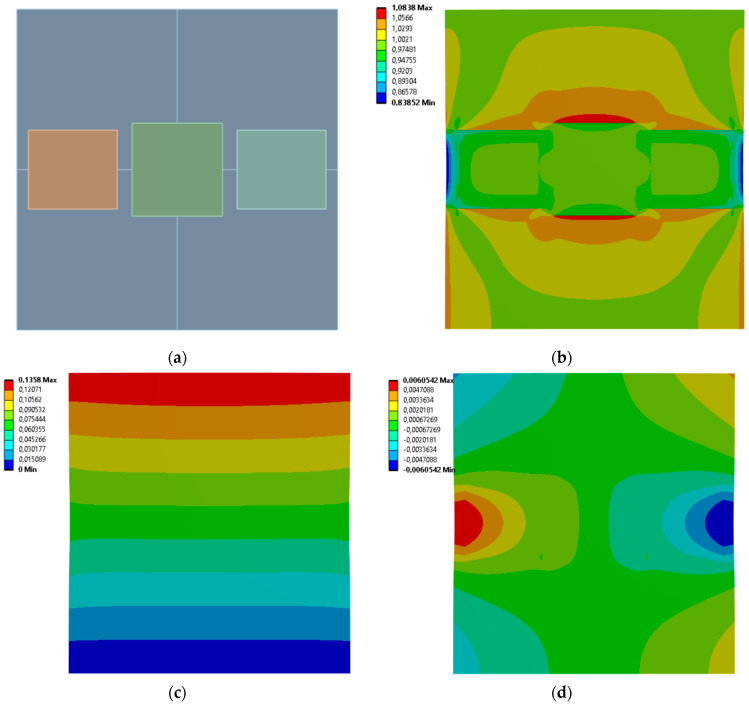

Figure 5, Figure 6, Figure 7 and Figure 8 show equivalent stress and directional deformations of Cases 1–4, samples with 3 vertical rectangles inclusion distribution pattern. The inclusion dimensions and the results of effective Young’s modulus and effective Poisson’s ratio of the samples are given in Table 5.

3.2. 3 Horizontal Rectangles

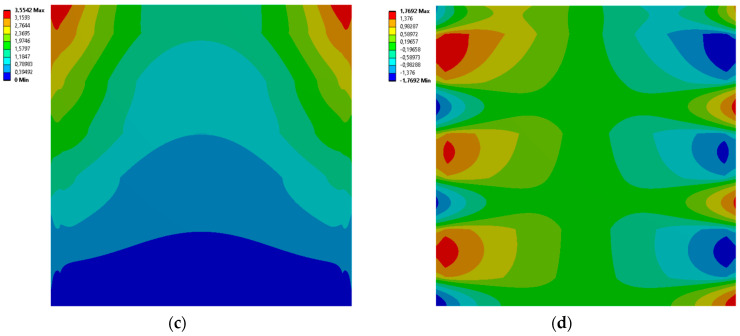

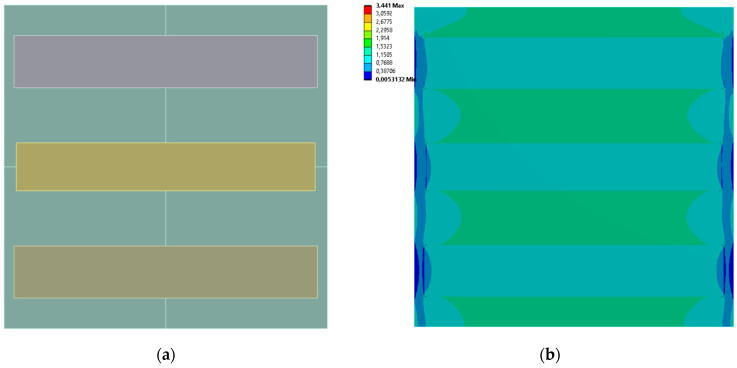

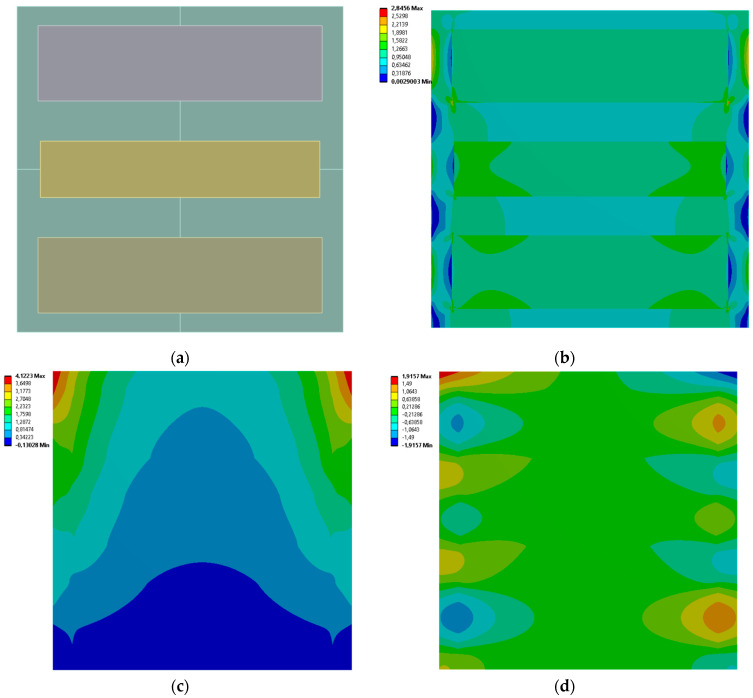

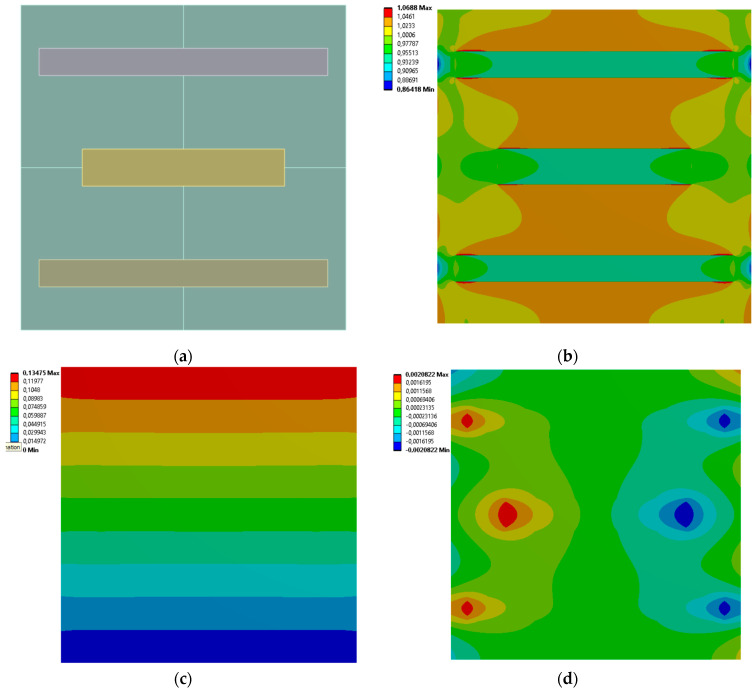

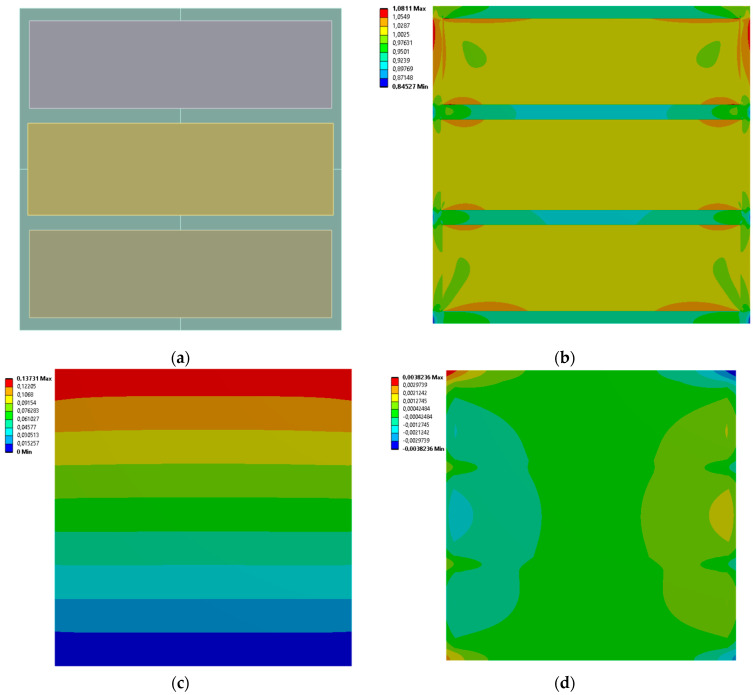

Figure 9, Figure 10, Figure 11 and Figure 12 show equivalent stress and directional deformations of Cases 5–8, samples with 3 horizontal rectangles inclusion distribution pattern. The inclusion dimensions and the results of effective Young’s modulus and effective Poisson’s ratio of the samples are given in Table 6.

3.3. 9 Rectangles

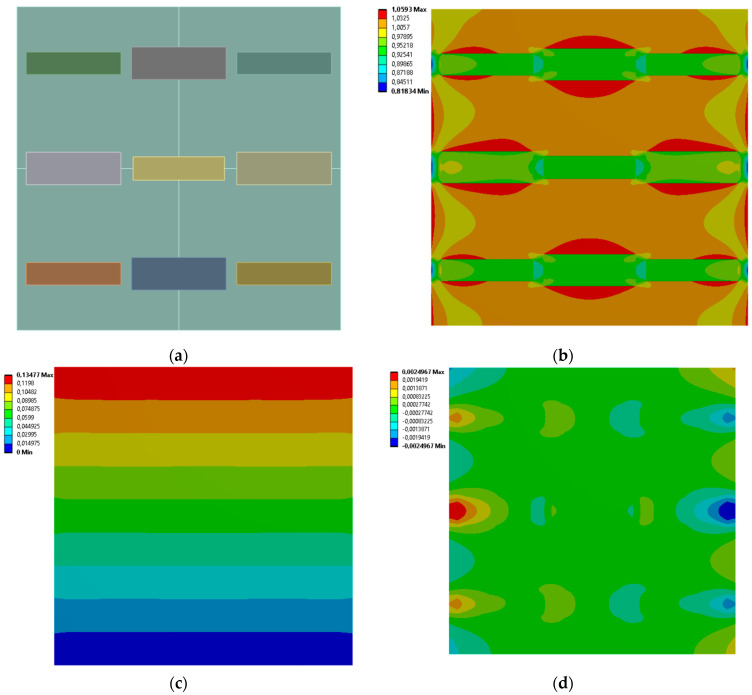

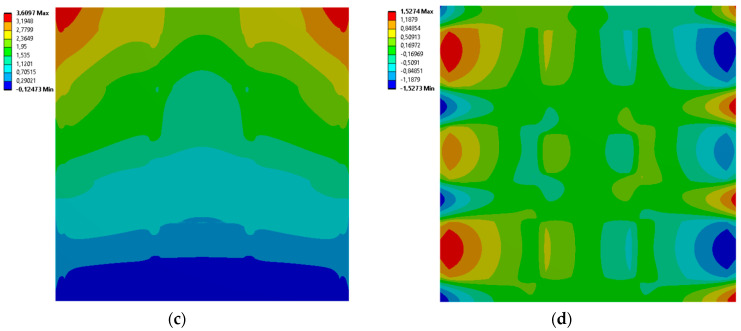

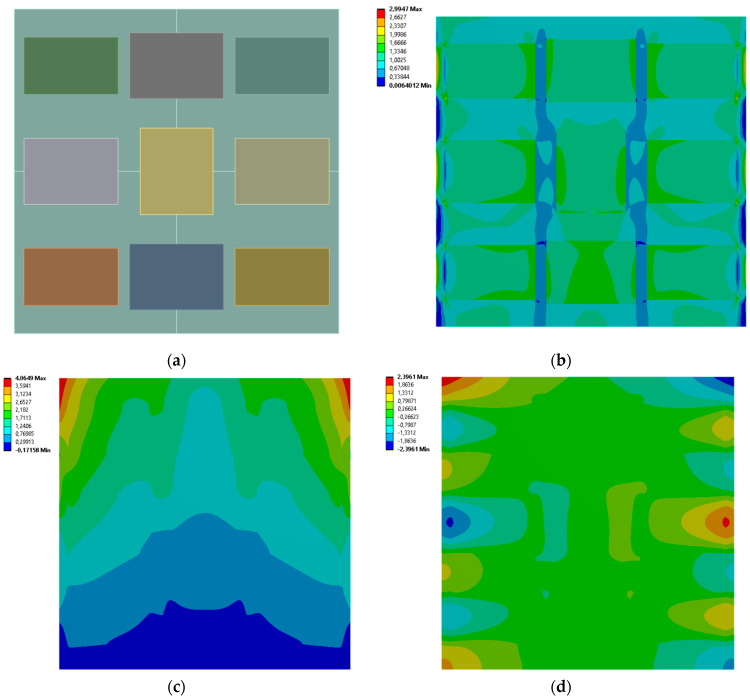

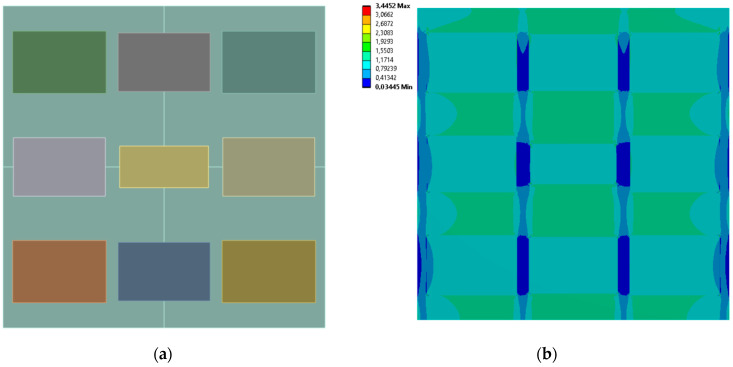

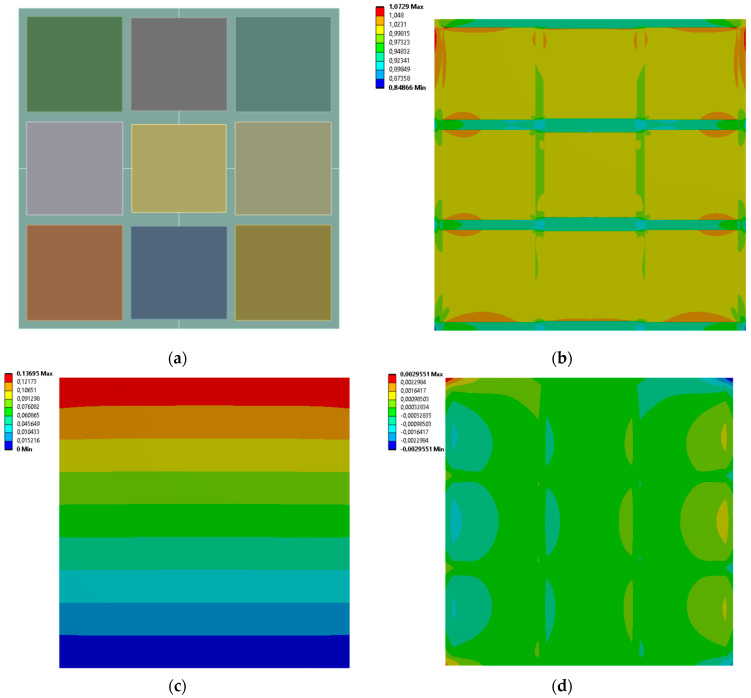

Figure 13, Figure 14, Figure 15 and Figure 16 show the equivalent stress and directional deformations of Cases 9–12, samples with 9 rectangles inclusion distribution pattern. The inclusion dimensions and the results of effective Young’s modulus and effective Poisson’s ratio of the samples are given in Table 7.

4. Discussion

The obtained results show that it is possible to obtain a hybrid material with both increased stiffness and near-zero effective Poisson’s ratio. In the case of both considered pairs, the most significant improvement of effective Young’s modulus was obtained for the “3 horizontal rectangles” inclusion distribution pattern. While for the rotating rectangles unit/orthogonal grid pair, the improvement was miniscule (maximum of 742.090 MPa compared to 740.260 Young’s modulus of the component phase, which is an improvement of 0.247%), for the hex reentrant/uniform honeycomb pair, the improvement was significant (maximum of 56.365 MPa compared to 20.980 MPa, which is an improvement of 168.661%). The condition of obtaining near-zero effective Poisson’s ratio was fulfilled by both pairs; for the rotating rectangles unit/orthogonal grid pair, very small values in the range of 10^−4^ and 10^−6^ were obtained and the maximal reduction in comparison to −0.046 initial value is equal to over 4700 times. For the hex reentrant/uniform honeycomb pair, the smallest value was 0.016 and, compared to initial value of −0.329, the maximal reduction was 20.5 times.

By comparing the deformation distributions, we can see that the lateral edges of the samples are not uniformly deformed. The strong irregularities are most significant in the “3 vertical rectangles” inclusion distribution pattern. For the “3 horizontal rectangles” and “9 rectangles” inclusion distribution patterns, the irregularities are also visible, but overall, the deformation pattern is much more uniform.

While a significant increase in effective Young’s modulus was obtained, the resulting metamaterials are characterized with stress concentration. The phenomenon is most visible in the hex reentrant/uniform honeycomb pair. Compared to the uniform stress for homogenous sample equal to 1 MPa (result of 100 N load acting on 100 mm^2^ cross-section area), the stress concentration is up to four times higher. This is a direct result of the auxetic effect and interfacing of phase regions with significantly differing effective Poisson’s ratios. Moreover, the stress concentration is highly localized, which is a consequence of sharp edges on the corners of the inclusion regions. This effect could be reduced by applying fillets.

The next stage of research could focus on experimental validation of these results, with upscaled 3D-printed or machined samples. Further exploration of possible improvement of the proposed approach could also be made by applying it to different types of unit cells, inclusion distribution patterns or more complex sample geometries and boundary conditions.

The results show that combining two phases with significantly differing Poisson’s ratios, one strongly conventional and one strongly auxetic, it is possible to obtain very significant improvement of the effective Young’s modulus and a near-zero Poisson’s ratio. Combining a conventional phase with a near-zero Poisson’s ratio does not produce a significant improvement in effective Young’s modulus, but does make it possible to obtain a true near-zero effective Poisson’s ratio.

5. Conclusions

This paper presents the results of an optimization of multiphase materials with conventional and auxetic phases with the goal of obtaining simultaneously near-zero effective Poisson’s ratio and higher effective Young’s modulus than component phases. Three different types of inclusion patterns were considered, and analyses were conducted for cases of auxetic inclusions and conventional matrices as well as conventional inclusions and auxetic matrices. A total of twelve cases were presented in the results, proving the initial assumption that it is possible to obtain near-zero effective Poisson’s ratio and increased effective Young’s modulus by combining two phases with significantly different effective Poisson’s ratios and comparable stiffness.

The component phases were paired based on their stiffness and density. While both pairs exhibited simultaneous improvement of stiffness and near-zero Poisson’s ratio, the improvement of stiffness was much more significant for the pair of phases with significantly different values of Poisson’s ratio. A consistent increase of the sample’s effective Young’s modulus was obtained simultaneously with a significant reduction of effective Poisson’s ratio to near-zero values. A significant increase in stiffness was also obtained (up to 168% compared to component phases) simultaneously with considerable reduction of effective Poisson’s ratio (down to 0.016).

While four specific types of unit cells were considered, the same approach can be used with different geometries.
