Water‐Wave Pancharatnam‐Berry Phase Induced by 4D Spin‐Orbit State Evolution
Wanyue Xiao, Shiqi Jia, Tong Fu, Shubo Wang
TL;DR
This paper reports the first observation of the Pancharatnam-Berry phase in water waves, showing its unique properties and potential for wave control in coastal and energy applications.
Contribution
The first experimental observation of the PB phase in water waves, revealing its higher-order geometric nature and novel properties.
Findings
Water-wave PB phase exhibits unbounded phase values and spin-momentum-locked unidirectional channels.
PB metasurfaces enable versatile manipulation of water wavefronts, including steering and focusing.
The PB phase in water waves demonstrates universality and higher-dimensional state evolution properties.
Abstract
Geometric phase is a far‐reaching concept in quantum and classical physics, revealing deep connections between topology and wave dynamics in diverse systems. The Pancharatnam‐Berry (PB) geometric phase, which arises from 2D optical polarization evolution, has revolutionized light manipulation by enabling optical metasurfaces. The PB phase is commonly regarded as a unique property of light waves. Generalizing this concept to other classical waves can uncover new geometric phase properties and enable novel wave control mechanisms. Here, the first observation of the PB phase in surface water (gravity) waves is reported, achieved through the interaction with symmetry‐engineered scatterers. In contrast to the optical PB phase, the water‐wave PB phase is an intrinsic higher‐order geometric phase induced by 4D evolution of spin‐orbit states. It exhibits remarkable properties, including…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Incident | Scatterer | Backward | Forward |
|---|---|---|---|
| scattering | scattering | ||
| |0, −1〉 |
| |2, 1〉 | |0, −1〉 |
| | − 1, −1〉 |
| |1, 1〉 | | − 1, −1〉 |
| | − 2, −1〉 |
| |0, 1〉 | | − 2, −1〉 |
- —Research Grants Council of the Hong Kong Special Administrative Region, China
- —National Natural Science Foundation of China10.13039/501100001809
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMetamaterials and Metasurfaces Applications · Orbital Angular Momentum in Optics · Quantum Mechanics and Non-Hermitian Physics
Introduction
1
Geometric phases arise from state evolutions in parameter space and are ubiquitous in quantum and classical systems, underpinning fundamental physical phenomena from the Aharonov‐Bohm effect^[^ 1, 2 ^]^ to topological states.^[^ 3, 4, 5 ^]^ Discovered by S. Pancharatnam^[^ 6 ^]^ and generalized by M. V. Berry,^[^ 7 ^]^ the Pancharatnam‐Berry (PB) geometric phase can enable subwavelength control of optical wavefront and has revolutionized light manipulation,^[^ 8, 9, 10 ^]^ ushering in the era of flat optics with metasurface‐empowered ultra‐thin optical devices.^[^ 11, 12, 13, 14, 15 ^]^ The integration of artificial intelligence with the PB phase has further expanded the capabilities of metasurfaces.^[^ 16, 17 ^]^ Unlike the momentum‐space geometric phases,^[^ 3, 4, 5 ^]^ the PB phase emerges due to optical polarization evolution in a 2D space represented by the Poincaré sphere. Generalizing the PB phase to other classical waves can uncover new properties of the geometric phase and open new avenues for wave manipulation.
Water waves, easily accessible yet dynamically richer than light waves, provide an ideal platform to explore the universality of the PB phase across different wave systems. Unlike the transverse electromagnetic nature of light, water waves are surface waves with a hybrid transverse‐longitudinal characteristic. Beyond their natural abundance and renewable energy potential, water waves exhibit a variety of intriguing phenomena, such as cloaking,^[^ 18, 19 ^]^ superlensing,^[^ 20 ^]^ holography,^[^ 21 ^]^ surface polaritons,^[^ 22 ^]^ and topological quasiparticles.^[^ 23, 24 ^]^ Owing to their easy accessibility and straightforward observation, water waves are also suitable for investigating fundamental wave phenomena that are universal across classical systems, including Cherenkov radiation,^[^ 25 ^]^ time‐reversal dynamics,^[^ 21, 26 ^]^ and spatiotemporal vortices.^[^ 27 ^]^ Despite significant progress in the control and manipulation of water waves,^[^ 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38 ^]^ the PB phase has never been observed in water‐wave systems. The fundamental differences between water waves and light render the generalization of the PB phase to water waves highly nontrivial.
Here, we report the first experimental observation of the PB phase in water waves. By leveraging the interaction with subwavelength anisotropic scatterers, we uncover how the new PB phase arises from the coupled evolution of spin and orbital angular momentum (OAM) of water waves in a 4D state space, which can be represented on the Poincaré hypersphere composed of three nested higher‐order Poincaré spheres (HOPSs), thus generalizing the PB phase to higher‐dimensional state evolutions for the first time. In contrast to the conventional optical PB phase, the water‐wave PB phase is an intrinsic higher‐order geometric phase and exhibits remarkable properties, such as unbounded phase values and unidirectionality due to the spin‐momentum locking. Harnessing this phase, we realize PB metasurfaces that enable nearly arbitrary water wavefront manipulation, including steering and focusing.
Results
2
Water Wave Scattering
2.1
We consider harmonic water waves propagating at the surface (y=0) of linear, inviscid, and irrotational deep water. The velocity field |v⟩=(x^+iσy^)e−iσkx+ky (k is the popagation constant) is the eigenmode of the spin‐1 operator S^z with eigenvalue σ=±1, exhibiting an intrinsic property of spin‐momentum locking, i.e., |v⟩ with opposite spin propagate in opposite directions.^[^ 35, 39 ^]^ Figure 1a shows the velocity potential Ψ(|v⟩=∇Ψ) for the water wave propagating in +x direction and carrying transverse spin in −z direction, where the circles denote the polarization ellipses of the vector velocity field, corresponding to the circular motion of water particles. When it impinges on a subwavelength scatterer immersed at depth d, both forward and backward scattering waves are generated, as shown in Figure 1b. The scatterer has rotational symmetry C _ m _ and is infinitely extended in z direction, with orientation characterized by the rotation angle Δα. Figure 1c and d show the numerically simulated forward (τf) and backward (τb) scattering coefficients, respectively, as a function of Δα for the four scatterers in the inset of Figure 1b. The amplitudes |τf| and |τb| generally vary with Δα. Interestingly, the phase of τb exhibits a linear dependence on the rotation angle, i.e., Arg(τb)=−mΔα, while the phase of τf is not affected by the rotation angle.

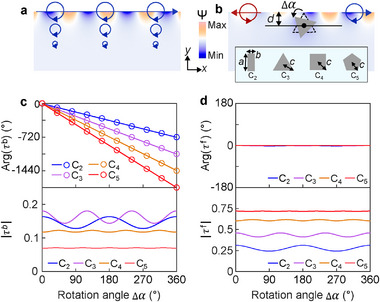

PB phase of water waves. a) Velocity potential and polarization ellipses for the water wave propagating in +x direction. b) Scattering of the incident water wave by scatterers with different rotational symmetries. c) Phase and amplitude of the backward scattering coefficient. The solid lines denote the simulation results. The circles denote the analytical results. d) Phase and amplitude of the forward scattering coefficient.
Partial wave analysis can explain the phase properties of the scattering coefficients. Using the local polar coordinates (r,α), the velocity field around the scatterers can be expanded as^[^ 40 ^]^:
where the integer n is the expansion order and I characterizes the amplitude of the partial waves. The partial waves |vn⟩ are eigenmodes of the spin‐1 operator S^z and OAM operator L^z with eigenvalues σ and l=σn, respectively. They carry total angular momentum jn=σ+σn in z direction. Specifically, the partial waves propagating in +x(−x) direction have σ=−1 (σ=+1) and thus jn=−1−n<0 (jn=1+n>0). Using Equation (1) and angular momentum selection rule,^[^ 41, 42 ^]^ the forward and backward scattering coefficients can be expressed as
where vni,vn′f, and vn′b are the partial waves of the incident field, forward scattering field, and backward scattering field, respectively, which carry the total angular momentum jni,jn′f, and jn′b. T^ characterizes the interaction of the scatterer with the incident field in the scatterer's local frame. Equation (2) indicates that Arg(τf) is independent of the rotation angle Δα, consistent with the simulation results in Figure 1d. In contrast, Equation (3) indicates that τb carries an additional phase −mΔα corresponding to the circles in Figure 1c, agreeing with the simulation results there. This phase is a higher‐order PB phase^[^ 43, 44 ^]^ induced by the evolution of total angular momentum: φPB=(jni−jn′b)Δα, which exists for any scatterers with discrete rotational symmetries.
Angular Momentum Evolution
2.2
The scatterer interacts with the water wave and induces the angular momentum evolution. To understand this, we apply multipole expansion to the field of the scatterer and analyze the angular momenta of the excited multipoles. The velocity field |γ⟩ of the scatterer can be expanded into two types of multipoles with amplitudes an and bn (Note S3 and S4, Supporting Information):
where the first type multipoles, defined as |γn+⟩, carries positive total angular momentum jn+=n; the second type multipoles, defined as |γn−⟩, carries negative total angular momentum jn−=−n. As an example, we analyze the multipoles of the C 4 scatterer and reveal their couplings with the water wave. By numerically evaluating an, we find that three dominant multipoles |γ1+⟩,|γ2+⟩ and |γ3+⟩ are excited in the scatterer. They unidirectionally couple to the water wave propagating in −x direction, as shown in Figure 2b. The numerically obtained coupling phase and amplitude for each multipole are shown in Figure 2a. The total coupling of the three multipoles (light blue line) agrees with the backward scattering coefficient (dark blue line). Figure 2c shows the amplitudes and polarizations of the eigen‐velocity fields of the three multipoles. The fields are right‐handed circularly polarized with spin σ=−1. Figure 2d shows the phases of the fields, revealing different OAM of the multipoles: l=2 for |γ1+⟩, l=3 for |γ2+⟩, and l=4 for |γ3+⟩.

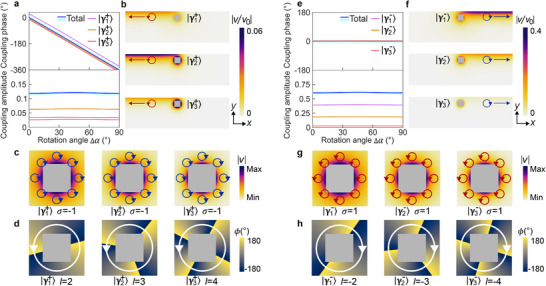

Multipoles excited in the scatterer. a) Coupling phases and amplitudes of the multipoles |γ1+⟩,|γ2+⟩ and |γ3+⟩. The light blue line denotes the total coupling from the three multipoles. The dark blue line denotes the backward scattering coefficient. b) Water waves coupled from the multipoles. c) Amplitudes and polarizations of the eigen‐velocity fields of the multipoles. The blue circles denote the polarization ellipses. d) Phases of the eigen‐velocity fields. e) Coupling phases and amplitudes of the multipoles |γ1−⟩,|γ2−⟩ and |γ3−⟩. f) Water waves coupled from the multipoles. g) Amplitudes and polarizations of the eigen‐velocity fields of the multipoles. The red circles denote the polarization ellipses. h) Phases of the eigen‐velocity fields.
By numerically evaluating bn, we find that three dominant multipoles |γ1−⟩,|γ2−⟩ and |γ3−⟩ are also excited in the scatterer. They unidirectionally couple to the wave propagating in +x direction, as shown in Figure 2f. Figure 2e shows the numerically obtained coupling phase and amplitude for each multipole. The total coupling of the three multipoles (light blue line) agrees well with the forward scattering coefficient (dark blue line). Figure 2g,h display the polarizations and phases of the eigen‐velocity fields of the three multipoles, respectively. The fields are left‐handed circularly polarized with spin σ=1. They carry negative OAM: l=−2 for |γ1−⟩, l=−3 for |γ2−⟩, and l=−4 for |γ3−⟩.
The excitation of the multipoles and their couplings with the water waves are governed by the selection rule and angular momentum conservation, respectively. The excited multipoles carry the total angular momentum jn′′±=jni+mN(N∈Z) and couple to the scattering waves with jn′b,f=jn′′±. For the considered C 4 scatterer with m = 4, we have jn′′±=jn′b,f=jni+4N, which can be applied to determine the excited multipoles and scattering partial waves. For example, the incident partial wave with j0i=−1 excites the multiples |γ1−⟩ with j1−=−1 and |γ3+⟩ with j3+=3 under N = 0 and N = 1, respectively, which further couple to forward‐scattering partial wave with j0f=−1 and backward‐scattering partial wave with j2b=3. This process involves the evolutions of both spin σ and OAM l, as shown in the first row of Table 1, where we label the multipoles and partial waves as |l,σ⟩. The same analysis can be applied to other multipoles in Figure 2 to uncover the angular momentum evolutions, which are also included in Table 1.
Table 1: Angular momentum evolutions for C 4 scatterer.
Poincaré Hypersphere Representation
2.3
The polarization state of vector fields can be represented on the Poincaré sphere.^[^ 45, 46 ^]^ For fields carrying both spin and OAM, the complete state space (corresponding to a product space of the spin and OAM eigenstates) generally spans infinitive levels. When restricted to two levels, the states can be represented on a HOPS.^[^ 43, 47 ^]^ More generally, the states of a N‐level system can be represented on a Poincaré hypersphere comprising N − 1 nested HOPSs.^[^ 48, 49 ^]^ The Poincaré hypersphere representation can illustrate the geometric nature of the water‐wave PB phase.
We consider the state evolution in the first row of Table 1 as an example. The principles also apply to other cases. The system has a 4D Hilbert space spanned by |0, −1〉, | − 2, 1〉, |4, −1〉, and |2, 1〉. In this case, the Poincaré hypersphere comprises three nested HOPSs, as shown in Figure 3a. Each HOPS features a north pole state |N _ i _〉 and a south pole state |S _ i _〉, and any other point on the sphere denotes a superposition state |ψθi,χi⟩=cosθi/2|Ni⟩+sinθi/2eiχi|Si⟩ characterized by the polar angle θ _ i _ and azimuthal angle χ _ i _. In our settings, HOPS I has two pole states |N I〉 = |0, −1〉 and |S I〉 = | − 2, 1〉; HOPS II has two pole states |N II〉 = |4, −1〉 and |S II〉 = |2, 1〉. HOPS I and HOPS II are embedded into the north pole and south pole of HOPS III, respectively, i.e., |N III〉 (|S III〉) represents an arbitrary state on HOPS I (II). Thus, HOPS III characterizes the coupling of HOPS I and HOPS II with θ III and χ III, which enables the representation of arbitrary superposition state in the entire 4D space.

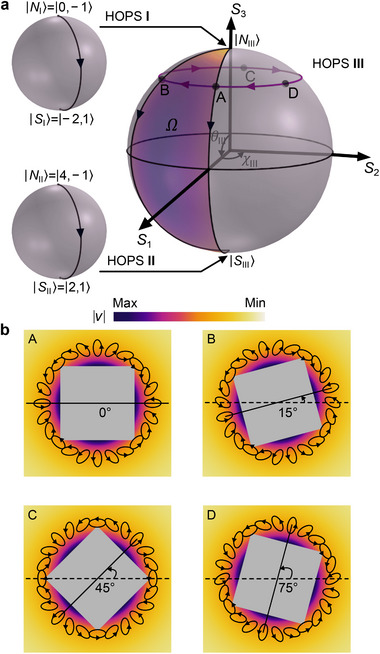

Poincaré hypersphere representation. a) Poincaré hypersphere composed of three coupled HOPSs. Each HOPS has a north pole and a south pole. The north (south) pole of HOPS III corresponds to an arbitrary state on HOPS I (II). The state evolutions in the water wave scattering trace out paths (black lines with arrows) on the three HOPSs. A variation of the scatterer's rotation angle changes its state from point A to point B. The PB phase equals half of the solid angle Ω subtended by the purple area on HOPS III. b) The state of the scatterer at the points A, B, C, D on HOPS III, corresponding to Δα = 0°, 15°, 45°, and 75°, respectively. The black ellipses show the spatial polarization distribution of the velocity field.
The state evolution associated with backward scattering, i.e., |0, −1〉 → b1| − 2, 1〉 + a3|4, −1〉 → |2, 1〉, can be represented on the Poincaré hypersphere as follows. The incident state |0, −1〉 corresponds to |N III〉 = |N I〉. The excitation of the scatterer induces the evolution |0, −1〉 → b1| − 2, 1〉 + a3|4, −1〉, which traces out the paths N I → S I on HOPS I and N III → A on HOPS III. Here, the point A locates on HOPS III with |N III〉 = |S I〉 and |S III〉 = |N II〉, and it represents the state b1| − 2, 1〉 + a3|4, −1〉 of the scatterer at rotation angle Δα=0. The coupling from the scatterer to the backward scattering wave further induces the evolution b1| − 2, 1〉 + a3|4, −1〉 → |2, 1〉, which traces out the paths N II → S II on HOPS II and A → S III on HOPS III, where |S III〉 = |S II〉 represents the backward scattering state. Therefore, the full evolution process traces out a geodesic path on each HOPS from north pole to south pole, as shown in Figure 3a. When the scatterer rotates by angle Δα, its state changes from point A to point B. The resulting PB phase equals half of the solid angle Ω subtended by the area enclosed by the loop N III → A → S III → B → N III on HOPS III. Notably, the state evolutions on HOPS I and HOPS II do not form closed loops and, thus, do not contribute to the PB phase. In addition, the evolution associated with the forward scattering, i.e., |0, −1〉 → b1| − 2, 1〉 + a3|4, −1〉 → |0, −1〉, traces out the path N III → A → N III → B → N III on HOPS III, leading to Ω=0 and thus zero PB phase.
To intuitively understand the dependence of the PB phase on the rotation angle Δα, we show in Figure 3b the state of the scatterer at Δα = 0°, 15°, 45°, and 75°, corresponding to the points A, B, C, and D on HOPS III, respectively. The state has the same C 4 symmetry and rotates with the scatterer. It returns to the original configuration after the scatterer rotates by Δα = 90°, i.e., A → B → C → D → A. Correspondingly, the evolution path sweeps a solid angle Ω=−720° on HOPS III. Thus, the PB phase is φPB=Ω/2=−4Δα. The above interpretation reveals how the topology and geometry of the Poincaré hypersphere are imprinted on the phase of the water wave evolving in the 4D Hilbert space.
Wavefront Manipulation and Experiment
2.4
The PB phase can enable nearly arbitrary manipulation of water wavefront. We construct PB metasurfaces with the finite‐length scatterers and experimentally demonstrate anomalous deflection and focusing of water waves by using the setup in Figure 4a. The water wave is generated by a wave maker and propagates toward the metasurface. A light source above the tank projects the wave pattern onto a plane beneath, which can be directly observed and video‐recorded for analysis.
Wavefront manipulation by PB metasurfaces. a) Experimental setup. Photographs of the fabricated metasurface samples for b) deflection and d) focusing of water waves. The meta‐atoms (purple framed) have different rotational symmetries C 2, C 3, C 4, and C 5. Their rotation angles are shown in c,e), respectively, as a function of z coordinate. f) Experimentally measured (upper panels) and numerically simulated (lower panels) surface elevation of the water waves deflected by the metasurfaces in b). g) Experimentally measured (upper panels) and numerically simulated (lower panels) surface elevation of the water waves focused by the metalenses in d).
To achieve anomalous deflection, we design four PB metasurfaces using the meta‐atoms with C 2, C 3, C 4, and C 5 symmetries, respectively, as shown in Figure 4b. All four metasurfaces have the same rotation angle profile Δα(z), as shown in Figure 4c. They induce the m‐dependent PB phase φPB(z)=−mΔα(z) and phase gradient kg=φPB/z and can deflect the incident water wave with angle β=sin−1(kg/k) according to the generalized Snell's law.^[^ 50 ^]^ Figure 4f shows the experimental and simulation results, where the incident water wave propagates downward (along +x direction). The upper panels show the measured surface elevation η=ReiωΨ/g of the backward water wave, which agree well with the simulation results in the lower panels. The predicted deflection angles are β = 16°, 24°, 32°, and 42° for the metasurfaces C 2, C 3, C 4, and C 5, respectively, which are consistent with the simulated and experimentally measured wavefronts. The water wave deflection induces a lateral force (along −z direction), in addition to the forward propelling force, on the metasurfaces. This mechanism can be employed to design watercrafts powered by water waves, with the travelling direction controlled with the PB geometric phase.
To achieve focusing of water waves, we design four PB metalenses with the same PB phase profile φPB(z)=−kz2+f2−f(f is the focal length), as shown in Figure 4d. These metalenses have different rotation angle profiles Δα(z), as shown in Figure 4e, where Δα is smaller for the meta‐atoms with a higher rotational symmetry. Figure 4g shows the experimental and simulation results for the surface elevation of the backward water wave, where the incident wave propagates along +x direction. We observe that all the metalenses can focus the water wave at the same position with a focal length f=3.2λ, despite of their different rotation angle profiles Δα(z). The analytically predicted focal lengths based on the expression of φPB(z) are indicated by the arrows, which agree with the experimental and simulation results.
Conclusion
3
The water‐wave PB phase differs significantly from the conventional optical PB phase. For subwavelength scatterers under the incidence of a circularly polarized plane wave, as shown in Figure 5a (upper panels), the optical PB phase emerges due to the flipping of the longitudinal spin, which equals twice the rotation angle of the scatterers and is decided by the differential spin of the incident and scattering lights. The phase disappears for the scatterers with m ⩾ 3 rotational symmetries, which are effectively isotropic for the incident plane wave.^[^ 51, 52 ^]^ Such scatterers can still induce an optical PB phase if arranged into a lattice such as the square lattices in Figure 5a (lower panels), which generally does not exhibit a simple dependence on the rotation angle of the scatterers due to the lattice‐coupling‐induced effective anisotropy.^[^ 53 ^]^ In contrast, the water‐wave PB phase emerges due to the flipping of the transverse spin, which can be induced by individual scatterers of arbitrary rotational symmetry, as illustrated in Figure 5b (upper panels). The phase exhibits remarkable unidirectionality due to the spin‐momentum locking. Importantly, the same PB phase also emerges in the periodic systems in Figure 5b (lower panels), because the rotation axis of the scatterers is parallel to the lattice. In addition, water waves are inherently inhomogeneous due to the water‐air interface. This inhomogeneity enables water waves to carry a higher‐order PB phase with Poincaré hypersphere representation, giving rise to rich physics associated with state evolutions in a higher‐dimensional space.

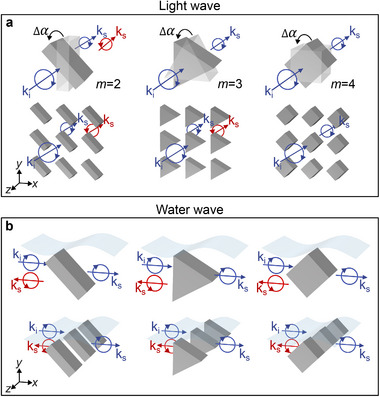

Comparison between optical PB phase and water‐wave PB phase. a) Circularly polarized light wave passing through a single scatterer (upper panel) and periodic scatterers (lower panel) with different rotational symmetries. For a single scatterer: φPB=−2Δα, if m ⩽ 2; φPB=0, otherwise. For periodic scatterers: φPB=−mΔα, if m is even; φPB=−2mΔα, if m is odd; φPB=0, if m = 4. b) Water wave scattered by a single scatterer (upper panel) and periodic scatterers (lower panel) with different rotational symmetries. In both cases, φPB=−mΔα is observed in the backward‐scattering spin channel.
