Sex‐Specific doublesex Regulation Targeting the Color‐Patterning Gene h Underlies the Evolution of Wing Sexual Dimorphism in the Harlequin Ladybug Harmonia axyridis

TL;DR

The study reveals how sexual dimorphism in wing color patterns of ladybugs evolved through changes in the regulation of a color-patterning gene by the doublesex gene.

Contribution

The paper identifies a molecular mechanism linking the doublesex gene to the loss of sexual dimorphism in color patterns during ladybug evolution.

Findings

The doublesex gene regulates the color patterning gene h to control sexual dimorphism in ladybug wing color.

Loss of sexual dimorphism in derived color morphs correlates with changes in chromatin accessibility at the h locus.

Sexual dimorphism evolution is tied to the balance between novel regulatory elements and Dsx-binding motif density.

Abstract

Organisms on Earth show various forms of sexual dimorphism, including ornaments, weapon traits, and pheromone glands, which have been acquired through sexual selection during evolution. Although the genetic basis of sexual traits has been investigated in diverse species, how the underlying regulatory systems evolve during the gain or loss of sexual dimorphism within a species remains poorly understood. To address this issue, we investigated the strain‐specific sexual dimorphism in elytral color patterns of the harlequin ladybug, Harmonia axyridis (H. axyridis), a species with over 200 color morphs. The most basal Red‐nSpots type color morph exhibits sexual dimorphism, whereas other derived color morphs have lost it. To investigate how this sexual dimorphism was lost during the evolution of novel color morphs, we investigated the genetic basis of sexual dimorphism by focusing on the master sex differentiation gene, doublesex (dsx). We show that dsx regulates color pattern dimorphism by negatively modulating black spot size in males. This modulation is primarily mediated by the transcriptional regulation of the color patterning gene, h (Drosophila pannier ortholog). Intraspecific comparative ATAC‐seq analysis of the pupal wings revealed that, at the h locus, not the absolute number of Dsx‐binding motifs but the proportion of open chromatin regions containing Dsx‐binding motifs relative to those lacking such motifs was reduced in strains that had lost sexual dimorphism and acquired novel color patterns, implying that sexual dimorphism evolves based on the balance between novel CREs and Dsx‐binding motif density. The present study provides a fundamental molecular framework for understanding how a secondary sexual trait evolves within H. axyridis.

doublesex regulates sexual dimorphism in elytral color patterns of Harmonia axyridis by downregulating the color patterning gene h in males. This regulatory link diverged in derived color morphs, coinciding with the loss of sex‐specific elytral color patterns.

doublesex regulates sexual dimorphism in elytral color patterns of Harmonia axyridis. Divergence in dsx‐mediated regulation of the color patterning gene h during the evolution of novel color morphs is associated with the loss of sexual dimorphism.

Figures

Intraspecific genetic polymorphism of elytral color patterns in H. axyridis. (A) Representative phenotypes and phylogenetic relationships of four major h alleles responsible for elytral color pattern variation (h, succinea; h C , conspicua; h Sp , spectabilis; h A , axyridis). The phylogenetic relationships among these alleles were inferred from nucleotide sequences in the conserved region of the first intron of h (Ando et al. 2018). Coccinella septempunctata (C. sep) was used as an outgroup. (B) Representative elytra of control (GFP RNAi‐treated) females and males, and quantification of black spot size. The area of each black spot (y‐axis) was measured and normalized to the total elytral area. In the horizontal axis, “F” and “M” indicate sex (F: female; M: male), and numbers 1–10 correspond to black spot positions illustrated in the schematic. Differences in spot size between sexes were compared using the Brunner–Munzel test, and p values were adjusted by the Holm method. Asterisks indicate statistical significance: *p < 0.05; p < 0.01; *p < 0.005. Exact p values are shown when p ≥ 0.05. [Color figure can be viewed at wileyonlinelibrary.com]

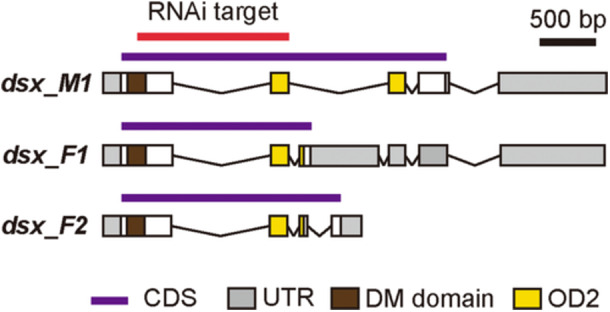

Schematic representation of putative exon–intron structures and sex‐specific splicing patterns of dsx in H. axyridis. The diagram illustrates the predicted exon–intron organization of the dsx gene in H. axyridis. Red bar: RNAi target region; purple bar: coding sequence (CDS); gray box: untranslated region (UTR); brown box: DM domain; Yellow box: OD2. [Color figure can be viewed at wileyonlinelibrary.com]

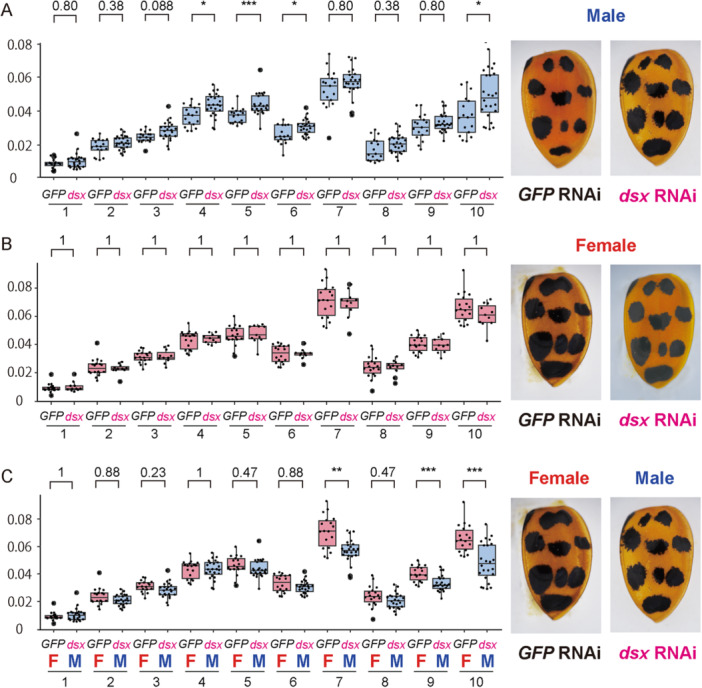

dsx knockdown phenotypes in the elytral color pattern. Comparison of black spot sizes in RNAi‐treated individuals: (A) between dsx RNAi males and control (GFP) RNAi males, (B) between dsx RNAi females and control (GFP) RNAi females, and (C) between dsx RNAi males and control (GFP) RNAi females. Black spot areas were quantified and statistically analyzed as described in Figure 1. Asterisks indicate statistical significance: *p < 0.05; p < 0.01; *p < 0.005. Representative elytra of individuals from each RNAi treatment are shown on the right side of each graph. [Color figure can be viewed at wileyonlinelibrary.com]

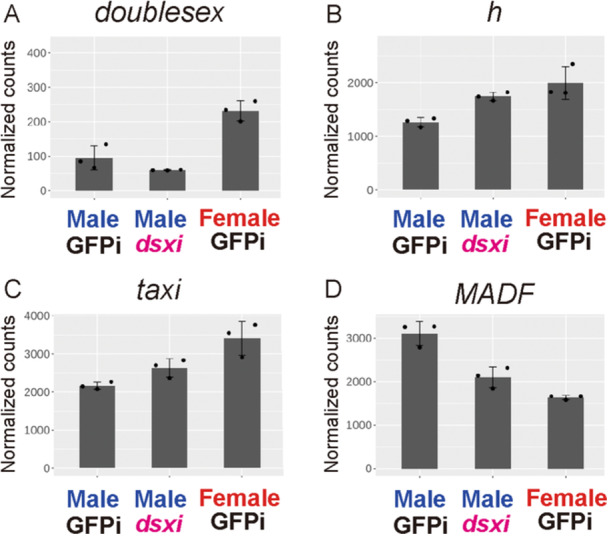

Expression levels of dsx and transcription factor genes differentially expressed between sexes. (A–D) Normalized expression levels of five transcription factor genes were extracted from transcriptome data and plotted in each graph: (A) dsx, (B) h, (C) taxi, and (D) MADF. Male GFPi: control GFP RNAi‐treated males. Male GFPi: control GFP RNAi‐treated females. Male dsxi: dsx RNAi‐treated males. [Color figure can be viewed at wileyonlinelibrary.com]

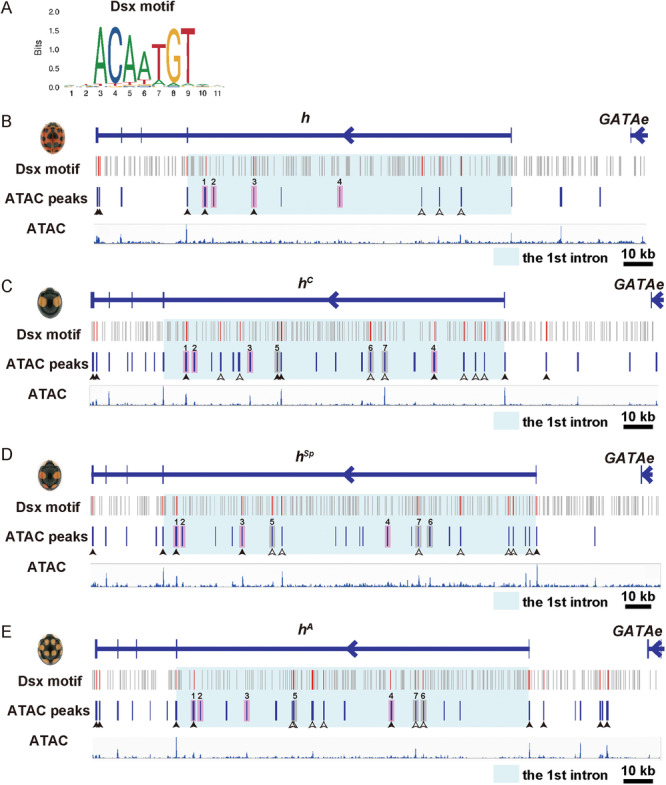

Distribution of Dsx‐binding motifs and ATAC‐seq peaks at the h locus in the four major color pattern alleles. (A) Sequence logo of the Dsx‐binding motif in Drosophila (JASPAR: MA1836.1). (B–E) Each panel depicts the following: (Line 1) the genomic structure of the h allele corresponding to each color morph; (Line 2) the distribution of Dsx‐binding motifs (Dsx motif); (Line 3) the distribution of raw ATAC‐seq peaks (ATAC peaks); and (Line 4) the distribution of raw ATAC‐seq reads. (B–E) represent the Red‐nSpots, Black‐2Spots, Black‐4Spots, and Black‐nSpots alleles, respectively. Gray bars in Dsx motif rows indicate Dsx‐binding motifs predicted from the Drosophila motif sequence; red bars indicate motifs that overlap with ATAC‐seq peaks. Light blue highlights indicate the first intronic region of each h allele. Light pink highlights indicate ATAC‐seq peaks conserved among the four alleles (1–4). Gray highlights indicate ATAC‐seq peaks conserved among the derived black alleles (5–7). Arrowheads indicate ATAC‐seq peaks containing Dsx‐binding motifs. White arrowheads mark lineage‐specific peaks located in the first intron of each h allele. [Color figure can be viewed at wileyonlinelibrary.com]

Tables

Table 1. Distribution of ATAC peaks and Dsx‐binding motifs in the first intron of the four h alleles.

h allele	ATAC peaks	Total Dsx motifs in ATAC peaks	(A) ATAC peaks with Dsx motifs	(B) ATAC peaks without Dsx motifs	ATAC peak number ratio (A vs. B)
Red‐nSpots/h	8	7	5	3	1.67
Black‐nSpots/h A	15	20	8	7	1.14
Black‐4Spots/h Sp	19	19	9	10	0.900
Black‐2Spots/h c	21	21	11	10	1.10

Full text

Introduction

1

Organisms on Earth exhibit a wide range of secondary sexual traits, including ornaments, weapon traits, and pheromone glands. These traits have evolved in addition to primary reproductive structures (e.g., gonads that produce gametes) and contribute to reproductive fitness in diverse environments. Recent studies on the molecular basis of secondary sexual trait formation in various insects have revealed both conserved and divergent mechanisms (Hopkins and Kopp 2021). In most insects, the conserved sex differentiation gene doublesex (dsx), which encodes a DMRT (Doublesex and Mab‐3‐Related Transcription factor) type transcription factor (Burtis and Baker 1989; Raymond et al. 1998), regulates a wide array of sexual traits ranging from primary sexual structures to secondary sexual traits such as ornaments. However, the regulatory mode, timing of action, and downstream targets of dsx in secondary sexual trait formation vary significantly across species (Verhulst and van de Zande 2015). These findings suggest that the ancestral dsx‐mediated sex differentiation pathway has been repeatedly recruited (co‐opted) to facilitate the evolution of secondary sexual traits in divergent insect lineages. The molecular mechanisms underlying this regulatory co‐option have been actively studied in Drosophila sister species, focusing on species‐specific secondary sexual traits, such as abdominal pigmentation (Kopp et al. 2000; Williams et al. 2008), sex combs on the forelegs (Tanaka et al. 2011), and cuticular carbohydrate deposition (Shirangi et al. 2009). Still, the diverse evolutionary strategies for sexual traits in organisms highlight the need for comparative analyses in other insect lineages to understand the universal principles of sexual trait evolution.

To address this issue, we focused on the sexual dimorphism of the forewing (elytral) color pattern in the harlequin ladybug, Harmonia axyridis (H. axyridis). H. axyridis displays over 200 intraspecific color morphs, which are believed to be regulated by a combination of more than 22 alleles at a single genetic locus, h (reviewed in Komai et al. 1950). Of those alleles, the most recessive class, h ^ succinea ^ (collectively abbreviated as h), exhibits sexual dimorphism. The h alleles exhibit zero to ten black spots on the red background in the single forewing (Figure 1A, hereafter Red‐nSpots). Females have larger black spots than males (Hosino 1942, 1948; Knapp and Nedvěd 2013) (Figure 1B, 2–10). In contrast, other major h alleles (h ^ Conspicua ^ [h ^ C ^], h ^ Spectabilis ^ [h ^ Sp ^], and h ^ Axyridis ^ [h ^ A ^]), which show one, two, and six red spots on the black background (Figure 1A, hereafter Black‐2Spots, Black‐4Spots, and Black‐nSpots [6–12 spots in the wild], respectively), do not exhibit conspicuous sexual dimorphism. This allele‐specific sexual dimorphism within a species presents an excellent opportunity to investigate the evolutionary dynamics of secondary sexual traits. Previous genomic studies have identified h as the ortholog of the Drosophila pannier gene, which encodes a GATA transcription factor, and revealed that the noncoding sequences in its first intron are highly divergent within a species (Ando et al. 2018; Gautier et al. 2018). In the present study, we refer to the Harmonia ortholog of the Drosophila pannier gene as h. The molecular phylogenetic analysis using the conserved noncoding sequences in the h intron suggested that the Red‐nSpots allele is the basal allele, and that the other alleles (Black‐2Spots, Black‐4Spots, and Black‐nSpots) are more recently diverged (Ando et al. 2018) (Figure 1A). Moreover, the Red‐nSpots‐like patterns prevail in the genus Harmonia (e.g., Harmonia octomaculata, Harmonia conformis, Harmonia quadripunctata), implying that the h allele retains ancestral‐like features and that the sexual dimorphism was somehow lost during evolution. Therefore, elucidating the genetic basis of sexual dimorphism in the Red‐nSpots allele provides a valuable framework to explore the origin, mechanisms, and evolvability of secondary sexual traits in H. axyridis.

*Intraspecific genetic polymorphism of elytral color patterns in H. axyridis. (A) Representative phenotypes and phylogenetic relationships of four major h alleles responsible for elytral color pattern variation (h, succinea; h

C , conspicua; h

Sp , spectabilis; h

A , axyridis). The phylogenetic relationships among these alleles were inferred from nucleotide sequences in the conserved region of the first intron of h (Ando et al. 2018). Coccinella septempunctata (C. sep) was used as an outgroup. (B) Representative elytra of control (GFP RNAi‐treated) females and males, and quantification of black spot size. The area of each black spot (y‐axis) was measured and normalized to the total elytral area. In the horizontal axis, “F” and “M” indicate sex (F: female; M: male), and numbers 1–10 correspond to black spot positions illustrated in the schematic. Differences in spot size between sexes were compared using the Brunner–Munzel test, and p values were adjusted by the Holm method. Asterisks indicate statistical significance: *p < 0.05; **p < 0.01; **p < 0.005. Exact p values are shown when p ≥ 0.05. [Color figure can be viewed at wileyonlinelibrary.com]

In the present study, we investigated the role of dsx in the formation of sexual dimorphism in the elytral color pattern of H. axyridis. In insects, dsx regulates the formation of sexual dimorphism by expressing sex‐specific isoforms (dsxM in males and dsxF in females), which are generated through sex‐specific splicing triggered by species‐specific sex‐determination cues (Verhulst and van de Zande 2015). DsxM and DsxF proteins have two conserved domains: a common DNA‐binding domain (Doublesex and Mab‐3 [DM] domain) in the N‐terminal region and an oligomerization domain (OD) diverged between sexes in the C‐terminal region. These two proteins bind to the same DNA motifs in the genome; however, sex‐specific cofactors, which bind to Dsx protein via the distinct sex‐specific OD domains, are thought to be recruited to the target genes and activate sex‐specific gene regulatory networks associated with sex‐specific differentiation (e.g., binding of Intersex protein to DsxF) (Yang et al. 2008).

Here, we investigated the role of dsx in the sexual dimorphism formation of the forewing color pattern in the h allele (Red‐nSpots) of H. axyridis. Using RNA interference (RNAi), we found that dsx regulates the formation of sexual dimorphism primarily through male‐specific modulation of black spot size. Moreover, mRNA‐seq analysis suggested that such modulation is mediated primarily through the downregulation of h. In addition, the bioinformatics analysis focusing on open chromatin regions and Dsx‐binding motifs across the four major h alleles revealed that the ratio of the open chromatin regions with and without Dsx‐binding motifs was decreased in the three derived alleles other than the Red‐nSpot allele. Based on the results, we discuss how secondary sexual traits have evolved within the species H. axyridis.

Materials and Methods

2

Ladybug Husbandry and Strains

2.1

Laboratory stocks of the H. axyridis were derived from field collections in Japan. Ladybug adults were reared at 25°C and usually fed on an artificial diet (Niimi et al. 2005) or on the pea aphid Acyrthosiphon pisum for egg collection. The pea aphids were cultured on the broad bean Vicia faba seedlings at 20°C and 60% RH. An experimental strain with one of the Red‐nSpots (succinea) class of the h allele was isolated by crossing individuals with Red‐nSpots alleles and individuals homozygous for the Black‐2Spots allele, and then selecting h homozygotes from the siblings. Moreover, adults with larger spots were selected for five generations. For experiments, larvae hatched from a clutch of eggs were reared in a plastic cup with a water reservoir and fed aphids until they reached the prepupal stage. Pupae were reared in incubators at 17°C or 25°C until eclosion.

BLAST Search for doublesex Orthologs

2.2

The tblastn program (Camacho et al. 2009) was used to search for the ortholog of doublesex. An amino acid sequence of Tribolium castaneum (T. castaneum) Dsx protein (GenBank: NP_001345539.1) was used as a query against an H. axyridis cDNA database derived from pupal elytra at 80 h after pupation (80 h AP).

To determine the exon–intron structures of the identified genes, we performed a blastn search on the H. axyridis genome database using the obtained H. axyridis dsx cDNA sequence as a query. The exon–intron structures of the male‐ and female‐specific dsx isoforms were determined using sex‐specific isoforms found in the cDNA database derived from male and female pupal elytral RNA‐seq data.

To design the target region of RNAi in the common region between dsxM and dsxF, we performed the NCBI Conserved Domain Search (Wang et al. 2023) and sequence alignment with the T. castaneum dsx using the obtained dsxM homolog sequences as a query.

Molecular Phylogenetic Analysis

2.3

To test whether the dsx homologs identified in H. axyridis were orthologs of dsx in Drosophila melanogaster (D. melanogaster), we performed molecular phylogenetic analysis using Dsx orthologs in insects and other DMRT family proteins. We used amino acid sequences of Dsx and Dmrt99B from Zygentoma, Coleoptera, Lepidoptera, and Diptera, as well as those of Dmrt1 from four vertebrate species, as the outgroup (Supporting Information S9: Table 1).

We aligned the amino acid sequences using the MAFFT program (Katoh and Standley 2013) (version 7) with the ‐linsi option (to use an accuracy option, L‐INS‐i) and removed poorly aligned regions using the trimAl program (Capella‐Gutiérrez et al. 2009) (version 1) with the ‐gappyout option, which uses information based on gaps' distribution. The alignment figure was generated using Boxshade (https://junli.netlify.app/apps/boxshade/) (version 3.3). The molecular phylogenetic analysis was performed using the aligned sequence as input and the maximum‐likelihood method with the IQ‐TREE software (Minh et al. 2020). We used the ultrafast bootstrap (UFBoot) and the Shimodaira–Hasegawa approximate likelihood ratio test (SH‐aLRT) to evaluate the branch reliability according to the software guideline (Guindon et al. 2010; Minh et al. 2013). We set 1000 replications in each test. Typically, the branch with the SH‐aLRT ≥ 80% and the UFboot ≥ 95% is considered reliable (Minh et al. 2020). Therefore, we regarded the branch with both support values exceeding the thresholds as the reliable clade.

Larval RNAi

2.4

The double‐stranded RNA (dsRNA) for RNAi was synthesized based on the T7 RiboMAX Express Large Scale RNA Production System protocol. Briefly, the target region of RNAi was designed within the common exon (the first exon) shared between male‐ and female‐specific isoforms of dsx (Figure 2). For negative control experiments, we used a GFP gene fragment derived from the jellyfish Aequorea victoria. The template DNA for dsRNA synthesis was amplified using polymerase chain reaction (PCR) with Q5 DNA polymerase (New England Biolabs, Massachusetts, USA) and primers 5′‐flanked with T7 promoter sequences (FASMAC, Atsugi, Japan), according to the manufacturer's instructions (Supporting Information S9: Table 2). The PCR products were separated by 1% agarose gel electrophoresis and purified using NucleoSpin Gel and PCR Clean‐up kit (MACHEREY‐NAGEL, Düren, Germany). The dsRNA was synthesized using the purified template DNA using the T7 RiboMAX Express Large Scale RNA Production System (Promega, Madison, WI, USA) according to the manufacturer's instructions with some modifications. The modifications were as follows: in vitro RNA synthesis was performed by incubating at 37°C for 16 h; annealing was carried out at 65°C for 10 min, followed by incubation at room temperature (25°C) for 30 min. dsRNA was stored at −80°C until it was used. The microinjection procedure for larval RNAi was performed according to Niimi et al. (2005). For microinjections, fine glass needles were prepared by stretching glass capillary tubing (borosilicate glass with filament, O.D.: 1.0 mm, I.D.: 0.50 mm, 10 cm length, Sutter Instrument, Novato, CA, USA) using a micropipette puller (PC‐100, Narishige, Tokyo, Japan) with the STEP1 heating value of 60. Approximately 5.0 µg of the dsRNA was injected into the hemocoel of each final instar larva 1–2 days after molting. The dsRNA was injected at the lateral side of the intersegmental membrane between the second and third thoracic segments using the fine grass needle connected to FemtoJet (Eppendorf, Hunburg, Germany). After injection, 1–4 larvae were reared in each container and fed sufficient amounts of aphids at 25°C until pupation. Prepupae or pupae were incubated at 17°C to minimize the influence of heat‐dependent phenotypic plasticity in the Red‐nSpots strains (Michie et al. 2010). After eclosion, adult ladybugs were placed in plastic vials with water reservoirs and fed an artificial diet at 25°C for at least 2 days to ensure color maturation. Finally, we collected the elytra and heads from the ladybugs and stored them at −30°C until phenotypic analysis was performed.

Schematic representation of putative exon–intron structures and sex‐specific splicing patterns of dsx in H. axyridis. The diagram illustrates the predicted exon–intron organization of the dsx gene in H. axyridis. Red bar: RNAi target region; purple bar: coding sequence (CDS); gray box: untranslated region (UTR); brown box: DM domain; Yellow box: OD2. [Color figure can be viewed at wileyonlinelibrary.com]

Quantification of Black Pigmentation in the Elytra and Head

2.5

An isolated elytra or a head was immobilized on a High‐Reflectance PTFE sheet (PMR10P1, Thorlabs, Newton, NJ, USA) with a paste eraser for image acquisition. We set up the illumination light with a hand‐made dome light apparatus. We collected the elytral or head images using a digital camera (NY‐D5500, Nikon, Tokyo, Japan) connected to a stereomicroscope (Stemi 508, Carl Zeiss, Jena, Germany) with an adapter lens (NTY‐1S, Micronet, Kawaguchi, Japan). The shutter speed and ISO were set to 1/10 s and 400, respectively. The contour of the elytra and black spots were automatically extracted using a custom program written in the C language. In this program, the following image processing was performed.

To segment the elytra and spots, we first applied median filtering with a radius of 4 pixels to the resulting RGB images to achieve smoothing. The red channel was used to extract the morphology of the individual spots, while the blue channel was used to extract the overall contour of the forewing. The outline of the entire forewing was obtained by applying Otsu's thresholding method to the blue channel, followed by segmentation. Similarly, Otsu's method was also employed to segment the individual spots. Binary images resulting from the segmentation were further processed by contour smoothing using a mathematical morphology operation with a structuring element of radius 8 pixels.

To align elytral contours between individual images, the set of pixels representing the outer shape of each forewing was aligned so that its centroid coincided with the center of the image. Additionally, the images were rotated so that the first and second principal components, obtained through principal component analysis (PCA), were aligned with the X‐ and Y‐axes, respectively.

To automatically localize the averaged characteristic ten‐spot patterns in each image, it was necessary to estimate the average position of each spot. For this purpose, the size of the forewing shapes was first normalized. Specifically, the bounding rectangle enclosing each forewing was computed, and the images were scaled so that all specimens had identical bounding rectangle dimensions (width and height). Using the resulting aligned and scaled images, an average image was generated. Based on this image, an arbitrary threshold was determined to allow clear separation of the ten spots, and segmentation was performed. This procedure enabled estimation of the average position and shape of each spot.

We performed constrained watershed segmentation to split fused spots. The appearance of spots varies in size and shape across specimens, and in some cases, multiple spots are fused into a single region. Although watershed transformation is effective for separating such fused spots, it may result in over‐segmentation when the distance transform image contains multiple peaks due to complex spot morphologies. To address this issue, the average image of the spots was first segmented and labeled. The peaks in the distance‐transformed image were then assigned to one of the labeled spot regions from the average image. This information was used as a constraint during watershed transformation, thereby reducing over‐segmentation.

Using the extracted contours of the forewing and its constituent spots, we calculated the areas of the black spots (Supporting Information S9: Table 3). For the head melanization, the degree of melanization of the frons (the frontal plate of the head) was classified into three levels: 0 = no melanization, 1 = melanized limited to the area below the compound eyes, and 2 = melanization extending above the lower edge of the compound eyes.

Scoring of Abdominal Morphological Defects in dsx RNAi Mutants

2.6

To score the morphological defects in the sexual dimorphism of the terminal end of the abdominal segment (hypopygium) in H. axyridis, we investigated the hypopygial morphology using scanning electron microscopy. The posterior parts of the adult body (half of the thoracic segments and abdominal segments) were dissected with forceps and mounted on a pedestal with its ventral side up using double‐sided carbon tape. The samples were analyzed using a tabletop scanning electron microscope, Miniscope (TM4000PlusII, Hitachi High‐Tech Corporation, Tokyo, Japan). To assess the morphological defects in the hypopygium, the observer scored the specimen as male or female without knowing its sex or treatment information. After scoring, individuals whose hypopygial morphological score was consistent with the specimen's sex information were considered normal. The individuals whose morphology was inconsistent were considered abnormal.

Statistical Analysis

2.7

All statistical analyses were performed using R (R Core Team 2023) (version 4.3.2). For continuous data with potentially unequal variances and non‐normal distributions (elytral spot area), the Brunner–Munzel test was applied using the brunnermunzel R package (https://CRAN.R-project.org/package=brunnermunzel) (version 2.0). Fisher's exact test was used to evaluate differences in categorical variables between groups (classification of head pigmentation and hypopygial morphology as normal or abnormal). When the contingency table exceeded 2 × 2, we estimated the p values (simulate.p.value = TRUE, B = 10,000) using a Monte Carlo simulation with 10,000 replicates. Multiple testing corrections were applied using the Holm method where applicable. A p value < 0.05 was considered statistically significant.

Identification of Sex Based on PCR

2.8

The sexes of the H. axyridis were identified by genomic PCR using the Y chromosome‐specific primers (Gotoh et al. 2015) (Supporting Information S9: Tables 2–4). Crude extract samples for PCR were collected from each individual using GenCheck DNA Extraction Reagent (FASMAC, Kawaguchi, Japan) according to the manufacturer's instructions. PCR was performed using the DNA polymerase, KOD FX Neo (TOYOBO, Osaka, Japan) with the following cycling conditions: 94°C for 2 min, followed by 40 cycles of 98°C for 10 s, 60°C for 30 s, 68°C for 8 s, and 68°C for 2 min. The PCR products were separated by 1% agarose gel electrophoresis.

mRNA Sample Preparation and Sequencing

2.9

To collect elytral total RNA from the RNAi‐treated pupae, the final instar larvae were injected with 5 µg of dsRNA targeting dsx or GFP within 2 days after molting and reared as described above. Pupation timing was monitored at 25°C under full light conditions using LiveCapture3 software (https://lc3.daddysoffice.com/livecapture3/) (v3.5) and a color CMOS camera (1080P‐USB 2.0, Vsightcam, Hangzhou, China). Pupal elytra were dissected in Dulbecco's phosphate‐buffered saline (D‐PBS) at 80 h after pupation (80 h AP). Three biological replicates were prepared for each condition (Male GFP RNAi, Female GFP RNAi, and Male dsx RNAi). The collected samples were snap‐frozen in liquid nitrogen and stored at −80°C until use. Total RNA was extracted from each sample (two elytra per sample) using the RNeasy Micro kit (Qiagen, Venlo, the Netherlands) according to the manufacturer's instructions with the on‐column DNase I treatment protocol. The total RNA was quality‐checked with 1.0% agarose gel TBE/formamide electrophoresis and quantified using the QuantiFluor RNA system and Quantus Fluorometer (Promega, Madison, WI, USA). The library preparation and the sequencing analysis were performed at the ASHBi SingAC core facility at Kyoto University. Briefly, each sequencing library was prepared using 100 ng of total RNA as input, NEBNext Poly(A) mRNA Magnetic Isolation Module, NEBNext Ultra II Directional RNA Library Prep Kit, NEBNext Multiplex Oligos for Illumina (New England BioLabs, Ipswich, MA, USA), and Biomeck i7 automated workstation (Beckman Coulter, Brea, CA, USA). The 50 bp paired‐end sequence data were obtained using the NovaSeq 6000 system (Illumina, San Diego, CA, USA).

Assay for Transposase‐Accessible Chromatin Sequencing (ATAC‐Seq)

2.10

Laboratory strains with four different color pattern alleles (Red‐nSpots, Black‐2Spots, Black‐4Spots, and Black‐nSpots) were used for ATAC‐seq analysis. Pupal forewings at 80 h AP were dissected and homogenized in a 1.5 mL microcentrifuge tube using a plastic pestle (BioMasher‐II; Nippi, Tokyo, Japan) with 200 µL of Lysis Buffer (10 mM Tris‐HCl, pH 7.4, 10 mM NaCl, 3 mM MgCl_2_, 0.1% IGEPAL CA‐630). The nuclear suspension was filtered through a polyester mesh filter (pore size: 74 µm; Costar #3477, 12‐well) (Corning, NY, USA) and centrifuged using a swing rotor (800g, 4°C, 10 min). After removing the supernatant, the pellet was resuspended in 25 µL of D‐PBS. Nuclear concentration was determined by mixing an aliquot (2.5 µL) of each sample and an equal volume of Trypan Blue staining solution and counting the cell nuclei with a hemocytometer under a compound microscope (Axiovert 200 M, Carl Zeiss, Oberkochen, Germany). Approximately 0.5–1 × 10^5^ nuclei were used per ATAC‐seq library preparation. The nuclei were subjected to transposition with Tn5 Transposase at 37°C for 30 min using Nextera DNA Library Prep Kit (FC‐121‐1030; Illumina, CA, USA). DNA was purified using the MinElute PCR Purification Kit (Qiagen, Venlo, Netherlands). Library preparation was conducted according to Buenrostro et al. (2015). Library quality was assessed using the High Sensitivity DNA kit (Agilent Technologies, CA, USA) and the KAPA Library Quantification Kit (Illumina/Universal) (KAPA Biosystems, MA, USA). Sequencing was performed on NextSeq 550 and HiSeq X systems (Illumina, San Diego, CA, USA) (Supporting Information S9: Table 4).

mRNA‐Seq Data Analysis

2.11

The quality of the sequencing data was verified using FastQC software (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/). After trimming adapter sequences and low‐quality sequences using Cutadapt software (Martin 2011), the FASTQ sequence data were mapped to the latest H. axyridis reference genome (Chen et al. 2021) (ZJU‐BJ) using hisat2 software (Kim et al. 2019) with the default parameters. The potential transcription units (the GTF format files) were constructed from each sample and merged with the previously annotated transcription units (Chen et al. 2021) (ZJU‐BJ) using the StringTie software (Pertea et al. 2015). The read counts were quantified based on the merged transcription units using the StringTie software.

The count data were normalized between samples for each comparative analysis using the iDEGES method in the TCC package (Sun et al. 2013) with three iterations of DESeq2‐Trimmed Mean of M‐values (TMM) normalization. The differentially expressed genes (DEGs) were identified using the Wald test, followed by fitting the data with a negative binomial generalized linear model (GLM) using the deseq2 method in the TCC package (Sun et al. 2013).

Gene Ontology (GO) terms were assigned to each gene using the eggNOG‐mapper2 software (Cantalapiedra et al. 2021). The GO enrichment analyses were performed using the topGO R package (Alexa and Rahnenfuhrer 2025) and the DEGs identified in the above analyses as input. We employed the “elim” algorithm and Fisher's exact test in the topGO package. False discovery rates were calculated using the p.adjust function in the base R package, employing the Benjamini–Hochberg procedure.

The Venn diagram illustrating the inclusion relations of DEGs across different RNAi treatments was created using the Intervene Shiny App (Khan and Mathelier 2017). The graphs associated with the normalized count data in the mRNA‐seq analysis were generated using a custom R script that utilized the following R packages: ggplot2 (https://cran.r-project.org/package=ggplot2), tidyverse (https://cran.r-project.org/package=tidyverse), stringR (https://cran.r-project.org/package=stringr), ggbeeswarm (https://cran.r-project.org/package=ggbeeswarm), and patchwork (https://cran.r-project.org/package=patchwork).

Motif Scanning for the Dsx Transcription Factor

2.12

We searched for the putative Dsx‐binding motifs in the genomic regions surrounding the gene h using the Possum program (https://bu.wenglab.org/possum/). The public genomic scaffold data of the h locus from four different alleles of color patterns (Red‐nSpots, Black‐2Spots, Black‐4Spots, and Black‐nSpots) in H. axyridis were used for the analysis (GenBank accession numbers: Red‐nSpots, LC269048.1; Black‐2Spots, LC269055.1; Black‐4Spots, LC269054.1; Black‐nSpots, LC269053.1). The Position Specific Scoring Matrices calculated from ChIP‐seq (Chromatin ImmunoPrecipitation‐sequencing) analysis in D. melanogaster (JASPER: MA1836.1, Figure 5A) were used as query data. We set the threshold for log‐likelihood ratio scores to 5 for detecting sequence fragments similar to the query matrix data of Dsx‐binding sites.

ATAC‐Seq Data Analysis

2.13

The raw ATAC‐seq read data used for the analysis were obtained from pupal elytral tissues at 80 h after pupation in four different color pattern types of H. axyridis: Red‐nSpots, Black‐2Spots, Black‐4Spots, and Black‐nSpots. Three biological replicates for each sample were included in the data set. We used the latest version of the scaffold‐level genome assembly of Black‐2Spots H. axyridis as the template reference genome (ZJU‐BJ; Chen et al. 2021) for mapping the ATAC‐seq data. We swapped the genomic regions surrounding the h gene (±500 kb) with the corresponding DNA sequences from different h alleles (the same GenBank data sets used in Motif scanning for the Dsx transcription factor above).

First, the adapter sequences were trimmed from the data using the cutadapt software (Martin 2011) (ver. 4.9). The cropped reads were mapped to the corresponding reference genome sequences using bowtie2 software (Langmead and Salzberg 2012) (ver. 2.5.3) with ‐‐local and ‐very‐sensitive‐local options. Duplicate reads were removed using Picard software (https://broadinstitute.github.io/picard/) (ver. 3.3.0) with the ‐REMOVE_DUPLICATES true option. ATAC‐seq peaks were called using macs3 software (Zhang et al. 2008) (ver. 3.0.0b3) with –nomodel, ‐‐shift ‐75, ‐‐extsize 150, f ‐BAMPE, ‐g 430000000, and ‐B options. We validated the quality of each ATAC‐seq data by calculating the FRiP (Fraction of all mapped Reads that fall into the called Peak regions) score according to the ENCODE project guidelines: ideal > 0.3; acceptable > 0.2 (https://www.encodeproject.org/atac-seq/). All the samples satisfied the criteria of the ENCODE project. Of the three samples in each allele, two samples with higher FRiP scores were selected to determine the reproducible ATAC‐seq peaks. To determine the reproducible peaks, we measured consistency between these two biological replicates in each allele by the Irreproducible Discovery Rate (IDR) analysis using IDR software (ver. 2.0.2; https://github.com/nboley/idr) (Li et al. 2011). We picked up reproducible peaks passing a threshold (IDR ≤ 0.05) for further analyses.

Conserved and Lineage‐Specific ATAC‐Seq Peak Classification

2.13.1

To classify conserved and lineage‐specific ATAC‐seq peaks at the h locus, homologous genomic regions among alleles were first identified using EasyFig software (Sullivan et al. 2011) based on the DNA sequences spanning the h gene and its 500‐kb upstream and downstream flanking regions. Orthologous DNA fragments were extracted from BLASTN output files and converted into BED format files using custom Perl and Python script, as well as MAFFT and trimAl software (Capella‐Gutiérrez et al. 2009; Katoh and Standley 2013). To determine whether each ATAC‐seq peak was conserved (present in orthologous regions shared across alleles) or lineage‐specific (present only in a particular allele), overlap between orthologous DNA fragments and ATAC‐seq peaks was visually annotated using Integrative Genomics Viewer (IGV v2.19.7) (Thorvaldsdottir et al. 2013).

Results

3

The Function of dsx in the Sexually Dimorphic Color Pattern Formation in H. axyridis

3.1

As previously reported (Hosino 1942, 1948; Knapp and Nedvěd 2013), the h allele (the Red‐nSpots) used in the present study exhibited significantly larger black spots in females than in males (Figure 1B). Here, we focused on the molecular basis of this sexual dimorphism. We aimed to test the role of the master regulator of insect sex differentiation, dsx, in the formation of sexually dimorphic elytral color patterns of H. axyridis. We first identified a dsx homolog and male‐ and female‐specific isoforms (Figure 2, dsx_M, and dsx_F1,2) in the pupal elytral mRNA‐seq data by the BLAST search, using T. castaneum dsx ortholog as a query. We also performed conserved domain search (NCBI) and sequence alignment with T. castaneum Dsx to infer the DM domain in the first exon, OD2 in the second exon, and the terminal region of the female‐specific OD2 in the third exon (Figure 2). To confirm orthology, we conducted molecular phylogenetic analyses using the coding amino acid sequence of H. axyridis dsx homolog and those of DM domain‐containing genes (Dsx, Dmrt99B, and Dmrt1) from apterygote, holometabolan, and vertebrate databases (Supporting Information S9: Table 1 and Supporting Information S1: Figure 1). The molecular phylogenetic tree showed that the H. axyridis dsx clustered within the insect Dsx clade and formed a Coleoptera‐specific subclade with T. castaneum Dsx (Supporting Information S2: Figure 2), consistent with transcriptome‐based insect phylogenies (Misof et al. 2014). These results confirmed that the dsx homolog in H. axyridis is an ortholog of Drosophila dsx and hereafter referred to as dsx.

To determine whether dsx is expressed in pupal elytra during color pattern prepatterning at 80 h after pupation (80 h AP) (Ando et al. 2018), we reanalyzed public mRNA‐seq data sets from male pupal elytra carrying the Black‐2Spots allele (h ^ C ^) at 24, 72, and 96 h AP (DDBJ: DRR092246‐DRR092257). dsxM expression was detectable as early as 24 h AP and peaked around 72 h AP. Notably, dsx was expressed in both red and black regions of the elytra (Supporting Information S3: Figure 3A).

To assess the functional role of dsx in elytral color patterning, we performed larval RNAi knockdown experiments and measured the size of the black spot in adults. In males, dsx RNAi significantly increased spot size in four of the ten spots (4, 5, 6 and 10) compared to the GFP RNAi control (Figure 3A), yielding spot sizes comparable to those of GFP RNAi control females in three of the four spots except for the spot 10 (Figure 3C; 4, 5, and 6). In contrast, dsx RNAi had no significant effect on spot size in females (Figure 3B). These findings indicate that at least subset of the sexual dimorphism in black spot size associated with the h allele (Spots 4, 5, 6, and 10) is primarily due to dsxM‐mediated suppression of black pigmentation in males. On the other hand, for Spots 2, 3, 7, and 9, no statistically significant sexual differences were observed in dsx RNAi individuals in males, which suggest that these spots are less dependent on dsx‐mediated regulation or may be due to incomplete knockdown of dsxM expression by RNAi.

*dsx knockdown phenotypes in the elytral color pattern. Comparison of black spot sizes in RNAi‐treated individuals: (A) between dsx RNAi males and control (GFP) RNAi males, (B) between dsx RNAi females and control (GFP) RNAi females, and (C) between dsx RNAi males and control (GFP) RNAi females. Black spot areas were quantified and statistically analyzed as described in Figure 1. Asterisks indicate statistical significance: *p < 0.05; **p < 0.01; **p < 0.005. Representative elytra of individuals from each RNAi treatment are shown on the right side of each graph. [Color figure can be viewed at wileyonlinelibrary.com]

In addition to the elytral color patterning, we observed defects in other external sexually dimorphic traits in dsx RNAi‐treated individuals with the h allele. In head pigmentation, the frons (the frontal edge of the head) is typically white in males and black in females. This pattern was disrupted in both sexes by dsx RNAi (Supporting Information S4: Figure 4 and Supporting Information S9: Table 5), in contrast to the male‐specific elytral pigmentation phenotype in the elytra. Another affected trait was the morphology of the terminal abdominal segments (hypopygium). In males, the posterior margin of the fifth abdominal segment is anteriorly indented (Supporting Information S5: Figure 5, arrow), whereas in females, no such indentation is observed, and a small protrusion is formed in the sixth segment (Supporting Information S5: Figure 5, arrowhead). This sexual dimorphism was lost in dsx RNAi individuals, with both sexes exhibiting a shallow indentation and a protrusion of the sixth abdominal segment (Supporting Information S5: Figure 5 and Supporting Information S9: Table 6). Again, dsx was found to contribute to sexual differentiation in both sexes, in contrast to its male‐biased function in the elytra. In addition to the above morphological defects, we also observed a decrease in the survival rate of dsx‐RNAi‐treated females (Supporting Information S7: Table 7).

The Developmental Genes Associated With the Differentiation of the Male and Female Elytral Color Pattern at the Pupal Stage

3.2

To further explore the molecular basis of the dsx‐mediated sexual dimorphism in the elytra, we conducted mRNA‐seq analysis on male and female pupal elytra, as well as on male pupal elytra subjected to dsx RNAi (GFP RNAi in males and females, and dsx RNAi in males). To examine the regulatory relationship between dsx and the key color patterning gene h, we focused on 80 h AP, the developmental stage when h‐dependent prepattern is established and pigment cell differentiation initiates (Ando et al. 2018).

We first compared transcriptomes of wild‐type male and female pupal elytra (male and female GFP RNAi) to identify DEGs between the sexes. Hierarchical clustering of the transcriptome data suggested that gene expression profiles of elytral tissues at 80 h AP were only minimally differentiated between samples (Supporting Information S6: Figure 6A). Only a small fraction of H. axyridis genes was differentially expressed at this stage (94 genes, 0.43% = 94/22,810) (Chen et al. 2021) (Supporting Information S6: Figure 6B). GO enrichment analysis revealed that DEGs between sexes were significantly enriched for GO terms such as GO:0045433 (male courtship behavior, veined wing‐generated song production) and GO:0043009 (chordate embryonic development). Notably, transcription factor genes associated with these GOs included orthologs of dsx and the color patterning gene h. We further analyzed all transcription factor genes included in the DEG set. Four transcription factors were significantly differentially expressed between female and male elytra at 80 h AP (Figure 4, Male GFPi; Female GFPi): dsx, h, and taxi were downregulated in males, whereas MADF was upregulated. These results suggest that the dsx may regulate these transcription factors, including h, in the pupal elytra. Collectively, our findings implied that a small set of transcription factor genes, including the h gene, is differentially expressed between males and females to form sexual dimorphism of elytral color patterns at this prepatterning stage.

Expression levels of dsx and transcription factor genes differentially expressed between sexes. (A–D) Normalized expression levels of five transcription factor genes were extracted from transcriptome data and plotted in each graph: (A) dsx, (B) h, (C) taxi, and (D) MADF. Male GFPi: control GFP RNAi‐treated males. Male GFPi: control GFP RNAi‐treated females. Male dsxi: dsx RNAi‐treated males. [Color figure can be viewed at wileyonlinelibrary.com]

The Developmental Genes Regulated by dsx in the Sexually Dimorphic Elytral Color Pattern Formation

3.3

To test the above potential regulatory relationship between dsx and the three transcription factor genes, we compared the transcriptomes of pupal male elytra treated with dsx RNAi and GFP RNAi (negative control). Among the three transcription factor genes, h and MADF showed significantly differential expression in the dsx RNA treatment (h: upregulation; MADF: downregulation) (Figure 4B,D; Male GFPi, Male dsxi). The expression levels of the other transcription factor (taxi) was higher in the dsx RNAi treatment, although the difference was not statistically significant (Figure 4C; Male GFPi, Male dsxi). In this experiment, the expression level of dsx was also lower in the dsx RNAi treatment, although the difference was not statistically significant at this stage (Figure 4A; Male GFPi, Male dsxi), implying that this effect is likely due to the cumulative impact of dsx RNAi from the larval to pupal stages. These results suggest that dsx regulates at least h and MADF in the male elytra at 80 h AP.

To further investigate the gene regulatory module downstream of dsx, we performed GO enrichment analysis on the DEGs. Among the genes upregulated in male dsx RNAi compared to the control (GFP RNAi), significantly enriched GO terms included GO:0030513 (positive regulation of BMP signaling pathway) and GO:0046332 (SMAD binding), suggesting that genes associated with the TGF‐β/BMP signaling pathway are negatively regulated by dsxM during black spot suppression in male elytra (Supporting Information S9: Table 8). Genes contributing to these GO terms included homologs of h, Daughter against decapentaplegic, and magu (Supporting Information S7: Figure 7). On the other hand, significantly enriched GO terms among the downregulated DEGs included GO:0007026 (negative regulation of microtubule depolymerization) and GO:0044304 (main axon), implying that dsxM positively regulates genes involved in neuronal differentiation in the forewing.

Notably, from these analyses, the key color pattern regulatory gene h was identified as a downstream factor of dsx. h has dual functions in pigment cell differentiation: induction of black pigment cell differentiation in the dorsal epidermis, where h expression is high, and inhibition of red pigment cell differentiation in the adjacent ventral epidermis, where h expression is low (Supporting Information S3: Figure 3B) (Ando et al. 2018; Gautier et al. 2018). Since the extent of both black and red pigment cell differentiation is different between male and female elytra, the above findings suggest that the regulatory interaction between dsx and the *h‐*mediated dual cell differentiation regulation plays a crucial role in governing sexual dimorphism of the elytral color pattern. Other regulatory factors downstream of dsxM, such as the TGF‐β/BMP signaling regulators (dad and magu) and transcription factors (MADF and taxi), may potentially act either upstream or downstream of this dual cell‐differentiation module. However, because these genes exhibit comparable expression levels in the red and black regions (Supporting Information S3: Figure 3C–F), their functions are unlikely to be specifically dedicated to the h‐mediated dual cell differentiation module.

Open Chromatin Regions and Putative Dsx‐Binding Motif in the First Intron of the h Alleles With Four Different Color Patterns

3.4

The above results suggested that h is a major dsx‐mediated developmental regulator driving elytral sexual dimorphism in the Red‐nSpots strain. We next investigated the key regulatory change underlying the evolutionary loss of this sexual dimorphic regulation in H. axyridis. Because dsx directly or indirectly provides male‐specific negative regulatory inputs to the h regulatory region, and the only genetic differences among the four major h alleles lie in this region (Ando et al. 2018; Gautier et al. 2018), the most parsimonious scenario is that the derived black alleles lost this dsx–h regulatory connection. To test this hypothesis, we examined the distribution of cis‐regulatory elements (CREs) and Dsx‐binding motif at the h locus in the pupal elytral tissue across the four major color pattern alleles. Previous genomic analysis revealed that the noncoding regions surrounding the 100 kb‐scale first intron of the h gene are highly diverged among Red‐nSpots (h), Black‐nSpots (h ^ A ^), Black‐4Spots (h ^ Sp ^), and Black‐2Spots (h ^ C ^) alleles in H. axyridis (Ando et al. 2018; Gautier et al. 2018). In this region, distinct transcription factor‐binding motifs are enriched in each allele (Ando et al. 2018).

We estimated the active CREs in the pupal elytra at 80 h AP by performing ATAC‐seq, which detects open chromatin regions associated with transcriptional regulatory elements such as enhancers, suppressors, and promoters (Buenrostro et al. 2013). In the first intron of the h gene, most of the ATAC peaks in each allele were shared between male and female pupal forewings (Supporting Information S8: Figure 8, 68% in Red‐nSpots, 97% in Black‐2Spots, 87% in Black‐4Spots, and 93% in Black‐nSpots), implying that the cis‐regulatory difference leading to sexually dimorphic expression of the h gene in the pupal forewings is mainly depends on the dsx‐targeted subset among the CREs shared between the sexes, and moderately on fewer sex‐specific CREs. On the other hand, we also found that the number of ATAC‐peaks in the first intron of the gene h increased in lineages with broader black patterns, with counts of 8, 15, 19, and 21 in Red‐nSpots (h), Black‐nSpots (h ^ A ^), Black‐4Spots (h ^ Sp ^), and Black‐2Spots (h ^ C ^), respectively (Table 1 and Figure 5). This finding suggests that novel cis‐regulatory sequences were acquired during the evolutionary process of expanding the expression domain of the h gene, which controls the induction of black pigment cell differentiation and suppression of red cell differentiation in the elytra (Ando et al. 2018; Gautier et al. 2018).

Distribution of Dsx‐binding motifs and ATAC‐seq peaks at the h locus in the four major color pattern alleles. (A) Sequence logo of the Dsx‐binding motif in Drosophila (JASPAR: MA1836.1). (B–E) Each panel depicts the following: (Line 1) the genomic structure of the h allele corresponding to each color morph; (Line 2) the distribution of Dsx‐binding motifs (Dsx motif); (Line 3) the distribution of raw ATAC‐seq peaks (ATAC peaks); and (Line 4) the distribution of raw ATAC‐seq reads. (B–E) represent the Red‐nSpots, Black‐2Spots, Black‐4Spots, and Black‐nSpots alleles, respectively. Gray bars in Dsx motif rows indicate Dsx‐binding motifs predicted from the Drosophila motif sequence; red bars indicate motifs that overlap with ATAC‐seq peaks. Light blue highlights indicate the first intronic region of each h allele. Light pink highlights indicate ATAC‐seq peaks conserved among the four alleles (1–4). Gray highlights indicate ATAC‐seq peaks conserved among the derived black alleles (5–7). Arrowheads indicate ATAC‐seq peaks containing Dsx‐binding motifs. White arrowheads mark lineage‐specific peaks located in the first intron of each h allele. [Color figure can be viewed at wileyonlinelibrary.com]

To reveal the evolutionary changes in the dsx‐targeted CREs at the h locus, we estimated the number of CREs potentially regulated by Dsx by identifying Dsx‐binding motifs within the accessible chromatin regions, based on a conserved Dsx‐binding motif shared between the invertebrate Drosophila Dsx and the vertebrate human DMRT1 protein (Murphy et al. 2007) (Figure 5A). We mapped the Dsx‐binding motif in the open chromatin regions at the h locus and compared its distribution between different alleles. The number of open chromatin regions containing Dsx‐binding motifs was 5, 8, 9, and 11 in the Red‐nSpots, Black‐nSpots, Black‐4Spots, and Black‐2Spots alleles, respectively, with corresponding total Dsx‐binding motif counts of 7, 20, 19, and 21 (Table 1 and Figure 5). Notably, Red‐nSpots, which exhibits clear sexual dimorphism in elytral pigmentation, showed the lowest number of Dsx‐binding motifs, suggesting that the absolute number of Dsx‐binding motifs is not directly correlated with the presence/absence of elytral sexual dimorphism. Therefore, the most parsimonious scenario—that the loss of sexual dimorphism evolved through a reduction or loss of Dsx‐binding sites—was not supported. In contrast, the ratio of open chromatin regions with versus without Dsx‐binding motifs was highest in Red‐nSpots (1.67 [5/3]), followed by Black‐nSpots (1.14 [8/7]), Black‐2Spots (1.00 [11/11]), and Black‐4Spots (0.75 [9/12]) (Table 1). The elevated ratio in the Red‐nSpots allele primarily results from the small number of linage‐specific open chromatin regions, within which Dsx‐binding motifs occur at a relatively high proportion (h: 3/4; Figure 5B, white arrowheads; Supporting Information S9: Table 9, bold numbers), whereas in conserved open chromatin regions, the number of Dsx‐binding motifs was the same among alleles (2/4; Figure 5B–E, black arrowheads; Supporting Information S9: Table 9, underlined numbers). By contrast, the derived black alleles possessed a larger number of lineage‐specific open chromatin regions. However, these regions exhibited a lower proportion of open chromatin regions containing Dsx‐binding motifs (h ^ p ^: 6/11, h ^ Sp ^: 7/17, h ^ Sp ^: 7/17; Figure 5C–E, white arrowheads; Supporting Information S9: Table 9, bold numbers) than that of the h allele. Taken together, these results suggest that a higher proportion of lineage‐specific CREs containing Dsx‐binding motifs, rather than their absolute number, may be associated with the presence of sexual dimorphism, and that the relative scarcity of such CREs in other alleles may contribute to their loss in pupal elytra at 80 h AP.

Discussion

4

In the present study, we investigated the developmental genetic basis of the sexually dimorphic wing color pattern in the harlequin ladybug, H. axyridis. We focused on dsx as the primary regulatory gene for sexually dimorphic wing color patterning and investigated the pupal elytral development of dsx RNAi mutants at the onset of pigmentation. Our RNAi and mRNA‐seq experiments revealed that dsx mainly inhibits size of subsets of the black spots in males by downregulating the color patterning gene h. Moreover, our bioinformatics analysis focusing on the Dsx‐binding motif and open chromatin regions (enhancer, repressor, and promoter regions) in the pupal elytral development imply that the loss of sexual dimorphism in the derived black h alleles did not evolve through simple loss of Dsx‐binding motif at the h locus. Rather, the Red‐nSpots type h allele possesses the highest ratio of open chromatin regions with and without Dsx‐binding motifs among the four major color pattern alleles, which is associated with the evolutionary loss of sexual dimorphism in the derived black alleles. Based on the above findings, we discuss below how dsx regulates sexual dimorphism of the elytral color pattern in the Red‐nSpots allele and how such regulation was modulated during evolution, along with the loss of sexual dimorphism and the emergence of the novel intraspecific color pattern polymorphism alleles in H. axyridis.

Regulatory Mode of Sexual Dimorphism of Pattern Regulated by dsx in H. axyridis: A Starting Point to Understand the Evolvability of Sexual Dimorphisms Within a Species

4.1

We revealed that primarily dsx regulates sexual dimorphism of the elytral color pattern in the strain with the Red‐nSpots type allele h. This regulation, driven by dsx, is a typical example of genetic regulation of sexual dimorphism formation in insects. However, elucidating the underlying molecular basis is a crucial first step toward understanding the evolvability of sexual dimorphism and its relationship with the evolution of novel traits within a species. Here, we characterize the regulatory mode of sexual dimorphism formation driven by dsx in elytral color pattern formation, as elucidated in the present study.

Regarding the regulation of sexual dimorphism, dsx controls elytral pattern dimorphism through a male‐specific mode in H. axyridis. Generally, in holometabolous insects, dsx has contrasting sex‐specific functions with one sex‐specific isoform (dsxM or dsxF) inducing sex‐specific organ formation and the other (dsxF or dsxM) suppressing it (e.g., leg sex comb in Drosophila (Tanaka et al. 2011), abdominal color pattern in Drosophila (Kopp et al. 2000), wing color pattern in swallowtail butterfly (Kunte et al. 2014; Nishikawa et al. 2015), head and thoracic horns in dung beetles and rhinoceros beetles (Ito et al. 2013; Ledón‐Rettig et al. 2017; Morita et al. 2019), etc.). Therefore, the male‐restricted mode of dsx's regulation in the elytral color formation is a rare example of regulation in holometabolous insects. This difference may stem from the extent to which the sexual dimorphic trait is exaggerated in either males or females. In most cases reported so far, other insects exhibit pronounced sexual dimorphism, characterized by the presence or absence of distinct traits in males and females, respectively (e.g., sex combs, color patterns, horns). In such cases, dsxM and dsxF must exert strong effects on the transcriptional regulation of target genes to generate sexual dimorphism. In contrast, in the case of sexual dimorphism of elytral color pattern in H. axyridis, sexual dimorphism is minimal, and strong effects of both dsxM and dsxF may not be necessarily required. Since in H. axyridis, sexual dimorphism of head pigmentation and abdominal body segment formation is also regulated by the effects of both dsxM and dsxF (Supporting Information S5: Figure 5), the above male‐restricted regulation does not seem to be due to Dsx protein function specific to H. axyridis but is likely due to the characteristics of the regulatory relationship between dsx and the target genes in the elytral color pattern formation.

In the following sections, we further discuss the molecular basis of the dsx‐mediated sexual dimorphism formation in the elytral color patterns and how it influences color pattern evolution.

The Molecular Basis of dsx‐Mediated Sexual Dimorphism Formation in the Elytral Color Pattern

4.2

We revealed that the male‐specific isoform of dsx (dsxM) primarily functions in the formation of sexual dimorphism in the elytral color pattern and identified the color patterning gene h as a crucial downstream target of dsxM. Since h is a key regulator of pigment cell differentiation, promoting black pigment cell differentiation and suppressing red cell differentiation in H. axyridis (Ando et al. 2018), these findings suggest that the regulatory relationship between dsxM and h is central to the sexual dimorphism formation in the elytral color pattern.

The ATAC‐seq data and the Dsx‐binding motif analysis suggest that the h gene in the Red‐nSpot allele (h) has a high potential to be directly targeted by dsxM during pupal elytral development. Additionally, the slight increase in the number of male‐specific open chromatin regions in the Red‐nSpots allele compared to the other alleles (Supporting Information S8: Figure 8) implies that these regulatory sequences might also contribute modestly to the sexually dimorphic expression of h in the elytra. These male‐specific open chromatin regions may be indirectly regulated by dsxM. Together, our findings propose the dsx‐ and h‐mediated molecular platform underlying the formation of sexual dimorphism in the elytral color pattern, which should be further tested through future approaches, such as chromatin immunoprecipitation‐based binding assays (Solomon et al. 1988) and genome‐editing‐mediated deletion of candidate regulatory elements using genome editing techniques in H. axyridis (Mazo‐Vargas et al. 2022; Wu et al. 2022; Partosh et al. 2024; Nakamura et al. 2025).

In addition to the h gene, we identified a small number of regulatory molecules, including transcription factors (taxi and MADF), and TGF‐β‐associated genes (dad and magu), which may act as downstream targets of dsxM. These molecules may contribute to the enhancement of color pattern sexual dimorphism by modulating the h‐mediated red and black dual pigment cell differentiation pathway. Comparative expression of these genes between the black and red regions in the pupal elytra (Supporting Information S3: Figure 3C–F), unlike those of the h gene (Supporting Information S3: Figure 3B, asterisk), suggests that these genes may function in association with or at the periphery of the h‐mediated dual pigment cell differentiation pathway, potentially contributing to upstream regulation of h or to downstream modulation of h‐dependent pigmentation. Notably, taxi, dad, and magu are orthologs of the genes involved in Drosophila wing development (Egoz‐Matia et al. 2011; Vuilleumier et al. 2010), whereas h shows pupal wing expression only in the lineage restricted to ladybugs (Coccinellinae) (Ando et al. 2018; Gautier et al. 2018). These observations suggest that conserved wing development regulators may have been co‐opted to enhance the lineage‐specific role of h in the formation of sexual dimorphism.

In Drosophila, not only the prepatterning regulators (e.g., bric a brac 1/bab1) (Williams et al. 2008) but also effector genes, such as those involved in pigment synthesis (e.g., tan/CG12120) (Jeong et al. 2008; Luo et al. 2011), are direct targets of the sex differentiation cascade in sexual dimorphism formation. However, our mRNA‐seq analysis did not identify the genes associated with pigmentation among the downstream genes of dsxM at 80 h AP. This observation is likely because pigmentation genes are not expressed sufficiently at this early developmental stage of pigmentation, making it challenging to determine whether they are regulated by dsxM. A similar mode of dsx‐directed regulation against effector genes may operate in the formation of elytral color pattern dimorphism in H. axyridis, which could be uncovered by further analysis focusing on later developmental stages.

The Evolution of Sexual Dimorphism and Dsx‐Binding Motif Distribution at the h Locus

4.3

In the present study, we investigated the molecular basis of the sexual dimorphism of the elytral color pattern, which is unique to the basal allele of H. axyridis. The findings provide insights into how this regulatory basis may have been modulated during evolution, in parallel with the loss of sexual dimorphism and the emergence of the novel intraspecific color pattern polymorphism in H. axyridis. Our analysis pinpointed the significance of changes in dsx‐dependent regulation targeting h during the evolution of sexually dimorphic color patterns.

The distribution of the pupal elytral CREs at the h locus did not support the most parsimonious evolutionary scenario of loss or decrease of Dsx‐binding motifs, in which sexual dimorphism was lost through a reduction or disappearance of Dsx‐binding motifs. Instead, the absolute number of open chromatin regions containing Dsx‐binding motifs was even higher in the derived black h alleles. A more plausible explanation is that the loss of sexual dimorphism arose from a shift in the relative proportion of Dsx motif‐containing versus motif‐free open chromatin regions.

In the derived black alleles (h ^ A ^, h ^ Sp ^, and h ^ C ^), the overall number of accessible chromatin regions increased along with higher elytral expression of h, implying that novel CREs were acquired in these alleles. Because the expression region in the pupal elytra is expanded in the derived black alleles, these novel CREs are likely respond to positive regulatory inputs different from those of the Red‐nSpots allele (h). Such novel regulatory inputs may have emerged from black pigment cells that was acquired in the black alleles, which receive developmental cues different from those in the Red‐nSpots allele. In this context, these novel positive CREs could counterbalance the male‐specific negative regulation mediated by the Dsx‐bound CREs shared across the alleles. The resulting balance, or its collapse, may not only have shaped the phenotypic trajectory of this sexually dimorphic trait in H. axyridis, but also left behind a latent regulatory architecture in which sex‐specific potential remains cryptically encoded.

Such phenotypically masked, cryptic genetic sexual dimorphism—encoded by latent Dsx‐binding motifs in the CREs—has also been identified in a CRE of abdominal pigmentation regulatory gene bab1 in Drosophila willistoni, which has sexually dimorphic enhancer activity despite of monomorphic pigmentation phenotype (Williams et al. 2008). This regulatory framework of sexual dimorphism may serve as a hidden reservoir of regulatory potential, enabling the future evolution of novel sexually dimorphic traits. This hypothesis raises an important question to be addressed in future studies aimed at understanding the evolution of sexual dimorphism and should be tested through further molecular assays. A recent study on butterfly wing color pattern formation has demonstrated that the synergistic regulation by multiple enhancers drives a precise gene expression pattern in the wing (Mazo‐Vargas et al. 2022). This observation suggests that discussion of regulatory evolution should also consider the balance and interaction among multiple CREs.

Conclusion

5

In the present study, we investigated the genetic basis underlying the loss of sexual dimorphism in elytral color patterns by focusing on distinct color pattern‐type strains of H. axyridis. We revealed the crucial male‐restricted role of the dsx gene in establishing sexual dimorphism in the most basal Red‐nSpot allele. From an evolutionary perspective, our findings suggest that the regulatory relationship between dsxM and h has been modulated during the transition from sexually dimorphic to monomorphic novel elytral color patterns. Our comparative bioinformatics analysis provided a molecular basis of the regulatory model in which the balance between dsx‐dependent and dsx‐independent CREs at the h locus is essential for understanding the evolution of sexual dimorphism in H. axyridis. Overall, this study provides a foundation for understanding the genetic mechanisms underlying the evolution of sexual dimorphism and its relationship to the acquisition of novel color patterns within the species H. axyridis.

Author Contributions

Soichi Yeki, Teruyuki Niimi, Norihide Hinomoto, Takaaki Daimon, and Toshiya Ando conceived the project. Teruyuki Niimi selected the H. axyridis Red‐nSpots strain. Soichi Yeki performed all experiments in this study and analyzed the ATAC‐seq data and Dsx motifs. Toshiya Ando analyzed the mRNA‐seq data and extracted conserved and lineage‐specific ATAC‐seq peaks. Kagayaki Kato conducted image analysis and developed a custom program to extract morphological information of elytral black spots. Shinichi Morita and Toshiya Ando optimized the nuclear extraction protocol for pupal tissues and prepared ATAC‐seq libraries. Toshiya Ando and Kenji Shimomura sequenced the ATAC‐seq libraries. Soichi Yeki and Toshiya Ando wrote the initial manuscripts. All authors reviewed and approved the final manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

Supporting information

Fig. S1. Multiple alignment of the protein sequences of DMRT‐type transcription factors in Insecta and Vertebrata. Multiple sequence alignments were generated for the amino acid sequences of Dsx and the other Dmrt family transcription factors. Poorly aligned regions were removed using the TrimAl program. Black boxes indicate conserved residues shared by more than 80% of taxa. The region marked with a red bar corresponds to the DM domain, which is highly conserved among DMRT‐type transcription factors.

Fig. S2. Molecular phylogenetic tree of DMRT‐type transcription factors in Insecta and Vertebrata. The maximum likelihood (ML) phylogenetic tree was constructed based on the protein sequence alignment shown in Fig. S1. The best hit substitution model was JTT+R2. The proportion of invariable sites is 0.172, and the gamma shape parameter (alpha) was 1.036. Numerical values on each node indicate SH‐aLRT and UFBoot support values. Dsx in H. axyridis formed a Coleoptera Dsx clade with T. castaneum Dsx within the broader Insecta Dsx clade. This result supports that the dsx homolog in H. axyridis is orthologous to Drosophila dsx.

Fig. S3. Developmental expression profile of dsx and downstream regulatory factors in the pupal elytra. Expression of (A) dsx, (B) h, (C) dad, (D) magu, (E) MADF, and (F) taxi in the red (Red) and black (Black) regions of the pupal wing at different developmental stages (1, 3, and 4 days after pupation [days AP]). dsx expression was detected as early as 1 day AP and was observed in both red and black regions of the elytra throughout development. h showed higher expression in the black region 3 and 4 days after pupation (B), whereas the other downstream regulators showed comparative expression between red and black regions at each stage (C–F). FDR‐adjusted P values (q values) from the Wald test are shown above the bars (*: q < 0.05).

Fig. S4. Effects of dsx knockdown on head pigmentation. Comparison of the head color in RNAi‐treated individuals between dsx RNAi and GFP RNAi treatments in both sexes. In wild‐type individuals, the frons (the frontal surface of the head) is typically white in males and black in females. We found that dsx RNAi‐treated males exhibited ectopic frons pigmentation, which was absent in wild‐type males, whereas dsx RNAi‐treated females showed reduced pigmentation compared to wild‐type females.

Fig. S5. Effects of dsx knockdown on hypopygial morphology. Comparison of the hypopygial morphology in RNAi‐treated individuals between dsx RNAi and GFP RNAi treatments in both sexes. In wild‐type individuals, the posterior margin of the fifth abdominal segment is concave in males (arrow), whereas it is flat in females, with a median protrusion on the sixth segment present only in females (arrowhead). We observed morphological abnormalities in both male and female dsx RNAi individuals. Specifically, both dsx RNAi males and females showed reduced concavity of the fifth segment (arrow), and a small protrusion on the sixth segment (arrowhead).

Fig. S6. Comparison of transcriptomes between dsx RNAi‐treated males and controls (males/females). (A) Hierarchical clustering analysis of the transcriptome data showing overall similarity or divergence in gene expression among the three groups. (B) Venn diagram showing the number of differentially expressed genes (DEGs) between dsx RNAi‐treated males (dsxi) and control RNAi‐treated males (GFPi), and between control RNAi‐treated males and females (control RNAi, GFPi).

Fig. S7. Upregulation of TGF‐β‐associated genes in dsx RNAi in males. Normalized expression levels of three genes—(A) h, (B) dad, and (C) magu—were extracted from transcriptome data. Expression profiles are shown for dsx RNAi‐treated males (dsxi), control RNAi‐treated males (Male GFPi), and control RNAi‐treated females (Female GFPi).

Fig. S8. Distribution of Dsx binding motifs and ATAC‐seq peaks at the h locus in females and males of the four major color pattern alleles. (A–D) Distribution of chromatin accessibility and Dsx binding motifs at the h locus for four representative h alleles: (A) Red‐nSpots, (B) Black‐2Spots, (C) Black‐4Spots, and (D) Black‐nSpots. Each panel consists of: (Line 1) Schematic of the genomic structure. (Lines 2‐4) ATAC‐seq read coverage: (2) female replicate 1, (3) female replicate 2, (4) male. (Lines 5–7) Distribution of ATAC‐seq peaks: (5) merged peaks from females and males (“All”), (6) peaks shared by both sexes (“common to both sexes”), and (7) peaks that contain Dsx binding motifs (“with Dsx motif”).

Table S1. Taxa and proteins used for the molecular phylogenetic analysis of DMRT family. Table S2. PCR primers used in this study. Table S3. Raw data for black spot morphology. Table S4. Summary of ATAC‐seq read statistics. Table S5. Effect of dsx knockdown on frons melanization in male and female individuals. Table S6. Effect of dsx knockdown on hypopygial morphology in male and female individuals. Table S7. Sex ratio of dsx RNAi‐treated individuals. Table S8. Gene Ontorogy (GO) terms enriched in the DEGs between dsx RNAi males and GFP RNAi males. Table S9. Conserved and lineage‐specific ATAC‐peaks in the first intron of h.
