Extended reality in supporting cancer patients and survivors: A systematic review on the benefits and challenges across the cancer care continuum

TL;DR

This paper reviews how extended reality (XR) can help cancer patients, especially in reducing anxiety and managing symptoms during treatment and survivorship.

Contribution

The study systematically evaluates XR's benefits and challenges across the cancer care continuum, highlighting its uneven application.

Findings

XR is most commonly used during treatment for anxiety reduction and symptom management.

XR application is limited in diagnosis, prevention, and early detection phases.

Challenges include physical discomfort, technical issues, and user compliance.

Abstract

•Extended reality is gaining more and more interest in healthcare applications.•XR tools have the potential to improve patient outcomes in cancer care.•XR is commonly used in anxiety and symptoms management.

Extended reality is gaining more and more interest in healthcare applications.

XR tools have the potential to improve patient outcomes in cancer care.

XR is commonly used in anxiety and symptoms management.

Our study explores the role of extended reality (XR) in supporting cancer patients.

A systematic search was conducted across six electronic databases. We adhered to the guidelines of the Preferred Reporting Items for Systematic Reviews and Meta-Analysis (PRISMA) reviews.

We included 62 studies. XR technologies were mainly applied during the treatment phase (64.5% of studies), with additional applications in palliative care and during survivorship (33.9%). One study addressed the diagnosis phase, and none supported prevention or early detection. XR showed effective results supporting patients in seven areas: anxiety and stress reduction (n = 40), pain management (n = 19) and symptom tracking (n = 14). Challenges identified related to physical discomfort, technical issues, and user compliance.

XR interventions demonstrate significant potential in improving patient outcomes, particularly in anxiety reduction and symptom management. However, their application remains unevenly distributed across the cancer care continuum.

Figures

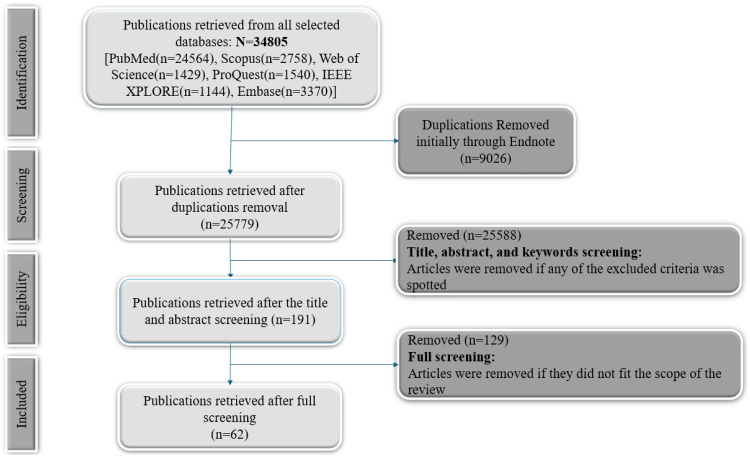

Structured multi-step process of search.Fig 1Fig. 2PRISMA flowchart for the search process.Fig 2

Distribution of the articles over time.Fig 3

Distribution of the themes identified in the articles.Fig 4

Full text

Introduction

Cancer is among the leading causes of death worldwide. In 2022, there were approximately 20 million new cancer cases and 9.7 million cancer-related deaths.1 By 2040, cancer incidence is expected to rise to 29.9 million and cancer-related deaths to 15.3 million.1 A cancer diagnosis and treatment is associated with significant physical, psychological, social and financial challenges.2 A meta-analysis conducted by Zhang and colleagues reported that a significant proportion of cancer patients experience depression (32%) and general distress (53.9%) during the active phases of treatment.3 In addition, approximately one in four cancer survivors report persistent problems, including anxiety, depression, and other forms of psychological and psychosocial distress.4 Further, a review by Smith et al found that 49% of patients report a significant financial burden following a cancer diagnosis.5 These findings highlight several of the adverse short and long-term sequelae associated with a cancer diagnosis and underscore the need for interventions to improve patient-centred care and support throughout the cancer care continuum.

Health technology tools such as wearable devices, mobile health, telehealth and patient portals facilitate the adoption of patient-centred approaches in cancer care.6 They have the potential to improve the delivery of cancer care through enhanced patient–provider communication, symptom assessment and management, and optimised patient engagement across the cancer care continuum.6^,^7 They have also been used to support the mental and psychological wellbeing of patients, which contributes to improved quality-of-life outcomes.8 Additionally, these tools have been shown to support patients across the cancer care continuum, from supporting prevention, early detection efforts, diagnosis and treatment to palliative care and survivorship needs.9^,^10 With technological advances, new tools have emerged that hold promise for improving support for cancer patients. Several emerging technologies in the field of cancer care are based on extended reality techniques (XR).

Extended reality encapsulates a range of tools that blend physical and virtual environments and are available in three formats: virtual (VR), augmented (AR) and mixed (MR) reality.11 Virtual reality (VR) utilises computer modelling and simulation to create a fully immersive digital environment. Augmented reality (AR) overlays digital elements in the real world, enhancing the perception of the environment by creating a composite view. Mixed reality (MR) integrates virtual and physical worlds, enabling interaction between both realms.12 Over the last decade, increased efforts have been made to integrate these technologies into healthcare, motivated by their scalability and cost-saving benefits.13 Different studies have supported the role that immersive technology has in reducing cancer-related anxiety symptoms, improving treatment adherence, and increasing satisfaction with the care received.14^,^15

Many reviews investigated the potential of XR in supporting patients in their care continuum in non-cancer-related settings.16 For instance, studies investigated the use of XR in mental health,17 ophthalmology,18 neurology,19 cardiology,20 and other settings to support patient outcomes. However, little attention has been given to investigating applications supporting cancer care outcomes. A study by Sansoni et al explored the XR-based interventions that help support the psychological wellbeing of cancer patients.21 Many other reviews explored the potential of these technologies in supporting oncologists’ and healthcare teams’ training in cancer care during treatment,22, 23, 24, 25 and diagnosis.26 Studies supporting patients in different phases of care covered only specific types of cancer, such as breast cancer.27

To address the identified gap, this review asks: How are extended reality (XR) technologies applied to support adult cancer patients at each stage of the cancer care continuum, what targets and outcomes have XR-based interventions achieved, and what implementation challenges have been encountered? We then (1) characterise the specific targets of XR interventions, (2) evaluate their reported effectiveness, and (3) summarise practical challenges in their use and implementation.

Methods

Search strategy

A systematic search was conducted across six electronic databases: ProQuest, Scopus, PubMed, Web of Science, Embase and IEEE Xplore for all relevant publications from inception to 15 June 2024. The study protocol was published in the Open Science Framework (DOI 10.17605/OSF.IO/DHFZG). The search strategy was developed following PICO (Population, Intervention, Comparison, Outcome) principles, where:

• •Population (P): Adult cancer patients (18+ years).
• •Intervention (I): Extended Reality (XR) technologies, including Virtual Reality (VR), Augmented Reality (AR) and Mixed Reality (MR).
• •Comparison (C): Based on the phases of the cancer care continuum (before, active and post-treatment).
• •Outcome (O): Measured effects of XR interventions on patient-related outcomes (eg, anxiety, pain, adherence, quality of life).

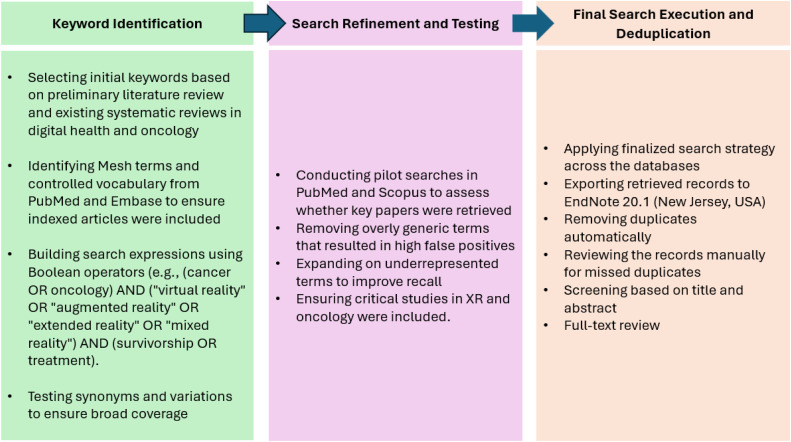

To enhance search comprehensiveness and reproducibility, we followed a structured multi-step process as shown in Figs. 1 and 2.Fig. 1. Structured multi-step process of search.Fig 1. Fig. 2PRISMA flowchart for the search process.Fig 2

More detail on the methods (selection process and inclusion criteria) are summarised in Appendix 1. More detail on the risk assessment and its results are described in Appendices 1 and 2.

Results

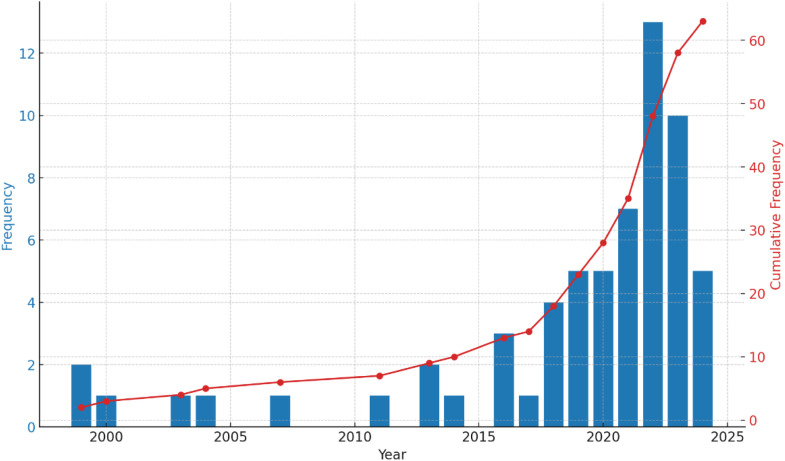

Appendices 3 and 4 describe the 62 included articles and technologies used (see Fig. 3).Fig. 3. Distribution of the articles over time.Fig 3

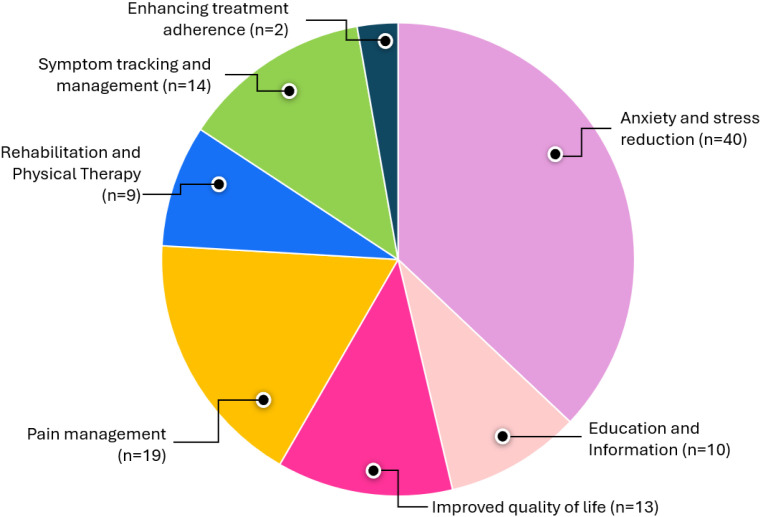

As shown in Fig. 4, most of the articles reviewed focused on reducing patient anxiety and stress resulting from diagnosis and treatment (n = 40/62). Pain management support was the second most common target of XR interventions (n = 19/62), followed by interventions to help patients with symptom tracking and management and quality of life concerns (n = 14/62). Nine studies focused on rehabilitation and physical therapy support, and n = 10 on increasing patient education and information. Only two studies focused on support for treatment adherence. The outcomes measured used in the included studies are summarised in Appendix 5.Fig. 4. Distribution of the themes identified in the articles.Fig 4

Anxiety and stress reduction (psychological support)

The studies on anxiety, stress reduction and psychological wellbeing used different VR-based interventions,28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42 and they covered the cancer care continuum phases of diagnosis, treatment, palliative care and survivorship.

a. Anxiety and stress reduction during the diagnosis phase

Patients experience a high level of stress when undergoing diagnosis. King et al used VR-delivered relaxation sessions to support patients experiencing distress when undergoing neuroimaging to monitor cancer status.43 The VR software loaded on the headset was designed by AppliedVR™ for use within clinical populations and aimed to target unpleasant symptoms and promote relaxation. Qualitative feedback from patients showed high satisfaction with this approach, and all patients adhered to the intervention.43

b. Anxiety and stress reduction during the treatment phase

Preparedness for treatment

VR was used to prepare cancer patients for treatment by helping them adapt to the related stress. For instance, an exergaming protocol (technology-driven physical activities) and VR glasses were used so that patients could watch and listen to the beach and nature.31^,^44 The intervention was found to result in the reduction of anxiety immediately after the intervention for haematology cancer patients and breast cancer patients.31^,^44 Another study presented the VR-based mindfulness training model (MTVR) for ovarian cancer patients to prepare them for chemotherapy.45 The intervention included four functional modules: personalised curriculum, intelligent monitoring, emotion tracking and Funny Games.45 The intervention results in a reduction in anxiety, depression and cancer-related fatigue.45 Specifically, the anxiety scores decreased from 5.27 to 2.92, depression scores from 4.96 to 3.13, and cancer fatigue scores from 31.98 to 23.31 after the intervention.45 Furthermore, a tool developed by Garrett et al provided a realistic virtual environment where patients can experience the various stages of their surgical admission process to be mentally prepared and able to control their stress.46 The tool significantly reduced patients’ depression from 7 to 5 (p < 0.001), and stress and anxiety were also significantly reduced from 19 to 13 (p < 0.001).46

Other interventions, VR-based training and resistance exercises, aimed to reduce anticipatory anxiety, depression, and emotional distress in breast cancer patients before their first chemotherapy dose.47 The findings were compared to a traditional psychoeducational intervention.47 They showed that while both approaches resulted in less anxiety and stress post-intervention, the decrease was more significant in the group that received the VR intervention.47 Additionally, at 3 months, the VR group exhibited a more notable decrease in the Emotional Discomfort Detection Scale.47 The coping strategies of fighting spirit and cognitive avoidance, assessed with the MINI-MAC coping scale, also increased more in the VR group, with significant differences observed in all evaluations.47 Another VR intervention was used to reduce perioperative anxiety in patients undergoing colorectal cancer surgery.48 The VR software simulated all perioperative phases that the patient is awake for, from admission to discharge, which resulted in less stress and anxiety compared to regular chemotherapy sessions.48

Distraction during treatment

Distracting patients using virtual environments (eg, nature-inspired scenarios, movies, etc.) while undergoing treatment was very helpful in supporting the psychological well-being of cancer patients.36^,^38^,^48, 49, 50, 51, 52, 53, 54, 55, 56, 57 For instance, Patient’s Dreams is a ‘distraction therapy’ for use during the first cycle of chemotherapy.49^,^50 The tool allowed participants to select a nature theme during treatment to shift their mood and promote relaxation. The authors reported a statistically significant reduction in anxiety and stress associated with symptom management during chemotherapy by distracting them with VR.49 Breast cancer participants felt more calm (p = 0.017), less tense (p = 0.042), more relaxed (p = 0.002), and more content (p = 0.000).49 The authors also reported that the tool helped reduce anxiety and alter the perception of time during treatment for patients with different types of cancer,50 with positive outcomes that persisted over time, 48 hours after the experiment (state anxiety values reduction by 37.42%).50

c. Anxiety and stress reduction during the palliative care and survivorship phase

The benefits of immersive technology were also seen through applications that helped patients manage anxiety and stress related to cancer and treatment in the post-treatment phase to help in their transition to the palliative care stage.42^,^58^,^59 Most of these applications used natural environments such as green and blue spaces.58 To manage psychological distress resulting from treatment, a study by Reynolds et al featured local Florida scenes, including trees, water features, creeks, animals and local parks.58 Nature sounds of chirping birds and running water were added to enhance the relaxation effect.58 The experiment resulted in more relaxation and less stress resulting from chemotherapy procedures among cancer patients.58 Another intervention, entitled SafeSpace, incorporated compassionate mind training (CMT).60 The intervention included three short sessions focusing on relaxation and self-compassion exercises.60 Mental wellbeing improved significantly after each session (VR 1 = 2.846; VR 2 = 2.501; VR 3 = 2.492). Significant reduction in stress levels from baseline to post-session 3 (z = −2.138, p = 0.03).60

For stress resulting from cancer symptoms, applications such as VR Blue and Bubble were shown to result in significant improvements. VR Blue used a calming underwater environment and helped decrease anxiety by 65%, improve mood by 70%, and decrease stress by 68%.61 Bubble, on the other hand, was used for psychological wellbeing associated with cancer symptoms, including stress, anxiety and sleep disturbances in women with breast and ovarian cancer.30 The intervention incorporated cognitive behavioural therapy and mindfulness-based stress reduction elements, delivered in a home-based VR environment designed to provide a calming and cooling experience, which reduced stress by 17.18% and psychological distress by 20.49%.30

Combining VR with AI (VR-AI), Horesh et al were able to reduce treatment and cancer-related pain, resulting in less anxiety among patients. While immersing in ‘Ocean Rift’, a deep-sea diving experience, or ‘Happy Place’, a tranquil beach setting, breast and ovarian cancer patients experienced less anxiety (from 50.13 to 37.68).62 Another application that studies used was Yuma’s World. It showed no changes in anxiety levels when used as a complementary therapy in-home palliative care among breast and ovarian cancer patients.29 However, using a basic three-level skill game in a calm underwater environment helped support patients with rectal cancer.59 This intervention resulted in significantly reduced anxiety (p = 0.042) and tiredness (p = 0.001).59 Furthermore, the Bedside Wellness System, a virtual forest walk system designed to improve the emotional wellbeing of bedridden patients with lung cancer, helped reduce stress, and relaxation with persistent results after 48 hours of the experiments.63 The system used a wide three-screen LCD with stereo sound, a walking system for the bedridden, a scent system with a gentle breeze, and a system for monitoring vital signs. It offered different scenic scenarios, such as a park, a plateau, or a cherry blossom avenue.63 Another interesting application of VR was the usage of Google Earth VR to simulate travel experiences for terminal cancer patients, aiming to fulfil their desire to visit a memorable place.64 It was able to help in reducing depression (p = 0.001), anxiety (p < 0.001) and wellbeing (p < 0.001).64

Finally, the virtual smash room developed by Persson et al aimed to vent frustration among cancer patients.65 The users can move around within a limited area and interact with objects in the virtual environment using hand controllers.65 They can pick up breakable objects and throw them or smash them against surfaces in the room.65 There are also virtual tools the users can pick up and use to hit the breakable objects, such as a wooden paddle, a morning star, a hammer or a crowbar.65 This exercise requires the user to be physically active by moving around and waving their arms.65 The users can interact with the system by standing up or sitting down, depending on the individual’s physical limitations.65 The intervention helped retain people’s focus (mean 4.44, maximum 5, SD 0.74).65

Pain and symptom tracking and management

Through the use of extended reality applications, the included studies showed important improvements in outcomes related to symptom management with a focus on symptoms such as pain, hot flashes, sleep disturbance, tiredness, shortness of breath, drowsiness, nausea and vomiting.28^,^30^,^36^,^38^,^49^,^55^,^63^,^64^,^66, 67, 68

a. Pain and symptom tracking and management during the treatment phase

Turrado et al developed a tool that teaches patients how to manage their symptoms before colorectal cancer surgery.36 The VR software recreated all perioperative phases in which the patient is awake, from admission to discharge.36 Another tool by Gao et al was developed to educate patients on the radiotherapy processes and help them learn more about symptom tracking.38 The interventions showed that patients experienced less anxiety and a significant decrease in systolic blood pressure (p < 0.05).38 VR has also been demonstrated to be effective in assisting cancer patients in symptom management at home and after treatment sessions.67 Giannelli et al used Virtual Reality Intervention Therapy (VRIT) to treat anticipatory nausea and vomiting in cancer patients undergoing chemotherapy.67 The therapy utilises a head-mounted display (HMD) system to immerse patients in a virtual environment, providing a distraction from the negative anticipatory symptoms associated with chemotherapy. Symptoms such as pain, tiredness, nausea and vomiting were monitored. The study found that VRIT effectively reduced nausea and vomiting.67 Specifically, 80% of the participants reported a decrease in the level of nausea and the number of vomiting episodes.67 The interventions also showed a significant improvement in pain (p = 0.013), tiredness (p < 0.001) and anxiety (p = 0.013).67 Notably, more focus was given to pain and physical wellbeing as symptoms**.**69^,^70 For instance, using the calming underwater environment, the Blue tool, helped reduce patients’ pain by 59%.61

Another one by Feyzioğlu et al discussed a VR-delivered pain therapy software program designed to help cancer patients undergoing breast cancer surgery manage neuropathic pain.71 The program incorporated guided visualisation and progressive muscle relaxation techniques to minimise cybersickness in this vulnerable patient group.71 It helped reduce opioid consumption and pain severity among breast cancer patients.71 At 1-month and 3-month follow-ups, the intervention group showed a trend towards reduced opioid consumption compared to the control group. At 1 month, the reduction was 8 mg in the intervention group versus no change in the control group (p = 0.52).71 At 3 months, the reduction was 4 mg in the intervention group versus an increase of 15 mg in the control group (p = 0.34).71 The intervention group also showed a trend towards reduced pain severity. At 1 month, the reduction was 0.4 in the intervention group versus an increase of 0.4 in the control group (p = 0.02).71

b. Pain and symptom tracking and management during the palliative care and survivorship phase

XR tools were also developed to support symptom tracking and management in the post-treatment phase. For instance, Bubble was used to manage symptoms such as hot flashes and sleep disturbances in women with breast and ovarian cancer.30 The intervention incorporated cognitive behavioural therapy and mindfulness-based stress reduction elements, delivered in a VR environment designed to provide a calming and cooling experience.30 It helped reduce the daily frequency of hot flashes from pre-treatment M = 11.31 to post-treatment M = 6.83, p < 0.01.30

Additionally, UNICARE Home+ showed significant outcomes improvement.72 The tool is an AR application that helps manage pain in rehabilitation therapies after treatment and allows remote monitoring by therapists while breast cancer patients are at home.72

Furthermore, Mohammad et al used VR therapies as an adjunctive treatment for managing chronic cancer pain, using distracting techniques to help breast patients adapt to the side effects of chemotherapy.73 A study by Atef et al discussed the use of 3D head-mounted and 2D screen VR applications to manage cancer pain in adults receiving palliative care.74 Participants showed a reduced pain intensity of 1.9 (p = 0.003) for the 3D HMD VR and a reduction of 1.5 (p = 0.007) for the 2D screen applications.74

Using virtual travel sessions to memorable or desired locations, Cartujano-Barrera et al helped decrease pain from a mean score of 2.35 to 1.15 (p = 0.005), tiredness from a mean score of 2.90 to 1.35 (p = 0.004), drowsiness from a mean score of 2.70 tot 1.35 (p = 0.012), and shortness of breath from a mean score of 1.74 to 0.35 (p = 0.022).66

Rehabilitation, physical therapy and improved quality of life

Different tools were developed to support rehabilitation and physical therapy among cancer patients, contributing to the improvement of their quality of life.72^,^75^,^76

a. Rehabilitation, physical therapy, and improved quality of life during the treatment phase

Chuan et al developed a bespoke VR-delivered pain therapy to help cancer patients manage neuropathic pain, incorporating guided visualisation and progressive muscle relaxation techniques while minimising the risk of cybersickness in this vulnerable patient population. The intervention showed improved pain severity and quality of life.75 Moreover, Feyzioğlu et al used a Kinect-based VR rehabilitation program to improve upper limb function in patients undergoing breast cancer surgery.71 The intervention improved grip strength, functionality, muscle strength, and shoulder range of motion (ROM).71

b. Rehabilitation, physical therapy, and improved quality of life during the palliative care and survivorship phase

UNICARE Home+, an AR-based digital healthcare system for postoperative rehabilitation among breast cancer patients, provides at-home exercises.72^,^77 It uses the Xbox One Kinect to track movements in three-dimensional space, providing real-time feedback through visual and auditory cues to ensure exercises are performed correctly.72^,^77 The system delivers prescribed exercises directly to the patient’s home, where they can follow along with on-screen instructions and receive instant feedback.72^,^77 This setup allows physicians to remotely monitor and customise the exercise programme, enhancing the convenience and effectiveness of rehabilitation without the need for frequent hospital visits.72^,^77 The system aims to improve shoulder range of motion, reduce pain, and enhance functional outcomes and quality of life for postoperative breast cancer patients.72^,^77 With this setup, the studies improved outcomes such as ROM and functional outcomes over 12 weeks, all while improving the quality of life among the participants.72^,^77 Another study by Basha et al used Xbox Kinect games to provide complex decongestive physiotherapy, including manual lymphatic drainage, compression therapy and exercises.47 Compared to traditional therapy, statistically significant differences were recorded in VAS (pain intensity), Disability of the Arm, Shoulder, and Hand (DASH), shoulder ROM (p < 0.001), bodily pain (p = 0.002), general health (p < 0.001), and vitality (p = 0.006) in favour of the VR group.47

Enhancing treatment adherence

Two interventions aimed to improve the patient’s adherence to cancer treatment by providing mindfulness exercises during treatment sessions.41^,^78 Schrempf et al’s intervention involved patients chairside in a hospital bed depending on the patient’s condition and preference,78 and provided them with calming effects to encourage ongoing treatment.78 While Schrempf et al supported patients during the treatment phase, Banos et al’s intervention helped improve adherence to post-treatment exercise among people with advanced cancer by improving their mood and wellbeing.41

Education and information

a. Education and information during the treatment phase

VR was used to provide cognitive behavioural therapy to help patients manage their depressive symptoms during the treatment sessions.34^,^79^,^80 The findings from the study by Cimpean et al suggested significant improvements in quality of life and pain intensity, p < 0.05,34 and Fabi et al showed better anxiety levels.79 Another intervention by Garrett et al helped patients manage chronic cancer pain through distraction, relaxation and cognitive engagement. It educated them by integrating mindfulness meditation techniques and providing guided experiences that enhanced their understanding and acceptance of their pain.46

b. Education and information during the palliative care and survivorship phase

Educating patients on the benefits of training exercises on symptom severity and quality of life through exercise sessions.47 A study by Zhou et al was effective in teaching patients about the benefits of functional exercise and how to perform physical rehabilitation results.81 Moscato et al helped teach patients about their post-treatment symptomology from the comfort of their homes, resulting in better pain and anxiety levels.68 Niki et al also educated patients on how to cope with terminal cancer by allowing them to virtually ‘go to a memorable place’ or ‘return home’.60

Challenges of extended reality use

The studies and interventions highlighted several challenges worth noting as part of this review. The challenges involved physical discomfort and health concerns, technical and operational challenges, environmental and contextual challenges, resource and cost challenges, and user experience and compliance. More details on these challenges are in Appendix 6.

Discussion

This review investigated the different applications of extended reality (XR) technologies to support cancer patients across the cancer care continuum. It explored their impact on patient outcomes in the different phases (diagnosis, treatment, survivorship and palliative care) and described their use challenges. Sixty-two studies were included, suggesting the extent of literature on cancer support using XR. Although a review by Zhu et al showed that AR is gaining more popularity in healthcare,82 only two studies in our review showed results from AR-based experiments to support cancer patients. Notably, most of the studies included in the review by Zhu et al presented early prototypes only,82 which may explain the limited use of this technology in cancer settings. The included studies have also shown support for different types of cancer patients, with more focus on technologies developed for general cancer populations (more than two types of cancer) and breast cancer patients. While focusing on the general cancer population may be beneficial to different patients, it can result in less customised experiences and less efficient outcomes.83 More focus should also be given to different types of cancer, such as lung and gastrointestinal cancer populations, where technology-based educational interventions are needed to support their behaviours and decision-making.84

Technology functions of support to cancer patients across the cancer care continuum

Furthermore, this study identified the different functions of the XR technologies available to support cancer patients. The functions were categorised into seven groups, ranked according to the predominance of the targeted health outcome: anxiety and stress reduction, pain management, symptom tracking and management, improved quality of life, rehabilitation and physical therapy, education and information, and enhancing treatment adherence. While many reviews investigated the use of immersive technology to support psychological wellbeing and rehabilitation management of specific groups of cancer patients,21^,^85 our study, to our knowledge, adds to the literature by identifying these different themes, showing that not only do these technologies have different potential applications for all the different groups of cancer patients, but some applications are also given more attention than others. For instance, while enhancing treatment adherence may be very important to cancer patients, more attention is given to psychological wellbeing support.86 It is important to note that improving treatment adherence can also result in better psychological outcomes.87 Our results emphasised the distribution of these different functions across the cancer care continuum. We found a predominant focus on the treatment phase, followed by the palliative care and survivorship phase. The limited exploration in prevention, early detection, and diagnosis underscores significant research gaps. Clinicians and researchers should prioritise studies investigating XR technologies’ potential in these early stages of cancer care. Supporting cancer patients in the early stages can help enhance patient engagement, adherence to treatment protocols, and overall quality of life,2^,^88 and exploring how XR can enhance early diagnosis or facilitate preventative strategies may lead to earlier interventions and improved patient outcomes, considering the role played by other medical informatics tools.89

Challenges of extended reality use

When investigating the challenges accompanying the use of XR in cancer settings, patients mentioned several problems they faced related to their physical discomfort and health concerns, technical and operational challenges, environmental, resource, cost, and contextual challenges, and user experience problems. While most of the studies ensured that these challenges did not impact the outcomes of the studies, it is essential to address them and account for them when designing future experiments to improve cancer patients’ acceptability of these technologies. Some technical and operational challenges can be solved to provide cancer patients with better testing environments and experiences. For instance, extensive literature focuses on improving cybersickness issues in XR experiments by adjusting the settings to the levels of comfort among patients, allowing patients to take breaks between sessions, and using visual techniques such as rotation blurring, among others.90, 91, 92

While many of these techniques have been tested in general care settings,90^,^92 more attention should be given to testing them in cancer care settings, considering cancer patients may suffer from disease-related side effects that could contribute to more pronounced technology use issues. While many studies used commercial software in their experiments, simply trying commercially available products on different cancer populations might not suffice and may be harmful. Some challenges related to physical discomfort could also be mitigated by providing more ergonomic equipment and adjustable testing environments that may result in less pain. In addition, reducing external noise and disturbances in experimental environments through better soundproofing and controlled settings can result in more user satisfaction. While home interventions can be beneficial in supporting self-efficacy among patients, more structured home interventions with better support should be designed to control the experiments’ outcomes.

Although some challenges can be addressed, others that are related to the physical and psychological health status of the patients are harder to account for. For instance, in some experiments, participants experienced the progression of their diseases, leading to the withdrawal of consent during VR exercises.92 This challenge is inherent to the participants’ health conditions and cannot be mitigated through VR design or intervention adjustments.

The study limitations are summarised in Appendix 7.

Study limitations

While this review has many strengths, it has some limitations worth acknowledging. First, we only included articles written in English. We may have missed relevant articles that are written in different languages. In addition, the XR technologies and interventions included in the study varied widely in terms of content, strategies and specifications. This heterogeneity may complicate the interpretation of results and limit the ability to draw consistent conclusions about the effectiveness of XR technologies across different cancer care settings. Furthermore, the studies reviewed were conducted in various settings (clinic vs. home), and the technologies were tailored to different patient needs. This diversity may limit the generalisability of the findings to other contexts or patient groups, particularly where resources or access to technology are limited. We did not differentiate between research-developed tools and commercially available ones in the reporting of the findings, which can be covered in future research. Finally, this study focused on studying the use of XR across the different cancer continuum phases. Although we reported the type of cancer for each of the populations that the tools were designed for, it would be beneficial to compare the findings per type of cancer in future studies.

Based on the findings, we propose the following key directions for future research. First, a more targeted review examining XR interventions for specific cancer types (eg, breast, lung or haematological malignancies) could provide deeper insight into cancer-specific symptom management and patient needs. Second, the majority of current XR interventions focus on treatment and survivorship. Future research should explore applications in: (1) prevention and early detection (eg, XR-based education and risk assessment tools), and (2) diagnosis (eg, XR-assisted imaging interpretation and biopsy simulations). Additionally, future studies should develop consistent intervention protocols, including: session length and frequency of XR use, optimal headset types and settings for different patient needs, and longitudinal follow-up studies to assess sustained impact over time.

By addressing these research gaps, future studies can provide stronger evidence on the role of XR in oncology, ultimately improving patient outcomes and clinical implementation strategies.

Conclusions

While XR technologies represent a promising frontier in cancer care, more targeted research and development efforts are needed to realise their full potential. By addressing the identified gaps and challenges, future studies can contribute to the evolution of patient-centred cancer care, offering enhanced support, and improved outcomes for cancer patients throughout their journey.

Summary table:

• •Extended reality is emerging in healthcare.
• •Virtual reality and augmented reality are gaining more interest in cancer care for patients’ use.
• •While these technologies have shown promise, there remains a significant gap in their application during the early stages of cancer care, such as prevention, early detection and diagnosis.
• •The variability in XR technologies and intervention designs, along with the challenges related to physical discomfort, technical issues, and user compliance, highlights the importance of addressing these limitations to ensure the broader applicability and acceptance of XR interventions in real-world clinical settings.
