Enhanced distance protection for HVDC lines using adaptive neuro-fuzzy inference systems

TL;DR

This paper introduces a new method for detecting and locating faults in high-voltage DC transmission lines using a fuzzy inference system.

Contribution

A novel adaptive neuro-fuzzy inference system is proposed for improved fault detection and localization in HVDC lines.

Findings

The proposed system successfully identifies faults with high resistance in HVDC transmission lines.

Simulation results show the method outperforms existing fault detection techniques.

The approach classifies and locates faults across three zones of the transmission line.

Abstract

Accuracy and speed of fault detection are crucial to the performance of DC transmission systems. In this paper, a novel approach is proposed for fault detection, classification, and localization in high-voltage DC transmission lines (HVDC-TLs). The proposed approach for protecting HVDC-TLs by designing and operating a distance protection scheme has been constructed using a fuzzy inference system and training an adaptive neuro-fuzzy inference system. A fuzzy inference system model is proposed to detect faults, classify them, and determine the zone where the fault occurred. The transmission line is divided into three zones to facilitate fault location identification. An adaptive neuro-fuzzy inference system is then trained to determine the fault location per kilometer. The proposed distance protection scheme identifies faults with high fault resistance; it can be successfully used to estimate the fault area and locate faults in HVDC-TLs using the concept of fuzzy inference. A monopolar DC transmission line system was modeled and operated, and several faults were simulated using PSCAD and MATLAB software. As clarified from the various simulation experiments, the proposed approach has performed better than the existing techniques and recently published related works.

Figures

Monopolar DC transmission line contents.

The structure of the input and output of ANFIS in the proposed principle.

Flowchart of the proposed fuzzy-based method.

Monopolar structure system for the proposed method.

Total DC signal at faults on the transmission line simultaneously: Instantaneous current in the HVDC-TL, and RMS value of the current in the HVDC-TL.

Fault detection proposed approach using FIS-1 model.

Membership function for fault detection: First input of current signal (Instantaneous current), and second input of current signal (RMS value).

Fault classification proposed approach using FIS-2 model.

Membership function fault section identification: First input of current signal (Instantaneous current) and second input of current signal (RMS value).

Zone faulty proposed approach utilizing FIS-3 model.

The membership function for determining the fault zone: First input of current signal (Instantaneous current), and second input of current signal (RMS value).

The membership function for the fault location of the ANFIS design: Conventional method, and for the correction method.

The original length vs the predicted length at zero ohms.

The original length vs the expected length “conventional method” at fault resistances of 0.05 Ω and 300 Ω: With fault resistance 0.05 Ω and at fault resistance 300 Ω.

Comparison between the original and predicted fault locations using the correction method at fault resistances of 0.05 Ω and 300 Ω: For 0.05 Ω and 300 Ω.

The comparison between the conventional method and the correction method.

Statistical analysis for the proposed technique without noise.

Statistical comparison of the conventional and correction methods using error-bar analysis without noise.

The current signal under noise interference effect.

Statistical analysis for the proposed technique with noise.

The overall evaluation of the proposed method without noise.

The overall evaluation of the proposed method with noise.

Statistical comparison of the conventional and correction methods using error-bar analysis with noise.

Equations

Full text

1. Introduction

HVDC transmission systems are increasingly recognized as a key solution for long-distance and high-capacity power transfer. Compared with conventional high-voltage alternating current (HVAC) transmission, HVDC offers a number of technical and economic advantages. It reduces transmission losses, requires fewer conductors, and eliminates problems related to phase angle, synchronization, and transient stability [1]. Therefore, HVDC technology is widely adopted in various applications such as interconnecting asynchronous power grids, transmitting electricity from remote renewable energy sources, and enabling efficient bulk power transfer over long distances. A typical HVDC link employs converter stations at both ends of the transmission line, as illustrated in Fig 1. At the sending end, rectifiers convert AC power into DC, which is transmitted over the line; at the receiving end, inverters convert the DC back into AC. This bidirectional flow capability makes HVDC systems both flexible and efficient in the modern power networks [2].

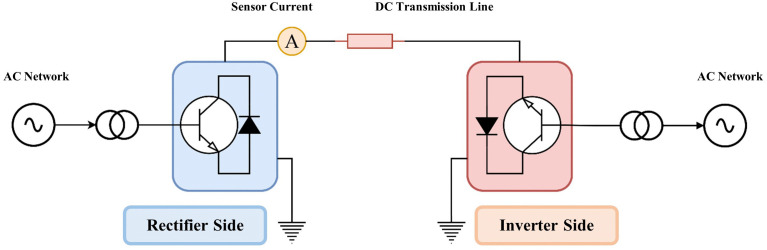

Monopolar DC transmission line contents.

Despite these advantages, HVDC transmission lines remain vulnerable to faults from lightning, equipment failure, insulation breakdown, or human error. Such events can disrupt power delivery, damage equipment, and cause major financial losses. Accurate fault detection, classification, and location are critical to ensure reliability, enable rapid isolation and restoration; therefore, inefficient protection may lead to prolonged outages and reduced system stability [3,4]. Table 1 highlights the symbolic representation of technical terms utilized in the manuscript.

Table 1: Description of symbols and abbreviations.

Over the past decades, a variety of fault detection and location strategies have been proposed for HVDC systems. These methods can be broadly categorized into parameter-based, frequency component based, travelling wave-based, and knowledge-based approaches [5,6]. The parameter-based approaches, such as virtual impedance-based methods [7] and time-domain impedance-based methods [8], often yield large estimation errors because they heavily depend on network parameters. To overcome these limitations, frequency component-based methods like gap frequency spectrum analysis (GAP) [9] and travelling wave (TW)-based techniques have been introduced [10–13]. TW methods are among the most widely used in HVDC systems due to their speed and accuracy [14,15], but their performance is influenced by wave-front arrival times, monitoring device placement, fault resistance, and line characteristics [16–20].

Recently, knowledge-based intelligent models, particularly the ANFIS, have been applied to address these issues. ANFIS techniques offer high accuracy and fast response because they are trained on system data and remain effective under varying fault conditions [21]. They also enable accurate fault classification when trained on diverse fault scenarios [22]. However, ANFIS performance depends on the training strategy and the amount of fault data available [23]. These limitations can be mitigated by using heuristic and meta-heuristic optimization methods for training [24,25] and employing feature extraction techniques to enhance fault signal representation [26].

Several feature extraction methods have been proposed in previous studies [27]. In VSC-HVDC systems, hybrid schemes combining ANFIS with optimal parameter selection and Hilbert–Huang (HH) transformations have been proposed for fault location [28]. A non-unit DC distance protection technique has also been introduced, estimating fault distance by analyzing DC voltage transient frequency using HHT. Simulation results demonstrated that this method achieved a correct operating rate of > 94% for faults within the second protection zone [29]. Furthermore, the wavelet transform (WT) has been widely used for extracting fault signal features in different applications [30,31].

Based on the previous, our research paper presents a new fault detection, classification, and location approach with robustness and lower complexity features. This proposed approach directly utilizes DC current signals and remains accurate under fault resistances up to 300 Ω and noisy environments. It is structured in two stages: first, a fuzzy inference system (FIS) divides the HVDC transmission line into three protection zones and identifies the fault zone; second, ANFIS is trained to determine the precise fault location along the line.

The remainder of the paper is organized as follows: Section 2 introduces the ANFIS framework, Section 3 describes the VSC-HVDC model and implementation steps, Section 4 presents the ANFIS-based fault location design, Section 5 validates performance through PSCAD and MATLAB simulations under various operating conditions, and Section 6 concludes with key findings.

2. Adaptive neuro-fuzzy inference system (ANFIS)

In this section, a historical note about ANFIS has been presented and with its main contents. Jang introduced and developed ANFIS, a fuzzy inference system, within the paradigm of adaptive networks in 1993. ANFIS makes use of ANN learning power to extract fuzzy if-then rules with appropriate membership functions (MF) from training input-output pairs, resulting in inference. In general, ANFIS is divided into two sections: the preceding section and the epilogue section. Within the ANFIS network topology, ambiguous rules bind the preceding and outcome segments together. The parameters in these areas are used to train and update ANFIS. More details about ANFIS can be found at [32].

Fig 2 shows the input and output of ANFIS in the proposed principle, where Iins is the first input of the current signal (Instantaneous value), Irms The second input of the current signal (rms value), and the output is the predicted fault location. It was decided to use the input current signals I_rms_ and I_inst_ since they are the most physically relevant values that undergo significant change under various fault scenarios. These inputs enable the ANFIS model to precisely identify different fault types and pinpoint their locations by capturing the system’s behavior in both steady and unstable states.

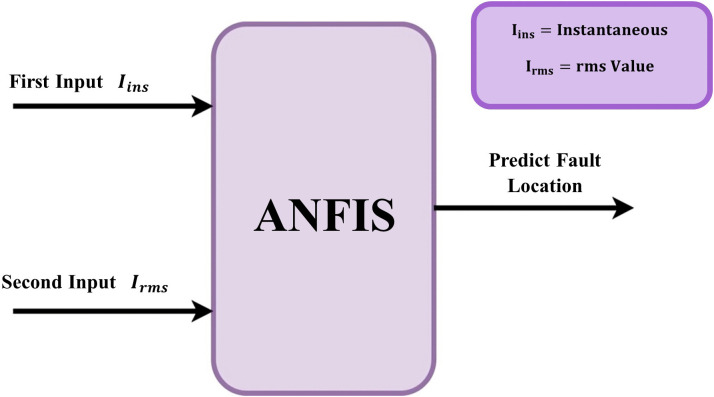

The structure of the input and output of ANFIS in the proposed principle.

3. The proposed approach

The efficient proposed fault detection/location has been discussed in this section based on the ANFIS system.

To detect and locate the fault, the suggested method adopts a fuzzy inference system. A flowchart of the suggested fuzzy-based method is shown in Fig 3. The current signals are acquired from the transmission line in the manner described in Fig 4. The signals obtained are sent into fuzzy inference systems (FIS) and adaptive neuro-fuzzy inference systems (ANFIS) as inputs. Table 2 shows the HVDC TL parameters

Table 2: The HVDC-TL parameters and constants.

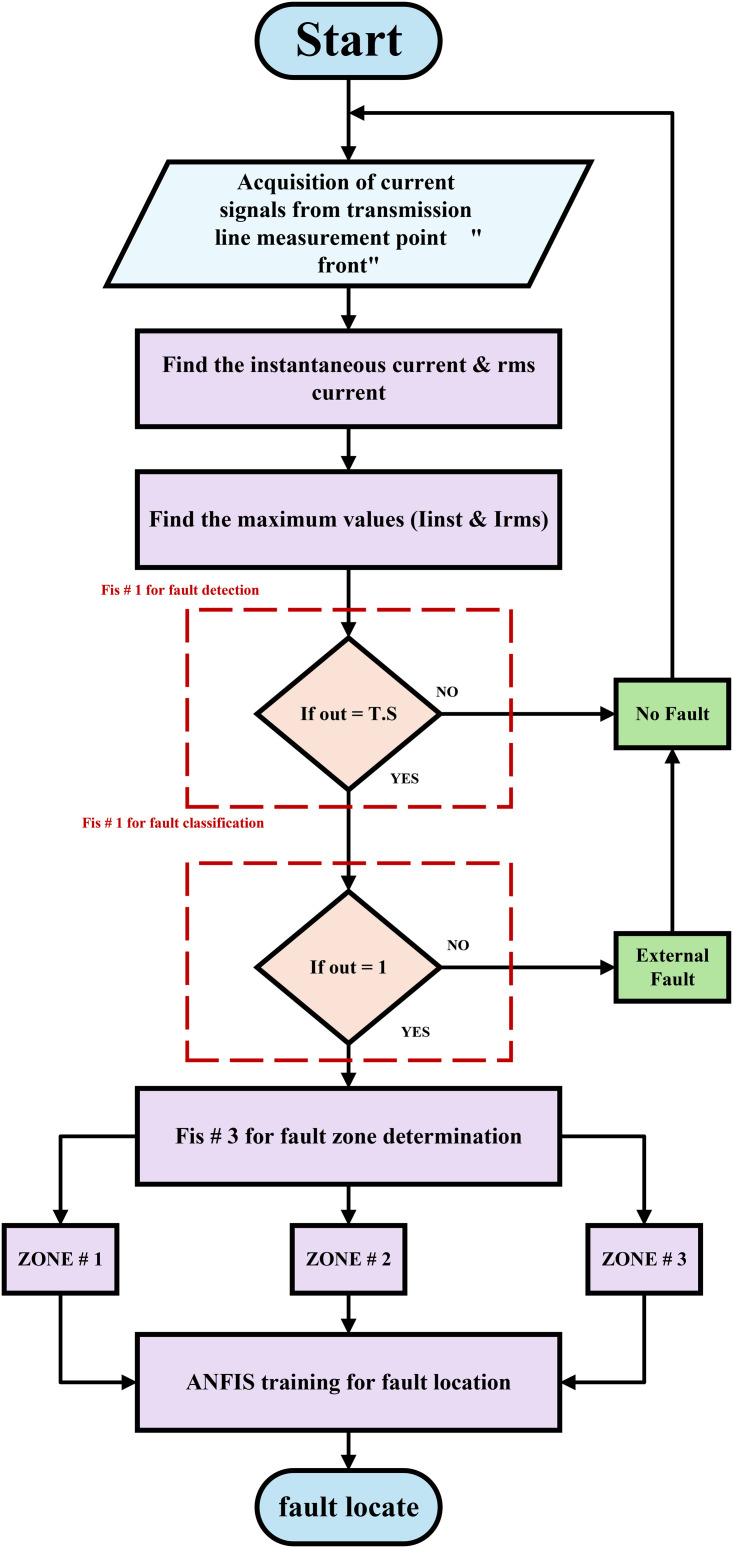

Flowchart of the proposed fuzzy-based method.

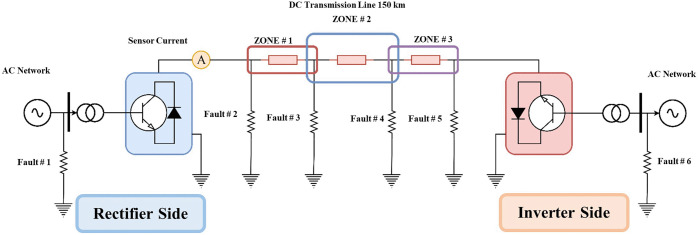

Monopolar structure system for the proposed method.

Several faults were applied along the transmission line, with the time of the fault being fixed at 0.3 sec and the prolongation of the fault continuation time to 0.2 sec. During the period of the fault, the maximum value of the instantaneous current and the maximum effective value of it are obtained as shown in Fig 5. When a DC transmission system has a failure, the voltage value falls while the current value rises; this characteristic can be considered advantageous in the fault detection of HVDC-TL systems. The proposed fault detection/location approach has been evaluated under the various system’s operating conditions, such as a variation in fault AC/DC types, fault location, fault resistance, far-end faults, and near-end faults, as clarified in the simulation experiments section. It also necessitates the use of three fuzzy inference system controllers to enhance the accuracy of the proposed approach. In addition, in the training stage of the adaptive neural fuzzy inference system for fault location, three separate tasks have been determined: fault detection, fault section identification, and establishing the fault location were performed. Because each of these relay jobs is Due to the three different tasks, three independent fuzzy controllers (FIS-1, FIS-2, and FIS-3) are utilized in our proposed approach, each one of them responsible for a distinct task. The FIS-1 is designed to detect faults in both the DC and AC sides, the FIS-2 is designed to identify fault sections [33], and the FIS-3 is designed to find the fault zone by training the ANFIS. If there is an AC or DC fault section, the fault detection output is ‘1’. Because there is no fault, the fault detection output is “0.”

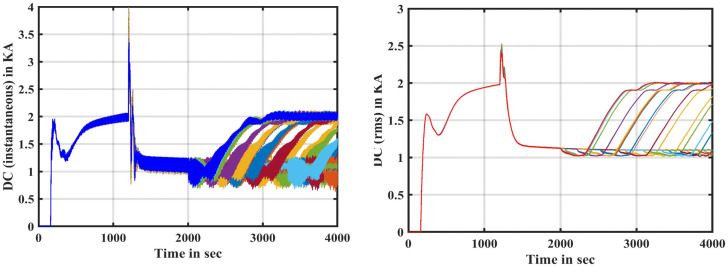

Total DC signal at faults on the transmission line simultaneously: Instantaneous current in the HVDC-TL, and RMS value of the current in the HVDC-TL.

Each fuzzy unit contains nine rules (3 × 3), with each unit using two inputs and three trigonometric membership functions (LOW, MDT, and HIGH) per input. For the FIS-1 and FIS-2 fault detection and classification modules, the zero-order Sugeno output membership functions are constant values corresponding to the fault flags (–1, 0, 1), where 0 indicates no fault, 1 indicates an internal fault, and –1 indicates an external fault. For fault zone selection, the second input and single output correspond to zone identifiers (1, 2, 3) representing Zone 1 (output ≃ 1), Zone 2 (output ≃ 2), and Zone 3 (output ≃ 3). The number and structure of fuzzy rules, as well as the membership functions and their parameterization, are clearly presented in Table 3. In the following sub-section, the various models of FIS-n have been described separately.

Table 3: Summary of FIS structure, rule base, and membership function parameters.

3.1. Designing the first model of the fuzzy inference system FIS-1

As mentioned, our proposed ANFIS-based fault detection location approach contains three separate FIS models, each of which performs a specific task. In this sub-section, the first model has been described, FIS-1. It accepts a DC signal as input, detects the fault. The “Sugeno” style of fuzzy controller has been utilized to create the FIS-1. The membership function does not have any precise criteria to pick from. Triangular membership functions might be more appropriate for this application than the true and false ones discovered. To construct a Triangular membership function and signaling currents in various ranges, this membership function is designed using three bands of current as follows: a soft state (SOFT), moderate state (MDT), and high state (HIGH). The output membership function has two parts, TS (1) and FS (0), where TS stands for a trip (fault) and FS stands for non-trip (no-fault). The FIS for detecting faults is given in Fig 6. The three-membership function of fault detection has been shown in Fig 7 [33].

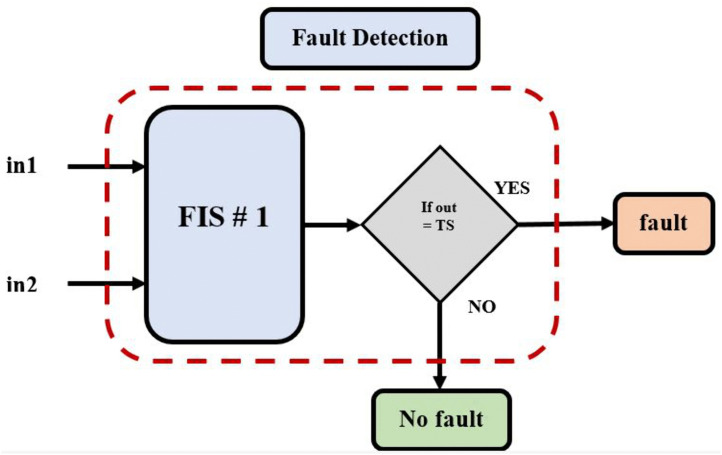

Fault detection proposed approach using FIS-1 model.

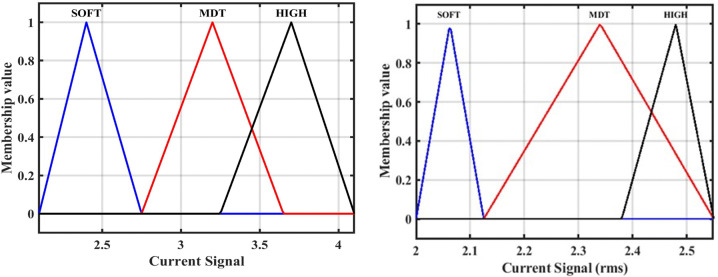

Membership function for fault detection: First input of current signal (Instantaneous current), and second input of current signal (RMS value).

3.2. Designing the second model of the fuzzy inference system FIS-2

The second model of FIS has been presented in this section. FIS-2 is used in the second proposed method for fault section identification [33]. Fig 8 shows the construction and operation of the proposed FIS-2 technique for fault classification. The FIS-2 module receives DC signals from the HVDC-TL as inputs. As illustrated in Fig 9, the triangle membership functions (SOFT), (MDT), and (HIGH) are used to set three bands of signal currents. The result: Internal faults are represented by TS (1), faults are represented by FS (0), while exterior faults are represented by trip TS (−1).

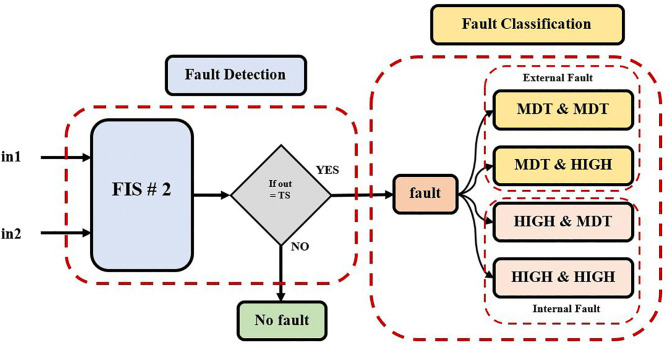

Fault classification proposed approach using FIS-2 model.

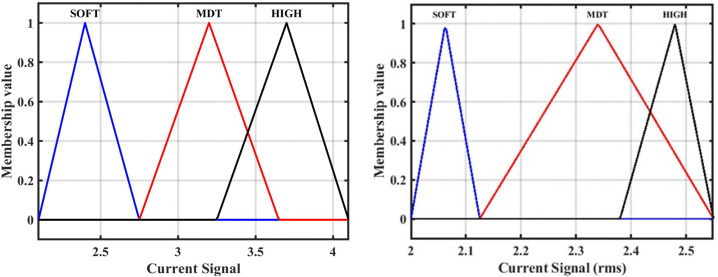

Membership function fault section identification: First input of current signal (Instantaneous current) and second input of current signal (RMS value).

3.3. Designing the third model of the fuzzy inference system FIS-3

The third task performs the identification of the fault zone. This sub-section presents the contents and setting of the FIS-3 model in the proposed ANFIS-based fault detection/location approach. The third proposed independent method utilizes the FIS-3 fuzzy inference model. It identifies the fault zone within the DC network. Fig 10 shows the execution sequence of the FIS-3 model. The system’s input uses DC signals from the HVDC-TL. three proposed bands of input are set using triangle membership function soft state (SOFT), moderate (MDT), and high (HIGH) as shown in Fig 11. The output of the membership function is divided into three bands to determine the fault zone and boundaries of protection zones ZONE 1 from 1 km to 55 km, ZONE 2 from 45 km to 105 km, and ZONE 3 from 95 km to 150 km: ZONE 1 TS, ZONE 2 TS, and ZONE 3 TS.

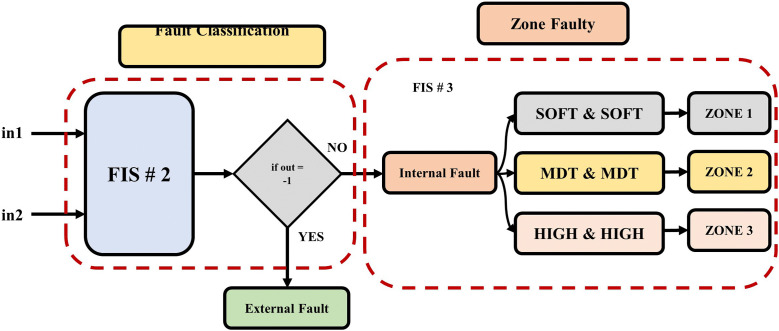

Zone faulty proposed approach utilizing FIS-3 model.

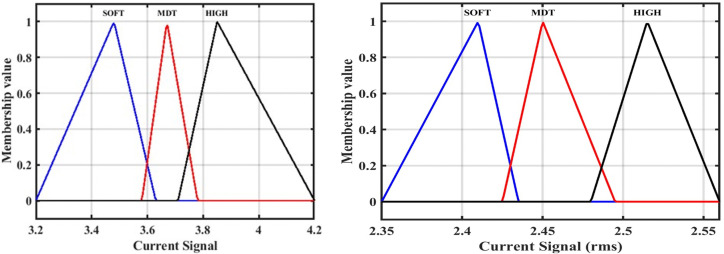

The membership function for determining the fault zone: First input of current signal (Instantaneous current), and second input of current signal (RMS value).

4. Designing the ANFIS for fault location

A system is designed to locate the fault by determining the fault kilometer through training and design of the ANFIS. The system has been studied and simulated using data of the DC signal “ DC data representing input of the ANFIS”, and the system output is the estimated fault location of the HVDC-TL. Fig 12 shows the membership function for training the ANFIS, and Fig 13 shows the predicted output with the original fault locations.

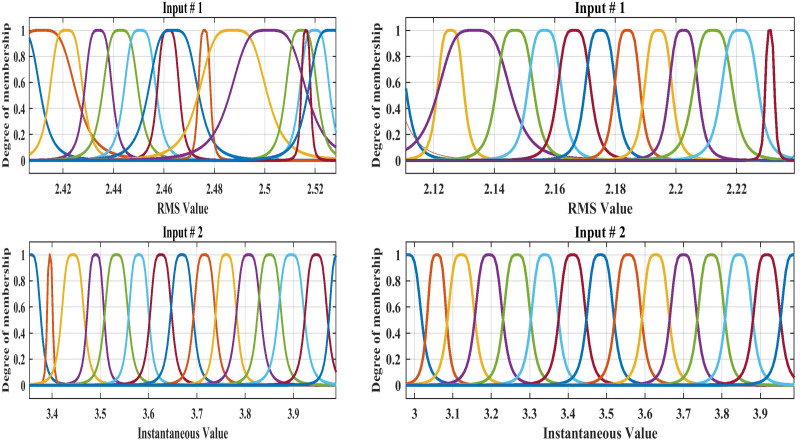

The membership function for the fault location of the ANFIS design: Conventional method, and for the correction method.

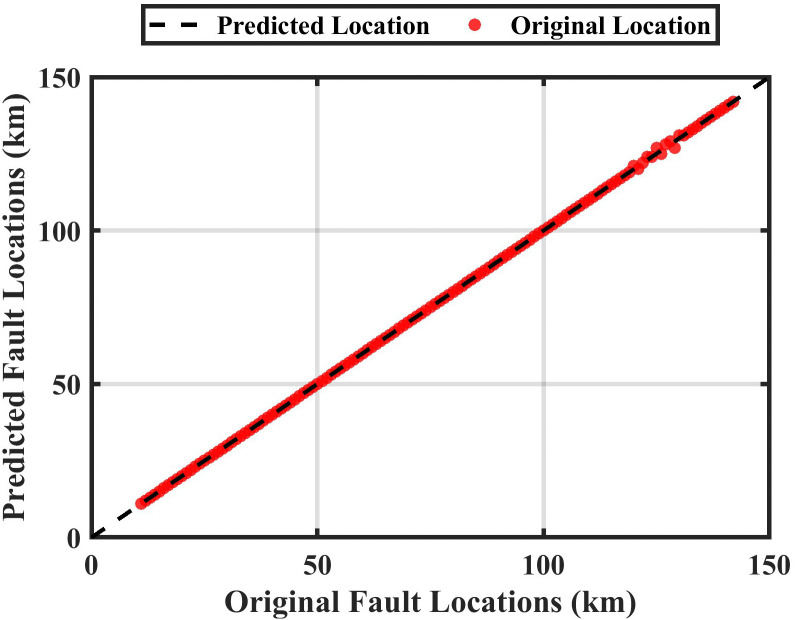

The original length vs the predicted length at zero ohms.

Based on the proposed designed ANFIS model, Table 4 provides a description of the ANFIS structure and training methodology. Extensive simulation experiments that were meticulously؟ crafted to simulate realistic operating circumstances and a range of failure scenarios in the system under investigation were used to validate the suggested approach. The simulation environment was constructed using realistic fault characteristics and realistic system parameters. Additional statistical analyses, including the computation of important performance metrics such as, Error %, RMSE, standard deviation, and R-squared, were carried out in order to validate the simulation results and show the effectiveness of the proposed approach in our presented research paper.

Table 4: Description of ANFIS Training Structure and Performance Metrics.

5. Simulation experiments and results

The system described in the file Fig 3 was simulated. The current signals were obtained from the transmission line, and the current signal was obtained in the steady state without any faults. Several faults were executed, which are F1, F_2_, F3, and F4. Also, the faults F5 and F6 were executed. The proposed protection principle has been implemented. The fault AC/DC type, fault location, fault resistance, far-end faults, and near-end faults have all been modified. The types of faults in this research are as follows: AC faults such as single line to ground, double line, double line to ground, and triple line to ground faults. DC faults only one fault is called a single line to ground faults.

Tables 5 and 6 show the performance and results of the fuzzy inference system’s simulation in detecting the fault, determining the fault section, and determining the zone of the fault occurring under the influence of changing the fault resistance.

Table 5: Proposed method performance with variable fault resistance.

Table 6: Determining the fault zone with variable fault resistance.

5.1. Performance evaluation of ANFIS for fault location

To restore the functionality of the entire HVDC system as rapidly as feasible, an accurate assessment of the fault site is critical. To test the accuracy of the suggested approach for locating faults with various fault resistance values, 142 DC fault circumstances were utilized to determine the highest instantaneous current value and the rms value [34]. The models used in this study were evaluated using four distinct performance metrics in order to give a thorough evaluation of the accuracy and effectiveness of the forecasted outcomes. Beyond percentage error, we have now integrated widely accepted statistical markers to provide a more comprehensive evaluation. Specifically, the coefficient of determination (R^2^) is employed to assess the goodness of fit between predicted and actual values. At the same time, the root mean square error (RMSE) is used to quantify the overall variance and prediction accuracy. Additionally, the standard deviation (SD) is used to capture the variability of results, complementing the error percentage. The relative error % for each fault instance was determined using equation (1), where Lorig is the original length from the rectifier substation to the fault point, Lpred is the proposed method’s assumed fault location, and LTotal is the total length of the DC transmission line.

$$[eqn]$$

Taking the square root of the MSE, as shown in Equation (2), yields the root mean squared error (RMSE) [35].

$$[eqn]$$

In power transmission systems, the R-squared (R^2^) statistic is frequently used to assess the performance of fault location algorithms, as shown in Equation (3).

$$[eqn]$$

Lastly, use Equation (4) to determine the standard deviation between each pair of data.

$$[eqn]$$

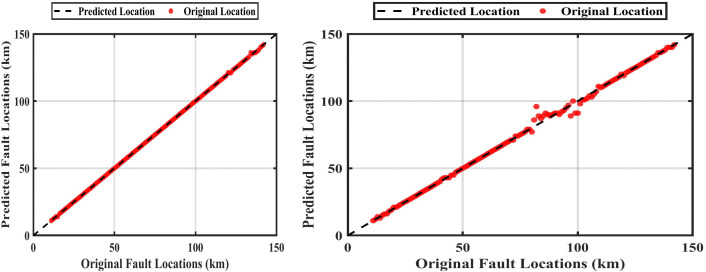

Where Lmean the mean between two values original and predicted. Fig 14 shows the training of the ANFIS to locate the fault at the fault resistance of 0.05 Ω and 300 Ω. Table 7 shows the determination of the fault location with the selection of the maximum instantaneous current value and the maximum rms value. This method is called the conventional method.

Table 7: Fault location with the variable resistance (conventional method).

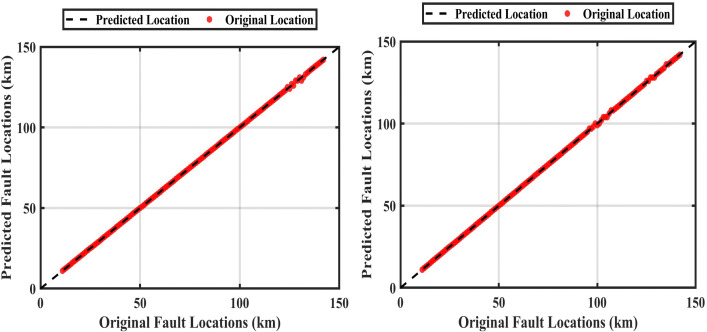

The original length vs the expected length “conventional method” at fault resistances of 0.05 Ω and 300 Ω: With fault resistance 0.05 Ω and at fault resistance 300 Ω.

A proposed method was found to deal with this problem by obtaining the maximum value of the instantaneous current and the maximum effective value at a fixed time value during the failure period, the fault application time is 0.3 sec, the fault persistence time is 0.2sec, and during this period the time was fixed at 0.3015sec, this method is called the ‘Correction Method’ Fig 15 shows the training of the ANFIS at a constant time with an fault resistance of 0.05 Ω and 300 Ω. Table 8 shows the fault location with a constant time of 0.3015 sec.

Table 8: Fault location with the variable resistance (correction method).

Comparison between the original and predicted fault locations using the correction method at fault resistances of 0.05 Ω and 300 Ω: For 0.05 Ω and 300 Ω.

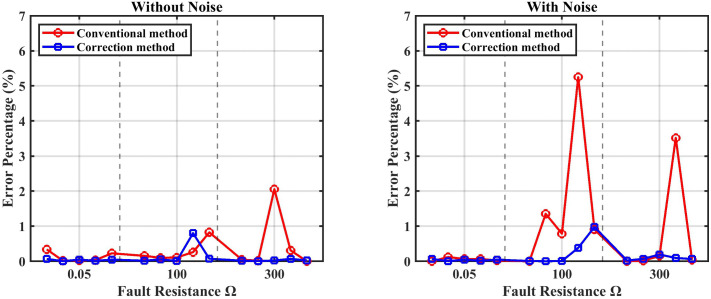

Fig 16 also shows the error percentage with various fault resistance (0.05, 100, and 300) Ω between the two methods (conventional and corrected). The statistical analysis presented in Tables 7 and 8 for both the conventional method and the corrected method is displayed in Fig 17.

The comparison between the conventional method and the correction method.

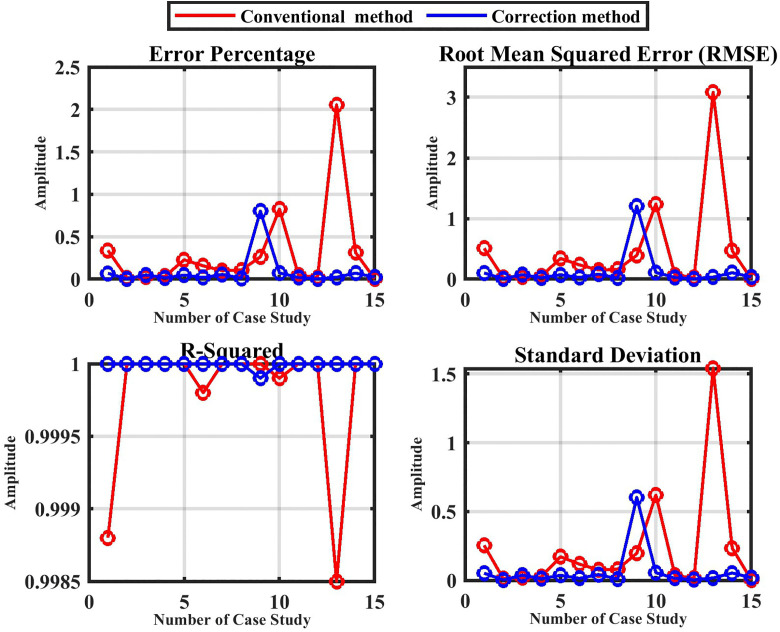

Statistical analysis for the proposed technique without noise.

We have elaborated on the data collection process. Specifically, 142 RMS value cases and 142 instantaneous current value cases were obtained, one case per kilometer along the 150 km transmission line, resulting in a total of 284 simulation cases. This ensures that the dataset is both systematic and statistically meaningful.

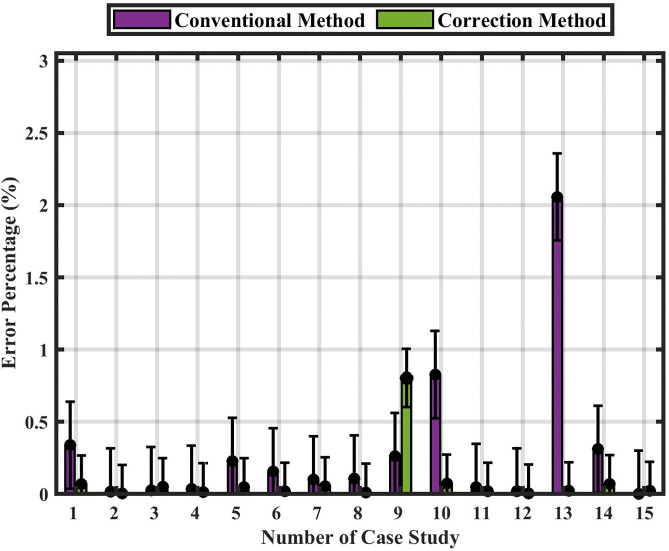

Fig 18 Performance comparison with error bars representing standard deviation across 142 simulation cases. The inclusion of error bars illustrates the variability and statistical confidence of the results, enhancing the robustness and transparency of the performance evaluation.

Statistical comparison of the conventional and correction methods using error-bar analysis without noise.

5.3. Noise interference effect

HVDC-TLs are exposed to some sources of noise, and this affects the determination of the location of the fault. and this noise affects the value of the current, whether it increases or decreases, and also the shape of the current wave. Therefore, the proposed method must have the ability and efficiency to deal with noise that affects the system and locate the fault with high accuracy. The noise level that affected the system was 26 dB SNR, as shown in Fig 19. The findings compiled in Tables 9 and 10 demonstrate the effectiveness of the proposed technique in identifying faults under noise conditions.

Table 10: The performance of the proposed methodology for fault location (Correction Method) under the noise effect.

Table 9: The performance of the proposed methodology for fault location (Conventional Method) under the noise effect.

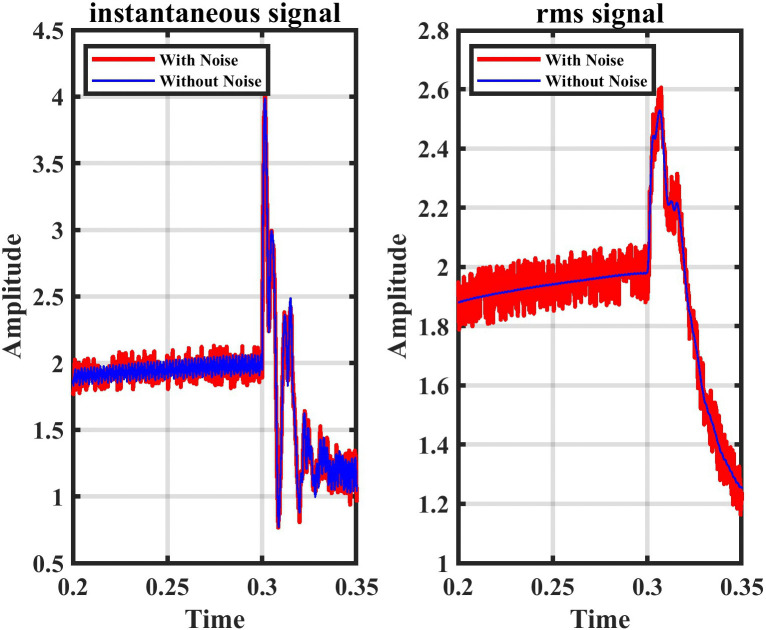

The current signal under noise interference effect.

The performance of the proposed method at different noise levels (20, 25, and 30 dB) is summarized in Table 11, confirming the effectiveness and resilience of the proposed approach in accurately identifying and locating faults under noisy operating conditions.

Table 11: The performance of the proposed methodology for fault location (Conventional Method &Correction Method) under different noise levels.

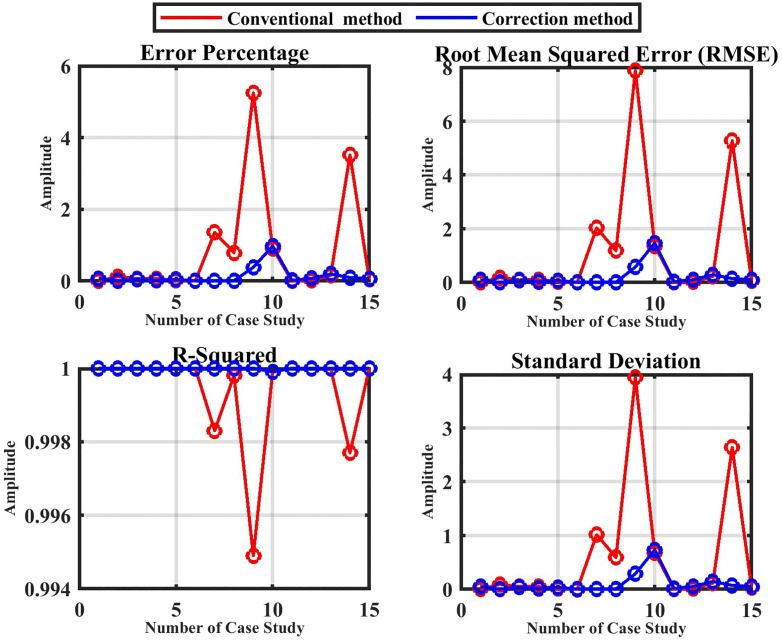

In contrast to the previous results without noise (Fig 17), Fig 20 presents the statistical analysis of both the conventional and enhanced methods under the effect of noise, as summarized in Tables 9 and 10.

Statistical analysis for the proposed technique with noise.

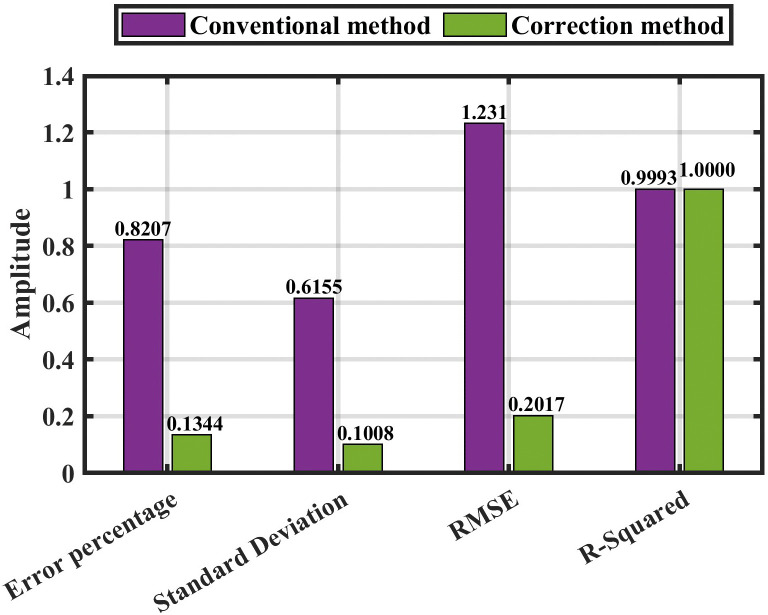

Finally, the overall evaluation of the suggested approach, summarized in Table 12 and illustrated in Figs 21 and 22, highlight the method’s capability to achieve stable and precise performance across a wide range of operating conditions, confirming its robustness and effectiveness in HVDC fault detection and localization.

Table 12: Evaluation of the proposed method.

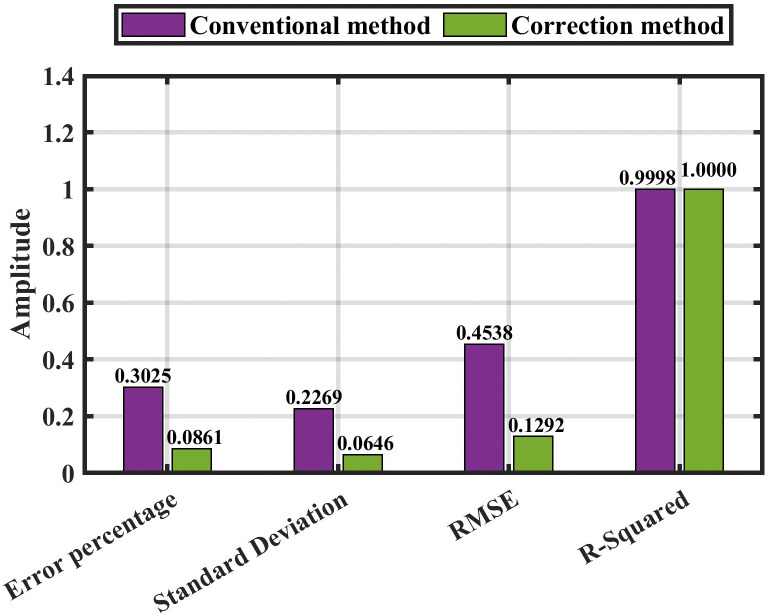

The overall evaluation of the proposed method without noise.

The overall evaluation of the proposed method with noise.

The inclusion of error bars in Fig 23 clearly illustrates the variability of the results, demonstrating the enhanced stability and robustness of the correction method compared with the conventional one under noisy conditions.

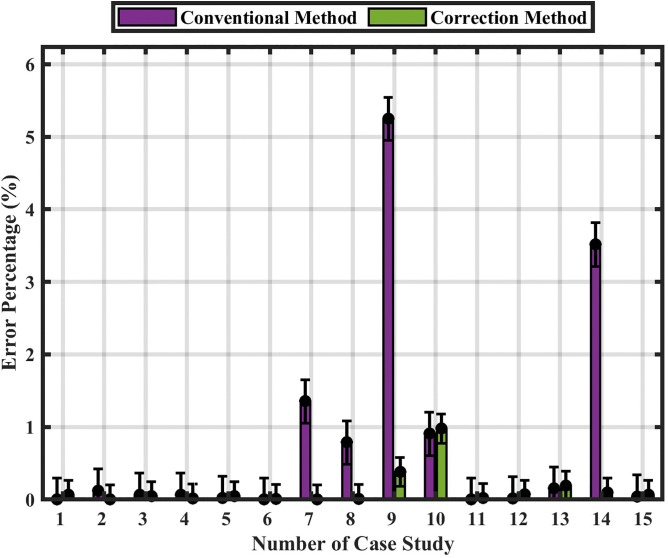

Statistical comparison of the conventional and correction methods using error-bar analysis with noise.

5.4. Comparison with different protection systems

The techniques used to identify, classify, and locate faults in HVDC-TLs are briefly compared in this section. The fault with a fault resistance of 100 ohms and an error rate of 1% is detected and located using an algorithm [9]. The gap frequency spectrum, and the fault with a fault resistance of 100 ohms and an error rate of 0.640% is located using the algorithm [36]. Natural frequency. [37,38] and [39] are used to detect, classify, and locate faults; [37] has an error rate of 0.2% when the fault resistance is 300 ohms, and under the influence of 30 dB noise. [38] and [39] have an error of 0.658% when the fault resistance is 100 ohms, and [39] has a large error of up to 29%. [40] is predicated on identifying and classifying faults with noise levels of 20–30 dB and fault resistances of up to 100 ohms. Both [41] and [42] rely on locating faults [41] with fault resistances up to 50 ohms that have not been investigated under the influence of noise (error rate: 1.2%), while [42] investigates fault locations with fault resistances up to 100 ohms that have not been examined under the influence of noise (error rate: 5%). The performance of the suggested strategy with various algorithms is displayed in Table 13, which also presents the method’s outcomes from this study.

Table 13: The proposed method’s performance compared to some of the proposed protection methods.

6. Conclusion

This study presents a novel protection mechanism for HVDC transmission lines that integrates FIS for fault detection, classification, and zone identification with an ANFIS for precise fault location. The proposed scheme demonstrates high accuracy in locating faults under diverse operating conditions, including variable fault resistances up to 300 Ω and noisy environments, where the correction method further reduced error percentages compared to conventional techniques. The results confirm that the approach enhances fault detection speed and reliability, offering a practical alternative to more complex existing methods.

6.1. Further points to be investigated

While the present study demonstrates promising results, some limitations should be acknowledged. The evaluation is based on PSCAD and MATLAB simulations, which, although comprehensive, may not fully reflect the complexity of real-world HVDC networks. In addition, the approach could be influenced by parameter variations, such as noise levels and system settings, and certain modelling assumptions may affect its direct applicability to practical systems. Future work will therefore focus on real-time validation, hardware-in-the-loop testing, and integration with SCADA-based monitoring systems, alongside extending the approach to multi-terminal HVDC and hybrid AC/DC networks to ensure scalability and practical deployment.

Supporting information

S1 FileAll image datasets were obtained from standard MATLAB image libraries (MathWorks), except for one self-captured image (Fig 1).The supporting numerical data used to generate the Irms and Iins plots are provided in the supporting information file (S1_supporting information.xlsx). https://docs.google.com/spreadsheets/d/1MlkQYagaK0DQy4E4BvPjWvEwAEFepXnR/edit?usp=sharing&ouid=103627301778289813628&rtpof=true&sd=true.(XLSX)
