Synergistic Design of Flexible Nanopapers for High-Performance Proton Pseudocapacitors

TL;DR

Researchers designed flexible nanopapers using graphene and MXene to create high-performance proton pseudocapacitors with excellent energy and power densities.

Contribution

A synergistic design of modified MXene and graphene with gas-induced expansion and precise surface chemical regulation is introduced for proton pseudocapacitors.

Findings

Modified graphene with a –COOH:–OH ratio of 1:1 achieved a pseudocapacitance of 430.5 F g−1.

Hydrazine-assisted MXene modification increased capacitance to 500.5 F g−1 under high mass loading.

The assembled proton pseudocapacitor delivered energy and power densities of 58.9 Wh kg−1 and 3802 W kg−1.

Abstract

By utilizing water vaporization to increase the surface area of graphene and precisely controlling the ratio of oxygen-containing functional groups, the optimal –COOH:–OH ratio of 1:1 was successfully achieved, resulting in a maximum pseudocapacitance of 430.5 F g−1.Through hydrazine-assisted hydrothermal reaction, –F groups on the MXene surface were substituted with –NH2, while gas generation facilitated the creation of a porous structure, boosting the capacitance to 500.5 F g−1 under high mass loading conditions.

By utilizing water vaporization to increase the surface area of graphene and precisely controlling the ratio of oxygen-containing functional groups, the optimal –COOH:–OH ratio of 1:1 was successfully achieved, resulting in a maximum pseudocapacitance of 430.5 F g−1.

Through hydrazine-assisted hydrothermal reaction, –F groups on the MXene surface were substituted with –NH2, while gas generation facilitated the creation of a porous structure, boosting the capacitance to 500.5 F g−1 under high mass loading conditions.

The online version contains supplementary material available at 10.1007/s40820-025-01989-6.

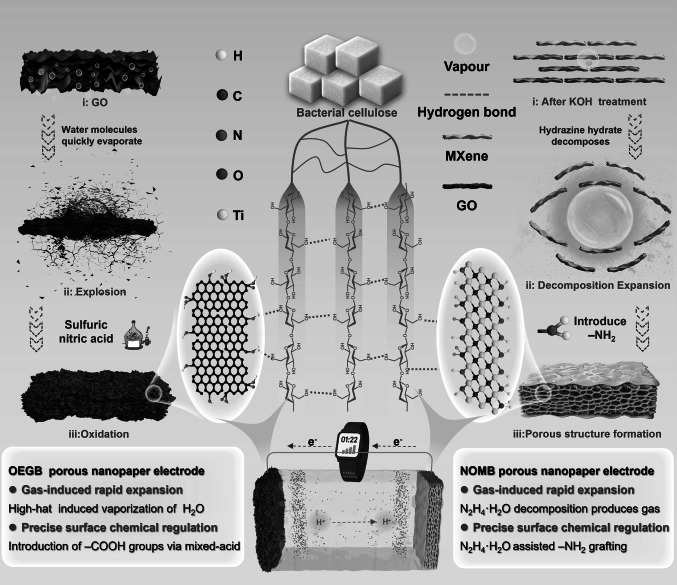

Two-dimensional materials for flexible energy storage commonly face huge challenges in limited active surface and hindered charge transport. Herein, we report an innovative asymmetric pseudocapacitor based on synergistic design of modified MXene and graphene, integrating gas-induced rapid expansion technology and precise surface chemical regulation methods. For graphene modification, rapid vaporization induces exfoliation and expansion of graphene oxide layers. Subsequently, pseudocapacitive oxygen-containing groups were selectively introduced through acid oxidation, yielding expanded-and-oxidized graphene (OEG) for positive porous-nanopaper electrode. For MXene modification, alkali-treated MXene underwent hydrazine assistance to facilitate gas expansion and –NH2 grafting, producing MXene-NH2 (NOM) for negative porous-nanopaper electrode. Density functional theory calculations show that –COOH more effectively modulate graphene’s electronic structure by inducing charge redistribution and creating active sites, thereby enhancing H+ adsorption and ion interactions compared to –OH. Meanwhile, –NH2 on MXene enable electron delocalization and dynamic Ti–N–H+ interactions, speeding up proton adsorption/desorption and boosting both pseudocapacitance and conductivity. Through collaborative optimized spatial architecture and surface properties, flexible OEGB and NOMB exhibited of 333.6 and 500.5 F g−1 at high mass loading, respectively. The assembled proton pseudocapacitor readily achieved energy and power densities of 58.9 Wh kg−1 and 3802 W kg−1, respectively, with excellent stability for potential applications.

The online version contains supplementary material available at 10.1007/s40820-025-01989-6.
