Adaptive control of DC-DC power converter: design and experimental investigation with constant power load

TL;DR

This paper introduces an adaptive control method for DC-DC converters that improves stability and response time when dealing with constant power loads in microgrids.

Contribution

The novel adaptive backstepping control method outperforms existing techniques in speed and stability for DC-DC converters with constant power loads.

Findings

The proposed control method is 46% faster than cascade PI control.

The method is 60% faster than sliding mode control.

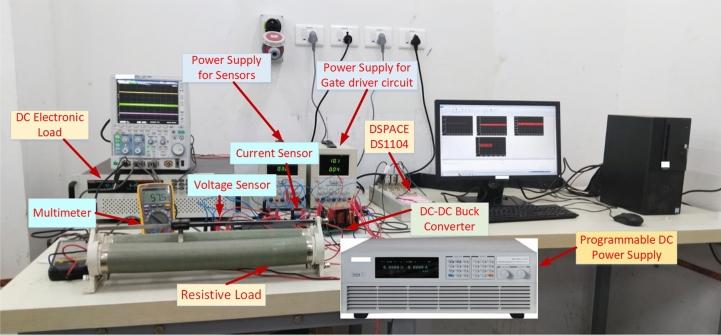

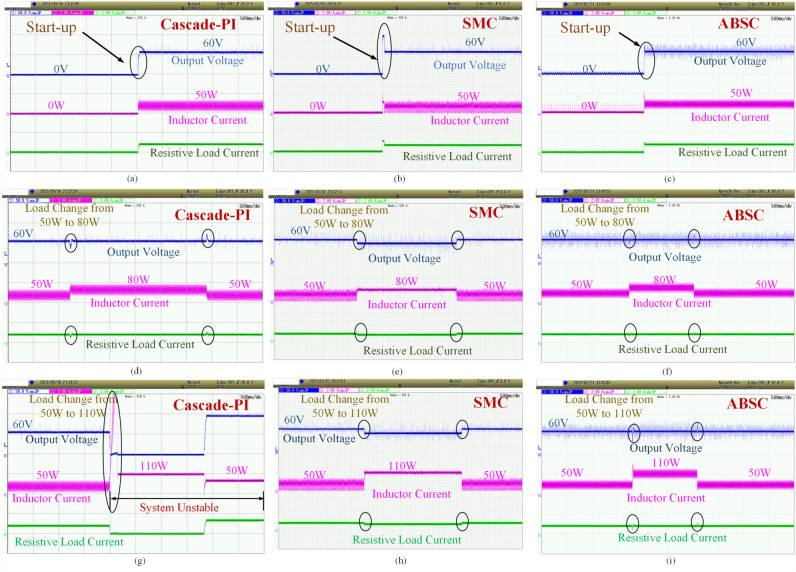

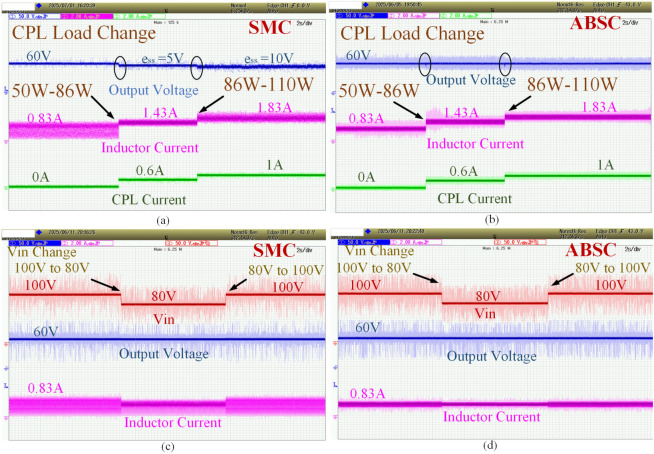

Real-time experiments on a 120W converter validate the method's effectiveness.

Abstract

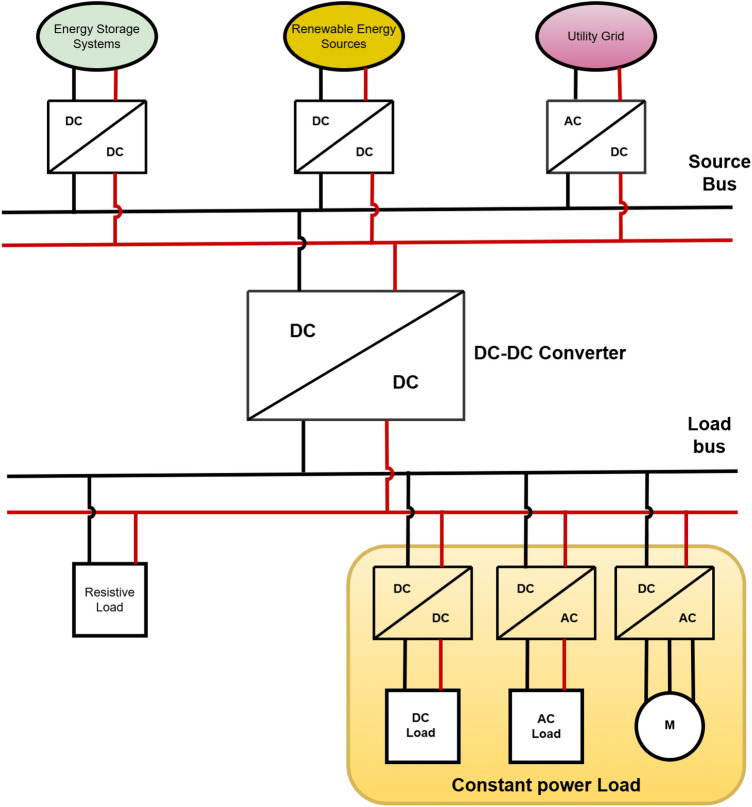

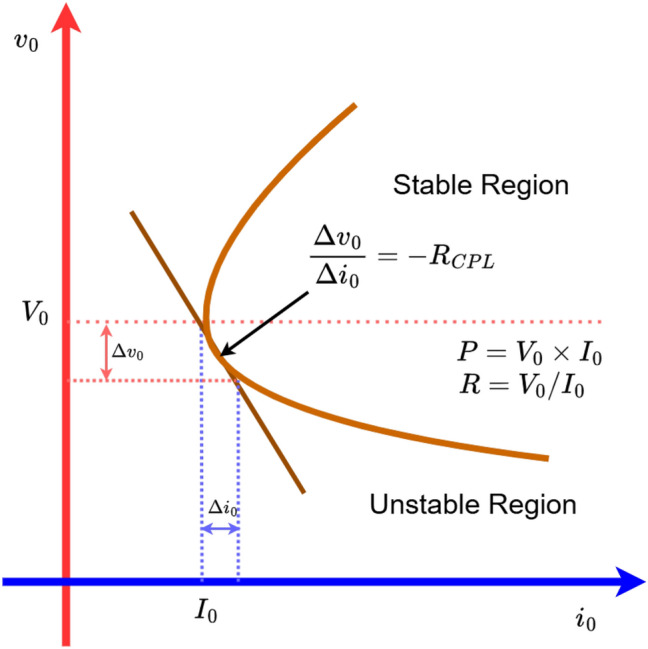

Constant power load (CPL) is a representation of dynamic loads such as power converters and electric motor drives to the DC-DC converter. Precise voltage regulation is necessary for such a combination of loads in a DC microgrid setup. In contrast to typical resistive loads, these loads exhibit negative impedance characteristics, which can cause instability in the DC microgrid system. The proposed adaptive backstepping control methodology effectively solves stability problems while yielding a smooth and fast response of the output voltage and inductor current to changes in resistive load and CPL combination. The success of the proposed method is confirmed by extensive real-time experiments carried out on the prototype of 120W converter using the dSpace DS1104 platform. Additionally, to demonstrate the strength of the proposed technique, a thorough comparison is made with the systematically designed cascade-proportional-integral (PI) and the sliding mode based control systems, which clearly indicate the proposed control is found to be \documentclass[12pt]{minimal}
\usepackage{amsmath}
\usepackage{wasysym}
\usepackage{amsfonts}
\usepackage{amssymb}
\usepackage{amsbsy}
\usepackage{mathrsfs}
\usepackage{upgreek}
\setlength{\oddsidemargin}{-69pt}
\begin{document}$$46\%$$\end{document} and \documentclass[12pt]{minimal}
\usepackage{amsmath}
\usepackage{wasysym}
\usepackage{amsfonts}
\usepackage{amssymb}
\usepackage{amsbsy}
\usepackage{mathrsfs}
\usepackage{upgreek}
\setlength{\oddsidemargin}{-69pt}
\begin{document}$$60\%$$\end{document} faster compared to cascade PI and sliding mode control methods respectively. Thus showcasing the potential of proposed control technique for real-time CPL applications.
