The genome sequence of a ground beetle, Dromius quadrimaculatus (Linnaeus, 1758) (Coleoptera: Carabidae)

TL;DR

This paper presents the genome sequence of the ground beetle Dromius quadrimaculatus, providing a detailed reference for this species as part of a larger biodiversity project.

Contribution

The paper provides a high-quality, chromosome-level genome assembly for Dromius quadrimaculatus.

Findings

The genome assembly is 778.78 megabases long, with 95.73% scaffolded into 14 chromosomal pseudomolecules.

The mitochondrial genome is 16.57 kilobases in length and has been fully assembled.

Abstract

We present a genome assembly from an individual female
Dromius quadrimaculatus (ground beetle; Arthropoda; Insecta; Coleoptera; Carabidae). The genome sequence has a total length of 778.78 megabases. Most of the assembly (95.73%) is scaffolded into 14 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled, with a length of 16.57 kilobases. This assembly was generated as part of the Darwin Tree of Life project, which produces reference genomes for eukaryotic species found in Britain and Ireland.

Figures

Photograph of the Dromius quadrimaculatus (icDroQuad1) specimen used for genome sequencing.

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Hi-C contact map of the Dromius quadrimaculatus genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

Assembly metrics for icDroQuad1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the endopterygota_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for icDroQuad1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject PRJEB65203.

Platform	PacBio HiFi	Hi-C	RNA-seq
ToLID	icDroQuad1	icDroQuad2	icDroQuad4
Specimen ID	Ox000312	NHMUK015058720	NHMUK015073950
BioSample (source individual)	SAMEA7520206	SAMEA112964344	SAMEA115574951
BioSample (tissue)	SAMEA7520298	SAMEA112975509	SAMEA115575072
Tissue	whole organism	whole organism	whole organism
Instrument	Sequel II	Illumina NovaSeq 6000	Illumina NovaSeq X
Run accessions	ERR12040336	ERR11872568	ERR13999075
Read count total	1.89 million	623.89 million	83.79 million
Base count total	28.08 Gb	94.21 Gb	12.65 Gb

Table 2.. Genome assembly statistics.

Assembly name	icDroQuad1.1
Assembly accession	GCA_963989225.1
Alternate haplotype accession	GCA_963989235.1
Assembly level	chromosome
Span (Mb)	778.78
Number of chromosomes	14
Number of contigs	617
Contig N50	25.78 Mb
Number of scaffolds	425
Scaffold N50	60.83 Mb
Sex chromosomes	X
Organelles	Mitochondrion: 16.57 kb

Table 3.. Chromosomal pseudomolecules in the primary genome assembly of Dromius quadrimaculatus icDroQuad1.

INSDC accession	Molecule	Length (Mb)	GC%
OZ022324.1	1	70.83	32.50
OZ022325.1	2	68.38	32.50
OZ022326.1	3	66.70	33.50
OZ022327.1	4	66.65	33
OZ022328.1	5	65.50	33.50
OZ022329.1	6	60.83	33.50
OZ022330.1	7	57.66	33
OZ022331.1	8	53.56	33
OZ022332.1	9	51.35	33
OZ022333.1	10	49.90	33
OZ022334.1	11	48.81	33.50
OZ022335.1	12	47.34	33.50
OZ022337.1	13	0.32	32
OZ022336.1	X	37.72	33

Table 4.. Earth Biogenome Project summary metrics for the Dromius quadrimaculatus assembly.

Measure	Value	Benchmark
EBP summary (primary)	7.C.Q59	6.C.Q40
Contig N50 length	25.78 Mb	≥ 1 Mb
Scaffold N50 length	60.83 Mb	= chromosome N50
Consensus quality (QV)	Primary: 59.2; alternate: 57.6; combined: 58.3	≥ 40
k-mer completeness	Primary: 68.16%; alternate: 65.44%; combined: 97.98%	≥ 95%
BUSCO	C:99.2% [S:98.2%; D:1.1%]; F:0.4%; M:0.4%; n:2 124	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	95.73%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Coleoptera; Adephaga; Caraboidea; Carabidae; Lebiinae; Lebiini; Dromius; Dromius quadrimaculatus (Linnaeus, 1758) (NCBI:txid346772)

Background

Dromius quadrimaculatus (Linnaeus, 1758) is a small arboreal carabid (5–6.4 mm) with four pale elytral spots. It is typically >5 mm (larger than similar spotted arboreal carabids), with the apical spots reaching the hind elytral margin and lacking the basal pore-puncture present in Calodromius and Philorhizus ( Telfer & Walters, 2014). It is found on trunks and under bark, mostly on deciduous trees (sycamore, alder, willow, lime, apple) but also recorded from spruce ( Habitas, 2025).

It can be found throughout the year under tree bark and among lichen and moss on tree trunks ( Telfer & Walters, 2014). It is native to the Palaearctic and the Near East and is widespread across much of Europe, including Great Britain and Ireland; within Britain it is frequent in England and Wales and more local in Scotland and Ireland ( NBN Atlas Partnership, 2025; Peters, 2025). Adults and larvae are predatory on small arthropods and can be encountered year-round; the species is also known as the Great Four-spot Treerunner ( Peters, 2025).

In a canopy-crane study of a temperate floodplain forest near Leipzig, D. quadrimaculatus dominated the canopy catch (~70% of carabids in traps) and was absent from ground pitfall traps, indicating an arboricolous life history ( Arndt & Hielscher, 2007). Activity peaked in late July to early August, with slightly higher captures on ash ( Fraxinus excelsior). The same study explicitly classed D. quadrimaculatus among the arboricolous carabids at the site ( Arndt & Hielscher, 2007).

We present the first high‑quality genome for the genus Dromius, one of 37 genomes available for the family Carabidae as of August 2025 (data obtained via NCBI datasets, O’Leary et al., 2024). This assembly was generated as part of the Darwin Tree of Life Project, which aims to generate high-quality reference genomes for all named eukaryotic species in Britain and Ireland to support research, conservation, and the sustainable use of biodiversity ( Blaxter et al., 2022).

Methods

Sample acquisition and DNA barcoding

The specimen used for genome sequencing was a female adult Dromius quadrimaculatus (specimen ID Ox000312, ToLID icDroQuad1; Figure 1), collected from Wytham Great Wood, United Kingdom (latitude 51.771, longitude -1.338) on 2019-10-30. The specimen was collected and identified by Liam Crowley (University of Oxford). A second specimen was used for Hi-C sequencing (specimen ID NHMUK015058720, ToLID icDroQuad2). It was collected from Buxton Heath, England, United Kingdom (latitude 52.75, longitude 1.22) on 2022-07-06. The specimen was collected and identified by Roger Booth (Natural History Museum). A third specimen was used for RNA sequencing (specimen ID NHMUK015073950, ToLID icDroQuad4). It was collected from Pullingshill Wood, Marlow, England, United Kingdom (latitude 51.57, longitude –0.82) on 2022-07-23. The specimen was collected by David Lees and identified by Michael Geiser (Natural History Museum). For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).

Photograph of the Dromius quadrimaculatus (icDroQuad1) specimen used for genome sequencing.

The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The icDroQuad1 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor. HMW DNA was extracted using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by automated SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.

RNA was extracted from whole organism tissue of icDroQuad4 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol. The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.

The sample was sequenced using the Sequel IIe system (Pacific Biosciences, California, USA). The concentration of the library loaded onto the Sequel IIe was in the range 40–135 pM. The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, and to perform primary and secondary analysis of the data upon completion.

Hi-C

** Sample preparation and crosslinking **

The Hi-C sample was prepared from 20–50 mg of frozen whole organism tissue of the icDroQuad2 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

** Hi-C library preparation and sequencing **

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq 6000.

RNA library preparation and sequencing

Libraries were prepared using the NEBNext ^®^ Ultra™ II Directional RNA Library Prep Kit for Illumina (New England Biolabs), following the manufacturer’s instructions. Poly(A) mRNA in the total RNA solution was isolated using oligo(dT) beads, converted to cDNA, and uniquely indexed; 14 PCR cycles were performed. Libraries were size-selected to produce fragments between 100–300 bp. Libraries were quantified, normalised, pooled to a final concentration of 2.8 nM, and diluted to 150 pM for loading. Sequencing was carried out on the Illumina NovaSeq X to generate 150-bp paired-end reads.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 18 breaks, 38 joins, and removal of three haplotypic duplications. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

PacBio sequencing of the Dromius quadrimaculatus specimen generated 28.08 Gb (gigabases) from 1.89 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 790.46 Mb, with a heterozygosity of 2.11% and repeat content of 44.56% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 33× coverage. Hi-C sequencing produced 94.21 Gb from 623.89 million reads, which were used to scaffold the assembly. RNA sequencing data were also generated and are available in public sequence repositories. Table 1 summarises the specimen and sequencing details.

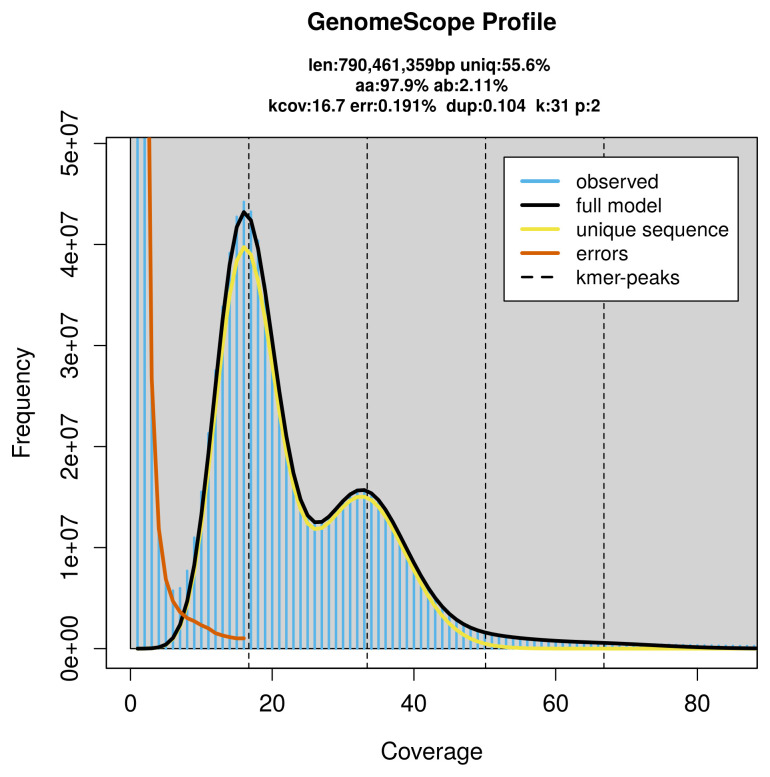

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Table 1.: Specimen and sequencing data for BioProject PRJEB65203.

<table><thead><tr><th align="left" colspan="1" rowspan="1">Platform</th><th align="left" colspan="1" rowspan="1">PacBio HiFi</th><th align="left" colspan="1" rowspan="1">Hi-C</th><th align="left" colspan="1" rowspan="1">RNA-seq</th></tr></thead><tbody><tr><td align="left" colspan="1" rowspan="1"> <bold>ToLID</bold> </td><td align="left" colspan="1" rowspan="1">icDroQuad1</td><td align="left" colspan="1" rowspan="1">icDroQuad2</td><td align="left" colspan="1" rowspan="1">icDroQuad4</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Specimen ID</bold> </td><td align="left" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">Ox000312</ext-link></td><td align="left" colspan="1" rowspan="1">NHMUK015058720</td><td align="left" colspan="1" rowspan="1">NHMUK015073950</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>BioSample (source individual)</bold> </td><td align="left" colspan="1" rowspan="1">SAMEA7520206</td><td align="left" colspan="1" rowspan="1">SAMEA112964344</td><td align="left" colspan="1" rowspan="1">SAMEA115574951</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>BioSample (tissue)</bold> </td><td align="left" colspan="1" rowspan="1">SAMEA7520298</td><td align="left" colspan="1" rowspan="1">SAMEA112975509</td><td align="left" colspan="1" rowspan="1">SAMEA115575072</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Tissue</bold> </td><td align="left" colspan="1" rowspan="1">whole organism</td><td align="left" colspan="1" rowspan="1">whole organism</td><td align="left" colspan="1" rowspan="1">whole organism</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Instrument</bold> </td><td align="left" colspan="1" rowspan="1">Sequel II</td><td align="left" colspan="1" rowspan="1">Illumina NovaSeq 6000</td><td align="left" colspan="1" rowspan="1">Illumina NovaSeq X</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Run accessions</bold> </td><td align="left" colspan="1" rowspan="1">ERR12040336</td><td align="left" colspan="1" rowspan="1">ERR11872568</td><td align="left" colspan="1" rowspan="1">ERR13999075</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Read count total</bold> </td><td align="left" colspan="1" rowspan="1">1.89 million</td><td align="left" colspan="1" rowspan="1">623.89 million</td><td align="left" colspan="1" rowspan="1">83.79 million</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Base count total</bold> </td><td align="left" colspan="1" rowspan="1">28.08 Gb</td><td align="left" colspan="1" rowspan="1">94.21 Gb</td><td align="left" colspan="1" rowspan="1">12.65 Gb</td></tr></tbody></table>

Assembly statistics

The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 778.78 Mb in 425 scaffolds, with 192 gaps, and a scaffold N50 of 60.83 Mb ( Table 2).

Table 2.: Genome assembly statistics.

<table><tbody><tr><td align="left" colspan="1" rowspan="1"> <bold>Assembly name</bold> </td><td align="left" colspan="1" rowspan="1">icDroQuad1.1</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Assembly accession</bold> </td><td align="left" colspan="1" rowspan="1">GCA_963989225.1</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Alternate haplotype accession</bold> </td><td align="left" colspan="1" rowspan="1">GCA_963989235.1</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Assembly level</bold> </td><td align="left" colspan="1" rowspan="1">chromosome</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Span (Mb)</bold> </td><td align="left" colspan="1" rowspan="1">778.78</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Number of chromosomes</bold> </td><td align="left" colspan="1" rowspan="1">14</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Number of contigs</bold> </td><td align="left" colspan="1" rowspan="1">617</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Contig N50</bold> </td><td align="left" colspan="1" rowspan="1">25.78 Mb</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Number of scaffolds</bold> </td><td align="left" colspan="1" rowspan="1">425</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Scaffold N50</bold> </td><td align="left" colspan="1" rowspan="1">60.83 Mb</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Sex chromosomes</bold> </td><td align="left" colspan="1" rowspan="1">X</td></tr><tr><td align="left" colspan="1" rowspan="1"> <bold>Organelles</bold> </td><td align="left" colspan="1" rowspan="1">Mitochondrion: 16.57 kb</td></tr></tbody></table>

Most of the assembly sequence (95.73%) was assigned to 14 chromosomal-level scaffolds, representing 12 autosomes and the X sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3). Chromosome X was identified by alignment to GCA_943142095.1.

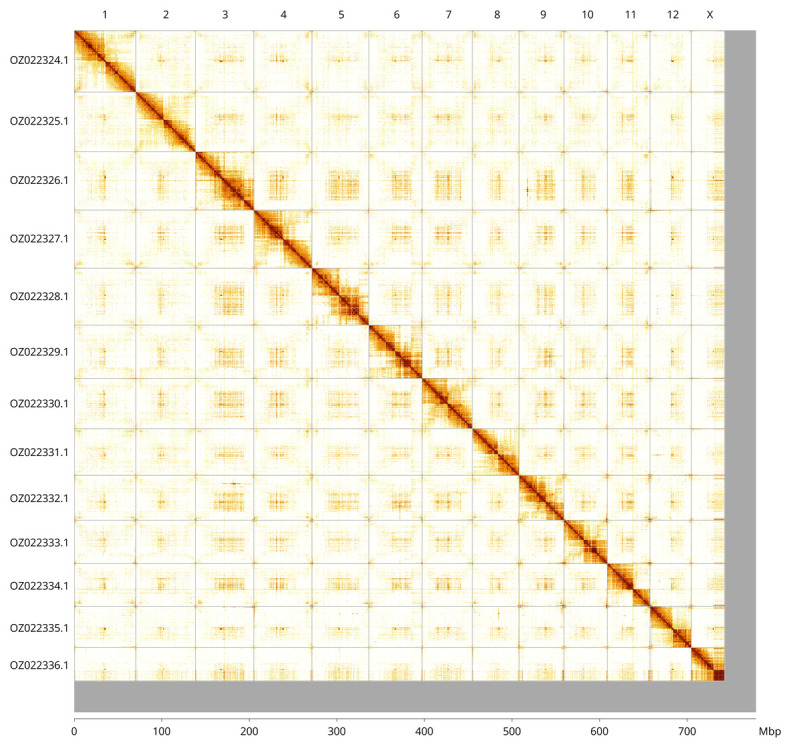

Hi-C contact map of the Dromius quadrimaculatus genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Dromius quadrimaculatus icDroQuad1.

<table><thead><tr><th align="center" colspan="1" rowspan="1">INSDC <break/>accession</th><th align="center" colspan="1" rowspan="1">Molecule</th><th align="center" colspan="1" rowspan="1">Length <break/>(Mb)</th><th align="center" colspan="1" rowspan="1">GC%</th></tr></thead><tbody><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022324.1</ext-link></td><td align="center" colspan="1" rowspan="1">1</td><td align="center" colspan="1" rowspan="1">70.83</td><td align="center" colspan="1" rowspan="1">32.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022325.1</ext-link></td><td align="center" colspan="1" rowspan="1">2</td><td align="center" colspan="1" rowspan="1">68.38</td><td align="center" colspan="1" rowspan="1">32.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022326.1</ext-link></td><td align="center" colspan="1" rowspan="1">3</td><td align="center" colspan="1" rowspan="1">66.70</td><td align="center" colspan="1" rowspan="1">33.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022327.1</ext-link></td><td align="center" colspan="1" rowspan="1">4</td><td align="center" colspan="1" rowspan="1">66.65</td><td align="center" colspan="1" rowspan="1">33</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022328.1</ext-link></td><td align="center" colspan="1" rowspan="1">5</td><td align="center" colspan="1" rowspan="1">65.50</td><td align="center" colspan="1" rowspan="1">33.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022329.1</ext-link></td><td align="center" colspan="1" rowspan="1">6</td><td align="center" colspan="1" rowspan="1">60.83</td><td align="center" colspan="1" rowspan="1">33.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022330.1</ext-link></td><td align="center" colspan="1" rowspan="1">7</td><td align="center" colspan="1" rowspan="1">57.66</td><td align="center" colspan="1" rowspan="1">33</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022331.1</ext-link></td><td align="center" colspan="1" rowspan="1">8</td><td align="center" colspan="1" rowspan="1">53.56</td><td align="center" colspan="1" rowspan="1">33</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022332.1</ext-link></td><td align="center" colspan="1" rowspan="1">9</td><td align="center" colspan="1" rowspan="1">51.35</td><td align="center" colspan="1" rowspan="1">33</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022333.1</ext-link></td><td align="center" colspan="1" rowspan="1">10</td><td align="center" colspan="1" rowspan="1">49.90</td><td align="center" colspan="1" rowspan="1">33</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022334.1</ext-link></td><td align="center" colspan="1" rowspan="1">11</td><td align="center" colspan="1" rowspan="1">48.81</td><td align="center" colspan="1" rowspan="1">33.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022335.1</ext-link></td><td align="center" colspan="1" rowspan="1">12</td><td align="center" colspan="1" rowspan="1">47.34</td><td align="center" colspan="1" rowspan="1">33.50</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022337.1</ext-link></td><td align="center" colspan="1" rowspan="1">13</td><td align="center" colspan="1" rowspan="1">0.32</td><td align="center" colspan="1" rowspan="1">32</td></tr><tr><td align="center" colspan="1" rowspan="1"><ext-link xmlns:xlink="http://www.w3.org/1999/xlink">OZ022336.1</ext-link></td><td align="center" colspan="1" rowspan="1">X</td><td align="center" colspan="1" rowspan="1">37.72</td><td align="center" colspan="1" rowspan="1">33</td></tr></tbody></table>

The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

The combined primary and alternate assemblies achieve an estimated QV of 58.3. The k-mer completeness is 68.16% for the primary assembly, 65.44% for the alternate haplotype, and 97.98% for the combined assemblies ( Figure 4).

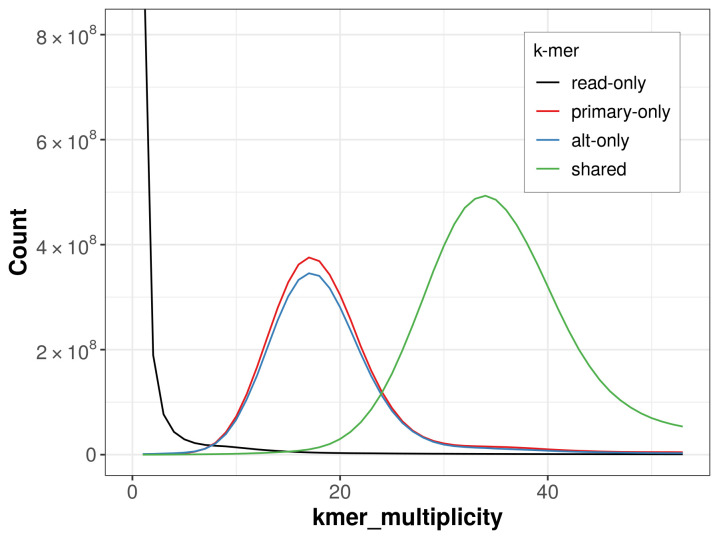

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

BUSCO v.5.5.0 analysis using the endopterygota_odb10 reference set ( n = 2 124) identified 99.2% of the expected gene set (single = 98.2%, duplicated = 1.1%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

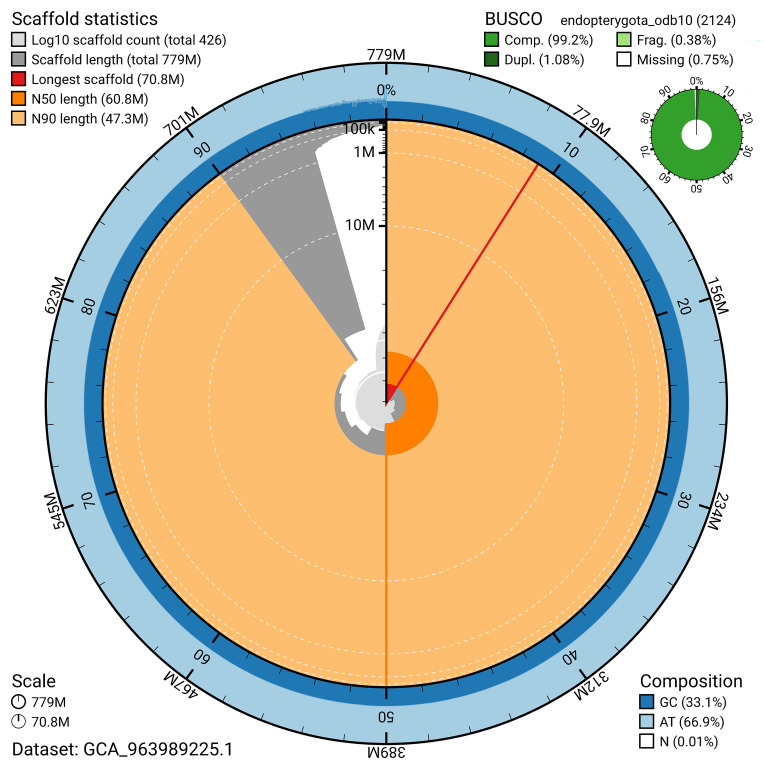

Assembly metrics for icDroQuad1.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the endopterygota_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

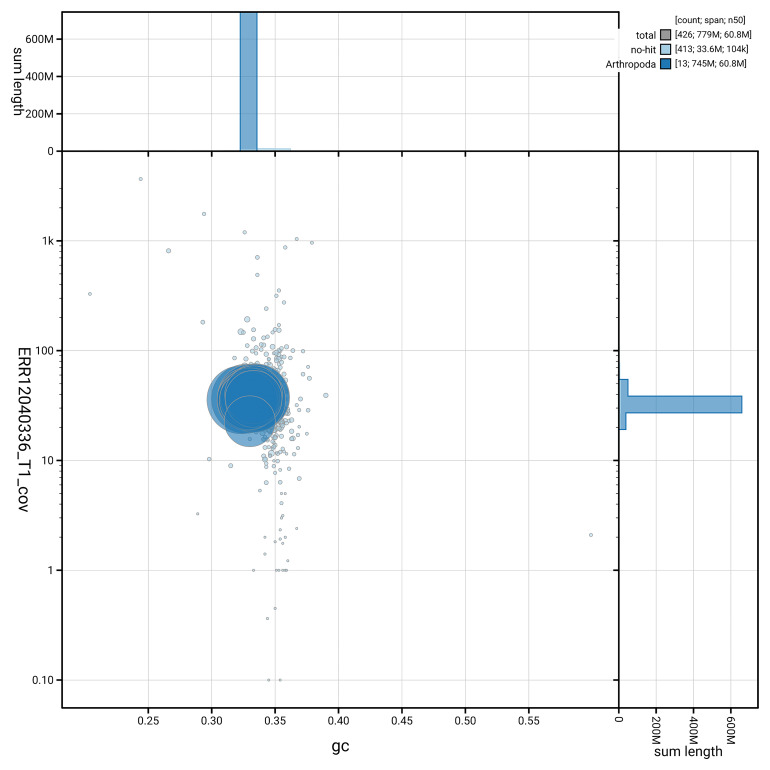

BlobToolKit GC-coverage plot for icDroQuad1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 7.C.Q59, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Dromius quadrimaculatus assembly.

<table><thead><tr><th align="left" colspan="1" rowspan="1">Measure</th><th align="left" colspan="1" rowspan="1">Value</th><th align="left" colspan="1" rowspan="1">Benchmark</th></tr></thead><tbody><tr><td align="left" colspan="1" rowspan="1">EBP summary (primary)</td><td align="left" colspan="1" rowspan="1">7.C.Q59</td><td align="left" colspan="1" rowspan="1">6.C.Q40</td></tr><tr><td align="left" colspan="1" rowspan="1">Contig N50 length</td><td align="left" colspan="1" rowspan="1">25.78 Mb</td><td align="left" colspan="1" rowspan="1">≥ 1 Mb</td></tr><tr><td align="left" colspan="1" rowspan="1">Scaffold N50 length</td><td align="left" colspan="1" rowspan="1">60.83 Mb</td><td align="left" colspan="1" rowspan="1">= chromosome N50</td></tr><tr><td align="left" colspan="1" rowspan="1">Consensus quality (QV)</td><td align="left" colspan="1" rowspan="1">Primary: 59.2; alternate: 57.6; combined: 58.3</td><td align="left" colspan="1" rowspan="1">≥ 40</td></tr><tr><td align="left" colspan="1" rowspan="1"> <italic>k</italic>-mer completeness</td><td align="left" colspan="1" rowspan="1">Primary: 68.16%; alternate: 65.44%; combined: 97.98%</td><td align="left" colspan="1" rowspan="1">≥ 95%</td></tr><tr><td align="left" colspan="1" rowspan="1">BUSCO</td><td align="left" colspan="1" rowspan="1">C:99.2% [S:98.2%; D:1.1%]; F:0.4%; M:0.4%; n:2 124</td><td align="left" colspan="1" rowspan="1">S &gt; 90%; D &lt; 5%</td></tr><tr><td align="left" colspan="1" rowspan="1">Percentage of assembly assigned to chromosomes</td><td align="left" colspan="1" rowspan="1">95.73%</td><td align="left" colspan="1" rowspan="1">≥ 90%</td></tr></tbody></table>
