The genome sequence of the click beetle, Hemicrepidius hirtus (Herbst, 1784) (Coleoptera: Elateridae)
Liam M. Crowley, James McCulloch, Chenyang Cai, Zachary Cohen, João Pedro Marques, Juliana Sofia Alves
TL;DR
This paper provides the genome sequence of the click beetle Hemicrepidius hirtus, including a detailed assembly of its chromosomes and mitochondrial DNA.
Contribution
The novel contribution is the high-quality genome assembly of Hemicrepidius hirtus, including 10 chromosomal pseudomolecules and the mitochondrial genome.
Findings
The genome assembly is 377.55 megabases long with 96.79% scaffolded into 10 chromosomal pseudomolecules.
The mitochondrial genome is 15.9 kilobases long and fully assembled.
The work is part of the Darwin Tree of Life project focusing on species from Britain and Ireland.
Abstract
We present a genome assembly from an individual male Hemicrepidius hirtus (click beetle; Arthropoda; Insecta; Coleoptera; Elateridae). The genome sequence has a total length of 377.55 megabases. Most of the assembly (96.79%) is scaffolded into 10 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled, with a length of 15.9 kilobases. This assembly was generated as part of the Darwin Tree of Life project, which produces reference genomes for eukaryotic species found in Britain and Ireland.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6| Platform | PacBio HiFi | Hi-C | RNA-seq |
|---|---|---|---|
|
| icHemNige1 | icHemNige1 | icHemNige1 |
|
| |||
|
| SAMEA112232526 | SAMEA112232526 | SAMEA112232526 |
|
| SAMEA112232970 | SAMEA112232970 | SAMEA112232971 |
|
| head and thorax | head and thorax | abdomen |
|
| Sequel IIe | Illumina NovaSeq 6000 | Illumina NovaSeq 6000 |
|
| ERR11263500 | ERR11271519 | ERR12245565 |
|
| 2.34 million | 897.12 million | 75.58 million |
|
| 25.74 Gb | 135.46 Gb | 11.41 Gb |
|
| icHemNige1.1 |
|
| GCA_963082805.1 |
|
| GCA_963082985.1 |
|
| chromosome |
|
| 377.55 |
|
| 10 |
|
| 264 |
|
| 7.64 Mb |
|
| 196 |
|
| 35.74 Mb |
|
| X |
|
| Mitochondrion: 15.9 kb |
| INSDC accession | Molecule | Length (Mb) | GC% |
|---|---|---|---|
| 1 | 57.74 | 33.50 | |
| 2 | 45.08 | 34 | |
| 3 | 41.26 | 35 | |
| 4 | 36.02 | 35.50 | |
| 5 | 35.74 | 36 | |
| 6 | 32.61 | 34 | |
| 7 | 32.31 | 34 | |
| 8 | 31.92 | 35 | |
| 9 | 27.15 | 34 | |
| X | 25.60 | 34 |
| Measure | Value | Benchmark |
|---|---|---|
| EBP summary
| 6.C.Q64 | 6.C.Q40 |
| Contig N50 length | 7.64 Mb | ≥ 1 Mb |
| Scaffold N50 length | 35.74 Mb | = chromosome
|
| Consensus quality
| Primary: 64.2; alternate:
| ≥ 40 |
|
| Primary: 82.40%;
| ≥ 95% |
| BUSCO | C=99.3% [S=97.8%,
| S > 90%; D
|
| Percentage of
| 96.79% | ≥ 90% |
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsColeoptera Taxonomy and Distribution · Insect Resistance and Genetics · Forest Insect Ecology and Management
Species taxonomy
Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Coleoptera; Polyphaga; Elateriformia; Elateroidea; Elateridae; Denticollinae; Hemicrepidius; Hemicrepidius hirtus (Herbst, 1784) (NCBI:txid1132043)
Background
Hempicrepidius hirtus is a species of click beetle in the family Elateridae. This is the only species in its genus in the UK. As an adult, it can be distinguished from other British species in the superfamily Elateroidea by the combination of the following characteristics: antennae not clubbed, strongly serrate, with the 1st antennal segment shorter than the space between the antennal insertions, the 2nd segment shorter than the 4th segment, but the 2nd and 3rd antennal segments together as long as the 4th segment; eyes not strikingly convex; pronotum black and broadest nearer to the hind angles, which project backwards past the pronotal hind margin; elytra striate, not confusingly punctured, and not patterned by pubescence; and the 4th tarsal segment on the mid and hind tarsi weakly bilobed and about a third the size of the 3rd segment ( Telfer & Joy, 2010).
According to records on the NBN Atlas ( NBN Trust, 2024), H. hirtus is a widespread species in the UK, with records from Northern Ireland and as far north as Orkney (Scotland). Outside of the UK, this species has been recorded across Europe and in western Asia, and as a non-native species in North America ( Douglas, 2011). There was initially concern that this species may act as an agricultural pest in its introduced range, but stable isotope analysis from within its native distribution suggests that it is more likely to be predatory in the larval stage ( Traugott et al., 2008). The habitat preferences of this species appear to be diverse, and it can be found in both forested and open habitats ( Ruchin et al., 2018).
Here we present a chromosome-level genome sequence for Hemicrepidius hirtus, based on a male specimen from Wytham Woods, Oxfordshire, England. This assembly is the first high-quality genome for the genus Hemicrepidius as of August 2025 (data obtained via NCBI datasets, O’Leary et al., 2024). This assembly was generated as part of the Darwin Tree of Life Project, which aims to generate high-quality reference genomes for all named eukaryotic species in Britain and Ireland to support research, conservation, and the sustainable use of biodiversity ( Blaxter et al., 2022).
Methods
Sample acquisition and DNA barcoding
The specimen used for genome sequencing was an adult male Hemicrepidius hirtus (specimen ID Ox002292, ToLID icHemNige1; Figure 1), collected from Wytham Woods, Oxfordshire, UK (latitude 51.772, longitude –1.338) on 2022-07-05. The specimen was collected by Liam Crowley and James McCulloch and identified by Liam Crowley. The same specimen was used for RNA sequencing. For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).
Photograph of the Hemicrepidius hirtus (icHemNige1) specimen used for genome sequencing.
The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.
Nucleic acid extraction
Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The icHemNige1 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the head and thorax was homogenised by powermashing using a PowerMasher II tissue disruptor.
HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by manual SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system. For this sample, the final post-shearing DNA had a Qubit concentration of 9.58 ng/μL and a yield of 431.10 ng, with a fragment size of 12.4 kb. The 260/280 spectrophotometric ratio was 1.78, and the 260/230 ratio was 1.15.
RNA was extracted from abdomen tissue of icHemNige1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol. The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.
PacBio HiFi library preparation and sequencing
Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.
The sample was sequenced using the Sequel IIe system (Pacific Biosciences, California, USA). The concentration of the library loaded onto the Sequel IIe was in the range 40–135 pM. The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, and to perform primary and secondary analysis of the data upon completion.
Hi-C
** Sample preparation and crosslinking **
The Hi-C sample was prepared from 20–50 mg of frozen tissue from the head and thorax of the icHemNige1 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.
** Hi-C library preparation and sequencing **
Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).
Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq 6000.
RNA library preparation and sequencing
Libraries were prepared using the NEBNext ^®^ Ultra™ II Directional RNA Library Prep Kit for Illumina (New England Biolabs), following the manufacturer’s instructions. Poly(A) mRNA in the total RNA solution was isolated using oligo(dT) beads, converted to cDNA, and uniquely indexed; 14 PCR cycles were performed. Libraries were size-selected to produce fragments between 100–300 bp. Libraries were quantified, normalised, pooled to a final concentration of 2.8 nM, and diluted to 150 pM for loading. Sequencing was carried out on the Illumina NovaSeq 6000 to generate 150-bp paired-end reads.
Genome assembly
Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.
The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).
The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
Assembly curation
The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 1 break, 13 joins, and removal of 1 haplotypic duplication. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.
Assembly quality assessment
The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.
The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).
Genome sequence report
Sequence data
PacBio sequencing of the Hemicrepidius hirtus specimen generated 25.74 Gb (gigabases) from 2.34 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 357.58 Mb, with a heterozygosity of 0.96% and repeat content of 39.63% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 69× coverage. Hi-C sequencing produced 135.46 Gb from 897.12 million reads, which were used to scaffold the assembly. RNA sequencing data were also generated and are available in public sequence repositories. Table 1 summarises the specimen and sequencing details.

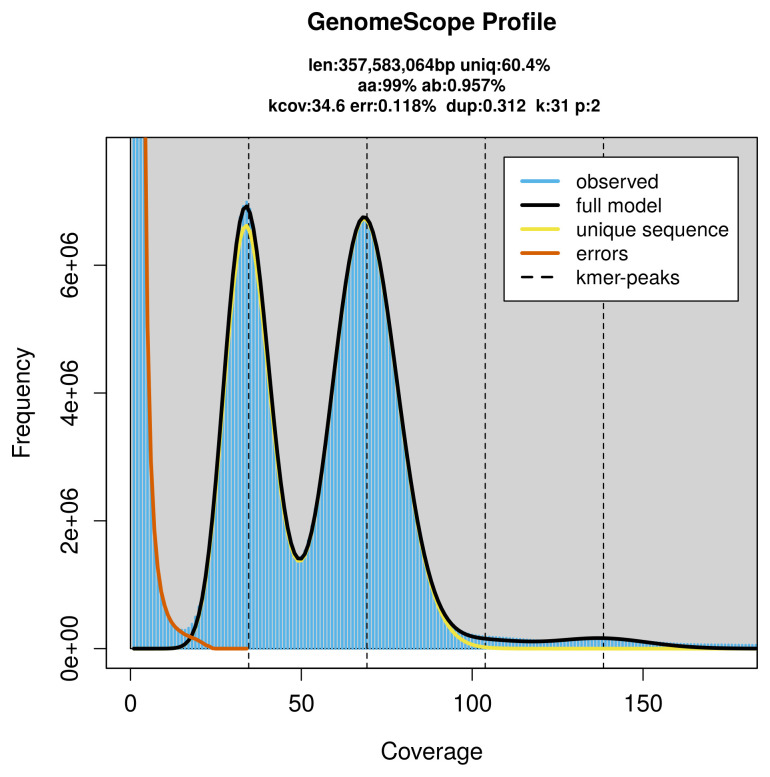

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.
Assembly statistics
The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 377.55 Mb in 196 scaffolds, with 68 gaps, and a scaffold N50 of 35.74 Mb ( Table 2).
Most of the assembly sequence (96.79%) was assigned to 10 chromosomal-level scaffolds, representing 9 autosomes and the X sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3). Chromosome X was assigned by read coverage statistics. No Y sequence could be identified.

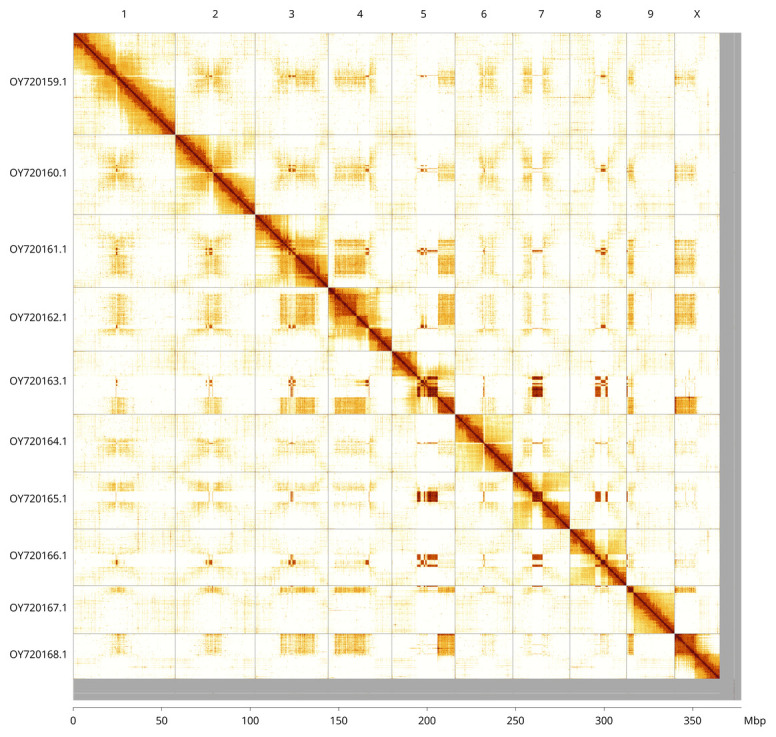

Hi-C contact map of the Hemicrepidius hirtus genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.
Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Hemicrepidius hirtus icHemNige1.
The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.
The combined primary and alternate assemblies achieve an estimated QV of 64.1. The k-mer completeness is 82.40% for the primary assembly, 75.90% for the alternate haplotype, and 99.12% for the combined assemblies ( Figure 4).

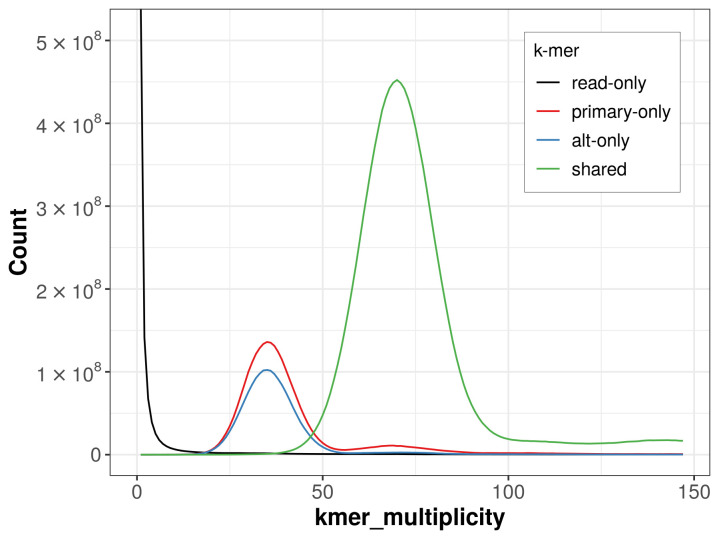

Evaluation of k-mer completeness using MerquryFKThis plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.
BUSCO (v5.4.3) analysis using the endopterygota_odb10 reference set ( n = 2,124) identified a completeness score of 99.2% (single = 97.7%, duplicated = 1.5%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

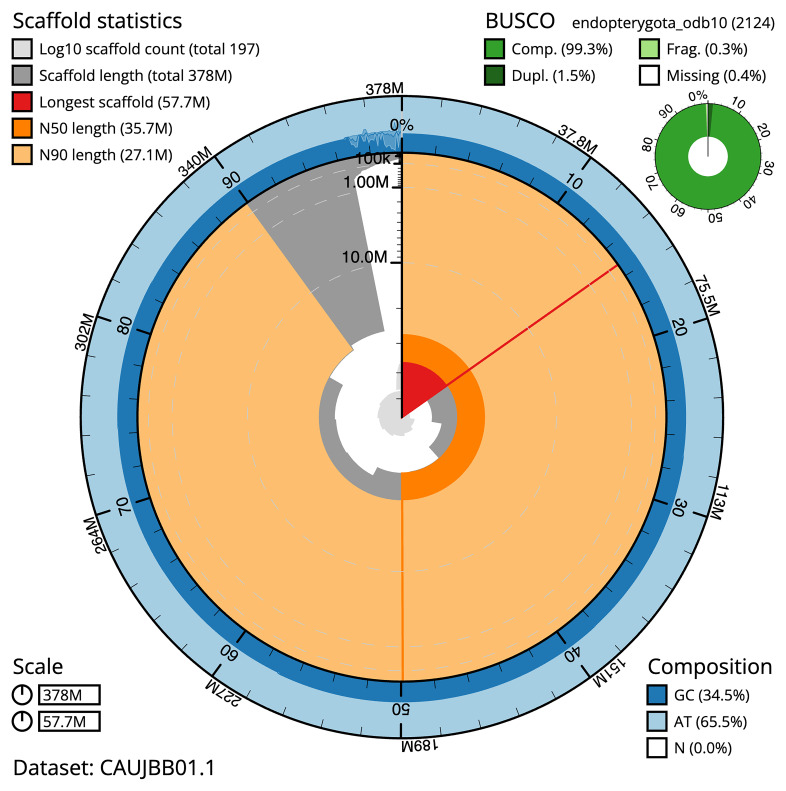

Assembly metrics for icHemNige1.1The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

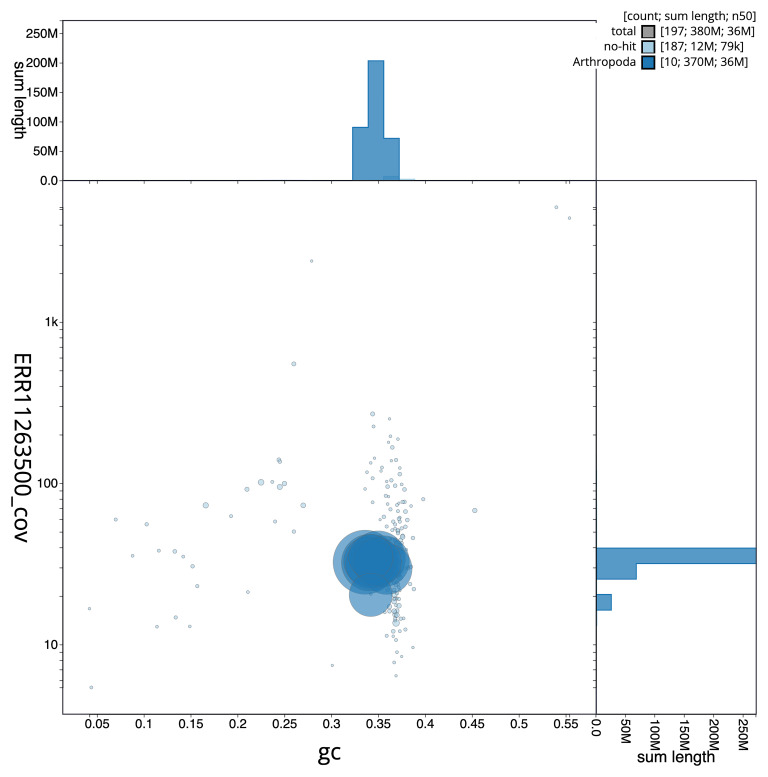

BlobToolKit GC-coverage plot for icHemNige1.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.
Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 6.C.Q64, meeting the recommended reference standard.
Table 4.: Earth Biogenome Project summary metrics for the Hemicrepidius hirtus assembly.
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project. Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
Ethical review of provenance and sourcing of the materialLegality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances, other Darwin Tree of Life collaborators.
