Magnetic Resonance Imaging Evaluation of Pregnancy and Aging on External Anal Sphincter Volume in Squirrel Monkeys
Christopher P. Chung, Wilma I. Larsen, Thomas J. Kuehl
TL;DR
This study shows that MRI can accurately measure changes in the external anal sphincter volume in squirrel monkeys due to aging and repeated pregnancies.
Contribution
The study introduces a validated MRI method for serially measuring EAS volume in squirrel monkeys.
Findings
MRI measurements of EAS volume were highly consistent between researchers and with histological results.
Repeated pregnancies over 5 years caused a significant decrease in EAS volume in squirrel monkeys.
MRI is sensitive enough to detect EAS volume changes related to aging and pregnancy.
Abstract
Both humans and squirrel monkeys are susceptible to pelvic floor injury and prolapse from pregnancy, delivery, and aging. The mechanisms for external anal sphincter (EAS) injury in squirrel monkeys have not been evaluated in detail. This study evaluates a method for measuring EAS volume using magnetic resonance imaging (MRI) in squirrel monkeys and demonstrates the feasibility of serial measurements. Using a previously described procedure, MRI was performed on 10 squirrel monkeys prior to euthanasia. After euthanasia, tissue blocks of EAS were cryo-sectioned and stained with succinic dehydrogenase to identify EAS striated muscle fibers. EAS volumes from both MRI and histological measurements were calculated using image analysis software. MRI measurements were obtained by two independent investigators. A cohort of four monkeys, each having five pregnancies and 11 MRI studies over a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Elderly Endowment for pelvic floor research and Noble Centennial Endowment
- —City of Hope
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsPelvic floor disorders treatments · Hernia repair and management · Urinary Bladder and Prostate Research
Introduction
The female squirrel monkey is relatively unique among nonhuman animal species in that it spontaneously develops pelvic organ prolapse (POP) in response to parturition and aging that resembles that of women in terms of degree and frequency [1, 2]. Previously, we described key pelvic floor muscles and their innervation along with connective tissue elements of the vaginal wall using imaging and histology of fixed tissues [4–6]. We also described the impact of nerve injury, parturition, and aging on pelvic floor muscles and connective tissue [8–10] and performed a prospective trial of the effects of cesarean section using this animal as a model species [12]. Some of this work described innervation of the external anal sphincter (EAS) using nerve-tracing methods [5]. In preliminary studies, we also reported on EAS muscle fiber types and potential for variation in relation to POP [13]. However, these histological methods do not allow serial measurements within animal subjects. We are interested in EAS injury in this species, because of a well-established association of EAS injury with pregnancy, delivery, and aging in humans [14]. As there is the potential for planned cesarean section to reduce pelvic floor injury, a validated method could extend prospective randomized trials to include EAS volume assessments.
Although EAS injury in squirrel monkeys has not been evaluated, magnetic resonance imaging (MRI) has been used to measure pelvic floor muscle volumes in female squirrel monkeys to describe changes related to pregnancy, parturition, and aging [8, 9, 13]. A histological method for the measurement of EAS muscle mass has been described in a rat model of childbirth injury [15]. Denervation and re-innervation of the EAS after childbirth can lead to alteration in muscle function that may contribute to incontinence [16]. Muscle-volume alteration is one indicator of such injury.
Harvesting the actual muscle in question from a euthanized animal for histological analysis allows precise measurements of muscle characteristics; however, such methods do not allow for serial tracking of changes in muscle over time. MRI is preferable for this reason, but researchers and physicians need to have confidence in its reliability. Therefore, this study had two objectives: to validate MRI as a method for measuring EAS volume in squirrel monkeys and to test the hypothesis that serial measures in small sample sizes are sufficient to detect altered EAS volumes.
Materials and Methods
Study Population
Squirrel monkeys were obtained from the National Squirrel Monkey Breeding and Research Center and housed at our Animal Facility. Our Institutional Animal Care and Use Committee approved the use of the animals in these studies. Two groups of animals were used. One group was a cohort of ten females with variable ages and obstetric histories for validation of techniques. A second group of four females was followed with serial MRI sessions for 5 years in relation to pregnancy and parturition. Members of this latter cohort have been previously studied using serial MRI to observe changes in the pelvic floor muscles in relation to pregnancy, delivery, and aging [10]. However, the series evaluated in the current study represented more pregnancies and was focused on the measurement of EAS volume.
Squirrel monkeys are seasonal breeders that do not menstruate. Females reach puberty between 2.5 and 3.5 years and full adult size by 5 years of age. The peak of their reproductive season is between December and April in the northern latitudes. The cohort of breeding females observed in this study was between 4 and 5 years of age at the time of conception of their first pregnancy. Images were made before or early in the pregnancy, which was diagnosed and monitored by ultrasound, as were all subsequent pregnancies using methods previously described [12].
Magnetic Resonance Imaging
Animals assigned to this project underwent MRI according to the protocol initially described by Kramer et al. [8] and later utilized by Pierce et al. [9], Bracken et al. [10], and Lindo et al. [12]. Briefly, animals are sedated with a cocktail of anesthetics and tranquilizers (100 mg ketamine/10 mg xylazine/1 mg acepromazine/mL at 0.2 ml/kg) to reduce motion artifacts during MRI sessions. Intravenous contrast medium (0.25 mmol/kg of gadolinium chelate as ProHance; Bracco Diagnostics, Inc. Princeton, NJ, USA) was given to improve signal to noise, and each animal was placed inside the MRI unit (3 T Siemens Trios, Erlangen, Germany) with their back and legs supported in a natural position inside an eight-channel wrist coil (model HRW; Philips Medical Systems, Waukesha, WI, USA). Two localizing scans were obtained to locate anatomy and set the region of interest to produce serial images from L7 through C4. A sequence of echo gradient axial images was acquired during a 4.4-min interval. Images were saved as a DICOM series and transferred to a work station with commercial software (3D-Doctor, Able Software Corp, Lexington, MA, USA), which was used to review, manipulate, and measure the EAS.
Histology
Following euthanasia, tissues were obtained. Cross-sectional blocks of rectal tissue beginning at the anal opening were embedded in gum on cork disks and snap frozen in liquid isopentane cooled by immersion in liquid nitrogen and stored at −70 °C. EAS was serially cut into 20-µm sections and was stained for succinate dehydrogenase in striated muscle fibers [15]. Areas of each stained section were traced with SigmaScan Pro software (Jandel Scientific Software, San Rafael, CA, USA), and volumes calculated by adding the areas of each section times the section thickness.
Statistical Methods
Comparison of the two independent observers was made with Cronbach alpha for inter-rater correlation. Groups were compared using Student’s t test for parametric variables. Linear regression analysis examined the relationship of the EAS volume measured by MRI and the histological method, as well as the relationships between EAS volume and age, weight, and parity. Serial observations of EAS volumes were measured using ANOVA. A p value less than 0.05 was considered significant. The potential impact of the combination of pregnancy and aging to alter EAS volume was assessed using serial measurements in a cohort of four females that were imaged at less than 1 month of gestation, 1 to 4 days (mean of 3 days) postpartum, and 2 to 4 months postpartum. The 1- to 4-days postpartum imaging and the 2- to 4-months postpartum imaging were repeated after each of five pregnancies and vaginal deliveries, giving a total of 11 MRI sessions and image sets for each of four females. These data were examined using analysis of variance with a repeated measures design and Dunnett’s post hoc test from comparisons of EAS volume after each delivery with the initial pre-pregnancy value.
Results
External Anal Sphincter Volume Validation: Histology Versus Magnetic Resonance Imaging

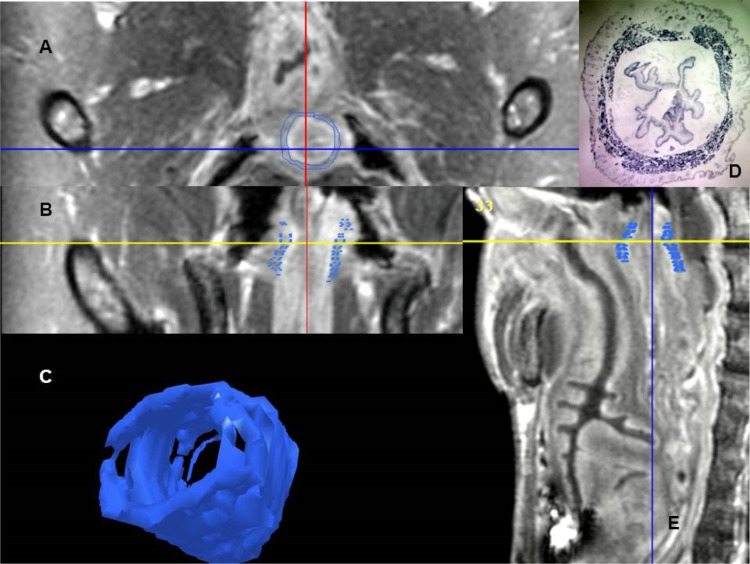

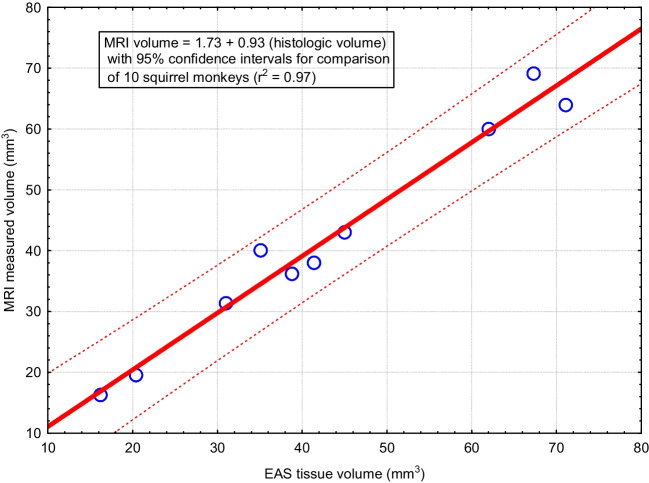

Two independent researchers used MRI to measure EAS volumes of ten squirrel monkeys. Figure 1 presents example MRI, a stained histology section, and a three-dimensional model prepared for one of these females. The volumes of the three-dimensional models were consistently measured by the two investigators (Cronbach alpha of 0.97 with 95% lower confidence limit of 0.92). Therefore, averages were used for the remaining analyses. MRI-measured volumes were compared with those from serial sections of the EAS in ten females (Fig. 2). Cronbach alpha for this comparison was 0.99, with a 95% lower confidence limit of 0.98 and a linear regression with R^2^ of 0.97 and p < 0.0001). The data set from the ten females is shown in Table 1. With this small sample of squirrel monkeys, no significant relationships between EAS volume measured either using tissue histology or MRI was observed for age, body weight, or parity (Table 2). Four of the ten females had POP based on visual inspection and descent of bladder observed with dynamic MRI [1, 9]. As symptoms of anal incontinence cannot be observed in this species, no relationship between EAS volume and continence could be evaluated. No externally visible anal opening lesions were seen. No difference in the average EAS volume either by histology (p = 0.07) or MRI (p = 0.35) was found to be related to the presence or absence of vaginally observed POP is this sample. The EAS is a small structure averaging 42 mm^3^ (range 20 to 70 mm^3^) in the squirrel monkey female, based on the MRI measurement.Fig. 1. Magnetic resonance images (MRI), histology section, and three-dimensional model of the external anal sphincter from an 11-year-old nulliparous female (animal 10 in Table 1). The external anal sphincter is outlined in blue. A is an axial MRI. B is a coronal MRI. C is the three-dimensional model developed by tracing serial axial images. D is a stained 20-micron section corresponding to the axial image (A). E is the sagittal MRIFig. 2The mean of two independent observers measuring the external anal sphincter (EAS) with magnetic resonance imaging compares well with volumes derived from the sum of serial sections stained for striated muscle fibers of the EAS in serial sections from ten female squirrel monkeysTable 1Characteristics and measurements of external anal sphincter (EAS) in 10 females using both magnetic resonance imaging and histological methodsAnimalCharacteristicAge (years)Weight (g)ParityPelvic organ prolapseMRI EAS volume (mm^3^)Histological EAS volume (mm^3^)117.87073No36.238.8212.87934Yes19.620.4313.87213No64.071.1412.87038Yes4345511.86995Yes3841.4611.46235No606279.87741No69.167.386.76581Yes31.43196.97703No16.316.21011.59490No40.135.1Mean ± SD11.5 ± 3.3740 ± 903 ± 24/10 (40%)41.8 ± 17.942.8 ± 18.9Table 2Correlations of age, weight, parity to external anal sphincter (EAS) volume for 10 femalesCharacteristicMRI EAS volumeHistology EAS volumeCorrelation coefficientp valueCorrelationp valueAge0.200.570.270.45Weight−0.190.60−0.290.41Parity−0.040.910.050.88MRI magnetic resonance imaging
Serial Measurements of External Anal Sphincter Using Magnetic Resonance Imaging

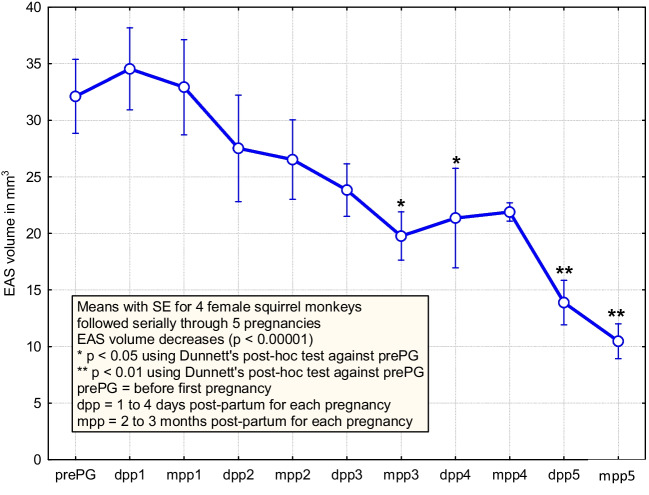

Data from concurrent study of serial MRI measurements show a gradual decrease in EAS volume over time as age and parity increase from the cohort of 4 breeding females (p < 0.00001; Fig. 3). This plot uses the average of two independent observers and demonstrates the value of using serial observations for a small sample of animals. In a series using 4 animals, time, which includes both the impact of aging and parity, was found to be associated with a decrease in EAS volume, whereas the results from 10 euthanized animals with single observations as presented in Tables 1 and 2 did not demonstrate these effects.Fig. 3. Serial measurements of external anal sphincter (EAS) volume using magnetic resonance imaging (MRI) in four female squirrel monkeys undergoing five pregnancies with spontaneous vaginal deliveries. Animals were examined by MRI prior to the first pregnancy, within 5 days post-partum of each delivery and again 2 to 4 months post-partum after each delivery. The EAS volume decreased gradually to half its initial size after five deliveries
