Dynamic Modeling and Analysis of Rotary Joints with Coupled Bearing Tilt-Misalignment Faults
Jun Lu, Zixiang Zhu, Jie Ji, Yichao Yang, Xueyang Miao, Xiaoan Yan, Qinghua Liu
TL;DR
This paper develops a detailed model to study how tilt and misalignment faults in rotary joints affect their dynamic behavior and vibration patterns.
Contribution
A high-fidelity nonlinear dynamic model for dual-support bearing–rotor systems with tilt-misalignment faults is proposed and validated experimentally.
Findings
Tilt angles and misalignment magnitude significantly influence contact forces and vibration patterns.
The model shows nonlinear increases in vibration amplitudes with higher misalignment.
Fault characteristic frequencies and spectral modulation effects are effectively captured by the model.
Abstract
This study systematically analyzes the dynamic behavior of bearing tilt-misalignment coupling faults in rotary joints and establishes a high-fidelity nonlinear dynamic model for a dual-support bearing–rotor system. By integrating Hertzian contact theory, the nonlinear contact forces induced by the tilt of the inner/outer rings and axial misalignment are considered, and expressions for bearing forces incorporating time-varying stiffness and radial clearance are derived. The system’s vibration response is solved using the Newmark-β numerical integration method. This study reveals the influence of tilt angle and misalignment magnitude on contact forces, vibration patterns, and fault characteristic frequencies, demonstrating that the system exhibits multi-frequency harmonic characteristics under misalignment conditions, with vibration amplitudes increasing nonlinearly with the degree of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

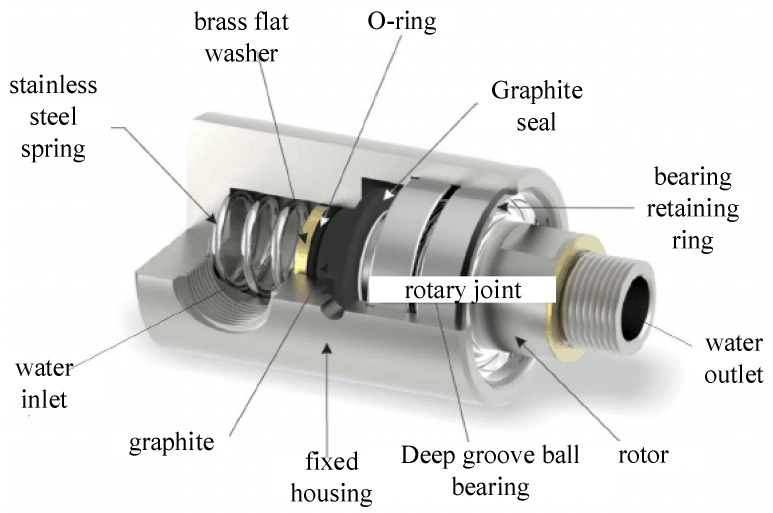

Figure 1

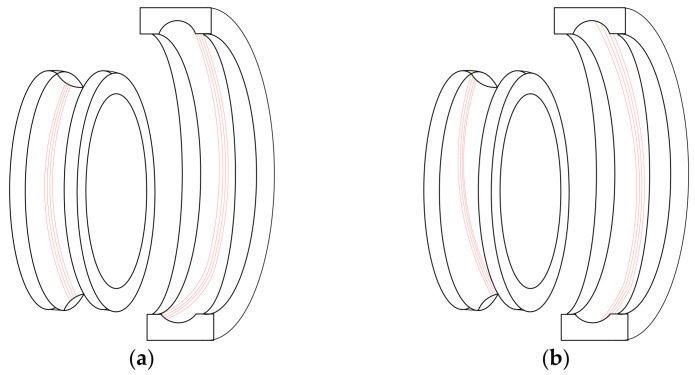

Figure 2

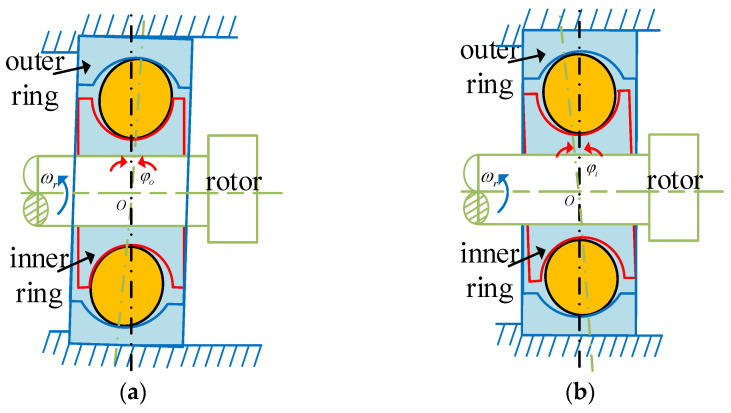

Figure 3
Figure 4

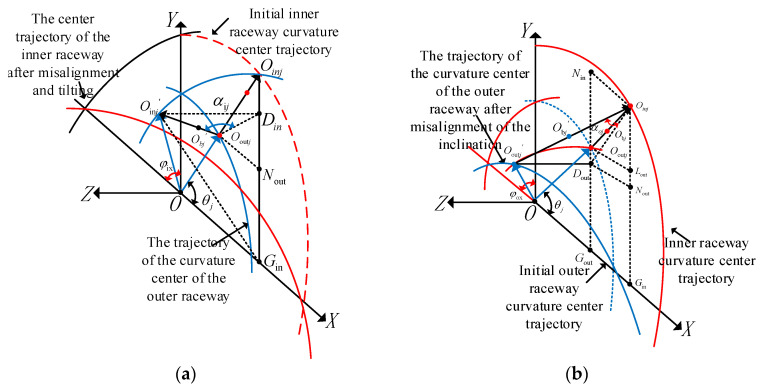

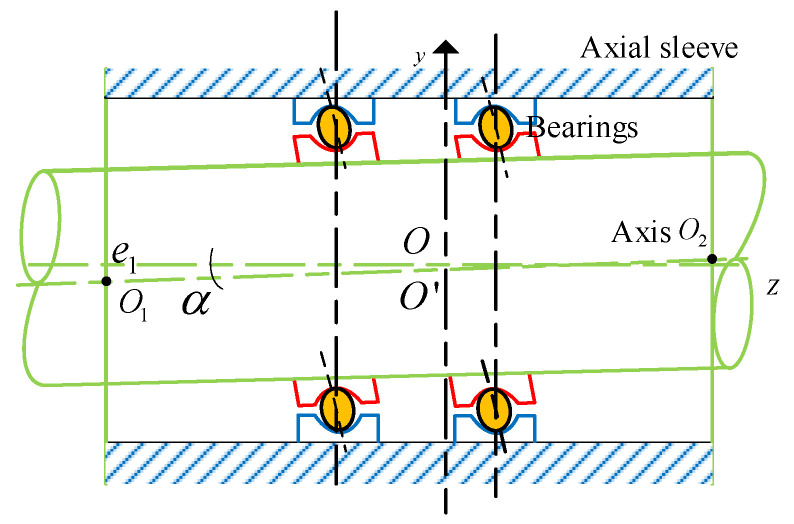

Figure 5

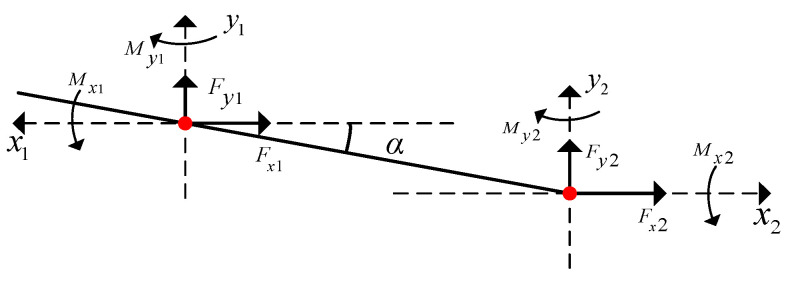

Figure 6
Figure 7

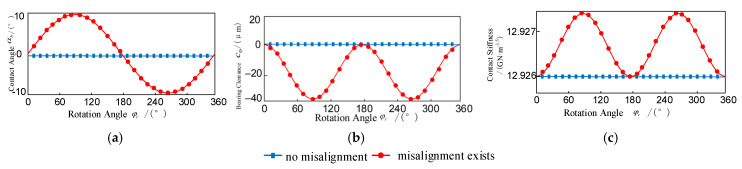

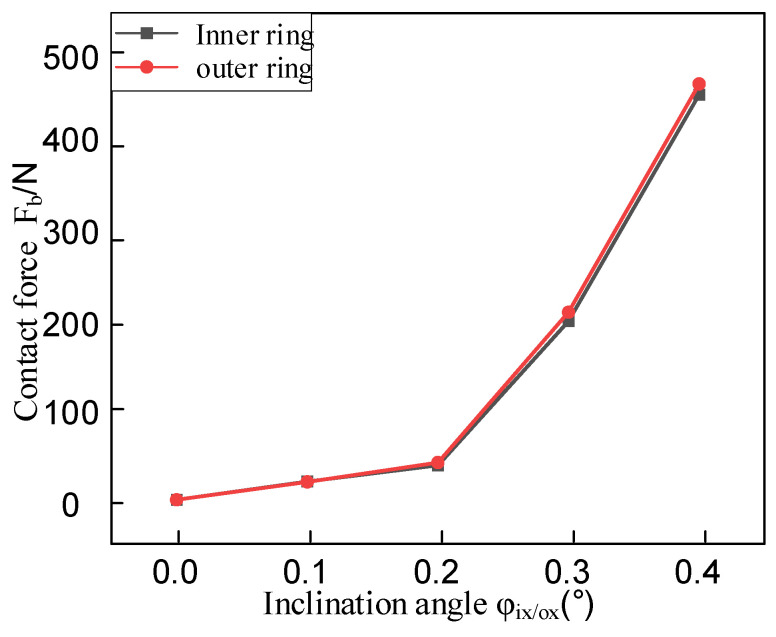

Figure 8
Figure 9

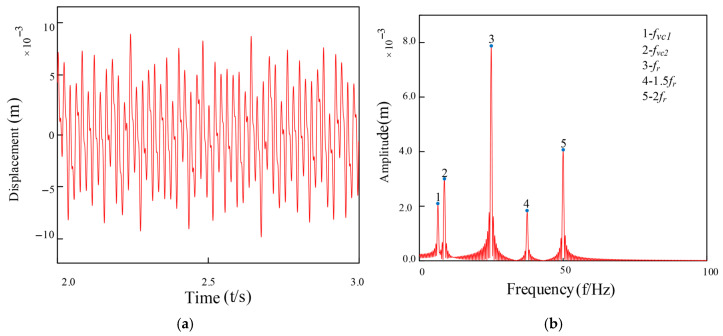

Figure 10

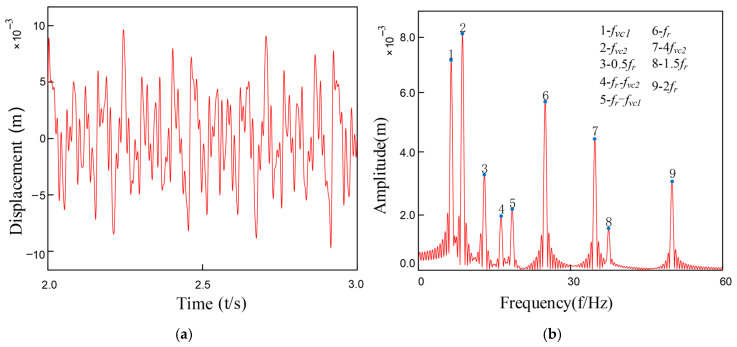

Figure 11

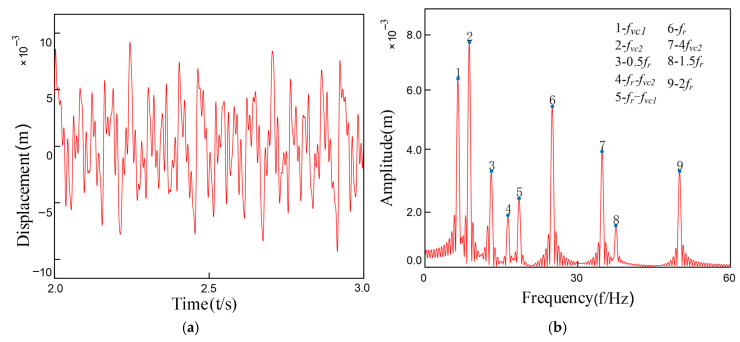

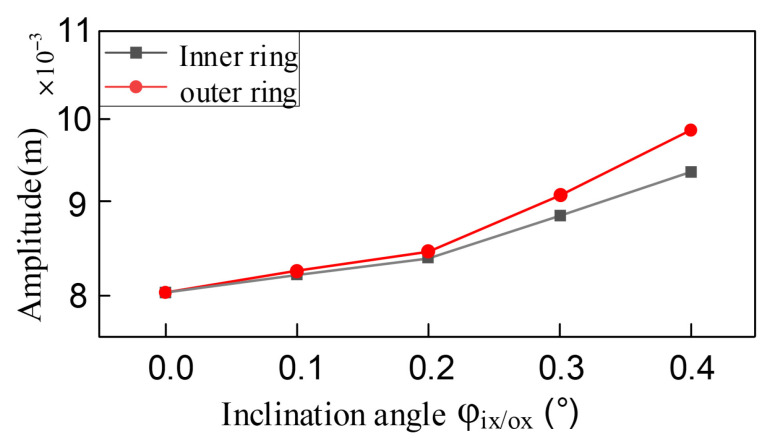

Figure 12
Figure 13

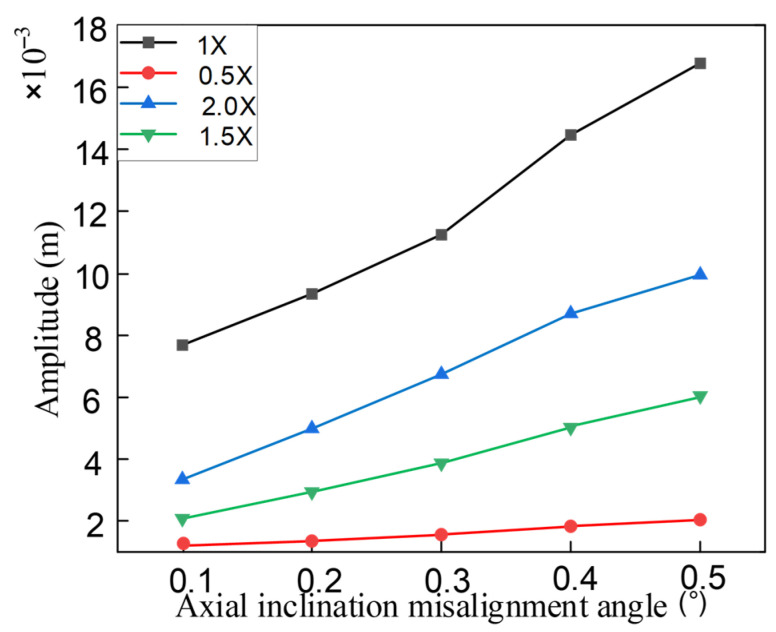

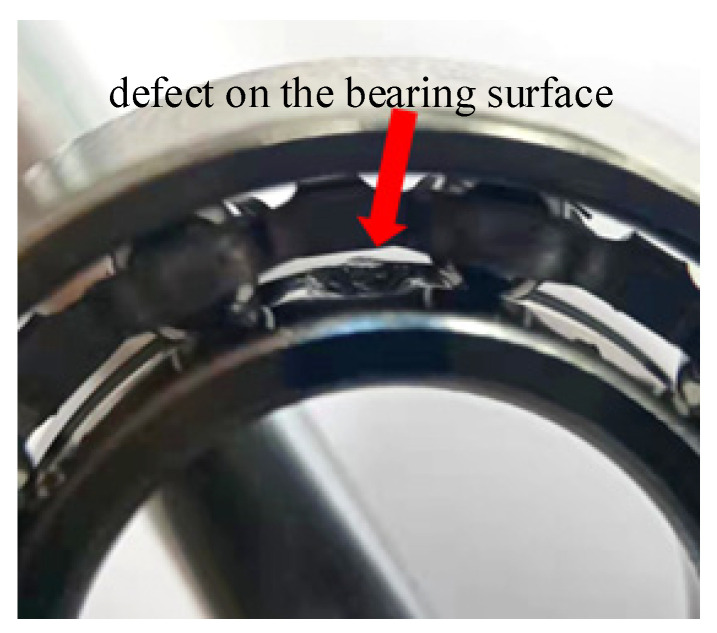

Figure 14

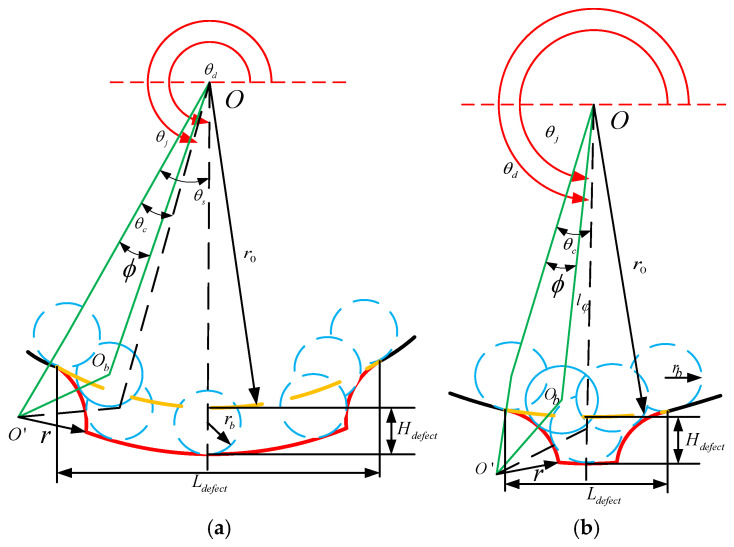

Figure 15

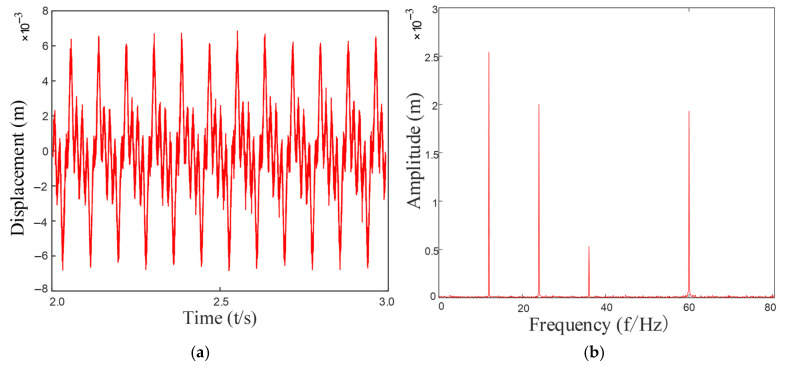

Figure 16

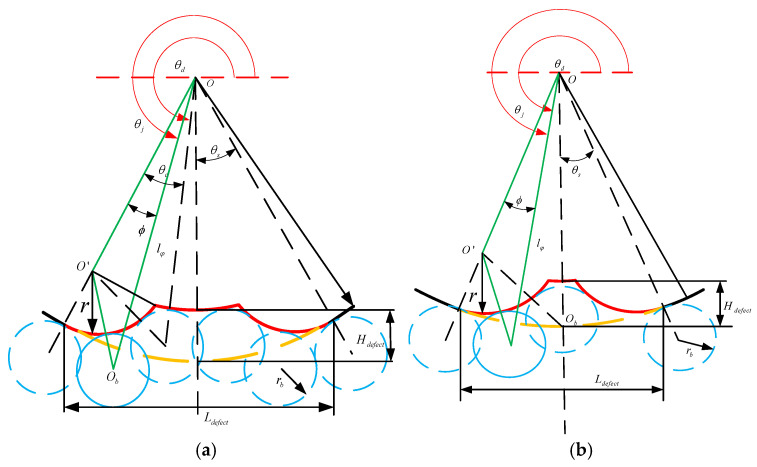

Figure 17

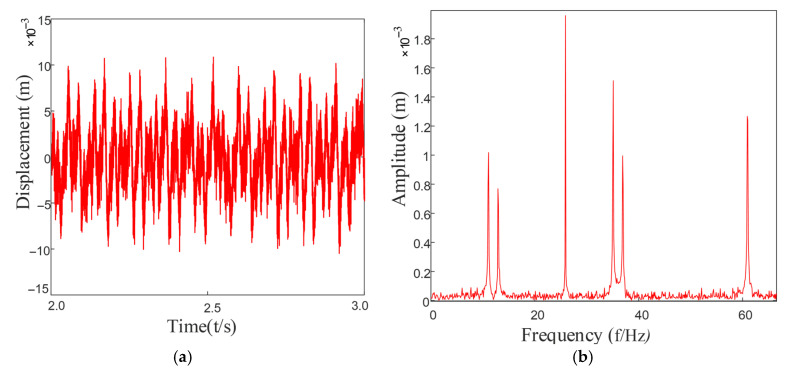

Figure 18

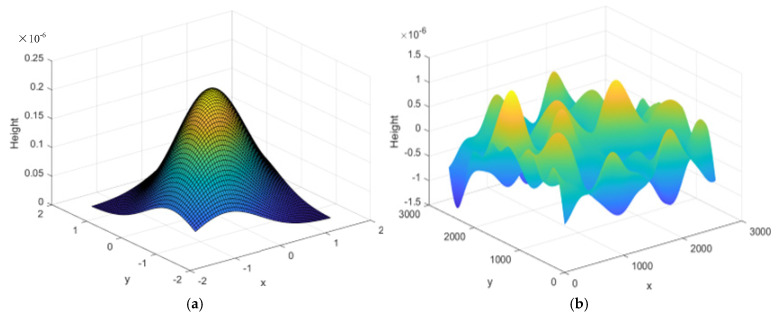

Figure 19

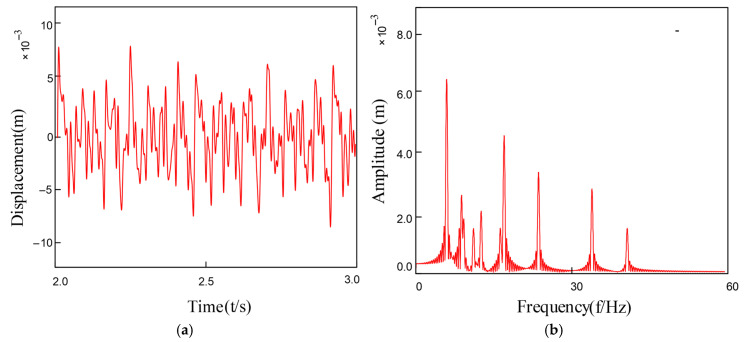

Figure 20

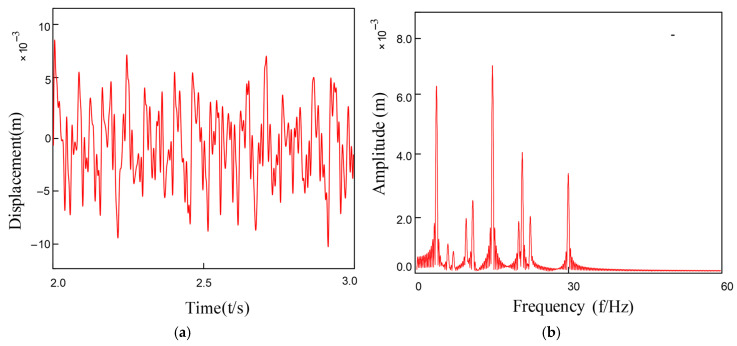

Figure 21

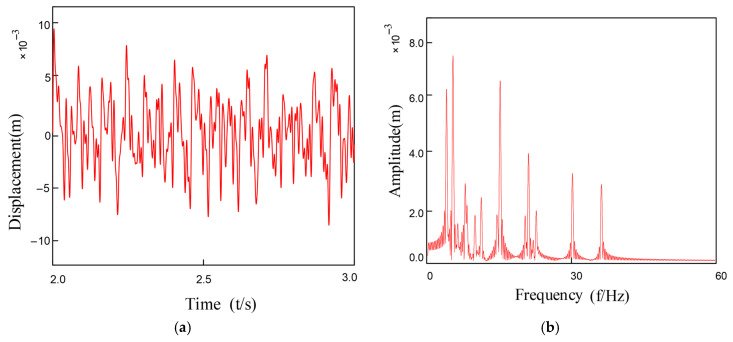

Figure 22
Figure 23

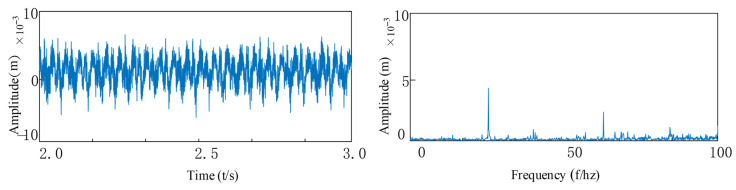

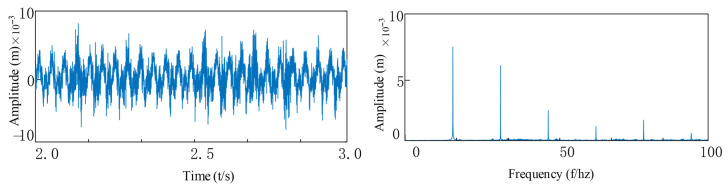

Figure 24

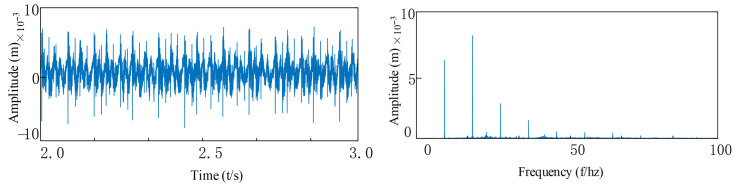

Figure 25

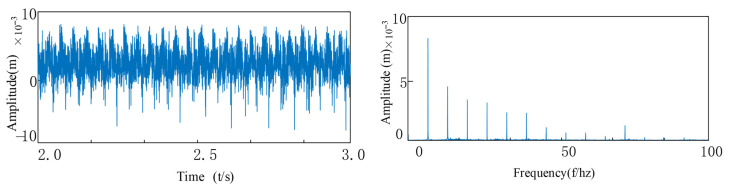

Figure 26
Figure 27

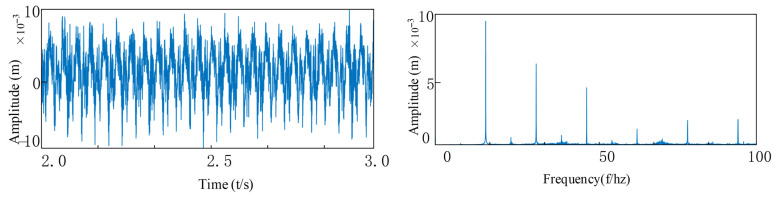

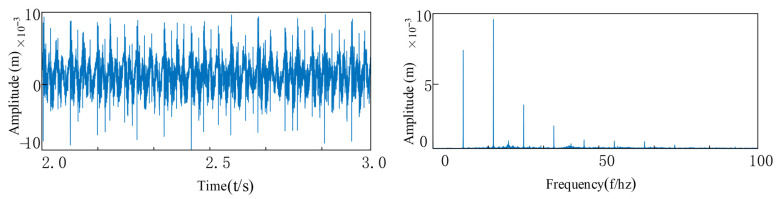

Figure 28

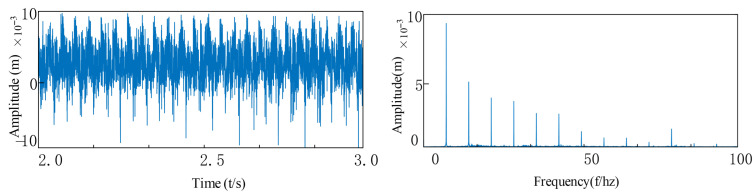

Figure 29

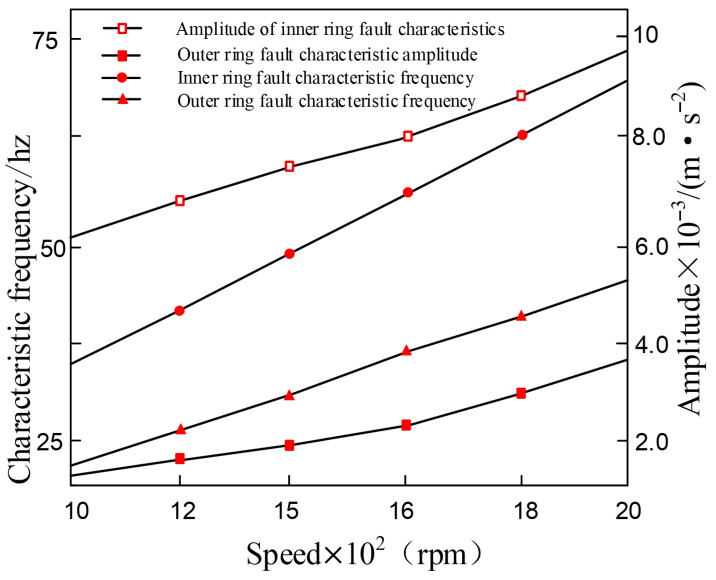

Figure 30Peer Reviews
