Imaging-Based Clinical Management of Mandibular Canal Variants: PR–CBCT–Selective MRI

TL;DR

This paper reviews imaging techniques for identifying mandibular canal variants and proposes a workflow to improve clinical decisions in dental procedures.

Contribution

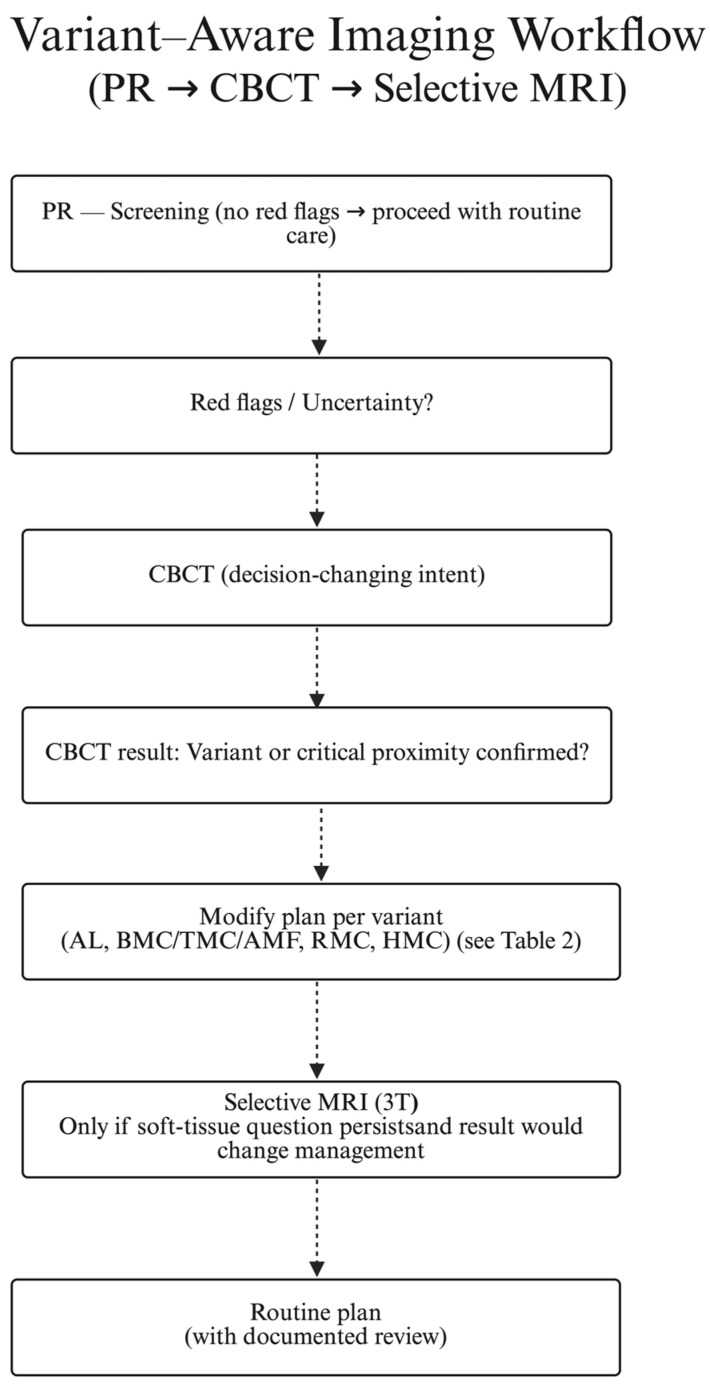

A novel imaging-led workflow is proposed to guide clinical decisions based on mandibular canal variants using PR, CBCT, and MRI.

Findings

CBCT reveals more mandibular canal variants than panoramic radiography, with prevalence dependent on imaging parameters.

Selective MRI can detect soft-tissue branches not visible in bony canals, aiding targeted clinical decisions.

The Landfald Clinical Framework is suggested as a tool to link variant patterns to procedural adjustments.

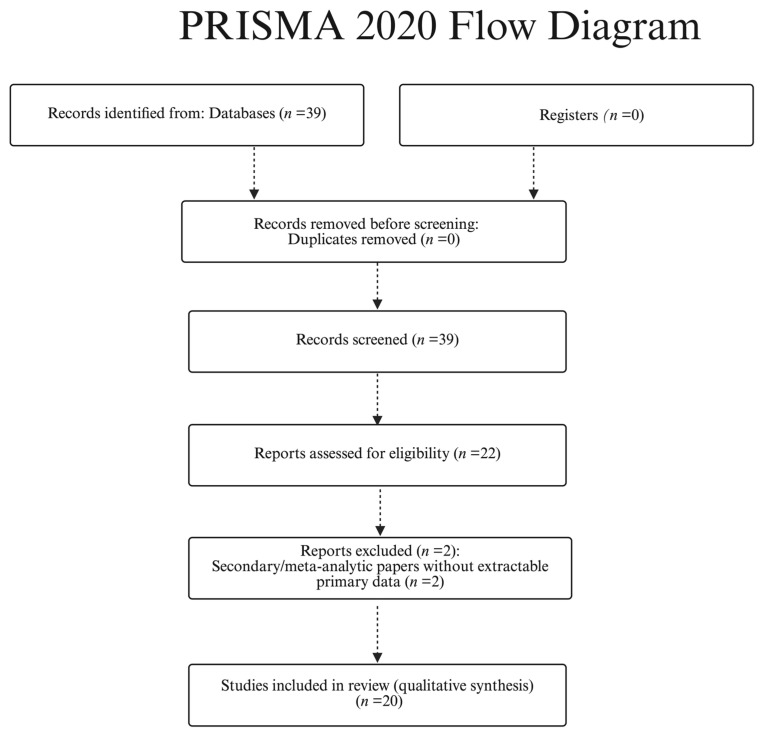

Abstract

Background: Mandibular canal (MC) variants are common and clinically relevant for anesthesia, implant placement, third-molar surgery, and osteotomies. Reported prevalences vary widely because they depend on imaging modality, acquisition parameters, and operational definitions. Methods: This was a focused narrative review with structured methods (PubMed/MEDLINE and Scopus, 2000–6 October 2025; last search 6 October 2025), predefined eligibility criteria and dual independent screening; no meta-analysis was conducted. Study-selection counts are reported in the text. Prevalence statements are contextualized by modality, imaging parameters (e.g., cone-beam computed tomography (CBCT) voxel size magnetic resonance imaging (MRI) field strength/sequences), and diagnostic thresholds (e.g., anterior loop (AL) criteria). Results: Compared with panoramic radiography (PR), CBCT consistently reveals more variant pathways. Typical CBCT estimates for bifid MC fall in the single-digit to low double-digit range, contingent on voxel size and definitions, whereas PR detects far fewer. Trifid canals are uncommon (≈1–2% in CBCT series). Reported retromolar canal frequencies vary broadly across populations and protocols, and AL length and prevalence are threshold-dependent. Selective MRI may complement CBCT by depicting soft-tissue branches not accompanied by a bony canal. We synthesize a variant-aware, imaging-led workflow: PR for screening; CBCT when predefined criteria are met and results are reasonably expected to change management; MRI reserved for targeted soft-tissue questions, in line with As Low as Reasonably Achievable (ALARA)/and As Low As Diagnostically Acceptable (ALADA) principles. We apply the Landfald Clinical Framework (LCF) as a hypothesis-generating, clinical synthesis tool linking variant patterns to procedural modifications and risk mitigation. Conclusions: A narrowed, clinically oriented approach—contextualizing prevalence by modality and definitions and applying an imaging-led, variant-aware workflow—can improve planning and safety in the posterior mandible. The LCF is used pragmatically within this workflow and does not constitute a new anatomical taxonomy; formal reliability and validity testing remain necessary.

Figures
