Small scale lowpass and quad-band bandpass filter for 5G application
Dilip Kumar Choudhary, Kushagra Pratap

TL;DR
This paper presents a compact filter design for 5G applications with low loss and high selectivity across multiple frequency bands.
Contribution
A novel small-scale lowpass and quad-band bandpass filter is introduced for 5G communication systems.
Findings
The proposed filter achieves low insertion loss and high selectivity with a compact size of 15.6 mm × 24.6 mm.
The filter operates across four bands (1.39–2.78 GHz, 3.26–4.09 GHz, 4.42–5.24 GHz, and 5.64–5.89 GHz) suitable for 5G FR1.
Experimental results confirm the design's performance aligns with simulations.
Abstract
This work offers a new small-scaled lowpass and quad-band passband filter with low insertion loss and high selectivity. By integrating a shorted interdigital capacitor (IDC), closed ring resonator, meander line, and rectangular-shaped virtual ground plane, better impedance matching and transmission properties have been attained. Initially, the lowpass response structure comprises shorted IDC and closed ring resonators. Further utilizing pairs of meander lines and rectangular stubs on both sides of ring resonators, a quad bandpass along with a lowpass filter was constructed. Excluding the fifty-ohm feedline the proposed filter area measures only 0.04λg × 0.06λg (15.6 mm×24.6 mm) at the lowpass frequency of 3dB cutoff, 0.75 GHz. The fractional bandwidth at 3-dB of the proposed four passband zones are 63.76% (1.39–2.78 GHz), 22.55% (3.26–4.09 GHz), 17.15% (4.42–5.24 GHz), and 4.3%…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

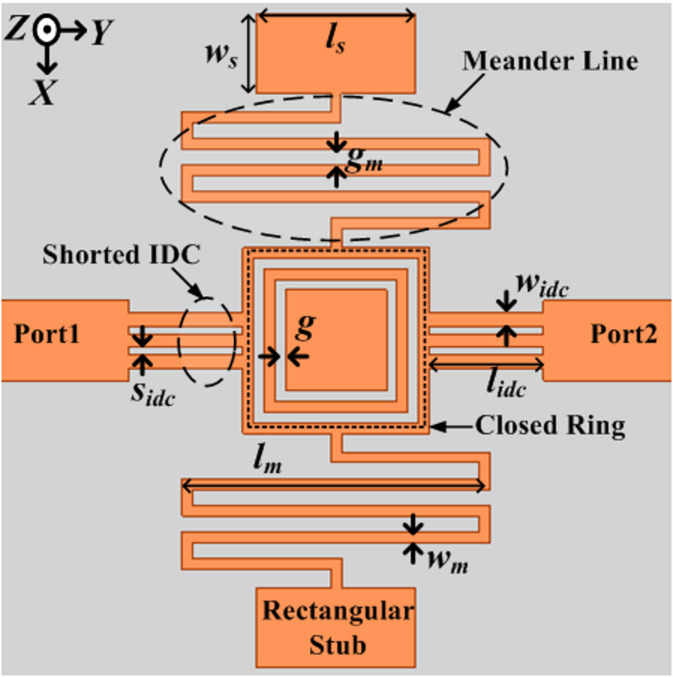

Figure 1

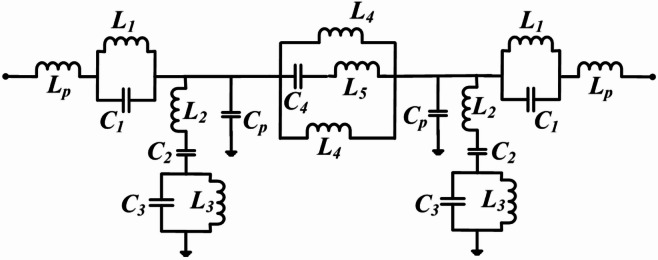

Figure 2

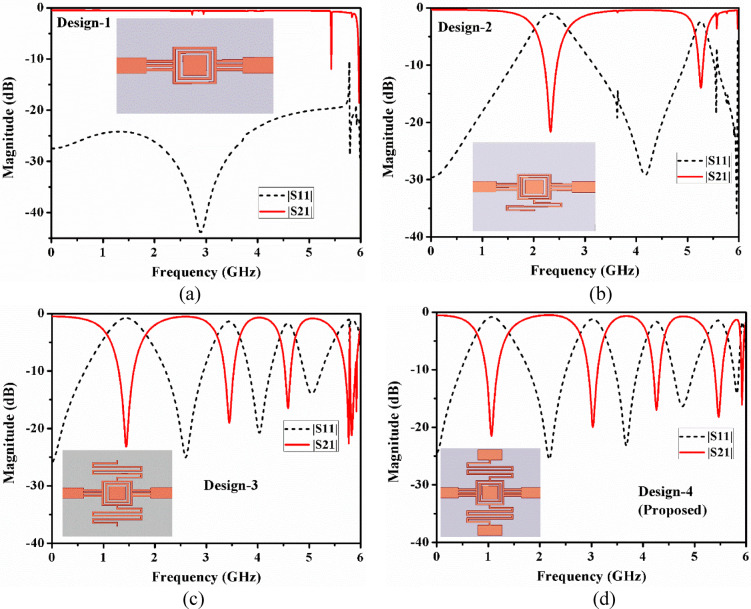

Figure 3

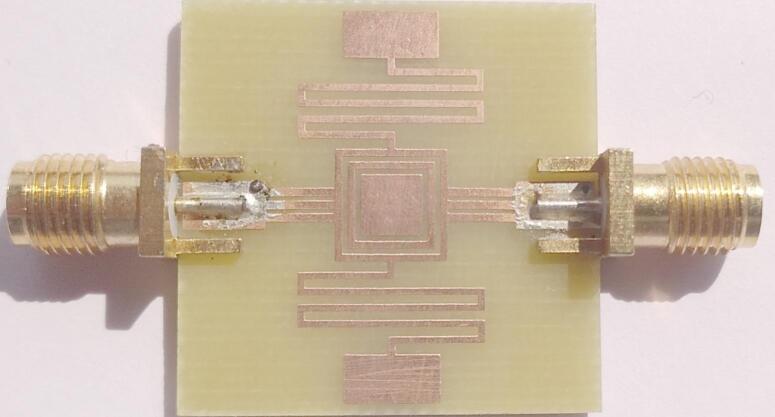

Figure 4

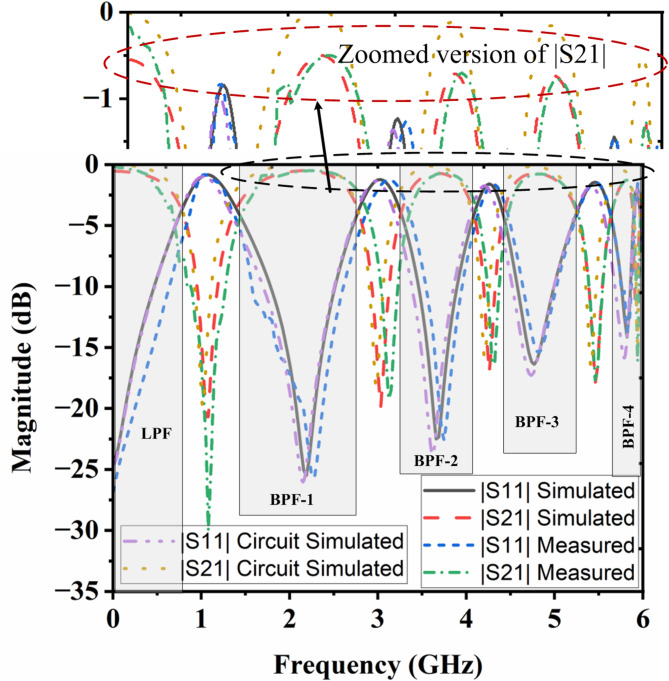

Figure 5

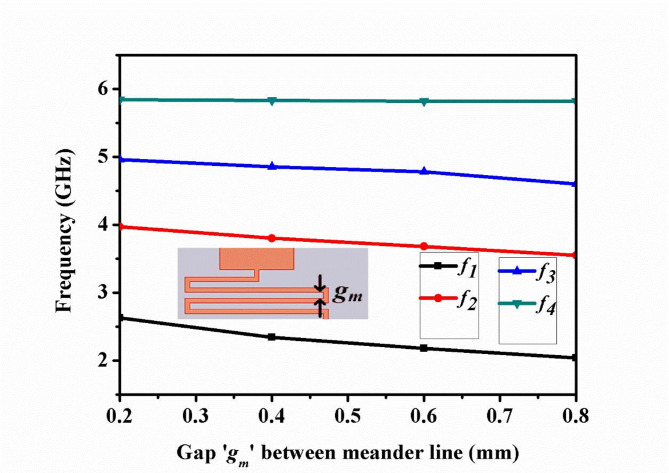

Figure 6

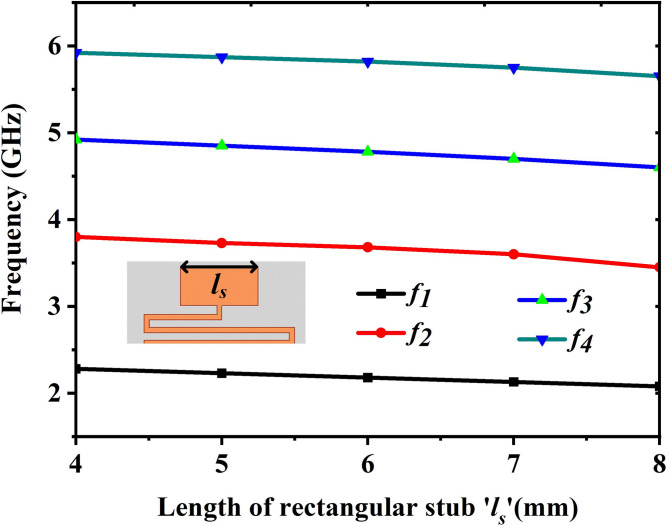

Figure 7Peer Reviews
