Prediction method for the reaction force of vehicle door sealing systems
Zhong Yang, Luoxing Li, Jing Huang, Guoqing Chen, Zhengqing Liu, Zhenhu Wang, Cebastien Joel Guembou Shouop, Cebastien Joel Guembou Shouop, Cebastien Joel Guembou Shouop
TL;DR
This paper introduces a more accurate method for predicting vehicle door sealing forces using finite element analysis, reducing errors from model simplifications.
Contribution
A novel multi-boundary coupling simulation method using FE analysis to predict sealing system reaction forces with high accuracy.
Findings

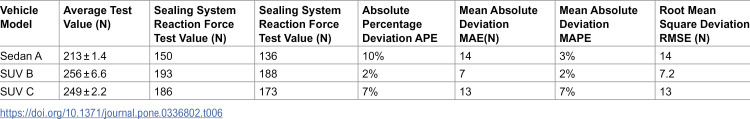

The proposed FE method achieves a 7% mean absolute percentage error compared to experimental data.
A 75% increase in lock-side seal CLD results in a 22% increase in total sealing system reaction force.
The method accounts for coupling effects between the door and flexible seal, improving prediction accuracy.
Abstract

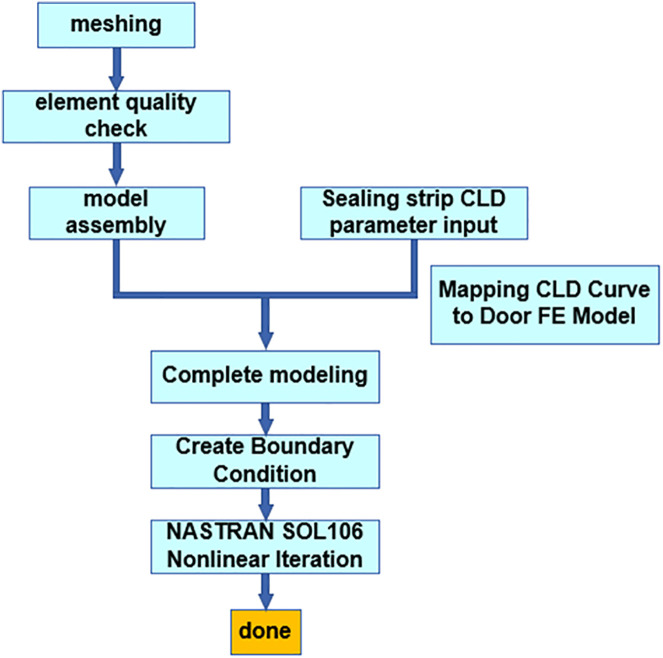

The accuracy of calculating the reaction force in vehicle sealing systems using moment equilibrium equations from statics is highly dependent on the degree of simplification in the mathematical model. This study demonstrates that employing the Finite Element (FE) method allows for a comprehensive consideration of the coupling effects between the door and the flexible seal, thereby eliminating errors inherent to model simplification and single-boundary variables. Consequently, this approach improves the prediction accuracy of the sealing system’s reaction force. In this work, a multi-boundary coupling simulation method for a vehicle door sealing system was established using the Finite Element (FE) method, which accounts for the interaction between the seal and the complex door structure. The results, based on data from three distinct vehicle models (with three doors tested per model),…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

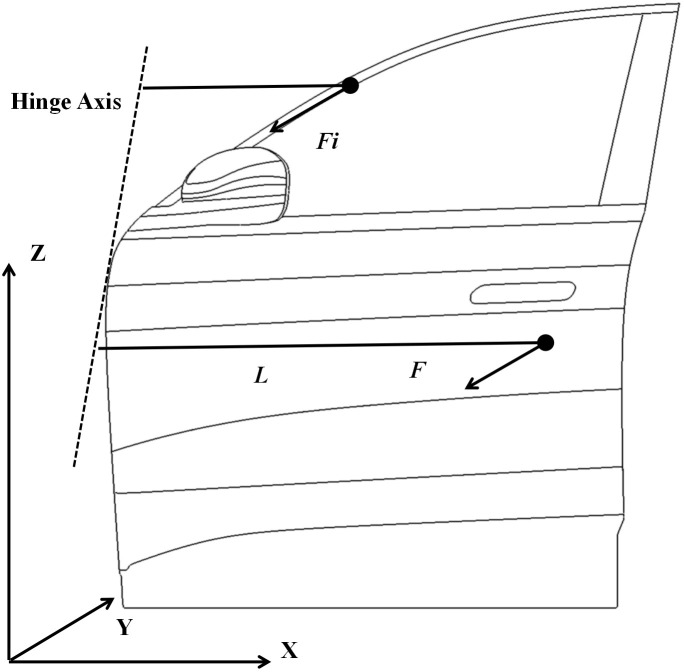

Figure 3

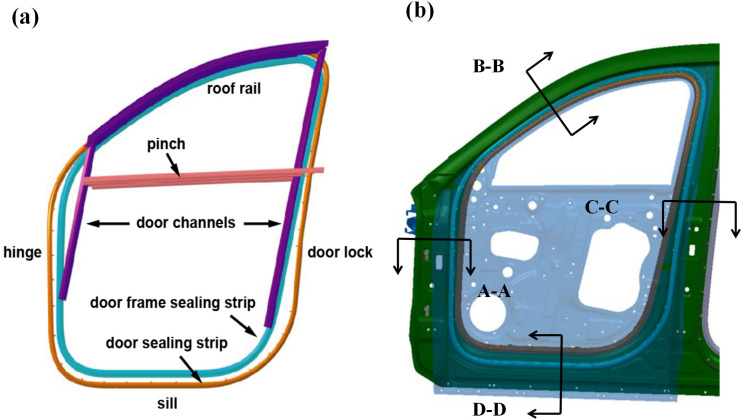

Figure 4
Figure 5
Figure 6

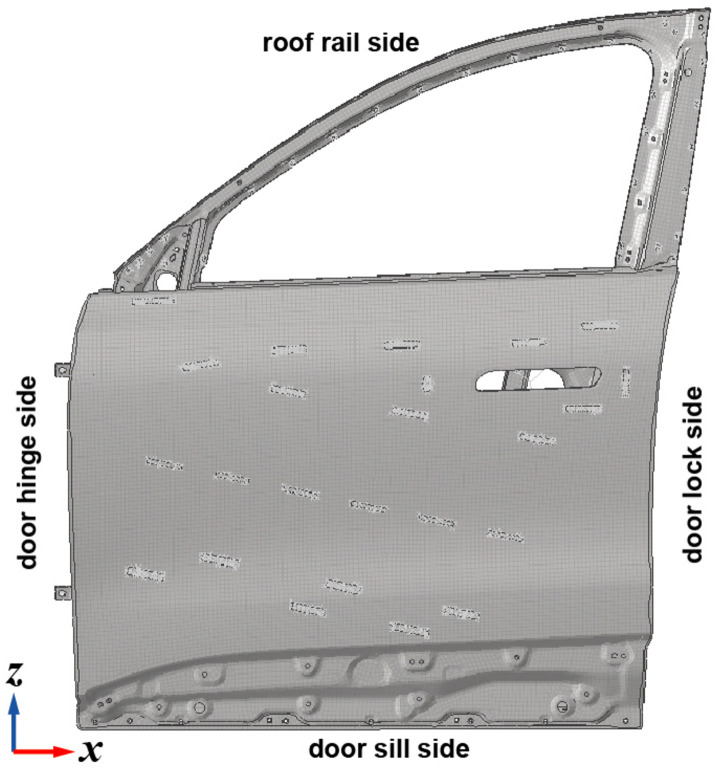

Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22Peer Reviews
