Innovative approach to support therapeutic proteins’ similarity in hydrodynamic size using high-throughput dynamic light scattering and forced degradation
Ashwinkumar Bhirde, Siri Harish, Nicholas Trunfio, Isabella F. de Luna, William Smith, Qiong Fu
TL;DR
This paper introduces a new method using high-throughput dynamic light scattering to assess similarity in the size of therapeutic proteins, improving biosimilarity evaluation.
Contribution
A novel HT-DLS 'sweet spot' method is developed to evaluate hydrodynamic size similarity beyond signature peak analysis.
Findings
Temperature range, increment, and hold time significantly affect analytical similarity in hydrodynamic size.
Signature peaks alone are insufficient for demonstrating similarity in size distribution.
Principal component analysis enhances interpretation of HT-DLS data for biosimilarity assessment.
Abstract
Comparative analytical assessment (CAA) between the reference product and the proposed product forms the basis of the biosimilarity demonstration. Though Dynamic Light Scattering (DLS) has been implemented for CAA, its capability beyond signature peak for similarity assessments has remained unexplored. Herein, we have developed a innovative forced degradation based sweet spot method consisting of signature peak, temperature range, increment and hold time using high throughput-DLS (HT-DLS) to show similarity in hydrodynamic size between products. In our study, we used rituximab, its biosimilars, and insulin analogs as model products to demonstrate product similarity in hydrodynamic size (Dh) size through the HT-DLS sweet spot approach. Our data indicate that temperature range, temperature increment, hold time, and regularization algorithm, all play a role in showing analytical similarity…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsProtein purification and stability · Protein Interaction Studies and Fluorescence Analysis · Biosimilars and Bioanalytical Methods
Introduction
The development of therapeutic proteins has revolutionized the field of medicine, offering treatments for a variety of diseases that were previously untreatable^1^. Biosimilars, biological products that are highly similar to and have no clinically meaningful differences from an already approved biological product (i.e., the reference product), have revolutionized the pharmaceutical industry. Biosimilars have similar clinical benefits and risks as the reference product, and they may offer a cheaper and more accessible alternative for patients^2^^3^. However, demonstrating biosimilarity is a complex process due to the inherent variability of biological products^4^.
To demonstrate that the proposed product is highly similar to the reference product, the Sponsor must perform comparative analytical assessment (CAA) of the proposed product to the reference product in terms of structure and function. Sponsors utilize various analytical tools to demonstrate similarity in critical quality attributes (CQAs) during comparative assessments. These tools evaluate primary structure, higher-order structure (HOS), post-translational modifications (PTMs) such as glycosylation, and other CQAs that may be affected by changes in the manufacturing process^5^. As part of the demonstration that the proposed product is highly similar to the reference product, applicants conduct comparative forced degradation studies. These forced degradation studies involve subjecting the therapeutic proteins to stress conditions that accelerate degradation. These studies can provide valuable insights into the stability and degradation pathways of the therapeutic proteins^6^. By comparing the degradation pathways of the proposed biosimilar and the reference product, similarity in terms of degradation pathways and rates can be assessed. If the two products have similar degradation pathways, it suggests that they have similar structures and are likely to have similar functions^7^.
Dynamic light scattering (DLS) is a powerful technique primarily used to determine the size distribution profile of small particles in suspension or polymers in solution^8^. DLS has emerged as a critical tool for protein particle characterization, providing valuable insights into protein aggregation, stability, and behavior under various conditions^9^. The primary output of a DLS measurement is a particle size distribution. DLS provides the hydrodynamic radius or commonly used hydrodynamic diameter (D_h_), which is the diameter of a hypothetical hard sphere that diffuses in the same manner as the particle^10^. This information is crucial in understanding the physical properties of proteins in solution^11^. Protein aggregation is a common challenge in the biopharmaceutical industry, as it can affect the efficacy and safety of therapeutic proteins. DLS is an effective tool for detecting and monitoring protein aggregation^12^ and can identify aggregates in a size range from a few nanometers to several micrometers^13^. Traditionally DLS measurements are performed using a cuvette; however, a plate reader-based high throughput system provides better capabilities, like running multiple samples at the same time. High throughput-DLS (HT-DLS) is also used to assess protein stability^14^. By monitoring the size distribution of a protein solution over time or under varying conditions (e.g., temperature, pH, ionic strength), researchers can gain insights into the protein’s stability. Any shift in the D_h_ size distribution can indicate unfolding or aggregation, both of which are signs of instability^15^. While DLS cannot directly measure conformational changes, an increase in the D_h_ size can indicate unfolding or partial unfolding of the protein^16^. Overall, the hydrodynamic size of the particles can be used to monitor changes in the size distribution during forced degradation^17^. Thus by comparing the D_h_ size profiles of the proposed biosimilar and the reference product under stress conditions, we can assess their similarity in terms of stability and aggregation behavior.
Several previous publications have used DLS as an assay in the comparative analytical assessment^17,18^. However, these studies have been limited to monomer peak in its native state referred here in this manuscript as the “signature peak”. Herein, we have developed an innovative approach of evaluating analytical similarity in D_h_ size distribution through forced thermal degradation using a HT-DLS based sweet spot method (SSM). An overview of the proof-of-concept SSM is provided in Fig. 1. By optimizing a temperature range, temperature increment, and hold time, we were able to compare D_h_ size distribution of approved monoclonal antibody (mAb) biosimilars and their reference products as well as size comparability between insulin products.

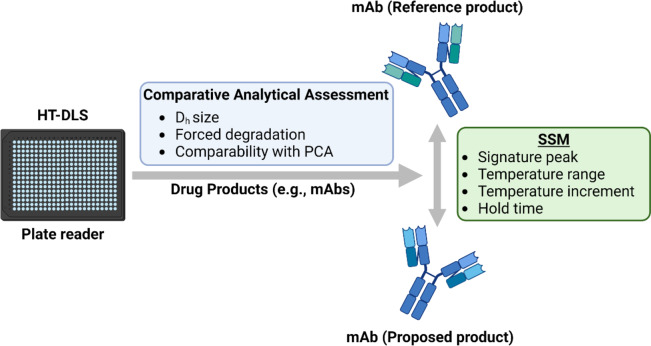

Fig. 1. Overview of the high-throughput dynamic light scattering (HT-DLS) Sweet Spot method (SSM) to support analytical similarity of therapeutic proteins like monoclonal antibody (mAb) using dynamic light scattering (D_h_ = hydrodynamic size) and principal component analysis (PCA).
Results
Developing the sweet spot method for mAb DPs
To develop the method for comparing size distribution of mAbs, first continuous temperature ramping was tested. For this experiment, rituximab and its biosimilars, rituximab-pvvr and rituximab-abbs, were evaluated alongside cetuximab as a non-biosimilar mAb DP. Cumulants, popularly known as Z-average (measures single species with monomodal D_h_ size distribution), and regularization also known as intensity weighted nonnegative least-squares method, makes no prior assumptions about the shape or form of the D_h_ size distribution in providing information about the aggregates and size distribution are two D_h_ size data processing models used in DLS runs. For all DLS runs conducted throughout the study, both models were used to collect D_h_ data to test their suitability under various conditions tested. Data from the continuous temperature ramping did not provide a clear pattern in D_h_ size change (Fig. 2) for the drug products (DPs) tested.

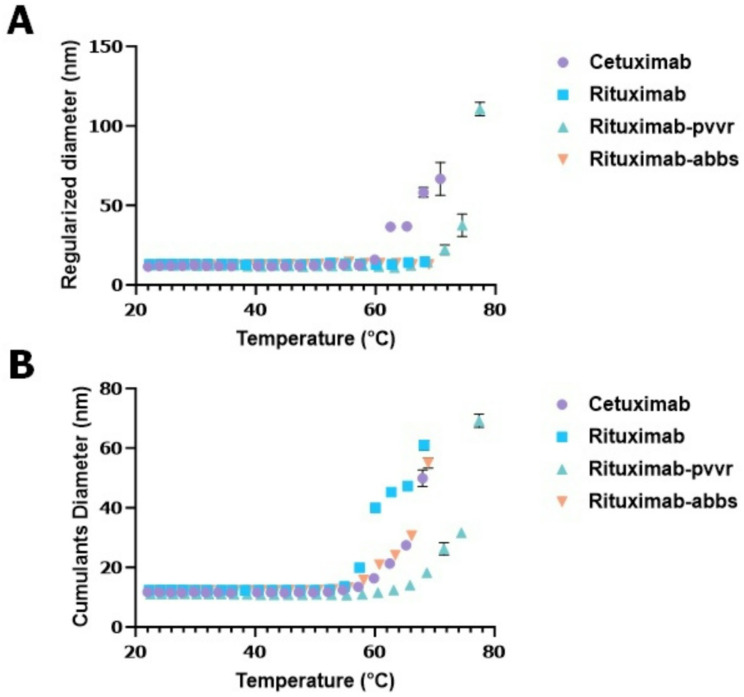

Fig. 2. Hydrodynamic (D_h_) size changes of monoclonal antibody (mAb) drug products (DPs) under continuous temperature ramping condition with no hold time and 3℃ increment temperature. (A) D_h_ sizes (regularization method) of mAb DPs cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr and rituximab-abbs) stressed between 20 and 80℃ range. (B) D_h_ sizes (cumulants method) of mAb DPs cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr and rituximab-abbs) stressed between 20 and 80℃ range. Continuous ramping approach did not provide a clear D_h_ size change pattern between the drugs tested.
Next, we tested the mAbs under temperature ramping with a set hold time, which provided adequate duration to observe meaningful differences or similarities between two products. For this test, rituximab (rituximab, rituximab-pvvr, rituximab-abbs, and rituximab-arrx) and cetuximab products were evaluated along with NIST mAb, which was used as a well-characterized reference standard, to differentiate drug products, and to demonstrate the suitability of the assay. Data from this experiment indicated that the DPs tested did not show any change in their D_h_ size up to 50℃ (Fig. 3). After determining the temperature range in which D_h_ size did not change, the same DPs were then tested at a higher temperature range. For this step, the DPs were evaluated between 50 and 70℃ with a 2-minute hold time and 3℃ increment temperature (Fig. 4) using the event schedule from the Dynamics software. All the DPs were tested at their original concentration. Results observed from this experiment clearly indicated that these biosimilars and their reference product had a similar D_h_ size changing pattern compared to the other DPs tested. Initially, optimization with the sweet spot method was performed using rituximab and only one of its biosimilars to minimize costs. Once the similarity pattern was established using the sweet spot method, then more drugs were added to ensure the method worked. The validity of the approach was confirmed with rituximab and 3 biosimilars showing similar size change patterns. In short, the optimized hold time, temperature range, and increment formed the core of the sweet spot method.

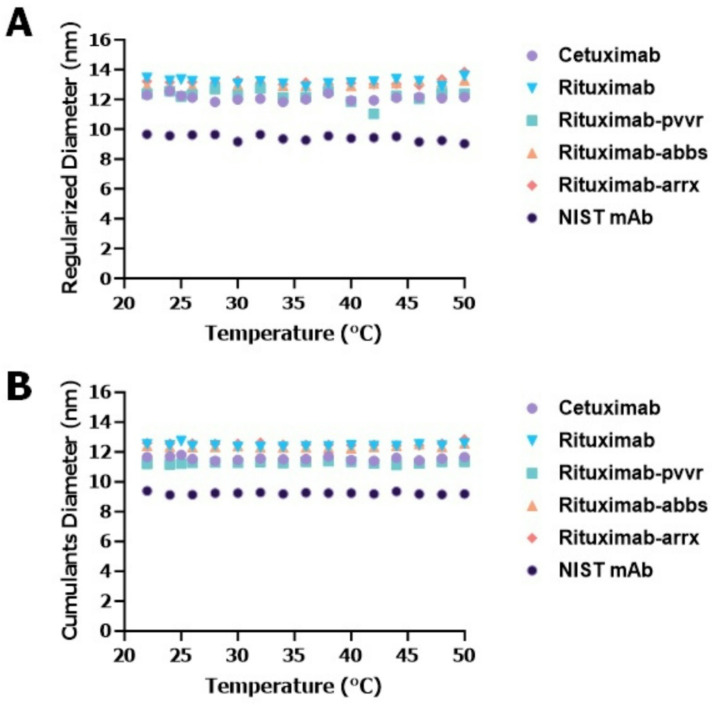

Fig. 3. Hydrodynamic (D_h_) size changes of monoclonal antibody (mAb) drug products (DPs) within the no-change temperature ramping condition with 2-minute hold time and 3℃ increment temperature. (A) D_h_ sizes (regularization method) of mAb DPs NIST mAb, cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr, rituximab-abbs and riabni) stressed at 22–50℃ range. (B) D_h_ sizes (cumulants method) of mAb DPs NIST mAb, cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr, rituximab-abbs and riabni) stressed at 22–50℃ range. Both regularized (A) and cumulants (B) temperature stress range clearly shows no change in D_h_ size for the controls NIST mAb, cetuximab and between rituximab and its biosimilars.

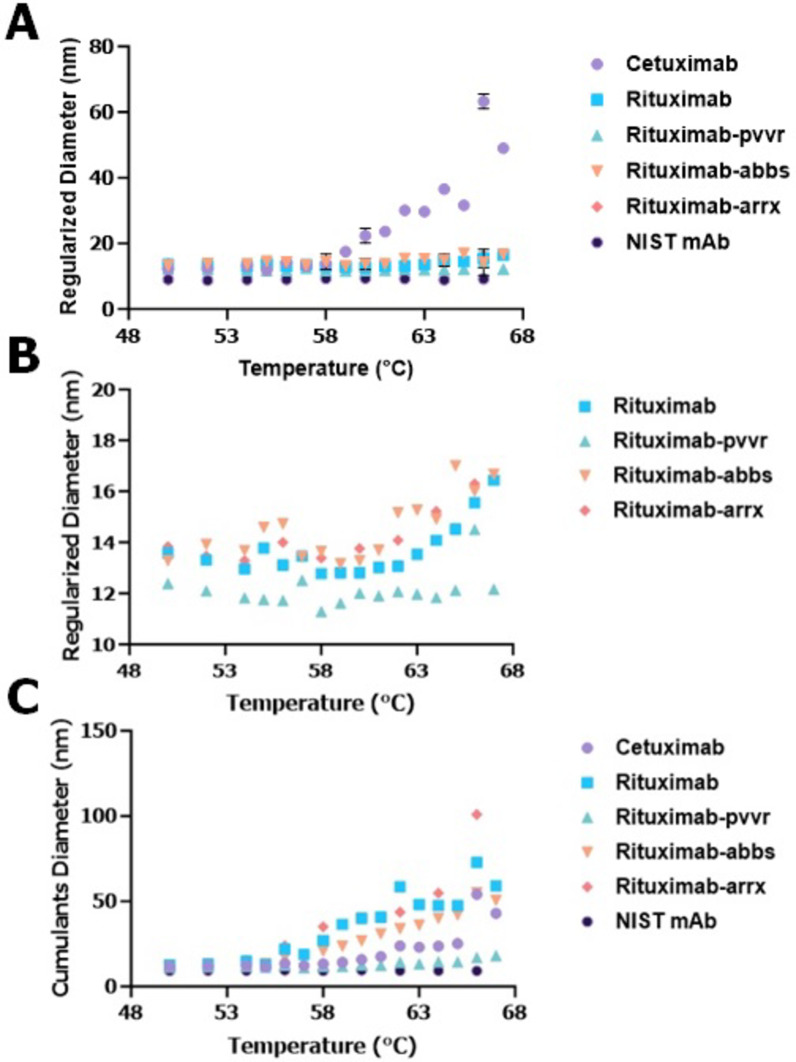

Fig. 4. Hydrodynamic (D_h_) size changes of monoclonal antibody (mAb) drug products (DPs) within the Sweet Spot temperature ramping condition with 2-minute hold time and 3℃ increment temperature. (A) D_h_ sizes (regularization method) of mAb DPs NIST mAb, cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr, rituximab-abbs and rituximab-arrx) stressed at 50–67℃ range. (B) D_h_ sizes (regularization method) of mAb DPs rituximab and rituximab biosimilars (rituximab-pvvr, rituximab-abbs and rituximab-arrx) stressed at 50–67℃ range. (C) D_h_ sizes (cumulants method) of mAb DPs NIST mAb, cetuximab, rituximab and rituximab biosimilars (rituximab-pvvr, rituximab-abbs and rituximab-arrx) stressed at 50–67℃ range. Regularized (A,B) sweet spot range clearly shows D_h_ size similarity pattern between rituximab and its biosimilars.
CAA of mAb DPs using PCA
To elucidate the variation between mAbs at different temperatures, we implemented principal component analysis (PCA) modeling (refer to PCA modeling in “Materials and Methods”). The score space for the mAbs (Fig. 5A) showed that the first principal component (x-axis) primarily captured the variability distinguishing NIST mAb from the other mAbs. The loadings in Fig. 5B showed that the first principal component may be interpreted as being positively correlated with the low temperature measurements. Taken together, this indicated that NIST mAb having a smaller diameter than the other mAbs at low temperatures may be responsible for the pattern seen in the score space. The score space showed that the second principal component (y-axis) primarily captured the variability which distinguished cetuximab from the other mAbs. The loadings showed that the second principal component may be interpreted as being positively correlated with the high temperature measurements. Taken together these data indicated that cetuximab diameter increasing more rapidly than the others as the temperature was increased may be responsible for the pattern seen in the score space. The grouping of rituximab, rituximab-pvvr, rituximab-arrx and rituximab-abbs on both principal components indicated that they had similar D_h_ sizes across the entire temperature range.

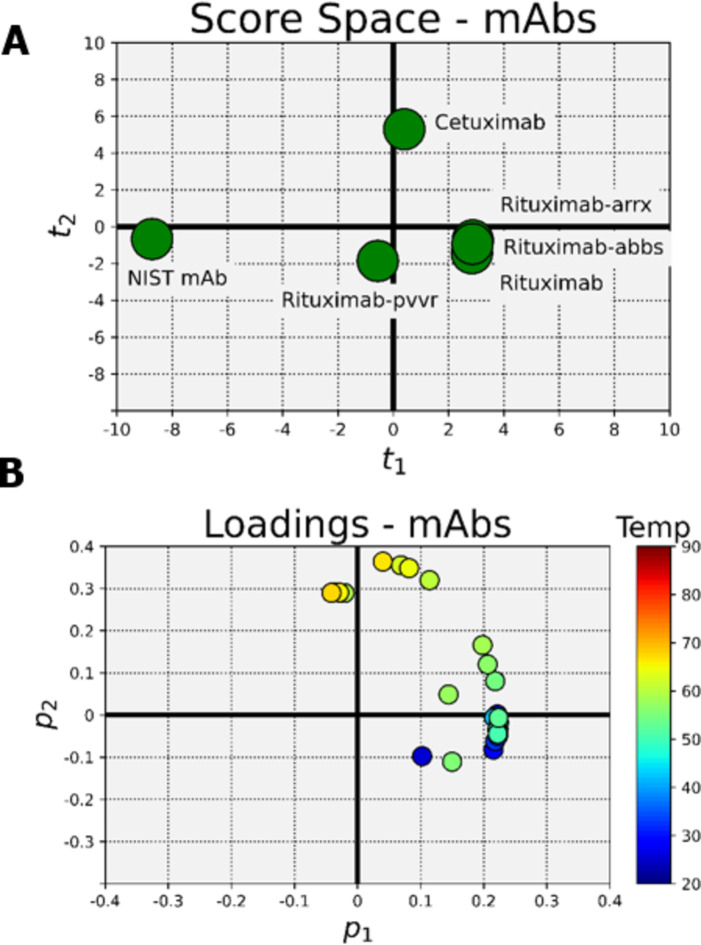

Fig. 5. Principal component analysis modeling of the Hydrodynamic (D_h_) size changes of monoclonal antibody (mAb) drug products (DPs) within the Sweet Spot temperature ramping condition with 2-minute hold time and 3℃ increment temperature. (A) The score space and (B) loadings for the mAb products. They show that rituximab and its biosimilars have similar D_h_ size change pattern across the entire temperature range.
Sweet spot method under diluted DP concentration
To understand the effectiveness of our approach for lower concentration DPs, we tested the mAb DPs under diluted conditions. For this test, cetuximab (2 mg/mL original concentration), rituximab (diluted (2 mg/mL) and undiluted (10 mg/mL)) and rituximab biosimilar rituximab-pvvr (diluted (2 mg/mL) and undiluted (10 mg/mL)) were evaluated. Rituximab and its biosimilar were diluted to similar concentration as cetuximab. Data (Fig. 6) obtained indicated diluted rituximab-pvvr and the reference product rituximab had a similar D_h_ size change pattern compared to undiluted products, suggesting the D_h_ size change pattern is not impacted by protein concentration. To establish a control standard next, we tested NIST mAb as a suitable control reference standard that can be implemented during method development for testing mAb DPs. For this test, we evaluated NIST mAb under the hold time and increment temperature ramping approach from 22 to 82℃ (Fig. 7). Data showed there was no change in the NIST mAb D_h_ size up to 79℃.

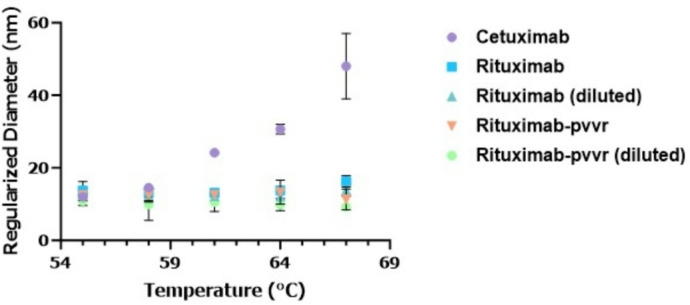

Fig. 6. Hydrodynamic (D_h_) size changes of diluted (2 mg/mL) and undiluted (10 mg/mL) monoclonal antibody (mAb) drug products (DPs) within the Sweet Spot temperature ramping condition with 2-minute hold time and 3℃ increment temperature. D_h_ sizes (regularization method) of diluted and undiluted rituximab and rituximab biosimilar rituximab-pvvr, and cetuximab (undiluted 2 mg/mL) stressed at 55–67℃ range. Regularized sweet spot range clearly shows D_h_ size similarity between rituximab and its biosimilar rituximab-pvvr even when diluted.

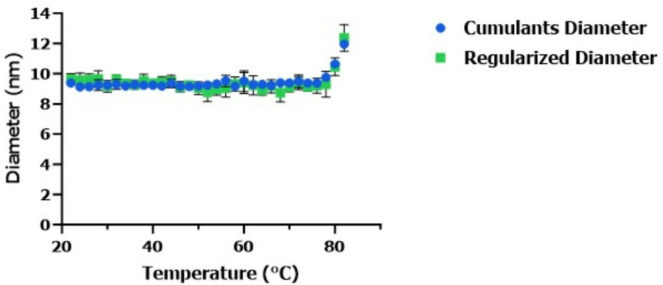

Fig. 7. Hydrodynamic (D_h_) size changes of NIST mAb covering the no change temperature range and the mAb sweet spot temperature range with 2-minute hold time and 3℃ increment temperature. D_h_ sizes (cumulants (blue) and regularization (green) method) of NIST mAb stressed at 22–82℃ range. Both cumulants and regularized data processing algorithms shows no change in D_h_ size for the mAb reference standard control NIST mAb for the temperature range between 22–79℃.
Developing the sweet spot method and PCA for fast-acting insulin DPs
Once we established the method for mAbs, we compared insulin lispro, insulin aspart, and glulisine DPs with the sweet spot method. For this approach, we evaluated the insulin DPs from 55 to 80℃ (Fig. 8 and Figure S1). Results observed from this experiment clearly indicated that insulin lispro DPs had a similar D_h_ size change pattern compared to the other insulin DPs tested. Next, PCA modeling was used to facilitate a deeper understanding of the fast-acting insulin DP differences with increasing temperature. The score space for the insulin products (Figure S2A) showed that the first principal component (x-axis) primarily captured the variability distinguishing insulin lispro (admelog) and aspart (novolog) and insulin lispro (humalog) and insulin glulisine (apidra). The second principal component (y-axis) captured the variability distinguishing between insulin lispros (humalog and admelog) from the other insulin DPs. The loadings in Figure S2B showed that the first principal component was positively correlated with the low and high temperature measurements. The loadings showed that the second principal component was positively correlated with higher temperature. Taken together, this indicated that the diameter of insulin lispro DPs (humalog and admelog) increasing more rapidly as the temperature increased relative to the other two DPs may be responsible for the pattern seen in the score space. However, as each of the four DPs projected into different quadrants, it is not possible to conclude if this is a real trend or if the analysis is only saying that the DPs are different using PCA modeling. The continuous temperature ramping approach was not successful for insulin DPs as well (Figure S3).

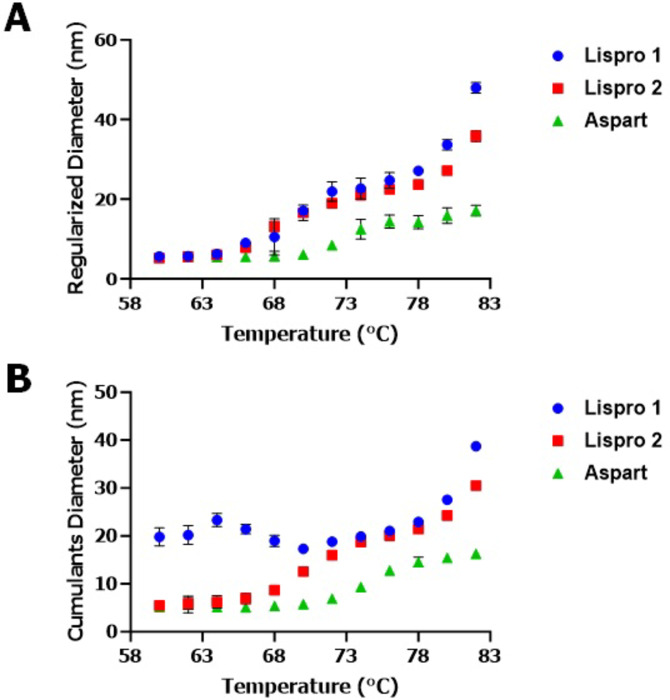

Fig. 8. Hydrodynamic (D_h_) size changes of insulin drug products (DPs) within the Sweet Spot temperature ramping condition with 2-minute hold time and 3℃ increment temperature. (A) D_h_ sizes (regularization method) of insulin DPs aspart, lispro 1 and lispro 2 stressed at 60–80℃ range. (B) D_h_ sizes (cumulants method) of insulin DPs aspart, lispro 1 and lispro 2 stressed at 60–80℃ range. Regularized (A) sweet spot range clearly shows D_h_ size similarity between the insulin lispro DPs lispro 1 and lispro 2 which have similar formulation.
Establishing signature peaks for mAb and insulin DPs
We wanted to test if all mAb and insulin DPs have different or similar D_h_ sizes at room temperature. For this test we evaluated a total of eight mAb DPs including NIST mAb, cetuximab, pembrolizumab, golimumab, rituximab, its biosimilars rituximab-pvvr and rituximab-abbs, as well as four insulin DPs (insulin lispros, insulin aspart, and insulin glulisine) in solution at 22℃ to establish their signature peaks. Data obtained (Fig. 9 and Figures S4, S5) indicated all the mAbs tested showed a signature D_h_ size peak between 8 and 13 nm while all the fast-acting insulin DPs tested showed a signature D_h_ size peak between 5 and 6 nm. To pick the appropriate data processing algorithms for mAb DPs, data from both cumulants and regularization data processing algorithms were evaluated. Our data (Figure S6) indicated that for our customized algorithm-based HT-DLS sweet spot method, regularization was the most suitable data processing algorithm.

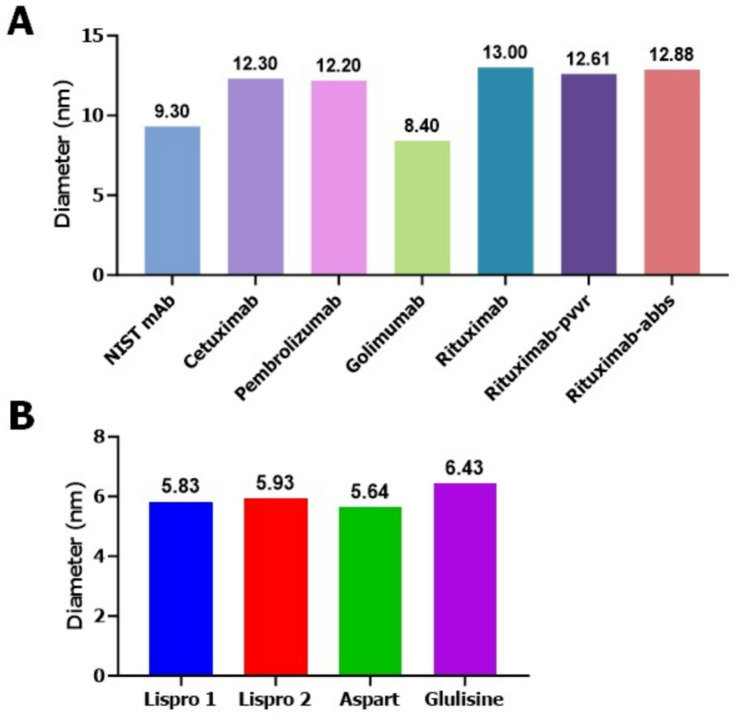

Fig. 9. Signature hydrodynamic (D_h_) size peaks of mAb and insulin DPs in solution at room temperature. (A) mAb DPs NIST mAb, cetuximab, pembrolizumab, golimumab, rituximab, rituximab-pvvr and rituximab-abbs were tested for D_h_ size at 22℃. (B) insulin DPs lispro 1, lispro 2, aspart and glulisine were tested for D_h_ size at 22℃. All mAb DPs show a signature peak between 8 and 13 nm (A) and all insulin DPs tested show a signature peak between 5–6 nm (B).
