Stochastic resonance of rotating particles in turbulence
Ziqi Wang, Xander M. de Wit, Roberto Benzi, Chunlai Wu, Rudie P. J. Kunnen, Herman J. H. Clercx, Federico Toschi
TL;DR
Researchers found that magnetic particles can detect and influence small-scale turbulence through a phenomenon called stochastic resonance, opening new ways to study and control turbulent flows.
Contribution
The study introduces the first experimental and numerical observation of stochastic resonance in turbulent particle dynamics and a novel symmetry-breaking mechanism.
Findings
Magnetic particles exhibit stochastic resonance in turbulence, enhancing rotational response to external magnetic fields.
A symmetry-breaking mechanism allows net particle rotation in zero-mean vorticity turbulence using oscillating magnetic fields.
The findings suggest a magnetic resonance-based method for measuring turbulent vorticity in optically inaccessible conditions.
Abstract
The chaotic dynamics of small-scale vorticity plays a key role in understanding and controlling turbulence, with direct implications for energy transfer, mixing, and coherent structure evolution. However, measuring or controlling its dynamics remains a major conceptual and experimental challenge due to its transient and chaotic nature. Here we use a combination of experiments, theory, and simulations to show that small magnetic particles of different densities, exploring flow regions of distinct vorticity statistics, can act as effective probes for measuring and forcing turbulence at its smallest scale. The interplay between the magnetic torque, from an externally controllable magnetic field, and hydrodynamic stresses, from small-scale turbulent vorticity, uncovers an extremely rich phenomenology. Notably, we present the first experimental and numerical observation of stochastic…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —501100003246Nederlandse Organisatie voor Wetenschappelijk Onderzoek (Netherlands Organisation for Scientific Research)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
Topicsstochastic dynamics and bifurcation · Particle Dynamics in Fluid Flows · Micro and Nano Robotics
Introduction
Turbulent flows, characterized by chaotic multi-scale fluctuations, are central to a wide range of natural and industrial processes^1,2^. A key challenge in turbulence research is the direct measurement and control of the vorticity, which is primarily concentrated in small-scale vortex filaments^3,4^. Due to their transient nature and rapid chaotic evolution, capturing the rotational dynamics of these filaments remains a major conceptual and experimental challenge. Several methods have been developed to infer small-scale turbulence characteristics, including particle tracking methods (e.g., tracer particles, deformable particles, and pattern-coated particles), as well as thermal and optical anemometry^5–7^. However, these approaches often suffer from inherent limitations such as insufficient spatial and temporal resolution, signal occlusion in optically dense environments, and difficulties in directly resolving vorticity at the smallest turbulence scales. As a result, achieving real-time, high-fidelity measurements of rotational motion in turbulent flows remains an ongoing challenge, particularly in complex and optically inaccessible flows.
A promising alternative is the use of magnetic particles, which respond to both stochastic vorticity fluctuations of turbulence (hydrodynamic torques^8^) and deterministic torques imposed by external magnetic fields. The dynamics of buoyant magnetic particles, in particular, are closely linked to the local vorticity. Particles with different densities exhibit distinct rotational behaviors as they explore different regions of the flow, leading to preferential concentration: light (heavy) particles tend to accumulate in high- (low-) vorticity regions^7,9,10^. These particles offer a unique dual role: they can serve as candidates for probing rotational fluctuations, while also enabling active flow manipulation through external forcing. This ability to modulate particle rotation and measure its response in real time provides a new pathway for investigating turbulence at small scales and suggests an elegant strategy for measuring turbulent vorticity. However, in order to unlock these novel directions, an accurate understanding of the complex interplay between hydrodynamic and magnetic torques on particle dynamics is required.
Previous studies have extensively explored magnetic particles in quiescent fluids under rotating magnetic fields, revealing rich phenomena such as self-assembly into chain-like structures^11,12^, synchronization-selected structures^13^, and more complex arrays^14^, enhanced mixing^11,12,15^, turbulence design^16–18^ and phase locking, where particles follow the rotating magnetic field with a constant phase lag with respect to the magnetic field when the rotating magnetic angular velocity ωH is below a threshold ωcr^19^. Investigations have also extended to self-propelling active magnetic particles (e.g., magnetotactic bacteria)^20,21^, magnetic Janus particles^13,22^, particles with different aspect ratios^23,24^, colloidal spinners and active swimmers^25–27^.
The competition and interplay between effects of turbulence and magnetic fields may lead to complex particle dynamics, yet to be understood, presenting a fundamental challenge in predicting and controlling particle behavior in turbulent environments.
Here, we explore this question by investigating the rotational dynamics of magnetic particles in turbulence under a rotating magnetic field. While deterministic synchronized and oscillation (back-and-forth) rotational regimes have been observed in zero-noise systems (e.g., compasses or rolling particles in quiescent fluids^28–30^), our work extends this understanding into the complex environment of fully developed turbulence. We systematically explore the complex interplay between deterministic external magnetic forcing and turbulent hydrodynamic torques, revealing a significantly richer phase space of particle rotational dynamics. We show that the effect of turbulence (vorticity) acts as an effective noise (Supplementary Information) and reveal the first signature of the emergence of stochastic resonance (SR)—a counterintuitive phenomenon where internal fluctuations non-linearly cooperate with external forcing to amplify the system response^31–39^—of particles in turbulence, which can be used as the mechanism of magnetic particles acting as effective vorticity probes for a novel type of turbulence “microscope”. While the concept of SR, initially observed in bistable systems subjected to noise and weak periodic signals, has since been extended to a wide range of physical and biological systems, as well as signal processing and computer science^40–45^, its role in turbulence-driven rotational dynamics remains mostly unexplored.
To identify potential SR signatures, we set out to leverage turbulent vorticity fluctuations as a source of noise and examine the response of the magnetic particle dynamics to the rotating magnetic field, by means of experiments, simulations, and theoretical modeling. Our experimental platform (Fig. 1a and e) involves a dilute collection of approximately spherical light magnetic particles (produced by Styrofoam core coated with magnetic paint, Fig. 1b, with a mean density of 20% with respect to water and with a mean diameter of 0.7 mm, see “Methods” for details) which are immersed in a Von Kármán-type turbulent flow (producing homogeneous and isotropic turbulence (HIT) in the center region of the cell^46–49^) in an octagonal water-filled chamber. Magnetic particles are designed to be light and of a size comparable to the Kolmogorov scale, allowing them to preferentially enter and interact with vortex filaments. The flow is generated by two counter-rotating bladed disks and the chamber is placed in a system of Helmholtz coils, which is programmed to generate a uniform magnetic field in a restricted measurement volume, H = H h, rotating in the xoy-plane with angular velocity vector \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{{{\boldsymbol{\omega }}}}}_{H}={\omega }_{H}\hat{{{{\bf{z}}}}}$$\end{document} where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hat{{{{\bf{z}}}}}$$\end{document} is the unit vector along the z-axis (“Methods” and Supplementary Information). As the induced magnetic dipole, m, of a particle tends to align with the magnetic field direction, h, the particle experiences a magnetic torque balanced by the rotational drag and spins around an axis in the particle body frame parallel to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hat{{{{\bf{z}}}}}$$\end{document} along its trajectory (as shown by typical stroboscopic time-lapse trajectories in Fig. 1c, d). The rotational motion is measured by tracking particle surface patterns (“Methods”).Fig. 1. Rotational dynamics of magnetic particles in a rotating magnetic field: “phase-locked” versus “back-and-forth” regimes.a Magnetic particles in turbulence under a rotating magnetic field: The experimental setup consists of a turbulence generator, a magnetic field generator, and magnetic particles. A Von Kármán-type turbulent flow is generated in an octagonal water-filled container with an internal diameter of 2R = 150 mm and a height of 220 mm, driven by two counter-rotating bladed disks. A uniform rotating magnetic field H = Hh, with angular frequency ωH, is generated using a system of two pairs of perpendicular Helmholtz coils. b Magnetic particles consist of a Styrofoam core coated with magnetic paint. Surface patterns enable tracking rotational motion, as illustrated in the stroboscopic time-lapse trajectories (c, d). e Photograph of the setup. f–i In a quiescent fluid, particles exhibit two rotational regimes: “phase-locked” (low ωH) and “back-and-forth” (high ωH). f (Supplementary Movie 1) and h (Supplementary Movie 2) show rotational trajectories within one rotation period, viewed in a plane perpendicular to the rotation plane of the magnetic field. The particle initial preferred magnetization direction n0 (dashed arrows) and instantaneous orientation n (solid arrows) are marked over time. During rotation within a quiescent fluid, n and h remain within the same plane^50^. The corresponding normalized particle angular velocity, ωp,i/ωH (i = x, y, z), is shown in (g and i). Detailed information about the experiments and simulations can be found in “Methods”.
Results
Theoretical representation
The particle rotation is characterized by a preferred magnetization direction, n (Fig. 2a), whose trajectory can be tracked in turbulence under the influence of a rotating magnetic field. By balancing the magnetic torque and drag torque induced by turbulence^19,50^ (“Methods” and Supplementary Information), the equations governing the particle rotational motion can be obtained, in the overdamped limit, as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d{{{\bf{n}}}}}{dt}={\omega }_{{{{\rm{a}}}}}({{{\bf{n}}}}\cdot {{{\bf{h}}}})\left({{{\bf{h}}}}-({{{\bf{n}}}}\cdot {{{\bf{h}}}}){{{\bf{n}}}}\right)+{{{{\boldsymbol{\omega }}}}}_{{{{\rm{f}}}}}\times {{{\bf{n}}}},$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d\left({\xi }_{{{{\rm{r}}}}}{{{{\boldsymbol{\omega }}}}}_{{{\rm{p}}},\parallel }\right)}{dt}=-{\xi }_{{{{\rm{r}}}}}\left({{{{\boldsymbol{\omega }}}}}_{{{\rm{p}}},\parallel }-\left({{{{\boldsymbol{\omega }}}}}_{{{{\rm{f}}}}}\cdot {{{\bf{n}}}}\right){{{\bf{n}}}}\right),$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{{{{\rm{a}}}}}=\mu {{{{\mathcal{V}}}}}_{{{{\rm{p}}}}}{H}^{2}({\chi }_{\parallel }-{\chi }_{\perp })/{\xi }_{{{{\rm{r}}}}}$$\end{document} is the magnetic field strength normalized by the rotational drag coefficient ξr, with μ, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{{{\mathcal{V}}}}}_{{{{\rm{p}}}}}$$\end{document} , and χ∥,⊥ the particle permeability, volume, and anisotropic magnetic susceptibilities, respectively^19,50,51^ (“Methods”). The term ωp,∥ represents the particle spinning rate. The perpendicular rotational component, ωp,⊥, can be obtained by \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{{{\boldsymbol{\omega }}}}}_{{{\rm{p}}},\perp }={{{\bf{n}}}}\times \dot{{{{\bf{n}}}}}$$\end{document} which represents the particle tumbling rate. The turbulent vorticity experienced by the particle is ωf, which is defined as \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{{{\boldsymbol{\omega }}}}}_{{{{\rm{f}}}}}=\frac{1}{2}{[{{{\boldsymbol{\nabla }}}}\times {{{{\bf{u}}}}}_{{{{\rm{f}}}}}]}_{{{{\rm{O}}}}}$$\end{document} with the subscript O implying evaluation at the center of mass of the particle. The total particle angular velocity is thus ωp = ωp,∥ + ωp,⊥.Fig. 2. Experimental validation of the theoretical model for particle rotational dynamics with turbulence.a Schematic of a magnetic particle in turbulence under a rotating magnetic field. The particle with preferred magnetization direction n is subjected to a magnetic field h in the xoy-plane, rotating around the z-axis with frequency ωH, and experiences turbulent vorticity ωf in homogeneous isotropic turbulence. The phase lag β (defined as the angle between the projection of n, i.e., nxoy, and h) and the rotation angle ψ (angle of nxoy relative to the x-axis) describe the particle dynamics. The dynamical evolution of β is governed by the interplay of the magnetic field rotation drag, magnetic torque, and turbulence torque. b–d Comparison of the probability density distribution function (PDF) of particle angular velocity in experimental (circles) and numerical (squares) studies. The experimental results (circles) are shown for varying magnetic field strengths with fixed turbulence intensity. b weak (1.2 mT, Supplementary Movie 3), c intermediate (1.4 mT, Supplementary Movie 4), and d strong (1.6 mT, Supplementary Movie 5), with constant rotational frequency of the magnetic field (parameter settings can be found in the “Methods” and Supplementary Information).
In a noiseless system, i.e., ωf = 0, the critical frequency is ωcr = ωa/2 (details in Supplementary Information). For ωH ≤ ωcr, the particle is synchronized with the rotating magnetic field ("phase-locked”), i.e., ωp,z = ωH. Otherwise, when ωH > ωcr, the particle undergoes back-and-forth motion ("back-and-forth”) when the maximum magnetic torque cannot balance the response drag torque: the phase lag angle β between nxoy (the projection of n on xoy-plane) and h changes periodically over time^20^. These two regimes can be observed experimentally (Fig. 1f–i). In the “phase-locked” regime (Supplementary Movie 1), the particle rotates synchronously with the magnetic field, as evidenced by the normalized angular velocity, ωp,z/ωH ≈ 1, in Fig. 1g. In the “back-and-forth” regime (Supplementary Movie 2), the particle oscillates periodically (Fig. 1i).
As illustrated in the schematic diagram of Fig. 2a, the dynamics of the particle preferred magnetization direction, n, is fundamentally characterized by the phase lag angle, β, with respect to h on the *xoy-*plane. The governing equations, Eqs. (1), can be simplified and explicitly written as (derivations in “Methods”)
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }={\omega }_{H}-\frac{{\omega }_{{{{\rm{a}}}}}}{2}\sin 2\beta -{\omega }_{{{\rm{f}}},z}.$$\end{document}Geometrically, we have β = ωHt–ψ. The phase lag angle β represents the particle rotational displacement in the co-rotating frame of the magnetic field, while ψ is the rotation angle of the projection n on the xoy-plane with respect to the x-axis, which describes the particle rotational displacement in the laboratory frame. The turbulent vorticity signal, ωf, represents the vorticity experienced by the particle center along its trajectory. This simplified representation, Eq. (2), separates different contributions and clearly shows that the rotational motion of the particle results from the interplay between the magnetic field rotational drag, the magnetic torque, and the turbulence drag torque (Fig. 2a).
Switching on turbulence
Now we wonder how this picture will change when turbulence is taken into consideration. The turbulence induces fluctuations on the small particles of a typical magnitude ωη = 1/τη, the Kolmogorov characteristic frequency. Experimentally, we turn on the turbulence and vary the intensity of the magnetic field. By statistically analyzing the probability density function (PDF) of the particle angular velocity ωp, a dominant peak is observed in the z-direction at approximately ωp,z ≈ ωH (Fig. 2b–d, purple circles), while the angular velocities in the x and y directions are similar to each other but significantly different from that in the z-direction (Fig. 2b–d, yellow and green circles).
To understand the influence of turbulence on the particle dynamics further, we carry out a systematic numerical investigation. To model the motion of light particles in HIT, we first perform direct numerical simulations using a pseudo-spectral method^10,52,53^ to obtain ωf (see “Methods” for details). The resulting vorticity data is then incorporated into the theoretical model, Eqs. (1), which is integrated using a third-order Runge–Kutta method.

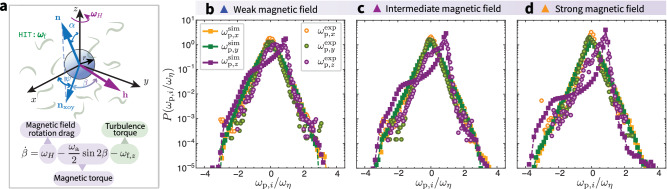

The simulated particle rotation is validated against the experimental results (Fig. 2b–d and Supplementary Movies 3–5, respectively). Notably, the theoretical model (squares) accurately captures the essential statistical physics (peak positions) of the particle stochastic rotational dynamics in the experiments (circles). The slight discrepancies in the PDF shapes arise from polydispersity in particle shape and magnetic properties in experiments which influences how individual particles respond to an external magnetic field, whereas the simulations assume idealized spherical particles with the same magnetic characteristics for each particle (“Methods” and Supplementary Information). Further comparisons between simulation and experimental results all demonstrate good qualitative agreement (Supplementary Information, Supplementary Movies 9 and 10).
Additionally, to gain deeper insight into the stochastic nature of particle rotation in turbulence, we analyze the waiting time, τ—the duration between successive transitions of β between its metastable states—to characterize the nature of turbulence-induced noise in the absence of external forcing (i.e., ωH = 0). The Poisson-like distribution of τ confirms that, within the investigated parameter space, stochastic transitions induced by turbulent (vorticity) fluctuations can be effectively modeled using white noise with an equivalent intensity (Supplementary Information).
Three distinct regimes of particle dynamics
With the theoretical model capturing the core dynamics of this complex system, and with simulations allowing exploration of a broader parameter space and finer details of particle rotation, we systematically investigate how turbulence-induced vorticity fluctuations and the deterministic magnetic forcing shape particle rotational dynamics.

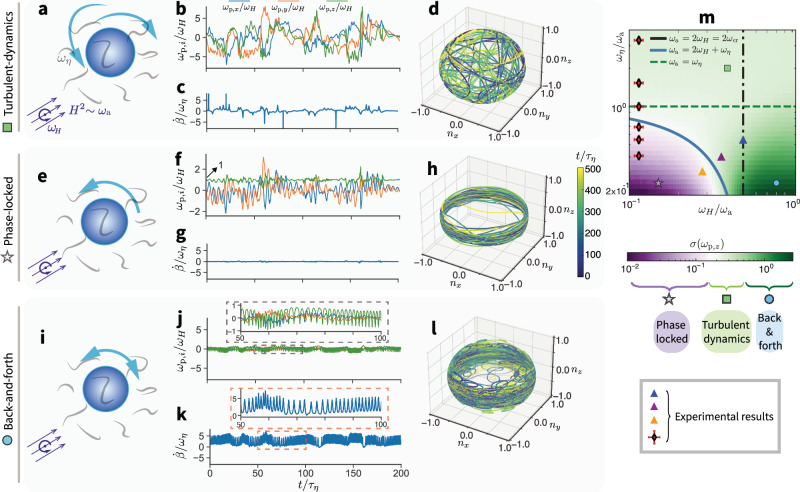

Beyond the previously identified “phase-locked” and “back-and-forth” regimes, we uncover a third regime: the turbulence-dominated regime, observed at small ωa w.r.t. ωη, when the effect from the magnetic field is negligible. Here, the particle rotation is primarily driven by turbulence, and its normalized angular velocity, ωp/ωH, fluctuates randomly around zero with no net angular drift (Fig. 3b), as evidenced by the random orientation distribution of the particle orientation, n (Fig. 3d and Supplementary Movie 6). Consequently, the phase lag β and its derivative are also randomized (Fig. 3c). In the “phase-locked” regime (ωa ≫ ωη, ωH < ωcr), the particle phase lag, β, remains constant, meaning \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }=0$$\end{document} (Fig. 3g). The particle angular velocity along the magnetic field rotation axis (z-axis) is locked to ωH (Fig. 3f, green line). The particle orientation is strongly confined, exhibiting 2D behavior (Fig. 3h and Supplementary Movie 7). In the “back-and-forth” regime (ωa ≫ ωη, ωH > ωcr), the particle undergoes periodic acceleration and deceleration (Fig. 3j, k, inset), forming distinct looping patterns in its orientation trajectory (Fig. 3l and Supplementary Movie 8). These regimes are summarized in a phase diagram, characterized by the normalized variance of the particle angular velocity in the z-direction, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle {\omega }_{\,{{\rm{p}}}\,,z}^{2}-{\langle {\omega }_{{{\rm{p}}},z}\rangle }^{2}\rangle /{\omega }_{\eta }^{2}$$\end{document} , where 〈 ⋅ 〉 represents a time average. The noiseless critical frequency ωcr = ωa/2 is marked by a black dot-dashed line. Unlike in a quiescent fluid, the phase-locked regime (Fig. 3m, purple region) is bounded by the blue line, predicted by the scaling argument based on the simplified governing equation of Eq. (2): ωa = 2ωH + ωη (detailed reasoning can be found in “Methods”). This shift in the subcritical boundary, relative to the noiseless case (ωa = 2ωH), accounts for the influence of turbulence fluctuations, which have a standard deviation on the order of ωη.Fig. 3. Three distinct regimes of magnetic particle rotation dynamics in turbulence under a rotating magnetic field.a Turbulence-dominated regime (ωa ≪ ωη). b The normalized particle angular velocity, ωp/ωH, exhibits turbulent fluctuations with a zero-average and the phase lag derivative, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }$$\end{document} is randomized (c). d The evolution of the tip of preferred magnetization direction of the particle, n, is visualized in space, with color indicating time progression (Supplementary Movie 6). The random distribution of orientations confirms the turbulent-dominated nature. e “Phase-locked” regime (ωa ≫ ωη, ωH < ωcr): The angular velocity of the particle along the magnetic field rotation axis (z-axis) is locked to ωH (f, green line), with zero net drift for other components (f, blue and orange lines). The phase lag derivative \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }$$\end{document} is effectively zero (g) and the particle orientation follows a 2D trajectory (h, Supplementary Movie 7). i “Back-and-forth” regime (ωa ≫ ωη, ωH > ωcr): The angular velocity of the particle along the z-axis exhibits periodic acceleration and deceleration oscillations (j, inset), and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }$$\end{document} varies similarly (k, inset). The orientation vector oscillates periodically (back-and-forth looping in l, Supplementary Movie 8). m, Phase diagram of particle rotation regime, colored by the normalized variance σ(ωp,z) of the particle angular velocity along the z-direction, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma ({\omega }_{{{\rm{p}}},z})=\langle {\omega }_{\,{{\rm{p}}}\,,z}^{2}-{\langle {\omega }_{{{\rm{p}}},z}\rangle }^{2}\rangle /{\omega }_{\eta }^{2}$$\end{document} . Black dot-dashed line: the critical frequency, ωcr = ωa/2. Green dashed line: the condition where the turbulence fluctuation intensity is balanced by the magnetic strength, i.e., ωa = ωη. The phase-locked regime is bounded with the blue thick line, predicted by the scaling analysis, i.e., ωa = 2ωH + ωη. Symbols (square, star, and circle): representative cases from the three distinct regimes shown in earlier panels. Triangle markers: experimental settings from Fig. 2b–d. The diamond symbols denote the experimental results at ωH/ωa = 0.12 ± 0.01, providing evidence of stochastic resonance, which will be discussed further in Fig. 4a and c.
Stochastic resonance

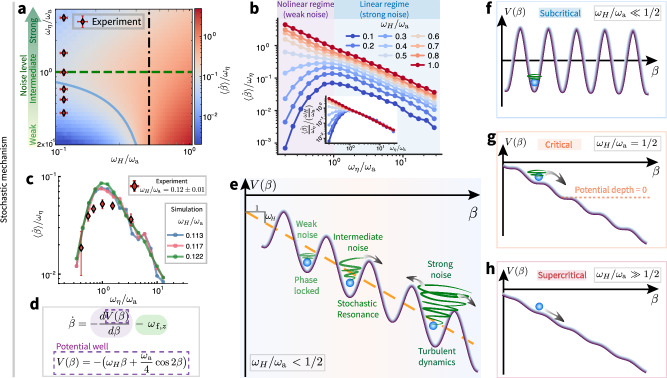

To determine whether SR occurs, we focus on the β and its behavior across different parameter settings. We summarize the time-averaged value of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} in one phase diagram (Fig. 4a), with ωη/ωa (vertical axis) quantifying the relative turbulent fluctuation intensity (noise) to the applied magnetic field strength, and ωH/ωa (horizontal axis) distinguishing noiseless subcritical, critical (i.e., ωH/ωa = 1/2, black dot-dashed line), and supercritical states.Fig. 4. Stochastic resonance.a Phase diagram of stochastic resonance. The color represents the normalized time-averaged phase lag derivative, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} . The vertical axis, ωη/ωa, quantifies the relative intensity of turbulent fluctuations (noise) to the magnetic field strength. The horizontal axis, ωH/ωa, distinguishes subcritical, critical (ωH/ωa = 1/2, marked by the black dot-dashed line) and supercritical regimes. For a fixed ωH/ωa in the subcritical (supercritical) range, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} exhibits a non-monotonic (monotonic) dependence on noise. A pronounced resonant peak appears at ωη/ωa ≈ 1 when ωH/ωa < 1/2 (b), with a perfect collapse in the linear regime when normalized by ωH/ωa (b, inset). The diamond symbols in (a) denote the parameter settings for experiments shown in (c). c Experimental evidence of stochastic resonance (diamonds) at ωH/ωa = 0.12 ± 0.01. For comparison, simulation results at a similar value of ωH/ωa (circles) are also shown. The error bars correspond to the standard deviation calculated from 20 independent measurements at the same parameter value. d Effective potential well framework: the magnetic field contributes a cosine potential modulated by a linear term, and turbulence acts as a stochastic noise, see Eq. (2). When ωH/ωa < 1/2 (e), for weak noise, the phase lag remains near the local minimum of the potential well. As noise increases, the particle phase lag exhibits unidirectional escape, signaling stochastic resonance. At even higher noise levels, escape becomes bidirectional, leading to a subsequent decline in \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle$$\end{document} . For ωH/ωa ≪ 1/2, the potential well is sufficiently deep to strongly localize the particle phase lag (f). At the critical threshold ωH/ωa = 1/2, the potential well vanishes, making the phase lag sensitive to small perturbations (g). In the supercritical range (ωH/ωa ≫ 1/2), the potential well inherently favors persistent phase slipping, regardless of noise intensity (h).
For a fixed ωH/ωa in the subcritical regime (ωH/ωa < 1/2), the particle rotation in the co-rotating frame \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} exhibits a non-monotonic dependence on noise intensity (Fig. 4b), with a pronounced resonant peak at ωη/ωa ≈ 1, indicating that resonance arises at the transition from the “phase-locked” regime to the “turbulent-dynamics” regime. This is a clear suggestion that the observed resonance behavior results from the cooperation between turbulent fluctuations and magnetic forcing. SR is also clearly observed experimentally, as shown in Fig. 4c: diamonds denote the experimental results at ωH/ωa = 0.12 ± 0.01 (corresponding to the points marked in the phase diagram in Fig. 4a), while circles represent the simulation results at a comparable value of ωH/ωa for direct comparison. The experimental and simulation results agree reasonably well; at the resonance peak, the experimental curve appears flatter which can be attributed to effects of polydispersity of the particles used in experiments. The resonance mechanism can be interpreted via an effective potential well framework (Fig. 4d), where the magnetic field induces a cosine-type potential (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-\frac{{\omega }_{{{{\rm{a}}}}}}{4}\cos 2\beta$$\end{document} ) modulated by a linear term (i.e., −ωHβ), while turbulence acts as a stochastic noise.
For ωH/ωa < 1/2 (Fig. 4e), the phase lag angle is initially trapped in the potential minimum at weak noise levels (small ωη/ωa), exhibiting only mild fluctuations locally. As the turbulence-induced fluctuations become comparable to the magnetic field strength (ωη/ωa ≈ 1), preferential unidirectional escape occurs. This clearly identifies the observed resonant behavior as an example of SR: a cooperative interplay between stochastic forcing and the external deterministic forcing. This phenomenon can be thought of as the particle “surfing” the rotating magnetic field, aided by the turbulent vorticity. At even higher noise levels, randomization overrides the cooperative effect, causing bidirectional escape and a decline in \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle$$\end{document} .
At the critical threshold ωH/ωa = 1/2, the potential well vanishes, rendering β critically sensitive to any perturbations (Fig. 4g). In the supercritical range (ωH/ωa ≫ 1/2), the potential well inherently favors persistent phase slipping, regardless of noise intensity (Fig. 4h), such that the SR mechanism vanishes in this regime.
In strongly subcritical regime (ωH/ωa ≪ 1/2), the resonance peak is purely set by the turbulent noise, making it sensitive to the preferential sampling effect^7,9,10^ (see Supplementary Information for neutral and heavy particles results). Here we introduce the relaxation time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\tau }^{*}=1/\left({\omega }_{{{{\rm{a}}}}}\sqrt{1-4{\left(\frac{{\omega }_{H}}{{\omega }_{{{{\rm{a}}}}}}\right)}^{2}}\right)$$\end{document} . Physically, τ^^ represents the characteristic time it takes for a perturbed particle rotational motion to return to its phase-locked state, i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{\beta }=0$$\end{document} , after a small disturbance (detailed derivations are in Supplementary Information). Close to the critical ratio ω_H_/ωa = 1/2, the significantly increasing particle relaxation time τ^^ shifts the resonance position, making it the dominant factor. Therefore, a longer τ^*^ allows particles to escape the potential well even at lower noise levels.
Symmetry breaking mechanism
A striking consequence of SR is the symmetry-breaking effect, manifesting as a “zero plus zero is greater than zero” phenomenon. This leverages the fact that in the weak noise regime (ωη < ωa), the response of the system to the noise is non-linear (Fig. 4b, purple-shaded part).

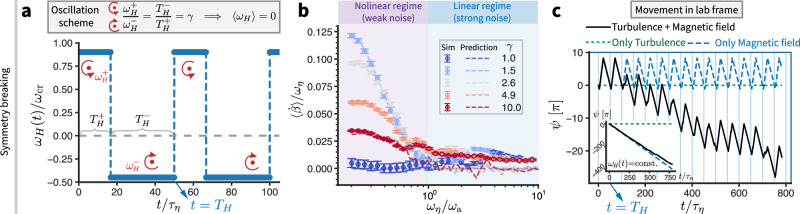

To reveal this effect, instead of applying a constant-frequency rotating magnetic field (ωH), we now impose a time-dependent field rotation with a zero-average, ωH(t) (Fig. 5a). Each oscillation cycle consists of a forward and a reverse rotation phase, characterized by angular velocities \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{H}^{+}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{H}^{-}$$\end{document} with corresponding durations \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${T}_{H}^{+}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${T}_{H}^{-}$$\end{document} . These parameters are scaled as \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{H}^{+}/{\omega }_{H}^{-}={T}_{H}^{-}/{T}_{H}^{+}=\gamma$$\end{document} , ensuring that the net angular velocity over a full cycle remains zero. Two distinct response regimes emerge as ωη/ωa increases for a fixed γ (Fig. 5b), highlighting the ability of this oscillation framework to probe the nonlinearity of the system in response to noise. Specifically, the response \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} decreases monotonically in the nonlinear regime (weak noise limit), while it remains nearly constant and close to zero in the linear regime (strong noise limit, characterized by response collapse, see also Fig. 4b, inset). This behavior aligns well with a superposition model, which predicts the response as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle=\frac{\langle \dot{\beta }({\omega }_{H}^{+})\rangle {T}_{H}^{+}-\langle \dot{\beta }({\omega }_{H}^{-})\rangle {T}_{H}^{-}}{{T}_{H}},$$\end{document}with \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${T}_{H}={T}_{H}^{+}+{T}_{H}^{-}$$\end{document} , where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }({\omega }_{H}^{+})\rangle$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }({\omega }_{H}^{-})\rangle$$\end{document} are interpolated from the numerical results in Fig. 4b. The predicted trends (Fig. 5b, dashed lines) show excellent agreement with the frequency-modulated field results (Fig. 5b, symbols).Fig. 5. Symmetry breaking.a The applied magnetic field oscillates with zero-average angular velocity, ωH(t). Without loss of generality, we set \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{H}^{+}/{\omega }_{H}^{-}={T}_{H}^{-}/{T}_{H}^{+}=\gamma \ge 1$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\omega }_{H}^{+}=0.9{\omega }_{{{{\rm{cr}}}}}$$\end{document} . b The normalized phase lag derivative, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} , shows distinct regimes as noise intensity ωη/ωa increases for fixed γ. In the nonlinear regime (low noise), \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\langle \dot{\beta }\rangle /{\omega }_{\eta }$$\end{document} decreases monotonically, while in the linear regime (strong noise, where system responses collapse, see Fig. 4b, inset), it remains nearly unchanged and close to zero. When γ = 1, the particle rotation motions cancel each other out in \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${T}_{H}^{-}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${T}_{H}^{+}$$\end{document} , resulting in a zero response. The observed deviation from a strictly zero value in the simulations is attributable to the finite periods of the applied oscillation cycles of ωH(t). Theoretically, with an infinite simulation time, the value would converge to zero. The error bars represent the standard deviation of the results obtained by sampling over one full period of ωH(t) at the final stage of the simulation. The predicted trends by the superposition model of Eq. (3) (b, dashed lines) exhibit excellent agreement with the numerical data (b, symbols). c Particle motion in laboratory frame. With turbulence alone (green dotted line), the particle shows no net angular movement in terms of ψ; with only the magnetic field (blue dashed line), the motion is periodic with zero net angular displacement. When both effects act together, a net angular movement emerges (black solid line), revealing symmetry-breaking mechanism. This is different from the case of constant ωH (inset), where the particle follows ψ = ωHt (black solid line) when it is purely driven by a magnetic field. Parameter settings are TH = 50τη ≈ TL with TL the integral time scale of turbulence, ωη/ωa = 0.25, and γ = 2. Inset: ωη/ωa = 0.25 and ωH/ωa = 0.4.
We emphasize that when combining turbulence and the frequency-modulated magnetic field in this way, this leads to particle motion directly in the lab frame. To evidence this, we consider the lab-frame angular particle motion ψ(t) (Fig. 5c). With turbulence alone, the particle exhibits no net angular movement (green dotted line). Under a purely frequency-oscillatory magnetic field, the particle undergoes periodic motion with zero net angular displacement (blue dashed line). However, when both effects act concurrently, a net, non-zero mean angular drift remarkably emerges (black solid line), as the turbulent vorticity aids the particle in “surfing” the magnetic field, which reveals an unexpected symmetry-breaking mechanism in turbulent flows. This stands in contrast to the case of a constant ωH (Fig. 5c, inset), where a purely magnetic field-driven particle, instead of showing zero net angular movement as in the oscillating ωH scheme, follows ψ = ωHt (black solid line).
Discussion
We have revealed the first experimental and numerical evidence of SR for magnetic particles suspended in turbulence, demonstrating how the interplay between turbulent fluctuations and external forcing induces coherent rotational motion of magnetic particles. Three distinct regimes: “phase-locked”, “back-and-forth”, and “turbulent-dynamics” are identified, with SR occurring at the transition between “phase-locked” and “turbulent-dynamics” regimes. Remarkably, even when both turbulence and the magnetic field have zero mean angular velocity, their collective effect is capable of generating a nonzero particle rotational response, as the turbulent vorticity helps the particle to “surf” the rotating magnetic field.
Different particle properties influence their response, and when combined with the SR mechanism, they enable a novel magnetic resonance-based approach to measure turbulent vorticity. This method leverages activated magnetic particles as probes, effectively functioning as a turbulent vorticity “microscope” that operates in various conditions. In the present work, we validate this concept using optical measurements of particle rotation. However, in principle, once the angular response is well-characterized, the same protocol could be applied even in optically inaccessible environments by measuring the magnetic fields emitted by the spinning magnetic particle directly. This concept shares similar principles with Magnetic Particle Spectroscopy, a technique that uses the dynamic magnetic responses of magnetic particles to remotely sense properties of their surrounding environment^54^. In such scenarios, the activated magnetic particles would function as remotely readable vorticity probes. The protocol is straightforward: by dispersing magnetic particles into turbulence and varying the magnetic frequency ωH and intensity ωa while maintaining a constant ratio ωH/ωa, one can measure the resonance curve of the averaged particle angular response. The location of the resonance peak directly reveals the turbulent vorticity magnitude.
While the present work focuses on understanding particle angular dynamics, it lays essential groundwork for subsequent investigations into how these actively tunable particles can shape turbulent structures, opening possibilities for flexible manipulation of turbulence, where propeller-like particles could be tuned to navigate specific flow structures, inject energy into turbulence, and influence flow properties such as intermittency^55^. More broadly, our study provides fundamental mechanisms that externally tunable rotational dynamics could be leveraged to design active materials^56–58^. If organized coherently, their collective behavior may also exhibit hydrodynamic properties analogous to systems with odd viscosity, which may be promising experimental realizations of chiral fluids^59,60^.
This research paves the way for innovative experimental techniques, offering a simple yet underutilized approach to studying and controlling turbulence dynamics.
Methods
Experimental setup

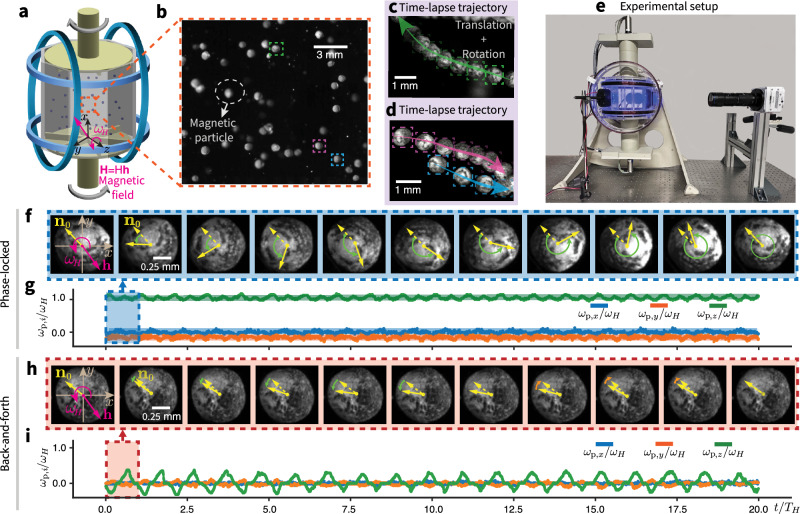

The experimental setup comprises three fundamental components: a turbulence generator, a magnetic field generator, and magnetic particles. Detailed specifications of the experimental apparatus, along with a comprehensive description of the particle rotation tracking methodology, are not relevant to the core physics of current work, and hence they are provided in our dedicated instrumentation and methodology paper^61^. Here, we present only the essential information pertinent to the current study.
